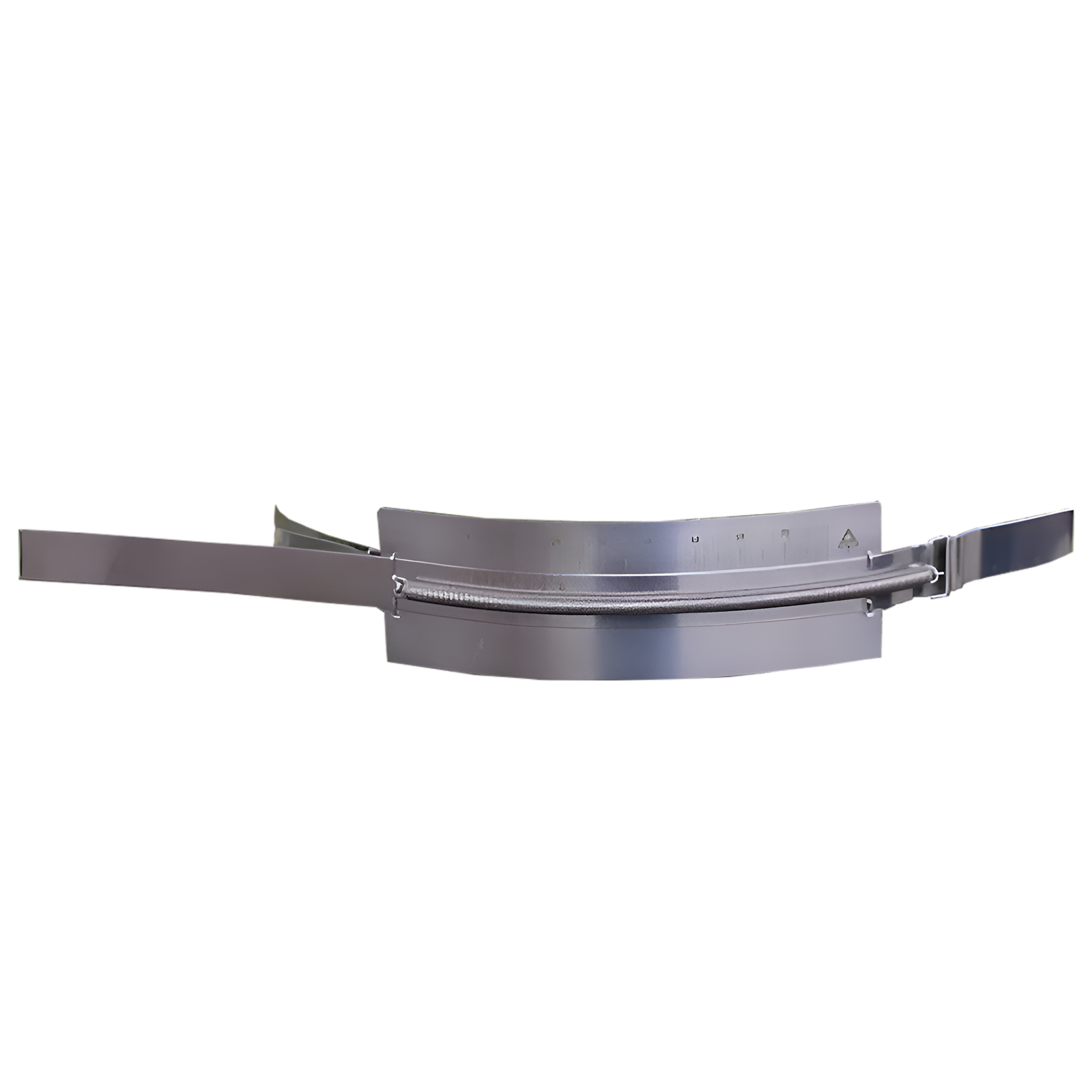

DB20 Dendrometer Increment Sensor with Stainless Steel Band for Trunks from 8 cm

Request Quote

Monitor Tree Growth with Precision: EMS DB20 Band Dendrometer

Easily measure trunk diameter increment without harming the tree, ideal for long-term forestry studies.



The EMS DB20 Manual Band Dendrometer is a stem increment sensor that enables precise measurement of radial tree growth through a non-invasive installation. Its durable stainless-steel design and easy setup make it an ideal choice for researchers and forestry professionals. Readings are taken manually, allowing detailed monitoring without the need for power or electronic devices.

Features

• Manual reading sensor: Requires no electrical power or digital devices.
• Non-invasive installation: Secured by folding the tape ends, causing no harm to the trunk.
• Compatible with multiple trunks: Reusable tape as long as it remains undamaged.
• High precision: 0.1 mm measurement resolution for detailed monitoring.
• Wide increment range: Measures up to 60 mm of trunk expansion.
• Durable material: Made of stainless steel to withstand environmental conditions.
• Flexible sizing: Fits trees with a diameter starting at 8 cm.
• Low-maintenance and robust: Ideal for long-term field studies.

• Specifications
• In the Box
• Documents

• Specification	EMS DB20
  Minimum tree diameter	8 cm
  Increment range	60 mm
  Minimum spring tension	5 N @ 0 mm
  Maximum spring tension	15 N @ 50 mm
  Tape material	Stainless steel
  Buckle material	Stainless steel
  Resolution	0.1 mm
  Reading	Manual with scale and nonius

• • EMS DB20 sensor with buckle and nonius
  • Stainless steel tape (20 m)
• • Technical Data Sheet
