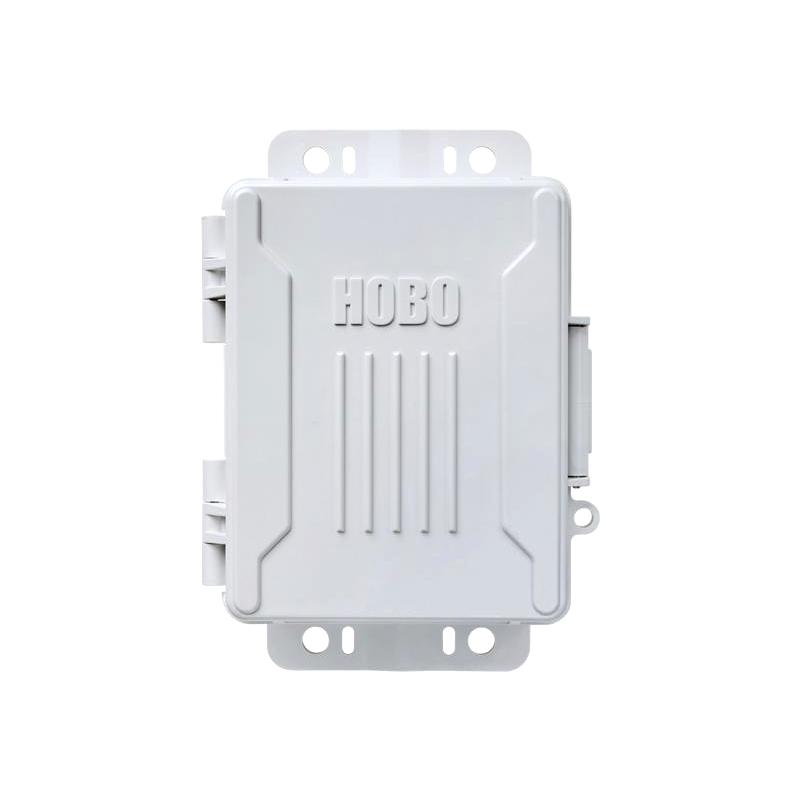

HOBO Micro Station Data Loggers

Multichannel Data Logging Solution for Microclimates

Robust and compact, the redesigned HOBO USB Micro Station is a weather-resistant data logger for multichannel microclimate monitoring. This battery-powered station supports up to five plug-and-play smart sensors and features a hinged door for quick and easy sensor installation. The Micro Station comes with a built-in USB port for fast and efficient data readout to a computer and an integrated mounting tab for easy installation.

Features

Compact size for easy deployment.

IP66 weatherproof housing for harsh environments.

Direct USB download—no adapter cable required.

Includes five smart sensor inputs.

Hinged door and integrated mounting tabs.

Operates up to one year with four standard AA batteries.

Compatible with HOBOware and HOBOware Pro software for logger setup, graphing, and analysis.

What environments does this station operate in?

Indoor and outdoor environments.

What measurements does this station support?

4-20 mA, Amp Hour (Ah), barometric pressure, DC voltage, kilowatt hours (kWh), leaf wetness, light intensity, power factor (PF), pulse input, rain, relative humidity, soil moisture, temperature, reactive volt-amperes, reactive volt-amp hours, volt-amperes (VA), water flow, watt-hours (Wh), watts (W), and wind.

Features	Logger
Operating Range	-20 ° to 50 °C (-4 ° to 122 °F) with alkaline batteries -40 to 70 °C (-40 to 158 °F) with lithium batteries
Smart Sensor Connectors	5
mart Sensor Data Channels	Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Smart Sensor Network Cable Length	100 m maximum(328 ft maximum)
Logging Interval	1 second to 18 hours
Start Modes	Immediate, at interval, push button, or delayed start
Memory Modes	Stop when full or wrap when full
Memory	512 KB non-volatile flash data storage
Accuracy	0 to 2 seconds for the first data point and ±5 seconds per week at 25 °C (77 °F)
Battery Type	Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (Four AA 1.5 V alkaline batteries for operating conditions of -4° to 122°F) Four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (Four AA 1.5 V lithium batteries for operating conditions of -40 to 158°F)
Battery Life	1 year, typical use (up to five sensors with 1 minute or greater logging interval)
Communication Type	USB 2.0 interface
Full Memory Download Time	4 minutes
Enclosure Access	Hinged door secured with a latch and eyelet for user-supplied padlock
Materials	Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gasket: Silicone foam; Cable channel: EPDM rubber
Dimensions	17.04 x 11.94 x 4.47 cm
Weight	414 g
Environmental Rating	IP50
CE	CE marking identifies this product as complying with all relevant directives in the European Union (EU)
