Kanomax Data Logger Hot Wire Thermo Anemometers 6036 Series Anemomaster

Kanomax 6036 Series Anemomaster Hot-Wire Thermo-Anemometers: High-Precision Measurement in HVAC and Controlled Environments

Designed for Demanding Technicians Requiring Reliable Real-Time Results

The Anemomaster series is the preferred choice for most HVAC applications, offering an accuracy of 3% m.v., equivalent to high-end competitor units. It comes equipped with a 1500-measurement data logger, PC software, and an innovative telescopic and articulated probe that facilitates measurement in hard-to-reach ducts. You can program duct sizes and shapes to obtain volumetric flow rates directly. Its modern and robust design, combined with its high precision and additional features, make it the best choice for HVAC testing, facility maintenance, and critical environment certifications.

Key Features

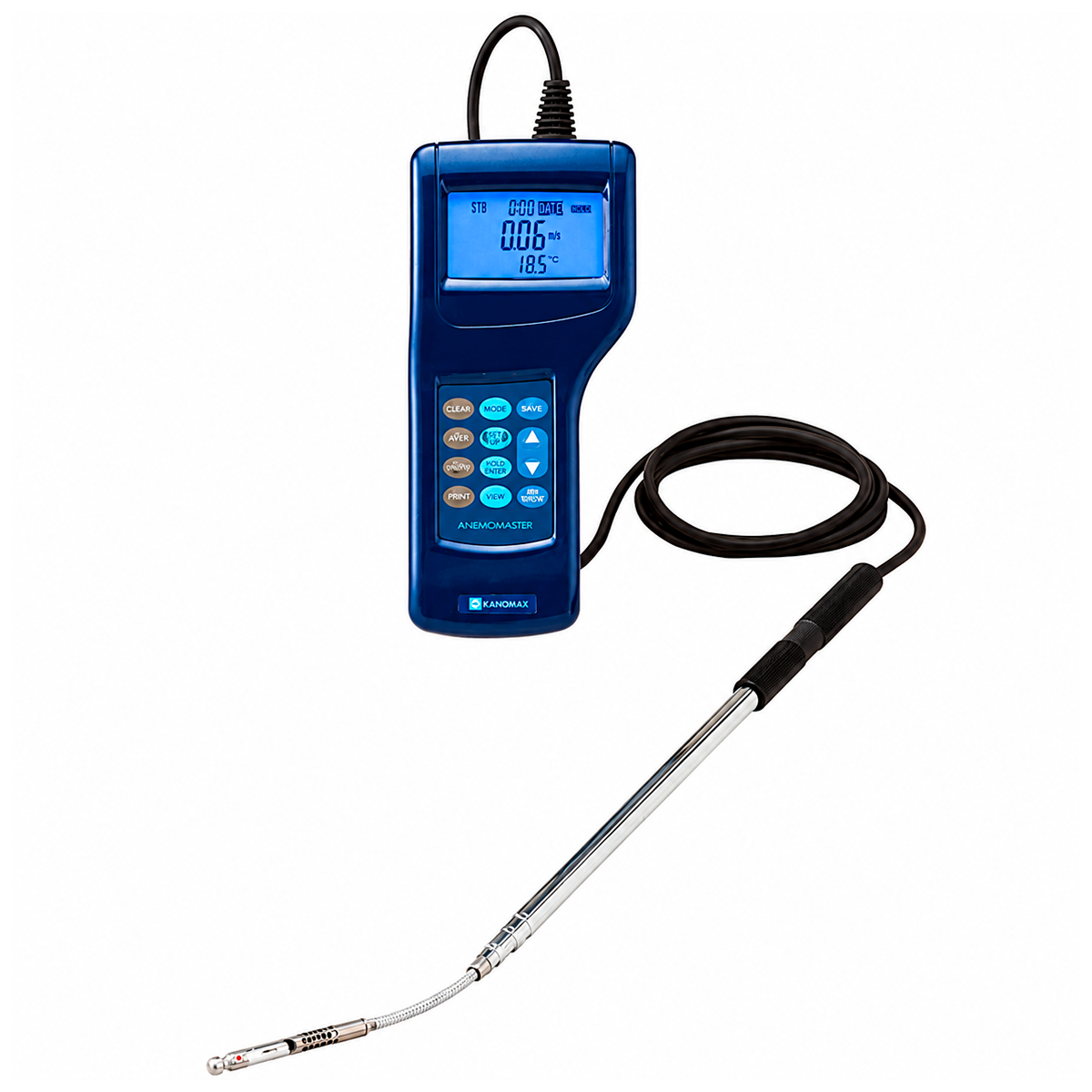

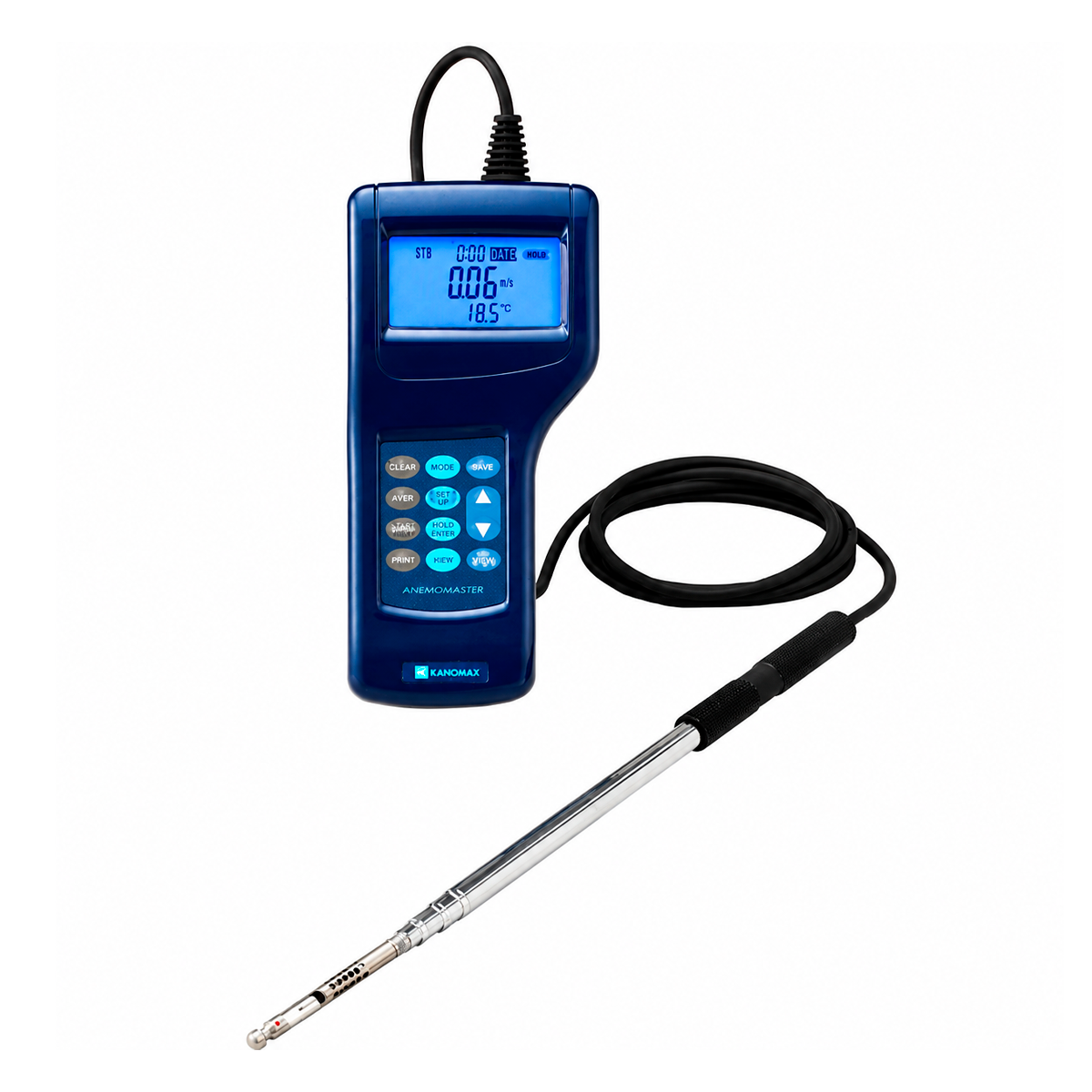

• Telescopic and Articulated Probe. Its unique and durable design allows you to reach and measure in ceiling ducts and hard-to-reach places with the correct angle.
• Professional Precision. With an accuracy of ±3% of reading, it offers reliable measurements equivalent to much more expensive instruments.
• Volumetric Flow Calculation. Program the dimensions of round, square, or rectangular ducts to obtain flow readings directly on the device.
• Data Logger and Included Software. Stores up to 1500 measurements and uses the PC software to download, analyze data, and generate professional reports.
• Advanced Model Available. Choose model 6036-CE to add differential pressure measurement and analog output functions.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

•


  Air Velocity
  Range	0.01 to 30.0 m/s (2 to 6000 FPM)
  Accuracy	±3% of reading ±0.015 m/s
  Air Temperature
  Range	-20 to 70°C (-4 to 158°F)
  Accuracy	±0.5°C (±1°F)
  Differential Pressure (Model 6036-CE Only)
  Range	-5 to +5 kPa
  Accuracy	±3% of reading ±0.01 kPa

  ---

  Model Comparison

  Function	6036-0E (Standard)	6036-CE (Advanced)
  Telescopic and Articulated Probe
  Differential Pressure	-
  Analog Output	-
  USB Interface and Printer

  ---

  Additional Technical Specifications

  Analog Output (6036-CE Only)	DC 0 to 3V
  Data Logger	Stores up to 1500 measurements
  Power Supply	6 × AA Batteries or AC Adapter
  Weight	0.50 kg (1.1 lbs)
  Warranty	2 years

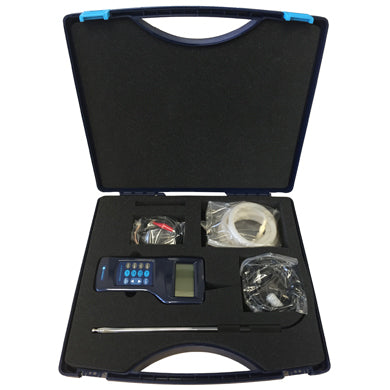

• • 1x Anemomaster Meter (Model 6036-0E or 6036-CE)
  • 1x Telescopic and articulated probe
  • 1x Hard carrying case
  • 6x AA Batteries
  • 1x USB Cable
  • 1x PC Analysis Software
  • 1x NIST Calibration Certificate
  • 1x Operation Manual (English)
• • No additional items are required for basic operation
• • AC Adapter for extended laboratory use
  • Portable printer for field reports
  • Pitot Tube (for model 6036-CE)
• • User Manual (English)
