TeleDart Projector Needles

TeleDart® Injection Needles

Injection needles designed for scientific research applications, environmental monitoring, wildlife conservation, and wildlife management, available in multiple lengths, diameters, and configurations to suit different field needs.

TeleDart® injection needles are available for a wide variety of animal species and applications in scientific research, environmental monitoring, conservation, and responsible wildlife management. The range includes different lengths, diameters, and configurations, allowing the most suitable option to be selected according to the animal’s characteristics and procedural requirements.

Their innovative needle base ensures an optimal fit with TeleDart® dart syringes, forming a fully sealed and secure unit that promotes efficient administration of medications or anesthetics during fieldwork and conservation programs.

TeleDart® needles feature a closed tip and two lateral injection ports located between 0.5 cm and 0.8 cm behind the tip. This design promotes efficient transfer and release of the contents while reducing the risk of clogging during use.

To facilitate installation and removal of the needles, a specialized TeleDart® tool is available, specifically designed to work with the needle base. Each needle is supplied with 5 silicone sealing sleeves for use and maintenance.

Featured Characteristics

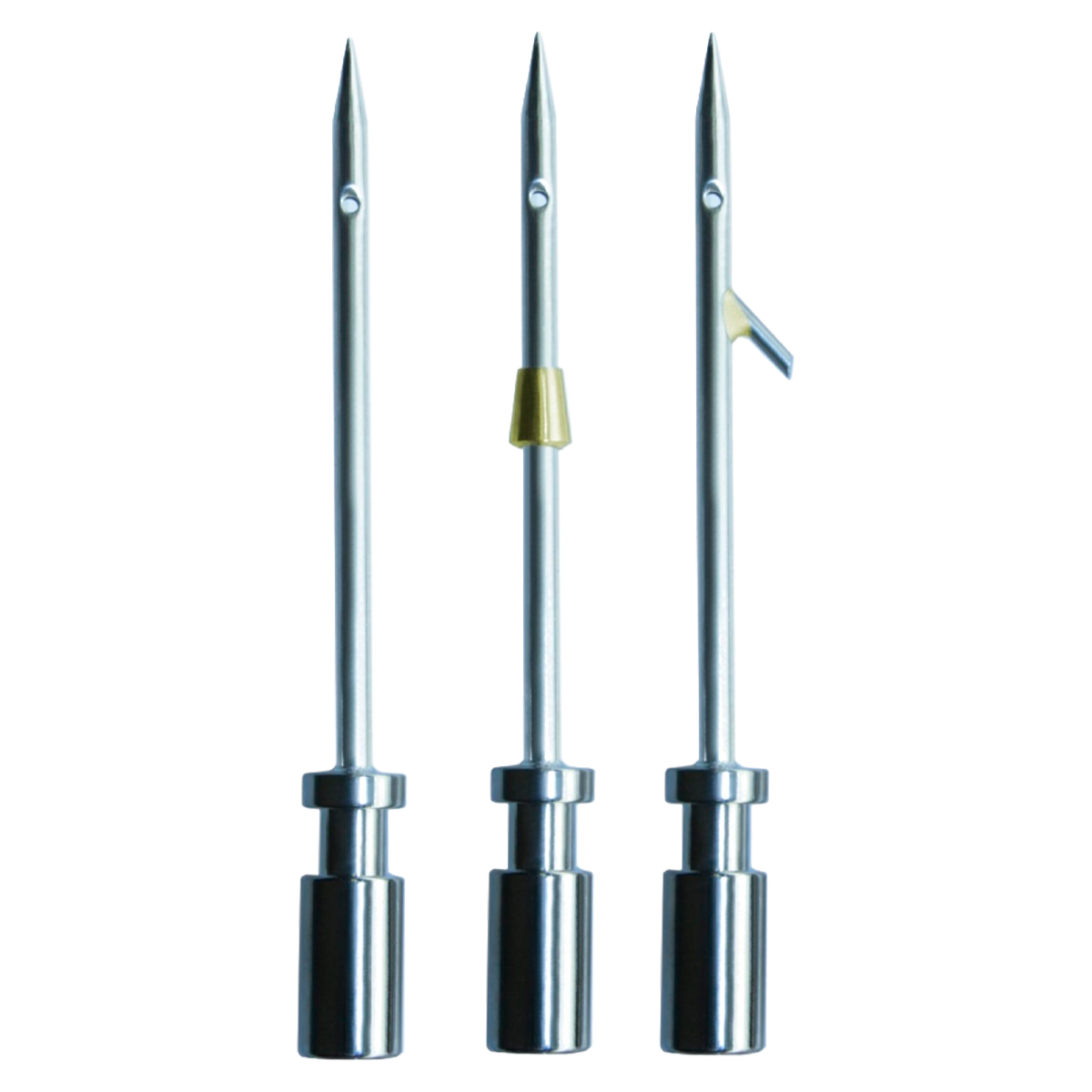

• Available in standard, collar, and barbed versions.
• Diameters available in 1.5 mm and 2.0 mm.
• Lengths from 20 mm to 100 mm.
• Closed tip with two lateral injection ports.
• Design helps reduce the risk of clogging.
• Innovative base for a secure connection with TeleDart® syringes.
• Includes 5 silicone sealing sleeves per needle.

• Specifications
• In the Box

• Type	Model	Diameter	Length
  Smooth	TDN1520	1.5 mm	2 cm (20 mm)
  	TDN1525	1.5 mm	2.5 cm (25 mm)
  	TDN1530	1.5 mm	3 cm (30 mm)
  	TDN1538	1.5 mm	3.8 cm (38 mm)
  	TDN2020	2.0 mm	2 cm (20 mm)
  	TDN2030	2.0 mm	3 cm (30 mm)
  	TDN2040	2.0 mm	4 cm (40 mm)
  	TDN2060	2.0 mm	6 cm (60 mm)
  	TDN2080	2.0 mm	8 cm (80 mm)
  	TDN20100	2.0 mm	10 cm (100 mm)
  With Collar	TDN1520C	1.5 mm	2 cm (20 mm)
  	TDN1525C	1.5 mm	2.5 cm (25 mm)
  	TDN1530C	1.5 mm	3 cm (30 mm)
  	TDN1538C	1.5 mm	3.8 cm (38 mm)
  	TDN2020C	2.0 mm	2 cm (20 mm)
  	TDN2030C	2.0 mm	3 cm (30 mm)
  	TDN2040C	2.0 mm	4 cm (40 mm)
  	TDN2060C	2.0 mm	6 cm (60 mm)
  	TDN2080C	2.0 mm	8 cm (80 mm)
  	TDN20100C	2.0 mm	10 cm (100 mm)
  Barbed	TDN2025W	2.0 mm	2.5 cm (25 mm)
  	TDN2030W	2.0 mm	3 cm (30 mm)
  	TDN2040W	2.0 mm	4 cm (40 mm)
  	TDN2060W	2.0 mm	6 cm (60 mm)
  Compatibility	TeleDart® dart syringes
  Tip Design	Closed tip
  Injection Ports	Two lateral ports located between 0.5 cm and 0.8 cm behind the tip
  Sealing System	Secure and fully sealed connection
  Included Sealing Sleeves	5 silicone sealing sleeves per needle
  Applications	Scientific research, environmental monitoring, conservation, and wildlife management

• • TeleDart® injection needles according to the selected variant.
  • 5x silicone sealing sleeves per needle.
