AmScope Compound Microscope 40X–2500X with Touchscreen LCD Display

Request Quote

Powerful AmScope 40X–2500X Digital Microscope with High-Resolution Touchscreen LCD

Observe, analyze, and share your discoveries in real time with digital precision

The AmScope Professional Compound Microscope with Trinocular Head and Touchscreen Display is the ideal tool for advanced research in laboratories, clinics, and educational settings. Featuring an advanced infinity-corrected optical system and a true-color 9.7" LCD screen, this microscope delivers a comfortable, crisp viewing experience without eye strain. Its ergonomic design and connectivity options make it a complete solution for real-time analysis and high-quality scientific documentation.

Key Features:

• High-resolution infinity-corrected optical system.
• 9.7" true-color touchscreen LCD display.
• USB, SD card, and HDMI output compatible.
• Wi-Fi and Bluetooth connectivity to PC.
• Fully coated optics for crystal-clear images.
• Inverted nosepiece design for more working space.
• Kohler illumination system with precise field diaphragm control.
• Trinocular head inclined at 30°, 360° rotatable, compensation-free.
• Six magnification levels: 40X, 100X, 250X, 400X, 1000X, 2500X.
• Variable-intensity LED lighting with Abbe condenser and iris diaphragm.
• Coaxial coarse and fine focus controls on both sides.
• 3D mechanical stage with stain-resistant coating and safety stops.
• Manufactured under ISO 9001 standards for maximum quality.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	Details
  Microscope Type	Compound
  Head Type	Compensation-free Trinocular
  Optics	Infinity Plan
  Magnification Range	40X to 2500X
  Objective Lenses	4X, 10X, 40X, 100X
  Eyepieces	10X and 25X (extreme widefield)
  Eyepiece Size	30 mm
  Camera	Built-in with touchscreen
  Camera Resolution	5 MP (CMOS sensor)
  Reduction Lens	0.5X
  Display	9.7" color LCD
  Illumination	Built-in 3W LED
  Condenser	Kohler Abbe NA 1.25 with iris diaphragm
  Stage	3D double-layer mechanical
  Focus Control	Coaxial coarse and fine, dual-side
  Power Supply	110V / 220V
  Applications	Clinical, laboratory, university teaching
  Color	White

• • x1 Compensation-free trinocular head
  • x1 Microscope body with base and Kohler illumination
  • x1 9.7" LCD screen with built-in 5 MP camera
  • x4 Plan DIN Objectives: 4X, 10X, 40X, 100X
  • x2 Extreme Widefield PL10X Eyepieces
  • x2 Extreme Widefield 25X Eyepieces
  • x1 Dust cover
  • x1 Immersion oil
  • x1 User manual
• • SD card for additional storage
  • PC software (optional for streaming)
  • Metal base for fixed mounting
  • Contrast filters
  • Padded carrying case
• • User Manual (English)
  • User Manual (Spanish)

Ver todos los detalles del producto »

AmScope T690 Series Trinocular Compound Microscope up to 2500X Köhler Illumination Plan Optics ²⁵

$ 998.90 USD

AmScope T690 Series Trinocular Microscopes with Infinity Optics and Professional Magnification

Designed for laboratories and universities, T690 models deliver high-precision imaging with up to 2500X magnification and Köhler illumination system.

The AmScope T690 Series is designed for professional biological applications. Its infinity-corrected optical system reduces distortion and improves color accuracy. The plan-achromatic lenses ensure edge-to-edge sharpness, while the Köhler halogen illumination provides even lighting, reducing eye strain even during long observation sessions. Featuring an adjustable trinocular head and top photo port, it's ideal for documentation using optional cameras. Its ergonomic frame, double-layer mechanical stage, and coaxial focus system support a smooth and precise workflow.

Key Features:

• Infinity-corrected optics: enhances color accuracy and minimizes distortion.
• Plan-achromatic lenses: sharp, flat-field imaging with color fidelity.
• Köhler halogen illumination: even, adjustable light for high contrast.
• Trinocular head with photo port: enables camera mounting for capture and monitoring.
• Double-layer mechanical stage: precise and convenient sample navigation.
• Ergonomic design: easily accessible focus and movement controls for efficient operation.
• Immersion oil compatible: for high-resolution observations with 100X objectives.
• Durable construction: built for demanding lab environments.

• Specifications
• In the Box
• Optional Items

• Specification	40X-1000X	40X-1500X	40X-2000X	40X-2500X
  Eyepieces	10X	10X, 15X	10X, 20X	10X, 25X
  Objectives	4X, 10X, 40X, 100X plan-achromatic
  Optical System	Infinity-corrected
  Head Type	Trinocular, 30° incline, 360° rotation
  Photo Port	Adjustable 23mm tube
  Parfocal Distance	45mm
  Objective Thread	RMS 20.32mm
  Stage Size	180mm x 150mm
  X-Y Travel	75mm x 50mm
  Condenser	Abbe NA 1.25 with iris diaphragm
  Illumination	Halogen 12V/20W, Köhler system
  Focusing	Coaxial coarse/fine, 0.002mm fine step
  Power Supply	85-230V AC, 50/60Hz

• 40x - 1000x

  • x1 Trinocular Head
  • x1 Microscope Body
  • x4 Objectives: 4X, 10X, 40X, 100X
  • x1 Pair of 10X Eyepieces
  • x3 Color Filters
  • x1 Spare Halogen Bulb
  • x1 Spare Fuse
  • x1 Power Cord (U.S. & Canada Standard)
  • x1 Dust Cover
  • x1 Immersion Oil Bottle

  40x - 1500x

  • x1 Trinocular Head
  • x1 Microscope Body
  • x4 Objectives: 4X, 10X, 40X, 100X
  • x1 Pair of 10X Eyepieces
  • x1 Pair of 15X Eyepieces
  • x3 Color Filters
  • x1 Spare Halogen Bulb
  • x1 Spare Fuse
  • x1 Power Cord (U.S. & Canada Standard)
  • x1 Dust Cover
  • x1 Immersion Oil Bottle

  40x - 2000x

  • x1 Trinocular Head
  • x1 Microscope Body
  • x4 Objectives: 4X, 10X, 40X, 100X
  • x1 Pair of 10X Eyepieces
  • x1 Pair of 20X Eyepieces
  • x3 Color Filters
  • x1 Spare Halogen Bulb
  • x1 Spare Fuse
  • x1 Power Cord (U.S. & Canada Standard)
  • x1 Dust Cover
  • x1 Immersion Oil Bottle

  40x - 2500x

  • x1 Trinocular Head
  • x1 Microscope Body
  • x4 Objectives: 4X, 10X, 40X, 100X
  • x1 Pair of 10X Eyepieces
  • x1 Pair of 25X Eyepieces
  • x3 Color Filters
  • x1 Spare Halogen Bulb
  • x1 Spare Fuse
  • x1 Power Cord (U.S. & Canada Standard)
  • x1 Dust Cover
  • x1 Immersion Oil Bottle
• • Prepared and blank slides
  • Optional digital camera for trinocular port
• • C-mount camera (USB or digital)
  • Additional eyepieces (15X, 20X, 25X)
  • SLR/DSLR adapter (23/30mm)
  • Carrying case

Ver todos los detalles del producto »

AmScope B690 Series Binocular Compound Microscope up to 2500X Köhler Illumination Plan Optics ²⁵

$ 849.25 USD

Professional Observation with the AmScope B690 Series Binocular Compound Microscope

Infinity optics, Köhler illumination, and up to 2500X magnification for superior performance in labs and educational settings.

The AmScope B690 Series is designed to meet the demands of biology professionals and advanced educators. With an infinity optical system and plan-achromatic lenses, this series delivers crisp, distortion-free images with excellent contrast. Its Köhler illumination system ensures centered, even lighting for prolonged observation sessions with minimal eye strain. Available in four magnification configurations (up to 1000X, 1500X, 2000X, and 2500X), it adapts to multiple levels of microscopic analysis.

Key Features:

• Four magnification ranges: choose between 40X-1000X, 1500X, 2000X, or up to 2500X setups.
• Plan-achromatic lenses: sharp images with flat field correction and color fidelity.
• Infinity optics: reduces optical distortion and enhances resolution.
• Köhler halogen illumination: uniform, controllable light, ideal for contrast and definition.
• Ergonomic binocular head: 30° inclined, 360° rotatable with adjustable Siedentopf mechanism.
• Double-layer mechanical stage: low-position controls and precise X-Y movement.
• Software compatibility: ideal for digital cameras and laboratory workflow.

• Specifications
• In the Box
• Optional Items

• Specification	40X-1000X	40X-1500X	40X-2000X	40X-2500X
  Eyepieces	10X	10X and 15X	10X and 20X	10X and 25X
  Magnification levels	4 levels	8 levels	8 levels	6 levels
  Objectives	4X, 10X, 40X, 100X plan-achromatic
  Optics	Plan, Achromatic, Infinity
  Illumination	12V/20W Halogen, Köhler
  Head	Binocular, 30° incline, 360° rotation
  Stage	Double-layer mechanical, 180 x 150 mm
  Condenser	Abbe NA 1.25 with iris diaphragm
  Electrical compatibility	85-230VAC 50/60Hz
  Recommended use	Higher education, lab, veterinary

• 40x-1000x

  • X1 Binocular head
  • X1 Microscope body
  • X4 Objectives: 4X, 10X, 40X, 100X
  • X1 Pair of 10X eyepieces
  • X3 Color filters
  • X1 Spare halogen bulb
  • X1 Spare fuse
  • X1 Power cord (US and Canada standard)
  • X1 Dust cover
  • X1 Immersion oil sample

  40x-1500x

  • X1 Binocular head
  • X1 Microscope body
  • X4 Objectives: 4X, 10X, 40X, 100X
  • X1 Pair of 10X eyepieces
  • X1 Pair of 15X eyepieces
  • X3 Color filters
  • X1 Spare halogen bulb
  • X1 Spare fuse
  • X1 Power cord (US and Canada standard)
  • X1 Dust cover
  • X1 Immersion oil sample

  40x-2000x

  • X1 Binocular head
  • X1 Microscope body
  • X4 Objectives: 4X, 10X, 40X, 100X
  • X1 Pair of 10X eyepieces
  • X1 Pair of 20X eyepieces
  • X3 Color filters
  • X1 Spare halogen bulb
  • X1 Spare fuse
  • X1 Power cord (US and Canada standard)
  • X1 Dust cover
  • X1 Immersion oil sample

  40x-2500x

  • X1 Binocular head
  • X1 Microscope body
  • X4 Objectives: 4X, 10X, 40X, 100X
  • X1 Pair of 10X eyepieces
  • X1 Pair of 25X eyepieces
  • X3 Color filters
  • X1 Spare halogen bulb
  • X1 Spare fuse
  • X1 Power cord (US and Canada standard)
  • X1 Dust cover
  • X1 Immersion oil sample
• • Compatible USB digital cameras
  • Image capture and analysis software
  • Additional eyepiece lenses (15X, 20X, 25X)

Ver todos los detalles del producto »

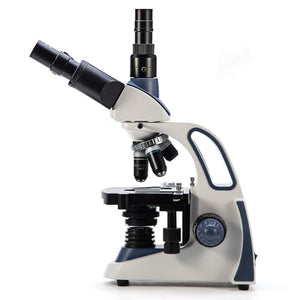

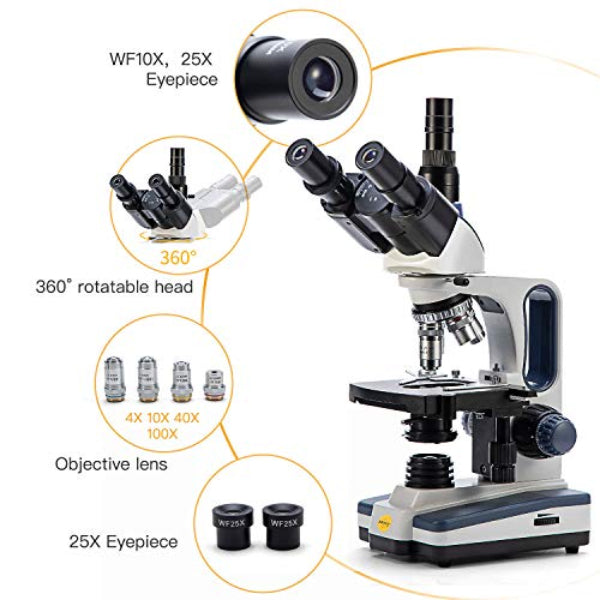

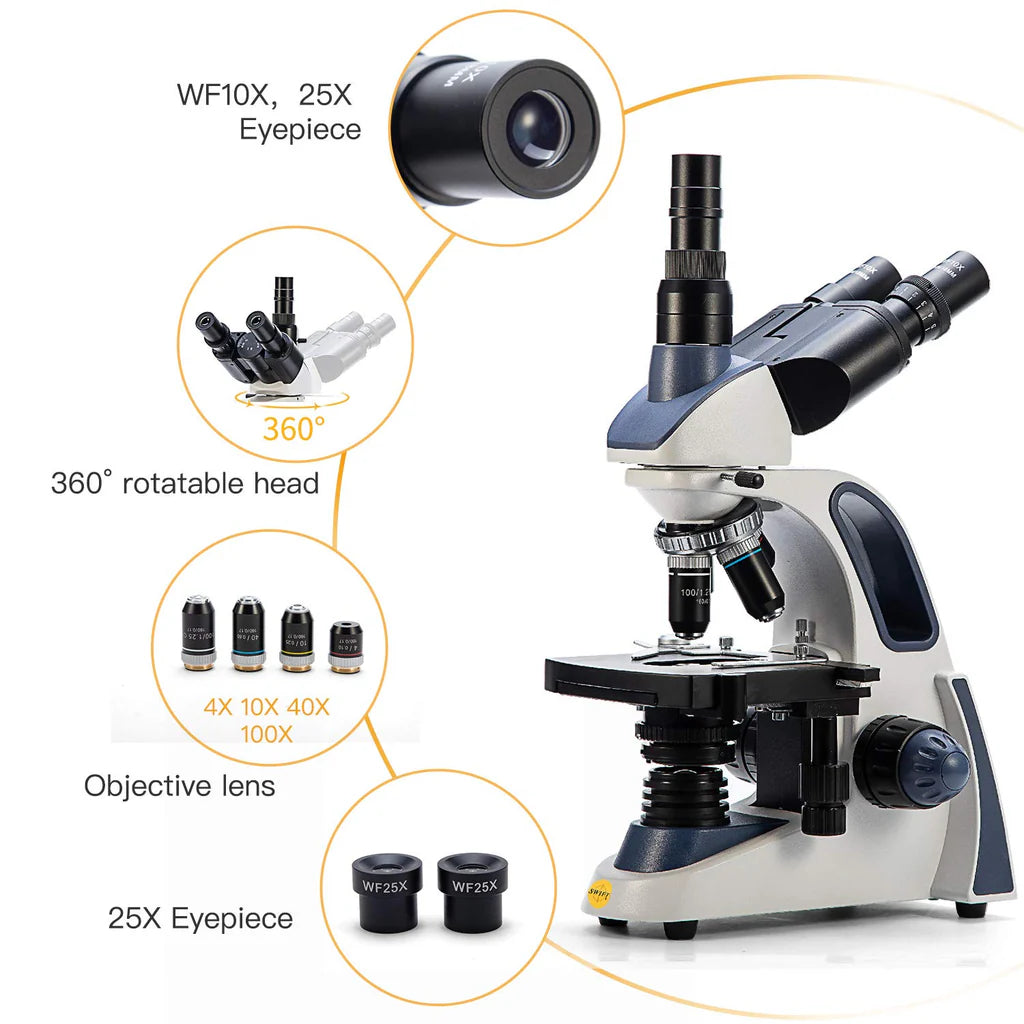

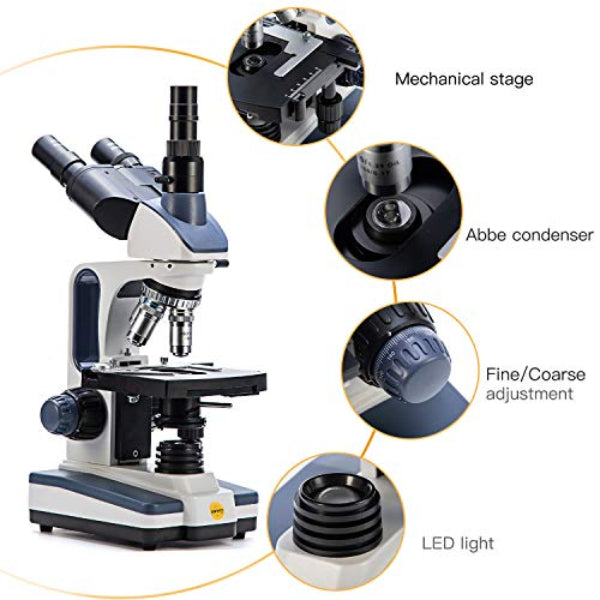

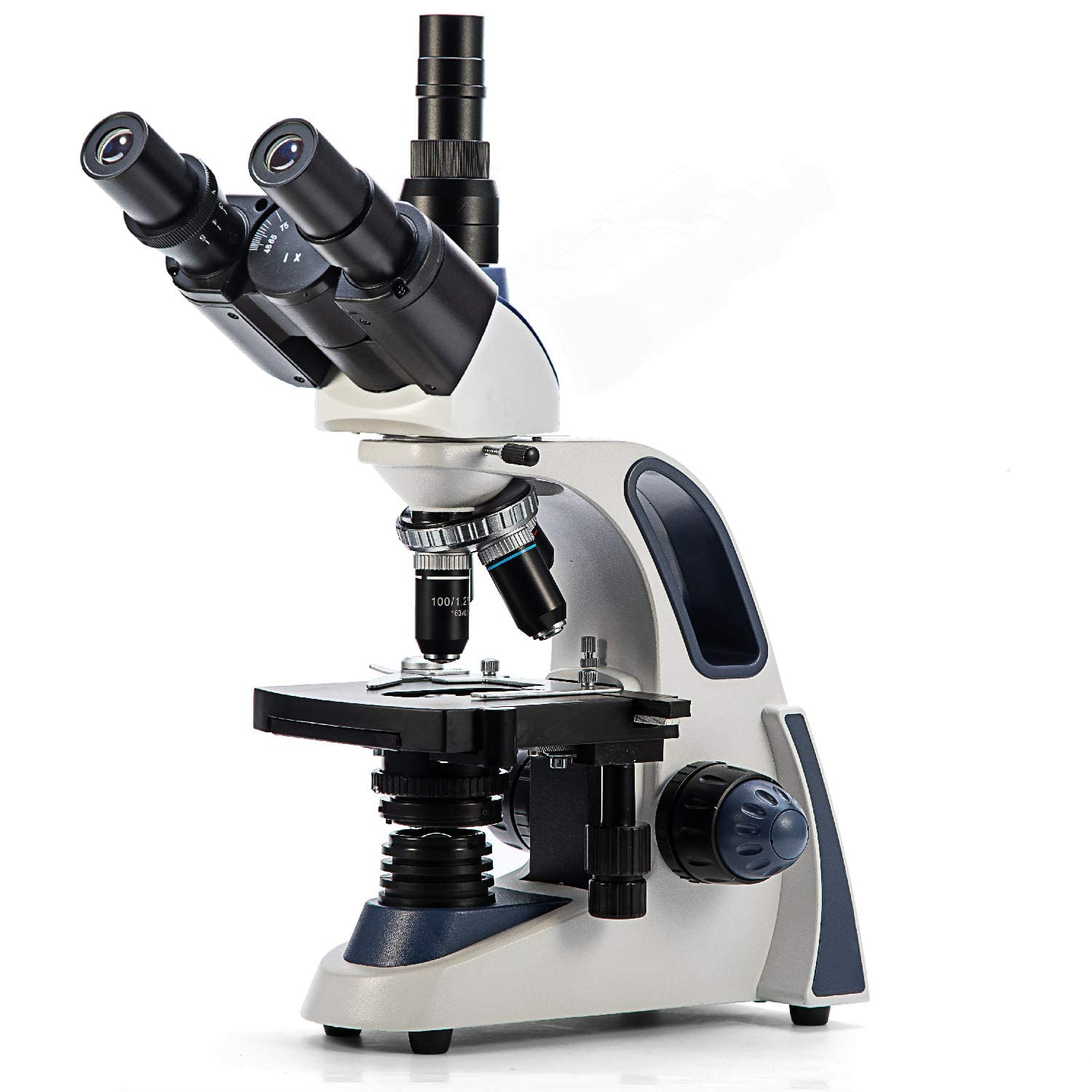

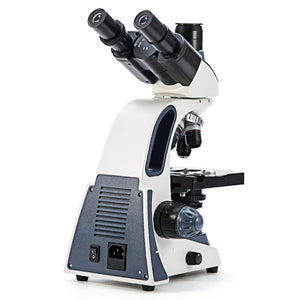

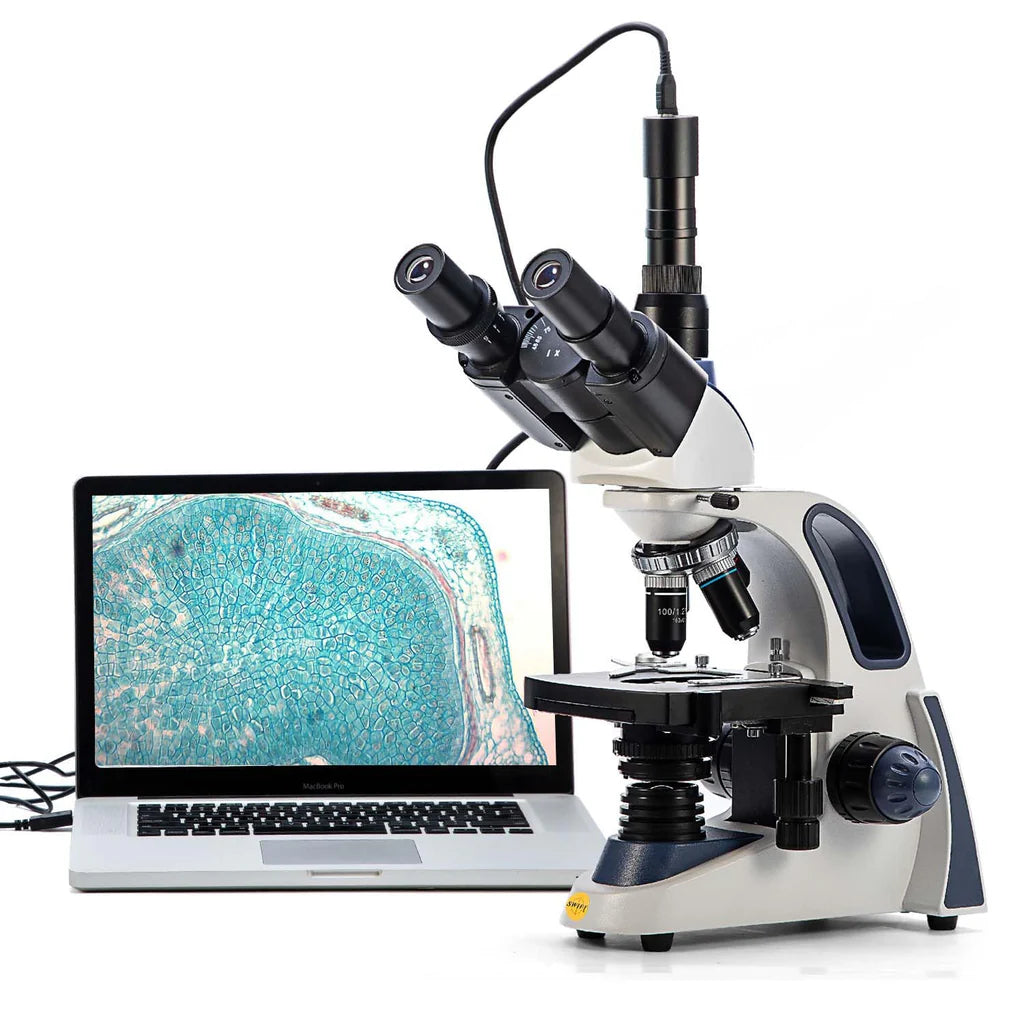

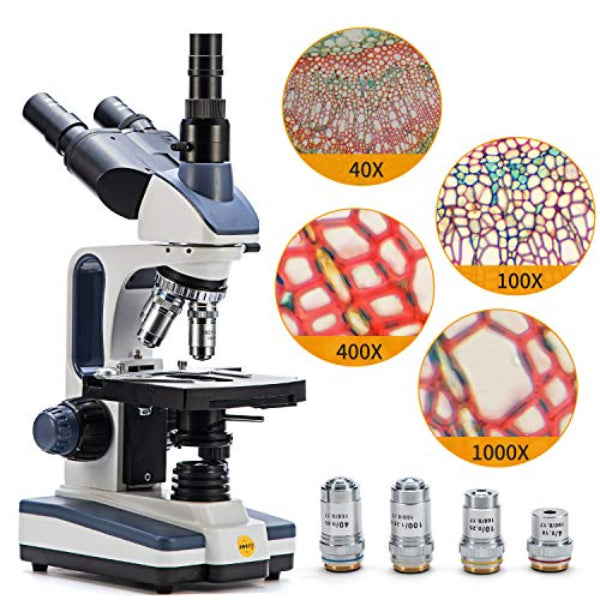

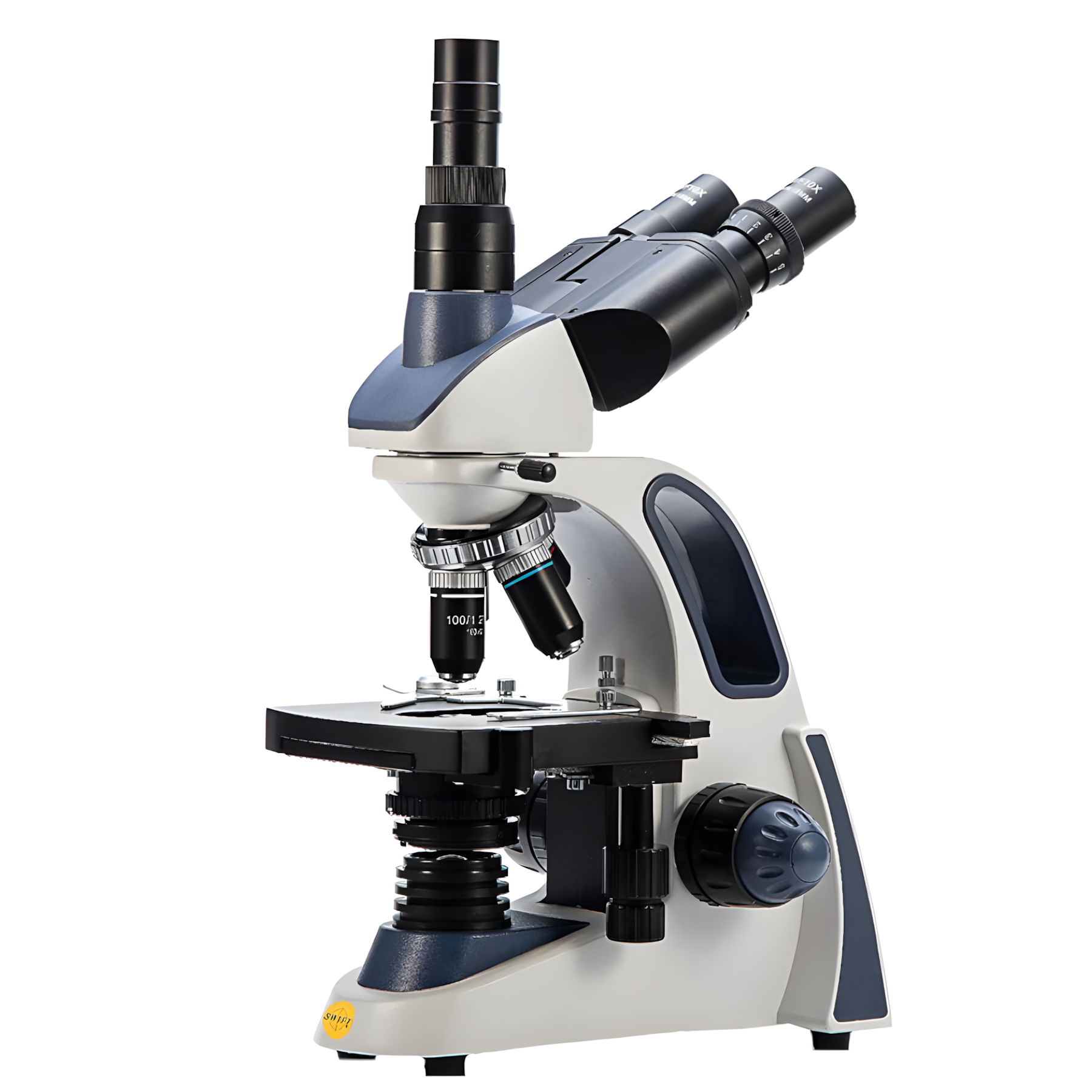

Swift SW380T Trinocular Compound Microscope up to 2500X with 1.3 MP Camera

Request Quote

Swift SW380T Research-Grade Trinocular Compound Microscope with 1.3 MP Camera

Magnification from 40X to 2500X, Windows and Mac Compatible Software, Ideal for Laboratories and Students

This compound microscope is an elegant and versatile tool, ideal for doctors, science students in secondary school and university, as well as enthusiastic hobbyists. Its professional Siedentopf head is fully rotatable and equipped with interchangeable wide-field glass eyepieces 10X and 25X, set at a 30-degree incline to reduce neck strain, easily adjustable for different interpupillary distances without losing focus. Additionally, it features 4 DIN achromatic objectives on a rotating turret that offer 6 levels of magnification: 40X, 100X, 250X, 400X, 1000X, and 2500X. Its ultra-precise focusing system allows for coarse and extremely fine adjustments, and the trinocular head accepts an additional eyepiece and microscope camera accessories (not included), enabling viewing, live streaming, recording, and capturing images of magnified samples.

The Swift SW380T includes all the features of our sleek SW380B model, now upgraded for camera-compatibility! The SW380T trinocular compound microscope features a dedicated camera port that, in conjunction with the model's ultra-precise focusing system, makes it a perfect instrument for clinical instruction, large science lectures, textbook compilation, or the serious hobbyist who wishes to take and share pictures of specimens.

Features interchangeable wide-field 10X and 25X eyepieces mounted into a swiveling Siedentopf head (lockable in any position), allowing for quick adjustments to suit different interpupillary distances without loss of focus. The four achromatic DIN objectives -- 4X, 10X, 40X(Spring), and 100X (Spring, Oil) -- combine with the eyepieces for 6 powerful magnification levels between 40X and 2500X. LED bulb provides steady, brilliant illumination fully controlled by the dimmer wheel and focused through an industry-standard NA 1.25 Abbe condenser. A large mechanical stage with moveable slide holder allows you to see the entire area of a specimen without reclipping.

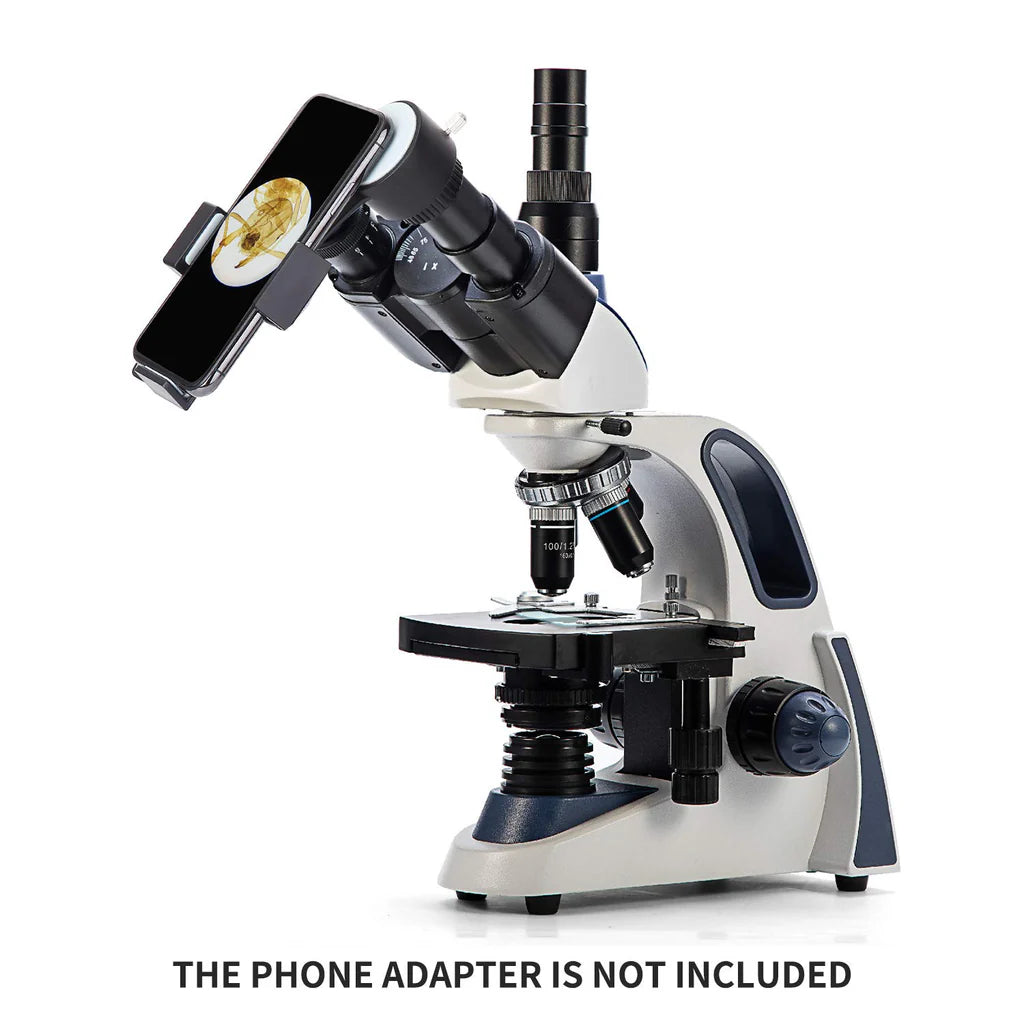

Users can attach an additional eyepiece or microscope camera (not included) onto the SW380T's third ocular tube. Combine the camera compatibility with the microscope's powerful ultra-precise focusing system to stream or capture beautifully sharp specimen images at each magnification. Live-stream video for large lectures or clinical demonstrations; the possibilities are nearly endless with the SW380T!

Features

• 4 DIN Achromatic objectives mounted in a revolving turret offer 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X.
• Professional Siedentopf head is fully rotatable for shared use and equipped with interchangeable wide-field 10X and 25X glass eyepieces fixed at an ergonomic 30 degree tilt to reduce neck strain, easily adjustable for different interpupillary distances without losing focus.
• A super sleek, multi-purpose compound microscope for viewing tiny details of specimen slides; Ultra-precise focusing system to make coarse and extremely fine; built for clinicians, high school and university science students, and enthusiastic hobbyists alike adjustments
• Trinocular head accepts an additional eyepiece and microscope camera attachments (not included) in order to view, livestream, record, and capture magnified specimen images
• 5.0MP camera comes with user-friendly editing and processing software for Mac OS X /Windows Vista, 7, 8, 10 (32 and 64 bit) offers advanced features including stitching, EDF and measurement.

• Specifications
• In the Box
• Required Items
• Optional Items

• Feature	Description
  Type	Trinocular compound microscope
  Available Magnifications	40X, 100X, 250X, 400X, 1000X, 2500X
  Objectives	4 DIN achromatic objectives mounted on a revolving turret
  Head	Professional Siedentopf head fully rotatable
  Eyepieces	Interchangeable wide-field glass eyepieces 10X and 25X
  Focusing System	Ultra-precise focusing system for coarse and extremely fine adjustments
  Trinocular Head	Accepts an additional eyepiece and microscope camera accessories (not included)
  Illumination	LED bulb with Abbe condenser and iris diaphragm
  Applications	Use in laboratories, secondary and university education, hobbyists

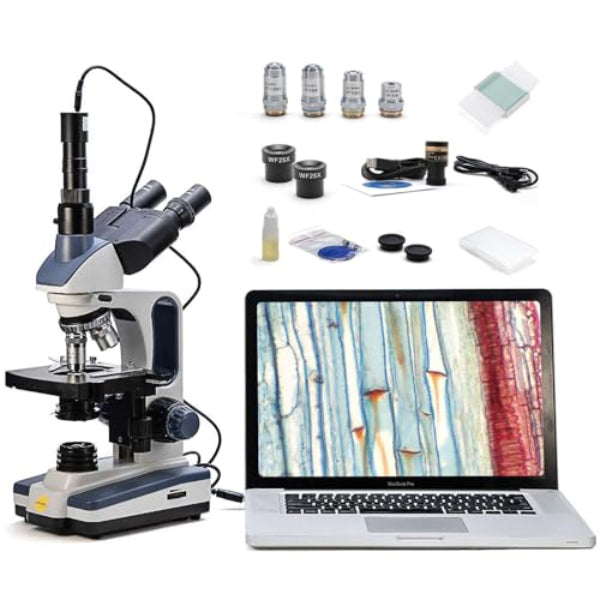

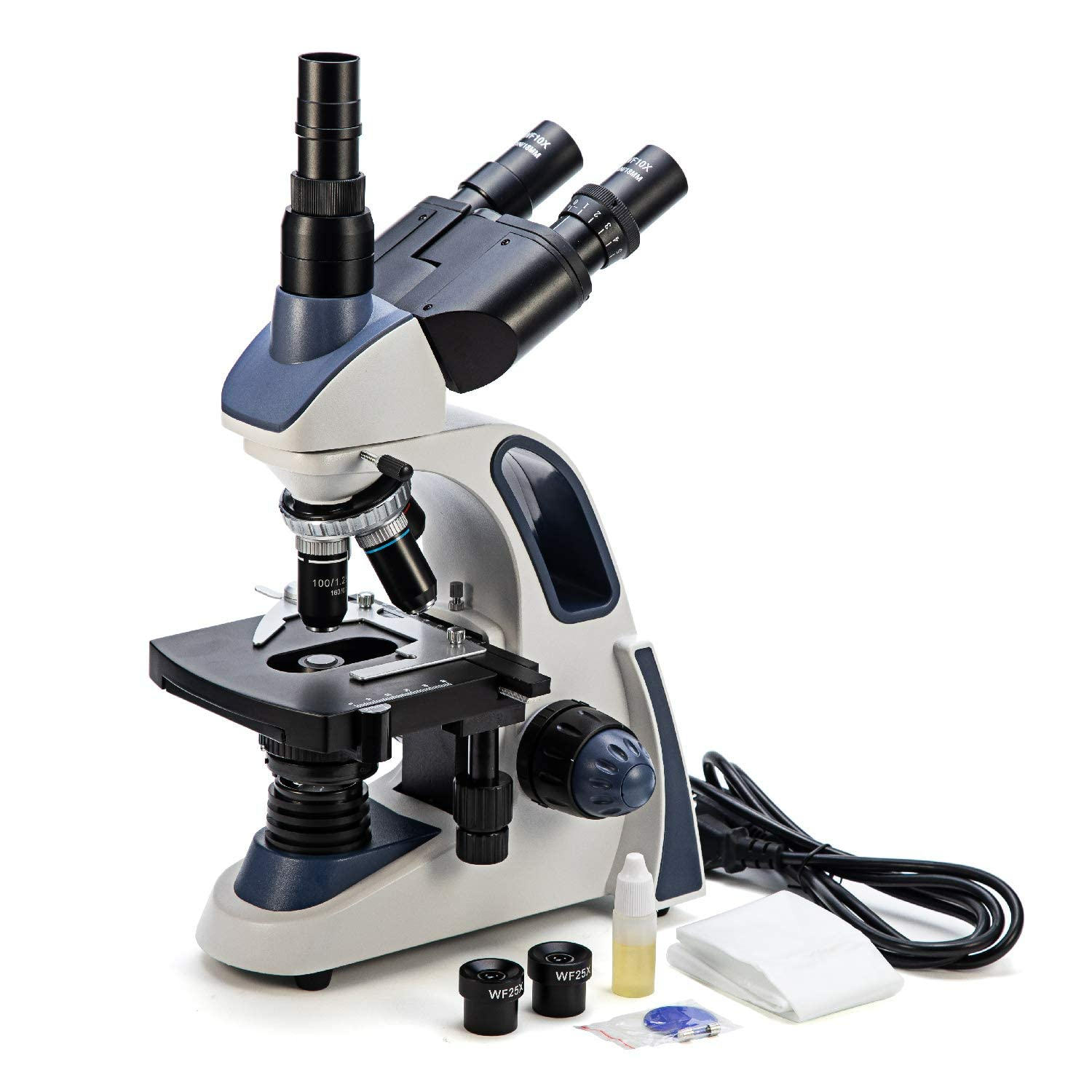

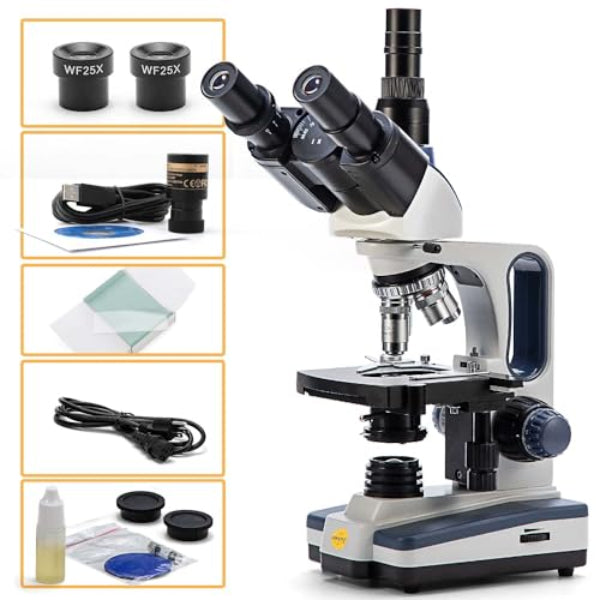

• • 1 SW380T microscope
  • 1 pair WF10X eyepieces
  • 1 pair WF25X eyepieces
  • 1 sample immersion oil
  • 1 blue filter
  • 1 dust cover
  • 1 spare fuse
  • User manual
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights

Ver todos los detalles del producto »

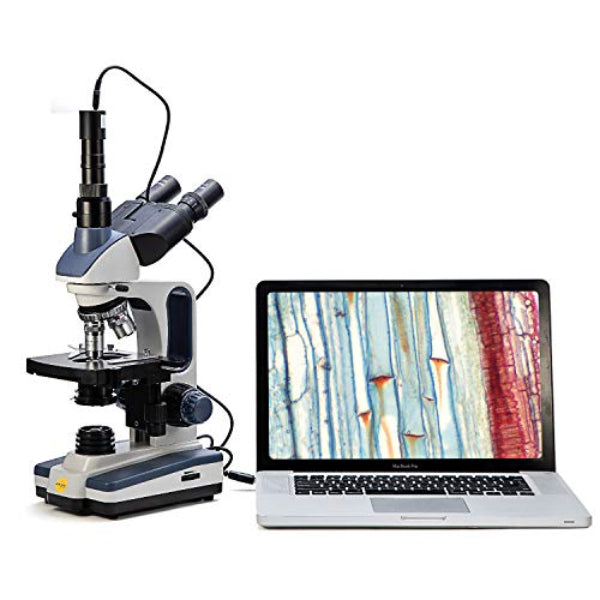

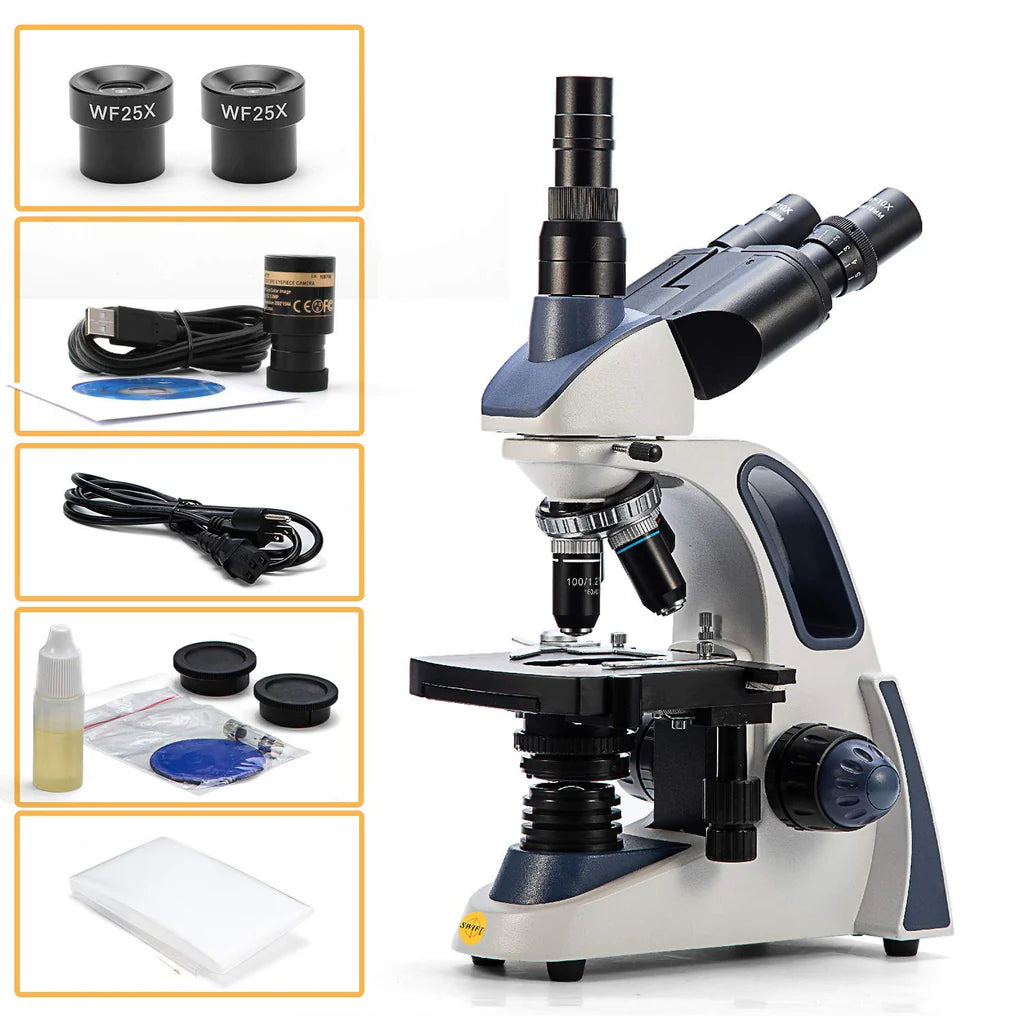

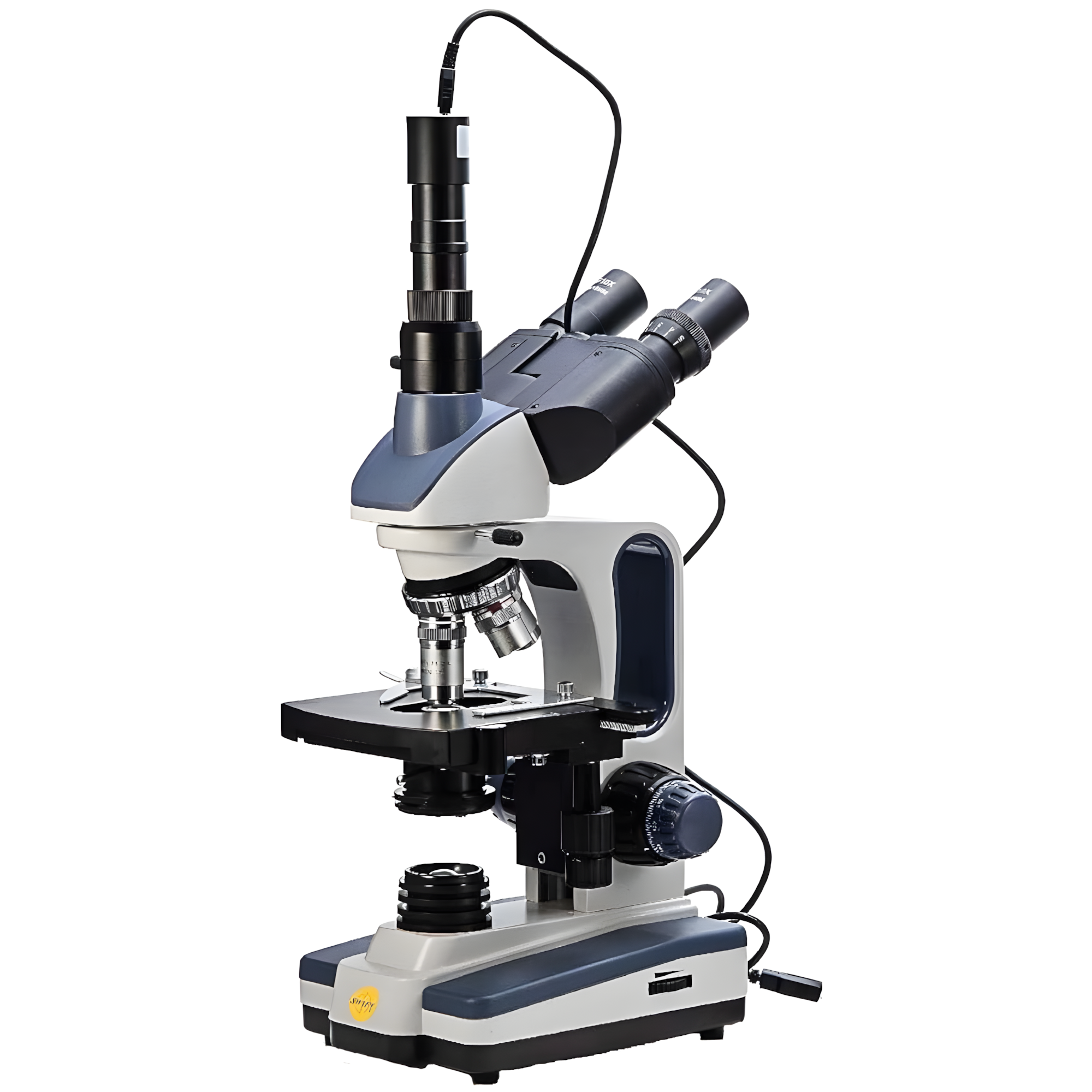

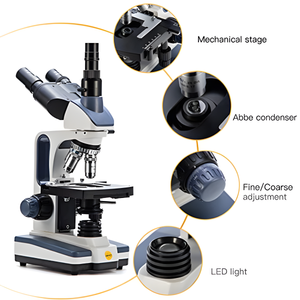

Swift SW350T Trinocular Compound Microscope up to 2500X with 5 MP Camera

Request Quote

High-Resolution Imaging with 40X-2500X Magnification and 5.0MP Camera

Discover Microscopic Details with the Swift SW350T: Ideal for Researchers, Students, and Enthusiasts with Advanced Imaging Technology and Multiple Magnification Options.

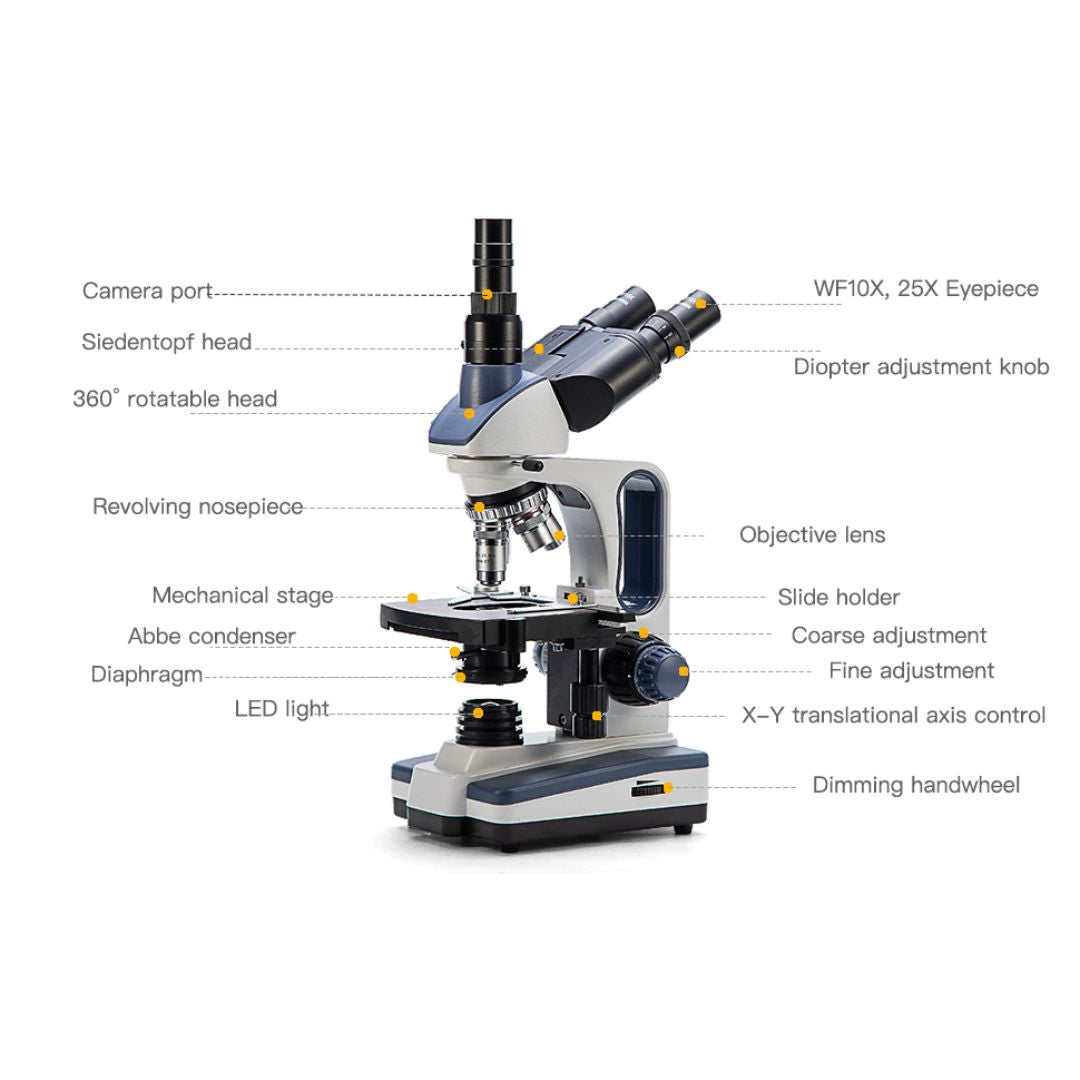

The SW350T retains all the features of our popular SW350B: the interchangeable 10X and 25X widefield eyepieces are mounted on a Siedentopf head that rotates, allowing for quick adjustments to fit different interpupillary distances without losing focus. The four DIN achromatic objectives -- 4X, 10X, 40X (spring-loaded), and 100X (spring-loaded, oil) -- combine with the eyepieces to deliver six powerful magnification levels ranging from 40X to 2500X. A LED bulb provides consistent, bright illumination, fully controlled by the intensity adjustment dial and focused through a standard industry NA 1.25 Abbe condenser and iris diaphragm. A large mechanical stage with a movable slide holder allows you to view the entire sample area without repositioning the slide.

The SW350T also introduces a third eyepiece tube where an additional eyepiece or a microscope camera (not included) can be mounted, allowing users to stream and record video as well as capture sample images.

Key Features

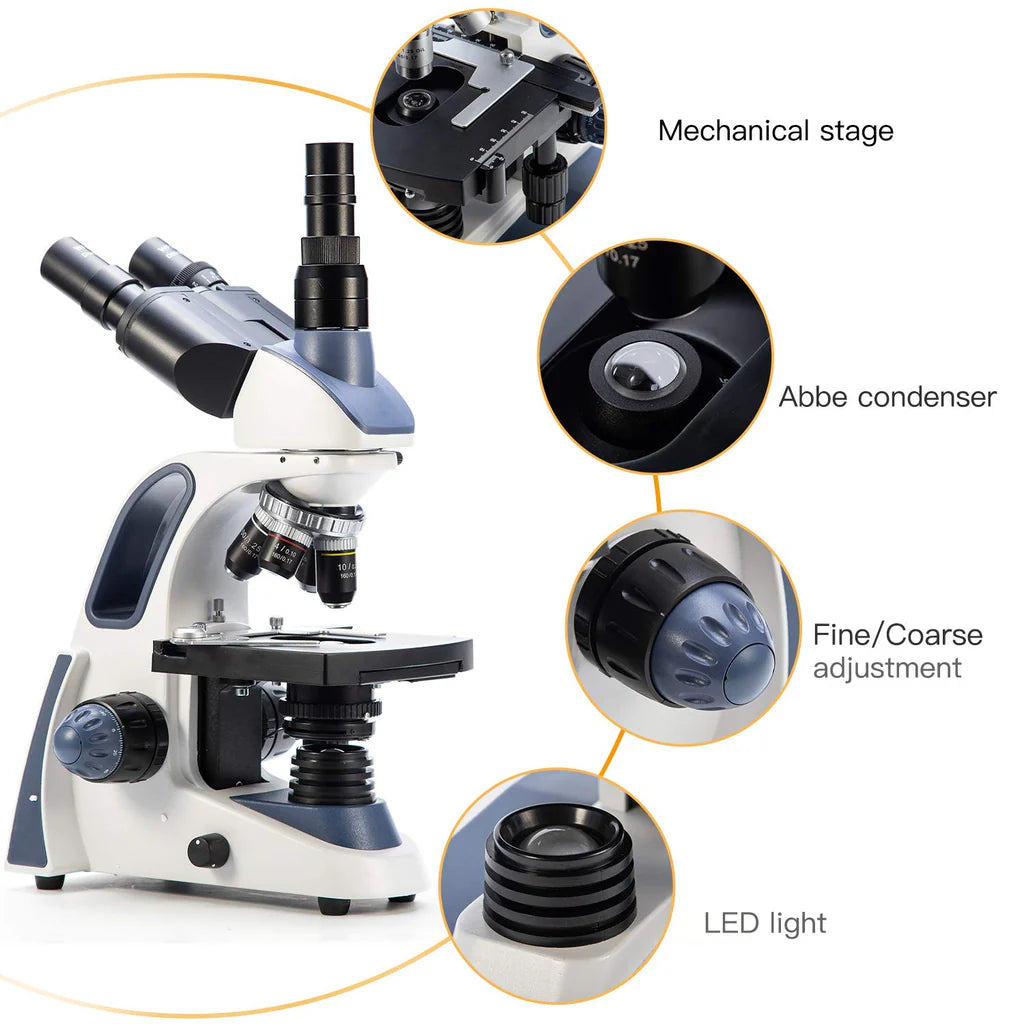

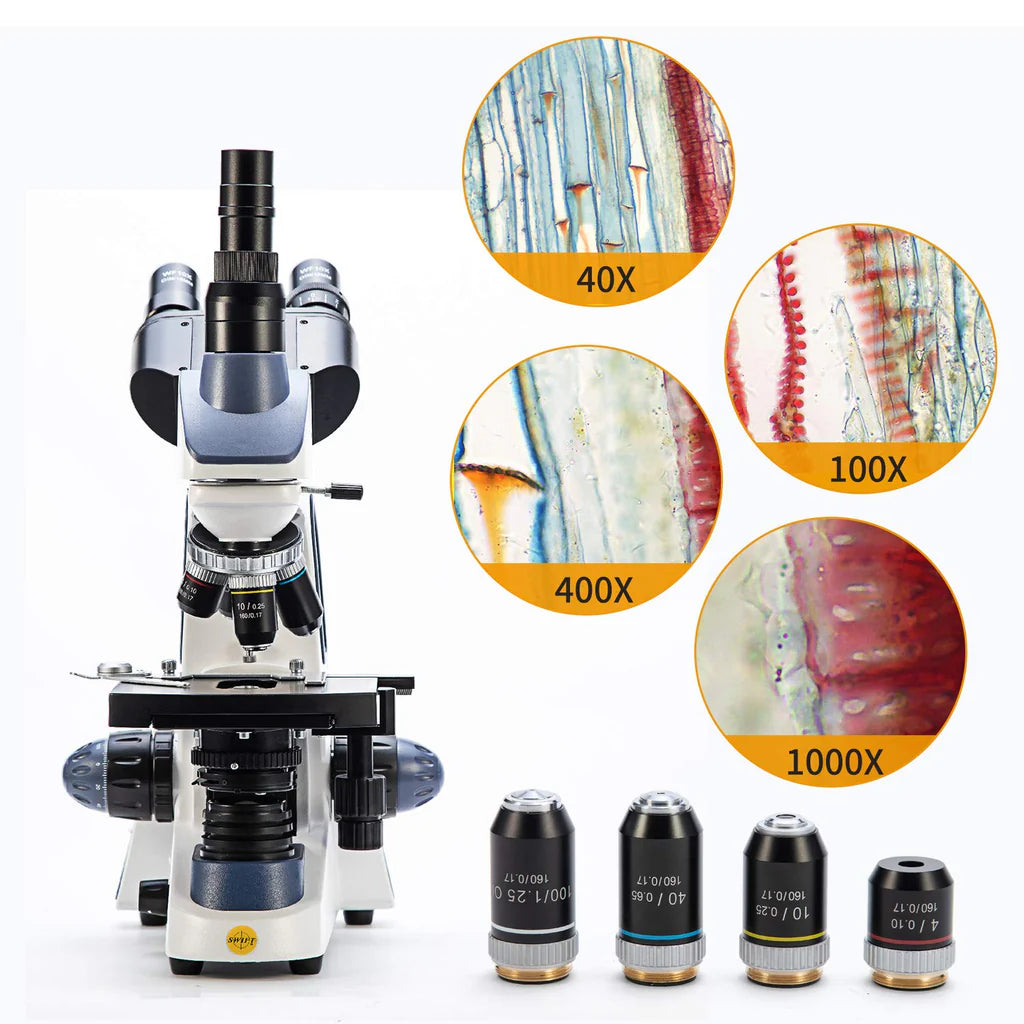

• 4 DIN achromatic objectives mounted on a rotating turret with 6 magnifications: 40X, 100X, 250X, 400X, 1000X, and 2500X.
• Rotating Siedentopf head with 10X/25X eyepieces, ergonomic 30° angle, and interpupillary adjustment without losing focus.
• Adjustable LED illumination with Abbe condenser and double-layer mechanical stage for optimal viewing.
• Versatile trinocular head compatible with cameras and accessories for observation, recording, and image capture.
• Includes 5.0MP camera with Windows/Mac software featuring measurement tools, EDF, and advanced editing functions.
• Includes 100 pre-cleaned glass slides and coverslips for high-definition sample viewing.

• Specifications
• In the Box
• Required Items
• Optional Items

• Magnification	40X - 2500X
  Head	Rotating Siedentopf head with interchangeable 10X and 25X eyepieces
  Light	Bright LED lamp with Abbe condenser
  Mechanical Stage	Double-layer mechanical stage
  Camera	5.0MP camera with Windows and Mac compatible software
  Compatibility	Compatible with prepared slides and blank slides
  Dimensions	18.5 × 13.5 × 9.5 inches
  Weight	5.9 kg
  Objectives	4 DIN achromatic objectives mounted on a rotating turret
  Available Magnifications	40X, 100X, 250X, 400X, 1000X, 2500X
  Included Eyepieces	10X and 25X widefield eyepieces
  Extras in the Box	User manual, blue light filter, spare fuse, immersion oil sample

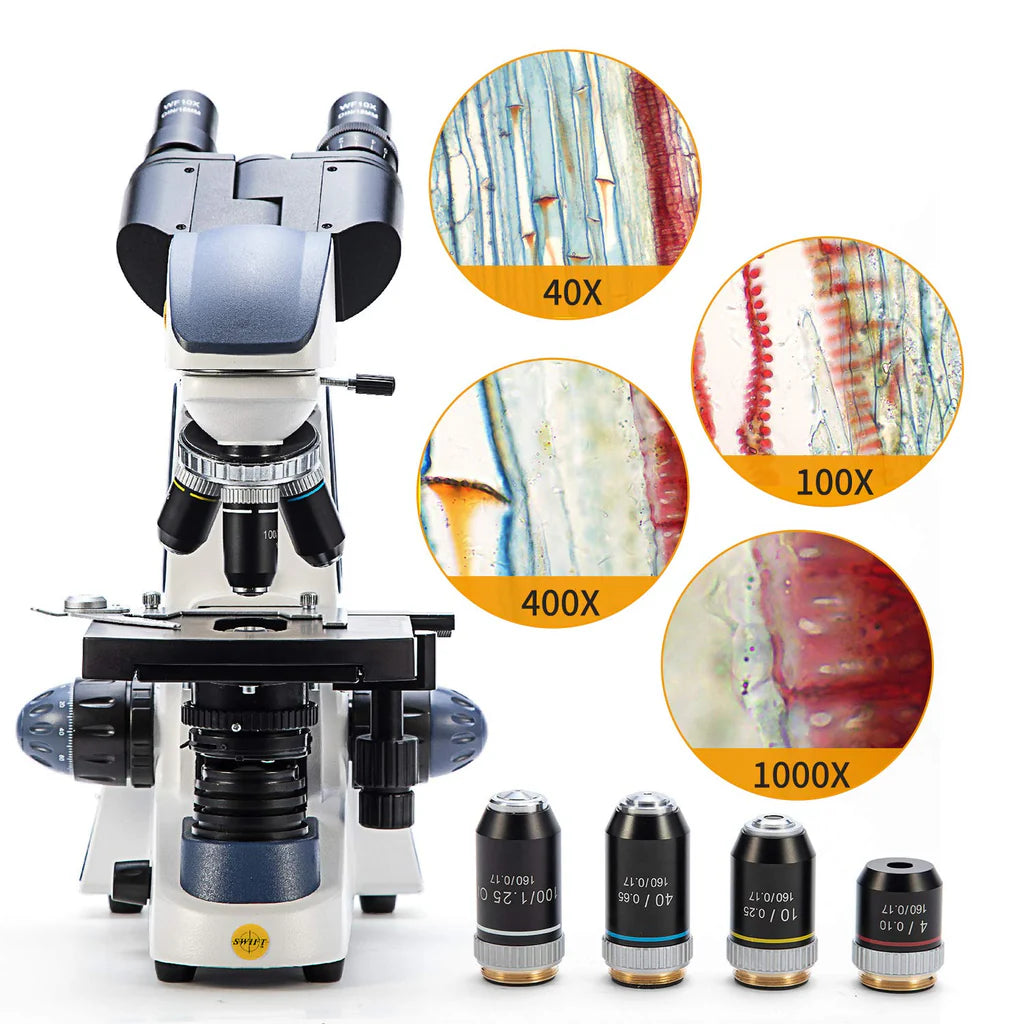

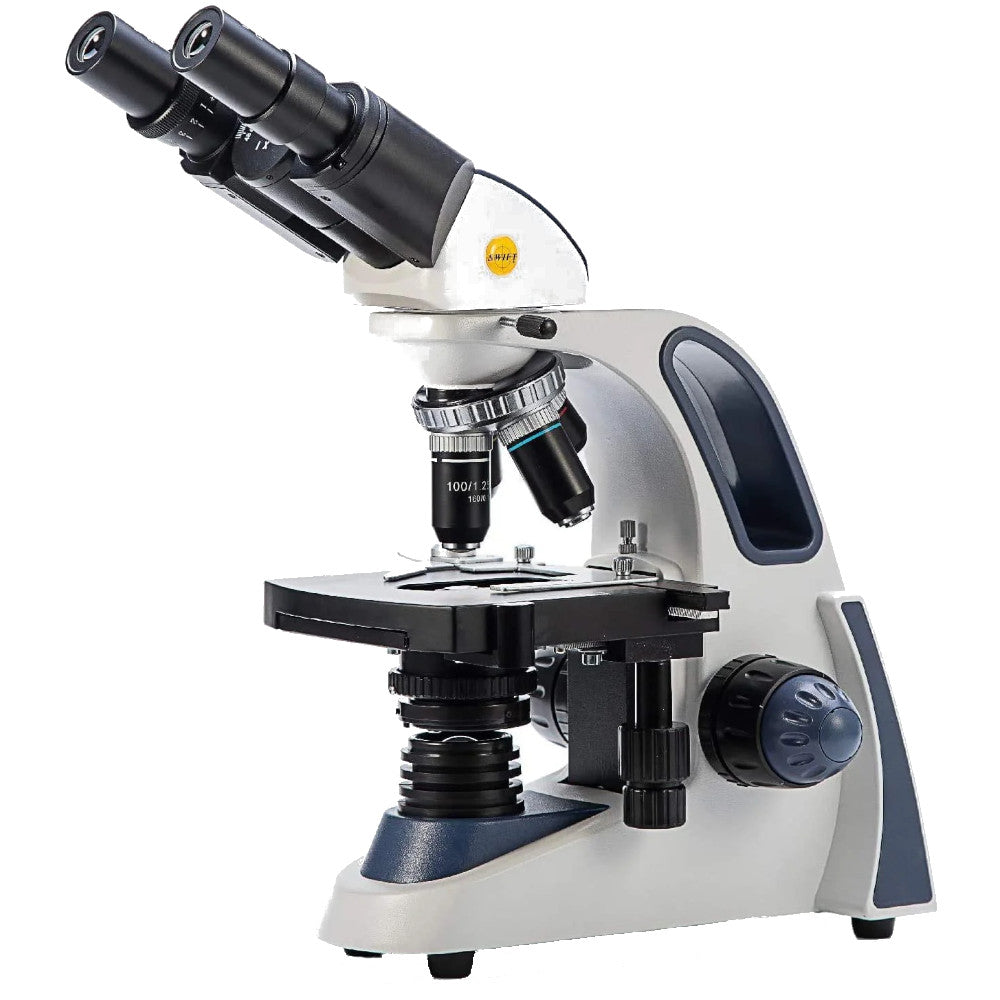

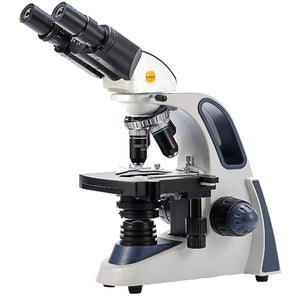

• • x1 SW350T Microscope
  • x1 Pair of WF10X / WF25X Eyepieces
  • x1 Immersion oil sample
  • x1 Blue filter
  • x1 Dust cover
  • x1 Spare fuse and user manual
  • x1 5.0 Megapixel eyepiece camera
  • x5 Prepared and blank slides
• • None
• • Cleaning Kit
  • LED Lights

Ver todos los detalles del producto »

Motic AE31E Trinocular Inverted Compound Microscope with FITC and TRITC Fluorescence Filters - Discontinued

Request Quote

Complete Fluorescence Solution for Cellular and Biomolecular Research

Comprehensive Fluorescence Equipment for Detailed and Precise Observations in Biomedical and Cellular Research

The Motic AE31E inverted trinocular microscope is a precision tool designed for researchers and laboratory professionals who require advanced fluorescence capabilities. This package includes FITC and TRITC filters, ideal for detecting specific fluorophores in biological samples. Equipped with a set of LWD Plan Achromat objectives, universal Petri dish holder, and an adjustable ELWD condenser, the AE31E guarantees clear and detailed images. The integration of the Motic Lumos LED fluorescence illuminator allows for bright and efficient observations, while the coaxial focus system ensures comfortable and precise handling. Perfect for applications in cellular biology, biomedical research, and more, this microscope is an essential addition to any modern laboratory.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE31E Trinocular
  Observation Tube	Trinocular head, Siedentopf type, 360° swiveling
  Optical System	Color Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable ELWD condenser N.A. 0.30 (WD 72 mm)
  Diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, ±5 diopter
  Eyepieces	Widefield WF10X/22 mm with diopter adjustment
  Fine Focus Precision	2 µm
  Fluorescence	Optional HBO
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing Stroke	10 mm
  Working Distance	Without condenser: 231 mm
  Illumination Features	Auto-OFF and Light Memory function
  Illumination	Quartz halogen 6V/30W or LED 3W
  Inclination	45° inclined
  Interpupillary Distance	48-75 mm
  Nosepiece	Left side facing quintuple
  Objective Classification	CCIS® Plan Achromatic, DIC
  Objective Thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 12.6 mm), PH 10X/0.25 (WD 4.1 mm), LWD PH 20X/0.30 (WD 4.7 mm), [Optional] LWD PH 40X/0.50 (WD 3.0 mm)
  Phase Contrast	Slider
  Stage	Plain stage with metal and glass stage inserts
  Stage Size	200 x 239 mm
  Stand Type	Inverted
  Standard Contrast Technique	Brightfield, phase contrast
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Transformer	Internal
  Power Supply	100-240V (CE)
  Accessories Included	Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
  Dimensions (LxWxH)	556 x 200 x 529 mm
  Net Weight	11.7 kg (25,8 lbs)

• • AE31E LED Inverted Trinocular Microscope
  • LWD Plan Achromat Objectives
  • Petri Dish Holder for 35mm, 54mm, and 65mm dishes
  • Universal Holder for Well Plates
  • Complete EPI-Fluorescence Attachment for AE31
  • EGFP/FITC/Cy2/AlexaFluor 488 Filter
  • TRITC/Cy3/TagRFP/AlexaFluor 546 Filter
  • Adjustable and Centerable ELWD Condenser
  • Coaxial Coarse and Fine Focus System with Tension Adjustment
  • Motic Lumos LED Fluorescence Illuminator
  • Dust Cover, Power Cord, Allen Key, Blue and Green Interference Filters, Phase Ring, Centering Telescope, Centering Keys, Spare Fuse
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights
• • Catalog
  • Specifications
  • Product Manual

Ver todos los detalles del producto »

Motic AE31E Inverted Compound Microscope with Phase Contrast and Kohler Illumination

Request Quote

Motic AE31 Elite Inverted Microscope – Innovation and Advanced Optical Precision

Explore the Microscopic World with the Motic AE31 Elite: A High-Performance Microscope for Research and Biomedical Applications, Equipped with World-Class Optics and an Advanced LED Illumination System

The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the C-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE31E Binocular
  Observation Tube	Binocular head, Siedentopf type, 360° swiveling
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm / 2.83in)
  Diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield WF10X/22mm with diopter adjustment
  Fine Focus Precision	2µm
  Fluorescence	Optional HBO
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing Stroke	10mm / 0.39in
  Free Working Distance	231mm / 9.09in (without condenser)
  Illumination Features	Auto-OFF and Light Memory function
  Illumination Interchangeability	Quartz halogen 6V/30W or LED 3W
  Inclination	45° inclined
  Interpupillary Distance	48-75mm / 1.89-2.95in
  Nosepiece	Left side facing quintuple
  Objective Classification	CCIS® Plan Achromatic, DIN
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 12.6mm / 0.50in), PH10X/0.25 (WD 4.1mm / 0.16in), LWD PH20X/0.30 (WD 4.7mm / 0.18in), [Optional] LWD PH40X/0.50 (WD 3.0mm / 0.12in)
  Phase Contrast	Slider
  Stage	Plain stage with metal and glass stage inserts
  Stage Size	200x239mm / 7.87x9.41in
  Stand Type	Inverted
  Standard Contrast Technique	Brightfield, phase contrast
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Transformer	Internal
  Power Supply	100-240V (CE)
  Accessories Included	Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
  Dimensions (LxWxH)	556x200x529mm / 21.89x7.87x20.83in
  Weight (Net)	11.7kg / 25.79lb

• • Inverted microscope AE31 Elite
  • Trinocular head with interpupillary distance adjustment (50-75 mm)
  • Widefield eyepieces WF10x / 22 mm field of view
  • Five-position nosepiece
  • Objectives:
    • CCIS Plan Achromat 4x / 0.10, WD 12.6 mm
    • CCIS Plan Achromat Phase 10x / 0.25, WD 4.1 mm
    • CCIS Plan Achromat Phase LWD 20x / 0.30, WD 4.7 mm
  • Glass and metal plate for the platform
  • ELWD condenser NA 0.30 (WD=72 mm) with phase ring
  • LED lighting system with intensity control
  • Filters: blue (45 mm), colored glass and green interference (546 nm)
  • Variable power supply: 100V-240V
  • Hexagonal Allen key
  • Vinyl dust cover
  • Glass plate for the platform
  • Centering screws
  • Power cable
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights
• • Catalog - AE31E

  • Catalog - LUMOS
  • Specifications - Binocular
  • Specifications - Trinocular
  • Product Manual

Ver todos los detalles del producto »

Motic PX43MET Trinocular Inverted Compound Microscope with Brightfield Darkfield Contrast and Polarization

Request Quote

PX43MET Inverted Microscope - Advanced Optical Solution for Precision Research

High-Quality Imaging and Exceptional Features for Industrial and Biomedical Applications

Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.

Features

• DIC for better depth imaging
• Polarization
• Brightfield and Darkfield contrast methods
• Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	PX43MET Inverted Microscope
  Optical System	Color Corrected Infinity Optical System (CCIS)
  Observation Tube	360° swivel range, height difference 40mm
  Interpupillary Distance	Adjustment range: 48mm to 75mm
  Eyepieces	UC-WF 10X/FN22
  Trinocular Light Path	20:80
  Nosepiece	Quintuple Revolving Nosepiece
  Objectives	Plan S-Apo BD 5X; Plan S-Apo BD 10X; Plan S-Apo BD 20X; LPlan S-Apo BD 50X
  Stage Size (mm)	Size: 320(W) x 194(L) mm, Stroke: 50 x 50 mm
  Focus	Course/Fine Focus Knob, Course 42mm/revolution, Fine 0.2mm/revolution, 0.002mm/marks
  Transmitted Light	Reflected Light 100W Light House RL100.00
  Electronics	115/230V~, 60/50Hz Halogen Light: 12V / 100W
  DIC	Optional
  Analyzer	Optional
  Polarizer	Optional

• • PX43MET Inverted Microscope
  • UC-WF 10X/FN22 Eyepieces
  • Plan S-Apo BD Objectives: 5X, 10X, 20X, 50X
  • Quintuple Revolving Nosepiece
  • Course and Fine Focus Knob
  • Reflected Light 100W Light House RL100.00
  • Power Cable (115/230V, 60/50Hz)
  • Instruction Manual
• • None
• • Cleaning Kit
  • Microcope Cameras Moticam
  • Led Lights
• • Catalog
  • Specifications
  • Manual

Ver todos los detalles del producto »

Motic AE2000MET Trinocular Inverted Compound Microscope

Request Quote

Advanced Inverted Metallurgical Microscope for Material Analysis

AE2000 MET Trinocular Microscope with High-Performance Optics, Flexible Contrast Techniques, and Robust Design for Laboratory Applications

Motic’s AE2000MET is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication. Large metal or die cast parts, too large to view under a conventional upright microscope, can easily be examined for failure analysis, material research or quality control.

With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control.

Features

• Robust manufacturing quality for a long lifetime
• New BF/DF objectives for metallurgy
• Sufficient power resources
• A flexible upgrade for digital results

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE2000 MET Trinocular 100W	AE2000 MET Trinocular 100W (with LM PL objectives)	AE2000 MET Trinocular 100W (with LM BD objectives)
  Observation tube	Trinocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Optical system	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
  Inclination	45° inclined	45° inclined	45° inclined
  Trinocular light split	100:0/20:80	100:0/20:80	100:0/20:80
  Interpupillary distance	48-75mm	48-75mm	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment
  Nosepiece	Side facing quintuple	Side facing quintuple	Side facing quintuple
  Objective classification	-	CCIS® LM Plan Achromatic, DIN	CCIS® LM BD Plan Achromatic, DIN (for Brightfield and Darkfield)
  Objectives	-	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), 50X/0.55 (WD 7.2mm)
  Objective mounting thread	M32	M32 with adapters to W 4/5" x 1/36" (RMS standard)	M32
  Stand type	Inverted	Inverted	Inverted
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts
  Stage size	280x192mm	280x192mm	280x192mm
  Travel range X&Y	50x50mm	50x50mm	50x50mm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Fine focus precision	2µm	2µm	2µm
  Focusing stroke	10mm	10mm	10mm
  Transmitted illumination	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse
  Illumination features	Sleeping mode	Sleeping mode	Sleeping mode
  Transformer	External	External	External
  Power supply	100-240V (CE)	100-240V (CE)	100-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, blue filter	Dust cover, power cord, Allen key, blue filter	Dust cover, power cord, Allen key, blue filter
  Dimensions LxWxH	673x280x345mm	673x280x345mm	673x280x345mm
  Weight Net	13kg	13kg	13kg
  Standard contrast technique	Brightfield	Brightfield	Brightfield, darkfield
  Polarization	Optional sliders	Optional sliders	Optional sliders
  Darkfield	Optional objectives	-	Objectives

• • Motic AE2000 MET Trinocular 100W
  • Dust cover
  • power cord
  • Allen key
  • Blue Filter
• • None
• • Cleaning Kit
  • Moticam
  • LED Lights
• • Catalog

  • Specifications - AE2000 MET Trinocular 100W
  • Specifications - AE2000 MET Trinocular 100W (LM PL objectives)
  • Specifications - AE2000 MET Trinocular 100W (LM BD objectives)
  • Instructions

Ver todos los detalles del producto »

Motic PA120MET Series Trinocular Upright Compound Microscope

Request Quote

Motic's PAA120MET: Upright Inspection Microscopes for Industrial/ Metallurgical Applications

The PA120MET series from Motic offers high-performance upright microscopes designed for precision inspection in industrial and metallurgical environments. With features like advanced optical systems, LED and halogen illumination options, and a range of objective lenses, these microscopes provide superior imaging for critical analysis of materials and structures. Ideal for quality control and research, the PA120MET delivers enhanced detail in a variety of inspection tasks.

Moti's PA120MET series microscopes feature a flexible, modular design that can be suited to your specific industrial inspection application. Our Plan S-APO series objectives and professional optical system design ensure excellent optical performance, while our frame and base design creates a low gravity, high stability system which reduces vibration commonly experienced during higher magnification observation in industrial environments. Our PA120MET series microscopes are widely used for FPD, LCD, and silicon wafer inspection.

Features

• Colour Corrected Infinity Optical System (CCIS®)
• Reflected and transmitted illumination (with Kohler illumination options)
• Adjustable eyepieces with optional reticle
• LWCD Condenser, N.A 0.55
• LED and halogen illumination

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	Brightfield		Brightfield / Darkfield
  Model	PA120MET	PA120MET-T	PA120MET-BD	PA120MET-BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination	Reflected	Reflected / Transmitted	Reflected	Reflected / Transmitted
  Observation Tube
  Trinocular	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
  Binocular (Optional)	Erect type (F.N 25), 20° inclined
  Eyepieces	10X (F.N 25), Diopter adjustable, Reticle optional
  Revolving Nosepiece
  Brightfield	5-position Nosepiece for Brightfield objective lens with DIC slot		/
  Brightfield/Darkfield	/		5-position Nosepiece for Brightfield, Darkfield objective lens with DIC slot
  Plan S-APO	Plan S-APO 5X/0.15 Plan S-APO 10X/0.3 Plan S-APO 20X/0.45 Plan S-APO 50X/0.8 Plan S-APO 100X/0.9 (Optional)		Plan S-APO BD 5X/0.15 Plan S-APO BD 10X/0.3 Plan S-APO BD 20X/0.45 Plan S-APO BD 50X/0.8 Plan S-APO BD 100X/0.9 (Optional)
  LPlan S-APO	LPlan S-APO 20X/0.4 LPlan S-APO 50X/0.55 LPlan S-APO 100X/0.8		LPlan S-APO BD 20X/0.4 LPlan S-APO BD 50X/0.55 LPlan S-APO BD 100X/0.8
  Base Unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring
  Base Unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  3D Profile Module	No
  Reflected Illumination	Kohler illumination system / Brightfield, Reflected DIC, simple Polarization		Kohler illumination system / Brightfield, Darkfield, Reflected DIC, simple Polarization
  Light Source	12V/100W halogen
  Transmitted Illumination	/	Yes	/	Yes
  Light Source	/	10W LED	/	10W LED
  Condenser	/	LWCD, N.A 0.55	/	LWCD, N.A 0.55
  Stage	Dimensions : 520mm X 400mm Moving stroke: 300mm X 300mm Optional: wafer stage

• • PA120MET Microscope (PA120MET)
  • 10X Eyepieces (PA120MET-T, PA120MET-BD)
  • 5-Position Nosepiece (PA120MET-BD, PA120MET-T)
  • LED or Halogen Light (PA120MET)
• • None
• • Cleaning Kit
  • Additional Objectives
  • Optional Stage Movement Base
  • Automated Stages
• • Catalog

Ver todos los detalles del producto »

Motic PA53 BIO SCAN Trinocular Compound Microscope with Motorized Stage

Request Quote

PA53 BIO SCAN Trinocular Microscope With Scanning Tube And Motorized Stage

Advanced microscope designed for scanning applications, featuring high-precision objectives, motorized stage, specialized condensers, and versatile lighting options.

PA53 Bio Scan mainly meant for transmitted light scan. Various contrasting method can be used for scan and stitch, from Phase contrast to polarizing contrast…… Scanning of transparent sample is not a problem now.

"Benefit of using microscope base digital slide scanning system like PA53 Scan"

• Better quality as it is completed optical path with full Kohler illumination setting
• High precision stage allow physical relocation of Region of Interest and rescan with high resolution high N.A. objective.
• No limitation on the use of objective, super high resolution scan with oil immersion objective becoming possible
• No limitation on the use of contrasting methods, phase contrast, Polarizing contrast, etc… can be used. To scan sample without staining becoming possible.

Features

• PA53 Scan series using a specially designed tube with built-in 1.2 Mpixel camera for focusing and a 5 Mpxiel high resolution sCMOS camera for imaging.
• Lumos LED is recommended for the scan which allow stable and homogenous illumination with very low consumable cost. HBO mercury burner can also be used if preferred.
• 100mm x 100mm high precision motorized stage with smallest step size of 10nm (repeatability better than 200nm) is used, relocation even with 100x objective is not a problem.
• Motorized 5x position nosepiece to allow smooth switching of objectives.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	PA53 BIO SCAN
  Trinocular Tube	Special scanning trinocular tube with 2x built-in camera
  Eyepieces	Adjustable Wide-Field (FN25) Eyepiece 10X/FN25 [Optional] Adjustable wide-field (FN22) Eyepiece
  Intermediate Piece	PA53 series intermediate piece
  Main Body (Upper)	Main upper mot body PA53 Bio Scan
  3D Profiler Controller	3D-Profiler control box/pad
  Objective Nosepiece (Mot)
  Fluorescent Attachment	-
  Transmitted Light Halogen Illuminator	100W Halogen lamp housing
  Halogen Bulb	100W Halogen bulb
  High-Quality Fluorescent LED Illuminator With Control Panel	-
  Motorized Stage	Motorized Stage 100mm x 10mm (without Light shutter) completed Controller box (without light shutter) Specimen holder (for scanning application) [Optional] Motorized Stage 100mm x 10mm (with Light shutter) completed [Optional] Controller box (with light shutter) [Optional] XY controller joystick and controller box for stage
  Objectives (Sapo, Good For FL Too)	Plan UC 2X/0.05, W.D=7.2mm HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17 HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17 HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17 HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17 [Optional] HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17
  Long Working Distance Condenser	[Optional] LWD N.A. 0.63 WD 10.7mm Condenser
  Condenser	N.A. 0.9/1.30 swing-out condenser [Optional] Push slider condenser 0.9/1.25 [Optional] Phase contrast turret condenser
  Fluorescent Filter Set With Cube	-
  Diffuser	-
  PA-25ND25 ND Filter	Optional
  Transmitted Light Filter	[Optional] Yellow filter [Optional] Green filter [Optional] Neodymium (contrast enhancement) filter [Optional] Blue conversion filter
  LBD Filter (White Balanced Filter)	Yes
  ND25 Neutral Density Filter	Yes
  ND6 Neutral Density Filter	Yes
  Analyzer Slider	[Optional] 360° Rotation analyzer Filter
  Polarizer	[Optional] Polarizer Filter

• • Trinocular Tube: Special scanning trinocular tube with 2x built-in camera.
  • Eyepieces: Adjustable Wide-Field (FN25) Eyepiece 10X/FN25.
  • Intermediate Piece: PA53 series intermediate piece.
  • Main Body (Upper): Main upper mot body PA53 Bio Scan.
  • 3D Profiler Controller: 3D-Profiler control box/pad.
  • Transmitted Light Halogen Illuminator: 100W Halogen lamp housing.
  • Halogen Bulb: 100W Halogen bulb.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (without Light shutter) completed.
    • Controller box (without light shutter).
    • Specimen holder (for scanning application).
  • Objectives:
    • Plan UC 2X/0.05, W.D=7.2mm.
    • HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17.
    • HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17.
    • HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17.
    • HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17.
  • Condenser: N.A. 0.9/1.30 swing-out condenser.
  • Filters:
    • LBD Filter (White balanced filter).
    • ND25 Neutral Density filter.
    • ND6 Neutral Density filter.
• • None
• • Cleaning Kit
  • Eyepieces: Adjustable wide-field (FN22) Eyepiece.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (with Light shutter) completed.
    • Controller box (with light shutter).
    • XY controller joystick and controller box for stage.
  • Objectives: HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17.
  • Long Working Distance Condenser: LWD N.A. 0.63 WD 10.7mm Condenser.
  • Condenser:
    • Push slider condenser 0.9/1.25.
    • Phase contrast turret condenser.
  • Filters:
    • PA-25ND25 ND filter.
    • Yellow filter.
    • Green filter.
    • Neodymium (contrast enhancement) filter.
    • Blue conversion filter.
  • Analyzer Slider: 360° Rotation analyzer filter.
  • Polarizer: Polarizer filter.
• • Flyer

Ver todos los detalles del producto »

Motic PA43 BIO Trinocular Upright Compound Microscope and Rackless Stage

Request Quote

High-Performance Microscope Designed for Versatile Laboratory Applications, Featuring Trinocular Observation and Modular Configurations.

Comprehensive Microscope for Clinical, Biological, and Research Applications, Offering Precision Optics and Customizable Features.

The PA43 BIOMED has a strong selection of contrast accessories that are available and easily upgradable to meet different requirements:

• Phase contrast methods for various microbiology applications.
• Darkfield accessories for blood cell studies for natural therapy.
• Polarizing contrast accessories for protein crystal, tissue, gout and kidney stone observations.

Features

• Kohler illumination with option of Halogen or LED illumination
• Environmentally Friendly ECO function
• Consistent, Even Illumination with IL Function
• Rackless stage

Applications

Pathology and Cytology

Pathology is sometimes considered to be the foundation of medicine, and the study of biopsy tissue has brought us to many different methods of disease diagnosis. Whether it be H&E slides or Immunohistochemistry studies (IHC), the PA43 provides a very reliable, affordable platform to meet the research requirements. With options for both manual observation or digital image capture for quantitative study, the PA43 also boasts a series of high-quality objectives with best-in-class resolution. It is also a very useful microscope for Cytology, such as for PAP-smears, TCT samples for cervical cancer diagnosis.

Cytogenetics

Karyotyping has always been a gold standard for the diagnosis of genetic disease, pre-natal screening and leukemia diagnosis. Specialists need good resolution through their 100x objectives, as they need to scan through the slides with an oil objective to look for the right Metaphase to study. The rackless stage of the PA43 offers smooth movement of the stage with zero-backlash. Together with our quality oil objectives, the PA43 becomes an excellent companion for Cytogeneticist

Hematology

White Blood cell classification and counting is commonplace for both routine screening and Leukemia diagnosis. Although we now have fully automatic screening systems to do most of the tests, confirmations under microscopes are still important and often demanding. Other than Motic’s routine oil immersion objective, specially designed non-cover glassed objectives are also available as part of the PA43’s accessory lineup. Moreover, the PA43 is also very ideal for Karyotyping for Leukemia studies.

Toxicology and Biodosimetry

Constant monitoring of various environmental hazard on human DNA damage is always a topic for clinical specialists and pharmaceutical companies. The gold standards of evaluation, such as “Chromosome Aberration Scoring”, “Dicentric Scoring”, and “Micro-nuclei (in-vitro and in-vivo)” are all microscope-based methods that are very labor intensive. The PA43 provides a comfortable, quality solution for these intensive, demanding routine tests.

Software - Motic Analysis Bio

Digital imaging and automation make the life of a clinical specialist easier and more productive. Analysis Bio is our entry into a new generation of software, and not only makes the operation of the PA43 and PA53 simple and easy, but also provides the breadth of analysis and measurement tools needed for digital documentation and analysis.

This full featured microscope has the following:

• Fully encoded objectives
• Phase contrast package
• Pathology package
• Optional ergonomic head to reduce neck strain

Applications	Cytology	Haemotoxylin and Eosin Stain (HE)	Immunohistochemistry (IHC)	Hematology

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Package 1 (PH Basic Configuration)	Package 4 (PH Advanced Configuration)	Package 2 (Standard)	Package 3 (Pathology)
  Base	/	/	/	/
  Observation Tube	Trinocular Head			Inclined Trinocular Head
  Eyepiece	N-WF10X/22mm
  Arm	/	/	/	/
  Nosepiece	5-Position Nosepiece
  Objectives
  Plan UC Objective	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 2X/0.05, W.D=7.2mm • Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 20X/0.45, W.D=0.8mm • Plan UC 40X/0.65, W.D=0.6mm
  Phase Contrast Objective	• Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm		-
  Condenser	N.A 0.9/1.25 Abbe with Slider Slot	Turret Condenser	N.A 0.9/1.25 Abbe with Slider Slot	N.A 0.90/0.13 Swing In/Out
  Stage	Rackless Stage
  Transmitted Illumination	Condenser (with Field Diaphragm)
  Illumination	• LED Module (High Color Temperature) • Halogen Module
  Phase Contrast & Dark Field Accessories	• PH Slider (Ph1) • Phase Centering Telescope	Phase Centering Telescope	-
  Filter	Blue Filter

• • PA43 microscope stand.
  • Trinocular or tilting trinocular observation tube, depending on the configuration.
  • N-WF10X/22mm eyepieces.
  • 5-position revolving nosepiece.
  • Plan UC objectives, varying by package configuration.
  • Condenser appropriate to the selected package.
  • Rackless stage.
  • Illumination module (LED or Halogen) as per chosen configuration.
  • Blue filter.
• • None
• • Cleaning Kit
  • Phase contrast accessories for various microbiology applications.
  • Darkfield accessories suitable for objectives up to 40x magnification.
  • Polarizing contrast accessories for studies such as protein crystals, muscle fibers, and tissue observations.
  • LED illuminator modules with options for high or low color temperature.
  • Halogen illuminator module with 30W power.
  • Rackless stage with a ceramic-coated surface for durability and ease of use.
  • ECO function for automatic power saving mode.
  • IL function to maintain consistent, even brightness during magnification changes.
• • Catalog
  • Specifications
  • Product Manual

Ver todos los detalles del producto »

Motic PA53MET Trinocular Compound Microscope up to 100X with Reflected Illumination

Request Quote

Motic PA53-MET Metallurgical Microscope: Optical Excellence for Precision Analysis

Cutting-edge technology with infinity-corrected optics illumination, and interchangeable modules for advanced metallurgical applications

The Motic PA53-MET Metallurgical Microscope redefines microscopic analysis standards with its CCIS® infinity optical system and modular versatility. Designed for metal, ceramic, and industrial material inspection, it combines high-resolution S-APO optics with ergonomic controls that minimize fatigue during prolonged sessions. With Brightfield, Nomarski DIC, and polarization capabilities, it's the preferred tool for quality control labs and metallographic research.

Key Features:

• Professional Optics: Plan S-APO lenses with chromatic correction (5X-100X) and wide WD for distortion-free images.
• Modular System: Configurable with transmitted/reflected illumination, XY stages or 12" wafers.
• DIC Technology: Single Nomarski prism for differential contrast at all magnifications.
• Köhler Illumination: 100W halogen with integrated ND filters for precise light regulation.
• Ultra-Precise Focus: Dual coarse/fine knobs (1μm resolution) with adjustable stop.
• Ergonomic Design: 20° inclined trinocular head with 100% eyepiece/camera selection.
• 3D Compatibility: PA53MET-3D option with controlled Z-axis for volumetric measurements.
• Robust Construction: 19kg chassis with vibration damping for industrial environments.

PA53MET Model Comparison

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	PA53MET	PA53MET-3D	PA53MET-T	PA53MET-BD	PA53MET-BD-3D	PA53MET-BD-T
  Optical System
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination
  Illumination Type	Reflected	Reflected	Reflected/Transmitted	Reflected	Reflected	Reflected/Transmitted
  Observation Tube
  Configuration	Binocular (Optional) Upright type (F.N 25), 20° inclined		Trinocular Upright type (F.N 25), 20° inclined, Trinocular light path selection: 2 steps (100:0 / 0:100)	Binocular (Optional) Upright type (F.N 25), 20° inclined		Trinocular Upright type (F.N 25), 20° inclined, Trinocular light path selection: 2 steps (100:0 / 0:100)
  Eyepieces	10X (F.N 25), Adjustable diopter, Optional reticle
  Objective Turret
  Type	5-position Brightfield objective lens turret with DIC slot		Brightfield/Darkfield/5-position Brightfield, Darkfield objective lens turret with DIC slot	5-position Brightfield objective lens turret with DIC slot		Brightfield/Darkfield/5-position Brightfield, Darkfield objective lens turret with DIC slot
  Objectives
  Plan S-APO	5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)		Plan S-APO BD/5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)	5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)		Plan S-APO BD/5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)
  LPlan S-APO (Optional)	20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm		LPlan S-APO BD (Optional)/20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm	20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm		LPlan S-APO BD (Optional)/20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm
  Base Unit - Focus
  Specifications	Travel range: 29.5 mm / Coarse and fine focus knobs. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stop, Torque adjustment ring
  Base Unit - Electronics
  Features	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  3D Profile Module
  Availability	No	Yes	No	No	Yes	No
  Mechanism
  Motor	High-resolution 5-phase stepping motor, Long cross roller guide system		-	High-resolution 5-phase stepping motor, Long cross roller guide system		-
  Travel distance	30 mm		-	30 mm		-
  Resolution	0.01μm		-	0.01μm		-
  Repeatability	0.5μm		-	0.5μm		-
  Maximum speed	1.4 mm/sec		-	1.4 mm/sec		-
  Dimensions	240(W) X 157(D) X 202.5 (H) mm		-	240(W) X 157(D) X 202.5 (H) mm		-
  Weight	5 kg		-	5 kg		-
  Load capacity	15 kg		-	15 kg		-
  Reflected Illumination
  System	Köhler illumination system Brightfield, Normaski DIC, Simple polarization		BF/DF/Köhler illumination system Brightfield/Darkfield, Normaski DIC, Simple polarization	Köhler illumination system Brightfield, Normaski DIC, Simple polarization		BF/DF/Köhler illumination system Brightfield/Darkfield, Normaski DIC, Simple polarization
  Light source	12V 100W halogen
  Transmitted Illumination
  Availability	No	No	Yes	No	No	Yes
  Illumination System	-		Köhler illumination system Brightfield/Built-in filters	-		Köhler illumination system Brightfield/Built-in filters
  Light Source	-		12V 100W halogen	-		12V 100W halogen
  Lamp	-		Long-life 12V 100W halogen bulb (Philips 7724)	-		Long-life 12V 100W halogen bulb (Philips 7724)
  Condenser	No		Yes	No		Yes
  Abbe-N.A	-		1.20	-		1.20
  Long-working	-		LWCD, N.A 0.65	-		LWCD, N.A 0.65
  Stage
  Standard	4x4 inch size 210(W) X 170(D) mm, Travel 104(X) X 102(Y) mm, metal plate, glass plate
  Options	6x6" Stage, 6x6" Stage, 8" Wafer Stage, 12" Wafer Stage

• • PA53MET Microscope
  • 10X Eyepieces (F.N 25) with Diopter Adjustment
  • Metal Plate and Glass Plate for the Stage
  • Integrated Power Supply
  • 12V 100W Halogen Bulb
  • Instruction Manual
  • Protective Cover
• • Additional Reflected Light Illuminators
  • Transmitted Light Illuminators
  • XY Stages
  • 3D Profile Module
  • Moticam Digital Cameras
  • Plan S-APO and LPlan S-APO Objectives
• • Catalog
  • Specifications
  • Instructions

Ver todos los detalles del producto »

Motic Panthera TEC POL EPI Upright Compound Microscope up to 600X

Request Quote

Panthera TEC POL EPI- Powerful Solutions for Incident and Transmitted Light Methods

The Panthera TEC POL EPI Is Designed For Precise, High-Resolution Observations, Equipped With Advanced Optics, Built-In LED Illumination, And A Customizable Configuration (Binocular, Trinocular, Or Digital). It's Ideal For Polarization Applications In Research Or Laboratory Environments.

The Panthera TEC POL EPI series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL EPI (Binocular)	Panthera TEC POL EPI (Trinocular)	Panthera TEC POL EPI (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-		CMOS
  Sensor Size	-		1/2.5"
  Capture Resolution	-		5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-		1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-		1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-		1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators
  Objective Classification	Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22,9 lbs)	9.8kg (21,6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL EPI Microscope (Binocular/Trinocular/Digital version)
  • Power cord
  • Dust cover
  • Allen key
  • Blue filter
  • Halogen bulb
  • Adjustable key for nosepiece
  • Interference color chart
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Motic Cameras (USB, HDMI, Wi-Fi models)
  • Motic Software
  • C-Mount Adapters
  • Additional objectives
  • Replacement bulbs
  • Fluorescence filters
• • Catalog
  • Specifications – Binocular
  • Specifications – Trinocular
  • Specifications – Digital

Ver todos los detalles del producto »

Motic Panthera TEC POL Upright Compound Microscope up to 600X with Circular Rotating Stage

Request Quote

Panthera TEC POL - Powerful Solutions for Incident and Transmitted Light Methods

The Motic Panthera TEC POL Polarizing Microscope Is Designed For Material Science Applications, Enabling The Analysis Of Transparent And Opaque Samples With Birefringence And Bireflection Characteristics.

The Panthera TEC POL series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL (Binocular)	Panthera TEC POL (Trinocular)	Panthera TEC POL (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-	-	CMOS
  Sensor Size	-	-	1/2.5"
  Capture Resolution	-	-	5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-	-	1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-	-	1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-	-	1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Rotatable analyzer 360º, Bertrand lens and slot for compensators
  Objective Classification	CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22.9 lbs)	9.8kg (21.6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL Polarizing Microscope
  • Binocular or Trinocular Siedentopf Head with 25° Inclined Eyepiece Tubes
  • Widefield 10x Eyepieces with Diopter Adjustment
  • Intermediate Tube with 360° Rotatable Analyzer, Bertrand Lens, and Compensator Slot
  • CCIS® UC Plan Achromatic (Stress-Free) Objectives: 4X, 10X, 40X, and 60X
  • 360° Rotating Circular Stage with 0.1° Vernier Scale
  • Abbe Swing-Out Achromatic Condenser N.A. 0.90/0.13 (Stress-Free) with Rotatable Polarizer
  • Koehler Illumination with 6V/30W Quartz Halogen and Intensity Control
  • Motic LightTracer Features: Light Memory, Sleep Mode (Auto On-Off), LED Nosepiece Light Intensity Indicator
  • Dust Cover
  • Power Cord
  • Allen Key
  • Blue Filter
  • Halogen Bulb
  • Adjustable Wrench for Nosepiece
  • Interference Color Chart
  • Screws for Metal Extension Support
• • None
• • Cleaning Kit
  • Empty Insertion Plate
  • Quartz Wedge
  • 1/4 Wave Plate
  • Wave Tint Plate
  • 45mm Microscope Filters (Yellow, Green, Neutral Density N.D.2, Didymium, Blue)
  • Mechanical Stage for Polarizing Microscope
  • Reticle with Pointer, 25mm Diameter
  • KIMTECH Kimwipes Cleaning Cloths
• • Catalog
  • Specifications - Binocular
  • Specifications - Trinocular
  • Specifications - Digital

Ver todos los detalles del producto »

Motic Panthera TEC MAT Trinocular Upright Compound Microscope up to 500X

Request Quote

Panthera TEC MAT - Powerful Solutions for Material Sciences

High-Precision Microscopes With Corrected Optical System And Integrated LED Technology For Professional Applications In Research And Education

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

Features

• Smart Darkfield with 5 Segment illumination mode
• New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
• Pure incident or incident/ transmitted microscope stands available
• LED color temperature interchangeable
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC MAT BF	Panthera TEC MAT BF-T	Panthera TEC MAT BD	Panthera TEC MAT BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Trinocular head, Siedentopf type, 360º swiveling
  Inclination	25º inclined, 360º swivelling
  Trinocular Light Split	Fixed 50:50
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Intermediate Body	Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
  Nosepiece	Reversed quintuple, coded
  Objective Classification	CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN		CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)
  Objectives	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm), S-Apo 100X/0.90 (WD 0.5mm) (Optional)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)		M32
  Stand Type	Upright
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
  Stage Size	300x180mm
  Travel Range X&Y	150x100mm (6"x4")
  Condenser	-	LED condenser	-	LED condenser
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Incident Illumination	LED 3W with integrated field and aperture diaphragms		LED 3W smart segmental ringlight with integrated field and aperture diaphragms
  Transmitted Illumination	-	0.06Wx39 LEDs	-	0.06Wx39 LEDs
  Illumination Interchangeability	LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, screws for metal extension support
  Dimensions LxWxH	410x300x450mm
  Weight Net	10.4kg (23 lbs)	10.6kg (23,1 lbs)	10.5kg (23,3 lbs)	10.7kg (23,5 lbs)
  Standard Contrast Technique	Brightfield		Brightfield, Darkfield
  Optional Contrast Technique	Polarization

• • Microscope Panthera TEC MAT
  • Dust cover
  • Power cord
  • Allen key
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Polarization kit
  • Darkfield condenser
  • Fluorescence module
  • Camera for external USB connection
  • Objective lens (e.g., 100X/0.90 for higher magnification)
  • Microscope cover or case for added protection
• • Catalog
  • Specifications – BF (6"x4")
  • Specifications – BF-T (6"x4")
  • Specifications – BD (6"x4")
  • Specifications – BD-T (6"x4")

Ver todos los detalles del producto »

Motic Panthera Cloud Digital Compound Microscope up to 1000X with Wi-Fi HDMI Ethernet Connectivity

Request Quote

Panthera Cloud: Revolutionizing Microscopy with Cutting-Edge Connectivity and Precision

Experience the Future of Microscopy with Superior Optics, Versatile Imaging, and Seamless Data Sharing

The Panthera Cloud microscope is a state-of-the-art instrument designed for professionals who demand precision, innovation, and connectivity. Featuring the advanced CCIS® optical system, it delivers unparalleled clarity and color fidelity for a wide range of applications. The integrated ImagingOnDevice system and multiple live display modes (Ethernet, HDMI, Wi-Fi) make data sharing effortless, while the Motic LightTracer technology ensures optimal illumination control. Equipped with a robust mechanical stage, versatile contrast options, and high-performance objectives, the Panthera Cloud is the ideal solution for research, education, and clinical diagnostics.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Panthera Cloud
  Observation tube	Binocular head, Siedentopf type 25°, 360° swiveling
  Optical system	Colour Corrected Infinity Optical System (CCIS®)
  Sensor Type	CMOS
  Sensor Size	1/2.5"
  Capture Resolution Info	8MP
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Darkfield	Optional slider/turret
  Data transfer	Wi-Fi, HDMI, Ethernet
  Diaphragm	Iris diaphragm
  Diopter adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Filter holder	On top of the illuminator with fixing cap
  Fine focus precision	2µm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing stroke	25mm
  Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
  Inclination	25° inclined, 360° swivelling
  Interpupillary distance	48-75mm
  Live display mode through Ethernet	1280x720, 1920x1080 pixels (Full HD)
  Live display mode through HDMI	1920x1080 (Full HD)
  Live display mode through Wi-Fi	1920x1080 (Full HD)
  Nosepiece	Reversed quintuple, coded
  Objective classification	CCIS® UC Plan Achromatic (Pb free), DIN
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Other features	USB 2.0 for external Devices (x2)
  Phase contrast	Optional slider/turret
  Polarization	Optional add-on
  Stage	Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	185x145mm
  Stand type	Upright
  Standard contrast technique	Brightfield
  Transmitted illumination	Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  Travel range X&Y	75x50mm
  Upper limit stop	Upper limit stop preset but adjustable
  Software	ImagingOnDevice System (Panthera App embedded)
  Transformer	Internal
  Power supply	110-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
  Dimensions LxWxH	282x210x394mm
  Weight Net	8.8 kg (19,4 lbs)

• • Panthera Cloud Microscope
  • Dust cover
  • Power cord
  • Allen key
  • Immersion oil (5ml)
  • Blue filter
  • Halogen bulb
  • LED module
  • HDMI cable
  • Wi-Fi USB dongle
  • Calibration slide
• • None
• • Cleaning Kit
  • Darkfield slider/turret
  • Phase contrast slider/turret
  • Polarization add-on
  • Additional objectives
  • LED color temperature modules
• • Catalog
  • Specifications
  • Product Manual

Ver todos los detalles del producto »

Motic Panthera E2 Upright Compound Microscope up to 1000X

Request Quote

Panthera E2 Compound Microscopes: Advanced Optics and Ergonomic Design for Professionals

Designed for Clarity and Versatility in a Compact Form

The Panthera E2 offers exceptional image quality with its Color Corrected Infinity Optical System (CCIS®). Ideal for educational and laboratory settings, it features a user-friendly design, adjustable optics, and efficient LED illumination. This upright microscope is equipped with a wide range of objectives and accessories to ensure accuracy in imaging and versatility for various research needs.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera E2 Binocular	Panthera E2 Trinocular
  Model	1100104601116	1100104601126
  Optical system	Color Corrected Infinity Optical System (CCIS®)
  Observation tube type	Binocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Inclination	25° inclined, 360° rotating (storage saving), 360° swiveling
  Trinocular light division	-	Fixed 50:50
  Interpupillary distance	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield UC-WF10X/20mm with diopter adjustment
  Revolver	Reversed quadruple
  Objective classification	CCIS® UC Plan Achromatic (Pb free)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Base type	Upright
  Stage	Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	140x135mm
  X&Y travel range	75x40mm
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Diaphragm	Iris diaphragm
  Focusing mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine focusing precision	2μm
  Focusing travel	25mm
  Upper limit stop	Upper limit stop preset but adjustable
  Filter holder	On top of the illuminator
  Transmitted illumination	Fixed Koehler LED 1W with intensity control
  Illumination features	Nosepiece LED light intensity indicator
  Transformer	Internal
  Power supply	110-240V (CE), USB 2.0 for battery pack
  Other features	USB 2.0 for external camera power
  Included accessories	Dust cover, power cord, Allen key
  Dimensions LxWxH	282x210x396mm
  Net weight	7.5kg (16.5lbs)

• • Objectives:
    • 4X/0.10 (WD 30.5mm)
    • 10X/0.25 (WD 17.4mm)
    • 40X/0.65/S (WD 0.6mm)
    • 100X/1.25/S-Oil (WD 0.16mm)
  • Dust Cover
  • Power Cord
  • Allen Key
  • Immersion Oil (5ml)
  • Manufacturer's Documentation
• • None
• • Cleaning Kit
  • Camera (for digital imaging)
  • Polarizer
  • Fluorescence kit
  • Additional objectives
  • Stage clips
  • Contrast filters
  • Advanced illumination system
  • Battery pack
• • Catalog - English
  • Catalog - Spanish
  • Specifications – Panthera E2 Binocular
  • Specifications – Panthera E2 Trinocular
  • Product Manual

Ver todos los detalles del producto »

Motic B1-252 Series Binocular Compound Microscopes

Request Quote

B1-252LED and B1-252SP Binocular Microscopes Superior Design for Academic and Professional Use The B1-252LED and...

Ver todos los detalles del producto »

Motic AE2000 Inverted Compound Microscope up to 200X with LED and Halogen Illumination

Request Quote

Advanced Motic AE2000 Series Inverted Microscopes For Precision

Innovative Design For Routine Live Cell Inspection In Various Environments

The AE2000 series features a revolutionary design packed with functions, setting a new benchmark in affordable inverted microscopy. The AE2000 inverted microscopes from Motic are designed for routine live cell inspection with an easy and flexible setup, making them ideal for university, routine clinical, and laboratory environments. The main applications of the model offer superior image quality when observing cell cultures in microbiology, living organisms, and tissue culture samples. Both microscopes, including the optical system, are manufactured entirely lead-free, in compliance with international RoHS standards.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Ref	Binocular AE2000	Trinocular AE2000
  Observation Tube	Trinocular head, Siedentopf type, 360° rotatable
  Optical System	Infinity color-corrected optical system (CCIS®)
  Condenser	ELWD NA 0.30 condenser (WD = 72 mm) with filter holder
  Diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, +/- 5 diopters
  Eyepieces	Widefield N-WF10X / 20 mm with diopter adjustment
  Fine Focus Precision	2 µm
  Focusing Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focus Stroke	8 mm
  Free Working Distance	Working distance without condenser 184 mm
  Lighting Functions	Automatic on/off
  Lighting Interchangeability	6V / 30W quartz halogen or 3W LED
  Inclination	45° inclined
  Interpupillary Distance	48-75 mm
  Nosepiece	Quadruple nosepiece, left-facing
  Objective Classification	CCIS® Plan Achromatic, DIN
  Objective Mounting Thread	W 4/5" x1/36" (RMS standard)
  Objectives	4X / 0.10 (WD 12.6mm), PH10X / 0.25 (WD 4.1mm), [Optional] LWD PH20X / 0.30 (WD 4.7mm), [Optional] LWD 40X / 0.50 (WD 3.0mm)
  Phase Contrast	Slider
  Stage	Flat stage with metal and glass stage inserts
  Stage Size	200x239 mm
  Stand Type	Inverted
  Standard Contrast Technique	Brightfield, phase contrast
  Transmitted Illumination	6V / 30W quartz halogen with intensity control
  Transformer	External
  Power Supply	100-240 V (CE)
  Included Accessories	Dust cover, power cable, blue, green, and neutral density filters, Ph1 phase ring, centering telescope, centering keys

• • Inverted Microscope Motic Series AE2000 (1)
  • Dust cover (1)
  • Power cable (1)
  • Blue, green, and neutral density filters (1)
  • Ph1 phase ring (1)
  • Centering telescope (1)
  • Centering keys (1)
• • None
• • Cleaning Kit
• • Catalog (English)
  • Specifications - Binocular (English)
  • Specifications - Trinocular (English)
  • Product Manual (English)

Ver todos los detalles del producto »

Motic BA210S Upright Compound Microscope up to 1000X with LED Illumination

Request Quote

Advanced Motic BA210S Series Compound Microscopes For Precision

High-Performance Microscopes Designed For Educational And Professional Use

The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and laboratory technicians. Every aspect of these microscopes contributes to facilitating your daily work. The ergonomic shape of the stand and the comfort of the different heads allow for fatigue-free viewing over many hours.

The BA210 microscope features a well-evaluated 3 W LED illumination system in a fixed Koehler configuration. The importance of LEDs as safe and long-term light sources has increased, especially in educational environments, as their lifespan and reduced heat output surpass halogen bulbs. For fieldwork without power supply, an optional mirror attachment can be installed. A high-quality condenser with NA 1.25 and aperture diaphragm is implemented for viewing weakly or unstained samples.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	BA210S Binocular	BA210S Trinocular
  Optical System	Infinity Optical System	Infinity Optical System
  Observation tube	Binocular Head Siedentopf type	Trinocular Head Siedentopf type, Light split 80/20, 100/0
  Inclination	30° inclined, 360º rotating	30° inclined, 360º rotating
  Interpupillary distance	55-75mm	55-75mm
  Diopter adjustment	On both tubes, +/- 5 diopter	On both tubes, +/- 5 diopter
  Eyepiece	WF10X/20mm	WF10X/20mm
  Nosepiece	Reverse quadruple revolving nosepiece with click stops	Reverse quadruple revolving nosepiece with click stops
  Objective classification	ASC Infinity Plan Achromat	ASC Infinity Plan Achromat
  Objectives	4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm)	4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm)
  Objective mounting thread	W 4/5" x 1/36" (RMS standard)	W 4/5" x 1/36" (RMS standard)
  Mechanical stage	Built-in low position coaxial mechanical stage with sample holder	Built-in low position coaxial mechanical stage with sample holder
  Stage size Mechanical Stage X&Y	140mm x 135mm	140mm x 135mm
  Range	76 x 40mm	76 x 40mm
  Upper limit stop	Pre-set and adjustable	Pre-set and adjustable
  Condenser	Rack and pinion Abbe 1.25 N.A. with iris diaphragm	Rack and pinion Abbe 1.25 N.A. with iris diaphragm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Fine focus precision	2μm minimum increment	2μm minimum increment
  Z-Axis movement	20mm	20mm
  Filter	Built-in frosted glass, no blue filter needed	Built-in frosted glass, no blue filter needed
  Illumination	LED 3W with intensity control	LED 3W with intensity control
  Transformer	Internal	Internal
  Power supply	Universal 100 - 240V 50 - 60Hz	Universal 100 - 240V 50 - 60Hz
  Accessories included	Dust cover and immersion oil (5ml)	Dust cover and immersion oil (5ml)
  Length x Width x Height	360x190x395mm	360x190x395mm
  Weight	7,2Kg	7,2Kg

• • Microscope (1)
  • Manual
• • None
• • Cleaning Kit

• Binocular BA210S

  • Technical Specifications (English)
  • User Manual (English)

  BA210S Trinocular

  • Technical Specifications (English)
  • User Manual (English)

Ver todos los detalles del producto »

Motic BA310E Upright Compound Microscope up to 1000X with LED or Halogen Illumination

Request Quote

Advanced Optical Precision for Scientific and Academic Studies

Explore invisible details with superior clarity through the Motic BA310E microscope series. Designed for demanding laboratories and high-level educational environments.

The Motic BA310E series represents a significant evolution in professional microscopy, offering superior optical and mechanical enhancements derived from the flagship BA410 model. They meet modern environmental standards thanks to lead-free manufacturing and an interchangeable illumination system (halogen or LED). Its rackless stage optimizes workspace and improves movement control, while the CCIS® optical system ensures sharp, accurate images, ideal for routine applications, university education, and research.

Key Features:

• CCIS® Optical System: Color Corrected Infinity Optical System for exceptional color fidelity.
• Siedentopf Binocular/Trinocular Head: 30° inclined and 360° rotatable for comfortable observation.
• Rackless Stage: Smooth and ergonomic coaxial displacement control.
• Plan EC DIN Objectives: 4X, 10X, 40X, 100X-Oil with superior image performance.
• Precise Focusing: Coaxial system with 2 μm fine graduation.
• Interchangeable Illumination: 6V/30W halogen or 3W LED (6000K / 4500K).
• Abbe Condenser NA 0.90/1.25: Adjustable and centerable with slot for filters and contrast.
• Designed for Comfort and Durability: Includes ergonomic parts, filters, and essential accessories.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	BA310E Binocular	BA310E Trinocular
  Head Type	360° Siedentopf Binocular	360° Siedentopf Trinocular
  Optical System	CCIS® (Color Corrected Infinity Optical System)
  Included Objectives	4X, 10X, 40X, 100X-Oil (EC Plan DIN)
  Condenser	Abbe NA 0.90/1.25 adjustable and centerable with slot
  Stage	Rackless 180x170 mm, 80x55 mm travel range
  Focusing	Coaxial coarse/fine, 2 μm precision
  Illumination	Interchangeable 6V/30W Halogen or 3W LED
  Eyepieces	N-WF10X/20 mm with bilateral diopter adjustment
  Interpupillary Distance	48–75 mm
  Transmitted Illumination	Koehler with intensity control
  Fluorescence / Contrast	Optional (slider or turret)
  Polarization	Optional
  Power Supply	100–240V AC (internal transformer)

• • x1 BA310E Microscope (as configured: binocular or trinocular)
  • x1 Pair of N-WF10X/20 mm eyepieces
  • x1 Dust cover
  • x1 Allen key
  • x1 Immersion oil bottle (5 ml)
  • x1 Blue filter
  • x1 Spare fuse
  • x1 Cable clip and fixing screw
• • Cleaning Kit
• • Specifications - Binocular (English)
  • Specifications - Trinocular (English)
  • Product Manual (English)

Ver todos los detalles del producto »

AmScope 40X to 2500X Binocular Compound Microscope ²⁵

$ 394.25 USD

The B490 model is a reliable and versatile microscope, ideal for veterinarians, breeders, and clinical laboratories. Designed to deliver superior optical quality and ease of use, it features advanced functions such as a compensation-free Siedentopf head, a precise focusing system with tension adjustment and vertical lock, and a double-layer mechanical stage for smooth and precise movements. This instrument can be customized for different needs with a wide variety of accessories and lenses, offering magnifications ranging from 40X to 2600X (depending on the version).

Features

• Reliability and Optical Quality: A dependable instrument designed for veterinarians, clinics, and laboratories, with high-precision optics.
• Siedentopf Head: Binocular head inclined at 30° with compensation-free interpupillary adjustment and 360° rotation, ideal for ergonomic comfort.
• Wide Magnification Range: Offers magnifications from 40X to 1000X, expandable to 2500X with 25X eyepieces for detailed analysis of cells, bacteria, and tissues.
• High-Quality Objective Lenses: DIN achromatic objectives with color correction and resolution, including 4X, 10X, 40X, and 100X (oil immersion).
• Precision Focusing System: Coaxial coarse and fine focus knobs with tension control and upper limit stop.
• Double-Layer Mechanical Stage: Smooth and precise movement for sample analysis, with easily accessible controls.
• High-Performance Halogen Illumination: Bright light with excellent color reproduction and reduced eye strain during prolonged use.
• Advanced Abbe Condenser: 1.25 numerical aperture with iris diaphragm and height adjustment via rack and pinion, optimizing contrast and depth of field.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Value
  Optical System	Finite conjugate
  Mechanical Tube Length	160mm
  Head	Binocular, 30° inclination, 360° rotation
  Interpupillary Adjustment	Siedentopf compensation-free
  Eyepiece Diameter	23mm
  Eyepieces	10X, 25X
  Objectives	Standard DIN
  Parfocal Objective Distance	45mm
  Objective Mounting Thread	RMS 20.32mm
  Nosepiece	Quadruple
  Focusing System	Coaxial coarse and fine focus, upper limit stop, tension control
  Focus Range	30mm
  Fine Focus Division	0.002mm
  Stage Design	Double-layer with calibrator
  Stage Dimensions	140mm x 140mm
  X-Y Translation Range	75mm x 45mm
  Transmitted Illumination	20W Halogen
  Condenser	Abbe condenser with iris diaphragm, NA1.25
  Condenser Holder	Rack and pinion
  Power Supply	110VAC 60Hz

  Magnification	Corrections	NA	Immersion Medium	Cover Glass Thickness
  4X	achromatic	0.10	—	0.17mm
  10X	achromatic	0.25	—	0.17mm
  40X	achromatic	0.65	—	0.17mm
  100X	achromatic	1.25	oil	0.17mm

• • One Binocular Head
  • One Microscope Body
  • Four Objective Lenses: 4X, 10X, 40X, 100X
  • One Pair of 10X Eyepieces
  • One Pair of 25X Eyepieces
  • One Power Cord (Standard for the U.S. and Canada)
  • One Dust Cover
  • Three Color Filters (Blue, Green, Yellow)
  • One Spare Halogen Bulb
  • One Spare Fuse
  • One Sample Bottle of Immersion Oil
• • None
• • Additional objectives with higher or lower magnifications
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (dark field, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stage
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, cover glasses, tools)
  • Additional or enhanced lighting (LED, hal ogen, fluorescent)
  • High-quality immersion oils
  • Hard carrying cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized user guides

Ver todos los detalles del producto »

Swift Compound Microscopes SW380 Series 40X-2500X

Request Quote

High Precision Research Microscopes for Laboratory

Discover microscopic details like never before with the SWIFT SW380B, a versatile research-grade microscope designed for students, professionals, and enthusiasts. Equipped with high-quality optics and an integrated digital camera, it offers exceptional clarity and precision.

Swift SW380B and SW380T are two optical microscopes designed to provide clear and precise images, ideal for students, professionals, and science enthusiasts. Both models are known for their binocular (SW380B) and trinocular (SW380T) design, allowing for a comfortable and versatile viewing experience. These features are complemented by a high-quality optical system, including achromatic lenses and magnification ranging from 40x to 2500x, suitable for various applications such as biology, anatomy, and chemistry.

Additionally, the SW380T includes a trinocular port for camera integration, making it perfect for documentation or real-time image transmission. Both models have adjustable LED illumination, a precise mechanical focusing system, and a robust base that ensures stability during use. The two microscopes stand out for being accessible and reliable tools for detailed scientific observations.

Features

• Wide Magnification Range: Six levels of magnification from 40X to 2500X, with four DIN achromatic objectives.
• Ergonomic Binocular Head: Rotatable Siedentopf head with adjustable interpupillary distance, inclined at 30 degrees to reduce neck strain.
• High-Quality Optics: Wide-field glass eyepieces of 10X and 25X for greater clarity.
• Advanced LED Illumination: Adjustable LED bulb with Abbe condenser for precise light control.
• Integrated 5.0 MP Camera: Includes easy-to-use software for Mac and Windows, with advanced features like image stitching, extended depth of field (EDF), and measurement tools.
• Durable Construction and Accessories: Includes 100 blank slides, 100 glass cover slips, and 50 lens cleaning papers for immediate use.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specifications of the SWIFT SW380B Compound Binocular Microscope
  Optical System:	Wide-field eyepieces of 10X and 25X
  Objectives:	4 objective lenses on a rotating turret: 4X, 10X, 40X (spring), 100X (spring, oil) reach the semi-plan field level
  Magnification Levels:	40X, 100X, 250X, 400X, 1000X, 2500X
  Interpupillary Distance:	48-75 mm
  Adjustable Diopter:	+/- 5 dp
  Head:	Siedentopf binocular head inclined at 30 degrees and rotatable 360 degrees
  Mechanical Stage:	Mechanical stage with rack stop, 130x130 mm
  Stage Movement Range (x-y):	70x30 mm
  Focusing:	Coaxial focusing knobs for coarse and ultra-fine adjustments
  Illumination:	Transmitted illumination with 1W LED bulb, adjustable brightness
  Power Supply:	Integrated power input of 110-240V
  Additional Components:	Metal slide holder, blue filter, immersion oil, dust cover, spare fuse, user manual



• • 1 SW380B Microscope
  • 1 pair of WF10X eyepieces
  • 1 pair of WF25X eyepieces
  • 1 sample of immersion oil
  • 1 blue filter
  • 1 dust cover
  • 1 spare fuse
  • User manual
  • Camera
• • Amscope Slides x 72 pcs. + 22x22 mm Cover Slips
• • None
• • User Manual (English)

Ver todos los detalles del producto »

AmScope Trinocular Compound Microscopes T690 Series from 40X to 2500X ²⁵

$ 887.25 USD

AmScope T690 Series Trinocular Compound Microscopes 40X to 2500X High Definition Optics

Explore Microscopic Structures with Professional Precision and Real-Time Documentation Capability

This is a top professional infinity trinocular compound microscope with an extreme widefield infinity optical system, delivering sharp and clear images. It features a 360-degree rotatable, 30-degree inclined Siedentopf trinocular head, extreme widefield eyepieces, infinity objectives, coaxial coarse and fine focusing, 3D mechanical stage, and Kohler halogen illumination with a wide voltage band (85–230V). Its reversed nosepiece provides spacious room for convenient operation and comfortable viewing. This microscope offers eight magnification levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X. It is an excellent instrument for clinics, veterinary offices, and research laboratories.

Add a digital camera to capture still images and videos, and view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a cross-platform imaging solution. The included Windows software provides image development and measurement tools as well as advanced composition features such as image stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, a lite version is available with limited processing features.

Features

• Large mechanical stage with dual slide sample holder.
• User-friendly design for comfortable operation.
• Front-open light housing for easy bulb access.
• Fully coated optical system with high resolution.
• Sharp and crystal-clear images.
• Precision mechanical control system.
• Reversed nosepiece design for spacious working area.
• Kohler illumination system with field diaphragm for light control.
• 30° inclined, 360° rotatable Siedentopf trinocular head.
• Eight magnification levels: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X.
• Variable intensity transmitted halogen illumination system.
• Abbe condenser with iris diaphragm and swing-out filter holder.
• Rack-and-pinion adjustment for condenser.
• Low-position coaxial stage movement control knobs.
• Dual-sided coaxial coarse and fine focusing control.
• Adjustable interpupillary distance.
• Adjustable diopter on eyepiece.
• Durable cast alloy frame and base with stain-resistant enamel finish.
• Four infinity objectives: 4X, 10X, 40X, 100X.
• Two sets of widefield eyepieces: 10X (22 mm) and 20X.
• Large two-layer mechanical stage with stain-resistant finish.
• Stage upward stop to protect objectives and slides.
• Compatible with optional accessories such as phase and darkfield condensers.
• Manufactured under ISO 9001 standards.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specifications
  Microscope Type	Compound
  Application	Clinical, Veterinary, Laboratory, Teaching
  Head Type	Trinocular
  Camera	PC and Mac
  Magnification Power	40X–2000X
  Optics	Infinity Achromatic
  Field of View	Extreme Widefield
  Objectives	4X, 10X, 40X, 100X
  Eyepieces	10X (22 mm), 20X
  Illumination	20W Kohler Halogen
  Power Supply	85–230 V

• • AmScope Trinocular Microscope 40X–2000X with 14 MP Camera
  • Siedentopf Head (30°/360°)
  • Base with Kohler Illumination
  • Infinity Objectives (4)
  • Extreme Widefield Eyepieces 10X and 20X
  • Power Cable and Spare Parts
  • Software and CD
• • None
• • Optional Digital Camera
• • User Manual (English)

Ver todos los detalles del producto »

Amscope 40x-1000x Inverted Trinocular Microscope ²⁵

$ 3,325.75 USD

Ver todos los detalles del producto »

AmScope Trinocular Compound Microscope up to 40X-2500X ²⁵

$ 373.50 USD

AmScope T690 Series Trinocular Compound Microscope 40X to 2500X High Definition

View Microscopic Details with Exceptional Clarity and Easily Capture Images

To customize the microscope according to your visual comfort, the interpupillary distance can be easily adjusted using a precision Siedentopf mechanism. Diopters are available on both eyepiece tubes to compensate for asymmetry, and the eyepiece tubes are angled at 30° to comfortably fit a seated position without neck strain. The 23mm photo port is height adjustable to align with the eyepieces and can be replaced with an optional CX series C-mount port, which includes built-in reduction and can directly interface with C-mount cameras.

The objective turret provides instant access to 4 magnification levels, making it easy to focus on minute details from 40X to 2500X. This covers the magnifications needed to study hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to enhance resolution and color accuracy.

The 2-layer mechanical stage offers smooth and precise movement for slide sample analysis. The low stage position controls are conveniently located near the coaxial focus knobs to optimize workflow. Slide sample analysis is intuitive and accurate for users of all skill levels. The halogen illumination below the stage provides bright lighting with excellent color reproduction. Warm lighting is better suited for prolonged use and causes less visual fatigue compared to LED and fluorescent lighting. The Abbe condenser has a high numerical aperture of 1.25 for oil immersion and an iris diaphragm to optimize contrast and depth of field. The condenser holder uses rack and pinion movement for precise height adjustment.

Highlighted Features

• Magnification range from 40X to 1000X using high-quality achromatic objective lenses.
• This microscope, one of the best options for veterinarians, clinics, and classrooms, offers high-quality precision optics and mechanics.
• Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coarse and fine coaxial focus for ergonomics and work efficiency.
• Halogen illumination reduces visual fatigue during extended use.
• The trinocular photo port allows easy mounting of a camera. The T490 is compatible with our CX series C-mount photo ports with built-in reduction.

• Specifications
• Package Contents
• Required Items
• Optional Items
• Documents

• • Specifications
    Optical System	infinite conjugate
    Mechanical Tube Length	160mm
    Head	Trinocular, 30° inclined, 360° rotatable
    Interpupillary Adjustment	Mixed Siedentopf without compensation
    Eyepiece Diameter	23mm
    Eyepieces	10X
    Photo Port	23mm height adjustable tube, CX series, simulfocal.
    Objective Lenses	DIN standard
    Objective Parfocal Distance	45mm
    Objective Mount Thread	RMS 20.32mm
    Objective Turret	quadruple
    Focusing System	Coarse and fine coaxial focus, upper stop, tension control
    Focus Range	30mm
    Fine Focus Division	0.002mm
    Stage Design	Double layer with clip
    Stage Dimensions	140mm x 140mm
    XY Translation Range	75mm x 45mm
    Transmitted Illumination	20W Halogen
    Condenser	Abbe Condenser NA1.25 with iris diaphragm, 32mm filter holder
    Substage Condenser Holder	rack and pinion
    Voltage	110VAC 60Hz

• • One trinocular head
  • Microscope body
  • Photo tube
  • Four objective lenses: 4X, 10X, 40X, 100X
  • One pair of 10X eyepieces
  • Power cord (US and Canada standard)
  • Dust cover
  • Color filters (blue, green, yellow)
  • Replacement halogen bulb
  • Replacement fuse
  • Immersion oil bottles for samples
• • None
• • Cleaning kit
  • Digital camera
• • User Manual (English)

Ver todos los detalles del producto »

Microscopio Monocular Amscope Cabezal Giratorio 360 + Cámara USB / 40X-1000X

$ 166.25 USD

Características sobresalientes

• Cabezal monocular giratorio de 360 ​​grados con lentes de vidrio óptico que ofrece cinco niveles de aumento de hasta 1000X.
• Robusta estructura totalmente metálica con condensador de lente de vidrio único y diafragma de disco de 6 orificios.
• Iluminación LED alimentada a través de tomacorriente y/o baterías
• Cámara digital USB 2.0 de 640x480 para fotos y videos en Windows y Mac, compatible con software de terceros.
• El software fácil de usar (solo Windows) ofrece procesamiento y funciones avanzadas que incluyen funciones de unión, EDF, grabación de video y medición.
• Incluye un exclusivo software de cámara digital de AmScope diseñado para estudiantes de secundaria y preparatoria que hace que capturar y editar fotos y videos sea fácil y divertido. Windows y Mac.

† Proposición 65 de California ADVERTENCIA: Cáncer y daño reproductivo para obtener más información, visite www.P65Warnings.ca.gov/chemicals

• Especificaciones
• En el cuadro
• Objetos requeridos
• Elementos opcionales

• Especificaciones
  Compatibilidad	PC y Mac
  Estilo de iluminación	Transmitido (abajo)
  Fabricante	AmScope
  Aplicación de microscopio	Elemental
  Píxel de la cámara del microscopio	0.3MP
  Categoría de microscopio	Compuesto
  Color del microscopio	Blanco
  Diseño de condensador de microscopio	Lente única con disco
  Óptica del condensador del microscopio	NA 0,65
  Tipo de condensador de microscopio	Campo Claro
  Poder del ocular del microscopio	10X, 25X
  Tamaño del ocular del microscopio	23 mm
  Vista de campo del microscopio	Campo amplio
  Estilo de cabeza de microscopio	Monóculo
  Poder de la luz del microscopio	1W
  Forma de luz de microscopio	Incorporado
  Tipo de luz de microscopio	CONDUJO
  Poder de aumento del microscopio	40X a 1000X
  Microscopio Número de bombillas	1
  Potencia del objetivo del microscopio	4X, 10X, 40X
  Tamaño del objetivo del microscopio	20 mm
  Óptica del microscopio	Acromático
  Fuente de alimentación del microscopio	110V, 220V
  sensor de microscopio	CMOS
  Etapa del microscopio	Escenario de una sola capa con clips
  Óptica	Acromático
  Proposición 65

• • Microscopio
  • Objetivos, 4X, 10X y 40X (3)
  • Un campo amplio 10X (1)
  • Un campo ancho 25X (1)
  • Adaptador de corriente de salida (1)
  • Cubierta antipolvo (1)
  • dos clips
  • Una cámara digital USB 2.0 de 640 x 480 píxeles
  • Un cable USB de 6' (1,8 m)
  • Un CD con software, controlador e instrucciones del usuario
  • Descargar manual de usuario
• • Ninguno
• • kit de limpieza
  • Baterías

EO20230303

Ver todos los detalles del producto »

Microscopio biológico invertido trinocular Amscope 40X a 640X + 1.3MP USB

$ 1,718.75 USD

Master Live Tissue Research with the AmScope IN200 Microscope

Professional compound microscope with USB digital camera, 40X to 640X magnification, and long working distance flat-field optics

The AmScope IN200 is a professional-grade inverted optical microscope designed for direct observation of cell cultures and live tissues in Petri dishes or culture flasks. Its rotatable trinocular head allows the addition of a photo/video camera and includes a 0.3 MP USB digital camera compatible with multiple operating systems. Equipped with flat achromatic optics, seven magnification levels, powerful halogen illumination, and an extra-large mechanical stage, this microscopy system is ideal for clinics, universities, research labs, and advanced biomedical applications.

Key Features:

• Trinocular inverted microscope with photo/video port
• Includes 640x480 px USB digital camera with analysis software for Windows, Mac, and Linux
• Precise 40X to 640X magnification with long working distance flat-field optics
• 50 W halogen illumination with adjustable brightness for detailed observations
• Extra-large dual-layer mechanical stage with stain-resistant finish

• Specifications
• In the Box
• Optional Items

• Model	AmScope IN200
  Microscope Type	Compound, inverted optical
  Head	Trinocular, 360° rotatable, 30° inclined
  Eyepieces	PLAN WF10X (18 mm), WF16X (11 mm)
  Objectives	4X (0.1 NA), 10X (0.25 NA), 25X (0.4 NA), 40X (0.60 NA)
  Magnification Range	40X, 64X, 100X, 160X, 250X, 400X, 640X
  Illumination	Halogen 12V/50W with intensity control
  Condenser	Above stage, with swing-out filters
  Stage	3D mechanical, dual-layer, 190 x 145 mm
  Stage Travel	75 x 50 mm
  Filters	Yellow and green (1-11/16")
  Power Supply	110 V/60 Hz (220 V/50 Hz adapter available)
  Compatibility	Windows XP/Vista/7/8/10, Mac OS 10.8+, Linux 3.13+
  Package Dimensions	43 x 25 x 53 cm
  Standards	Manufactured under ISO 9001 standard

• • Sliding trinocular head
  • Main body with frame and base
  • DIN Plan Objectives: 4X, 10X, 25X, 40X
  • Widefield eyepieces: 10X and 16X
  • Color filters (yellow and green)
  • 50W spare bulb
  • Immersion oil
  • Dust cover
  • 640x480 px USB digital camera with reducing lens
  • USB cable
  • Downloadable user manual
• • 220 V / 50 Hz power adapter
  • Advanced processing software (updates)
  • Adapters for higher resolution cameras
  • Petri dishes or culture flasks
