Panthera TEC MAT - Powerful Solutions for Material Sciences

High-Precision Microscopes With Corrected Optical System And Integrated LED Technology For Professional Applications In Research And Education

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

Features

• Smart Darkfield with 5 Segment illumination mode
• New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
• Pure incident or incident/ transmitted microscope stands available
• LED color temperature interchangeable
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC MAT BF	Panthera TEC MAT BF-T	Panthera TEC MAT BD	Panthera TEC MAT BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)

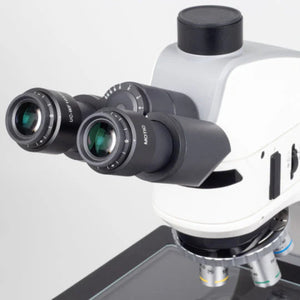

  Observation Tube	Trinocular head, Siedentopf type, 360º swiveling
  Inclination	25º inclined, 360º swivelling
  Trinocular Light Split	Fixed 50:50
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Intermediate Body	Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer

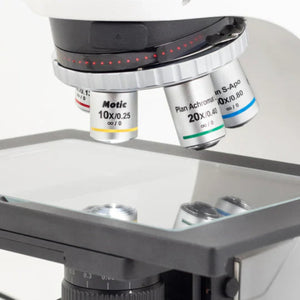

  Nosepiece	Reversed quintuple, coded
  Objective Classification	CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN		CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)
  Objectives	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm), S-Apo 100X/0.90 (WD 0.5mm) (Optional)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)		M32
  Stand Type	Upright
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
  Stage Size	300x180mm
  Travel Range X&Y	150x100mm (6"x4")

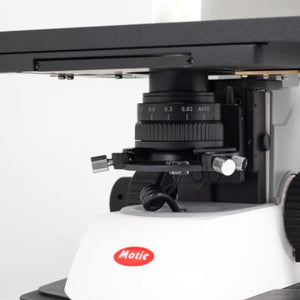

  Condenser	-	LED condenser	-	LED condenser
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Incident Illumination	LED 3W with integrated field and aperture diaphragms		LED 3W smart segmental ringlight with integrated field and aperture diaphragms
  Transmitted Illumination	-	0.06Wx39 LEDs	-	0.06Wx39 LEDs
  Illumination Interchangeability	LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, screws for metal extension support
  Dimensions LxWxH	410x300x450mm
  Weight Net	10.4kg (23 lbs)	10.6kg (23,1 lbs)	10.5kg (23,3 lbs)	10.7kg (23,5 lbs)
  Standard Contrast Technique	Brightfield		Brightfield, Darkfield
  Optional Contrast Technique	Polarization

• • Microscope Panthera TEC MAT
  • Dust cover
  • Power cord
  • Allen key
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Polarization kit
  • Darkfield condenser
  • Fluorescence module
  • Camera for external USB connection
  • Objective lens (e.g., 100X/0.90 for higher magnification)
  • Microscope cover or case for added protection
