Insect Study Equipment (Entomology)

Advanced Prokopack Aspirator for Efficient Insect Collection

Ideal Tool for Mosquito and Sandfly Sampling with Enhanced Portability and High-Performance Features.

The Improved Prokopack Aspirator Model 1419 was developed for indoor sampling of resting mosquitoes such as Aedes aegypti, anophelines, and Culex. Aspiration of resting adults produce collections of both sexes and all physiological stages directly from their resting sites, allowing better estimations of species diversity, abundance, sex ratio, age structure, and physiological status (Silver 2008). At 23 ounces (650 g) it is light weight and highly maneuverable; with the included extension pole the unit can sample from ground level up to 13 feet (4 m). This enables collections to be made on upper walls, ceilings, and under furniture. Also included with the 1419 is (1) a 12 volt 12 amp hr gelled-electrolyte battery, the extension pole, six collection cups and lids with stainless steel mosquito mesh, a universal voltage (input 100-250 VAC, 50/60 Hz) automatic charger with an output of 5.0 amps per hr) permitting complete recharging in 2.5 hours. Run time is four hours.

Features

Highly maneuverable aspirator for resting adults.

Four hour run time.

Design Characteristics

Our Prokopack aspirator incorporates several significant improvements to the original design. By optimizing the air flow we have improved intake air speed by 15%, reduced current consumption by 33% and thereby increased run time between battery recharging to four hours.

Using the supplied 12 volt 12 amp hr battery will provide the performance indicated below; the darker line is for the standard (mosquito) mesh screen in the collection cup, the lighter line reflects the fine mesh sandfly screen collection cup:

Feature	Specification
Model	1419
Weight	23 ounces (650 g)
Sampling Height	Up to 13 feet (4 m) with extension pole
Battery Life	4 hours
Battery	12 volts, 12 ampere-hour, gel cell
Charger	Universal automatic charger, 5 ampere/hour, 100-250 VAC input, 50/60 Hz
Inlet Air Velocity	Over 10.5 m/sec
Current Draw	2.5 amperes at 12 volts DC

Aspirator unit with switch and 13′ (4m) of 16-ga copper stranded double insulated power cord with alligator clips
5 collection cups, regular mesh stainless steel, with lids
12 volt 12 amp hour gelled electrolyte battery
5 amps/hr universal and automatic battery charger (Input 100-240 VAC, 50/60 Hz)
Adjustable backpack with separate compartments for collection cups and battery
Extension pole, adjustable from 4’ to 8’ (1.2-2.4 m)
Instructions

This aspirator draws 2.5 amps at 12 volts DC.

Battery for the Prokopack Model 1419
6 Regular Mesh Stainless Steel Collection Aspirator Cups (mosquitoes).
6 Fine Mesh Stainless Steel Collection Aspirator Cups (sandflies).

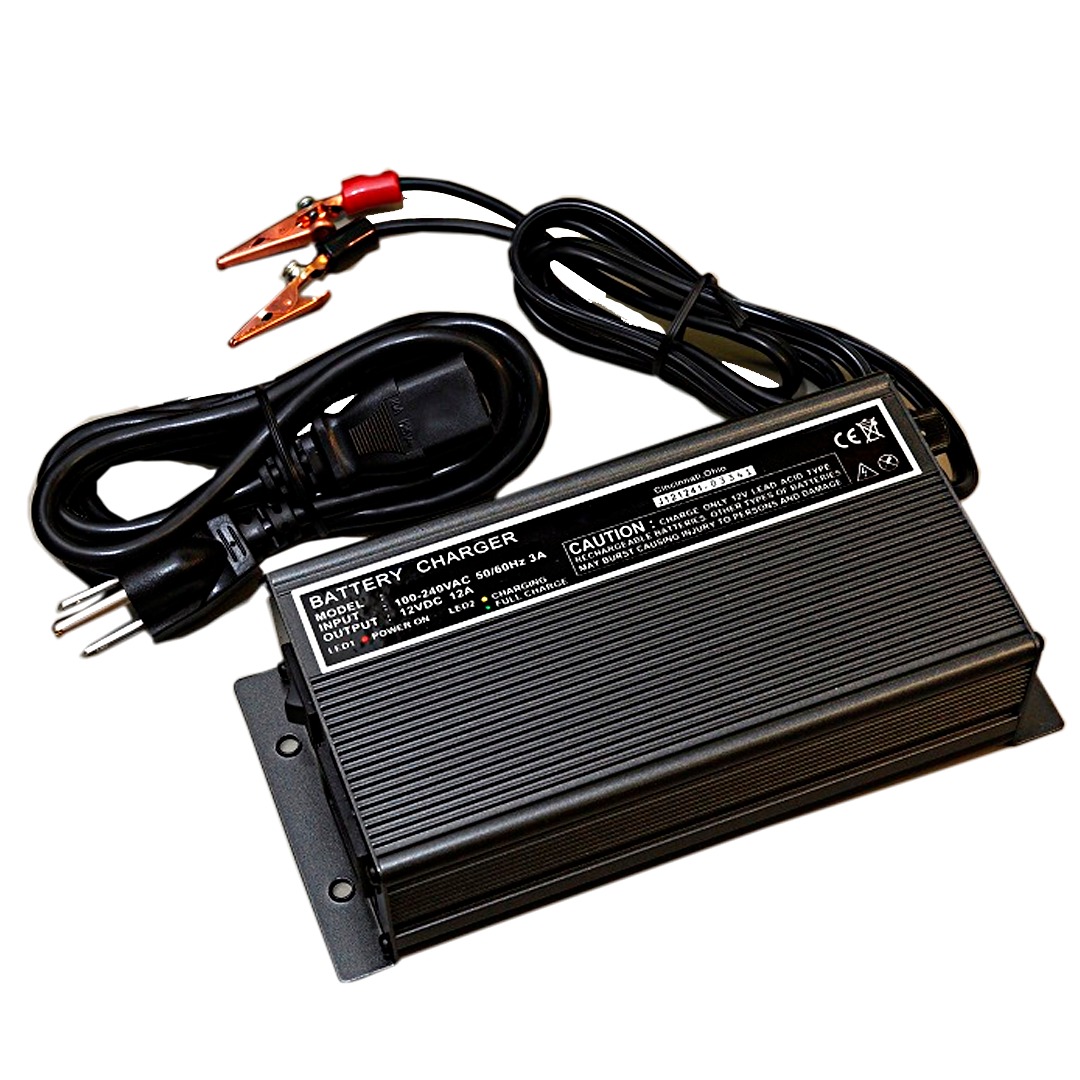

Automatic charger for Prokopack aspirator, input 100-240 VAC, 50/60 Hz, output 5 amp hours. Full charge in 2.5 hours or less.

Model 1419 Manual

Efficient Aspiration Tools for Laboratories and Field

Ideal Equipment for Capturing and Moving Mosquitoes and Sandflies, with HEPA Filters and Collection Screens.

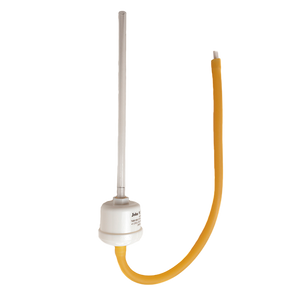

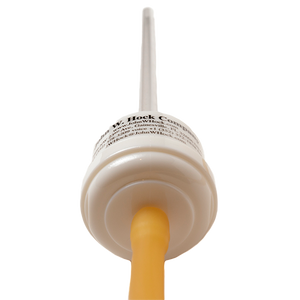

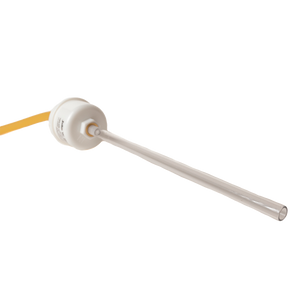

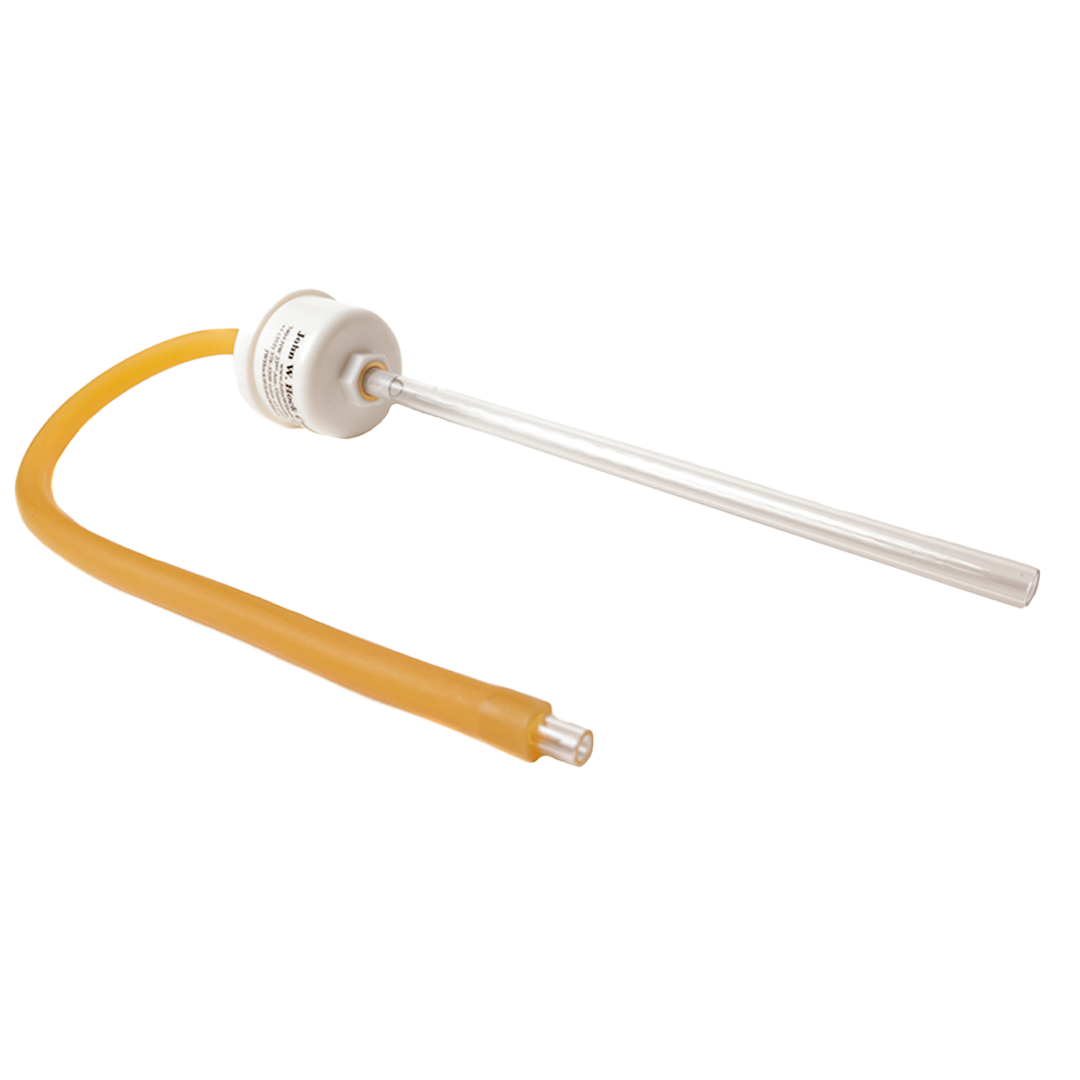

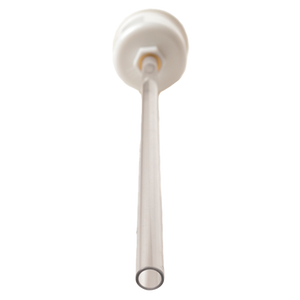

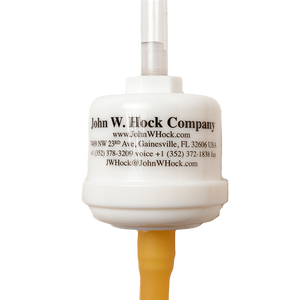

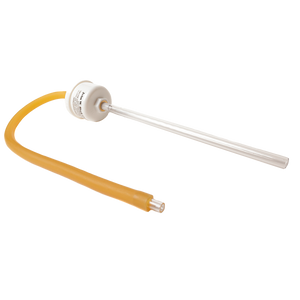

The Mouth Aspirators (Models 412, 612, and 613) are used for aspirating mosquitoes and sandflies in the lab and field. The Model 612 includes a 0.3-micron HEPA filter with screen to stop insect particles from entering the mouth. The Model 613 allows you to move insects from A to B without the possibility of escape.

Features

Easily aspirate mosquitoes and sandflies in the lab & field.

Model 612 comes with a 0.3-micron HEPA filter.

Registered as a National Stock Number.

The clearly visible built-in screen collects the insects.

Feature	Model 412	Model 612	Model 612.59
Tube Material	Polycarbonate plastic, 12 inches long	Polycarbonate plastic, 12 inches long	Polycarbonate plastic, 12 inches long, 30-degree bent
HEPA Filter	No	Yes, 0.3-micron HEPA filter	Yes, 0.3-micron HEPA filter
Filter Attachment	Not applicable	Threaded brass insert	Threaded brass insert
Screen	Yes, forward of the tube	Yes, forward of the tube and HEPA filter	Yes, forward of the tube and HEPA filter
Tubing Material	Latex rubber	Latex rubber	Latex rubber
Mouthpiece	Polycarbonate	Polycarbonate	Polycarbonate
Special Features	Stronger than acrylic, less fragile than glass	Suitable for medical applications	30-degree bent tube for easier maneuvering

Standard Mouth Aspirator (Model 412)	Mouth Aspirator (Model 612)	Mouth Aspirator (Model 612.59)
Mouth Aspirator with 12 inch polycarbonate plastic tube Collection Screen Latex Rubber Tubing Polycarbonate Mouthpiece	Mouth Aspirator with 12 inch polycarbonate plastic tube HEPA Filter rated at 0.3-microns Collection Screen Latex Rubber Tubing Polycarbonate Mouthpiece	Mouth Aspirator with 30-degree bent polycarbonate plastic tube HEPA Filter rated at 0.3-microns Collection Screen Latex Rubber Tubing Polycarbonate Mouthpiece

Replacement HEPA Filter (for Model 612)
Spare Collection Screen
Extra Latex Tubing
Protective Gloves
Disinfectant Wipes

Carrying Case
Additional Collection Tubes
Adjustable Headlamp for Field Use
Dust Mask for Added Protection
Magnifying Glass for Specimen Inspection
