Accessories for Detection & Recording Equipment

Yagi Antenna 3 Elements Folding and Portable ²⁵

$ 290.00 USD

Maximize Signal Reception with High-Precision Foldable Yagi Antennas

Power, portability, and precision tracking with our 3-element directional antennas. Ideal for field research and wildlife monitoring with custom frequency transmitters.

Our 3-element foldable Yagi antennas are designed to enhance signal reception and transmission within a specific directional range. Unlike omnidirectional antennas, these models offer greater directional gain, focused signal tracking, and reduced interference, significantly improving tracking performance in the field. They can be custom-tuned to operate within the 148 to 225 kHz frequency range, depending on the transmitters being used.

Key Features:

• Superior directional gain: Perfect for locating specific signals in open areas or high-interference environments.
• Foldable and portable: Designed for hassle-free field use; quick to set up and pack.
• Frequency-tuned: Custom-built to operate between 148 and 225 kHz, ensuring optimal performance.
• Durable and lightweight construction: Rugged build for long-lasting use in demanding outdoor conditions.

• Technical Specifications
• In the Box
• Required Items

• Model	Description
  3-Element Foldable	Lightweight and directional, ideal for fast field tracking. Best used with specific transmitters.
  Frequency Range	148 – 225 kHz (custom-tuned to user’s transmitter)

• • 3-element foldable Yagi antenna (based on selection)
  • Basic assembly manual
• • Receiver compatible with frequencies between 148 and 225 kHz
  • Transmitters tuned to the same frequency

Ver todos os detalhes do produto »

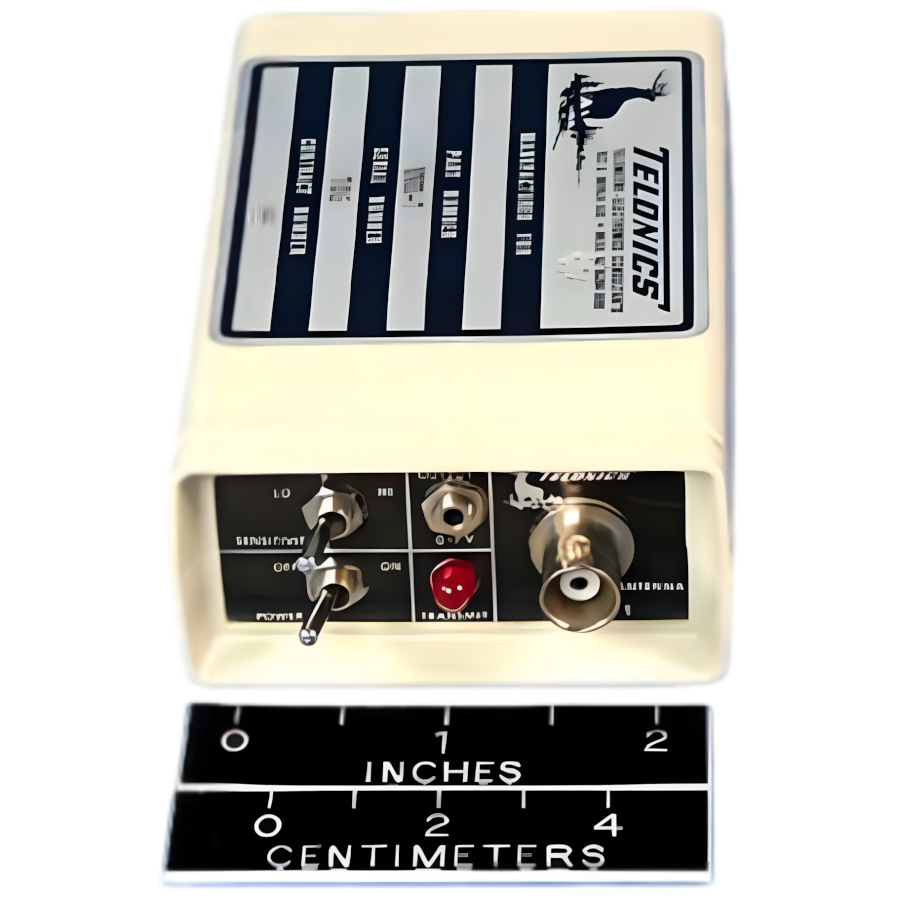

Telonics TVR-1 Test Receiver for 145–170 MHz VHF Transmitters with Visual Indicator and Pulse Output

Request Quote

Instantly Verify Your VHF Transmitters with the Telonics TVR-1 Test Receiver

Compact, reliable, and designed for short-range testing, the TVR-1 is the ideal tool to ensure your transmitters are working properly.

The Telonics TVR-1 Test Receiver is a portable, compact receiver designed to detect VHF transmitter signals in the 145–170 MHz range. This device is ideal for quickly verifying whether a transmitter is on and functioning, both in the field and in the lab. It provides both a visual and audio indication for each received transmission, along with a pulse output that can be connected to recorders or data acquisition systems. It operates on a standard 9V alkaline battery and is specifically designed for short distances of 2 to 3 feet.

Key Features:

• Accurate reception: Detects VHF transmissions between 145 and 170 MHz.
• Ultra-portable: Pocket-sized design, perfect for field use.
• Visual and audio indicators: Confirms each transmission with light and sound.
• Pulse output: Generates a 0 to 7 V signal for external logging.
• Simple operation: Only requires an On/Off switch and sensitivity selector.
• Recorder compatible: Connects to external systems via 1/8" jack.
• High thermal resistance: Operates in extreme environments from -40°C to +70°C.
• Rugged construction: Ideal for transmitter testing in lab or field conditions.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	TVR-1 Test Receiver
  Frequency Range	145 – 170 MHz
  Indicator Type	Visual (LED) and Audio (buzzer)
  Pulse Output	0 to 7 V via 1/8” jack
  Power Supply	9V alkaline battery
  Battery Life	~1 month with new battery
  Operating Temperature	-40 °C to +70 °C
  Antenna Connector	BNC type (female)
  Recommended Use	Short-range testing (2–3 feet)

• • Telonics TVR-1 Test Receiver
  • Pre-installed 9V alkaline battery
  • User manual
• • External BNC antenna (sold separately)
  • Compatible VHF transmitter
• • Recorder or data acquisition system
  • Antennas of different sizes or frequencies
  • Carrying case

Ver todos os detalhes do produto »

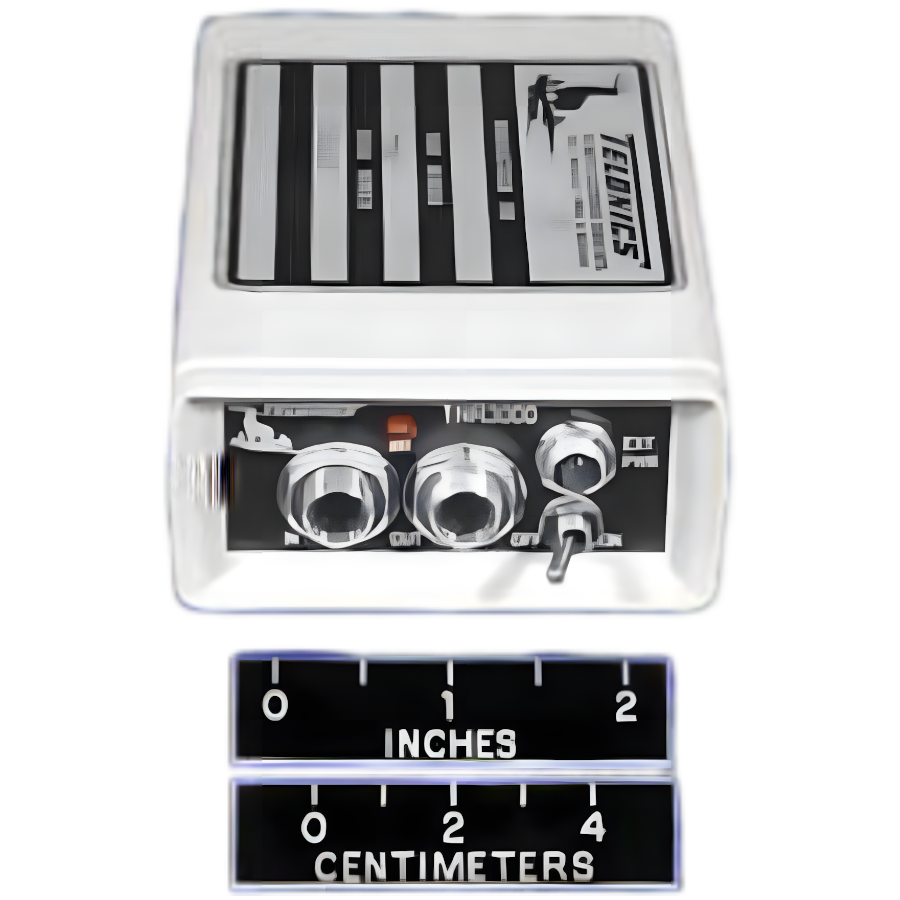

Telonics TNR-3000 Noise Reduction Unit for Telemetry Receivers

Request Quote

Reduce Noise Without Losing Signal with the Telonics TNR-3000

Effectively minimizes background noise while preserving signal integrity with this compact, lightweight, and rugged unit designed for mobile or fixed-site operations.

The Telonics TNR-3000 Noise Reduction Unit is an essential tool for professionals using telemetry receivers in interference-prone environments. Its compact and durable design makes it suitable for use in vehicles or fixed installations. The TNR-3000 effectively attenuates engine impulse noise, constant hums, and heterodynes, without affecting desired telemetry signals. It is compatible with multiple power sources, making it versatile and reliable in the field.

Key Features:

• Effective noise reduction: Reduces background noise by 15 to 17 dB without affecting signals of interest.
• Portable and rugged design: Compact, lightweight (7 oz), and built with molded thermoplastic housing and integrated battery compartment.
• LED indicator: Signals low battery or power check for enhanced operational safety.
• Internal speaker: Allows receiver function verification; high-quality headphones are recommended for monitoring.
• Multiple power options: Operates on a 9V internal battery, 110–240 V power supply, or 12 V vehicle cable (all sold separately).
• Wide frequency response: Tuned range between 240 Hz and 2000 Hz to optimize telemetry signal clarity.

• Specifications
• In the Box
• Required Items
• Optional Items

• Technical Specifications
  Internal power supply	9 V alkaline battery
  Supported external voltage	9 – 28 VDC
  Minimum external current source	150 mA at 12 VDC
  Current consumption	55 mA typical
  Noise reduction (typical)	15 – 17 dB
  Minimum reduction (continuous tone)	40 dB
  Minimum reduction (power pulse)	20 dB @ 100 Hz
  Maximum input signal for optimal reduction	3 Vpp
  Frequency response	240 – 2000 Hz (3 dB), 210 – 2750 Hz (6 dB)
  Amplifier output power	250 mW into 8 ohm at 1 kHz
  Body material	Molded thermoplastic
  Audio input	1/4 in mono jack
  Audio output	1/4 in stereo jack
  Power jack	2.1 mm coaxial (center positive)
  Internal speaker	8 ohm speaker
  Switch	Toggle type On/Off

• • TNR-3000 Noise Reduction Unit
  • Printed user manual
• • Telemetry receiver (e.g., Telonics TR-4 or TR-5)
  • Power source (9 V battery or external)
  • Headphones for monitoring
• • 12 VDC power cable PS007248-001
  • 110–240 VAC power cable PS009736-001
  • 1/4 - 1/4 audio cable RW-7 (WI-000499-001)
  • 1/4 - 1/8 audio cable RW-8 (WI-000768-001)

Ver todos os detalhes do produto »

Echo Meter Touch 2 PRO Bat Detector ²⁵

$ 451.20 USD

Turn Your Mobile Device into a Professional Bat Detector

Detect, listen to, and identify bats in real time with the Echo Meter Touch 2 PRO: professional precision in the palm of your hand.

Echo Meter Touch 2 PRO transforms your smartphone or tablet into an advanced acoustic bat detection tool. Designed specifically for researchers and environmental consultants, this device offers high-fidelity recordings with reduced noise and more captured bat calls. Compatible with Android (USB-C or Micro-USB) and featuring a free app, it's ideal for field monitoring without an internet connection. Includes real-time listening modes, interactive spectrogram, geolocation, and automatic species suggestions powered by Bat Auto-ID technology.

Signal-to-Noise Ratio (SNR)

SNR measures the loudness of bats relative to background and electronic noise in a given audio recording. A high-SNR bat detector is preferable as it allows for capturing quiet or distant echolocation calls. This chart compares the SNR of the EMT 2 PRO and EMT 2 at different frequencies. Since the EMT 2 PRO has a higher SNR, it is more likely to trigger and record high-frequency bats (above 60 kHz).

Sensitivity and Noise

This chart shows the microphone sensitivity and electronic noise produced by the EMT 2 PRO and EMT 2 across the recording bandwidth. The difference between the two values determines the signal-to-noise ratio (SNR).

Directionality

Directionality indicates how many decibels (dB) are lost as a bat moves farther away from the most sensitive part of a microphone. EMT 2 PRO and EMT 2 detect bats broadly in front of you while minimizing any echoes bouncing off your body.

Key Features:

• High-Fidelity Recordings: Low-noise microphone captures even weak or distant echolocation, reducing false positives.
• Real-Time Listening: Patented RTE technology preserves the tone and rhythm of ultrasonic calls.
• Species Suggestions: Automatic identification of the two most likely species, based on advanced acoustic analysis (region dependent).
• Free App: Available for iOS and Android. Includes live spectrogram, maps, recording, and customizable features.
• Mapping and Sharing: View recorded paths and instantly share files.
• Full Customization: Adjust gain, minimum frequency, trigger sensitivity, and more.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Technical Specifications
  Listening Modes	RTE, heterodyne, and time expansion
  Recording Format	Full-spectrum WAV
  Sampling Rate	256k or 384k samples/second at 16 bits
  Gain Settings	3 selectable levels
  Customizable Features	Audio division ratio, real-time ID, nightly sessions, auto-ID sensitivity, save noise, max trigger length, trigger window and sensitivity
  Enclosure	Rugged polycarbonate with integrated acoustic horn
  Auto-ID Regions	North America, Neotropics, Europe, South Africa

• • Echo Meter Touch 2 PRO
  • Digital user manual
  • Free downloadable app
• • Android/iOS phone or tablet with USB-C or Micro-USB port
  • OTG compatibility enabled
• • USB-C to Micro-USB adapter (or vice versa depending on model)
  • Kaleidoscope Pro software (advanced acoustic analysis)
• • User Guide ANDROID
  • User Guide IOS

Ver todos os detalhes do produto »

Davis Instruments Yagi Antenna for Long Range Repeater ²⁵

$ 310.25 USD

For users who need to send weather data far beyond the typical 1,000′ (300 m) wireless range, the Davis Wireless Long-Range Repeater extends transmission distances up to two miles (3.2 km). This makes it ideal for farms, industrial sites, research stations, and wide-area environmental monitoring.

This repeater requires two external antennas (sold separately). Each repeater includes a transmitting cable and a receiving cable, each terminating in connectors ready for an external antenna. You may choose between the omni-directional antenna (#7656), which covers 1,560′ (476 m) in all directions, or the Yagi directional antenna (#7660), which covers 5,000′ (1.5 km) in a single direction. Mix and match antenna types based on your collection and transmission needs.

The repeater features a solar-powered charging system designed to operate continuously even under low-light conditions. It includes a weather-resistant shelter, solar panel, regulator circuit, rechargeable battery, and mounting hardware for easy installation.

Key Features

• Extends wireless transmission range up to two miles (3.2 km).
• Requires two external antennas per repeater (sold separately).
• Choose Omni Antenna (#7656) for 1,560′ all-direction range or Yagi Antenna (#7660) for 5,000′ directional range.
• Includes transmitting and receiving cables for external antenna connection.
• Solar-powered charging system works even in low-light conditions.
• Weather-resistant housing protects electronics for long-term outdoor use.
• Includes mounting hardware for easy field installation.
• Compatible with Vantage Pro2 and Vantage Vue stations.
• Not compatible with the original Vantage Pro.

• Specifications
• In the Box
• Required Items
• Optional Items

• Maximum Range	Up to 2 miles (3.2 km)
  Antennas Required	Two external antennas (sold separately)
  Antenna Options	Omni (#7656) 1,560′ / Yagi (#7660) 5,000′
  Power System	Solar panel with regulator and rechargeable battery
  Housing	Weather-resistant shelter
  Compatibility	Vantage Pro2 and Vantage Vue
  Not Compatible	Original Vantage Pro
  Weight	3.76 lbs
  Dimensions	37.5 × 8 × 2.50 in

• • 1x Weather-Resistant Transmitter Shelter
  • 1x Solar Panel
  • 1x Rechargeable Battery
  • 1x Mounting Hardware Kit
• • Two antennas (Omni or Yagi)
  • Compatible Davis Weather Station (Vantage Pro2 or Vantage Vue)
• • Omni Antenna
  • Yagi Antenna
  • Antenna mounting accessories

Ver todos os detalhes do produto »

HydroMoth Case

$ 59.95 USD

The AudioMoth Underwater Case is designed specifically for the HydroMoth and AudioMoth version 1.2.0 (without...

Ver todos os detalhes do produto »

Song Scope Software

$ 500.00 USD

Sold by BIOWEB just in America, excluding US and Canada. To use into US and...

Ver todos os detalhes do produto »

Song Meter Wildlife Acoustics Mini Bat Ultrasonic Recorder

$ 893.25 USD

This product is sold by BIOWEB in America countries, but if you are in United States...

Ver todos os detalhes do produto »

Song Meter Microphone Cable for SMM-U1/A1/A2

$ 99.00 USD

Extension cables designed to connect SM4 and SM4BAT series microphones to Wildlife Acoustics devices. With...

Ver todos os detalhes do produto »

Kaleidoscope Software

$ 399.00 USD

Sold by BIOWEB just in America, excluding US and Canada. To use into US and...

Ver todos os detalhes do produto »

External Microphone for D500X

$ 449.00 USD

The D500X external microphone can be used in applications requiring the microphone to be located...

Ver todos os detalhes do produto »

BatSound Real-time Spectrogram Analysis Software

$ 625.00 USD

A free demo version of BatSound is available for download by the link below. This evaluation version has limited functionality and a trial period of 30 days.

Download BatSound

Analysis of the bat calls may be required in some situations e.g. in order to positively identify a certain species. The software BatSound is an efficient, high-performance tool for various types of sound analysis. It is suitable for sound analysis in general, but also includes a number of features particularly useful to analyze bat calls recorded from a bat detector or recorded directly with a D500X or D1000X ultrasound detector.

• Specifications
• In the Box
• Required Items
• Optional Items

• General Features
  - BatSound uses any Windows compatible sound card for sound input and output
  - BatSound supports sound formats up to 32 bits with one or two channels (mono/stereo) and sampling frequencies up to 192 kHz (possibly limited by the sound card). The common WAV format is used to store files. It is also possible to open sound files with other formats such as mp3 and wma if the corresponding codecs have been installed on the computer
  - Multiple windows with different sound files can be opened at the same time, facilitating comparison of signals and analysis results.
  - Printing and picture file export through Windows clipboard (BMP and WMF formats)
  - Wide range zoom function
  - Optional time and frequency compensation of time expanded signals to show the original time and frequency
  - Play Speed function to implement time expansion playback of high-speed sound files from D500X/D1000X detectors
  - Open Next/Previous command makes it easy to scan through all files in a folder. Very useful for browsing files obtained through unattended recording
  - Automatic parameter extraction feature, calculates max/min frequency, pulse duration etc
  - Optional grid lines in most diagrams
  - Clipboard export of analysis results
  - In the Virtual Bat Detector mode, sound files of time expanded or high speed recorded sounds are replayed at the original speed, emulating a heterodyne bat detector. Perfect for learning how to identify bats using a heterodyne detector, for classroom demonstrations etc
  - The Automatic Recording mode makes it possible to have the computer record sounds automatically. The desired threshold level is selected and the computer will start recording to a sound file as soon as the signal exceeds this level. Many parameters are available to fine-tune this mode, e.g. by setting limits for the minimum pulse length, total recording time, maximum number of pulses to record etc. Frequency-selective triggering is also available, to avoid recording undesired signals

  System Requirements
  - Intel or AMD 1 GHz or faster processor
  - RAM: 1 GB minimum (also depends on the operating system)
  - Windows compatible sound card
  - 1 GB or more of free hard disk space
  - BatSound version 4.1: Windows XP/SP3, Windows Vista/SP1 or Windows 7 operating system
  - BatSound version 4.2: Windows 7/SP2 or Windows 8 operating system

  Windows, Windows XP, Windows Vista, Windows 7 and Windows 8 are registered trademarks of Microsoft Corporation.

  BatSound version 4.2 comes with version 4.1 included (for Windows XP and Vista users).
• - License
• - PC (w/ Windows)
  - Recorder
• None

Software de Análisis de Espectrogramas en Tiempo Real BatSound

Murciélago, murciélagos

Ver todos os detalhes do produto »
