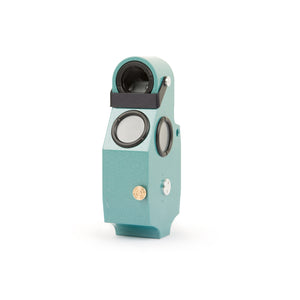

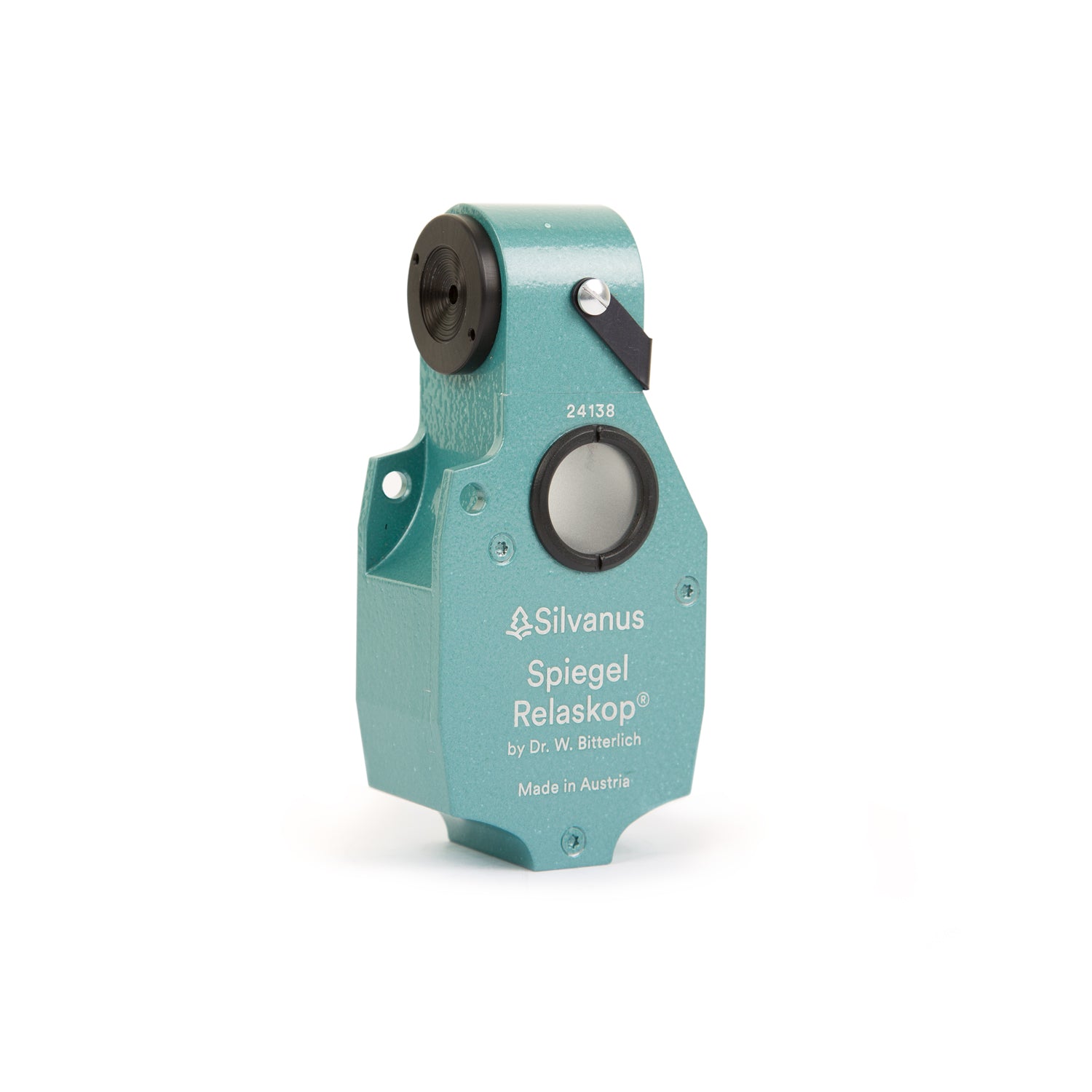

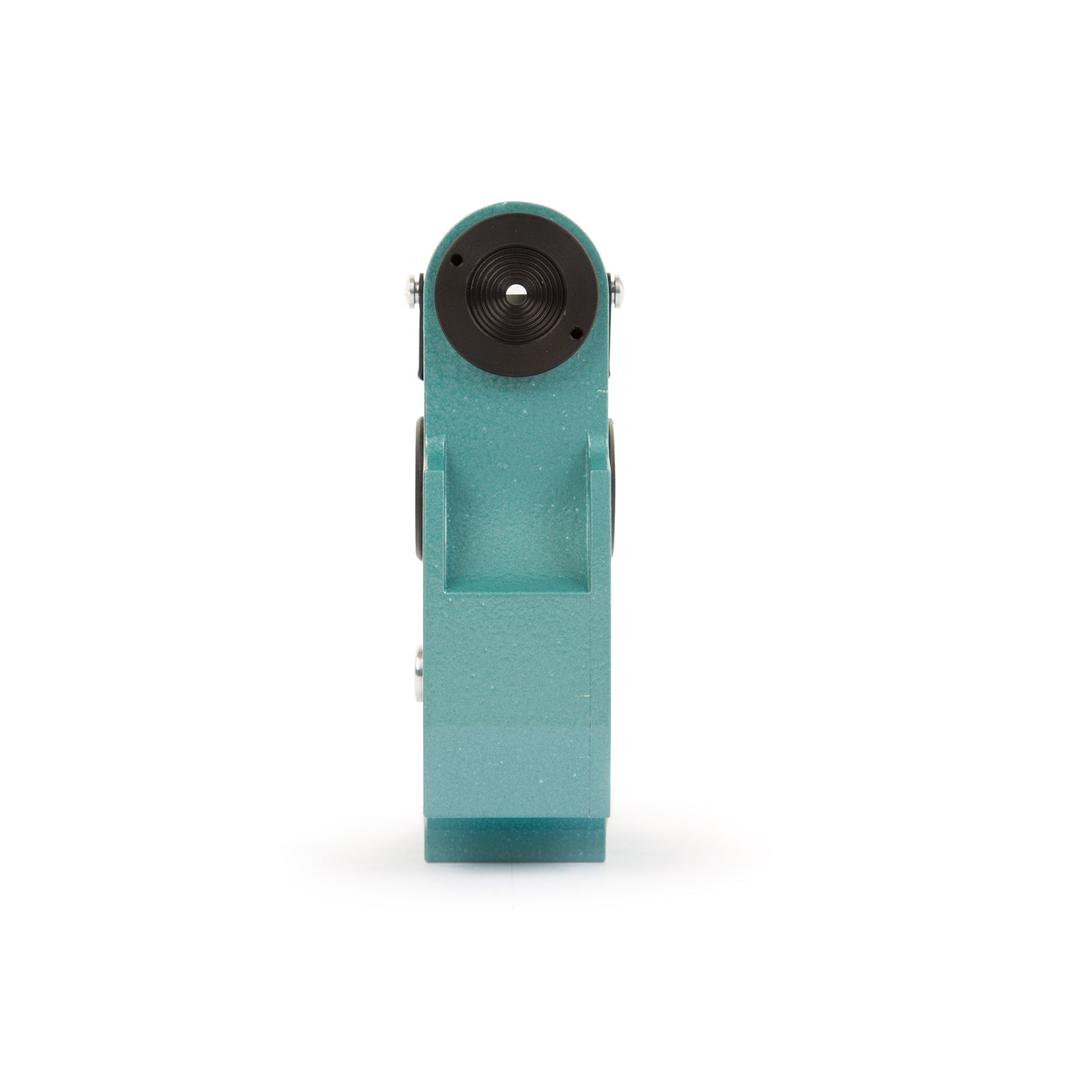

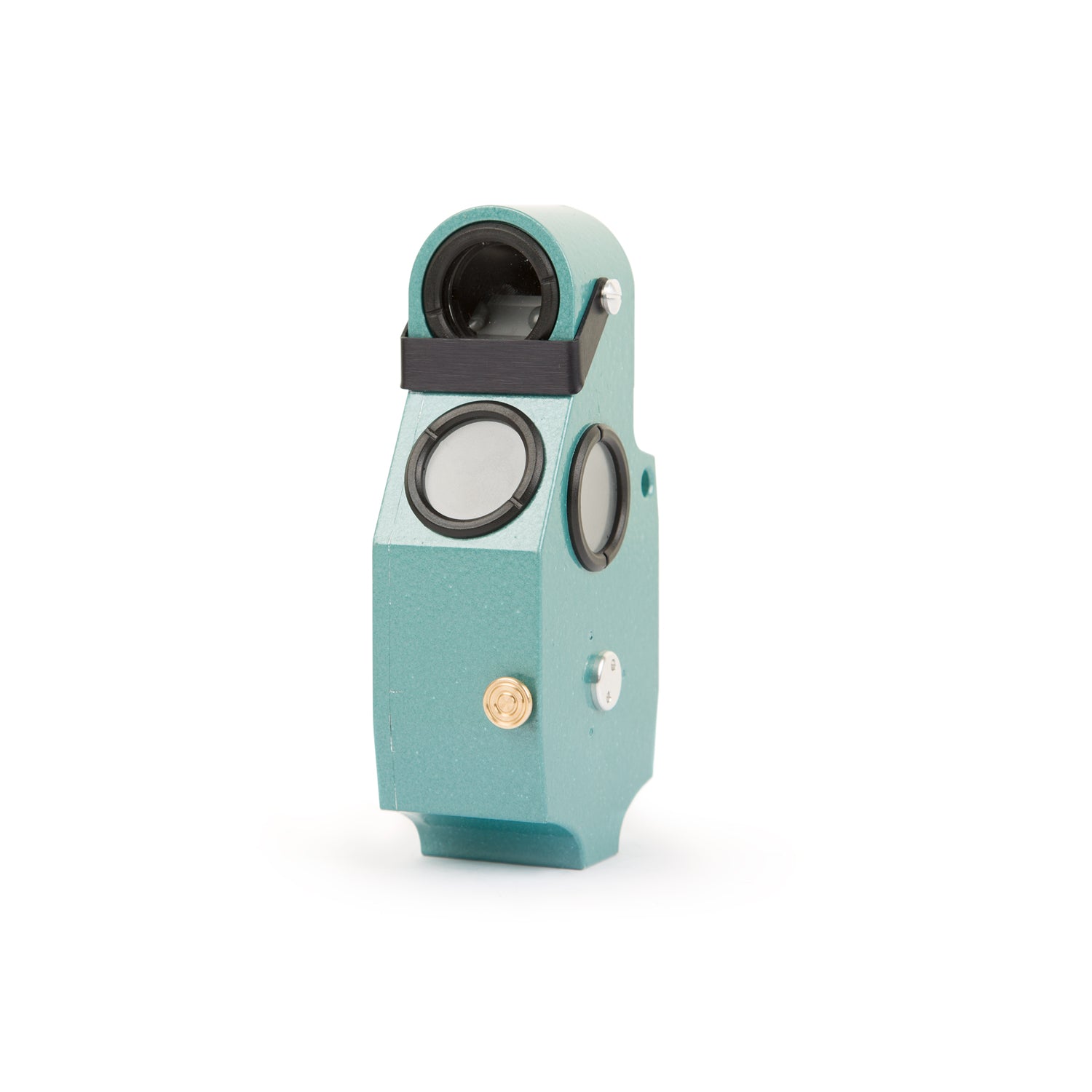

Spiegel-Relaskop: Precision and Versatility for Professional Forestry

Measures diameters, heights, distances, and slopes with a single compact instrument. Ideal for forestry, research, and forest management worldwide.

The Spiegel-Relaskop is a high-performance optical-mechanical measuring tool designed for forestry professionals and scientists. It enables accurate basal area density estimations through angle count sampling, as well as visual measurements of diameters, heights, distances, and slopes. It automatically corrects for line-of-sight inclination, and its compact size makes it a portable and reliable instrument for fieldwork. Available in four scale versions, the Spiegel-Relaskop adapts to various forest environments and technical requirements.

Key Features:

• Automatic Slope Correction: Real-time tilt-compensated readings.
• Versatile Measurement: Ability to measure diameters, distances, heights, and slopes.
• Four Available Scales: MS, CP, Wide, and American for different forest types and unit systems.
• Compact and Lightweight Build: Only 350 g, ideal for extended fieldwork.
• High Precision: Diameter measurements within 0.5% of the distance to the tree.
• Compatible with Accessories: Tripods, rangefinder eyepieces, and Jacobstaff for greater stability and accuracy.
• Rugged Optical-Mechanical Design: Reliable performance with no need for batteries.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	MS (Metric Standard)	CP (Combined Metric)	Wide Scale	American Scale
  Units	m / m²/ha	m / m²/ha	m / m²/ha	ft / ft²/ac
  BAF (Basal Area Factor)	1–21 m²/ha	1–81 m²/ha	1–144 m²/ha	5–90 ft²/ac
  Direct Height Readings	15, 20, 25, 30 m	20, 25, 30 m	4–20 m	66, 99 ft
  Diameter Measurement Range (dbh)	0.5% – 9%	0.5% – 18%	0.5% – 24%	0.5% – 4%
  Topographic Scales	Yes	No	No	Yes
  CP Correction Scale	No	Yes	No	No
  Measurement Sensitivity	Diameter measured within 0.5% of the object distance
  Weight	Approx. 350 g

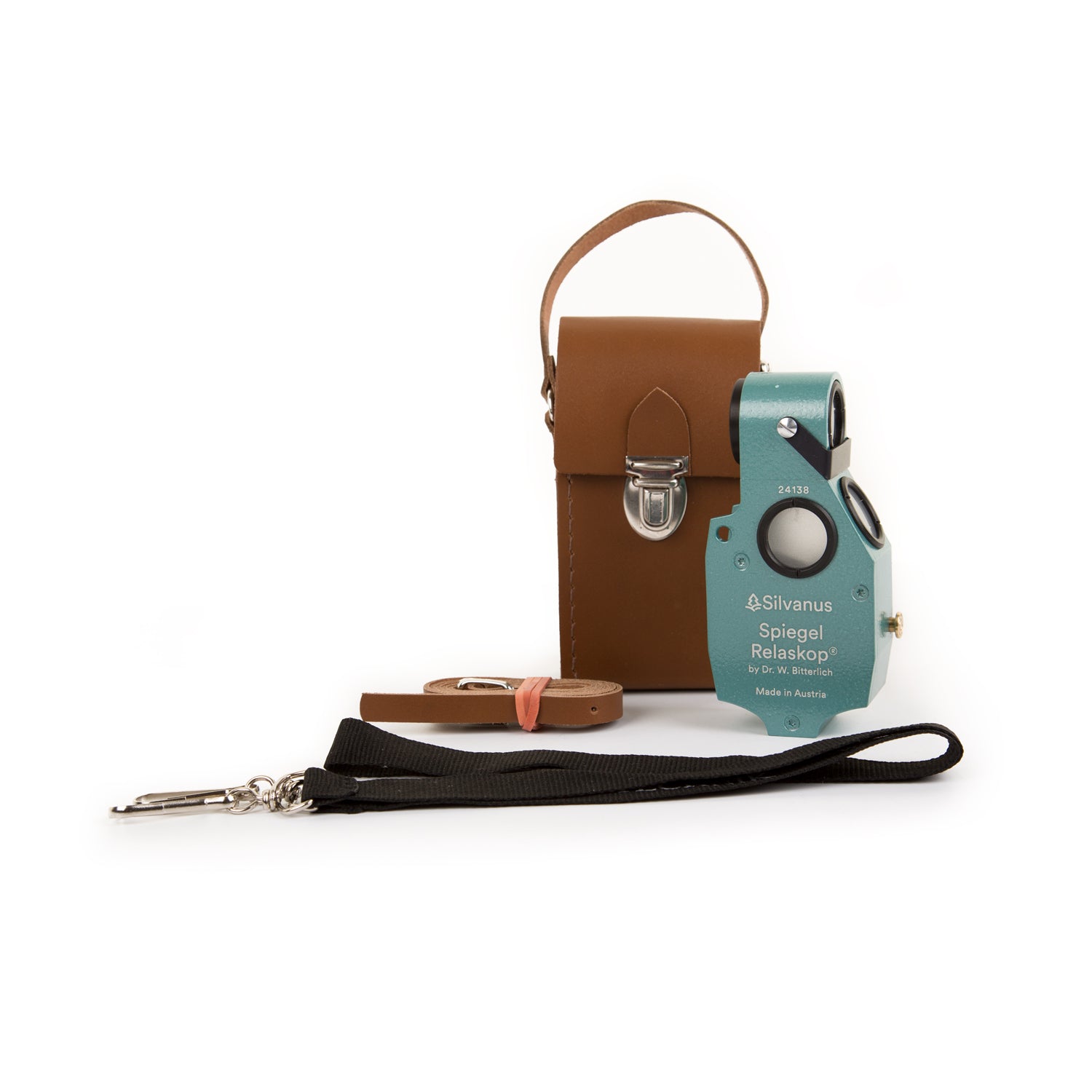

• • x1 Spiegel-Relaskop
  • x1 Carrying Case
• • Tripod with “Micro” or “Mini” ball head adapters
  • 2 m rangefinder eyepiece for direct height readings
  • 1.37 m Jacobstaff with adapter
• • Spiegel-Relaskop
