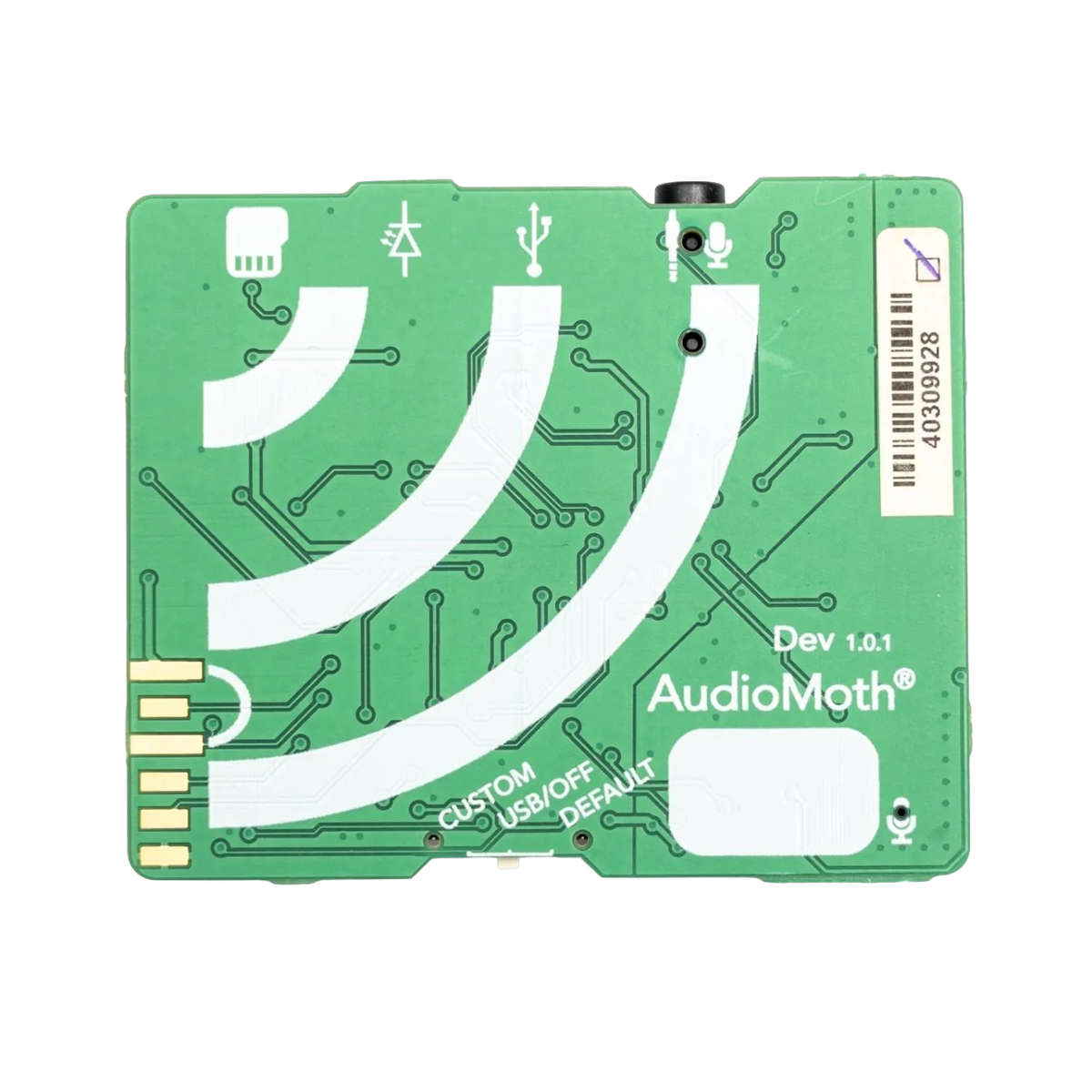

AudioMoth Dev v1.0.1 Acoustic Monitoring Development Recorder with 5 JST-PH Connectors & Micro USB

Request Quote

AudioMoth Dev - Full-Spectrum Acoustic Development Board for Environmental Monitoring

The modular development platform for creating custom acoustic monitoring and conservation solutions.



AudioMoth Dev is the development version of the AudioMoth® acoustic monitoring device. This full-spectrum acoustic development board is based on Silicon Labs' Gecko processor range and uses JST-PH connectors to expose useful peripherals for modular expansion. AudioMoth Dev is designed for use with an external battery; this is not included.

Note: This is NOT the standard AudioMoth.

Open Acoustic Devices designs, supports, and deploys open-source acoustic hardware and software for its user community, as well as for its own wildlife and environmental monitoring projects. Its core product is AudioMoth, a low-cost, open-source acoustic monitoring device used in multiple applications, including automating the search for hard-to-find insect species, monitoring poaching via gunshot detection, and listening to ultrasonic bat calls. Their goal is to improve the accessibility and usability of conservation acoustics technology through open science.

Key Features

• Power socket (JST-PH) compatible with 3.7 V to 6 V batteries.
• All controls, indicators, and I/O ports are broken out into JST-PH style headers.
• 3.5 mm jack socket for external electret condenser microphones.
• Compatible with all AudioMoth software.
• Silicon Labs 32-bit 48 MHz Wonder Gecko microcontroller with DSP instruction support.
• Sample rates of up to 384 kHz.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• SKU	AUDIOMOTH-DEV-1.0.1
  Microcontroller	Silicon Labs Wonder Gecko, 32-bit 48 MHz processor
  Instruction Support	DSP and floating-point unit
  Flash Memory	256 kB
  RAM Memory	32 kB, plus 256 kB of additional external SRAM
  Built-in Microphone	Analog MEMS, sensitivity -38 dBV/Pa, 63 dBA SNR, 10 Hz to 192 kHz
  Sample Rate	Up to 384 kHz
  External Microphone Input	3.5 mm jack socket for electret condenser microphones
  Power/Configuration Port	Micro-USB B
  JST-PH Connectors	5 separate connectors for board-to-board/board-to-case integration
  External Power Input	2-pin JST-PH connector, compatible with 3.3 V to 6 V batteries
  Power Output	2-pin JST-PH connector, 3 V, for external boards or products
  LED Header	3-pin JST-PH, for external red and green LEDs
  Switch Header	3-pin JST-PH
  GPIO Header	4-pin JST-PH, 3 V multi-function general-purpose I/O
  Debug Port	6-pin serial header
  Storage	MicroSD card socket
  Country of Origin	United Kingdom

• • 1x AudioMoth Dev v1.0.1
• • External battery (3.7 V to 6 V)
• • Protective Case with GPS and Auxiliary Board Mount
• • Datasheet (English)

Ver todos os detalhes do produto »

---

Free Flow Water Sampler 5 L ²⁶

$ 2,382.00 USD

Free Flow Water Sampler 5 l: High-Precision Oceanographic Sampling

An innovative, free-flushing sampler designed for optimal water exchange and high-fidelity sampling in oceanographic and limnological research.

The Free Flow Water Sampler 5 l is a premier instrument for researchers who require pristine, uncontaminated water samples from specific depths. Its innovative design eliminates the common limitations of traditional PWS or Niskin bottles by providing a completely unobstructed flow path. Unlike standard samplers that use cones or ball valves, this free-flushing construction ensures that nothing interferes with the water exchange inside the tube during descent, allowing for a more accurate representation of the water column.

Constructed from high-quality PVC and POM plastic to prevent metal contamination, the sampler consists of a durable tube with two lids connected by latex rubber tubing. It is highly versatile and can be used as a single instrument on a hydrographic wire, in a series for multiple depth sampling, or integrated into Multi Water Sampler, Rosette, or Carousel arrays. When deployed individually, it utilizes a mechanical messenger system for precise closure at the target depth, ensuring that the captured sample remains isolated from other layers of the water column.

Key Features

• Free-Flushing Construction: Innovative design without internal obstructions, ensuring perfect water exchange during descent.
• High-Resistance Materials: All-plastic design (PVC and POM) to prevent sample contamination and resist marine corrosion.
• Deployment Versatility: Compatible with Rosette/Carousel systems or for individual and series use on a hydrographic wire.
• Precision Operation: Messenger-activated closure system (messenger not included) for exact capture at the desired depth.
• Wide Operational Range: Engineered to function effectively in temperatures ranging from -2 to +60 °C.
• Simple Maintenance: Features a discharge cock/tube at the lower end for turbulent-free sample retrieval.

• Specifications
• In the Box
• Required Item
• Optional Items
• Documents

• Product ID	436 344
  Sample Volume	5 l
  Length	700 mm
  Diameter	140 mm
  Width	190 mm
  Height	210 mm
  Weight (Empty)	6 kg
  Material	PVC, POM, Latex
  Operational Temperature	-2 to +60 °C

• • 1x Free Flow Water Sampler 5 l
  • 1x Latex rubber tubing assembly
  • 1x Discharge cock/tube
• • Spare Messenger 400g
    Essential component to activate the closing mechanism at the desired depth.
    Without this component, the device cannot capture or secure the water sample.
• • Center mount 5 + 10 l
    Support designed to maintain the vertical stability of the equipment during deployment.
    Prevents tilting and vibrations, ensuring much more precise sampling.
  • Spare Latex Tubing / Discharge Kits
    Maintenance kits and additional spare parts to ensure the equipment's operational life.
    Allows for quick field repairs and maintains system airtightness.
• • Technical Datasheet HYDR-436-344 (English)
  • User Manual HYDR-436-344 (English)

Ver todos os detalhes do produto »

---

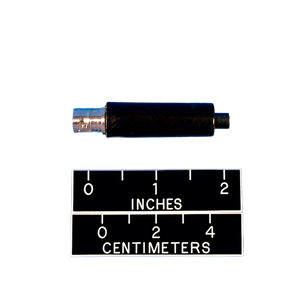

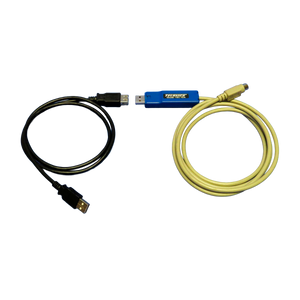

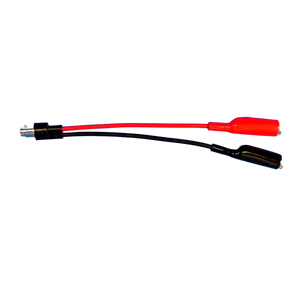

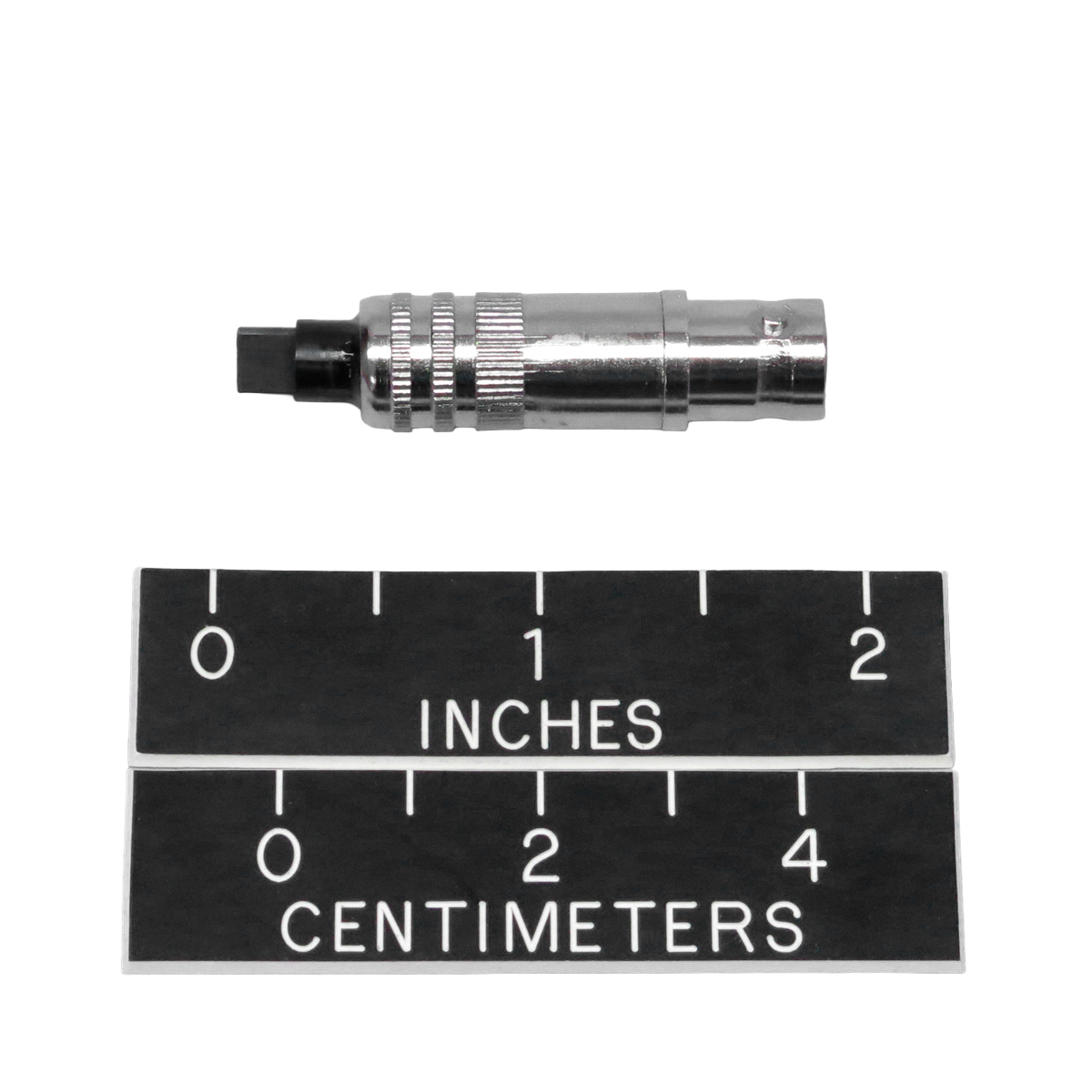

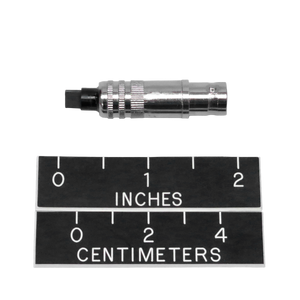

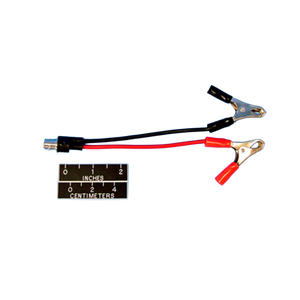

Programming and Data Recovery Cables

Request Quote

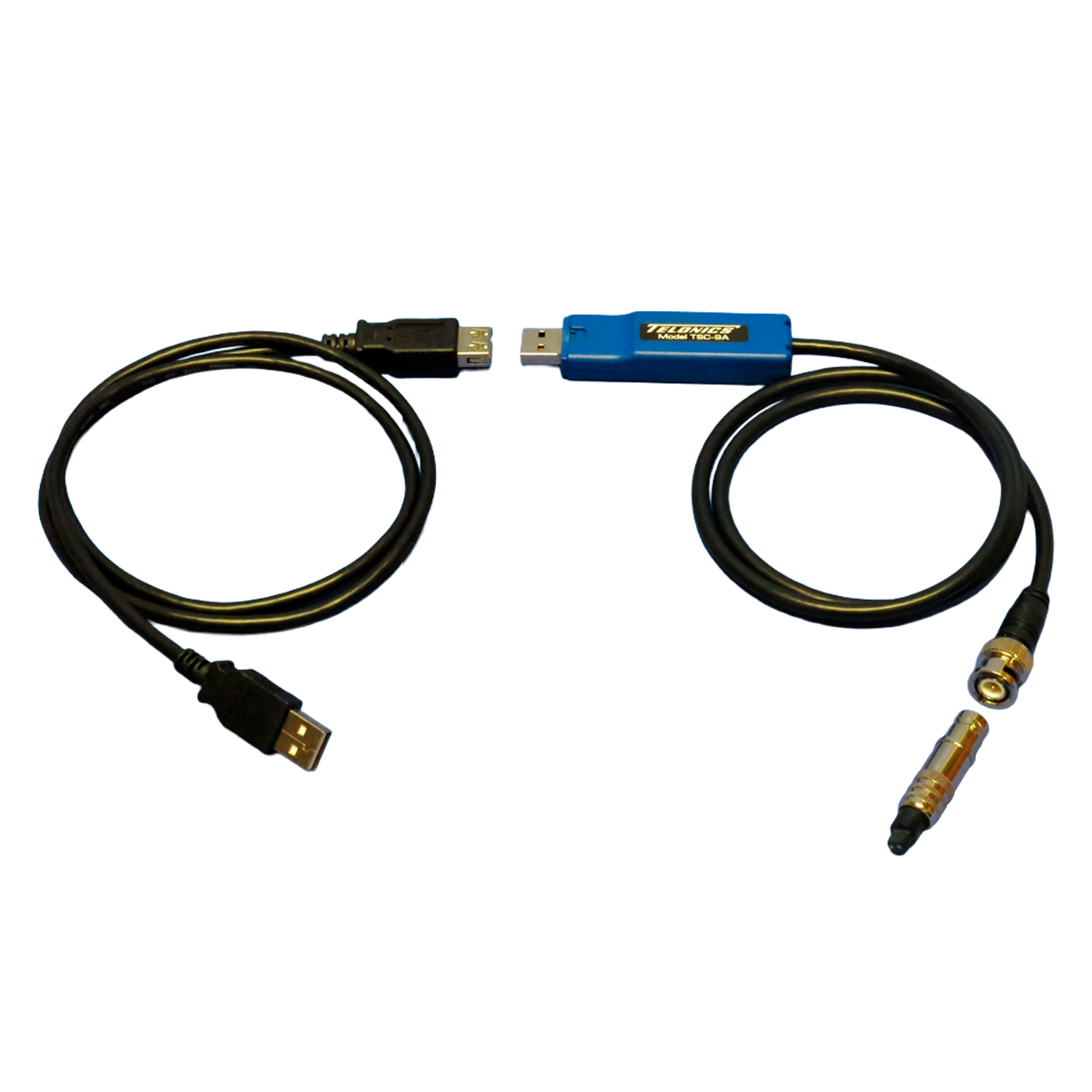

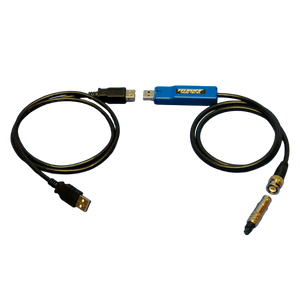

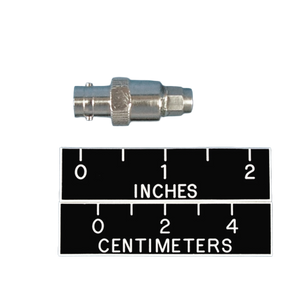

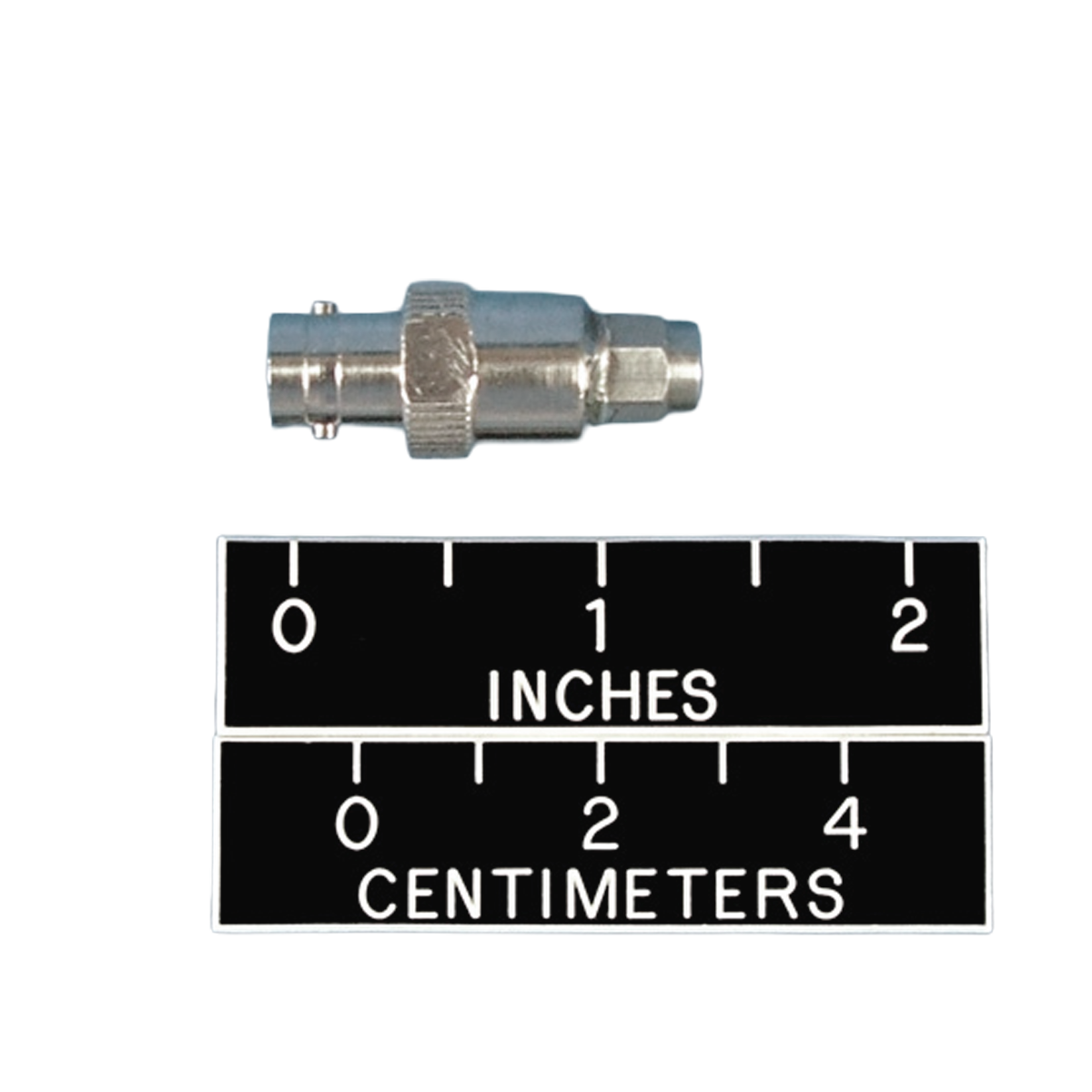

Telonics TSC-9A Multi-Purpose Interface Cable USB A and BNC connector for quick connection with various...

Ver todos os detalhes do produto »

---
