Drones

DJI Mavic 3 Professional Drone Up to 46 Min Flight Time with 20 MP Hasselblad Camera and 5.1K Video

Request Quote

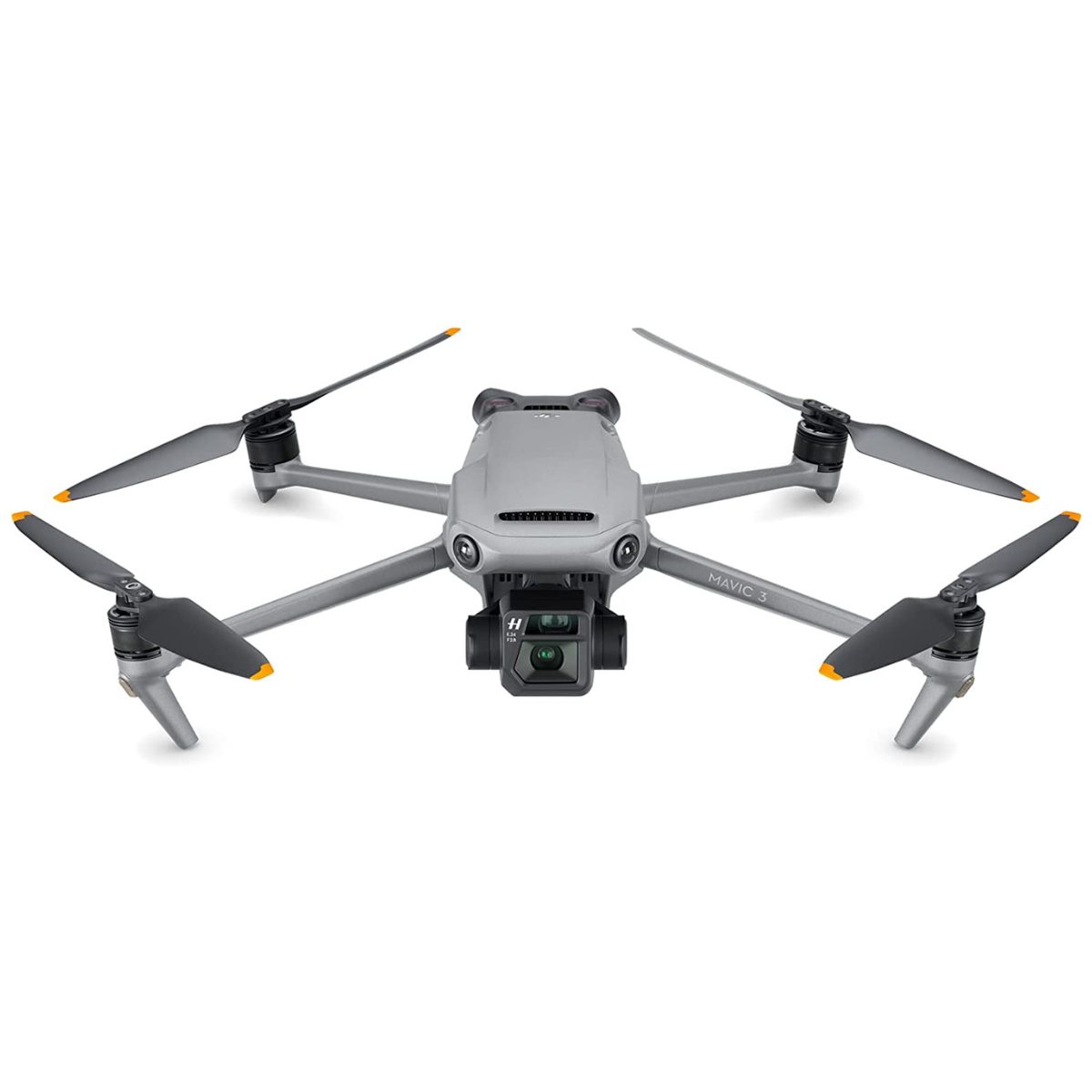

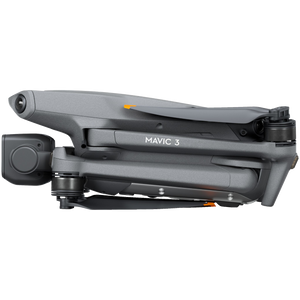

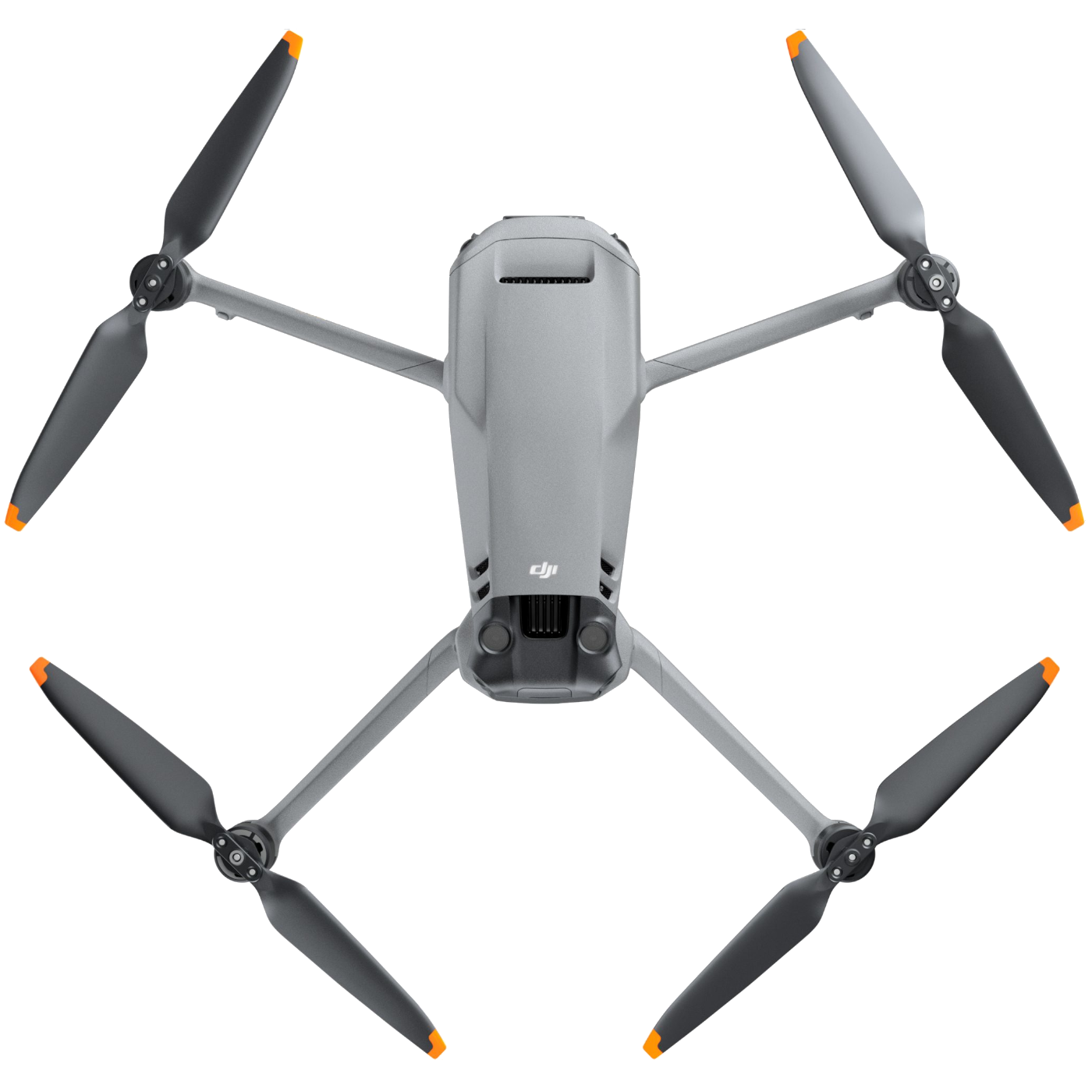

DJI Mavic 3: Maximum Aerial Performance for Professionals

Uncompromising aerial imaging: dual Hasselblad cameras, 5.1K recording, and 46-minute flight time in one compact and powerful drone.

The DJI Mavic 3 sets a new standard in professional aerial photography, combining a 20 MP 4/3 CMOS Hasselblad camera with a 12 MP telephoto lens offering 28x hybrid zoom. This powerful flight platform boasts an impressive flight time of up to 46 minutes, a transmission range of up to 15 km, and an omnidirectional obstacle sensing system. Ideal for filmmakers, content creators, researchers, or aerial mapping professionals, the Mavic 3 delivers outstanding image quality and advanced safety with every flight.

Key Features:

• Dual Professional Cameras: 20 MP 4/3 CMOS Hasselblad sensor and 12 MP telephoto lens with up to 28x hybrid zoom.
• High-Resolution Recording: 5.1K video, DCI 4K at 120 fps, and 10-bit D-Log color profile for maximum post-production flexibility.
• 360° Obstacle Detection: Omnidirectional vision technology for safe flights and automated routes.
• Explore Mode: Activates the telephoto camera for scouting before capturing content with the main camera.
• Extended Flight Time: Up to 46 minutes without wind and a maximum range of 30 km.
• Internal Storage: Built-in 8 GB memory and microSD card slot up to 512 GB.
• O3+ Video Transmission: Full HD live view up to 15 km with minimal 120 ms latency.
• High Flight Precision: Triple-band GNSS (GPS, Galileo, BeiDou) and visual positioning.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	DJI Mavic 3
  Dimensions (unfolded)	347.5×283×107.7 mm
  Diagonal	380.1 mm
  Maximum Speed	21 m/s (S mode)
  Maximum Flight Altitude	6000 m
  Max. Flight Time	46 minutes
  Wind Resistance	12 m/s
  Main Camera	Hasselblad 4/3 CMOS, 20 MP
  Telephoto Camera	1/2" CMOS, 12 MP, 28x Hybrid Zoom
  Video Resolution	5.1K, DCI 4K, FHD
  Internal Storage	8 GB
  Expandable Memory	microSD up to 512 GB
  Video Transmission	O3+, up to 15 km
  Obstacle Detection	Omnidirectional

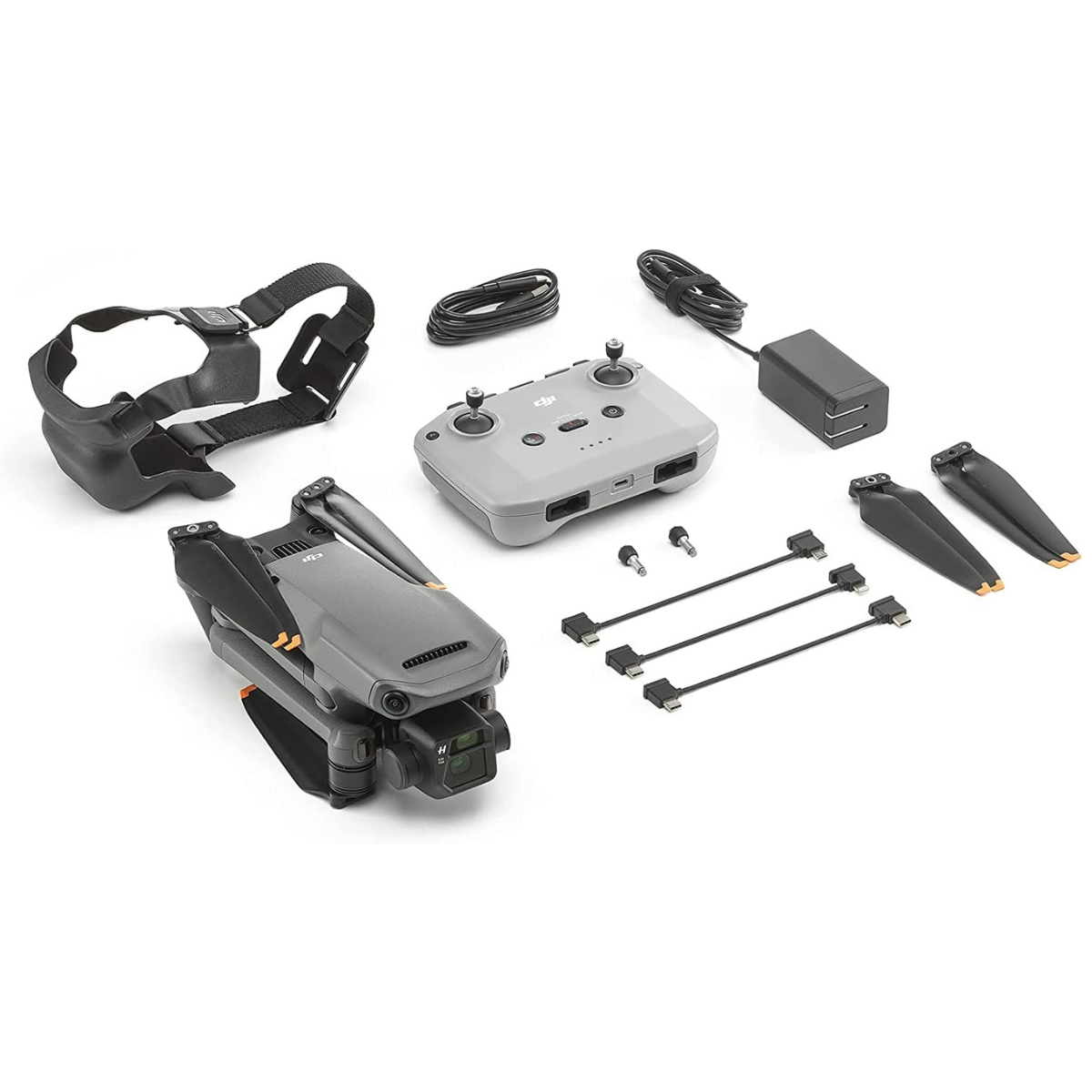

• • x1 DJI Mavic 3 Drone
  • x1 DJI RC-N1 Remote Controller
  • x1 Intelligent Flight Battery
  • x1 Charger and USB-C Cables
  • x1 Gimbal and Camera Protector
  • x3 Spare Propellers
  • x1 User Manual
• • Mobile device compatible with DJI Fly
  • DJI account and app installed
  • microSD card (minimum V30)
• • DJI RC Pro Remote Controller
  • ND Filters for Mavic 3
  • Multi-battery Charging Hub
  • Carrying Bag
• • Quick Start Guide
  • User Manual

Ver todos os detalhes do produto »

DJI Avata 2 FPV Drone with 4K Camera and Immersive Goggles

Request Quote

Immersive Flight Experience

Specifications

Tight Shots in
Super-Wide 4K

Easy ACRO

Built-in Propeller Guard

Hassle-Free POV Content

The Total Package

The adrenaline-pumping DJI Avata 2 delivers an immersive FPV drone experience with improved imaging, safety, and battery life. Amp up the fun when you pair Avata 2 with the new DJI Goggles 3 and DJI RC Motion 3.



DJI Goggles 3

Visionary Breakthrough

DJI Goggles 3 now has Real View PiP (Picture-in-Picture). Observe your surroundings without removing the goggles, for more safety and immersion. The micro-OLED high-definition display and ultra-low-latency transmission bring the world into view.

DJI RC Motion 3

Feel Every Flight

Effortlessly perform difficult aerial acrobatics with DJI RC Motion 3. New pilots can now perform spectacular flips, drifts, and other captivating maneuvers.



Flipping Awesome

Easy ACRO

Soar, dive, and roll for stunning aerial footage with a single push. Capturing epic FPV footage with DJI RC Motion 3 and Avata 2 is easier than ever.

One-Push Power Loop*

Activate power loop with a single push, and the Avata 2 will instantly accelerate, ascend, flip, and descend, providing a seamless and thrilling loop flight experience.

* The power loop feature has a fixed radius and speed, which cannot be altered. The loop radius is set at 5 meters, and the minimum effective height is 1.5 meters.

One-Push flip

360° front/back flip, adding fresh twists to your footage.

One-Push Roll

High-speed lateral drifts to yaw spin 180° past objects and swiftly pull away, achieving dramatic visuals. One-Push Roll Roll 360° left/right, turning any shot from "meh" to magic.

One-Push Roll

Roll 360° left/right, turning any shot from "meh" to magic.



Advanced Maneuvers

Fly nimbly through tight spaces with the new DJI FPV Remote Controller 3 in Manual mode to showcase flying prowess and gutsy creativity.

Must-Have App for DJI Users

DJI Store App

Virtual Flight has just been updated, offering an exclusive sneak peek into one-tap acrobatics and the joy of FPV flight. Try all-new scenarios and flight tasks, and immerse yourself in the control experience of Avata 2.



Excellence in Everything

The Sky's the Limit With Longer Flight

Avata 2 boasts a maximum flight time of 23 minutes and supports PD fast charging, so you can quickly recharge it and take to the skies again.





The new DJI Avata 2 Two-Way Charging Hub features a power accumulation function, allowing the transfer of remaining power from multiple batteries to the one with the highest charge level, giving you an "extra battery" in critical moments.

O4 Video Transmission, Enhanced Perception

DJI O4 video transmission's enhanced stability lets you fully immerse yourself in each flight and provides greater safety. Its two-transmitter, four-receiver, four-antenna design ensures strong anti-interference performance, and it boasts up to 13 km of maximum video transmission distance, a transmission latency as low as 24 ms, 1080p/100fps high-definition image quality, and a maximum transmission bitrate of 60Mbps.

Boundless Passion, Wireless Sharing

Watch the DJI Goggles 3 live feed from Avata 2 on your smart device's DJI Fly App. Connect up to 5 m away. Sharing the excitement of FPV just got easier, and learning how to fly is more accessible than ever.



Save More, Share More



Avata 2 comes equipped with 46GB internal storage, capable of storing approximately 90 minutes of 1080p/60fps video, ensuring you capture the best parts of each flight.

With Wi-Fi connectivity for fast file transfer to your phone, post-editing and sharing of your finished work is highly efficient.



One-Tap VFX with LightCut

The LightCut app, connecting directly to DJI Avata 2 via Wi-Fi, allows you to intelligently add Sky VFX during post based on the flight trajectory captured in your videos, helping you easily create engaging aerial footage. Without the need to download the footage, the app offers editing and, combined with One-Tap Edit, allows you to produce polished content effortlessly.

Sky VFX

After connecting the device and importing the footage, tap Sky VFX to add unique overlays, through-the-air text animations, virtual cockpits, and dashboard effects, enhancing the interactive fun and engagement of your immersive flight footage.



One-Tap Edit

With AI's intelligent recognition of video types and themes, you can effortlessly filter through and select highlights with smooth camera work and exquisite composition. Coupled with a vast array of thematic templates, enabling you to produce polished content. The app also boasts intelligent sound effects, color recovery, one-click addition of device watermarks, and end credits, among other features.



Wireless Connection

When Avata 2 is connected wirelessly to LightCut, you can preview the captured footage within the app and edit it without the need to download the footage, saving valuable space on your smartphone.



• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Aircraft

  Feature	Specification
  Takeoff Weight	Approx. 377 g
  Dimensions	185×212×64 mm (L×W×H)
  Max Ascent Speed	6 m/s (Normal mode) 9 m/s (Sport mode)
  Max Descent Speed	6 m/s (Normal mode) 9 m/s (Sport mode)
  Max Horizontal Speed (near sea level, no wind)	8 m/s (Normal mode) 16 m/s (Sport mode) 27 m/s (Manual mode)* * No faster than 19 m/s with the Manual mode in the EU regions.
  Max Takeoff Altitude	5000 m
  Max Flight Time	Approx. 23 mins Measured in a windless environment when taking off from an altitude of 5000 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
  Max Hovering Time	Approx. 21 mins Measured when hovering in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.
  Max Flight Distance	13.0 km Measured when flying forward at a speed of 43.2 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to RTH reminders on the goggles screen during your flight.
  Max Wind Speed Resistance	10.7 m/s (Level 5)
  Operating Temperature	-10° to 40° C (14° to 104° F)
  Global Navigation Satellite System	GPS + Galileo + BeiDou
  Hovering accuracy range	Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning) Horizontal: ±0.3 m (with vision positioning), ±1.5 m (with GNSS positioning)
  Internal Storage	46 GB
  Class	C1 (EU)




  Camera

  Feature	Specification
  Image Sensor	1/1.3-inch image sensor Effective Pixels: 12 MP
  Lens	FOV: 155° Format Equivalent: 12 mm Aperture: f/2.8 Focus: 0.6 m to ∞
  ISO Range	100-25600 (Auto) 100-25600 (Manual)
  Shutter Speed	Video: 1/8000-1/30 s Photo: 1/8000-1/50 s
  Max Image Size	4000×2256 (16∶9) 4000×3000 (4∶3)
  Still Photography Mode	Single shot
  Photo Format	JPEG
  Video Resolution	4K (4∶3): 3840×2880@30/50/60fps 4K (16∶9): 3840×2160@30/50/60/100fps 2.7K (4∶3): 2688×2016@30/50/60fps 2.7K (16∶9): 2688×1512@30/50/120fps 1080p (4∶3): 1440×1080@30/50/120fps 1080p (16∶9): 1920×1080@30/50/120fps
  Video Format	MP4 (H.264/H.265)
  Max Video Bitrate	130 Mbps
  Supported File System	exFAT
  Color Mode	Standard D-Log M
  Camera FOV	Supports normal mode, wide-angle mode, and ultra-wide-angle mode.
  EIS	Supports RockSteady 3.0+ and HorizonSteady Can be disabled* * When stabilization is turned off, footage captured with the wide-angle view supports offline stabilization Gyroflow.




  Gimbal

  Feature	Specification
  Stabilization	Single-axis mechanical gimbal (tilt)
  Mechanical Range	Tilt: -95° to 90°
  Controllable Range	Tilt: -85° to 80°
  Max Control Speed (tilt)	100°/s
  Angular Vibration Range	±0.01°
  Electronic Roll Axis	Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.




  Sensing

  Feature	Specification
  Sensing Type	Downward and backward visual positioning
  Downward	ToF Effective Measurement Height: 10 m Precise Hovering Range: 0.3-10 m Measurement Range: 0.3-20 m FOV: Horizontal 78°, Vertical 78°
  Backward	Measurement Range: 0.5-20 m FOV: Horizontal 78°, Vertical 78°
  Operating Environment	Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement) Adequate lighting (lux > 15, normal indoor lighting conditions)




  Video Transmission

  Feature	Specification
  Video Transmission System	O4
  Live View Quality	1080p@30/50/60/100fps
  Operating Frequency	2.400-2.4835 GHz 5.170-5.250 GHz* 5.725-5.850 GHz* * 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.
  Transmitter Power (EIRP)	2.4 GHz: ＜33 dBm (FCC), ＜20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) 5.8 GHz: ＜33 dBm (FCC), ＜30 dBm (SRRC), < 14 dBm (CE)
  Communication Bandwidth	Max 60 MHz
  Max Transmission Distance (unobstructed, free of interference)	FCC: 13 km (subject to the aircraft's max flight distance) CE: 10 km SRRC: 10 km MIC: 10 km Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.
  Max Transmission Distance (unobstructed, with interference)	Strong Interference: Urban landscape, approx. 1.5-4 km Medium Interference: Suburban landscape, approx. 4-10 km Low Interference: Suburb/seaside, approx. 10-13 km Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
  Max Transmission Distance (obstructed, with interference)	Low Interference and Obstructed by Buildings: approx. 0-0.5 km Low Interference and Obstructed by Trees: approx. 0.5-3 km Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
  Max Download Speed	Wi-Fi: 30 MB/s* * Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.
  Lowest Latency	With DJI Goggles 3: 1080p/100fps Video Transmission Quality: 24 ms, 1080p/60fps Video Transmission Quality: 40 ms
  Max Video Bitrate	60Mbps
  Antennas	4 antennas, 2T4R
  Wi-Fi	Protocol: 802.11a/b/g/n/ac Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz Transmitter Power (EIRP): 2.4 GHz: <20 dBm (FCC／CE／SRRC／MIC), 5.8 GHz: <20 dBm (FCC／SRRC), < 14 dBm (CE)
  Bluetooth	Protocol: Bluetooth 5.0 Operating Frequency: 2.400-2.4835 GHz Transmitter Power (EIRP): <10 dBm




  Intelligent Flight Battery

  Feature	Specification
  Capacity	2150 mAh
  Weight	Approx. 145 g
  Standard Voltage	14.76 V
  Max Charging Voltage	17 V
  Battery Type	Li-ion
  Energy	31.7 Wh@0.5C
  Charging Temperature	5° to 40° C (41° to 104° F)
  Charging Time	With Charging Hub (60W max charging power): From 0 to 100%: approx. 45 min, From 10 to 90%: approx. 30 min Directly Charging the Drone (30 W max charging power): From 0 to 100%: approx. 88 min, From 10 to 90%: approx. 60 min




  Charger

  Feature	Specification
  Recommended Charger	DJI 65W Portable Charger DJI 65W Car Charger USB Power Delivery charger
  Battery Charging Hub	Input: 5-20 V, max 3 A Output (power accumulation): Max 65 W Output (charging): Max 17 V Output (USB): 5 V, 2 A Charging Type: Three batteries charged in sequence. Compatibility: DJI Avata 2 Intelligent Flight Battery




  Storage

  Feature

  Specification

  Recommended microSD Cards

  Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC Lexar Professional 1066x 64GB U3 A2 V30 microSDXC Lexar Professional 1066x 128GB U3 A2 V30 microSDXC Lexar Professional 1066x 256GB U3 A2 V30 microSDXC Lexar Professional 1066x 512GB U3 A2 V30 microSDXC




  DJI FPV Remote Controller 3

  Feature	Specification
  Max Operating Time	Approx. 10 hours
  Operating Temperature	-10° to 40° C (14° to 104° F)
  Charging Temperature	0° to 50° C (32° to 122° F)
  Charging Time	2 hours
  Charging Type	5 V, 2 A
  Battery Capacity	2600 mAh
  Weight	Approx. 240 g
  Dimensions	165×119×62 mm (L×W×H)
  Operating Frequency	2.400-2.4835 GHz
  Transmitter Power (EIRP)	2.400 GHz: ＜26 dBm (FCC), ＜20 dBm (CE/SRRC/MIC)




  Others

  Feature	Specification
  Guaranteed software updates until	2026/12/31

•


  Drone Only

  • 1x DJI Avata 2 Intelligent Flight Battery
  • 2x Spare Propellers (Pair)
  • 8x Spare Screws
  • 1x DJI Avata 2 Gimbal Protector
  • 1x Type-C to Type-C PD Cable
  • 1x Screwdriver
  • 1x DJI Avata 2



  Fly More Combo (3 Batteries)

  • 3x DJI Avata 2 Intelligent Flight Battery
  • 1x DJI RC Motion 3
  • 1x DJI Avata 2
  • 1x DJI Goggles 3
  • 1x DJI Avata 2 Two-Way Charging Hub
  • 1x DJI Sling Bag
  • 2x Spare Propellers (Pair)
  • 8x Spare Screws
  • 1x DJI Avata 2 Gimbal Protector
  • 1x Type-C to Type-C PD Cable
  • 1x Screwdriver
  • 1x DJI RC Motion 3 Lanyard
  • 1x DJI Goggles 3 Foam Padding
  • 1x DJI Goggles 3 Additional Forehead Pad
  • 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
  • 1x USB-C OTG Cable



  Fly More Combo (1 Battery)

  • 1x DJI Avata 2 Intelligent Flight Battery
  • 1x DJI RC Motion 3
  • 1x DJI Avata 2
  • 1x DJI Goggles 3
  • 2x Spare Propellers (Pair)
  • 8x Spare Screws
  • 1x DJI Avata 2 Gimbal Protector
  • 1x Type-C to Type-C PD Cable
  • 1x Screwdriver
  • 1x DJI RC Motion 3 Lanyard
  • 1x DJI Goggles 3 Foam Padding
  • 1x DJI Goggles 3 Additional Forehead Pad
  • 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
  • 1x USB-C OTG Cable
•

  • None
•

  • DJI Avata 2 ND Filter Set
  • DJI Avata 2 Propellers
  • Kingston Canvas Go! Plus microSD Card 128GB
  • DJI FPV Remote Controller 3
  • DJI 65W Car Charger
•

  • DJI Avata 2 - Release Notes
  • DJI Avata 2 - DJI FPV Remote Controller 3 - Release Notes
  • DJI Avata 2 - Quick Start Guide (Drone Only) v1.0
  • DJI Avata 2 - Quick Start Guide (Fly More Combo) v1.0
  • DJI Avata 2 - Safety Guidelines (Drone Only) v1.0
  • DJI Avata 2 - Safety Guidelines (Drone Only) (More Languages) v1.0
  • DJI Avata 2 - Safety Guidelines (Fly More Combo) v1.0
  • DJI Avata 2 - Safety Guidelines (Fly More Combo) (More Languages) v1.0
  • DJI Avata 2 - User Manual v1.0
  • DJI Avata 2 - User Manual (Dutch) v1.0
  • DJI Avata 2 - User Manual (Indonesian) v1.0
  • DJI Avata 2 - User Manual (Thai) v1.0
  • DJI Avata 2 - User Manual (Czech) v1.0
  • DJI Avata 2 - User Manual (Danish) v1.0
  • DJI Avata 2 - User Manual (Greek) v1.0
  • DJI Avata 2 - User Manual (Hungarian) v1.0
  • DJI Avata 2 - User Manual (Polish) v1.0
  • DJI Avata 2 - User Manual (Turkish) v1.0
  • DJI Avata 2 - User Manual (Arabic) v1.0
  • DJI Avata 2 - DJI FPV Remote Controller 3 - User Manual v1.0
  • DJI Avata 2 - DJI FPV Remote Controller 3 - User Manual (Dutch) v1.0
  • DJI Avata 2 - DJI FPV Remote Controller 3 - User Manual (Portuguese) v1.0
  • DJI Avata 2 Two-Way Charging Hub User Guide v1.0

Ver todos os detalhes do produto »

DJI Matrice 4TD / 4D Drones With High-Precision Dual Camera For Inspection And Security Missions

Request Quote

Conquer Every Mission With Extreme Precision

Advanced Aerial Solutions For Inspection, Security, And Critical Operations, Combining Powerful Dual Camera, Robust Durability, And Next-Generation Connectivity

The DJI Matrice 4D and 4TD drones, water and dust resistant, are specifically designed for DJI Dock 3, offering extended flight time, and can be paired with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium telephoto camera, a telephoto camera, and a laser rangefinder. The Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. The Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

Features

• Maximum Extended Flight Time: Up to 47 minutes of autonomy for greater operational coverage.
• Dust and Water Resistance with IP55 Rating: Designed to operate in adverse environmental conditions.
• Advanced Obstacle Detection System: Integration of rotating LiDAR and millimeter-wave radar for precise environmental detection, including cables as thin as 12 mm.
• 48 MP Telephoto Camera: Ability to capture details at distances of up to 250 meters.
• Night Scene Mode: Optimized for operations in low-light conditions.
• NIR Auxiliary Light (4TD Only): Near-infrared illumination for continuous 24/7 operations.
• Triple Camera System (4D Only):
  • 20 MP Wide-Angle Camera.
  • 48 MP Medium Telephoto Camera.
  • Telephoto Lens with a range of 250 m.
• Enhanced Night Vision (4D Only): Four fisheye lenses for low-light conditions.
• Optimized Stabilization (4D Only): For clear and stable images in the dark.
• Onboard Relay (4TD Only): Extends transmission range in mountainous terrains.
• 24/7 Autonomous Operations (4D Only): Seamless integration with DJI Dock 3 for automated takeoff, landing, recharging, and cloud-based mission planning.
• Anti-Icing Propellers (4D Only): Greater resilience in cold weather conditions.

• Specifications
• In the Box
• Required Items
• Optional Items

•


  DJI Matrice 4D	DJI Matrice 4TD




  Aircraft

  Takeoff Weight (with propellers)	1850 g	1850 g
  Max Takeoff Weight	2090 g	2090 g
  Dimensions	377.7×416.2×212.5 mm (L×W×H, without propellers)	377.7×416.2×212.5 mm (L×W×H, without propellers)
  Wheelbase	Diagonal Wheelbase: 498.5 mm	Diagonal Wheelbase: 498.5 mm
  Max Ascent Speed	6 m/s (N Mode) 10 m/s (S Mode)	6 m/s (N Mode) 10 m/s (S Mode)
  Max Descent Speed	6 m/s (N Mode) 8 m/s (S Mode)	6 m/s (N Mode) 8 m/s (S Mode)
  Max Horizontal Speed (at sea level, no wind)	Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways * When used with DJI Dock, only Normal mode is supported.	Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways * When used with DJI Dock, only Normal mode is supported.
  Max Wind Speed Resistance	During Operation: 12 m/s During Takeoff/Landing: 12 m/s	During Operation: 12 m/s During Takeoff/Landing: 12 m/s
  Max Takeoff Altitude	6500 m	6500 m
  Operating Temperature	-20° to 50° C (-4° to 122° F)	-20° to 50° C (-4° to 122° F)
  Ingress Protection Rating	IP55	IP55
  Max Flight Time (without wind)	54 minutes	54 minutes
  Max Hover Time (without wind)	47 minutes	47 minutes
  GNSS	GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)	GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
  RTK Module	Built-in, no installation required.	Built-in, no installation required.
  Cellular Dongle 2 Compartment	Yes	Yes




  AI

  AI Detection

  Yes

  Yes




  Wide-Angle Camera

  Image Sensor	4/3 CMOS, Effective Pixels: 20 MP	1/1.3-inch CMOS, Effective Pixels: 48 MP
  Lens	FOV: 84° Equivalent Focal Length: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞	FOV: 82° Equivalent Focal Length: 24 mm Aperture: f/1.7 Focus: 1 m to ∞
  Night Scene Mode	Full-Color Night Scene	Full-Color Night Scene
  ISO Range	100-25600 Night Scene Mode: 100-204800	100-25600 Night Scene Mode: 100-409600
  Shutter Speed	Electronic Shutter: 2-1/8000 s Mechanical Shutter: 2-1/2000 s	Electronic Shutter: 2-1/8000 s
  Max Photo Size	5280×3956	8064×6048
  Still Photography Modes	Single: 20 MP Timed: 20 MP (JPEG: 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s, JPEG + RAW: 2/3/5/7/10/15/20/30/60 s) Smart Low-Light: 20 MP Panorama: 20 MP (raw image); 100 MP (stitched image)	Single: 12 MP/48 MP Timed: 12 MP/48 MP (JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s*) * 0.7 and 1-second intervals not supported for 48MP photos. Smart Capture: 12 MP Panorama: 12 MP (raw image); 100 MP (stitched image)
  Minimum Photo Interval	0.5 s	0.7 s
  Video Codec and Resolution	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps
  Photo Format	JPEG/DNG (RAW)	JPEG
  Video Format	MP4 (MPEG-4 AVC/H.264)	MP4 (MPEG-4 AVC/H.264)




  Medium Tele Camera

  Image Sensor	1/1.3-inch CMOS, Effective Pixels: 48 MP	1/1.3-inch CMOS, Effective Pixels: 48 MP
  Lens	FOV: 35° Equivalent Focal Length: 70 mm Aperture: f/2.8 Focus: 3 m to ∞	FOV: 35° Equivalent Focal Length: 70 mm Aperture: f/2.8 Focus: 3 m to ∞
  Night Scene Mode	Full-Color Night Scene	Full-Color Night Scene
  ISO Range	100-25600 Night Scene Mode: 100-409600	100-25600 Night Scene Mode: 100-409600
  Shutter Speed	Electronic Shutter: 2-1/8000 s	Electronic Shutter: 2-1/8000 s
  Max Photo Size	8064×6048	8064×6048
  Still Photography Modes	Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP	Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP
  Video Codec and Resolution	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps
  Photo Format	JPEG	JPEG
  Video Format	MP4 (MPEG-4 AVC/H.264)	MP4 (MPEG-4 AVC/H.264)




  Tele Camera

  Image Sensor	1/1.5-inch CMOS, Effective Pixels: 48 MP	1/1.5-inch CMOS, Effective Pixels: 48 MP
  Lens	FOV: 15° Equivalent Focal Length: 168 mm Aperture: f/2.8 Focus: 3 m to ∞	FOV: 15° Equivalent Focal Length: 168 mm Aperture: f/2.8 Focus: 3 m to ∞
  Night Scene Mode	Full-Color Night Scene	Full-Color Night Scene Black-and-White Night Scene
  ISO Range	100-25600 Night Scene Mode: 100-409600	100-25600 Night Scene Mode: 100-819200
  Shutter Speed	Electronic Shutter: 2-1/8000 s	Electronic Shutter: 2-1/8000 s
  Max Photo Size	8192×6144	8192×6144
  Still Photography Modes	Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP	Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Capture: 12 MP
  Video Codec and Resolution	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps	H.264, H.265 4K: 3840×2160@30fps FHD: 1920×1080@30fps
  Photo Format	JPEG	JPEG
  Video Format	MP4 (MPEG-4 AVC/H.264)	MP4 (MPEG-4 AVC/H.264)
  Digital Zoom	16x (112x hybrid zoom)	16x (112x hybrid zoom)




  Infrared Thermal Camera

  Sensor Type	N/A	Uncooled VOx Microbolometer
  Pixel Pitch	N/A	12 μm
  Frame Rate	N/A	30 Hz
  Lens	N/A	DFOV: 45° Equivalent Focal Length: 53 mm Aperture: f/1.0 Focus: 5 m to ∞
  Temperature Measurement Method	N/A	Spot Measurement, Area Measurement
  Temperature Measurement Range	N/A	High Gain Mode: -20° to 150° C (-4° to 302° F) Low Gain Mode: 0° to 550° C (32° to 1022° F)
  Palette	N/A	White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  Photo Format	N/A	JPEG (8-bit), R-JPEG (16-bit)
  Video Resolution	N/A	1280×1024@30fps (UHR Infrared Image function enabled, Night Scene mode not enabled) 640×512@30fps
  Video Bitrate	N/A	6.5Mbps (H.264 640×512@30fps) 5Mbps (H.265 640×512@30fps) 12Mbps (H.264 1280×1024@30fps) 8Mbps (H.265 1280×1024@30fps)
  Video Format	N/A	MP4 (MPEG-4 AVC/H.264)
  Still Photography Modes	N/A	Single: 1280×1024/640×512 Timed: 1280×1024/640×512, JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  Digital Zoom	N/A	28×
  Infrared Wavelength	N/A	8-14 μm
  Infrared Temperature Measurement Accuracy	N/A	±2° C or ±2% (whichever is greater)




  NIR Auxiliary Light

  Infrared Illumination

  N/A

  FOV: 5.7°±0.3°




  Laser Module

  Laser Rangefinding - Normal Incidence Range	1800 m (1 Hz)	1800 m (1 Hz)
  Laser Rangefinding - Oblique Incidence Range (1:5 Oblique Distance)	600 m (1 Hz)	600 m (1 Hz)
  Laser Rangefinding - Blind Zone	1 m	1 m
  Laser Rangefinding - Measurement Accuracy	1-3 meters: System Error <0.3 meters, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (Target distance in meters) (@20% reflectivity) Performance may degrade in rainy or foggy conditions.	1-3 meters: System Error <0.3 meters, Random Error <0.1 meters @1σ Other Distances: ±(0.2+0.0015D) (Target distance in meters) (@20% reflectivity) Performance may degrade in rainy or foggy conditions.




  Sensing

  Sensing Type

  Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.

  Omnidirectional binocular vision system, supplemented with a 3D infrared sensor at the bottom of the aircraft.




  Video Transmission

  Video Transmission System	DJI O4+ Enterprise	DJI O4+ Enterprise
  Live View Quality	720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise) 540p/30fps, 720p/30fps, 1080p/30fps (with DJI Dock 3 and DJI FlightHub 2)	720p/30fps, 1080p/30fps (with DJI RC Plus 2 Enterprise) 540p/30fps, 720p/30fps, 1080p/30fps (with DJI Dock 3 and DJI FlightHub 2)
  Operating Frequency	2.400-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz * Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.	2.400-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHz * Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.
  Max Transmission Distance (unobstructed, free of interference)	FCC: 25 km CE: 12 km SRRC: 12 km MIC: 12 km	FCC: 25 km CE: 12 km SRRC: 12 km MIC: 12 km
  Max Transmission Distance (with interference)	Strong interference (dense buildings, residential areas, etc.): 1.5-5 km Medium interference (suburban counties, city parks, etc.): 5-15 km Weak interference (open spaces, remote areas, etc.): 15-25 km * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. In obstructed environments, it is recommended to install the D-RTK 3 Relay Fixed Deployment Version.	Strong interference (dense buildings, residential areas, etc.): 1.5-5 km Medium interference (suburban counties, city parks, etc.): 5-15 km Weak interference (open spaces, remote areas, etc.): 15-25 km * Data is tested under FCC standards in unobstructed environments of typical interference. Only to serve as a reference and provides no guarantee as to the actual flight distance. In obstructed environments, it is recommended to install the D-RTK 3 Relay Fixed Deployment Version.
  Max Download Speed	20 MB/s (with DJI Dock 3) 20 MB/s (with DJI RC Plus 2 Enterprise)	20 MB/s (with DJI Dock 3) 20 MB/s (with DJI RC Plus 2 Enterprise)
  Latency (depending on environmental conditions and mobile device)	The video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions). The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer's configuration.	The video transmission latency from the aircraft to the dock is approximately 100 milliseconds (affected by the actual environmental conditions). The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer's configuration.
  Antenna	8 antennas, 2T4R	8 antennas, 2T4R
  Others	DJI Cellular Dongle 2	DJI Cellular Dongle 2




  Remote Controller

  Screen Resolution	1920×1200	1920×1200
  Screen Size	7.02 inches	7.02 inches
  Brightness	1400 nit	1400 nit
  Storage Capacity	Internal Storage (ROM): 128GB Support microSD card to expand capacity	Internal Storage (ROM): 128GB Support microSD card to expand capacity
  Operating Time	Built-in Battery: 3.8 hours External Battery: 3.2 hours	Built-in Battery: 3.8 hours External Battery: 3.2 hours
  External Battery	Supported	Supported
  Output Port	HDMI port	HDMI port
  Model	TKPL 2	TKPL 2

•

  • 1x DJI Matrice 4D Drone
  • 1x TKPL 2 Remote Controller
  • 1x Manuals
•

  • None
•


  Power and Charging

  • DJI Matrice 4D Series Intelligent Flight Battery: 6768 mAh capacity and 149.9 Wh, designed for extended missions.
  • 240W Charging Hub for DJI Matrice 4D Series: Allows efficient charging of up to three batteries.
  • 240W Power Adapter: Provides fast and efficient charging for enterprise drone systems.

  Control and Communication

  • DJI RC Plus 2 Enterprise Remote Controller: High-brightness screen, IP54 rating, and support for O4 Enterprise video transmission.
  • RC Plus 2 Strap and Waist Support Kit: Enhances comfort during prolonged operations.

  Lighting and Audio

  • DJI AL1 Spotlight: Offers continuous and strobe lighting modes, with a range of up to 100 meters.
  • DJI AS1 Speaker: Reaches up to 114 decibels at 1 meter, ideal for communications in large areas.

  Safety and Protection

  • Parazero SafeAir M4 Series: Parachute system that enhances safety in case of failures.
  • Propeller Guard for Matrice 4 Series: Designed to protect propellers during flights in complex environments.

  Navigation and Positioning

  • D-RTK 3 Tripod and Survey Pole Kit: Improves accuracy in surveying and mapping applications.

  Transport and Storage

  • Carrying Case Strap for Matrice 4D Series: Facilitates the safe transport of equipment.

  Autonomous Operation

  • DJI Dock 3: Automated charging and deployment station for remote and continuous operations with DJI Matrice 3D and 3TD drones, also compatible with future Matrice 4 Series solutions.

Ver todos os detalhes do produto »

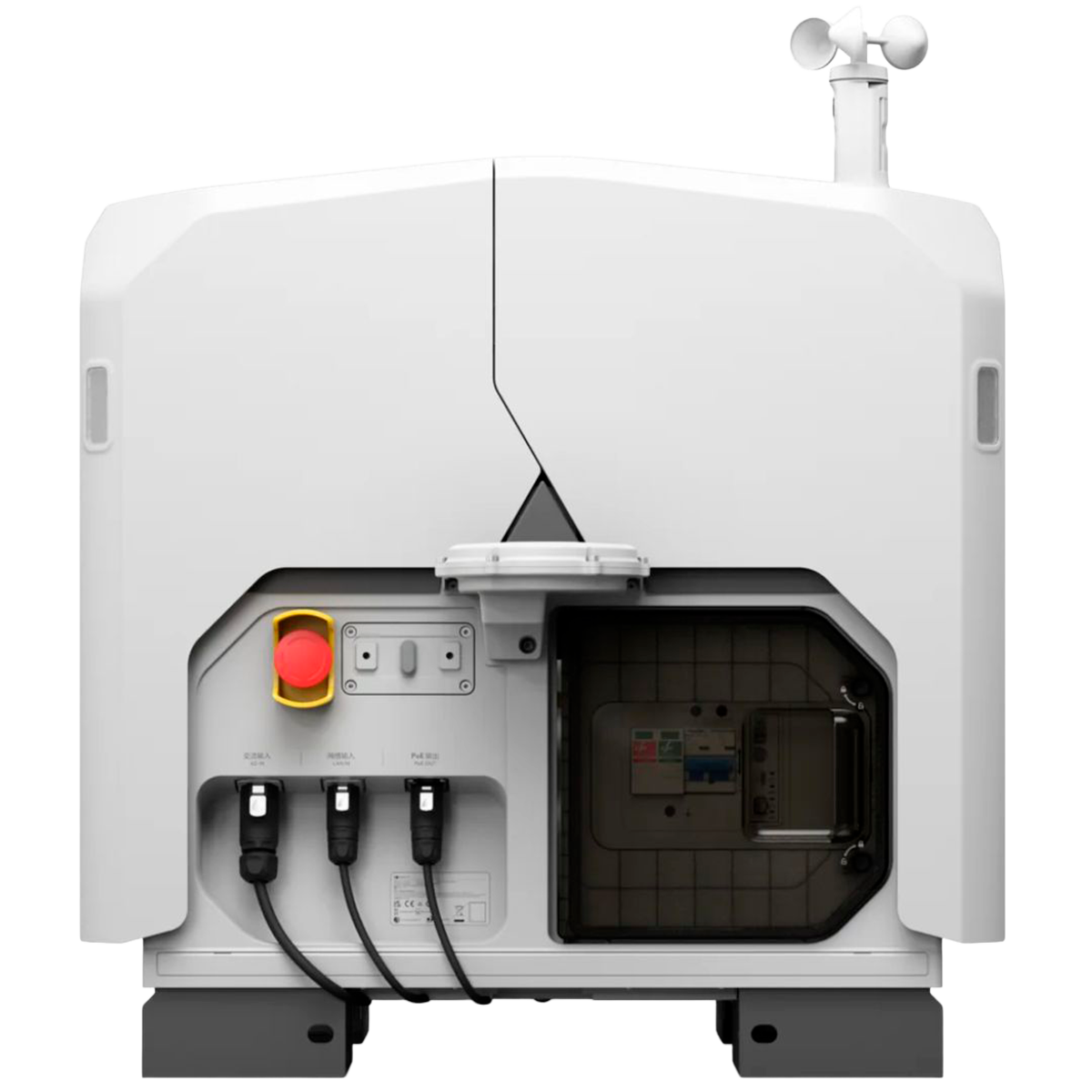

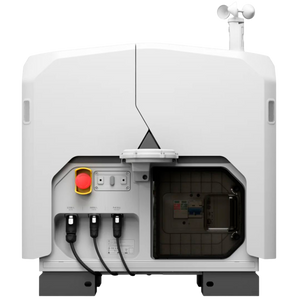

DJI Dock 3 Autonomous Drone Launch And Landing Station

Request Quote

Automate the Future of Flight with the DJI Dock 3 Station

DJI's first vehicle-mountable docking base, ideal for fully autonomous 24/7 operations. Maximize efficiency and safety for industrial and public safety applications.

The DJI Dock 3 Docking Station is an advanced automated charging and landing platform designed to facilitate remote missions without constant human intervention. Compatible with DJI Matrice 4D and 4TD drones, the Dock 3 enables autonomous deployment from fixed or mobile locations thanks to its innovative vehicle-mounting capability. With full integration with DJI FlightHub 2, it allows for cloud-based mission scheduling and management, making it an essential tool for industrial operations, infrastructure inspection, and public safety.

Near High-Rise Buildings

Installing the D-RTK 3 relay on rooftops can significantly improve signal quality, allowing the Dock 3 to be deployed next to high-rise buildings or substation walls.

Near Communication Towers

Deploying the D-RTK 3 relay on a nearby communication tower can significantly improve signal quality during Dock operations.

Flexible Deployment, Ultra-Long Transmission

The DJI Dock 3 can be flexibly deployed, redefining the operations paradigm. For fixed deployments, signal quality can be improved by installing the next-generation D-RTK 3 relay in elevated locations, allowing flexible dock site selection. With the new DJI Enterprise app, deployment can be completed with just a smartphone. Additionally, for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.

Safe Dual-Dock Deployment

Two docks can be deployed on a single vehicle simultaneously, achieving significant efficiency gains. DJI Dock 3 employs a special handover pattern to avoid drone collisions and ensure operational safety, allowing the two docks to alternate tasks in an orderly manner.

Features

• Integrated Dual Dock: Enables continuous drone rotation for 24/7 operations with no downtime.
• Vehicle Mounting: First DJI station capable of vehicle-mounted operation for maximum operational flexibility.
• Extreme Durability: Operates in temperatures from -30°C to 50°C, with IP56 protection against dust and water.
• DJI FlightHub 2 Integration: Intelligent remote mission management from the cloud.
• Extended Range: Stable transmission up to 25 km with the D-RTK 3 relay in fixed mode.
• Matrice 4D/4TD Drone Compatibility: Supports high-performance drones for demanding tasks.
• Cloud-Based Calibration: Automatic location and level adjustment from mobile apps.
• Dual Deployment: Two docks can operate from the same vehicle in coordinated fashion.
• Dual-Drone Rotation: Continuous aerial video transmission with automatic drone alternation.
• Integrated Weather Station: Environmental monitoring for safer flights.
• Certified Security: Complies with ISO 27001 standards and includes Flight Termination System (FTS).
• Open Ecosystem: SDK compatible for custom sensor and application integration.

• Specifications
• Included Items
• Required Items
• Optional Items
• Documents

• Category	Specification
  Product name	DJI Dock 3
  Total weight	55 kg (without aircraft)
  Dimensions	Cover open: 1760 × 745 × 485 mm Cover closed: 640 × 745 × 770 mm
  Input voltage	100-240 V (AC), 50-60 Hz
  Input power	Maximum 800 W
  Operating temperature range	From −30 to 50 °C
  Protection rating	IP56
  Maximum landing wind speed	12 m/s
  Maximum operating altitude	4500 m
  Charging time	27 minutes (from 15% to 95% at 25 °C)
  Transmission frequencies	2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
  Antennas	9 integrated antennas, 2T4R, enables smart switching
  Air conditioning system	Compressor AC, operating voltage: 48 V DC
  Auxiliary battery	Capacity: 12 Ah Output voltage: 12 V Type: Lead-acid battery Lifespan: >4 hours
  Network access	Ethernet: 10/100/1000 Mb/s adaptive port 4G: Requires DJI Cellular Adapter 2 (sold separately)
  Integrated sensors	Wind speed Precipitation Ambient temperature Water immersion Cabin temperature Cabin humidity
  Security cameras	External: 1920×1080 resolution, 151° FOV, auxiliary white light Internal: 1920×1080 resolution, 151° FOV, auxiliary white light
  Lightning protection	AC power port: 20 kA (complies with EN 61643-11 Type 2 and IEC 61643-1 Class II) Ethernet port: 10 kA (complies with EN/IEC 61643-21 Category C)

• • 1x DJI Dock 3
  • 1x Grounding cable
  • 1x Wind speed meter
  • 1x Power plug
  • 1x Ethernet network connectors
  • 1x USB-C to USB-C cable
  • 1x User Manual
  • 6x Power cable terminals
• • DJI Matrice 4D or 4TD drone (sold separately)
  • DJI FlightHub 2 application
  • Internet connection for remote control
• • Vehicle mounting gimbal support
  • Tracking stabilizer spotlight
  • Real-time loudspeaker
  • Obstacle detection module
  • DJI Cellular Adapter 2
  • DJI Power
• • Installation Manual
  • DJI Cellular Dongle 2 User Guide
  • Maintenance Manual

Compatibility with Matrice 4D/4TD Drones

View DJI Matrice 4D

View DJI Matrice 4TD

Ver todos os detalhes do produto »

Autel Alpha Professional Drone With Artificial Intelligence And Thermal Camera

Request Quote

Go Beyond The Frontiers

Experience Unparalleled Aerial Intelligence With The Autel Alpha – Featuring 560x Hybrid Zoom, Dual Thermal Imaging, And AI-Enhanced Autonomous Navigation. Engineered For Precision In Public Safety, Energy Inspections, And Emergency Response Missions.

Autel Alpha is an intelligent industrial drone for multi-purpose. Boasting significant enhancements in autonomous flight capabilities, anti-interference capabilities, obstacle avoidance capabilities, video transmission technology, and battery systems, it injects robust performance into the flight platform. With a foldable design and IP55-rating level, it tackles challenging environments. The built-in RTK dual-antenna system ensures precise control within millimeters when carrying out the missions.Paired with the next-gen DG-L35T gimbal, it integrates a 560x hybrid zoom camera, dual thermal imaging cameras, a visible light wide-angle camera, and a laser rangefinder. The dual thermal imaging cameras meet the needs of both short-range overview and long-range detail observation, achieving distant operation scenarios with unobstructed personnel recognition within an 8-kilometer range, providing more professional and comprehensive solutions for applications such as public safety, energy inspection, and emergency management.

Superior Anti-interference	High-precision Visual Navigation	AI Target Recognition and Positioning	56x Dual Thermal Camera	4K 35x Optical Zoom
IP55 Rating	Hot-swappable Battery	Wire-Level Obstacle Avoidance and Pathfinding	15 Kilometers Video Transmission Range	Flexible Payload Expansion

Features

• Super Zoom.

The zoom camera supports 4K 35x optical zoom and 560x maximum hybrid zoom with clear observation up to 8 kilometers away. It efficiently empowers applications such as long-distance inspection.

• Strong Infrared Perception.

The thermal camera supports 56x hybrid zoom, dual thermal imaging lenses, with a resolution of 640*512. It features a 13mm wide-angle lens and a 45mm telephoto lens, catering to overview with short focal lengths and detail-oriented viewing with long focal lengths.

• Super-sensitive Imaging.

Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, even in moonlight conditions, it can capture target details, meeting the needs of various shooting scenarios.

• Accurate Ranging.

The laser rangefinder supports one-click point positioning, allowing for quick acquisition of target positions, with a maximum ranging distance of up to 2 kilometers.

Insight Beyond Limits

Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide-angle camera and a laser rangefinder.



Exceptional Anti-Interference Capability

Exceptional Anti-Interference Capability,Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.



Autonomous Flight

Autel's Autonomy Engine is continuously improving, enabling functions such as global path planning and 3D scene reconstruction in complex environments. It ofers various obstacle avoidance capabilities, including return-to-home, manual contro, and mision planning, providing a more professional solution for industries such as security, inspection, and surveying.



No Blind Spots,Ultimate Obstacle Avoidance

By integrating multi-source sensor fusion technology, including 5-direction dual fisheye vision + 6-direction millimeter-wave radar, the drone is equipped with wire-level obstacle avoidance and pathfinding capabilities. It can detect minor obstacles like glass, poles, and powerlines. Additionally, it supports nighttime obstacle avoidance for flight safety.



Multiple Payload Capability

The aircraft features multiple mounting interfaces: mounting interfaces. The Autel PSDK developer platform is open for creating a new industry ecosystem such as searchlights, loudspeakers, and more.

Hot-Swappable Batteries

Adopting a dual-battery redundant design, the flight time reaches 40 minutes, supporting hot-swappable batteries for seamless, efficient operations.



* Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.

High-definition Transmission,Performance Upgrade

With Autel Skylink 3.0, the system comes with 4 antennas, 4 Frequency bands, enabling a transmission distance of up to 15 kilometers. It supports auto frequency hopping on 900M/2.4GHz/5.2GHz/5.8GHz*, automatically selecting the optimal channel based on electromagnetic interference for robust anti-interference capabilities, featuring a high transmission of 64Mbps and low transmission latency.

• 15 kilometers
  Image Transmission Distance
• 1080P/30FPS
  Real Time Video Quality
• 900 MHz/2.4 GHz/5.2GHz/5.8 GHz
  Frequency Bands*

Multiple Mission Types

Quick Mision

Temporary quick missions can be created while executing other missions, andmultiplesub-missions can be stacked for enhanced flexibility.

Waypoint Mission

Users can add waypoints for flexible, non-structured flight paths.

Polygon Mission

Supports one-click automatic generation of polygon flight areas.

Smart Assistive Features

Tripod

The gimbal locks onto the target, and follows the target's movement while hovering, ensuring the target remains at the center of the frame.

AI Target Recognition

Based on Autel's AI recognition technology, the Autel Alpha can automatically identify and lock onto different types of targets such as human, boat or vehicles through zoom, wide, or infrared cameras, projecting the target's location onto the map.

Laser Ranging

Click on the remote controller screen, it will show the target latitude, longitude, height, and other information swiftly.

Data Security

Privacy protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.Encrypted Data Storage: It supports AES encryption for photos, videos, and flight logs, requiring a password input for access.



Autel SDK

"The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

Mobile SDK / Payload SDK*

A well-designed software and hardware architecture enables developers to get started with ease, offering simplicity and convenience, and empowering the creation of exceptional UAV mobile application experiences.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

•


  Aircraft

  Autel Alpha Empty Weight	5535 g (Smart battery, propellers included and gimbal excluded)
  Autel Alpha Weight	6480 g (Smart battery, gimbal and propellers included)
  Autel Alpha Maximum Take-Off Mass (MTOM)	8400 g
  Fuselage Dimensions	1205×980×278 mm (unfolded, incl. propellers) 780×568×278 mm(unfolded, excl. propellers) 455×263×248 mm (folded, excl. propellers)
  Diagonal Wheelbase	Diagonal: 814 mm
  Maximum Ascent Speed	Slow: 3 m/s Smooth: 5 m/s Standard: 6 m/s Ludicrous: 15 m/s
  Maximum Descent Speed	Slow: 3 m/s Smooth: 5 m/s Standard: 6 m/s Ludicrous: 10m/s
  Maximum Horizontal Flight Speed (Windless Near Sea Level)	Slow: 3 m/s Smooth: 10 m/s Standard: 15 m/s (forward & backward), 10 m/s (sidewards) Ludicrous: 25 m/s (forward & backward & sidewards)
  Maximum Service Ceiling Above Sea Level	4500 meters
  Maximum Flight Altitude	800 meters (Altitude limit in the App)
  Maximum Flight Time (Windless, Speed: 10.5 m/s)	40 minutes
  Maximum Range	30 km (with carbon fiber propeller) 27.5km (with injection molded propeller)
  Maximum Hovering Time (Windless)	38 minutes
  Maximum Wind Speed Resistance	12 m/s
  Maximum Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
  Maximum Angular Velocity	Pitch axis: 300°/s Heading axis: 120°/s
  Operating Temperature	-20℃ to 50℃
  Hot-swappable Batteries	Supported
  IP Rating	IP55
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Hovering Accuracy	Vertically ±0.1 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX) Horizontally ±0.15 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX)




  Image Transmission

  Operating Frequency	900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz 5.2G: 5.15 - 5.25 GHz***, 5.17 - 5.25 GHz**** 5.8G: 5.725 - 5.829GHz**, 5.725 - 5.850GHz * Only applicable to FCC and ISED regions. **Only applicable to SRRC regions. *** Only applicable to FCC, CE (except Germany), and UKCA regions. **** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15km CE: 8km
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm(FCC); ≤23 dBm(CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)




  Visual Sensing System

  Sensing Range	Forward: 0.2 - 31 m Backward: 0.2 - 26 m Sidewards: 0.5 - 45 m Upward: 0.2 - 45 m Downward: 0.2 - 45 m
  FOV	Forward & Backward: 90°(H), 90°(V) Sidewards: 90°(H), 90°(V) Upward: 90°(H), 90°(V) Downward: 90°(H), 90°(V)
  Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux). Downwards: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux).




  Millimeter-wave Radar Sensing System

  Operating Frequency	60G: 60 - 64GHz 24G: 24.0 - 24.25GHz
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G： ≤20mW(SRRC)
  Sensing Range	60G radar: Upward: 0.3 - 20 m Downward: 0.15 - 40 m Forward & Backward: 0.3 - 30 m Sidewards: 0.3 - 30 m 24G radar: Downward: 0.8 - 20 m
  FOV	Horizontal (6dB): ±35°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz))
  Operating Environment	60G millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24G millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 10 meters.
  Aircraft Version Limitations*	In order to comply with the regulations of the country or region where the target market is located, aircraft bottom millimeter-wave radars in some markets use the 24G frequency band, and the five directions of front, rear, left, right, and top use the 60G frequency band. Among them, the 24G version of the aircraft has turned off the 60G radar function in the five directions of front, rear, left, right, and top in the flight control software before leaving the factory, and only turned on the bottom 24G radar for assisted landing. The 24G version of the aircraft only supports visual obstacle avoidance under good lighting conditions and does not support the millimeter-wave radar obstacle avoidance function at night.




  Wi-Fi

  Wi-Fi Protocol	802.11a/b/g/n/ac/ax
  Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz 5.2G: 5.15-5.25GHz**, 5.17-5.25GHz*** 5.8G: 5.725 - 5.829GHz*, 5.725 - 5.850 GHz *Only applicable to SRRC regions. ** Only applicable to FCC, CE (except Germany), and UKCA regions. *** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
  Wi-Fi Transmitter Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G： ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)




  DG-L35T Gimbal Technical Specifications

  Dimension	144.7×133.3×158.4 mm
  Weight	920g
  IP Rating	IP55
  Installation	Detachable (E-shape design)
  Operating Temperature	-20℃ to +50℃
  Storage Temperature	-30℃ to +70℃
  Data Storage	Support microSD
  Max. Expandable Memory	256GB
  Recommended Memory Card List	UHS-I Speed Class U3 or V30, minimum write speed 30MB/s
  Mechanical Ranger	Pitch: -135° to 45° Roll: -60° to 60° Yaw: -90° to 90°
  Controllable Range	Pitch: -90° to 30°
  Stable system	3-axis mechanical gimbal (pitch, yaw, roll)
  Max Control Speed (pitch)	100°/s
  Angular Vibration Range	＜0.005°




  Zoom Camera

  Image Sensor	1/1.8" CMOS. Effective pixels: 8M
  Lens	Focal length: 7.1 - 171.95 mm±5% 35 mm equivalent focal length: 34.7 - 838 mm Aperture: f/1.61(Wide)- f/5.19(Tele)±5% Focusing distance: 10 m ~ ∞
  ISO Range	Normal mode ISO100 - ISO25600 Super Night ISO100 – ISO160000
  Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
  Exposure Compensation	±3.0 (1/3 increments)
  Digital Zoom	1.4 - 35x continuous optical zoom, 35-560x digital zoom
  IR-CUT	Default Setting: Auto - Disabled during daytime, activated during nighttime. Manual Activation: Turn on IR-CUT - Display in Black and White. Manual Deactivation: Turn off IR-CUT - Display in Color.
  Max Photo Resolution	3840×2160
  Photo Format	JPG
  Photo Taking Mode	Auto
  Video Resolution	3840×2160 30P
  Video Format	MP4
  Max Bit Rate	30Mbps
  Supported File Systems	exFAT/Fat32




  Wide Angle Camera

  Image Sensor	1/2" CMOS. Effective pixels: 48M
  Lens	Focal length: 4.49 mm Equivalent focal length: 24 mm Aperture: f/2.8
  ISO Range	Auto: ISO100 - ISO3200
  Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
  Photo Size	4000×3000
  Photo Format	JPG
  Photo Taking Mode	Auto
  Video Resolution	4000×3000 25P
  Video Format	MP4
  Max Bit Rate	30Mbps
  Supported File Systems	exFAT/Fat32




  Infrared Thermal Imaging Camera 1

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 42° Focal length: 13 mm Aperture: f/1.2 Focusing distance: 6 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 - 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	5 m
  Digital Zoom	1-3.5x wide angle digital zoom
  Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Photo Taking Mode	Auto
  Video Resolution	640×512@25FPS
  Video Format	MP4




  Infrared Thermal Imaging Camera 2

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 12.3° Focal length: 45 mm Aperture: f/1.2 Focusing distance: 35 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 - 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	35 m
  Digital Zoom	3.5-56x tele digital zoom
  Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Photo Taking Mode	Auto
  Video Resolution	640×512@25FPS
  Video Format	MP4




  Laser Rangefinder

  Wavelength	905 nm
  Measurement Accuracy	＜400m: +1m, >400m: D×0.3% where D is the distance to a vertical reflecting plane
  Measuring Range	10 - 2000 m




  Autel Smart Controller V3

  Dimensions	269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
  Weight	1194 g (protective case excluded) 1365 g (protective case included)
  Operating Temperature	-20℃ to 40℃
  Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
  Protection Rating	IP43
  Internal Storage	128GB
  microSD Extension	Not supported
  Operating System	Based on Android 11
  Application Installation	Supports the installation of third-party Android apps
  Video Performance	4K@24FPS H.264/H.265 video smooth play
  HDMI	Outputs up to 1080P@60FPS video
  USB-C	Charging: supports PD/QC fast charging, up to 65W Data: USB3.1 Gen2
  USB-A	Charging: 5V/2A Data: USB2.0
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
  Bluetooth	Bluetooth 5.0
  Bluetooth Operating Frequency	2.400 - 2.4835 GHz Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
  Bluetooth Effective Isotropic Radiated Power (EIRP)	≤20dBm




  Controller Image Transmission

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15 km CE/SRRC: 8 km




  Controller Display

  Type	TFT LCD
  Dimensions	7.9 inches
  Maximum Brightness	2000 nits
  Resolution	2048×1536
  Refresh Rate	60Hz
  Touch Control	Supports 10-point touch




  Controller Battery

  Battery Type	Li-Po 3S
  Rated Capacity	5800 mAh
  Voltage	11.55V
  Battery Energy	67 Wh
  Charging Time	About 120 minutes
  Battery Endurance	2.5 hours (Max brightness) 4.0 hours (50% brightness)
  Battery Replacement	Not supported




  Smart Battery

  Battery Dimension	200×76.8×50 mm
  Operating Temperature	-20℃ to 50℃
  Battery Type	LiPo 6S
  Rated Capacity	10000mAh
  Battery Energy	237Wh
  Voltage	23.7V
  Charging Voltage Limit	26.7V
  Rated Charging Power	180W
  Maximum Charging Power	260W
  Weight	995 g
  Battery Charge Temperature	+10℃ ~ +40℃* (When the battery temperature is below 10℃, the battery stops charging and activates self-heating. When the battery temperature is above +40℃, the battery stops charging.)
  Ideal Storage Temperature	+22℃ ~ +28℃
  Storage Temperature & Humidity	-10℃ ~ +30℃, 65±20%RH

•

  • 1x Aircraft
  • 1x Remote Controller
  • 1x Gimbal
  • 2x Smart Battery
  • 1x Battery Charger
  • 1x AC Power Cable
  • 2x CW/CCW Spare Propeller (Pair)
  • 1x Remote Controller Charger
  • 1x USB-C to USB-A Data Cable
  • 1x USB-C to USB-C Data Cable
  • 1x Maintenance Screwdriver
  • 1x Remote Controller Lanyard
  • 1x Remote Cotroller Cover
  • 1x Spare Stick (Pair)
  • 8x Propeller Fastening Screw
  • 6x Dampener
  • 1x Silicone Air Blower
  • 1x Soft Brush
  • 1x Cleaner
  • 4x Propeller Sleeve
  • 1x Cleaning Cloth
  • 1x User Documentation
  • 1x Rugged Case



  More information

  • Autel Alpha Packing List
• • None

•







  Autel Smart Controller V3

  • Daylight Readable display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution.
  • SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s.
  • Functional interface: HDMI ports allow connection to 3rd party displays or monitors. The USB interface allows for 4G module expansion.
  • Ultra-long battery life: Up to 4.5 hours of continuous operation. 2 hours fast charging.
  • Local storage: Built-in 128G storage space allows 3rd party apps and mission media storage.




  Loudspeaker And Spotlight Combo (optional)

  • Dimension: 196×129×78mm
  • Weight: 250g
  • Electrical Interface: PSDK Interface
  • Installation Method: Standard quick release mount
  • Working Temperature: -10 ℃ to 50 ℃
  • Speaker: Power @10W; Sound pressure 114db@1 meter; Broadcasting Distance≥300 m
  • Spotlight: Follow gimbal pitch; Brightness level adjustment; 30° to -90° controllable













  STA100 Radio detection module (optional)

  • Size: 112*122*55 mm
  • Weight: 707.5g
  • Detectable spectrum range: 2.4, 5.2, and 5.8 GHz
  • Detection distance: 3km
  • Simultaneously detect quantity: ≥6
  • Basic function: Pilot positioning / interference source positioning
  • Introduction: By mounting high-precision radio direction-finding equipment on UAVs, it horizontally and vertically triangulates the target signal source (UAV controller) in the air, determining potential target areas and displaying them on a map. Visual searching of target areas combined with AI recognition assists in discovering UAV pilots.
• • Autel Alpha - EU Declaration of Conformity
  • Autel Alpha Multi-rotor Drone User Manual_V1.1
  • Autel Alpha Quick Start Guide
  • Autel Alpha Packing List

Ver todos os detalhes do produto »

DJI Mavic 3 Enterprise Drones

Request Quote

DJI Mavic 3 Enterprise: Precision Mapping and Inspection Drone

With a 56× Zoom Camera, Mechanical Shutter, and RTK Module for Centimeter-Level Accuracy, Perfect for Industrial Inspections and Mapping.

The Mavic 3 Enterprise series redefines industry standards for small commercial drones. With a mechanical shutter, a 56x zoom camera, and an RTK module for centimeter-level precision, the Mavic 3E takes mapping and mission efficiency to new heights. A thermal version is available for firefighting, search and rescue, inspection, and night operations.

Compact and Portable	4/3 CMOS Wide Camera	56x Hybrid Zoom	Thermal Camera

Maximum flight time of 45 minutes	DJI O3 Enterprise Transmission	Centimeter-level positioning with RTK	High-volume speaker



Speed

The Mavic 3E's 20 MP 4/3 wide-angle CMOS sensor has a mechanical shutter to prevent motion blur and supports rapid shooting at intervals of 0.7 seconds. Complete mapping missions with extraordinary efficiency without the need for ground control points.

Enhanced Low Light Performance

The Mavic 3E's wide-angle camera features large 3.3 μm pixels, which, combined with the intelligent low light mode, offer significantly improved performance
in low light conditions.



Focus and Find

Both the Mavic 3E and Mavic 3T are equipped with a 12MP zoom camera that supports a maximum hybrid zoom of up to 56x to see essential details from afar.

See the Invisible

The Mavic 3T’s thermal camera has a 640 × 512 resolution and supports spot and area temperature measurement, high-temperature alerts, color palettes, and isotherms to help you locate your targets and make quick decisions.



Simultaneous Zoom with Split Screen

The Mavic 3T’s thermal and zoom cameras support continuous 28x side-by-side zoom for easy comparisons.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Features
  Weight (with propellers, without accessories)	DJI Mavic 3 Enterprise: 915 g DJI Mavic 3 Thermal: 920 g
  Maximum Takeoff Weight	DJI Mavic 3 Enterprise: 1050 g DJI Mavic 3 Thermal: 1050 g
  Dimensions	Folded (without propellers): 221 × 96.3 × 90.3 mm Unfolded (with propellers): 347.5 × 283 × 84.8 mm
  Camera	1× 4/3 CMOS, 20 MP 1× 1/2 CMOS, 12 MP (Thermal)
  Zoom	Max 56× Hybrid Zoom
  Maximum Flight Time	45 Minutes
  Maximum Flight Range	15 km
  Transmission Range	15 km (FCC)
  RTK	Compatible with DJI D-RTK 2 Mobile Station or base station
  Operating Temperature	-10°C to 40°C

• • 1 x Aircraft
  • 1 x Remote Controller
  • 1 x Intelligent Flight Battery
  • 1 x Battery Charger
  • 1 x Power Cable
  • 1 x Pair of Propellers
  • 1 x USB Cable
  • 1 x Gimbal Protector
  • 1 x Carrying Case
  • 1 x Set of Spare Control Sticks
  • 1 x Quick Start Guide
  • 1 x Warranty Card
• • Mobile Device (Smartphone or Tablet)
  • SIM Card with Internet Access (for RTK and live data transmission)
  • DJI Pilot App (available for download from DJI’s website or app stores)
• • Additional Intelligent Flight Battery
  • Car Charger
  • Battery Charging Hub
  • ND Filter Set
  • Multi-Battery Charging Station
  • Backpack or Hard Case for Transport
  • Additional Propeller Sets
• • Release notes (EN)
  • User manual v2.0 (EN)
  • User manual (Dutch) v1.4
  • User manual (Portuguese) v1.4
  • In the box (EN, CHS, CHT, JP, KR, DE, ES, FR, IT, NL, PT, PT-BR, RU)
  • Quick Start Guide v1.0 (EN, CHS, CHT, JP, KR, DE, ES, FR, IT, NL, PT, PT-BR, RU)
  • Disclaimer Safety Guides v2.0 (EN, CHS, CHT, JP, KR, DE, ES, FR, IT, NL, PT, PT-BR, RU)
  • Know Issue List (EN)
  • D-RTK - User Guide v2.6 (EN, CHS, CHT, JP, KR, DE, ES, FR, IT, NL, PT, PT-BR, RU)
  • DJI Pilot 2 - Data Security (EN)
  • DJI Assistant 2 (Enterprise Series) Release Notes V2.1.12 (EN)
  • DJI Thermal Analysis Tool 3 User Guide (EN)
  • DJI Thermal Analysis Tool 3 Release Notes (EN)

Ver todos os detalhes do produto »

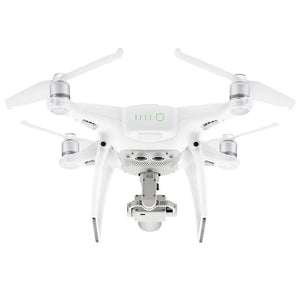

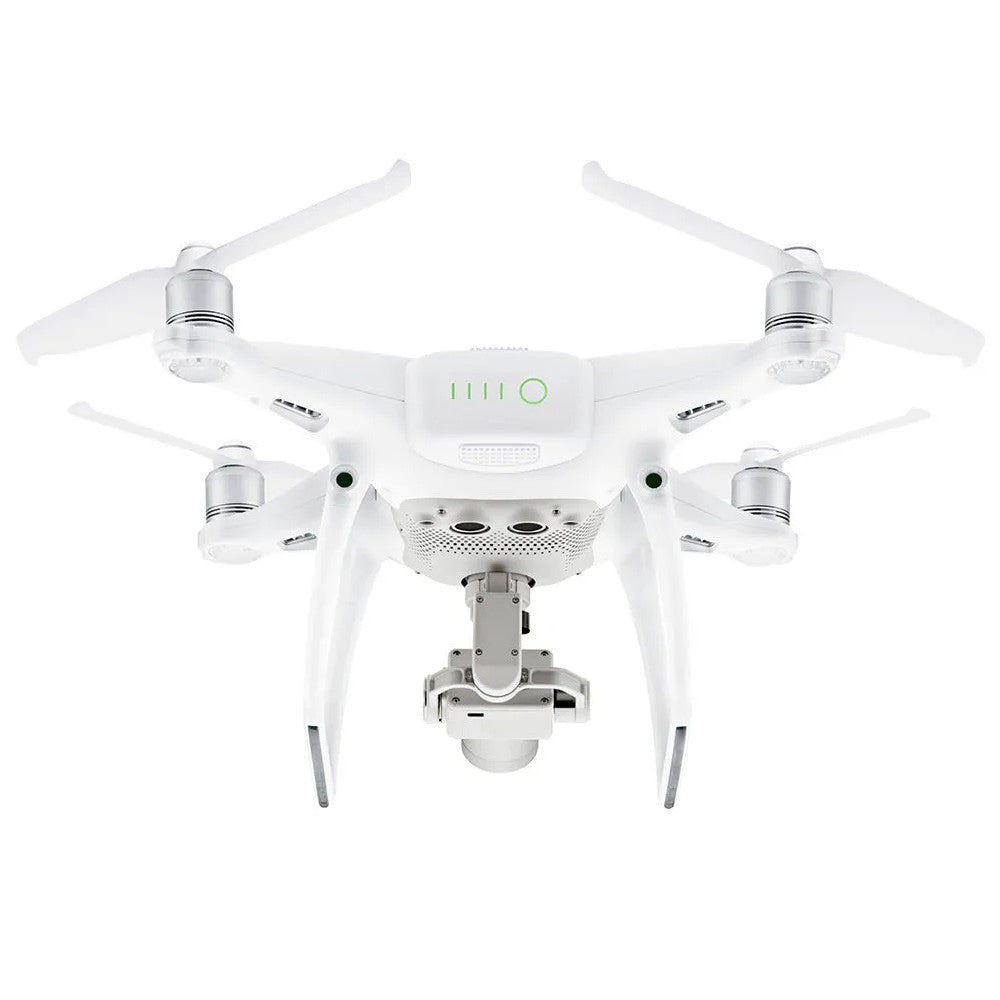

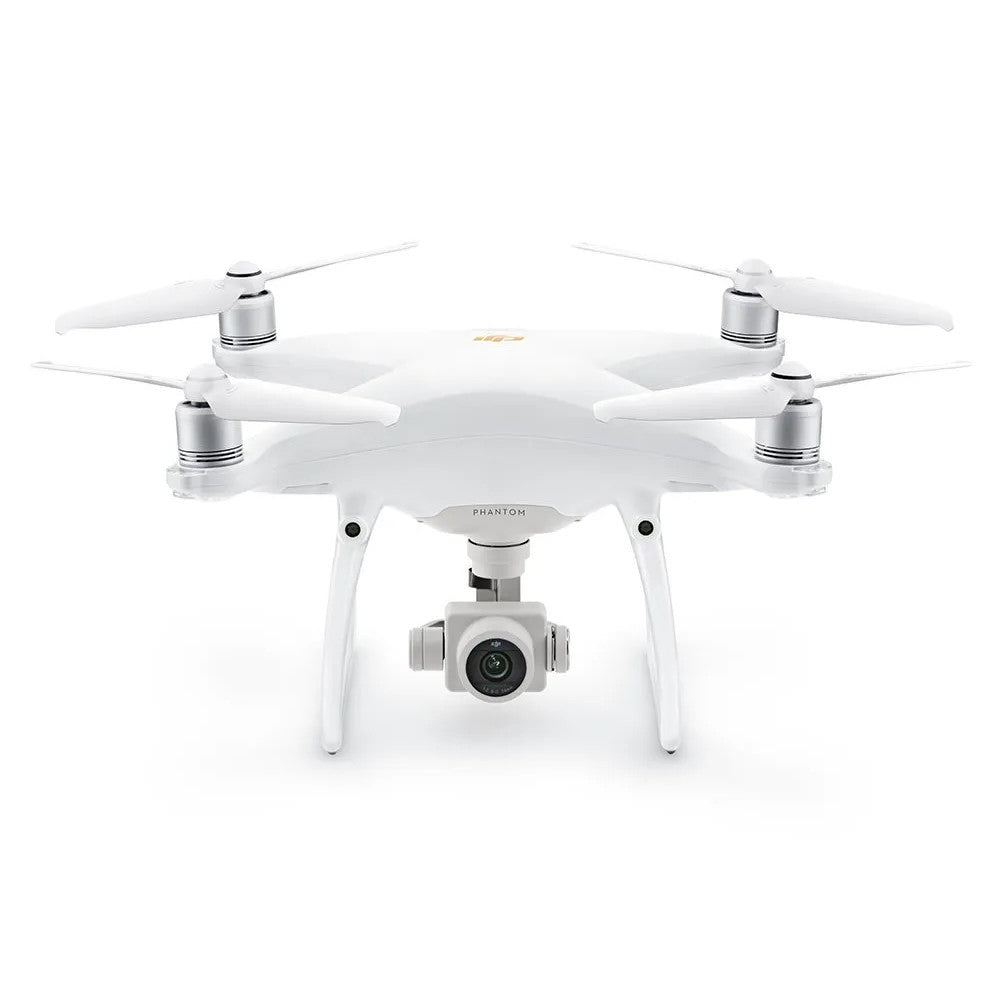

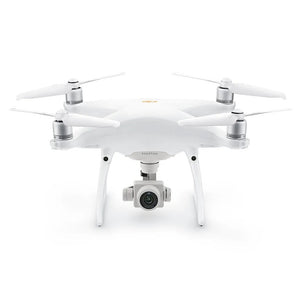

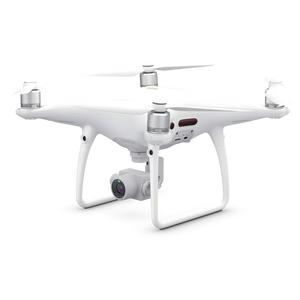

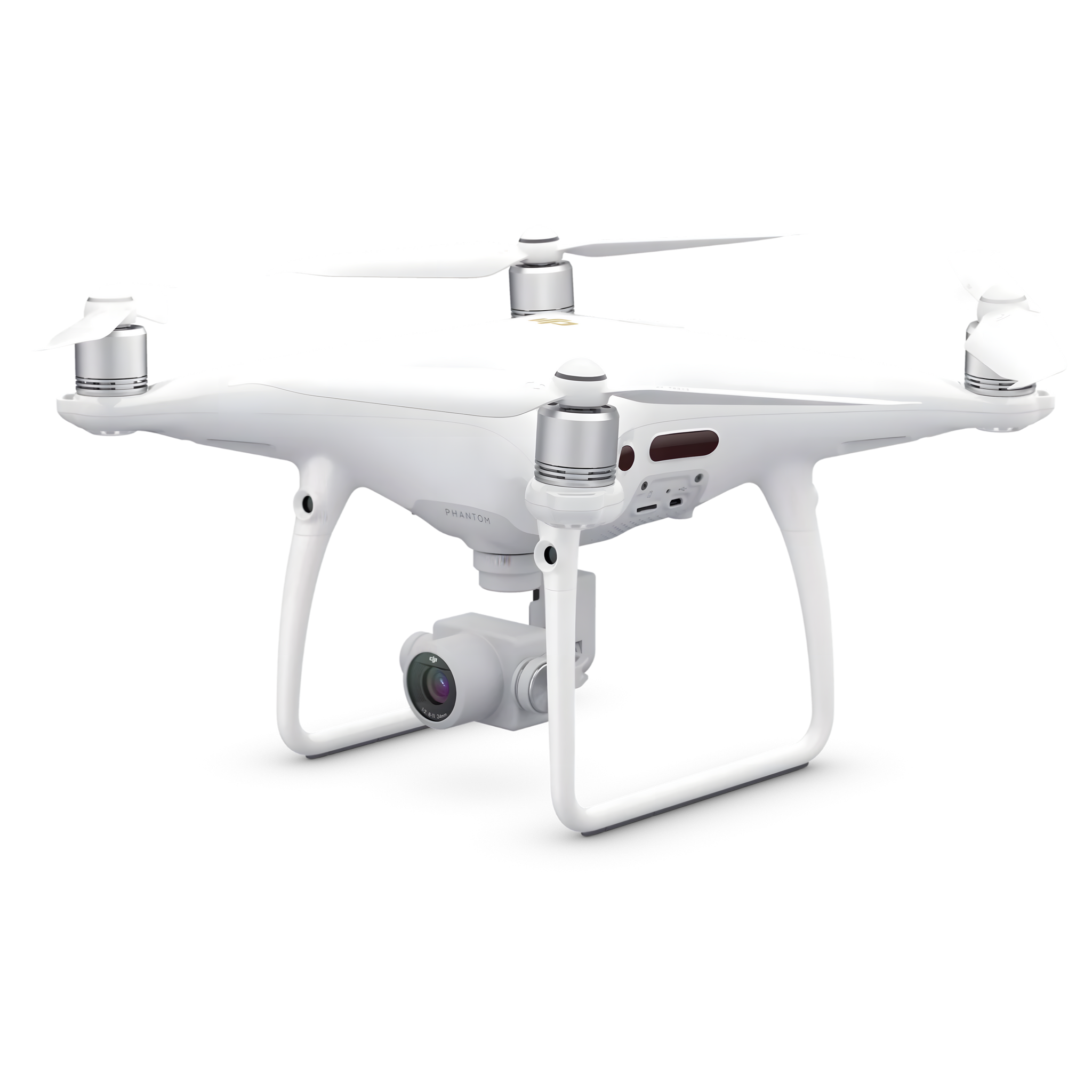

DJI Phantom 4 Pro Plus V2.0

$ 2,199.00 USD

DJI Phantom 4 Pro+ V2.0: Technical Excellence in Aerial Photography

Master the skies with a 1" sensor, omnidirectional obstacle avoidance and OcuSync 2.0 transmission. Professional tool for capturing every detail.

The DJI Phantom 4 Pro+ V2.0 is the evolution of the iconic professional drone, with an enhanced vision system, 20MP camera and 4K/60fps recording. Its integrated 5.5" display and OcuSync 2.0 transmission make it ideal for cinematography, mapping and industrial applications where precision is critical.

Key Features:

• Pro Camera System: 1" CMOS sensor and f/2.8-11 lens with autofocus (20MP, 4K/60fps).
• FlightAutonomy 2.0: 5-direction obstacle sensing + infrared sensors.
• OcuSync 2.0: Full HD transmission up to 8 km with 160ms latency.
• Flight Performance: 45 mph (72 kph) maximum speed and 30 min flight time.
• Integrated Controller: 5.5" HD display with preinstalled DJI GO 4.

What is FlightAutonomy?

FlightAutonomy is an advanced aerial intelligence platform for flight automation. It consists of a complex network of ten component groups, including seven cameras - dual front, rear and downward vision sensors and the main camera - an infrared sensing system, dual-band satellite positioning (GPS and GLONASS), two downward-facing ultrasonic rangefinders, redundant IMUs and compasses, and a set of powerful specialized computing cores in the Phantom 4 Pro V2.0.

6-Camera Navigation System

An additional set of high-resolution stereo vision sensors located at the rear, in addition to the pair placed at the front, as well as infrared sensing systems placed on the left and right sides, expand the FlightAutonomy system. This network creates a total of 5 directions of obstacle sensing with a 4-direction anti-collision system, protecting the Phantom 4 Pro 2.0 from more obstacles and giving filmmakers the confidence to capture more complex shots.

• Specifications
• Included Items
• Optional Items
• Documents

• Technical Specifications
  Diagonal size (propellers excluded)	350 millimeters
  Maximum ascent speed	S Mode: 6 m/s P Mode: 5 m/s
  Maximum descent speed	S Mode: 4 m/s P Mode: 3 m/s
  Maximum speed	S Mode: 45 mph (72 kph) A Mode: 36 mph (58 kph) P Mode: 31 mph (50 kph)
  Maximum tilt angle	S Mode: 42° A Mode: 35° P Mode: 25°
  Maximum angular speed	S Mode: 250°/s A Mode: 150°/s
  Maximum service ceiling	19,685 feet (6000 m)
  Maximum wind resistance	10 m/s
  Maximum flight time	Approx. 30 minutes
  Temperature range	32° to 104°F (0° to 40°C)
  Positioning systems	GPS/GLONASS
  Hovering accuracy	Vertical: ±0.1 m (vision) ±0.5 m (GPS) Horizontal: ±0.3 m (vision) ±1.5 m (GPS)
  Vision system	Forward vision Backward vision Downward vision
  Speed range	≤31 mph (50 kph) at 6.6 feet (2 m) above ground
  Altitude range	0 - 33 feet (0 - 10 m)
  Operating range	0 - 33 feet (0 - 10 m)
  Obstacle detection	2 - 98 feet (0.7 - 30 m)
  Field of view (FOV)	Forward: 60° (H), ±27° (V) Backward: 60° (H), ±27° (V) Downward: 70° (front/rear), 50° (side)
  Measurement frequency	Forward: 10 Hz Backward: 10 Hz Downward: 20 Hz
  Operating environment	Surface with clear pattern and adequate lighting (lux>15)
  Sensor	1" CMOS, 20MP effective
  Lens	Field of view: 84° 8.8 mm/24 mm (equivalent) f/2.8 - f/11 Autofocus: 1 m - ∞
  ISO range	Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual)
  Shutter speed	Mechanical: 8 - 1/2000 s Electronic: 8 - 1/8000 s
  Image size	3:2: 5472 × 3648 4:3: 4864 × 3648 16:9: 5472 × 3078
  Video modes	H.265: - 4K: 3840×2160 24/25/30p @100Mbps - FHD: 1920×1080 120p @100Mbps H.264: - 4K: 3840×2160 60p @100Mbps - FHD: 1920×1080 120p @100Mbps
  Maximum bitrate	100 Mbps
  File formats	Photo: JPEG, DNG (RAW) Video: MP4/MOV (H.264/H.265)
  SD cards	Up to 128GB Speed ≥15 MB/s Class 10/UHS-1
  Voltage	17.4 V
  Power	100 W
  Application	DJI GO 4
  Transmission	2.4 GHz / 5.8 GHz
  Latency	160-220 ms

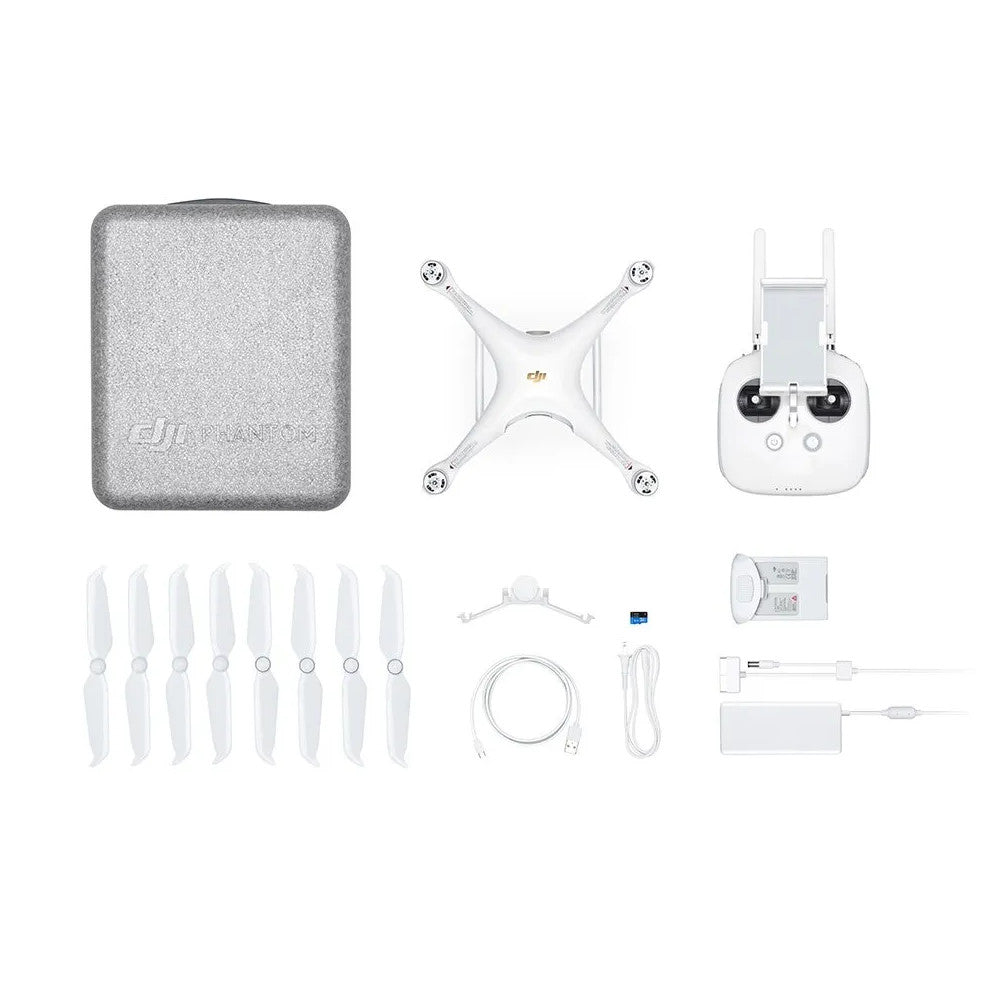

• • Phantom 4 Pro+ V2.0 Drone
  • Controller with Integrated Display
  • Intelligent Battery
  • 4 Pairs of Propellers (2 sets)
  • Battery Charger
  • Power Cable
  • Gimbal Clamp
  • USB OTG and Micro-USB Cables
  • 16GB MicroSD Card
  • Hard Carrying Case
• • Thor Super-Charging Station
  • Battery Charging Hub
  • Car Charger
  • Carbon Fiber Propellers
  • Quick-Release Propeller Guards
  • Nanuk 950 Wheeled Hard Case
  • DJI Multifunctional Backpack
  • L-Series Lens Filter Kit
  • ND4, ND8 and ND16 Filters
  • Dual Helical Antenna
  • Raptor XR/SR Range Extension System
  • DJI FPV Goggles
  • SKY HOOK Payload Release System
• • User Manual

Ver todos os detalhes do produto »
