YSI ProDSS 4 Port Cables Assembly

Request Quote

YSI ProDSS 4 Port Cables Assembly

Request Quote

Es un conjunto de cable de 4 puertos para el instrumento ProDSS disponible en longitudes de hasta 100 metros. Los puertos de sensor en los cables de 4 puertos ProDSS son universales, lo que permite la conexión de sensores ProDSS en cualquier puerto de sensor.

Conecta los sensores ópticos de OD, turbidez, conductividad / temperatura, pH, pH / ORP, nitrato, amonio y cloruro de ProDSS en cualquier combinación.

Nota: Se debe instalar un sensor de conductividad / temperatura en un cable de 4 puertos ProDSS para una compensación precisa de la temperatura y la medición de todos los parámetros, excepto la turbidez y el TSS. Todos los sensores, incluida la conductividad / temperatura, deben pedirse por separado. Los cables de 10, 20 y 30 metros incluyen un kit de administración de cables.

Especificaciones
En la Caja
Artículos Requeridos
Artículos Opcionales

- 4 puertos de sensor.
- Tapones de 3 puertos.
- Tubo de lubricante Krytox.
- Cepillo para sonda de conductividad.
- Jeringa para limpieza del sensor de profundidad.
- Herramienta de instalación / extracción del sensor.
- Cables YSI Para Medidores ProDSS (1)
- Medidores Multiparámetros de Calidad de Agua YSI ProDSS
- Sensores para Medidor YSI ProDSS
- Ninguno

Ver todos os detalhes do produto »

Quantidade

Continuar comprando ou ver carrinho

Compra Rápida

YSI ProDSS Multiparameter Water Quality Meter ²⁵

a partir de $ 2,308.25 USD

YSI ProDSS Multiparameter Water Quality Meter ²⁵

$ 2,308.25 USD

ProDSS Digital System: Explore, Measure & Trust Your Water Quality Data

Scientific precision in your hands: measure multiple water parameters in the field and lab

The YSI ProDSS (Digital Sampling System) Multiparameter Handheld is a portable water sampling instrument that combines ruggedness, flexibility, and accuracy. Designed for scientific, environmental, and regulatory applications, it allows you to connect up to four smart sensors simultaneously, providing reliable data in surface water, groundwater, coastal water, aquaculture, laboratories, and wastewater. Its advanced digital technology automatically recognizes sensors and retains calibration, saving time and ensuring reproducible results. Available in two versions: with integrated GPS (to record field coordinates) or without GPS.

Key Features

Total Flexibility: 4 universal ports to connect any combination of sensors.
Extreme Durability: IP-67 waterproof housing, military-grade connectors, and replaceable titanium sensors.
Extended Battery Life: rechargeable lithium-ion battery with up to 48 hours of continuous use.
Large Memory: stores over 100,000 data sets with customizable labels.
Clear Display: color LCD with backlit keypad, even in direct sunlight.
Kor Software Compatible: advanced data analysis, calibration, and management on PC and mobile.
Advanced Options: integrated GPS in the “With GPS” version and optional depth sensor.
Reliable Support: up to 3-year warranty on the instrument and 2 years on cables.

Specifications
In the Box
Required Items
Optional Items
Documents

Specification	ProDSS Handheld (No GPS)	ProDSS Handheld (With GPS)
Instrument Type	Portable digital multiparameter for water sampling (field and lab compatible)
Sensor Ports	4 universal, compatible with any ProDSS sensor
Internal GPS	No	Yes, stores coordinates with data and site lists
Memory	>100,000 data logs, 400 GLP files
Connectivity	Micro USB On-The-Go port for PC, charging, and USB memory connection
Data Management	Kor Software (PC included and mobile app), data viewing and download
Battery	Rechargeable lithium-ion (~48h autonomy without backlight)
Display	Color LCD with backlit keypad
Certifications	CE, FCC, RoHS, WEEE, IP-67, 1m drop test, UN 38.3, assembled in USA
Languages	Spanish, English, Portuguese, German, French, Italian, Norwegian, Japanese, Chinese (Simplified and Traditional)
Buffer Recognition	Automatic, compatible with USA (4.00, 7.00, 10.00) and NIST (4.01, 6.86, 9.18), temperature compensated
Sensors	Digital, replaceable, up to 4 simultaneously
GLP Compliance	Stores detailed GLP info, available for download/printing
Data Logging	Single-point or continuous mode
Measurable Parameters	DO (% and mg/L), Temp., Turbidity, Conductivity, Resistivity, Salinity, Density, pH, ORP, Ammonium, Nitrate, Chloride, TDS, TSS, Depth, Barometer
Operating Temperature Range	0 to 50 °C (32–122 °F)
Storage Temperature	0–45 °C with battery \| 0–60 °C without battery
Size (handheld)	8.3 cm (width) × 21.6 cm (length) × 5.6 cm (depth)
Size (bulkhead)	With sensors: 33–36 cm \| With guard: 42–45 cm \| Ø 4.75 cm
Protection	Waterproof, floats, IP-67 even with battery cover open

- x1 ProDSS Handheld (selected version)
- x1 Rechargeable lithium-ion battery (pre-installed)
- x1 Hand strap
- x1 USB cable for charging and PC connection
- x1 Universal AC charger
- x1 Cable for USB memory connection
- x1 USB memory with Kor software
- x1 ProDSS Quick Guide
- x1 User manual in digital format
- ProDSS 4 Port Cable Assembly (with or without depth sensor, depending on configuration)
- ProDSS multiparameter sensors (ODO, pH, ORP, Turbidity, Algae, etc.)
- Conductivity/Temperature Sensor (recommended for accurate compensation)
- Depth sensor
- ODO/CT Probe and cable
- ProODO Sensor and cable
- ProOBOD Optical BOD Probe (lab use)
- ProDSS 4 Port Cable Assembly, With Depth – Cable with depth sensor
- ProDSS 4 Port Cable Assembly, No Depth – Cable without depth sensor
- ProDIGITAL ODO/CT Cable Assembly – Integrated optical DO and conductivity cable
- ProDSS ODO Optical Dissolved Oxygen Sensor
- ProDSS Turbidity Sensor
- ProDSS Conductivity and Temperature Sensor
- ProDSS pH Sensor with Module
- ProDSS pH/ORP Sensor with Module
- ProDSS Total Algae PC Sensor
- ProDSS Large, Hard Sided Carrying Case
- Pro Series Soft Sided Carrying Case
- ProDSS Small, Hard-sided Carrying Case

Ver todos os detalhes do produto »

Ref

Quantidade

Continuar comprando ou ver carrinho

Compra Rápida

Onset HOBO Optic USB Base Station

$ 179.25 USD

Onset HOBO Optic USB Base Station

$ 179.25 USD

Universal Optic USB Base Station: The Ultimate Control Center for Your HOBO® Data Loggers

Download data ultra-fast (64K in 30 seconds) from any HOBO® data logger with a USB optic interface. Durable base station with included couplers for maximum compatibility with UA, U20, U22, U23, UTBI, U24, and U26 series.

The Universal Optic USB base station and couplers are used to download data from any HOBO® data logger with a USB optic interface. The splash-resistant USB optic base station connects to your computer via USB while connecting to the data logger through the appropriate coupler. This is compatible with HOBO UA, U20, U22, U23, UTBI, U24, and U26 series. (Download user manual).

NOTE: Couplers for all compatible data loggers are included with the BASE-U-4. The couplers are included for compatibility with six of Onset’s most popular data logger types, including: UA Pendants, U20 water level data loggers, U22 Water Temp Pro v2, UTBI TidbiT, U24 Conductivity, and U23 data loggers.

Key Features

Download data from any HOBO® data logger with a USB optic interface.
Couplers included.
Cable length 183 cm.
Download a full 64K logger in 30 seconds.

Specifications
In the Box
Required Items
Optional Items
Manuals

Specifications
Operating Range	0 to 50°C (32 to 122°F)
Cable Length	183 cm
Download Speed	Download a full 64K logger in 30 seconds

1x Base Station.
1x USB Cable.
5x Couplers.

Data Loggers

HOBO Rain Gauge Data Loggers.
Water Level Depth Data Loggers.
Water Level Data Loggers.
Pro v2 Water Temperature Data Logger.
Pro v2 Temperature/Relative Humidity Data Logger.
Freshwater Conductivity Data Logger.
Saltwater Conductivity/Salinity Data Logger.
Dissolved Oxygen Data Logger.
HOBO Pendant® Temperature/Alarm (Waterproof) Data Loggers.
HOBO Pendant® Temperature/Light Data Loggers.
Pendant® Rain Gauge Event Data Loggers.
HOBO Pendant® Temperature/Light Data Loggers.
G Pendant® Data Loggers.
TidbiT v2 Water Temperature Data Logger.

USB Data Loggers - External Sensors Only

HOBO U23 Pro v2 Data Loggers with external sensors

Software

HOBOware Pro Mac/Win Data Logger Software

Spare Parts
HOBO U-Shuttle
Pelican Case

User Manual (English)
How to Automatically Read and Save Data from a HOBO USB Data Logger (Video in English)

Ver todos os detalhes do produto »

Compra Rápida

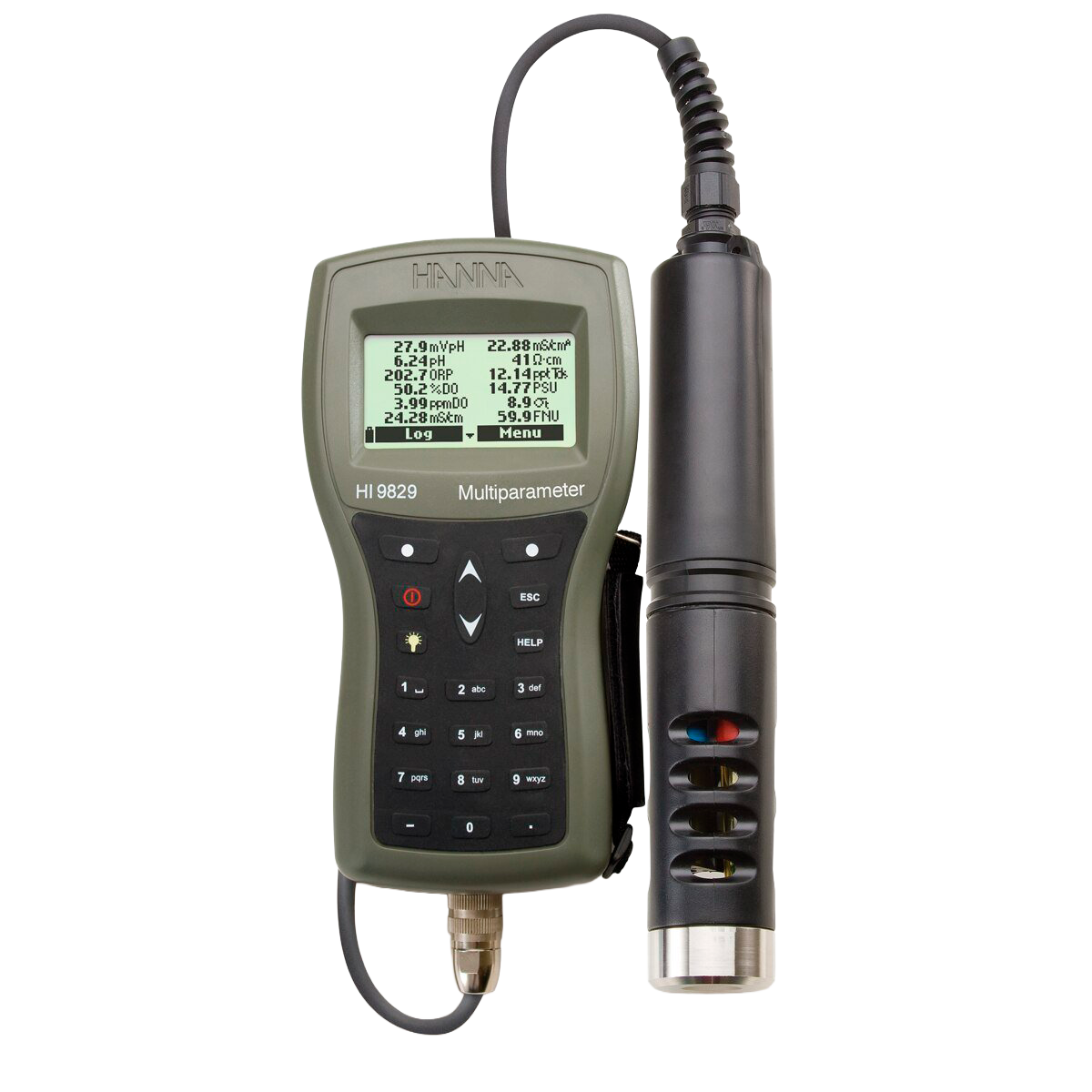

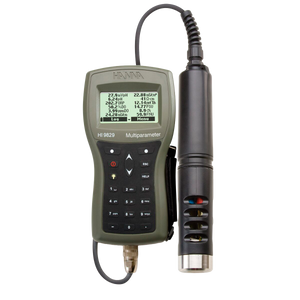

Hanna Instruments® Model 9829 Meters

Request Quote

Hanna Instruments® Model 9829 Meters

$ 3,777.90 USD

Advanced Waterproof Multiparameter Meter with GPS for Water Quality Monitoring - HI9829

High-precision portable device that measures up to 14 water quality parameters, with integrated GPS option, ideal for environmental, field, and laboratory applications.

The HI9829 is a waterproof portable logging multiparameter meter that monitors up to 14 different water quality parameters. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, ammonium, chloride, nitrate, and temperature. The probe transmits readings digitally with options to log data while disconnected from the meter. An optional GPS provides location tracking of measurements. The complete system is simple to setup and easy to use. The HI9829 is highly customizable and supplied with all necessary accessories, packaged in a durable carrying case.

Optional GPS provides location tracking of measurements.
Color coded, field replaceable sensors.
Great for environmental, field, and laboratory testing.

Built-in GPS Receiver

12 channel GPS receiver and antenna.
Tracks location using satellites to within 30 feet.
Latitude and longitude recorded with readings.
Location naming for GPS coordinates.
Distance from current location to the stored location.
Hi929829 multiparameter water quality meter software supplied integrates data collected with *Google™ maps.
Measurement readings including GPS coordinates, date and time, named locations and remarks sample number.

*Google™ maps is a registered trademark of Google™, Inc. HANNA Instruments® has no affiliation with Google™.

Two probes to choose from (Basic or Logging)

The HI7609829 (basic) and HI7629829 (logging) are multiparameter probes for use with the HI9829 portable meter. It is an option to choose which probe will be supplied with the HI9829. By default, the HI9829 and the corresponding probe will be supplied with a pH/ORP, conductivity and dissolved oxygen sensors. Either probe can be upgraded to measure turbidity with a turbidity/conductivity sensor.

HI7609829 Basic Probe	HI7629829 Autonomously Logging Probe
Digital probe that is less than 2 inches in diameter. 3 color-coded sensor inputs. IP68 rating for continuous immersion in water. Multistrand –multiconductor cable rated for 150 lbs (intermittent use). Available with 4, 10, or 20-meter cable. Weighted shield protects all sensors.	Same as basic probe but with logging capability. Logs data independent of HI9829 meter. Operates on 4 “AA” batteries for up to 70 days. Stores up to 140,000 single parameter readings or 35,000 for all parameters. Logs data from 1 second to 3 hours. Choose to be supplied with EC or EC/Turbidity sensor. Supplied with USB cable for direct connection to Window’s compatible PC. All channels logging at 10-minute intervals with no averaging.

HI7609829 Basic Probe

HI7629829 Autonomously Logging Probe

Digital probe that is less than 2 inches in diameter.
3 color-coded sensor inputs.
IP68 rating for continuous immersion in water.
Multistrand –multiconductor cable rated for 150 lbs (intermittent use).
Available with 4, 10, or 20-meter cable.
Weighted shield protects all sensors.

Same as basic probe but with logging capability.
Logs data independent of HI9829 meter.
Operates on 4 “AA” batteries for up to 70 days*.
Stores up to 140,000 single parameter readings or 35,000 for all parameters.
Logs data from 1 second to 3 hours.
Choose to be supplied with EC or EC/Turbidity sensor.
Supplied with USB cable for direct connection to Window’s compatible PC.

*All channels logging at 10-minute intervals with no averaging.

The HI7609829 (logging) is a multiparameter pH/ISE/EC/DO/Turbidity/Temperature probe for use with the HI9829 portable meter. Sensors are automatically recognized by the probe and meter when connected. Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m, 10m, and 20m lengths available. It’s rugged, waterproof design makes it ideal for field use. The probe is suitable for installation in confined locations such as air vaults, river intakes, vertical wells, tanks, etc.. The streamline diameter of the probe permits insertion into 2" pipelines. Unlike probes that require a cable support for active deployment, this probe can be manually lowered and raised by the cable due to its superior strength rating. It is suitable for installation in open moving waters; rivers, streams, ditches (farmland drainage), conveyance canals, and more. In these cases protecting the probe from debris is important. The HI7609829 may be deployed in open waters; monitoring lakes, ponds, wetland basin, infiltration basins, and bays and is suitable for measurements in a flow cell.

Specifications
In the Box
Documents

Product Name	Waterproof Multiparameter Meter for pH / ISE / EC / DO / Turbidity with GPS Option - HI 9829
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.02 pH
pH Calibration	Automatic at one, two or three points with automatic recognition of five standard solutions (pH 4.01, 6.86, 7.01, 9.18, 10.01) or a custom standard
ORP Range	±2000 mV
ORP Resolution	0.1 mV
ORP Accuracy	±1.0 mV
ORP Calibration	Automatic at one custom point (relative mV)
mV Range	±600.0 mV
mV Resolution	0.1 mV
mV Accuracy	±0.5 mV
EC Range	0 to 200 mS/cm (Absolute EC up to 400 mS/cm)
EC Resolution	Manual: 1 µS/cm: 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm, 1 mS/cm; Automatic: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cm
EC Accuracy	± 1% of reading or ± 1 µS/cm, whichever is greater
EC Calibration	Automatic at a single point, with six standard solutions (84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or a custom point
TDS Range	0 to 400000 ppm (mg/L); (maximum value depends on TDS factor)
TDS Resolution	Manual: 1 mg/L (ppm); 0.001 g/L (ppt); 0.01 g/l (ppt); 0.1 g/L (ppt); 1 g/L (ppt); Automatic: 1 mg/L (ppm) from 0 to 9999 mg/L (ppm), 0.01 g/L (ppt) from 10.00 to 99.99 g/L (ppt), 0.1 g/L (ppt) from 100.0 to 400.0 g/L (ppt)
TDS Accuracy	± 1% of reading or ± 1 ppm (mg/L), whichever is greater
TDS Calibration	Based on conductivity or salinity calibration
Salinity Range (PSU)	0.00 to 70.00 PSU
Salinity Resolution (PSU)	0.01 PSU
Salinity Accuracy (PSU)	± 2% of reading or ± 0.01 PSU whichever is greater
Salinity Calibration (PSU)	Based on conductivity calibration
Salinity Range (Seawater Sigma)	0.0 to 50.0 σt, σ₀, σ₁₅
Salinity Resolution (Seawater Sigma)	0.1 σt, σ₀, σ₁₅
Salinity Accuracy (Seawater Sigma)	±1 σt, σ₀, σ₁₅
Salinity Calibration (Seawater Sigma)	Based on conductivity or salinity calibration
Resistivity Range	0 to 999999 Ω•cm; 0 to 1000.0 kΩ•cm; 0 to 1.0000 MΩ•cm
Resistivity Resolution	Dependent on resistivity reading
Resistivity Calibration	Based on conductivity calibration
Dissolved Oxygen Range	0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L)
Dissolved Oxygen Resolution	0.1%; 0.01 ppm (mg/L)
Dissolved Oxygen Accuracy	0.0 to 300.0 % : ± 1.5 % of reading or ± 1.0 % whichever is greater; 300.0 to 500.0 %: ± 3 % of reading; 0.00 to 30.00 ppm: ± 1.5 % of reading or 0.10 ppm, whichever is greater; 30.00 ppm to 50.00 ppm : ± 3 % of reading
Dissolved Oxygen Calibration	Automatic at one or two points at 0 and 100% or a custom point
Turbidity Range	0.0 to 99.9 FNU; 100 to 1000 FNU
Turbidity Resolution	0.1 FNU from 0.0 to 99.9 FNU, 1 FNU from 100 to 1000 FNU
Turbidity Accuracy	± 0.3 FNU or ± 2% of reading, whichever is greater
Turbidity Calibration	Automatic at 1, 2 or 3 points at 0, 20 and 200 FNU, or custom
Temperature Range	-5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K
Temperature Resolution	0.01 K, 0.01 °C, 0.01 °F
Temperature Accuracy	±0.15 °C; ±0.27 °F; ±0.15 K
Temperature Calibration	Automatic at one custom point
Temperature Compensation	Automatic from -5 to 55 °C (23 to 131 °F)
Ammonium Range	0.02 to 200.0 ppm (as NH4+-N)
Ammonium Resolution	0.01 ppm to 1 ppm, 0.1 ppm to 200.0 ppm
Ammonium Accuracy	± 5% of reading or 2 ppm
Ammonium Calibration	1 or 2 points, 10 ppm and 100 ppm
Chloride Range	0.6 to 200.0 ppm Cl (as Cl- )
Chloride Resolution	0.01 ppm to 1 ppm, 0.1 ppm to 200.0 ppm
Chloride Accuracy	± 5% of reading or 2 ppm
Chloride Calibration	1 or 2 points, 10 ppm and 100 ppm
Nitrate Range	0.62 to 200.0 ppm Ni (as NO3--N)
Nitrate Resolution	0.01 ppm to 1 ppm, 0.1 ppm to 200 ppm
Nitrite Accuracy	± 5% of reading or 2 ppm
Nitrate Calibration	1 or 2 points, 10 ppm and 100 ppm
Log Memory	44,000 records (continuous logging or on-demand for all parameters)
Storage Interval	One second to three hours
USB Connectivity	With HI929829 software
Battery Type/Duration	Rechargeable batteries, size C 1.2V NiMH (4); Up to 140 hours depending on configuration
IP Protection	IP67
Environment	0 to 50°C (32 to 122°F); Max RH 100%
Dimensions	221 x 115 x 55 mm (8.7 x 4.5 x 2.2”)
Weight	750 g (26.5 oz.)
GPS	12-channel receiver with 10 m (30 ft) accuracy
Atmospheric Pressure Range	450 to 850 mm Hg; 17.72 to 33.46 in Hg; 600.0 to 1133.2 mbar; 8.702 to 16.436 psi; 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa
Atmospheric Pressure Resolution	0.1 mm Hg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa
Atmospheric Pressure Accuracy	± 3 mm Hg within ± 15% from calibration point
Atmospheric Pressure Calibration	Automatic at one custom point
