New Standard Miniature Trap 1012 – Maximum Light and Airflow with Smart Control

Maximum Light Output and Superior Airflow with Programmable Photosensor for Efficient Captures

The New Standard Model 1012 Miniature Incandescent Light Trap offers 100% light output and maximum airflow for superior capture results. Its built-in programmable photosensor allows you to control any combination of motor and/or light on/off at dusk and dawn, making this trap a versatile and efficient tool for your mosquito and sandfly studies.

NOTE: Batteries are not included. Sold separately.

Key Features

Get 100% incandescent light output for the brightest possible light.

Control the motor and light with its three-mode programmable photosensor.

Use with the standard collection cup or a killing cup as needed.

Its downdraft fan keeps the catch secure in the collection bag.

Compatible with an optional Pneumatic Gate System to hold the catch when the fan is off.

Maximum Light Output

The Model 1012 trap emits 75% more light than any other incandescent trap on the market. Its new ABS rain shield and clear acrylic body reflect and transmit light downward and outward. The photosensor delivers 100% of the battery voltage to the light and motor, meaning the bulb produces bright white light as designed, not a dim yellowish glow.

Maximum Airflow

By delivering 100% of the battery voltage, the motor RPMs are approximately 20% higher than in other miniature light traps. Together with our low-profile grill, airflow is substantially greater than other models.

Built-In Programmable Photosensor

The built-in photosensor can control any combination of motor and/or light on/off at dusk and dawn. You can program the trap into different modes without the need for small tools and without jumpers that can be lost.

Mode 1: Motor and light turn on at dusk, both turn off at dawn.

Mode 2: Motor and light turn on at dusk, light turns off at dawn, motor stays on.

Mode 3: Motor and light run continuously, regardless of light level.

Feature	Detail
Model	1012
Light Source	Incandescent
Fan Type	Downdraft
Operating Voltage	6V DC
Current Consumption	0.5 Amps/hour

1x Trap body with light, motor, and fan
1x Built-in programmable photosensor
1x Rain shield/cover
1x Collection cup
1x Power cable
1x Instruction manual

You will need one of the following power options (not included):

6V gel electrolyte battery, 12 Amp-hour.
External holder for four D-cell batteries with alkaline cells.
Automatic DC-DC power supply to operate the trap with any voltage between 4 and 24 VDC.

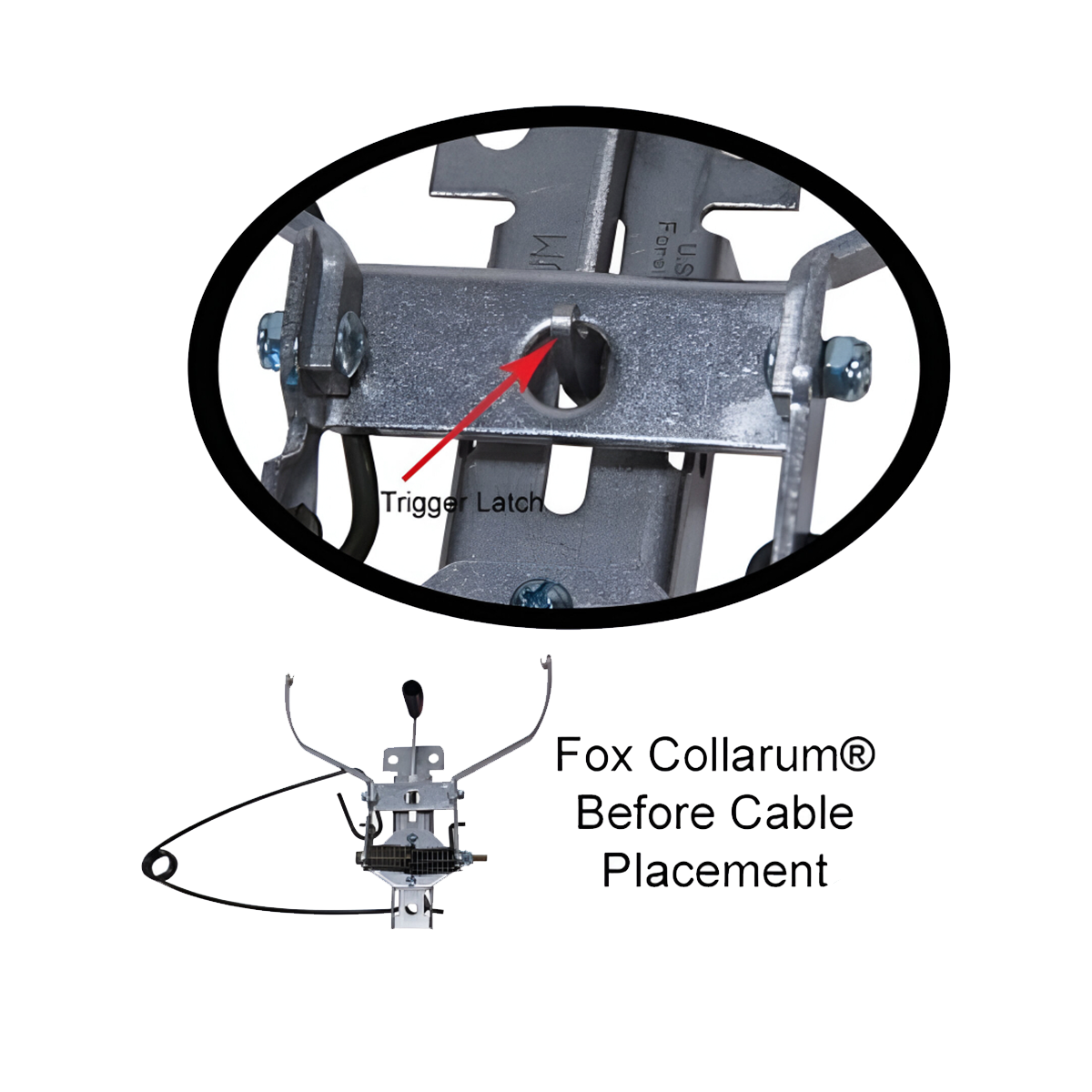

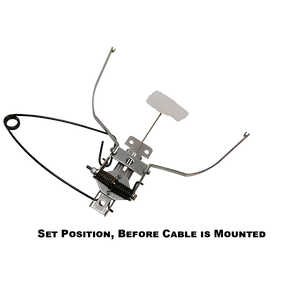

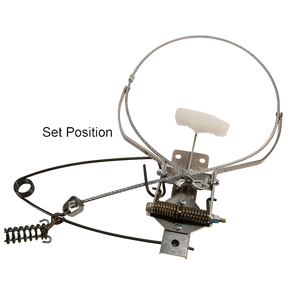

Model	Cable Diameter	Loop Size	Animal Weight	Spring	Species
Domestic Dog	3/16"	10.5"-12"	30-70 lbs	Standard	Dogs, Coyotes
Coyote	3/16"	9.5"-10"	30-70 lbs	Standard	Coyotes, Dingos
Fox	5/32"	8.5"-9"	Up to 20 lbs	Standard	Foxes
Wolf	3/16"	Adjustable	Large	135 lbs	Wolves
ACO Special	3/16"	10.5"-12"	30-70 lbs	Standard	Dogs
