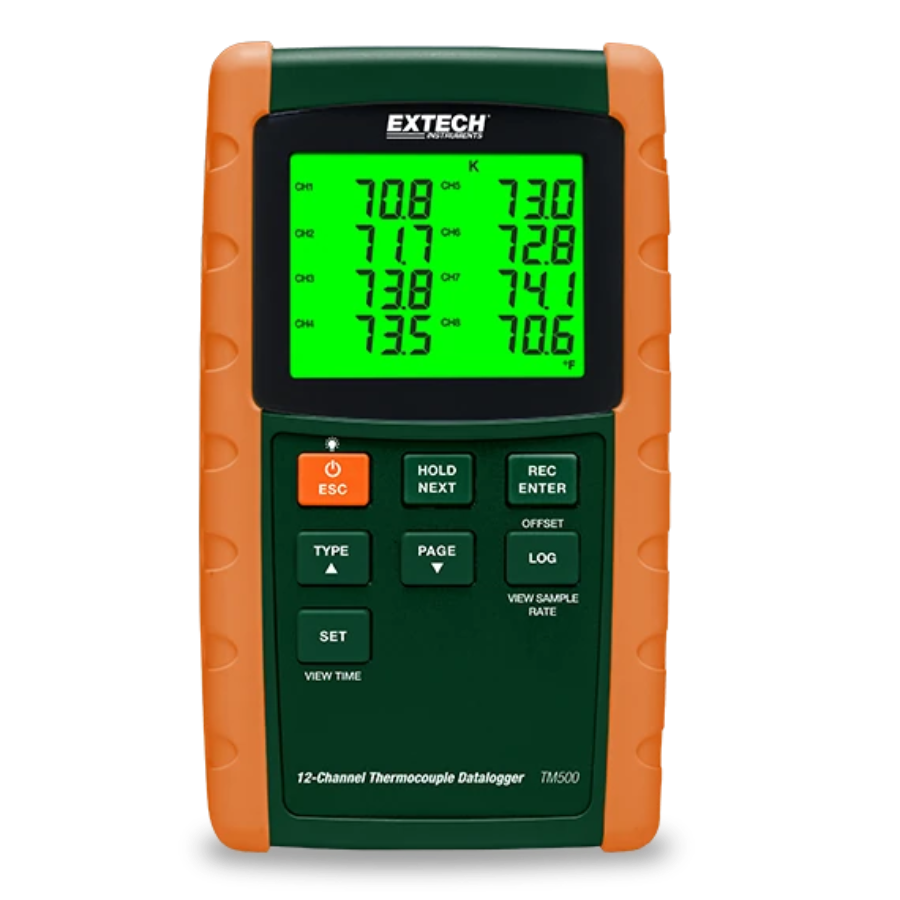

Extech 12-Channel Data Logger Thermometer TM500

Request Quote

The TM500 is a 12-channel data logging thermometer. This data logging thermometer features 6 types of thermocouples (J, K, E, T, R, S). It displays CH1 to CH8 or CH9 to CH12 on the screen, and data can be recorded from all 12 channels simultaneously on an SD card in Excel format for later analysis.

Key Features

• Simultaneously displays CH1 to CH8 or CH9 to CH12.
• Stores 99 readings manually and readings from 65.6 ft via included 2GB SD card.
• Records readings with date and time stamp in Excel format for further analysis.
• User-programmable sampling frequency from 1 to 3600 seconds.
• Min/Max, data hold, auto-off.

Wide Range The versatile Extech TM500 thermometer is designed to take temperature measurements using six different types of thermocouples (J, K, E, T, R, S), allowing the user to measure temperatures ranging from -148 to 2372 °F (-100 to 2602.0 °F).
	Simultaneous Readings The TM500's large display shows CH1 to CH8 or CH9 to CH12 at any given time. Although not all at once on the screen, all 12 readings can be recorded in excellent format (with date and time) on the included SD card.
Highly Functional The easy-to-use indoor/outdoor TM500 thermometer features user-programmable sampling rates (1 to 3600 seconds) to suit the current application. Additionally, the device's internal memory can store 99 readings, a real benefit when the included SD card is full.
	Accurate Readings The TM500 digital thermometer uses offset settings for zero function or when taking relative measurements.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Technical Specifications (English)
• • 12-Channel Data Logger
  • 6 Thermocouple Types (J, K, E, T, R, S)
  • AA Batteries (8)
  • Type K Temperature Probes (12)
  • 2GB SD Card
  • Carrying Case
  • Manual
• • None
• • Temperature Sensors
  • Temperature Probe
• • User Manual (English)
  • Technical Specifications (English)

EO2023603

Ver todos os detalhes do produto »

Extech Dual Laser IR Video Thermometer VIR50

$ 550.00 USD

The VIR50 is a 3992°F (2200°C) Digital Laser Video IR Thermometer which features a 2.2" color TFT LCD display and built-in VGA (640 x 480) Camera. Includes a MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC. Dual lasers indicate the ideal measuring distance (approximately 50 inches) where the two laser points converge to a 1" target spot. Comes with microSD card, general-purpose Type K bead wire probe, USB cable, rechargeable 3.7V battery, carrying case, and user manual.

• Non-contact IR Temperature measurement from -58 to 3992°F (-50 to 2200°C) with 50:1 distance to target ratio.
• Built-in VGA (640 x 480) Camera.
• MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC.
• Dual laser indicates ideal measuring distance where the two laser points converge to a 1" target spot.
• Fast 150 millisecond response time, color LED bargraph for viewing trends.
• Type K Thermocouple input, USB interface.
• Air Temperature and Relative Humidity measurement.
• Adjustable emissivity increases measurement accuracy for different surfaces.
• Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points.
• MAX/MIN/AVG/DIF functions, Auto Power Off.
• Complete with microSD card, general purpose Type K bead wire probe, USB cable, rechargeable 3.7V battery, and carrying case.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Specifications	Range
  Laser Convergence Distance	50" (127cm)
  IR Temperature Range	-58 to 3992°F (-50 to 2200°C)
  Repeatability	±0.5% or 1.8°F/1°C
  Basic Accuracy	±(1% of rdg + 4°F/2°C) (31 to 212°F)
  Max resolution	0.1°F/°C
  Emissivity	0.10 to 1.00 Adjustable
  Field of View (Distance to Target)	50:1
  Type K Temperature Range	-58 to 2498°F (-50 to 1370°C)
  Air Temperature Range	32 to 122°F (0 to 50°C)
  Relative Humidity	0 to 100%RH
  LCD Display	2.2" TFT 320 x 240 pixels
  Camera	640 x 480 pixels
  Dimensions	7.4x6.0x2.2" (189x152x57mm)
  Weight	17.4oz (494g)

• • Thermometer (1)
• • None
• • 3.7V Li-Ion Rechargeable Battery
• • Datasheet (English)
  • User’s Manual (English)
  • Manual de Usuario (Español)
  • Manual do Usuário (Português)

Ver todos os detalhes do produto »

Extech EA10 EasyView Dual Input Thermometer

$ 154.99 USD

Basic Type K Thermometer with wide temperature range. EA10 is an EasyView Dual Input Thermometer....

Ver todos os detalhes do produto »

Extech EA11A Easy View Type K Single Input Thermometer

$ 104.99 USD

Thermocouple thermometer with dual LCD display and memory function. EA11A is an easyview Type K...

Ver todos os detalhes do produto »

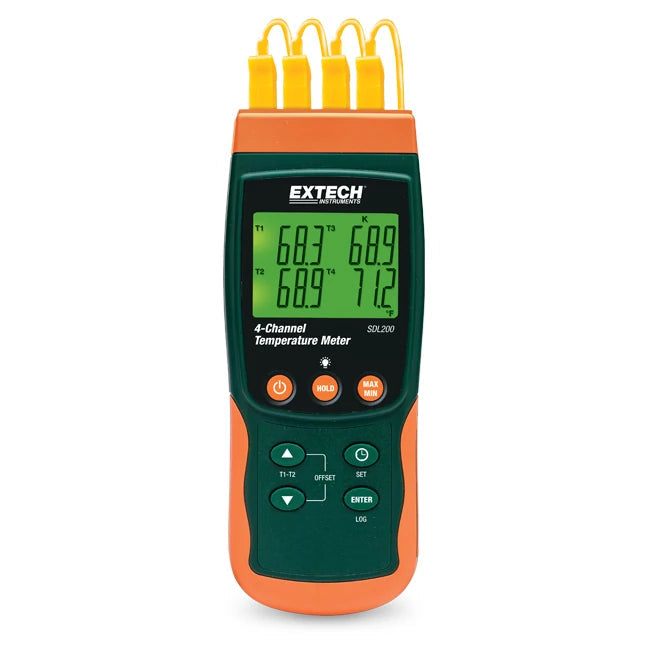

Extech Four-Channel Thermometer SD Logger SDL200

$ 429.70 USD

Ver todos os detalhes do produto »

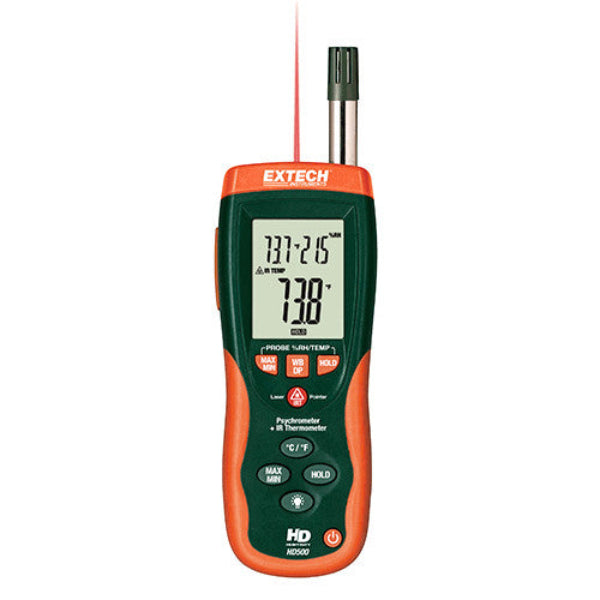

Extech HD500 Psychrometer with Pyrometer

$ 380.50 USD

Ver todos os detalhes do produto »

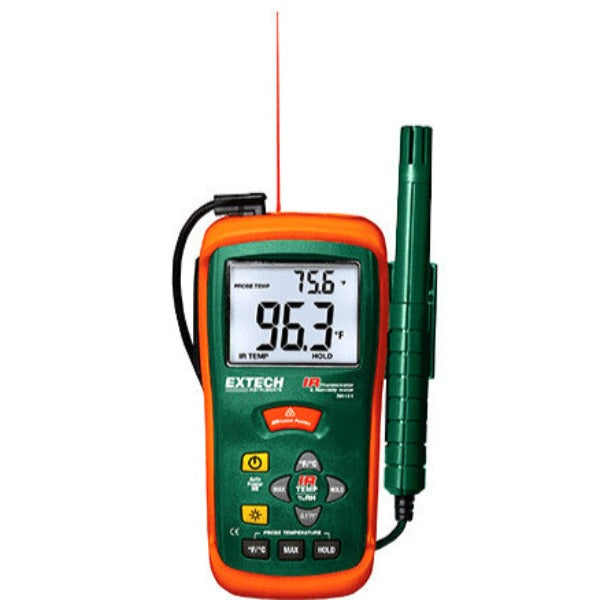

Extech Hygro Thermometer InfraRed Thermometer.

$ 235.75 USD

This combination moisture meter plus infrared thermometer features a large backlit LCD display with primary and secondary displays. The main display is user selectable for IR or humidity; The secondary always shows the ambient temperature. The infrared thermometer has a built-in laser pointer and an 8:1 distance to target ratio. Data hold and MAX, auto power off. Complete with 9V battery and carrying case.

Featured Features:

• Combined moisture meter plus infrared thermometer with laser pointer.
• Non-contact infrared thermometer with 8:1 distance to target ratio.
• Large backlit dual LCD display.
• The main display is user selectable for IR or humidity.
• Secondary always displays the ambient temperature.
• Data hold and MAX, auto power off.

• Specs
• In the box
• Required Items
• Optional Items

• Specs	Ranks	Maximum Resolution	Basic Accuracy
  Humidity	10% a 95%	0,1%	± 3.5%
  Infrared Temperature	-50 a 500 ° C	0,1 °	± 2% 2 ° C
  Air temperature	-20 a 60 ° C	0,1 °	± 2 ° C
  Emissivity	0,95
  Field of view	8: 1
  Dimensions	150 x 75 x 40 mm
  Weight	200 g

• • Extech Thermo-Hygrometer and Infrared Thermometer (1)
  • Case (1)
  • Drums 9V (1)
• • None
• • None

(DR 20220818)

Ver todos os detalhes do produto »

Extech Hygro-Thermometer/Datalogger SDL500

$ 463.75 USD

Optimize Humidity and Temperature Measurement with the Extech SDL500

The Extech SDL500 is a hygrometer and temperature data logger designed for professionals who need precision and ease in environmental data collection.

This device records humidity, temperature, dew point, and wet bulb readings on an SD card in Excel format. It is ideal for monitoring environmental conditions and performing detailed analysis.

Key Features:

• Large dual LCD display with backlight.
• Records up to 20 million readings with a 2G SD card.
• Compatible with K/J type thermocouples for high-temperature measurements.
• Min/Max, Data Hold, and auto power-off functions.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Detail
  Dew Point	-25.3 to 48.9 °C (-13.5 to 120.1 °F)
  Maximum Dew Point Resolution	0.1°
  Memory	20M data records with 2G SD card
  Relative Humidity	5% to 95%
  Basic Relative Humidity Accuracy	±3%
  Maximum Relative Humidity Resolution	0.1%
  Temperature (Air)	0 to 50 °C (32 to 122 °F)
  Basic Temperature Accuracy (Air)	±1 °C (±1.8 °F)
  Maximum Temperature Resolution (Air)	0.1°
  Temperature (Type J)	-100 to 1200 °C (-148 to 2192 °F)
  Basic Temperature Accuracy (Type J)	±(0.4% + 1 °C/1.8 °F)
  Maximum Temperature Resolution (Type J)	0.1°
  Temperature (Type K)	-100 to 1300 °C (-148 to 2372 °F)
  Basic Temperature Accuracy (Type K)	±(0.4% + 1 °C/1.8 °F)
  Maximum Temperature Resolution (Type K)	0.1°
  Temperature (Type N)	±(0.4% + 1 °C/1.8 °F)
  Basic Temperature Accuracy (Type N)	0.1°
  Wet Bulb	-21.6 to 50 °C (-6.9 to 122 °F)
  Maximum Wet Bulb Resolution	0.1°
  Certifications	CE
  Dimensions	182 × 73 × 47.5 mm (7.2 × 2.9 × 1.9 in)
  Power Supply	6 × AA batteries (1.5V)
  Weight	655 g (23.1 oz)

• • Extech SDL500 Thermohygrometer/Datalogger
  • SD Card
  • 6 AA batteries (1.5V)
  • Carrying case
  • Humidity/Temperature Probe
  • Instructions
• • AA Batteries
• • Case
  • CR2032 Batteries
• • User Manual (English)
  • Technical Specifications (English)

Ver todos os detalhes do produto »

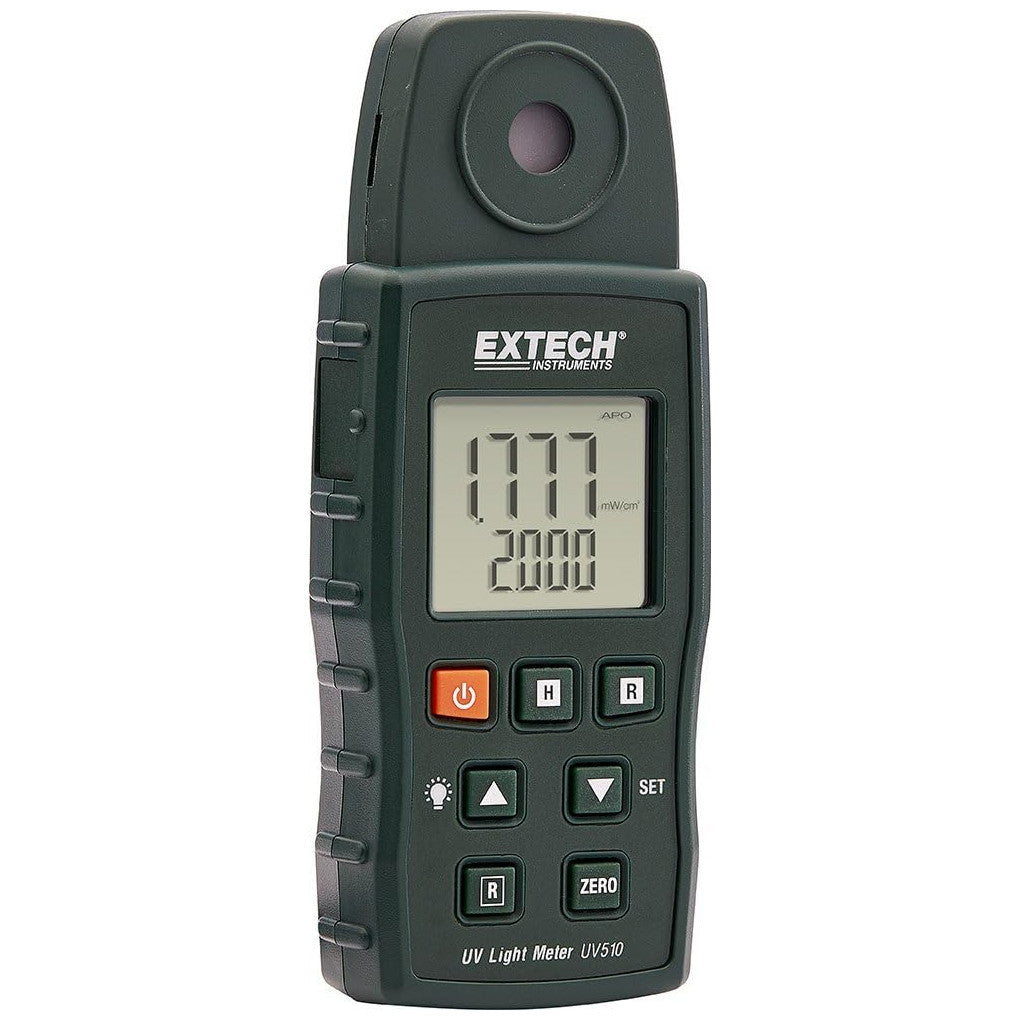

Extech UV510 UVA Light Meter

Request Quote

Extech UV510 UVA Light Meter

The Extech UV510 UVA Light Meter is an essential tool for measuring UVA light radiation from natural and artificial light sources. This portable device is perfect for professionals who require precision and ease of use in their ultraviolet light measurements.

The Extech UV510 measures UVA light radiation with superior accuracy, offering a dual backlit display and a cosine-corrected sensor. With two selectable ranges and additional features such as minimum and maximum value recording, screen hold, and automatic shutdown, this meter becomes a versatile and reliable tool. Its compact design, accompanied by a wrist strap, makes it easy to transport and use anywhere.

Highlighted Features

• Dual Backlit Display: Provides clear and easy data readings.
• Cosine-Corrected Sensor: Ensures measurement accuracy under different light incidence angles.
• Two Selectable Ranges: Adapt to different levels of UVA light intensity.
• Zero Function: Allows resetting measurements for more precise results.
• Minimum and Maximum Value Recording: Facilitates tracking variations in UVA light intensity.
• Screen Hold: Allows freezing the reading on the screen for later review.
• Automatic Shutdown: Saves energy by automatically turning off the device when not in use.
• Compact Design: Its small size and wrist strap make it easy to use and transport.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Variant 1


• Specifications

  GENERAL SPECIFICATIONS
  Basic UVA Accuracy	±4% full scale
  Maximum UVA Resolution	0.001 mW/cm²
  UVA	0 to 1.999 mW/cm², 2 to 20.00 mW/cm²
  ADDITIONAL DETAILS
  Power Supply	3 × AAA batteries (1.5V)
  Certifications	CE-NIST
  Dimensions	14.1 × 5.8 × 2.5 cm (5.5 × 2.3 × 1 inches)
  Weight	160 g (5.6 ounces)

• • Extech UV510 UVA Light Meter
  • Manual
• • Rechargeable AAA Batteries
• • Case
  • CR2032 Batteries
• • Technical Specifications (English)

Ver todos os detalhes do produto »

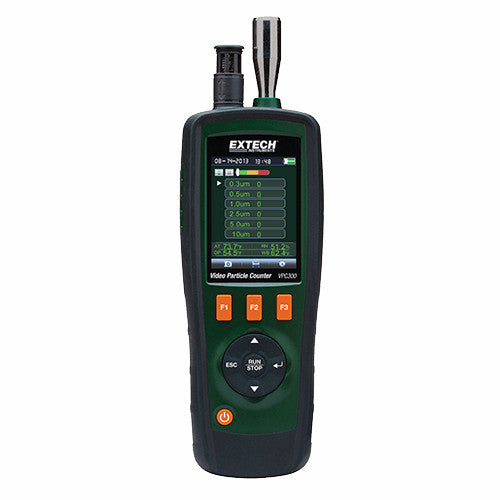

Extech Video Particle Counter with Built-in Camera VPC300

$ 2,123.75 USD

The VPC300 is a video particle counter with a built-in camera. Measures up to 6 channels of particle sizes plus air temperature and relative humidity. It is used to capture videos and photos that are stored in the internal memory or on a micros card. The VPC300 can measure up to 6 channels of particle sizes plus air temperature and relative humidity. Use the included software to generate reports with videos, photos, and data points. Complete with NIST-traceable calibration certificate, universal multi-plug AC adapter/charger, USB cable, PC software, tripod, filter, 7.4V NiMH battery, and a protective hard case.

Feature highlights:

• Simultaneously measures and displays 6 channels of particle sizes (down to 0.3 µm), air temperature, humidity, dew point and wet bulb.
• 7.1 cm color TFT LCD screen.
• The built-in 320x240 pixel camera takes video (3GP) and photo images (JPEG) and saves them to the 74MB internal memory.
• Store 5,000 records (date, time, counts, humidity, temperature, sample volumes, and location tag) and 20 minutes of video.
• Selectable sample time, count data and programmable delay.
• Max, Min, DIF, AVG log, date/time setting controls, auto power off.
• Mini-USB port connection.
• Complete with NIST-traceable certificate of calibration, universal multi-plug AC adapter/charger, USB cable, PC software, tripod, filter, 7.4V NiMH battery, and hard case.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Specifications
  Particle Size Channels	0.3, 0.5, 1.0, 2.5, 5.0, 10 µm
  Flow rate	0.1 ft3 (2.83 l/min) controlled by internal pump
  Count modes	Cumulative concentration, differential
  Counting efficiency	50% at 0.3 µm; 100% for particles> 0.45
  Mismatch	5% at 2,000,000 particles per ft3
  Air temperature	-14 to 140ºF (-25 to 60ºC); Accuracy: ± 2ºF / 1ºC
  Relative humidity	0 to 100% RH; Accuracy: ± 3% RH (40% to 60% RH)
  Dew Point / Wet Bulb	32 to 122ºF (0 to 50ºC)
  Dimensions and weight	240 x 75 x 57mm and 570g

• • Extech Particle Counter (1)
  • NIST traceable calibration certificate (1)
  • Multi-plug universal AC adapter/charger (1)
  • USB cable (1)
  • Software for PC (1)
  • Tripod (1)
  • Filter (1)
  • 7.4V NiMH battery (1)
  • Hard protective case (1)
• • None
• • None
• • User Manual
  • Technical Specification Manual (English)

(DR 20220830)

Ver todos os detalhes do produto »

Humidity and Temperature USB Datalogger Extech RHT10

$ 89.95 USD

Records up to 16,000 readings for each parameter.

The RHT10 datalogs Humidity and Temperature readings (up to 16,000 each) with user programmable sample rates from 2 seconds up to 24 hours for days, weeks and months. USB interface for easy setup and download. Dew Point indication via the included Windows software. User-programmable High/Low alarm thresholds for RH and temperature. Complete with 3.6-Volt Lithium battery, protective USB cap, mounting bracket, and Windows compatible software for analysis.

Features

• 32,000 readings (16,000 for each parameter: Humidity/Temperature).
• Selectable data sampling rate: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr.
• Dew point indication via Windows® software (included).

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Specifications	Range	Resolution	Accuracy (%rdg+digits)
  Temperature	-40 to 158°F	0.1°F/°C	±1.8°F (14 to 104°F)
  			±3.6°F (-40 to +14 and 104 to 158°F)
  	-40 to 70°C		±1.0°C (-10 to 40°C)
  			±2.0°C (-40 to -10 and +40 to 70°C)
  Humidity	0 to 100%RH	0.1%RH	±3%RH
  Datalogging interval	2 seconds to 24 hours
  Memory	Temperature: 16,000 points; Relative Humidity: 16,000 points
  Dimensions	5.1 x 1.1 x 0.98" (130 x 30 x 25mm)
  Weight	1oz (20g)

• • Datalogger (1)
  • Batteries (2)
• • None

• • 3.6V Litium Batteries
• • Datasheet (English)
  • User’s Manual (English)
  • Manual de Usuario (Español)
  • Software Download

Ver todos os detalhes do produto »

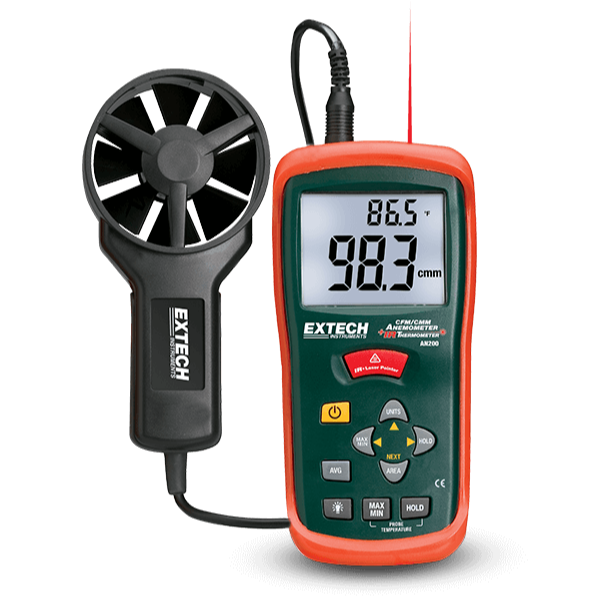

Mini Thermo-Anemometer with built-in InfraRed Thermometer

$ 300.50 USD

Ver todos os detalhes do produto »
