NorthStar

BADGECII Iridium GPS Wildlife Collar with Behavior Sensors

Request Quote

BADGECII (Iridium) Smart Satellite Collar: Advanced Telemetry for Wildlife Studies

Monitor animal behavior in real time with GPS, environmental, and acceleration data using the BADGECII collar with Iridium technology and INTELINK®.

BADGECII (Iridium) is an advanced Platform Messaging Transceiver (PMT) designed for satellite data transmission via the Iridium system. Equipped with high-precision GPS and multiple sensors, it enables real-time collection of environmental and behavioral data. Its innovative INTELINK® technology allows not only remote data download and device recovery, but also raw acceleration data collection and on-site behavior-tagged modeling. It is ideal for ecological and conservation studies requiring animal monitoring in remote and variable conditions.

Key Features:

• Satellite transmission via Iridium for real-time global coverage.
• Multiple data collection: GPS, light, temperature, pressure, 3-axis acceleration, and ODBA.
• INTELINK® technology: enables collar recovery, remote download, and on-site data viewing.
• Smart BOOST mode: increases transmission frequency when power is high or activity is elevated.
• Configurable collection modes: regular intervals or sleep mode for energy savings.
• Massive internal storage for thousands of behavioral and environmental data records.
• Remote firmware update via the ECOTOPIA App.
• Compatible with Debut® platforms (HUB, TAG, QUEST) for close-range connectivity and cloud upload.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	BADGECII (Iridium)
  Deployment	Collar
  Power Source	Solar panel + internal battery
  Battery	2×210 mAh (rechargeable) + 1900 mAh (primary)
  Battery Protection	Against overcharge and low voltage
  Operating Temperature	-25 °C to 60 °C
  GPS - Accuracy	CEP (50%) 2.5 m
  GPS - Band	1616 MHz to 1626.5 MHz
  Transmission Speed	2400 bps
  Integrated Sensors	Light, pressure, temperature, 3-axis accelerometer
  Data Storage	17,800 environmental records + 107,100 behavioral records
  Firmware Update	Via INTELINK® / ECOTOPIA App
  Collection Modes	Regular intervals or sleep mode
  ACC Collection	25 Hz for 3 s every 10 min (default)
  Smart BOOST	Automatic optimization based on activity and power

• • BADGECII (Iridium) Collar
  • User manual
• • Debut® Gateway (HUB, TAG or QUEST)
  • Carrying case
  • Field installation kit
• • BADGECII (Iridium) Specifications Sheet

Ver todos os detalhes do produto »

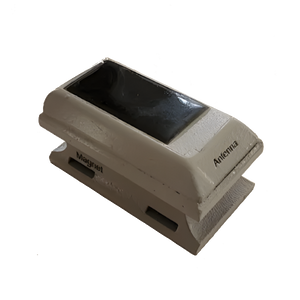

North Star Phoenix Solar-Powered Satellite Tracking System with Integrated GPS and Accelerometer

Request Quote

Revolutionized Tracking System: Explore the PHOENIX Tag Series by North Star

Solar innovation, global monitoring, and real-time data in a compact system for modern conservation.

The PHOENIX series by North Star represents the next generation of biotelemetry devices for birds and other wildlife. Equipped with internal GPS, accelerometer, geofencing, Globalstar satellite telemetry, and solar power, these tags are cutting-edge tools for scientists, conservationists, and academic studies. From ultra-lightweight models to robust solutions for large species like ostriches and turkeys, PHOENIX tags offer real-time monitoring, no external antennas, and Bluetooth reprogramming without the need for recapture.

Key Features:

• Solar Power: Integrated solar circuit to extend operational life without human intervention.
• High-Precision Internal GPS: 56- or 72-channel receivers, depending on the model.
• Real-Time Data: Globalstar satellite transmission from field to web.
• Wireless Reprogramming: Bluetooth link for adjustments without recapture.
• Accelerometer and Temperature Sensor: Built-in for behavior and environmental condition logging.
• Rugged and Compact Design: Reinforced nylon, no external antennas, weather-resistant.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

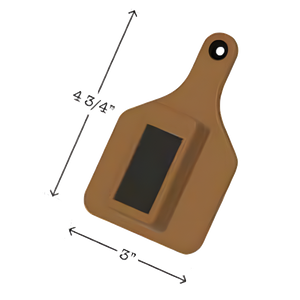

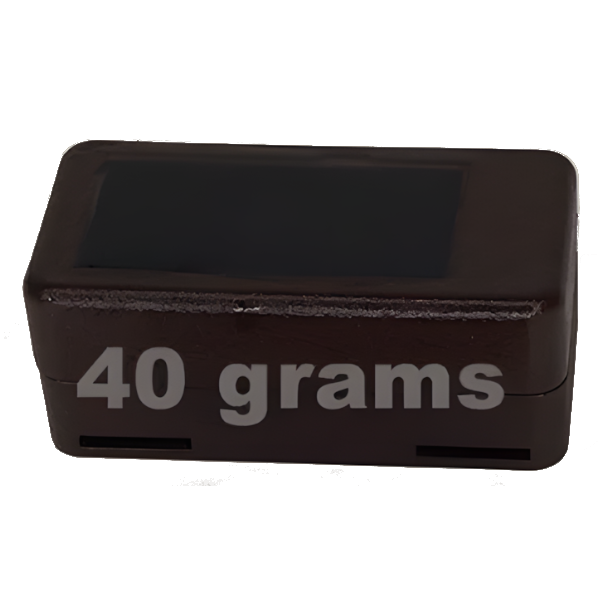

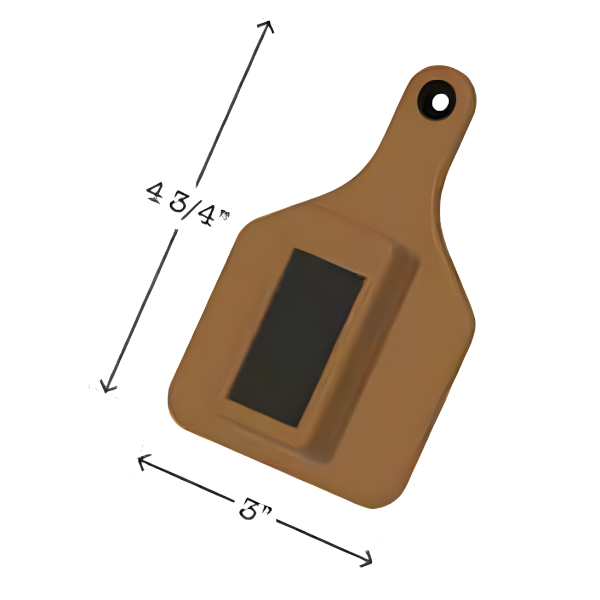

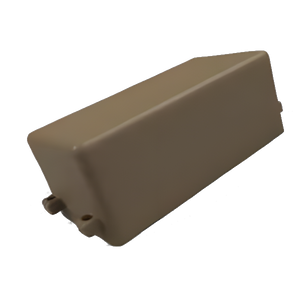

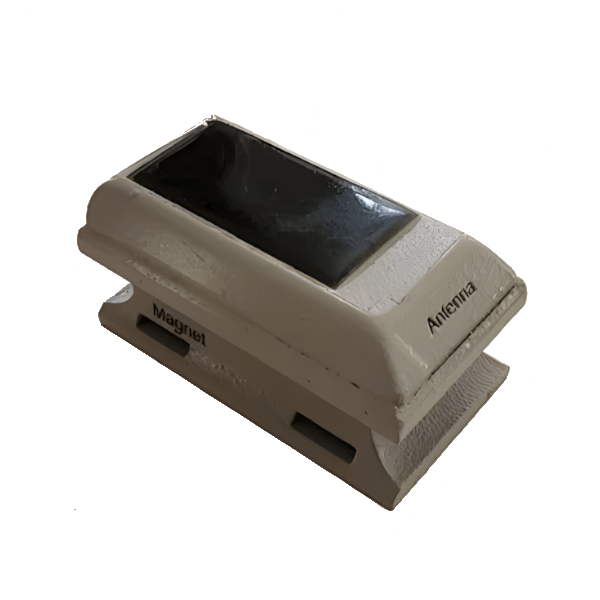

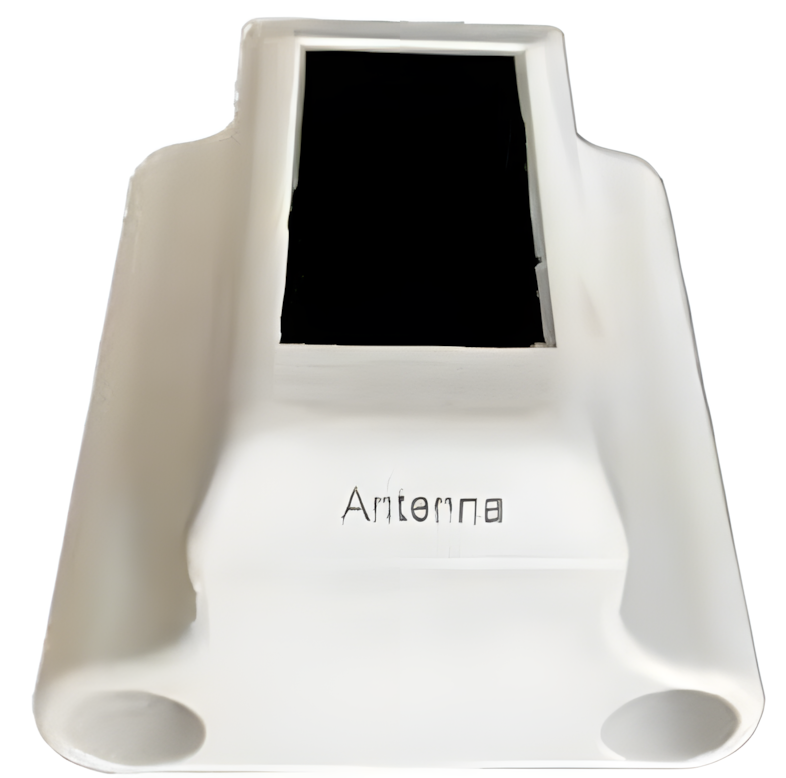

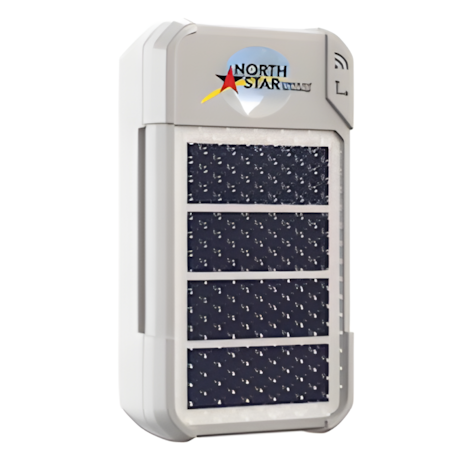

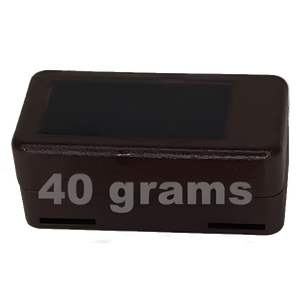

• Specification	Phoenix 22	Phoenix 27	Phoenix 40	Phoenix 58	Phoenix 62	Ungulate Tag	Ostrich Tag	Turkey Tag
  Weight	22 g	27 g	40 g	58 g	62 g	50 g	90 g	110 g
  GPS	72 ch	72 ch	56 ch	72 ch	72 ch	56 ch	72 ch	56 ch
  GPS Accuracy	2.0 m CEP	2.0 m CEP	2.5 m CEP	2.0 m CEP	2.0 m CEP	2.5 m CEP	2.5 m CEP	2.5 m CEP
  TX Frequencies	1611.25 MHz / 1616.25 MHz (Globalstar)
  GPS Fixes per Day	1 to 48 (depending on solar charge, except Turkey Tag: up to 24)
  Memory	16 MB
  Accelerometer	Yes, 1/5/10 Hz
  Geofencing	Available
  External Antenna	No
  BT Reprogramming	Yes
  GPS Altitude	Up to 40,000 ft			ND
  Battery	150 mAh	300 mAh	400 mAh	450 mAh	500 mAh	350 mAh	1450 mAh	4x 2/3AA
  Dimensions	58×32×18 mm	58×32×18 mm	66×33×24 mm	70×37×32 mm	70×37×32 mm	61×29×18 mm	80×67×40.5 mm	80×35×33 mm
  Operating Temp.	-30°C to +50°C	-30°C to +50°C	-10°C to +50°C	-30°C to +50°C	-30°C to +50°C	-10°C to +50°C	-30°C to +50°C	-40°C to +50°C
  Material	Glass fiber-reinforced nylon

• • PHOENIX tag according to selected model
• • Mobile device with Bluetooth for setup
  • Access to North Star web platform (via subscription)
• • Species-specific attachment tools
  • Recommended camouflage paint for Phoenix Turkey Tag

Ver todos os detalhes do produto »

NorthStar Battery GPS Satellite Tracking PTTs from 65 g

Request Quote

northstar battery, wildlife tracking

Ver todos os detalhes do produto »

NorthStar Battery Satellite Tracking PTTs from 20 g

Request Quote

northstar battery, wildlife tracking

Ver todos os detalhes do produto »

NorthStar Low Profile Satellite Tracking Necklaces

Request Quote

Requires Activation and Data from GlobalStar Satellite System NorthStar has developed a line of wildlife...

Ver todos os detalhes do produto »

NorthStar PTT Tracker Decoder Software

Request Quote

Ver todos os detalhes do produto »

NorthStar Solar Satellite Tracking PTTs from 20 g

Request Quote

northstar solar, wildlife tracking

Ver todos os detalhes do produto »

NorthStar Solar Satellite Tracking PTTs from 5 g

Request Quote

northstar solar, wildlife tracking

Ver todos os detalhes do produto »

NorthStar Standard Satellite Tracking Collars

Request Quote

NorthStar Standard Satellite Tracking Collars

Precise and Reliable Solution for Data Measurement in Demanding Environments

High-precision GPS tracking device, specifically designed for wildlife monitoring applications and other scientific research requiring detailed and reliable data. This collar utilizes Globalstar satellite technology to provide real-time data, making it an essential tool for researchers needing to track and study animal movements in their natural habitat.

Key Features

• High Precision: Ensures accurate and reliable measurements.
• Durability: Built with resilient materials to withstand harsh conditions.
• Compatibility: Compatible with multiple sensors and devices.
• Easy Installation: Intuitive design for quick and easy setup.
• Minimal Maintenance: Requires little maintenance, reducing operational costs.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• General Data

  Specification	Value
  Output Power	150 mW
  Transmit Signal Length	1.5 seconds
  Temp Range	-40 to +50 Degrees Celsius
  Frequency	1611.25 to 1618.75 MHz
  Modulation	BPSK-modulated PRN Code
  GPS Engine	μBlox 16 Channel
  GPS Accuracy	+/- 10 m horizontal, +/- 25 vertical
  GPS Antenna	Active
  GPS Datum	WGS84
  VHF Power Output	1—2 mW, 30—45 ppm
  Specified accuracy is 2.5 meters CEP and 5 meters SEP. CEP is Circular Error Probability. It is the radius of a horizontal circle, centered at the true antenna position, containing 50% of the fixes. SEP is Spherical Error Probability. It is the radius of a sphere, centered at the true antenna position, containing 50% of the fixes. Note: We are turning off our GPS engine after 5 positions in a row (1 per second) are acquired with a horizontal accuracy of 5 meters or less.




  NSG-D2 Component Weights

  Specification	Value
  Housing and Hardware (with battery)	910 grams (Standard GPS antenna), 770 grams (Micro GPS antenna)
  Peripherals	VHF 30-55 grams (smaller available)
  Drop-off Mechanism	78-114 grams
  Collar Average Weight Range	940 grams (24″ collar) to 1230 grams (36″ collar, no peripherals)
  D-Cell Battery (alone)	150 grams
  DD-cell Enclosure plus Board (alone)	370 grams
  Note: Includes GPS Receiver and Globalstar Transmitter




  Housing and Hardware (with battery)

  Specification	Value
  Drop-off Battery Life	3 years
  VHF Battery Life	3+ years
  Collect/Transmit 8 GPS loc. p/day	30-34 months
  Collect/Transmit 6 GPS loc. p/day	40-45 months
  Collect/Transmit 4 GPS loc. p/day	60-65 months
  Collect/Transmit 3 GPS loc. p/day	75-80 months
  Note: Environmental conditions, such as wide variations in ambient temperatures, will reduce actual battery lives, particularly over extended deployments.




  Antenna Weights (with Rexolite Cover)

  Specification	Weight
  Transmit Antenna	60 grams
  MMIII GPS Antenna	110 grams
  Standard GPS Antenna	70 grams
  Micro Mouse GPS Antenna	40 grams

• • Standard Satellite Tracking Collar (Selected Model)
  • User Manual
  • Mounting Kit
• • Compatible sensors (not included)
  • Power supply (if applicable)
• • Additional sensors
  • Calibration kits
  • Additional mounting accessories
• • None

Ver todos os detalhes do produto »

Solar GPS GSM UHF Recorder NorthStar for Wildlife Tracking from 18 g

Request Quote

Ver todos os detalhes do produto »

Wolf Collar Iridium Smart Satellite with GPS Transmission and Environmental & Behavioral Sensors

Request Quote

Advanced Wildlife Monitoring with the Wolf Collar (Iridium) Satellite Collar

Accurately records GPS, environmental, and behavioral data. Ideal for ecological research in remote conditions thanks to Iridium connectivity and INTELINK® technology.

The Wolf Collar (Iridium) is a Platform Messaging Transceiver (PMT) that enables remote data collection via Iridium satellite connectivity. Specifically designed for wildlife ecological studies, it combines high-precision GPS with multiple sensors to capture environmental and behavioral information. In addition to scheduled transmissions, the device offers intelligent features through patented INTELINK® technology, such as remote data download, tracker recovery, and real-time in-field modeling. Its hybrid system of rechargeable and primary batteries with solar charging ensures efficient, long-lasting operation even in challenging habitats.

Key Features:

• Iridium Satellite Transmission: Reliable communication even in remote areas without cellular coverage.
• INTELINK® Technology: Enables data retrieval, firmware updates, and in-field modeling.
• Multisensor Capture: Includes pressure, temperature, light sensors, and triaxial accelerometer.
• Smart BOOST Mode: Automatically optimizes data collection and transmission frequency based on battery levels and animal activity.
• Extensive Storage: Capacity for over 17,800 environmental data logs and 107,100 behavioral records.
• Wide Configuration Range: Customize GPS, ODBA, and acceleration intervals via app or web platform.
• Programmable Sleep Mode: Saves battery by pausing data collection during specific times or seasons.
• Field Research Ready: Rugged, durable, and adaptable to different species and environments.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Wolf Collar (Iridium)
  Device Type	Satellite Transmitter (PMT)
  Deployment Mode	Collar
  Power Source	Solar + Hybrid Battery
  Battery Capacity	2×210 mAh (rechargeable) + 1900 mAh (primary)
  Battery Protection	Overcharge and low-level protection
  Operating Temperature	-25 °C to 60 °C
  GPS Accuracy	CEP (50%) 2.5 m
  Iridium Frequency	1616 – 1626.5 MHz
  Transmission Speed	2400 bps
  Sensors	Light, pressure, temperature, 3-axis accelerometer
  Storable Environmental Data	17,800 records
  Behavioral Data	107,100 records
  Firmware Update	Via INTELINK®
  Collection Modes	Regular, ODBA, ACC (customizable)
  Sleep Mode	Supported (up to 16 h/day or extended periods)

• • Wolf Collar (Iridium)
  • Integrated solar panel
  • User manual
• • Access to INTELINK® platform
• • Debut HUB, TAG, or QUEST gateway
  • BADGE device for real-time raw data
• • Specification Sheet

Ver todos os detalhes do produto »
