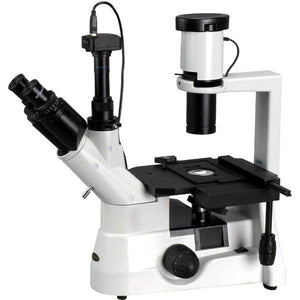

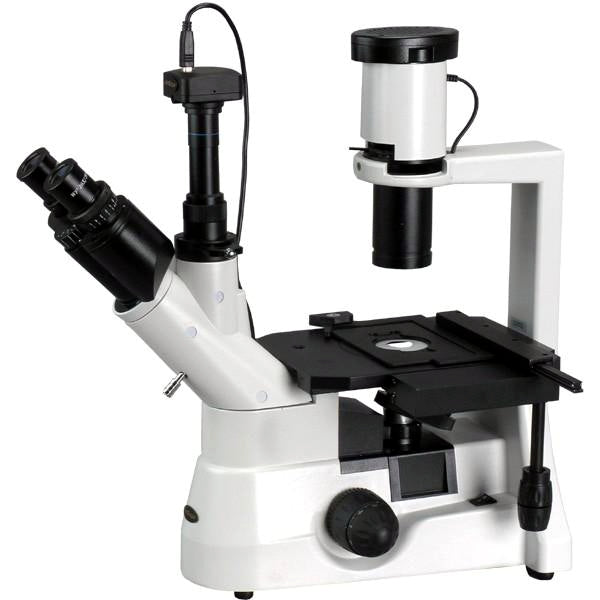

Amscope 40x-1000x Inverted Trinocular Microscope

AmScope Inverted Microscope 40x to 1000x for Research and Education

Ideal For Advanced Laboratory Studies, With Magnification Capability From 40x To 1000x, This Microscope Offers Exceptional Clarity And Precision.

These new professional-quality microscopes feature long-working-distance wide-field optics. They are designed for applications involving large vessels or samples in biology, microbiology, histology, immunology, and iatrology, among others. Allowing the observation of samples in culture flasks, Petri dishes, or other containers, they come with long-working-distance plan objectives, high-quality phase contrast objectives, super-wide-field eyepieces, and a trinocular head inclined at 45°. They offer magnification settings of 40X, 100X, 100X, 200X, 250X, 400X, 500X, and 1000X, as well as phase contrast microscopy functions. They provide clear, high-quality microscopic images of cells in containers or large vessels. These microscopes are ideal for observing live cells in micro-research laboratories. They are a perfect model for universities, medical offices, epidemic prevention departments, and animal breeding and livestock laboratories, among others.

Features

• Perfect for clinics, veterinarians, doctors, and researchers to view live biological tissue cultures and examine liquid samples.
• Offers phase contrast features.
• Six magnification settings: 40X, 100X, 100X, 200X, 250X, 400X, 500X, and 1000X.
• Long working distance bright-field and phase contrast plan objectives.
• Two pairs of high-eyepoint super-wide-field eyepieces.
• Fully coated optical system with high resolution.

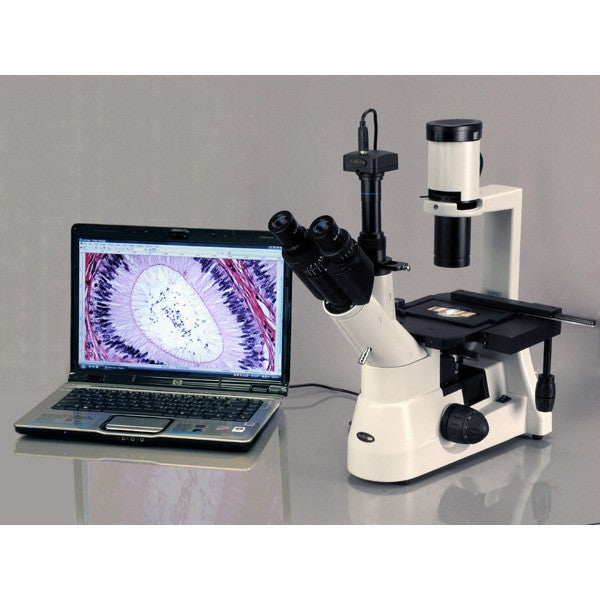

• Vertical photo port with photo/video capability.
• Movable NA 0.3 condenser.
• Diopter adjustment on eyepiece.
• Extra-large double-layer mechanical 3D stage with stain-resistant finish.
• Low-positioned coaxial stage movement control knobs.
• Coaxial coarse and fine focusing with tension control.
• Integrated 30-watt halogen illumination system with variable brightness.

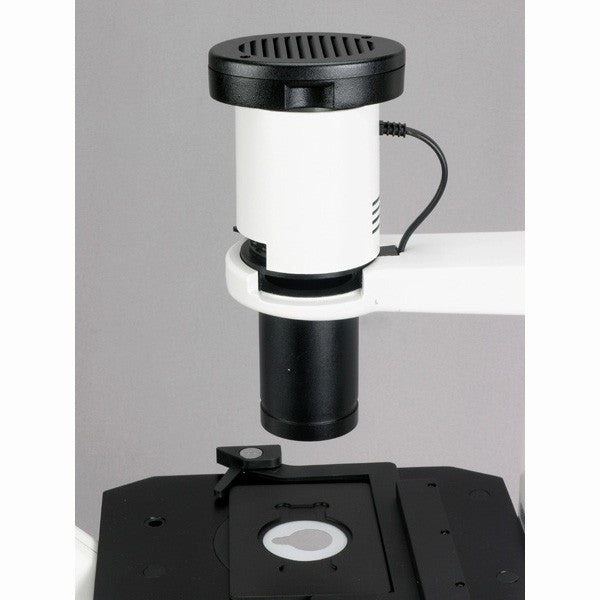

• Top light house with filters.
• Complete optical glass elements.
• Precisely ground frosted glass lenses.
• All-metal mechanical components.
• Adjustable interpupillary distance.
• Durable cast alloy body with stain-resistant enamel finish.
• Manufactured under ISO 9001 quality control standards.

• Specifications
• In the Box
• Required Items
• Optional Items

• Ref	IN300TC	IN300TC-FL	IN300TC-FL-5MF	IN300TC-FL-MF603	IN300TC-FL-MF

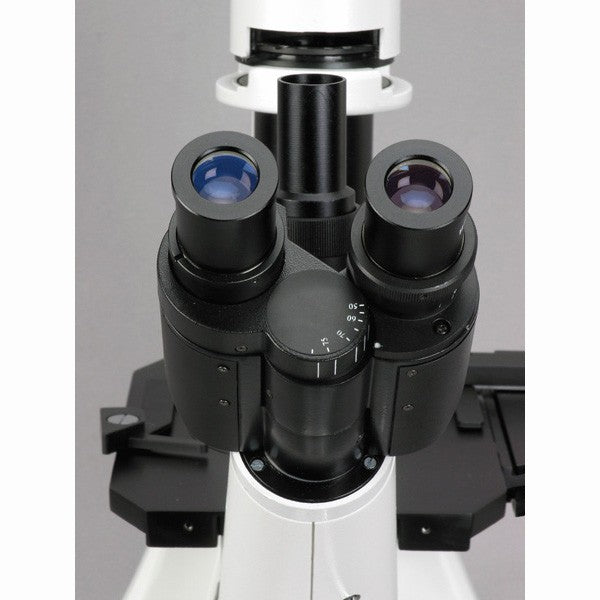

  Head	Compensation-free trinocular head inclined at 45°
  Eyepiece	WH10X / 20 mm and WH25X / 9 mm, super wide field	WH10X / 22 mm and WH25X ultra-wide field		WH10X / 20 mm and WH25X / 9 mm, super wide field	WH10X / 20 mm and WH25X ultra-wide field

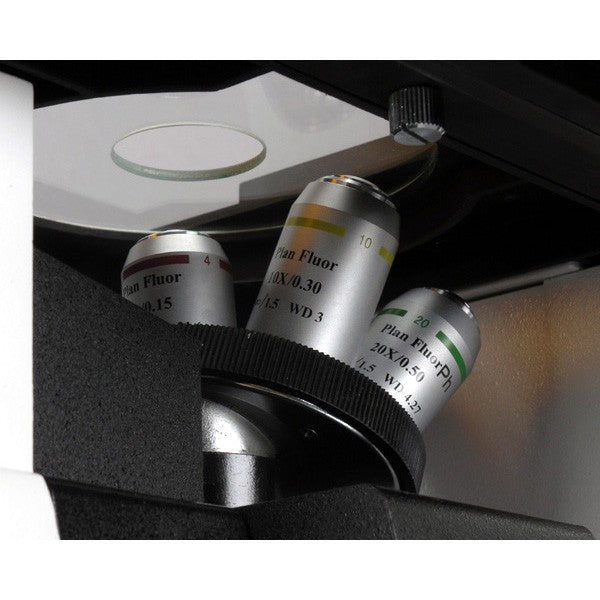

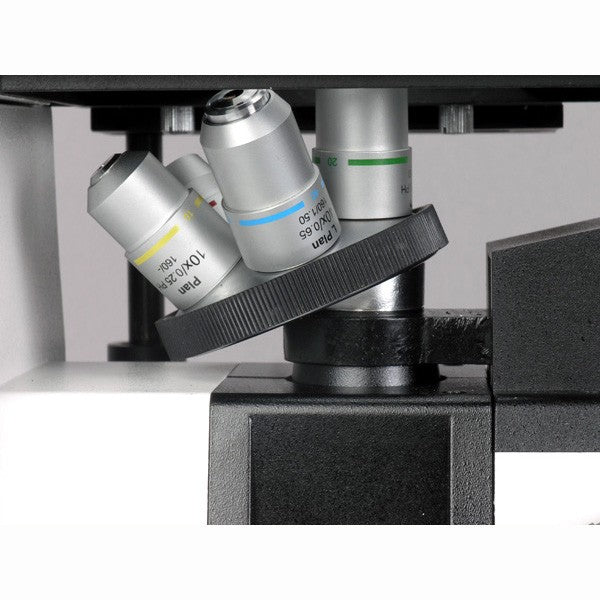

  Objective	Long working distance Plan Objective (LWDPL), 4X / 0.1 WD .25 mm, 40X / 0.6 WD 3.8 mm Long working distance objective, LWDPL 20X Long working distance Plan Objective, LWDPL10X / 0.25 phase contrast WD .11 mm, LWDPL20X / 0.4 phase contrast WD .6 mm Interpupillary distance: (50 mm-75 mm)	Long working distance achromatic plan 4X, 10X (phase contrast), 20X (phase contrast), and 40X (s)

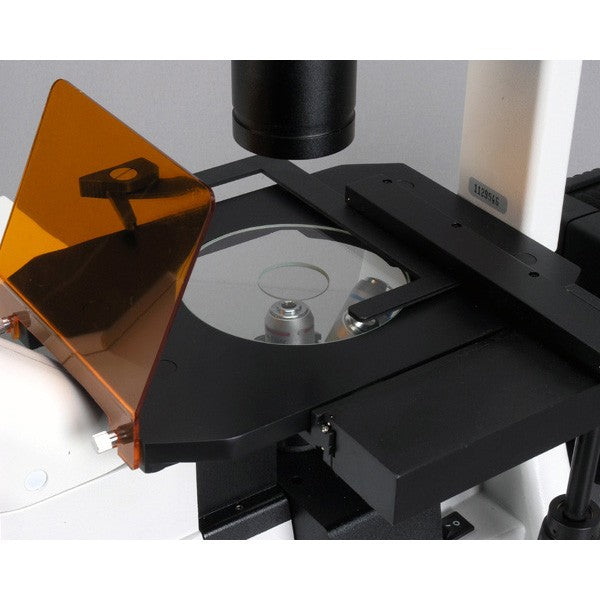

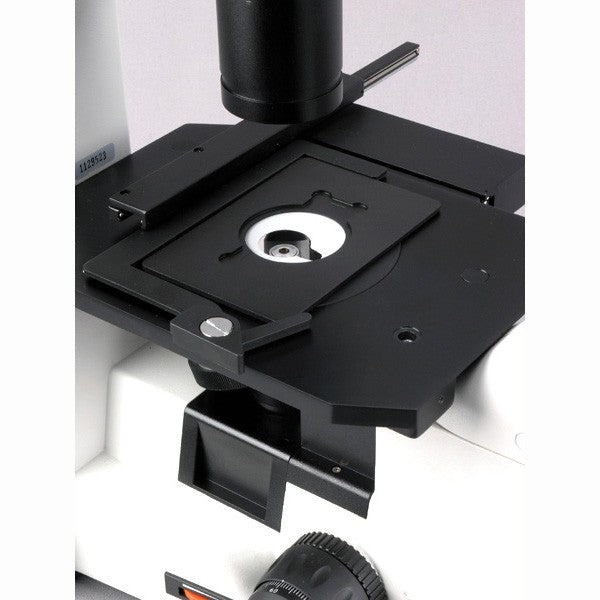

  Mechanical Stage	Two-layer, (242x172 mm), travel range: (115x75 mm)
  Central Stage	(110 mm) diameter
  Condenser	NA 0.3 Abbe with iris diaphragm, working distance: (75 mm)
  Focusing	Coaxial coarse and fine focusing system with tension control; fine focus scale value (0.002 mm)
  Phase Contrast Slider	Adjustable center phase contrast ring plate	N/A
  Centering Telescope	Included	N/A
  Filter	Blue, green, yellow, and frosted glass.	N/A
  Interpupillary Distance	N/A	(50-75mm)
  Transmitted Illumination	N/A	12V / 30W halogen bulb, adjustable brightness

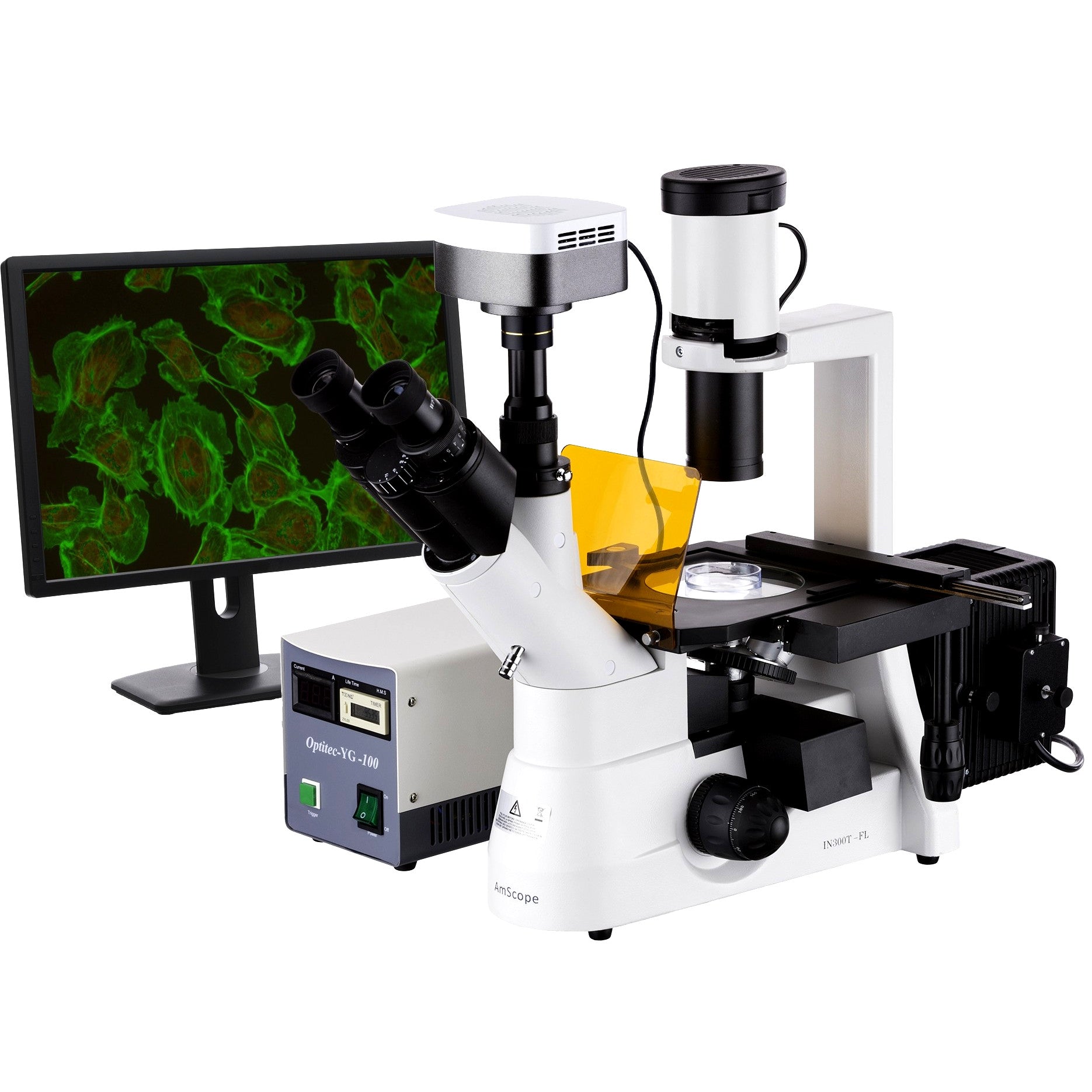

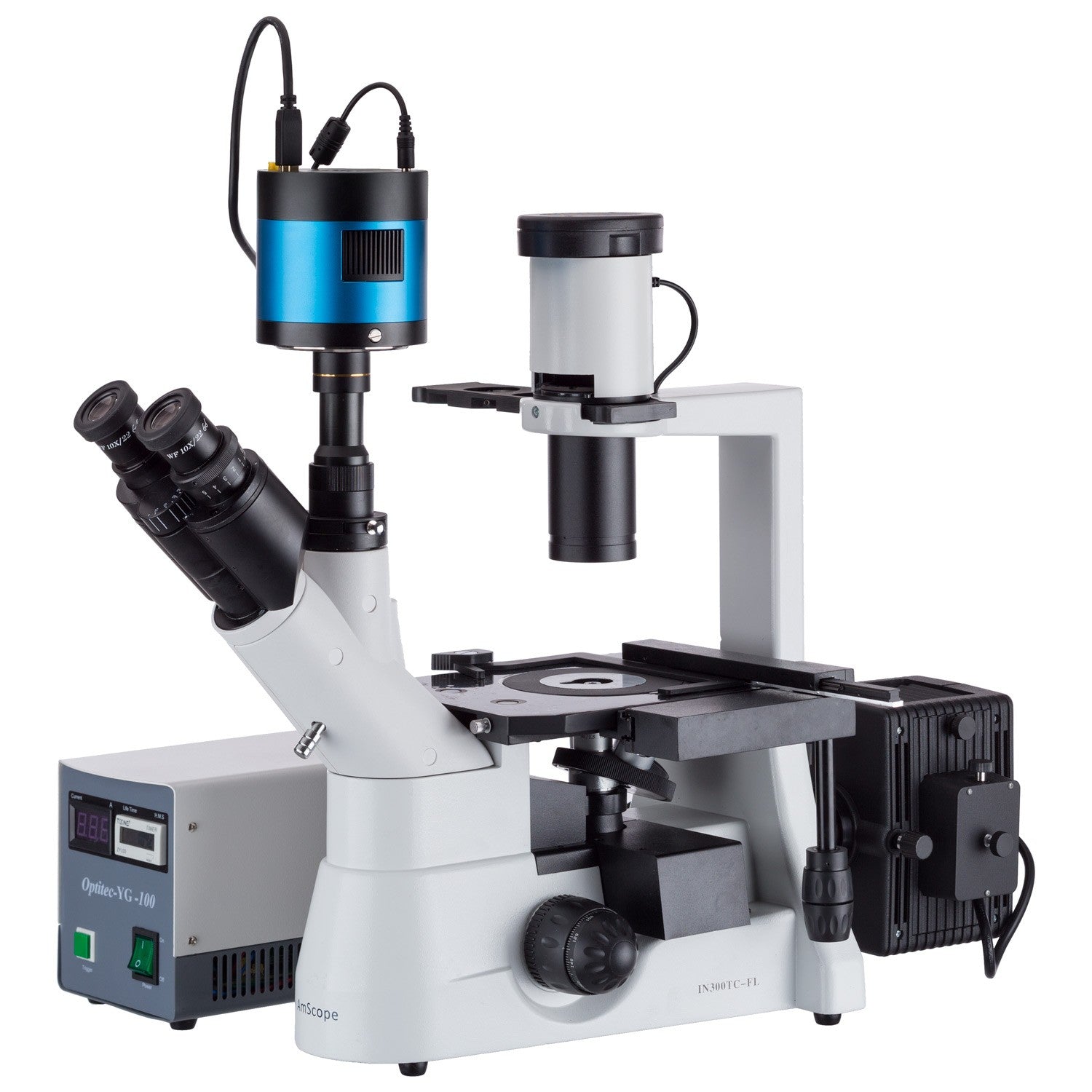

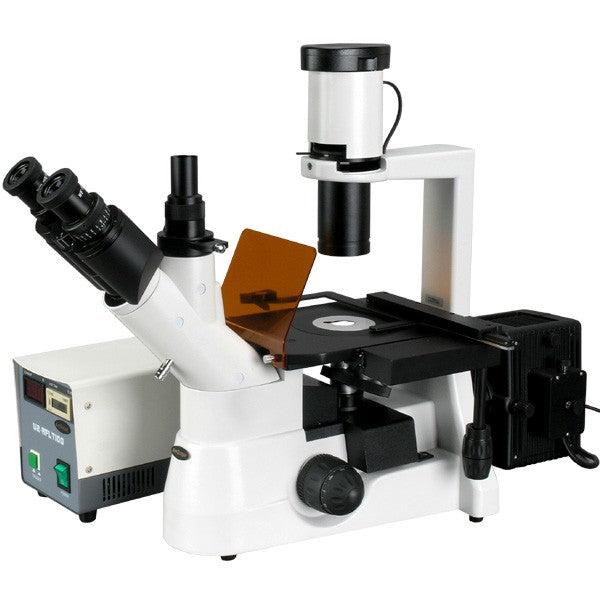

  Epi-Fluorescence Illumination	N/A	100W ultra-high-pressure mercury; constant mercury lamp power with digital display
  Power Supply	N/A	110V / 60Hz




  Ref	IN300TC-3M	IN300TC-M	IN300TC-5MA	IN300TC-10MA	IN300TC-10M	IN300TC-8M
  Head	Trinocular head, compensation-free, 45° inclined
  Eyepiece	WH10X / 20 mm and WH25X extra-wide field
  Objective	Long working distance plan (LWDPL), 4X / 0.1 WD 25 mm, 10X / 0.25 Phase contrast WD 11 mm, LWDPL20X, 20X / 0.4 Phase contrast WD 6 mm, and 40X / 0.6 WD 3.8 mm
  Mechanical Stage	Two-layer, size: 9.53" (242x172 mm), travel range: (115x75 mm)
  Central Stage	(110 mm) diameter
  Condenser	NA 0.3 Abbe with iris diaphragm, working distance: (75 mm)
  Focusing	Coaxial coarse and fine focusing system with tension control; fine focus scale value (0.002 mm)
  Phase Contrast Slider	Adjustable phase contrast centering ring plate
  Centering Telescope	Included
  Filter	Blue, green, yellow, and frosted glass
  Interpupillary Distance	N/A	(50-75 mm)
  Illumination	12V / 30W halogen bulb
  Power Supply	110V / 60Hz
  Interpupillary Distance	(50 mm-75 mm)

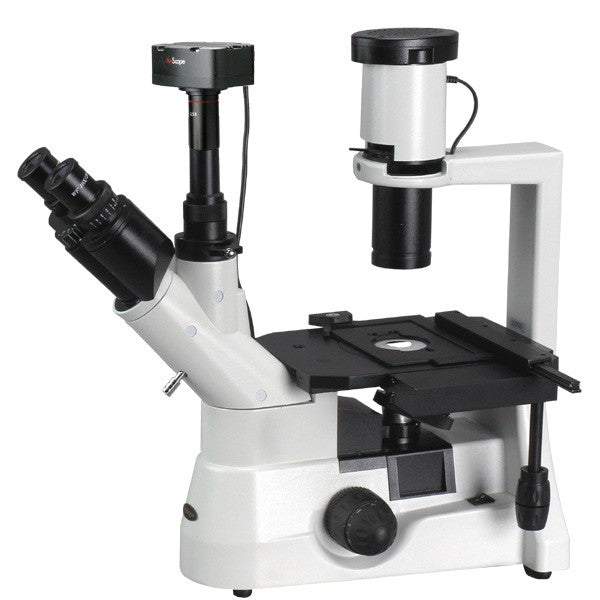

  Camera Features	1.3MP Camera	3MP Camera	5MP Camera	Fluorescence Camera	Low Light CCD Camera	8MP Camera	10MP Camera
  Image Sensor	Aptina MT9T001		Sony Color CCD, model ICX282AQ	Sony IMX035 (color)		Aptina	Aptina MT9J003
  Sensor Type	CMOS		Sony Color CCD, model ICX282AQ	CCD		CMOS
  CCD Scanning Mode	N/A		Interline	N/A
  Sensor Size	4.6x3.7 mm	6.55x4.92 mm	130 x 111 x 54 mm	8.4 mm	14.6 x 12.8 mm	5.45x4.09 mm	6.44x4.616 mm
  Pixel Size	3.6	3.2	3.4 microns x 3.4 microns	3.63µm	4.54	1.67
  Resolution	1.3MP		2580 (H) x 1944 (V) pixels		6.0MP	8.0MP	10.0MP
  G Sensitivity	N/A		280mV		N/A
  Filter	N/A		RGB Bayer Pattern	N/A
  Port	N/A		Standard C-Mount	N/A
  Low-Speed Reading	N/A		Yes	N/A
  A/D Conversion	N/A		12 bits	N/A
  Peltier Cooling	N/A		-30°C below ambient temperature	N/A
  Power Supply	N/A		External 3.5V	N/A
  Exposure Control	N/A		Automatic / Manual	N/A
  Exposure Time	N/A		0.1 - 60 minutes	N/A
  Angle Light Control	N/A		Yes	N/A
  Frame Rate	15 @ 1280x1024, 26 @ 640x512, 50 @ 320x256	8 @ 2048x1536, 22 @ 1024x768, 43 @ 680x510	3 fps @ 2580x1944 pixels; 10 fps @ 1280x932 pixels	25 fps @ 664x512, 13.5 fps @ 1280x1038	7.5 fps @ 2748x2200, 14 fps @ 2748x1092	1.9 @ 3264x2448, 8 @ 1600x1200, 27 @ 800x600
  Sensitivity	1.0V / lux-sec		N/A		1 / 30s	0.31 V / lux-sec
  Compatibility	Windows (32/64 bit) XP / Vista / 7/8/10, Mac OSX, Linux

• • Compensation-free trinocular head (1)
  • Inverted microscope body frame with illumination (1)
  • Long working distance plan objectives: 4X, 10X, 20X, and 40X (4)
  • PLAN WH10X eyepieces (2)
  • PLAN WH25X eyepieces (2)
  • Top Light House (1)
  • 30-watt halogen bulb (1)
  • Dust cover (1)
  • Color filters
  • Power cable (1)
  • User manual download (1)
• • None
• • Cleaning Kit
  • Additional objectives with higher or lower magnification
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (dark field, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stage
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, coverslips, tools)
  • Additional or enhanced lighting (LED, halogen, fluorescent)
  • High-quality immersion oils
  • Rigid transport cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized user guides
