Amscope

Amscope 40X-2500X Compound Binocular Microscope 3D 5.0MP USB Camera

$ 405.50 USD

Ver todos os detalhes do produto »

Amscope / 40X-2500X Binocular Compound Microscope 1.3MP Camera

Request Quote

1MP USB Camera Compound Binocular Microscope

Discover the ideal microscope for your educational and professional needs. The 1MP USB Camera Compound Binocular Microscope is designed to teach demonstrations, clinical examinations, and laboratory applications. Perfect for a wide range of individuals, from professionals and high school students to teachers and those with a degree in biology or enrolled in medical school.

The 1MP USB Camera Compound Binocular Microscope is designed to teach demonstrations, clinical examinations, and laboratory applications. It is a perfect microscope for a wide range of people, from professionals and high school students to teachers and those with a degree in biology or enrolled in medical school. It comes with a professional Siedentopf binocular head, double-layer stage, coarse and fine focus, LED illumination, and a 1.3 MP USB digital camera. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X, and 2500X. The digital camera captures still images and videos, and allows you to view a live stream on your PC. The included software for Windows offers image development and measurement tools, as well as features such as image stitching and depth of focus. Independent preview and high-speed video capture resolutions let you view while capturing high-definition images. On Mac computers, the camera can be used as a driver-free imaging device, compatible with several applications such as Proscope and Photo Booth. This microscope is an ideal instrument for biological, bacterial, and pharmaceutical research.

Highlighted Features

• Five wide field magnification settings: 40X, 100X, 250X, 400X, 1000X, and 2500X.
• Professional 30-degree inclined Siedentopf binocular head, 360-degree rotatable.
• Sturdy 3D frame with double-layer mechanical stage, coarse and fine coaxial focus, Abbe condenser, iris diaphragm, and color filter.
• Powerful single LED illumination with dimmer.
• 1MP camera comes with user-friendly editing and processing software for Windows, offering advanced features such as stitching, EDF, and measurement, compatible with Windows XP, Vista, 7, 8, and 10.

† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals

• Specifications
• In the Box
• Required Items
• Optional Items

• Features
  Head Type	Binocular
  Camera Connection Type	Mini-USB
  Illumination Style	Transmitted (bottom)
  Magnification Power Setting	40X-2500X
  Manufacturer	AmScope
  Microscope Application	High school, college, teaching/training
  Microscope Camera Pixel	1MP
  Microscope Category	Compound
  Microscope Color	White
  Microscope Condenser Design	Rack and pinion Abbe with diaphragm
  Microscope Condenser Optics	NA 1.25
  Microscope Condenser Type	Brightfield
  Microscope Eyepiece Power	10X, 25X
  Microscope Eyepiece Size	23mm
  Microscope Field View	Wide field
  Microscope Head Style	Binocular
  Microscope Iris	with Iris
  Microscope Light Power	1W
  Microscope Light Shape	Built-in
  Microscope Light Type	LED
  Microscope Magnification Power	40X to 2500X
  Microscope Number of Bulbs	1
  Microscope Objective Power	4X, 10X, 40X, 100X
  Microscope Objective Size	20mm
  Microscope Optics	Achromatic
  Microscope Power Supply	Broadband
  Microscope Sensor	CMOS
  Microscope Stage	Double layer mechanical stage
  Optics	Achromatic
  Support 65

• • Compound Binocular Microscope (1)
  • Microscope body frame with double layer mechanical stage and LED illumination (1)
  • Four standard DIN objectives, 4X, 10X, 40X, and 100X (4)

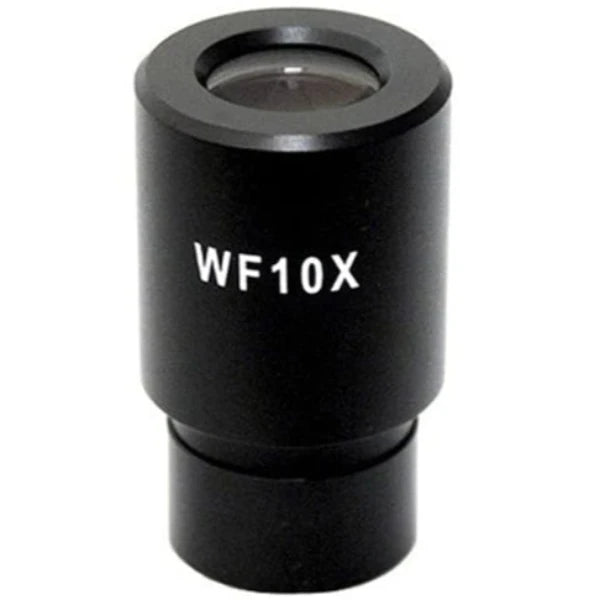

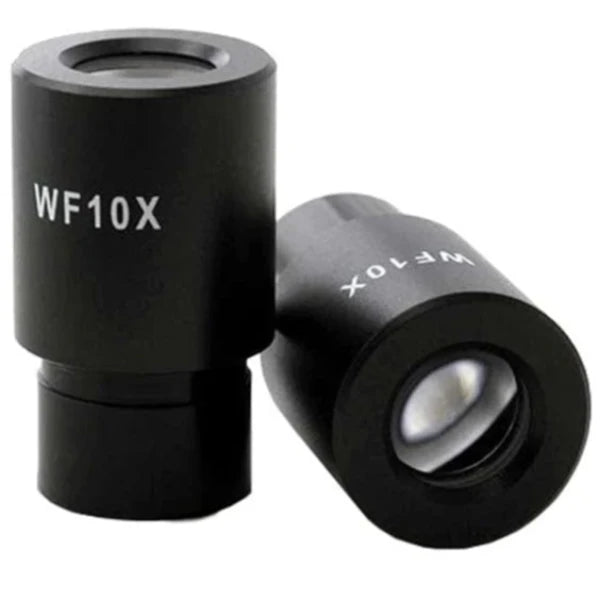

  • Widefield 10X eyepieces (2)
  • Widefield 25X eyepieces (2)
  • Blue color filter (1)
  • Dust cover (1)
  • Sample of immersion oil (1)
  • User manual download (1)
  • 1MP USB2.0 digital camera (1)
  • 1.5m USB cable (1)
• • Batteries
• • Cleaning kit

Ver todos os detalhes do produto »

Amscope 10X-200X 0.3MP USB Digital Microscope with LED Illumination and Stand

Request Quote

Ver todos os detalhes do produto »

Amscope 20X-40X-80X Stereo Microscopes with USB Camera and Inverted Head

Request Quote

Ver todos os detalhes do produto »

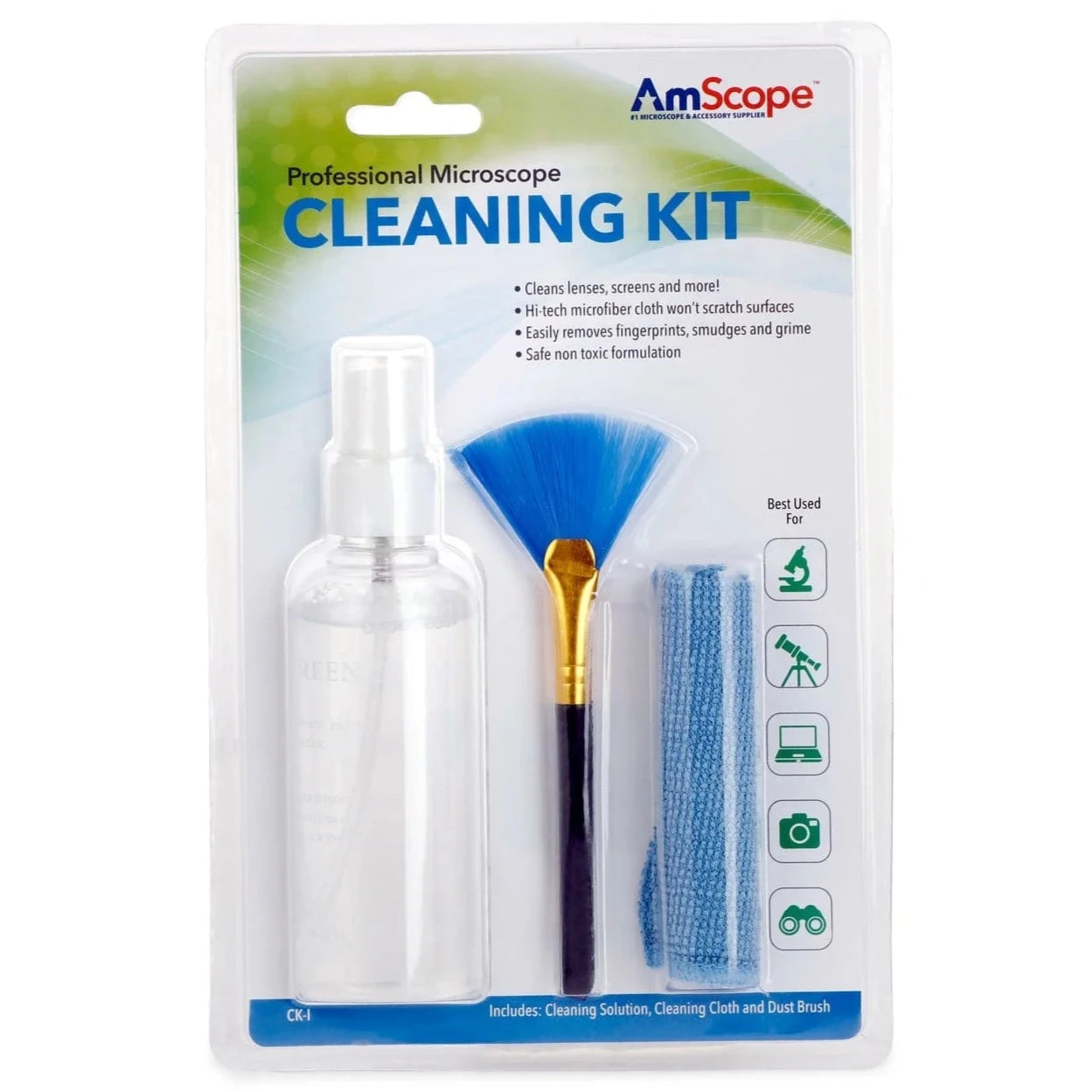

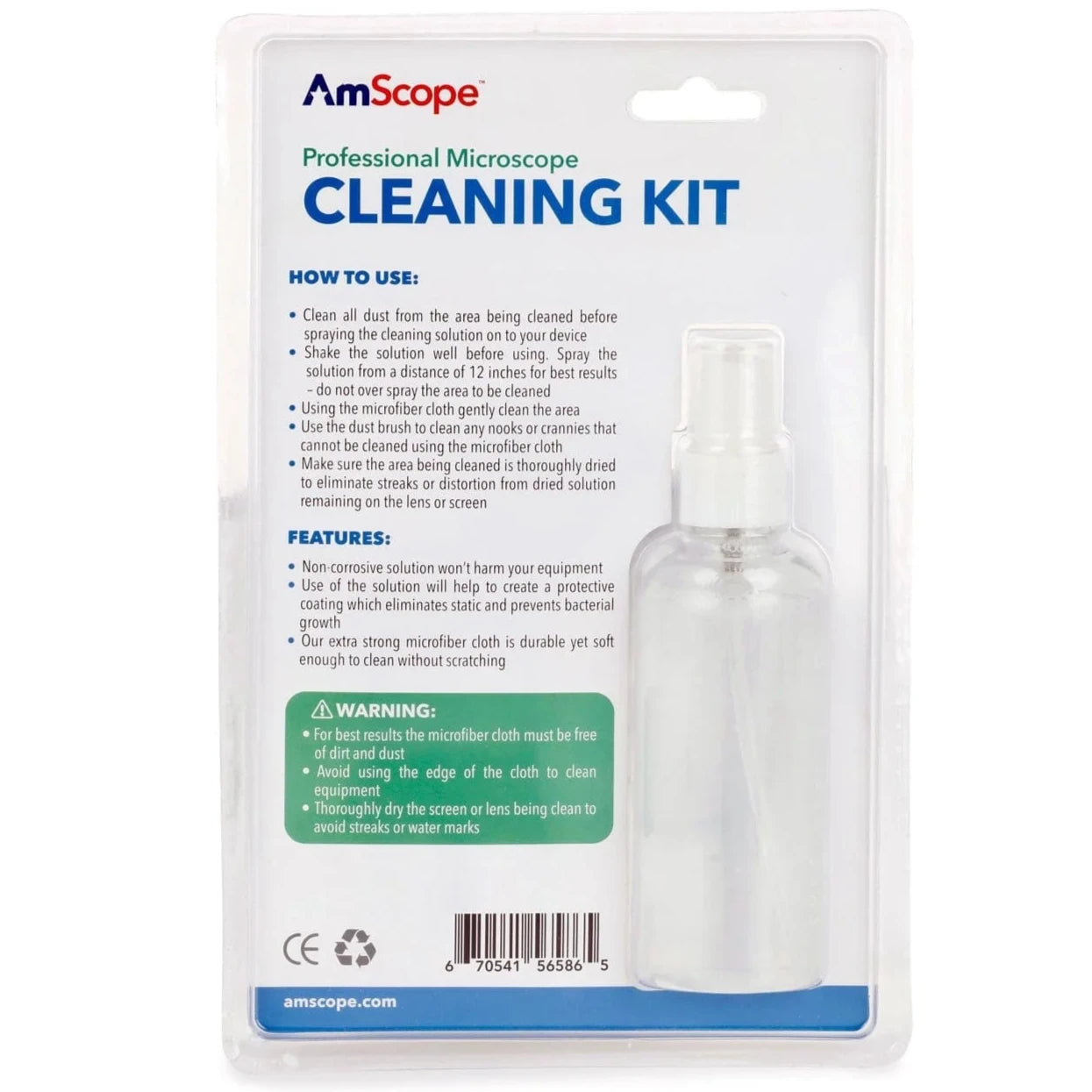

Amscope 3 in 1 Professional Cleaning Kit for Microscopes

Request Quote

This professional cleaning kit cleans messy fingerprints, dirt and dust, stains etc. The non-aerosol cleaner is safe for using on optical lens of microscope, DC DV lens of professional cameras, iPhone, iPad, laptop screens, LCD screens, plasma TV, VCD, DVD, CD etc. The cleaning kit includes a bottle of liquid, a piece of cleaning cloth and a brush for cleaning corners and sidings of the screen.

Features

• Professional cleaning kit for microscopes, cameras, iPhone, iPad, laptops, LCD screens, ...
• Safe for optical lenses of microscopes and cameras.
• Non-aerosol cleaner removes fingerprints, dirt, dust, stains etc.
• Strong absorb dirty water, no flock dropping off from the wiper
• A ceaning brush and a piece of cleaning cloth are included.

California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals

• Specifications
• In the Box
• Required Items
• Optional Items

• • Características
    Brush Length:	5-1/2" (13.5cm)
    Liquid Cleaning:	100 ml
    Cleaning Cloth:	5-7/8" x 6-3/4" (15 x 17cm)
    Material:	rubber, plastic, nylon
    Prop 65

• • Kit
  • (1) Cleaning cloth
  • (1) Liquid cleaning
  • (1) Brush
• • None
• • Microscopes
  • Cameras

EO20231203

Ver todos os detalhes do produto »

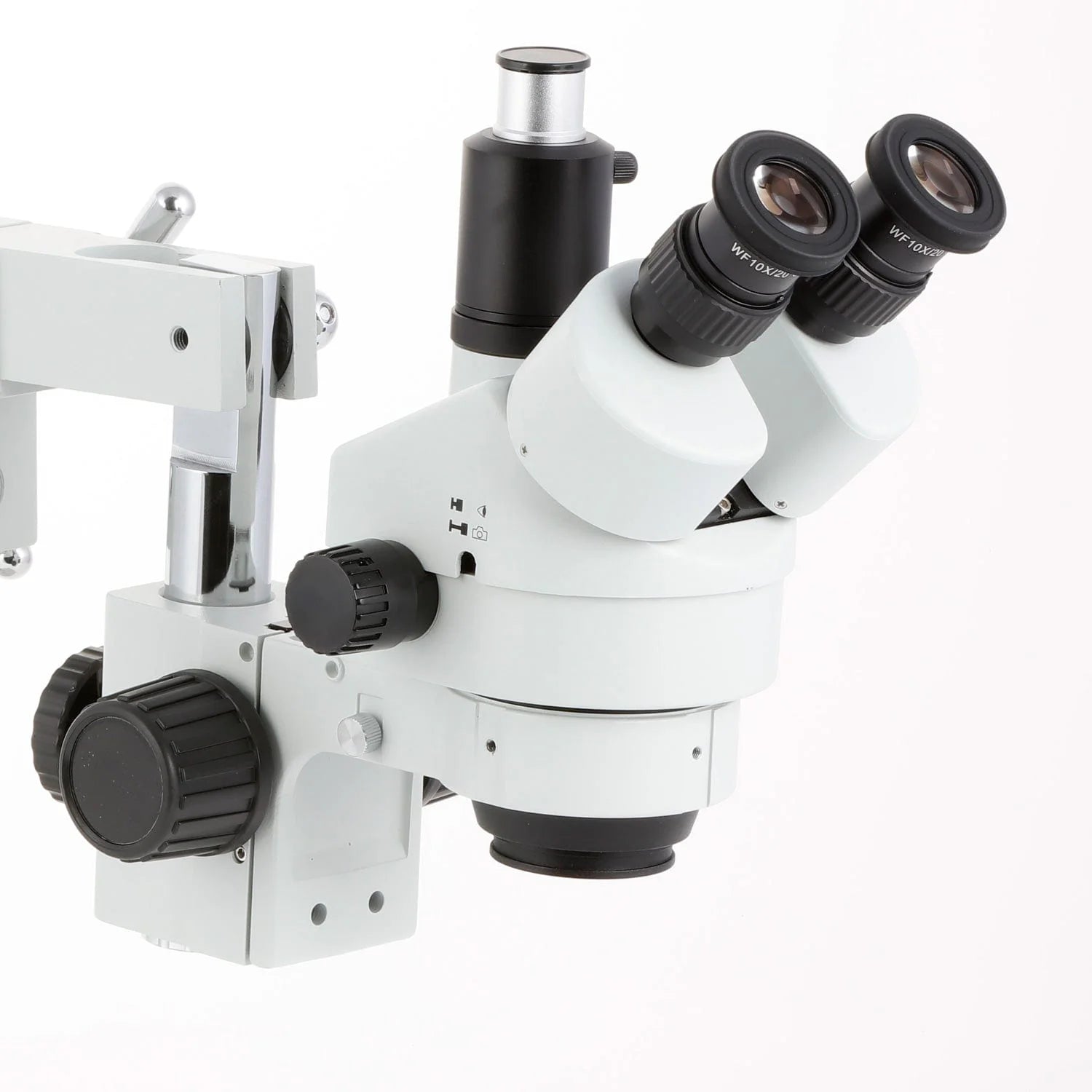

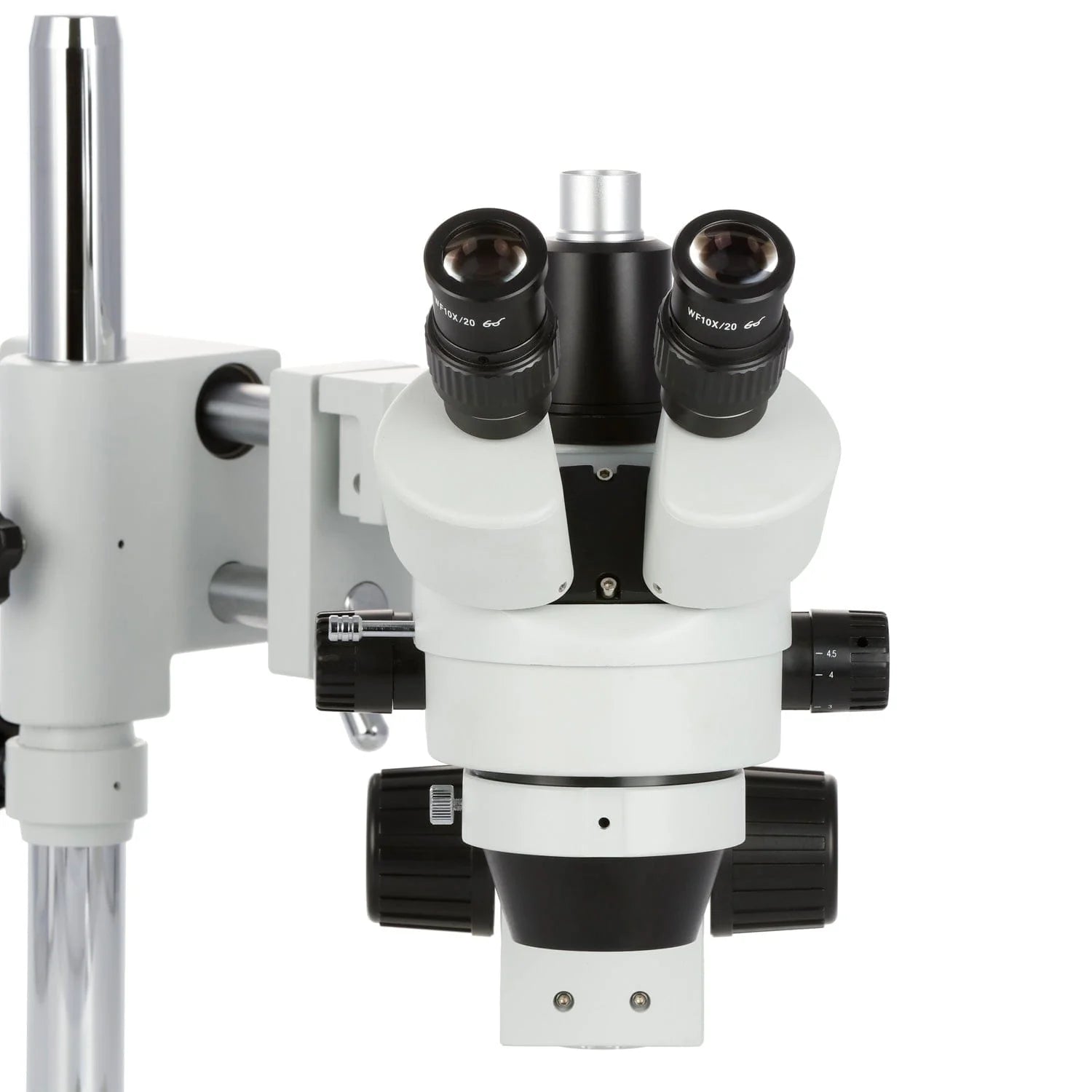

Amscope 3.5X-180X 144 LED Stereo Microscope with 10MP Camera

Request Quote

This is a trinocular stereo microscope with a compact 144 LED ring light and a 10MP USB digital camera. The microscope has a super-wide field optical system that provides a very large zoom magnification power (52:1) offering a long working distance (8", 200mm). The trinocular port uses the third port for camera capabilities or for a third person to also view, allowing you to use the remaining two ports to view your sample. The 144 LED ring light features a compact design with a built-in dimmer, providing cool, uniform, and bright LED illumination.

The digital camera captures still images and videos, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a cross-platform imaging solution. The included Windows software provides measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. Independent capture and preview resolutions let you view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in the electronics and semiconductor industries. It is also the right microscope for biological lab applications requiring low heat emission.

Key Features

• A perfect LED stereo inspection microscope with a 10MP color digital camera.
• Variable, cool, uniform, and bright 144 LED ring light illumination.
• Super wide zoom magnification power of 3.5X-180X.
• Extremely large working distance of 8" (200mm).
• High resolution with great flatness and contrast, providing sharp and clear images.
• Trinocular head with 360-degree rotating eyepiece tubes inclined at 45 degrees.

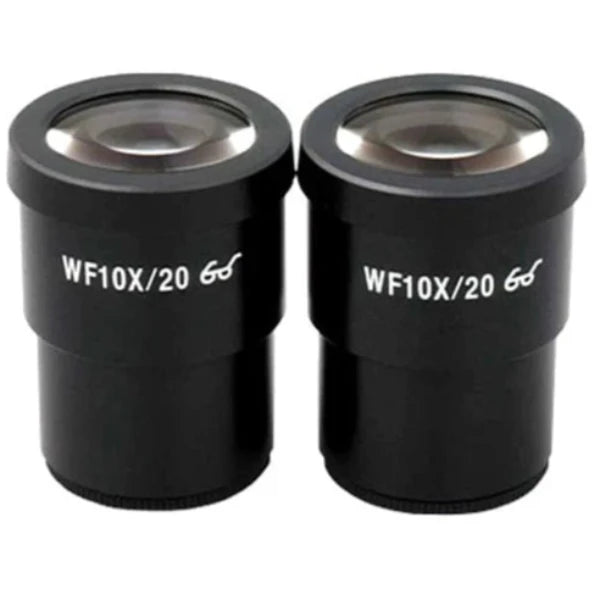

• 30mm SUPER widefield high-eyepoint eyepieces with a 20mm field of view.
• Stereo erect images with a wide field of view.
• True-color, crystal-clear, and original microscope images.
• Dual eye tubes with adjustable diopters.
• Contemporary table stand.
• Precise alignment reduces eye strain during longer viewing periods.
• Full optical glass elements.
• Precision-ground glass lenses.
• Fully chromed all-metal mechanical components.
• Adjustable interpupillary distance.
• Includes rubber eye guards.
• Manufactured under ISO 9001 quality control standard.

• Specifications
• In the Box

• Specifications
  Camera Pixels	10 megapixels
  Microscope Type	Stereo
  Application	Industrial inspection, gemology/jewelry, coin/stamp, engraving, dissection, dental lab, mineralogy
  Magnification Power	3.5X-180X
  Field of View	Extremely wide field
  Head Type	Trinocular
  Objective Power	0.7-4.5X
  Eyepiece Power	10X, 20X
  Eyepiece Size	30 mm
  Camera Sensor	CMOS
  Reduction Lens	0.5X
  Microscope Stand	Table stand: 254 x 200 x 275 mm
  Lighting Configuration	Incident (above)
  Light Type	LED
  Illumination	Ring
  Number of Bulbs	144
  Barlow Lens	0.5X, 2.0X
  Power Supply	Broadband
  Education	University, Teaching/Training
  Interpupillary Distance	55-75 mm
  Working Distance	200 mm
  Frame Rate	1.9@3584x2748 , 8 @ 1792x1374 , 27 @ 896x684
  Compatibility	Windows (32/64 bit) XP / Vista / 7/8/10, Mac OSX, Linux
  Software Specifications	Operating System Requirements: Windows (32/64 bit) XP / Vista / 7/8/10, Mac OS 10.8+, Linux kernel 3.13+. Hardware Requirements: Intel Core2 2.8GHz processor or comparable, 2GB RAM, USB2.0 port.

• • Trinocular stereo zoom head (1)

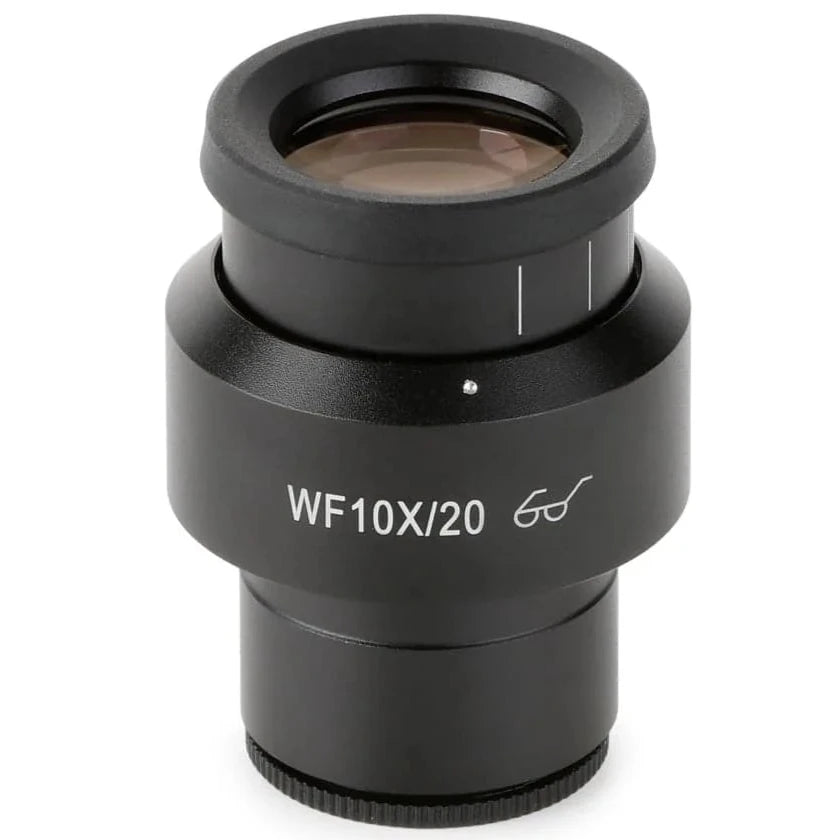

  • 10x eyepieces (2)

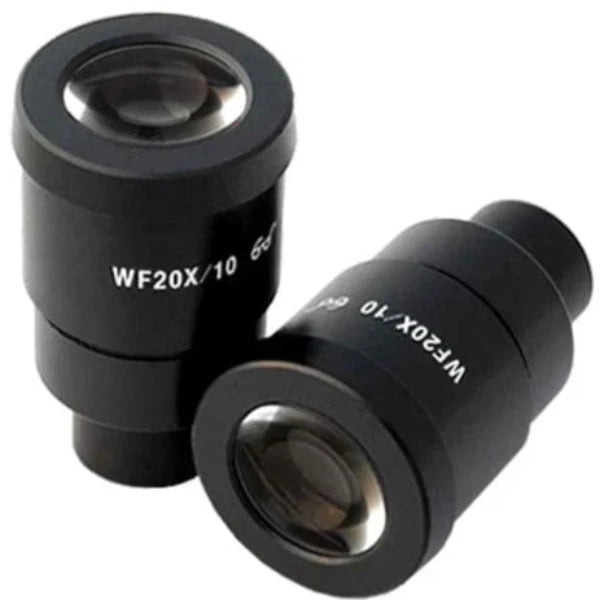

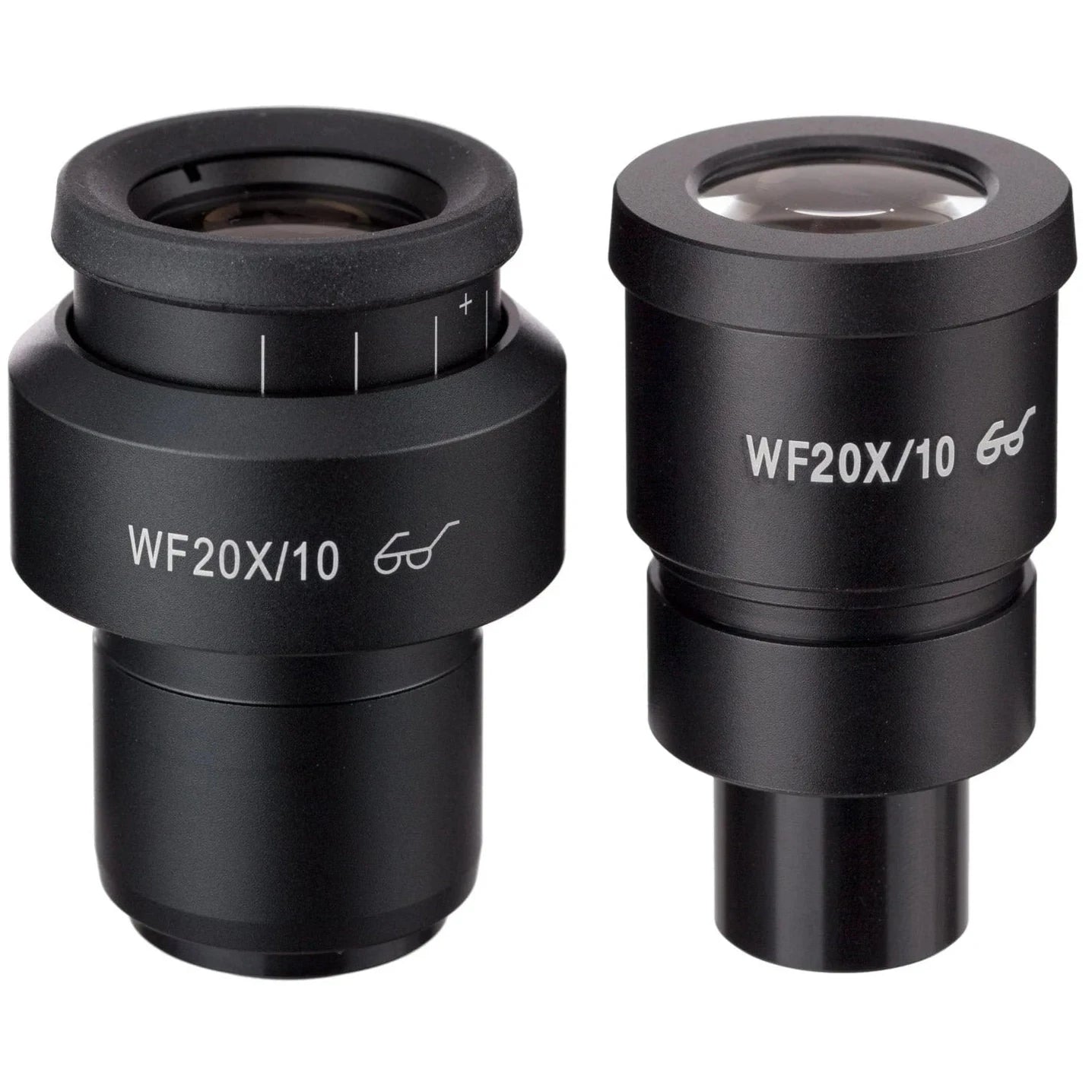

  • 20x eyepieces (2)
  • 0.5x Barlow lens (1)
  • 2.0x Barlow lens (1)
  • 144 LED compact ring light (1)
  • Pillar table stand (1)
  • Focusing rack (1)
  • Round plastic stage plate (1)
  • Eye guards (2)
  • Clips (2)
  • Dust cover (1)
  • User manual download (1)
  • 10MP USB2.0 digital camera with reduction lens (1)
  • 1.8m USB cable (1)
  • CD with software, driver, and user instructions (1)

EO20230505

Ver todos os detalhes do produto »

Amscope 3.5x-90x Trinocular Microscope with 1.3MP Camera

Request Quote

Ver todos os detalhes do produto »

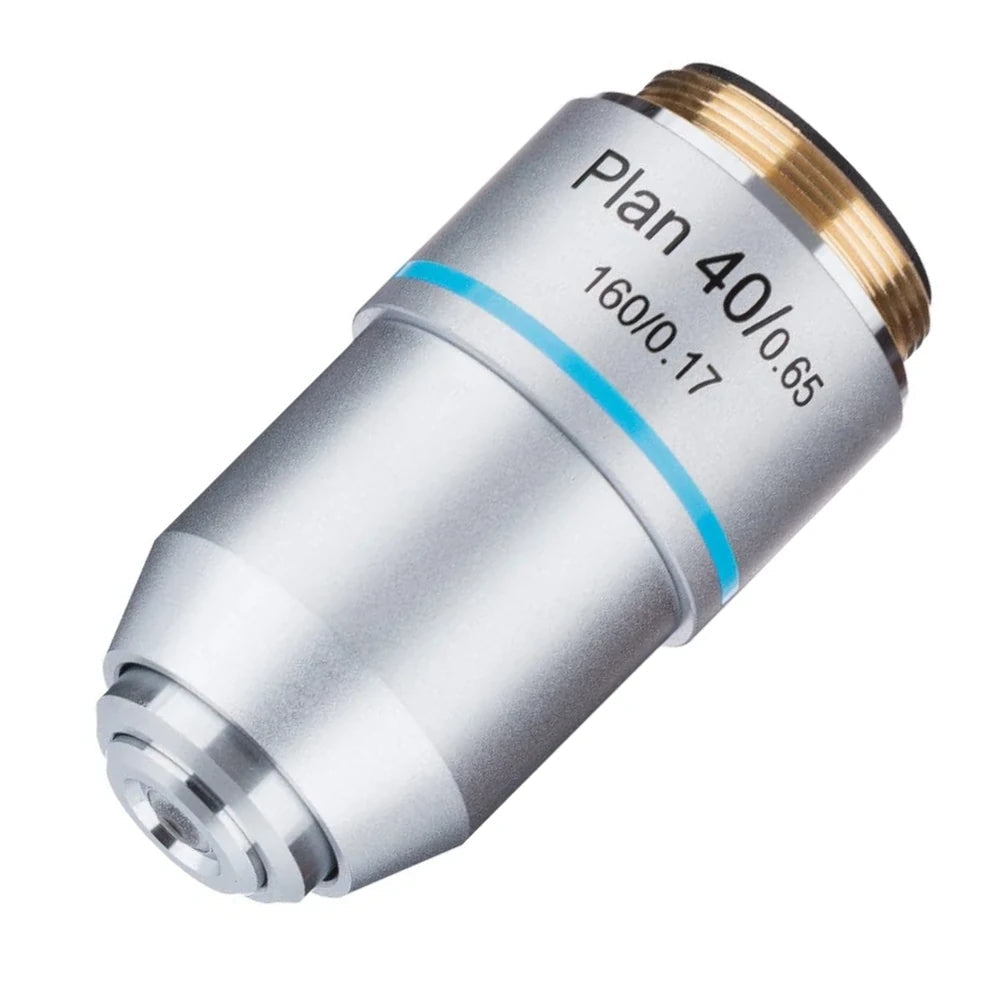

Amscope 40X Achromatic Objective for Compound Microscopes

Request Quote

This is a new high-quality 40X Plan achromatic microscope objective lens. It is an international DIN/JIS lens. It fits common-sized biological/compound microscopes (DIN/JIS standard). Enhance your microscope with greater power and clarity at a fraction of the cost.

† California Proposition 65 WARNING: Cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov/chemicals.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Features
    Magnification Power	Objective-40X
    Manufacturer	AmScope
    Mounting Size	Objective-20mm
    Objective Iris	No iris
    Objective Mounting Size	20 mm
    Objective Optics	Plan
    Objective Power	40X
    Objective Type	Compound, brightfield, darkfield
    Optics	Plan
    Proposition 65
    Special Feature	Objective-No Iris
    Type	Objective-brightfield, objective-darkfield

• • Achromatic 40X Objective (1)
• • None
• • None

EO 20230822

Ver todos os detalhes do produto »

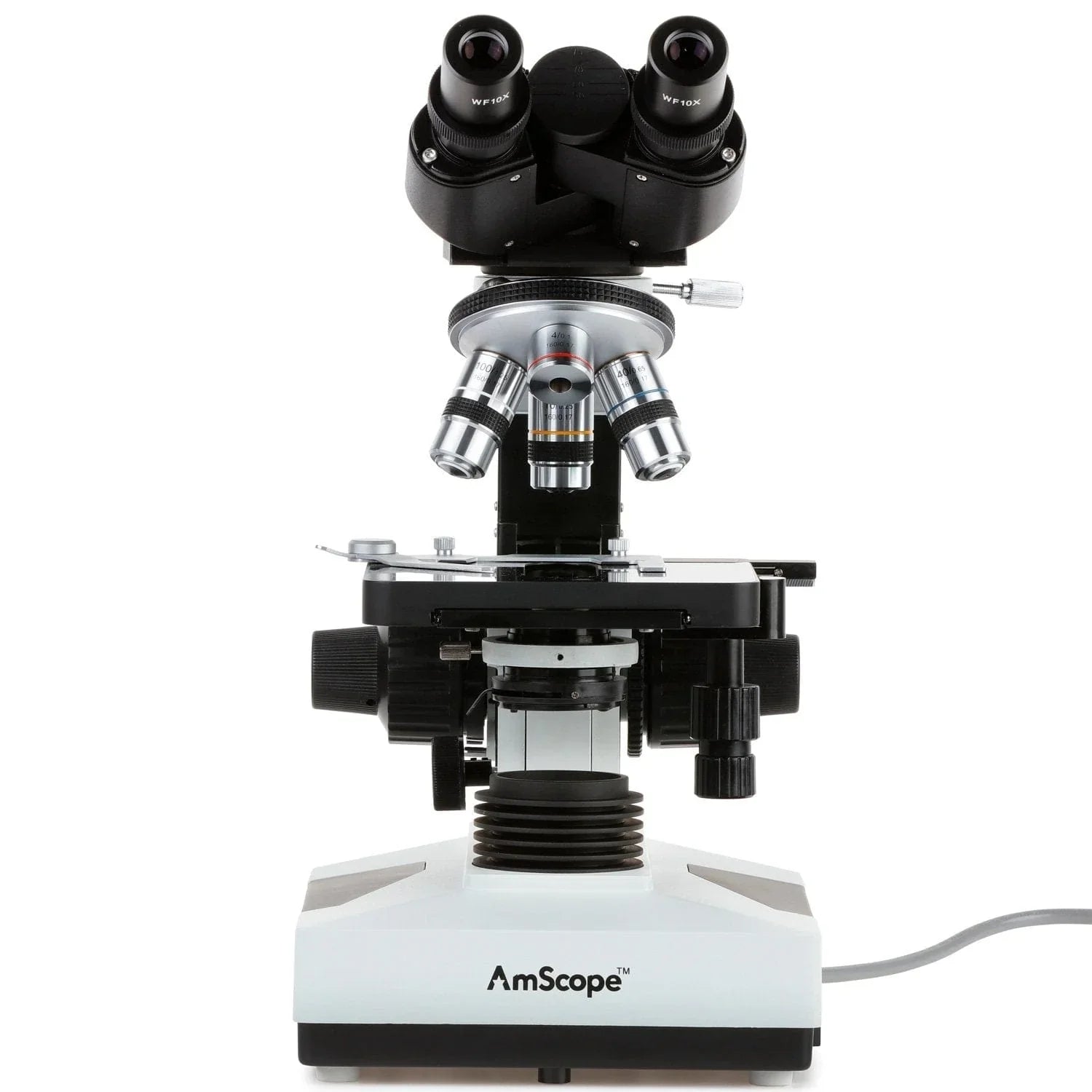

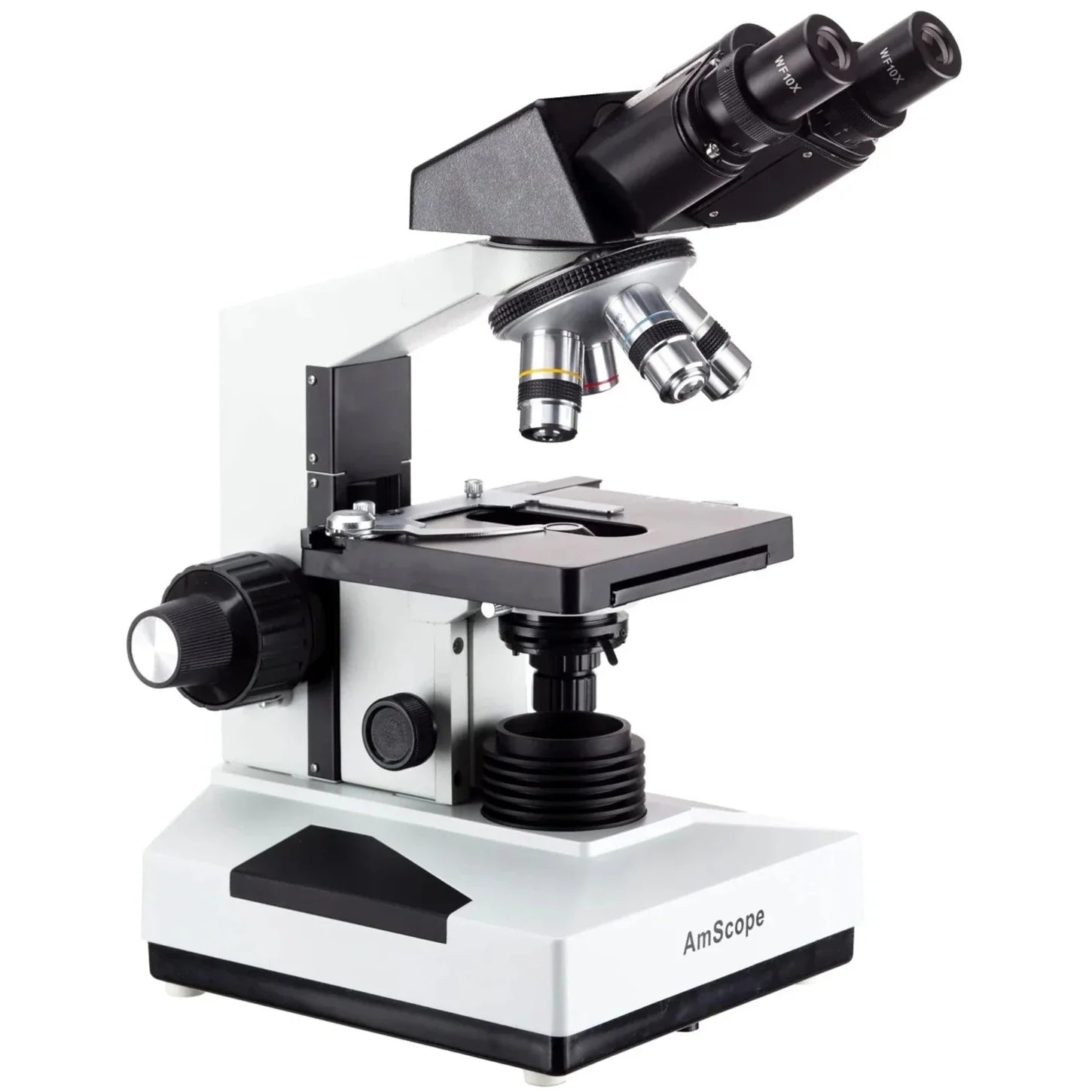

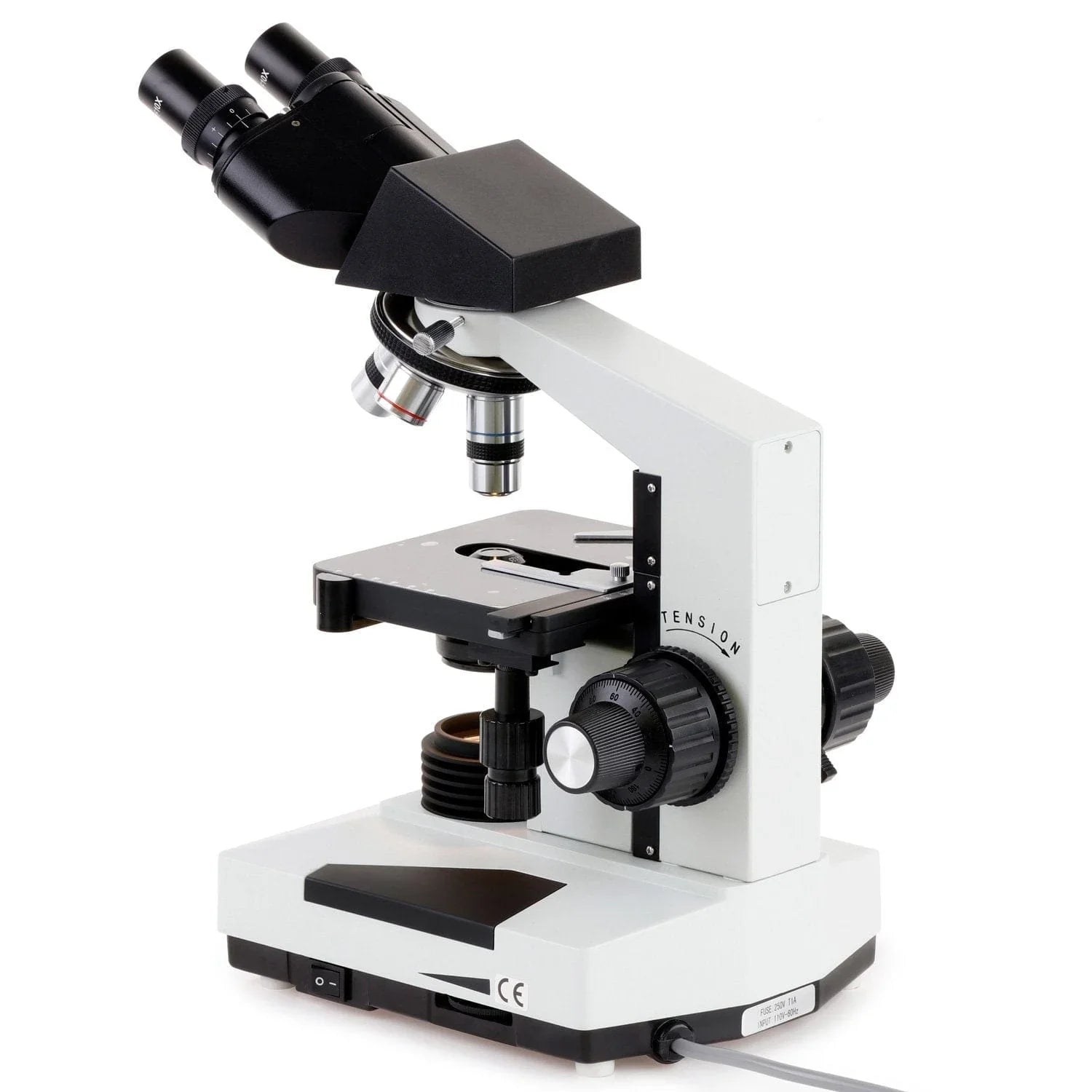

AmScope 40X to 2500X Binocular Compound Microscope

Request Quote

The B490 model is a reliable and versatile microscope, ideal for veterinarians, breeders, and clinical laboratories. Designed to deliver superior optical quality and ease of use, it features advanced functions such as a compensation-free Siedentopf head, a precise focusing system with tension adjustment and vertical lock, and a double-layer mechanical stage for smooth and precise movements. This instrument can be customized for different needs with a wide variety of accessories and lenses, offering magnifications ranging from 40X to 2600X (depending on the version).

Features

• Reliability and Optical Quality: A dependable instrument designed for veterinarians, clinics, and laboratories, with high-precision optics.
• Siedentopf Head: Binocular head inclined at 30° with compensation-free interpupillary adjustment and 360° rotation, ideal for ergonomic comfort.
• Wide Magnification Range: Offers magnifications from 40X to 1000X, expandable to 2500X with 25X eyepieces for detailed analysis of cells, bacteria, and tissues.
• High-Quality Objective Lenses: DIN achromatic objectives with color correction and resolution, including 4X, 10X, 40X, and 100X (oil immersion).
• Precision Focusing System: Coaxial coarse and fine focus knobs with tension control and upper limit stop.
• Double-Layer Mechanical Stage: Smooth and precise movement for sample analysis, with easily accessible controls.
• High-Performance Halogen Illumination: Bright light with excellent color reproduction and reduced eye strain during prolonged use.
• Advanced Abbe Condenser: 1.25 numerical aperture with iris diaphragm and height adjustment via rack and pinion, optimizing contrast and depth of field.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Value
  Optical System	Finite conjugate
  Mechanical Tube Length	160mm
  Head	Binocular, 30° inclination, 360° rotation
  Interpupillary Adjustment	Siedentopf compensation-free
  Eyepiece Diameter	23mm
  Eyepieces	10X, 25X
  Objectives	Standard DIN
  Parfocal Objective Distance	45mm
  Objective Mounting Thread	RMS 20.32mm
  Nosepiece	Quadruple
  Focusing System	Coaxial coarse and fine focus, upper limit stop, tension control
  Focus Range	30mm
  Fine Focus Division	0.002mm
  Stage Design	Double-layer with calibrator
  Stage Dimensions	140mm x 140mm
  X-Y Translation Range	75mm x 45mm
  Transmitted Illumination	20W Halogen
  Condenser	Abbe condenser with iris diaphragm, NA1.25
  Condenser Holder	Rack and pinion
  Power Supply	110VAC 60Hz

  Magnification	Corrections	NA	Immersion Medium	Cover Glass Thickness
  4X	achromatic	0.10	—	0.17mm
  10X	achromatic	0.25	—	0.17mm
  40X	achromatic	0.65	—	0.17mm
  100X	achromatic	1.25	oil	0.17mm

• • One Binocular Head
  • One Microscope Body
  • Four Objective Lenses: 4X, 10X, 40X, 100X
  • One Pair of 10X Eyepieces
  • One Pair of 25X Eyepieces
  • One Power Cord (Standard for the U.S. and Canada)
  • One Dust Cover
  • Three Color Filters (Blue, Green, Yellow)
  • One Spare Halogen Bulb
  • One Spare Fuse
  • One Sample Bottle of Immersion Oil
• • None
• • Additional objectives with higher or lower magnifications
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (dark field, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stage
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, cover glasses, tools)
  • Additional or enhanced lighting (LED, hal ogen, fluorescent)
  • High-quality immersion oils
  • Hard carrying cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized user guides

Ver todos os detalhes do produto »

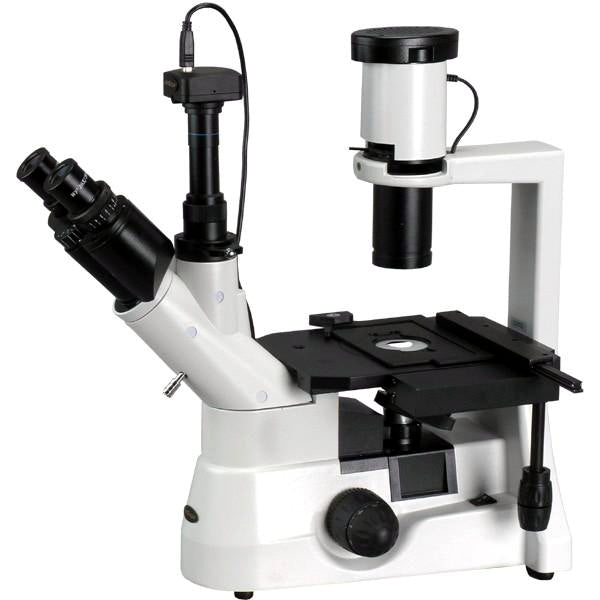

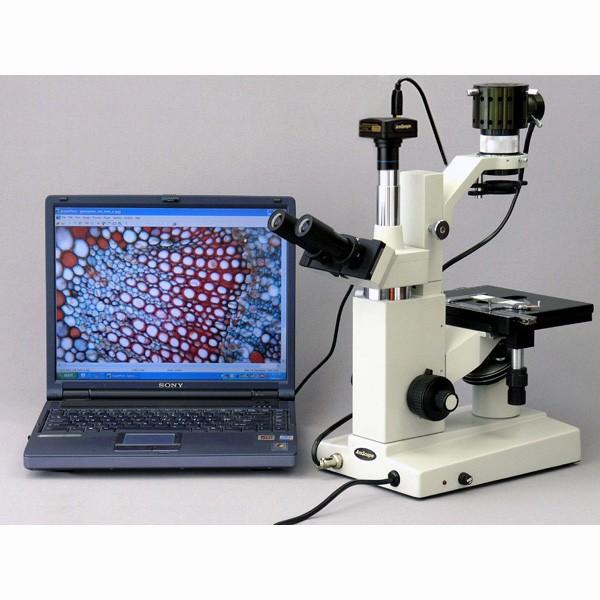

Amscope 40X to 640X Trinocular Inverted Biological Microscope + 1.3MP USB

Request Quote

Ver todos os detalhes do produto »

Amscope 40x-1000x Inverted Trinocular Microscope

Request Quote – Vendido

Ver todos os detalhes do produto »

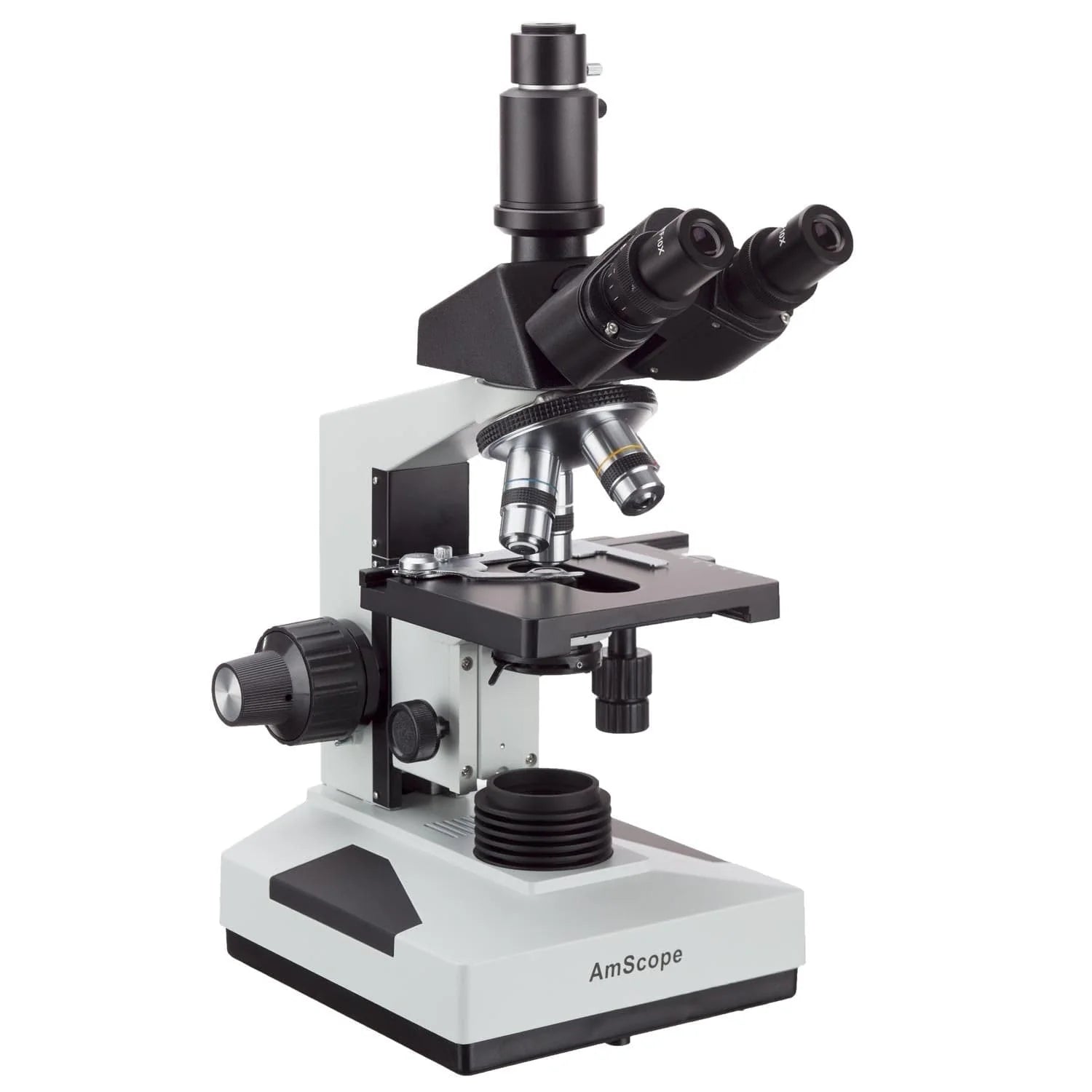

Amscope 40X-2000X Trinocular Microscopes

Request Quote

Ver todos os detalhes do produto »

Amscope 40X-2500X Binocular Compound Microscope

$ 237.50 USD

Ver todos os detalhes do produto »

Amscope 40X-2500X LED Trinocular Compound Microscope 3D USB 3.0MP Camera USB 3.0MP

Request Quote

Ver todos os detalhes do produto »

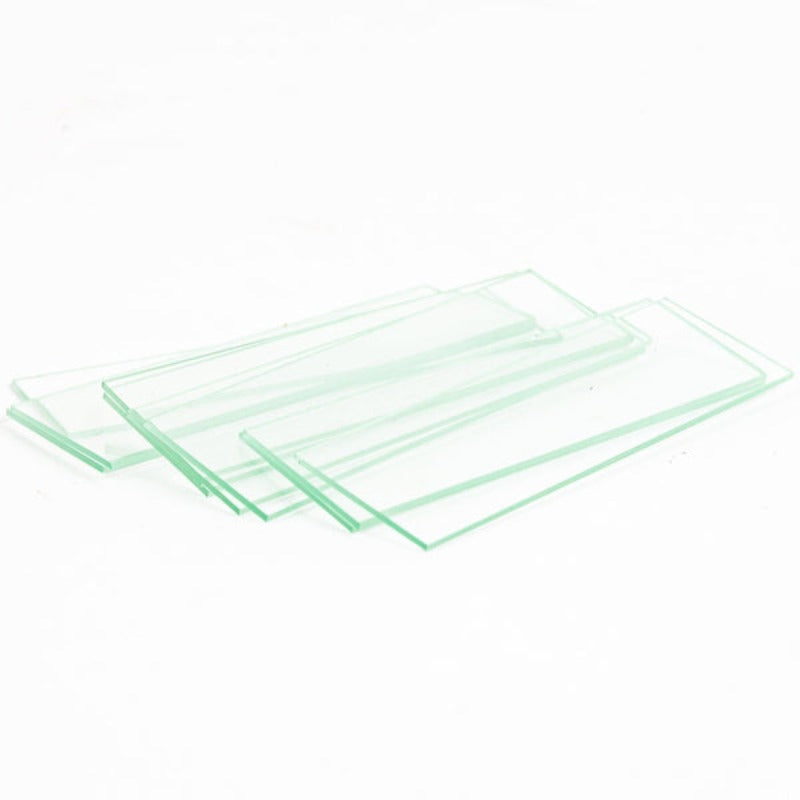

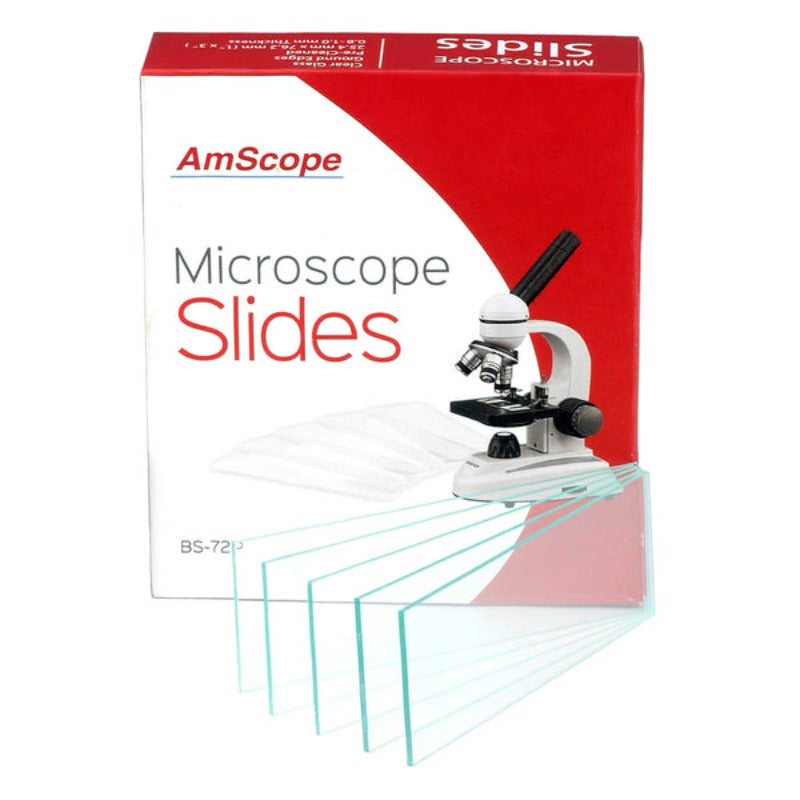

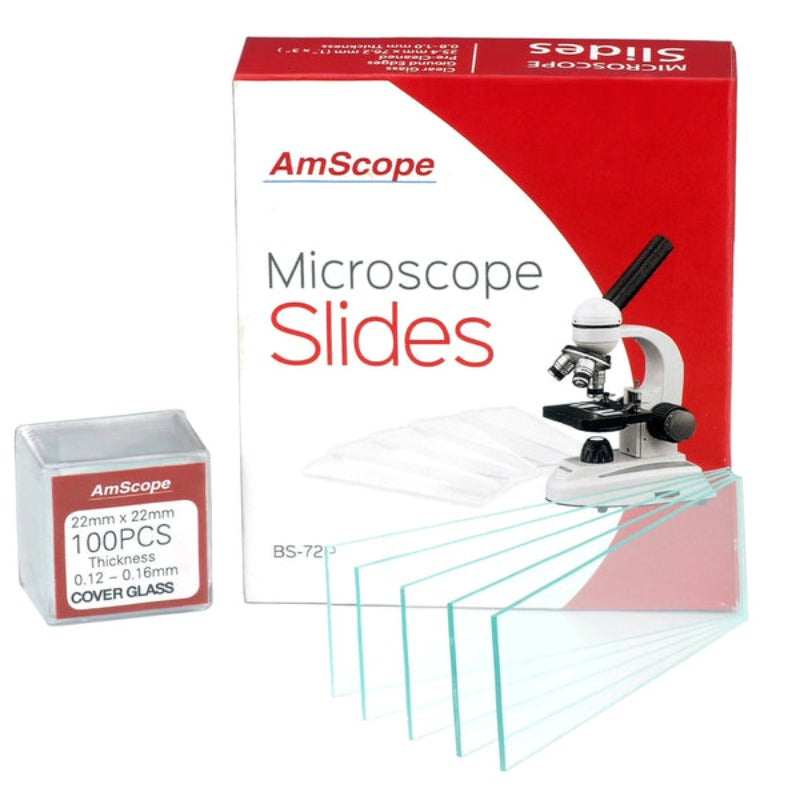

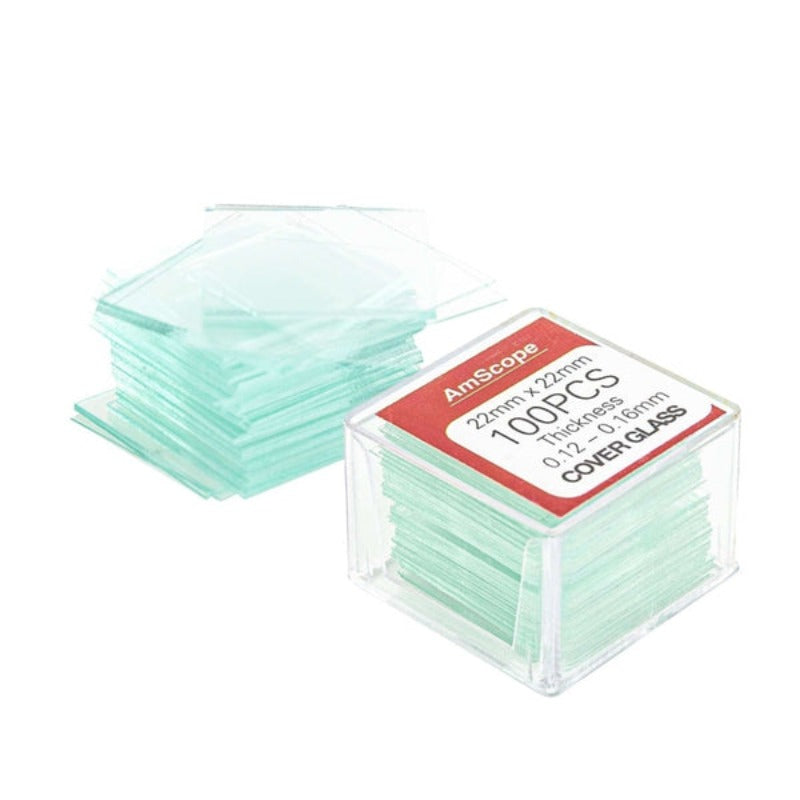

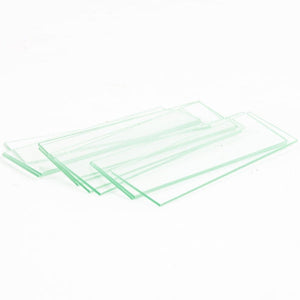

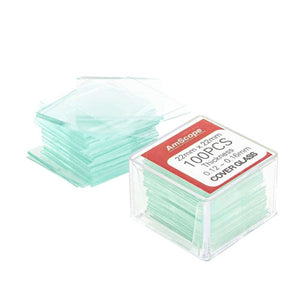

AmSCOPE 72 Pre-Cleaned Blank Microscope Slides and 100 22x22mm Square Cover Glass

Request Quote – Vendido

Discover the Invisible World Explore the Fascinating Microscopic Universe With our Kit that Includes 72...

Ver todos os detalhes do produto »

Amscope 80 LED Ring Light with Power Source

$ 91.75 USD

This is an adjustable 80-LED ring light with a 75 mm inner diameter, a 110-240...

Ver todos os detalhes do produto »

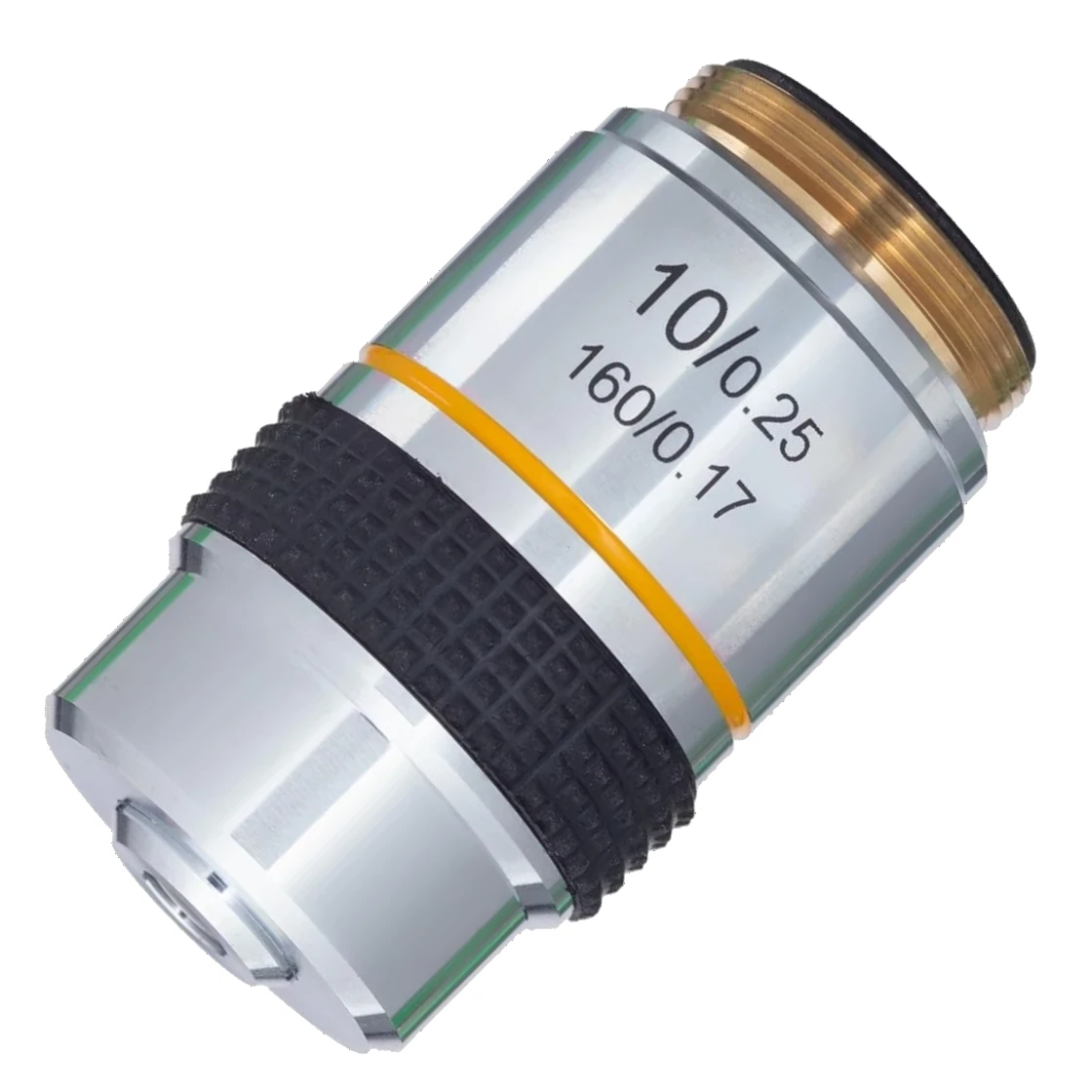

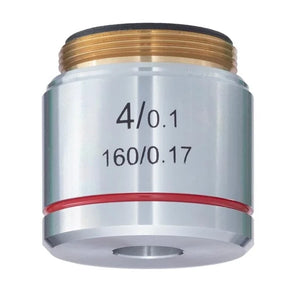

AmScope Achromatic Objectives for Compound Microscopes up to 100X

Request Quote

This is a 100X achromatic oil-immersion objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.

Features

• These 4X, 10X, 40X, 100X objective lenses with DIN standard for compound microscopes.
• The mounting thread is 20.32mm RMS and the parfocal distance is 45mm.
• It features achromatic correction for sharp images.

† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals

• Specifications
• In the Box
• Required Items
• Optional Items

• • Features

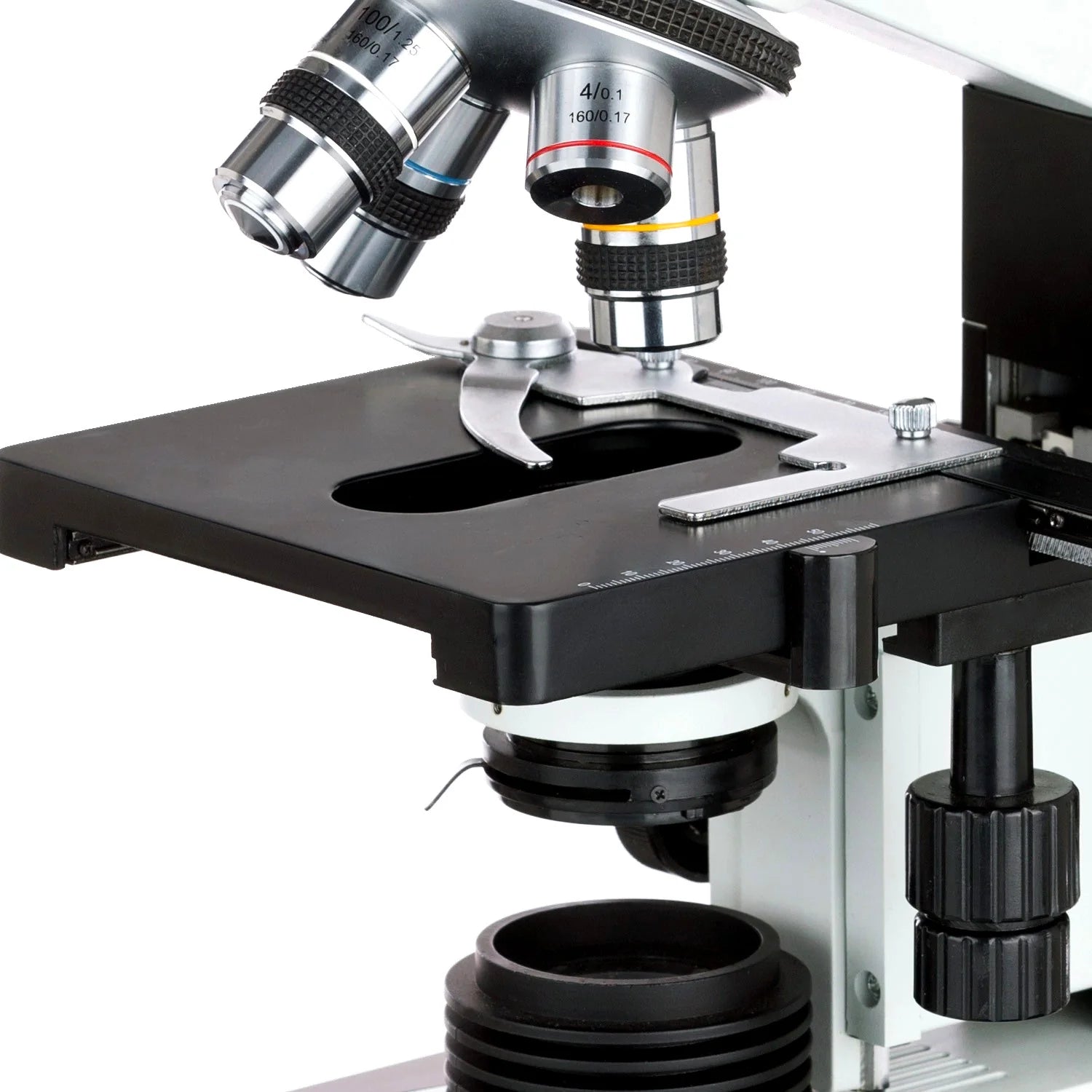

    Ref	AMSC-A4X-490	AMSC-A10X-490	AMSC-A40X-490	AMSC-A100X-490
    Compatibility
    Optical System	Finite
    Mechanical Tube Length	160 mm
    Mounting Thread	RMS 20,32 mm
    Parfocal Distance	45 mm
    Lens Specifications
    Magnification	4X	10X	40X	100X
    Numerical Aperture	0,10	0,25	0,65	1.25
    Corrections	Achromatic
    Cover-glass Thickness	0,17 mm
    Immersion Medium	None			Oil
    Magnifying Power	Objective-4X	Objective-10X	Objective-40X	Objective-100X
    Zounting Size	Objetive-20mm
    Objective Iris	Without Iris
    Objective Mounting Size	20 mm
    Objective Optics	Achromatic
    Objective Type	Compound, Brightfield
    Proposition 65 WARNING

• • Achromatic Objective
  • Manual
• • Compound Microscopes
• • Cleaning kit

EO 20230713

Ver todos os detalhes do produto »

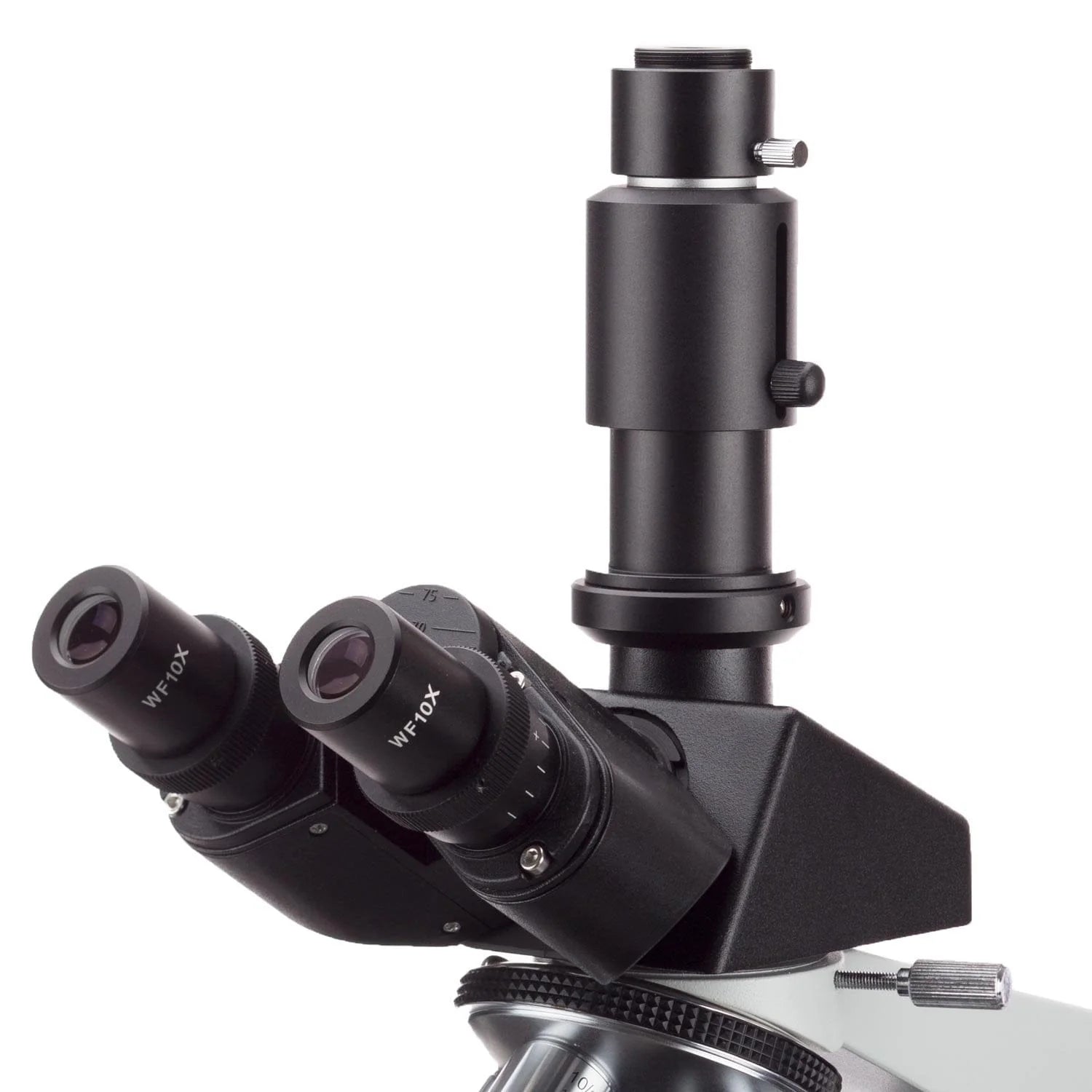

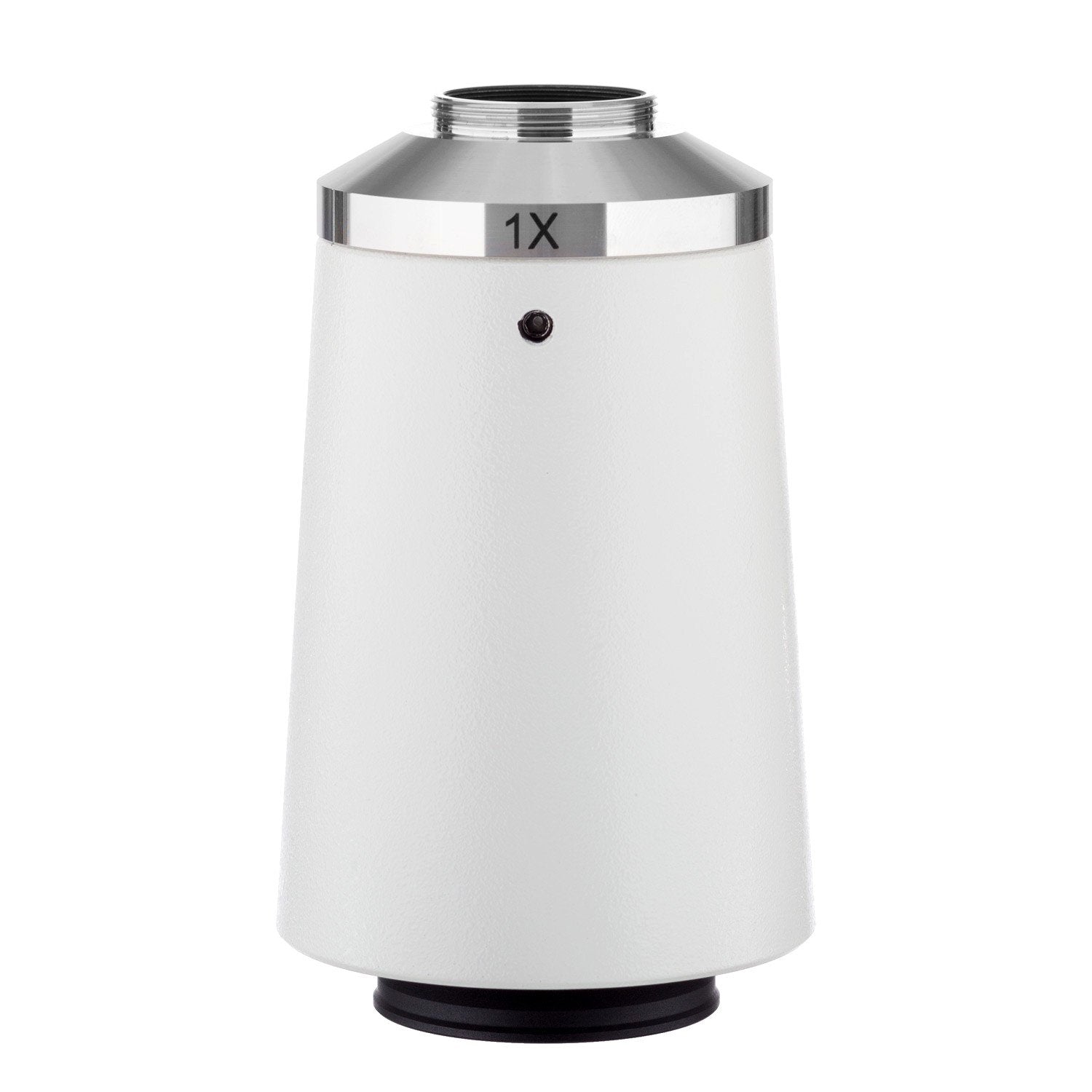

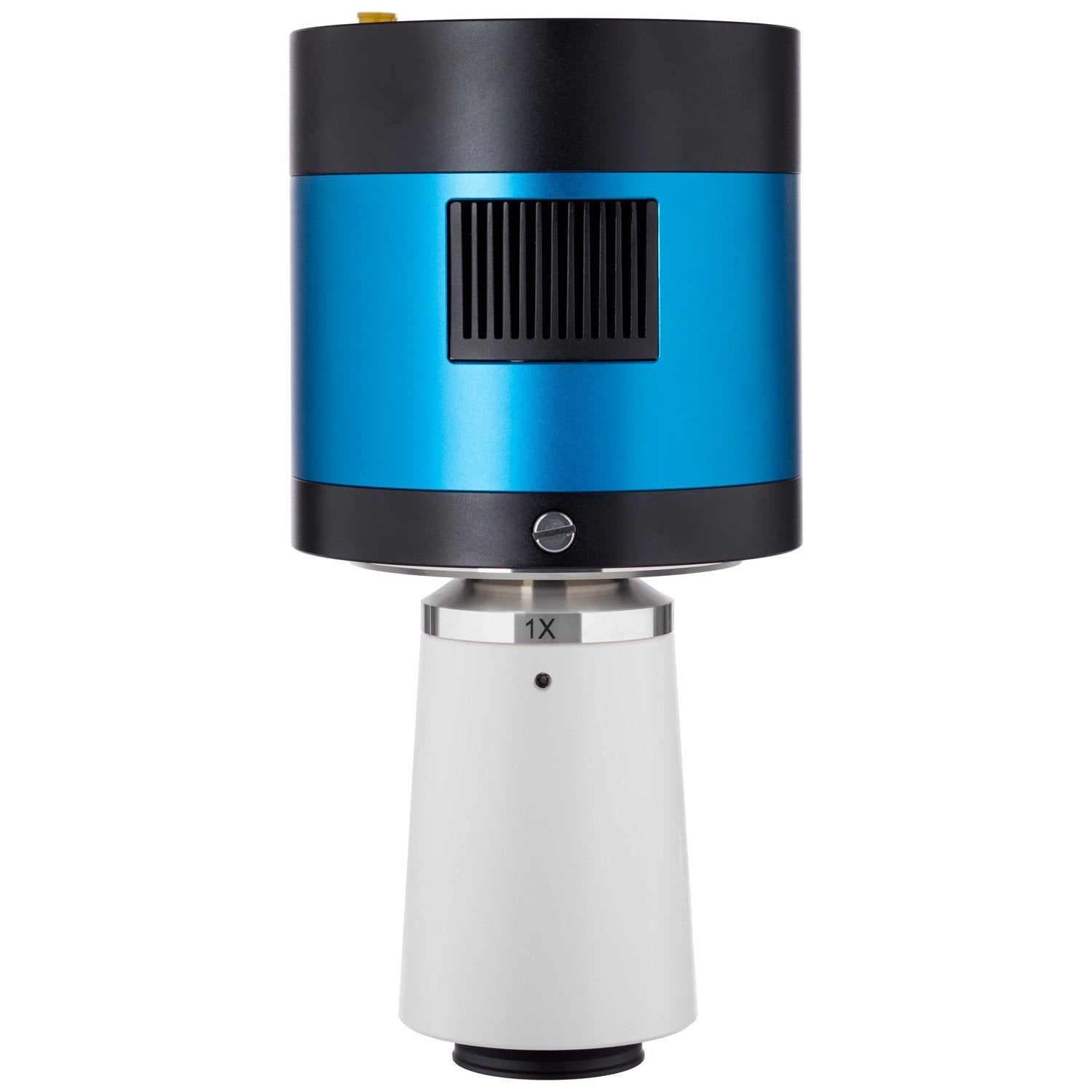

Amscope Camera Adapter 1X C-Mount for Nikon Microscopes

Request Quote

This is a 1X C-mount photo adapter for Nikon microscopes. The adapter allows the mounting...

Ver todos os detalhes do produto »

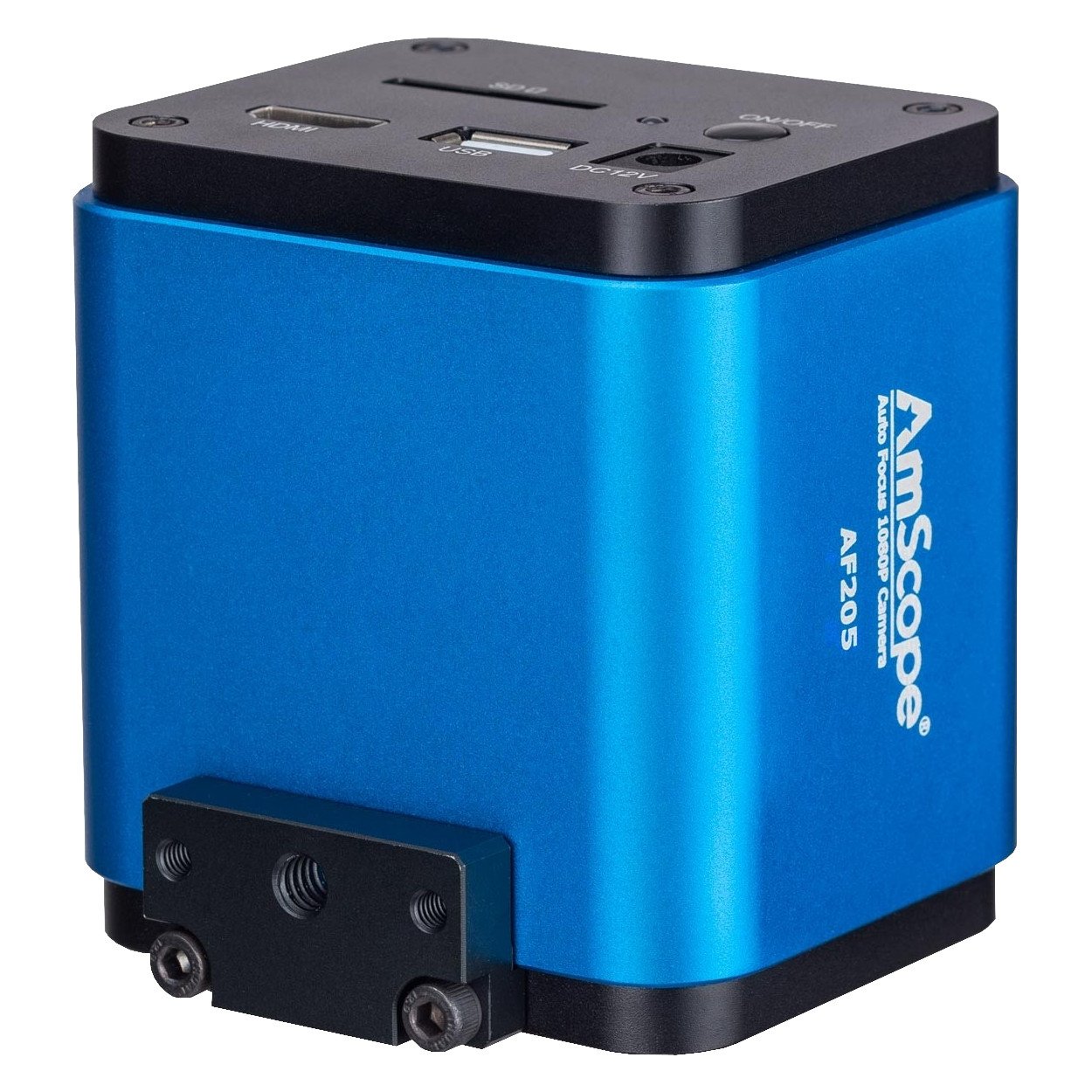

Amscope Color CMOS + Wi-Fi 5 MP Microscope Camera

Request Quote

Based on the HD200 series, it offers live 1080p viewing via HDMI and you can record 5MP photos and 1080p video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of autofocus limits the need to make focus adjustments when using the camera as the main observation medium.

Connected to an HDMI monitor or TV, live 1080p video can be viewed at super smooth 60 fps. The included USB mouse allows you to control the camera through its easy-to-use interface. Alternatively, connect the camera via WiFi for remote control of the software, with 25 fps streaming. The included Windows software offers measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. With the ability to calibrate scales with multiple magnifications, the software can be used for multi-level inspections. For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited processing features.

The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo ports.

Notice: due to the autofocus mechanism, the C-mount lens thread should not exceed 5 mm.

• Specifications
• In the Box
• Required Items
• Optional Items

• Sensor
  Sensor Type	CMOS
  Sensor Optical Format	1/1.8"
  Active Pixels	5.04 million (2592 x 1944)
  Pixel Size	2.4 µm x 2.4 µm
  Active Sensor Area	6.22 mm x 4.67 mm
  Shutter	Electronic rolling shutter
  Sensitivity	425 mV at 1/30 s (f/5.6)
  Spectral Response	380-650nm with IR cut filter
  Camera
  Video Preview Resolution (HDMI)	1920 x 1080
  Video Preview Frame Rate (HDMI)	60 fps
  Video Capture Resolution	1920 x 1080
  Video Capture Frame Rate	30 fps (SecureDigital) 25 fps (Wi-Fi)
  Internal Video Capture Format	PPA
  Internal Photo Capture Format	2592 x 1944, 1920 x 1080
  Internal Photo Capture Format	JPG
  Recording Media	SecureDigital card
  Connectivity	HDMI, Wi-Fi
  Wi-Fi Standard	802.11n 150 Mbps
  Lens Mount	C-mount
  Reducer Lens	0.5X (optional)
  Power	12VDC 1A
  Dimensions	78 mm x 70 mm x 92 mm
  Operating Temperature	-10-50 °C
  Operating Humidity	30-80%
  Software
  Operating System Requirements	Windows (32/64 bit) XP / Vista / 7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM
  Features	Windows Version: Live video preview. Captures still images and videos. Time-lapse capture. Exposure and white balance controls. Dark field correction. Digital binning. Image processing. Measurement tools, including lines, arcs, polygons. Segmentation and counting tools. Image stitching, extended depth of field, HDR. Fluorescence color mapping. Mac / Linux Versions: Live video preview. Captures still images and videos. Exposure control. Color adjustment. Measurement tools, including lines, arcs, polygons.

• • Digital camera (1)
  • USB mouse (1)
  • Wi-Fi USB key (1)
  • HDMI cable (1)
  • SD card (1)
  • Power adapter (1)
  • Software CD (1)
• • Tripod
  • Software
• • 0.5X Reducer Lens

Ver todos os detalhes do produto »

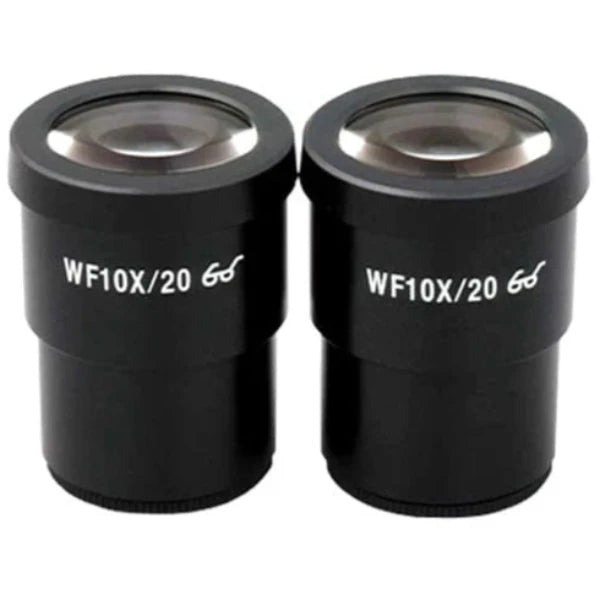

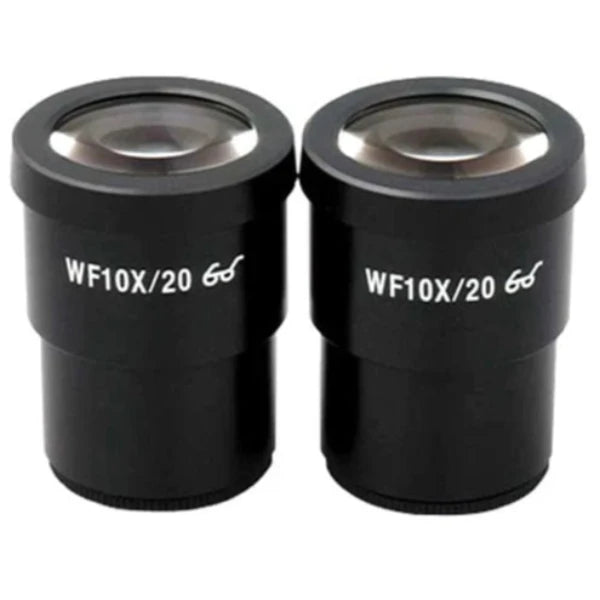

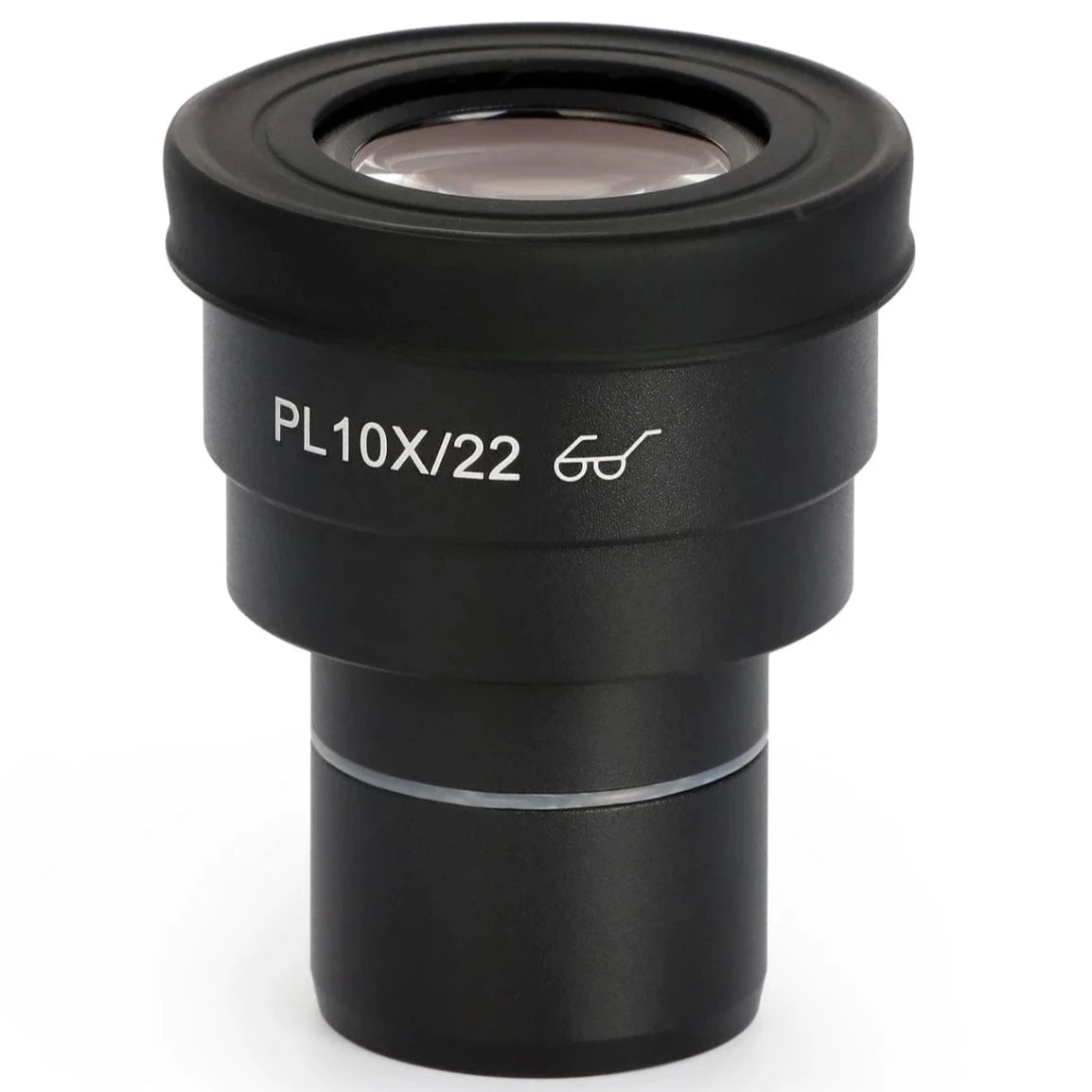

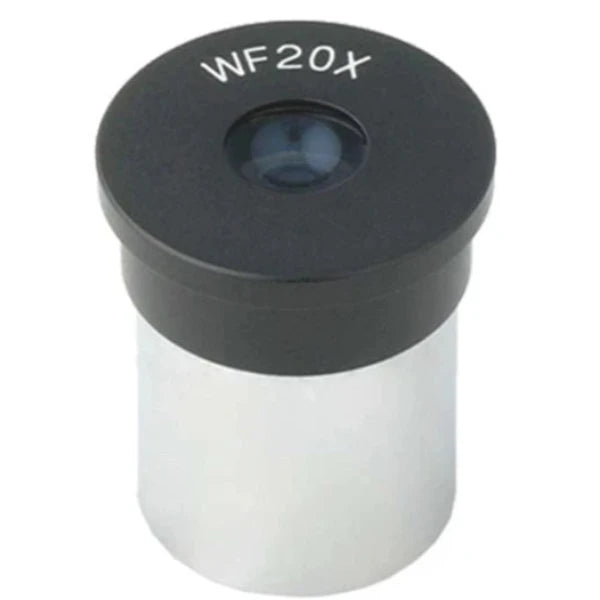

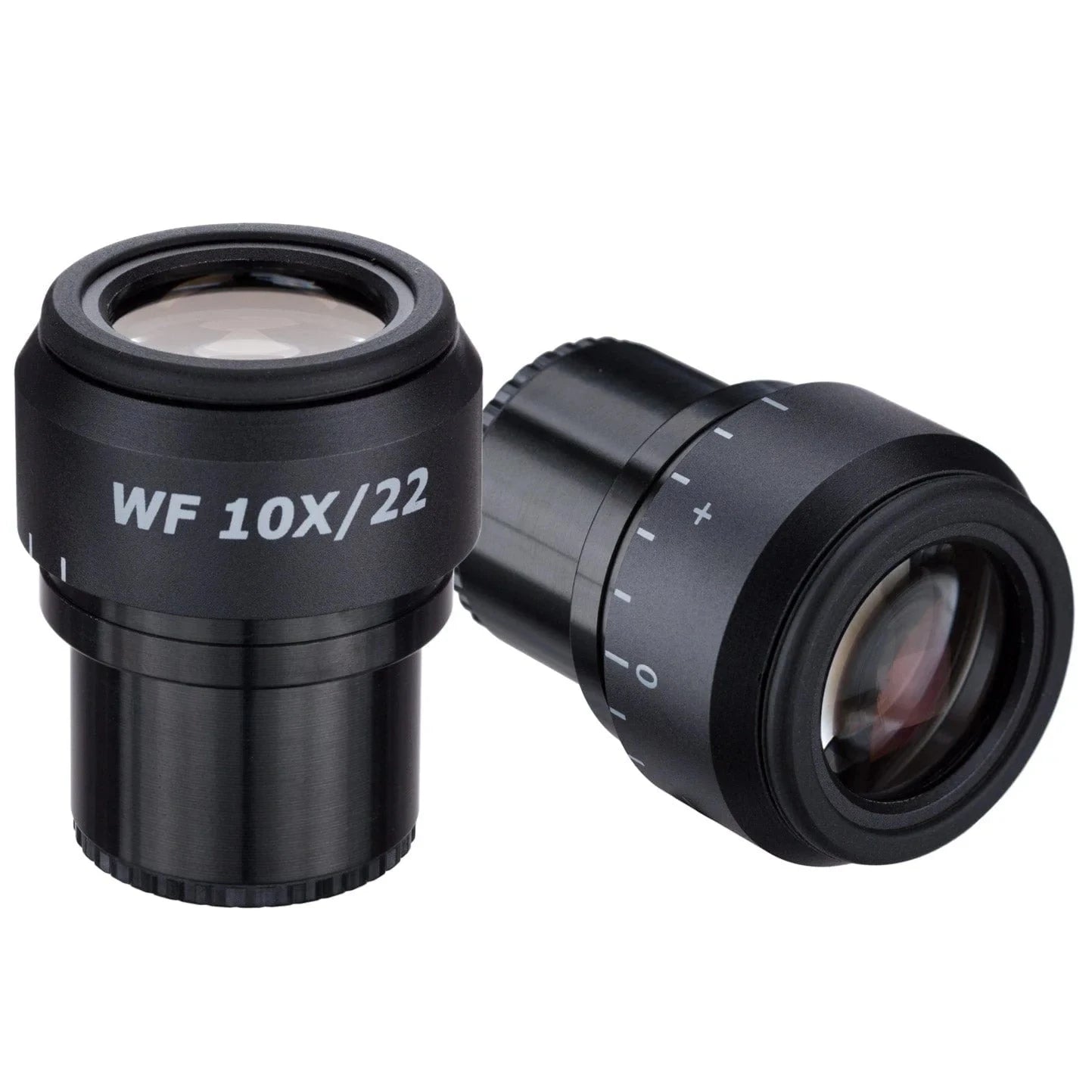

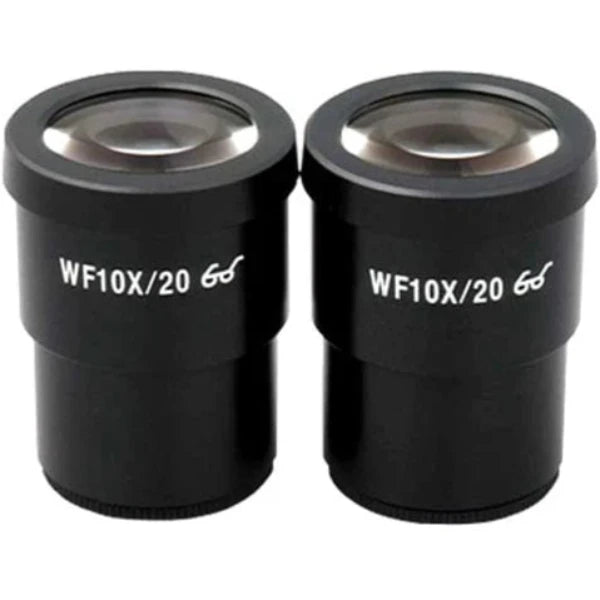

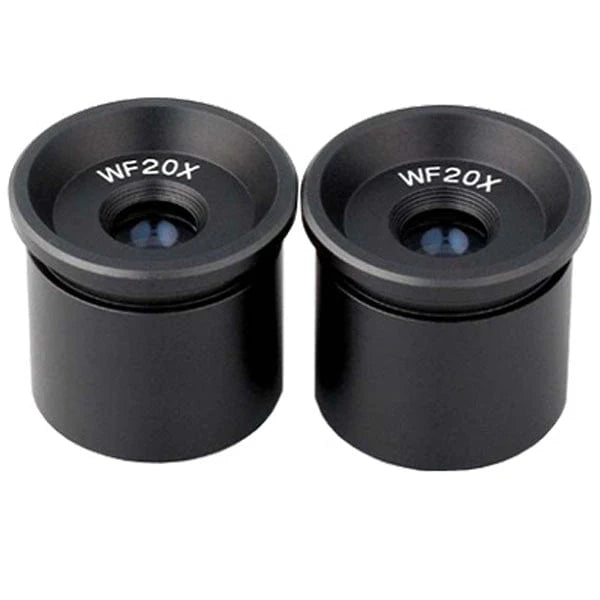

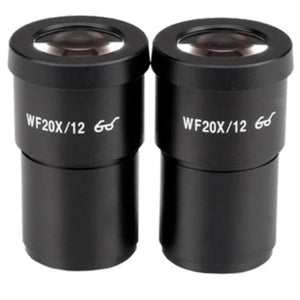

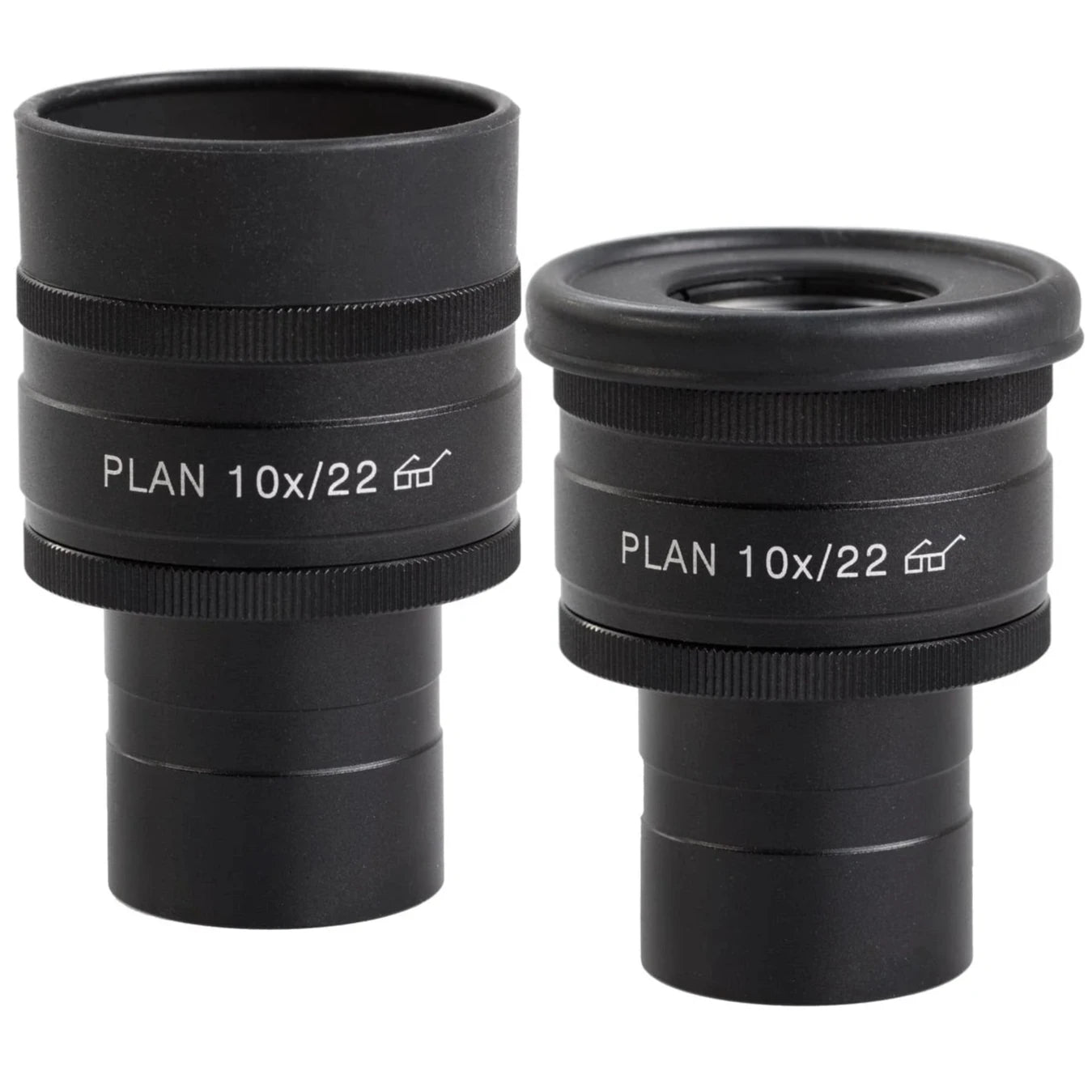

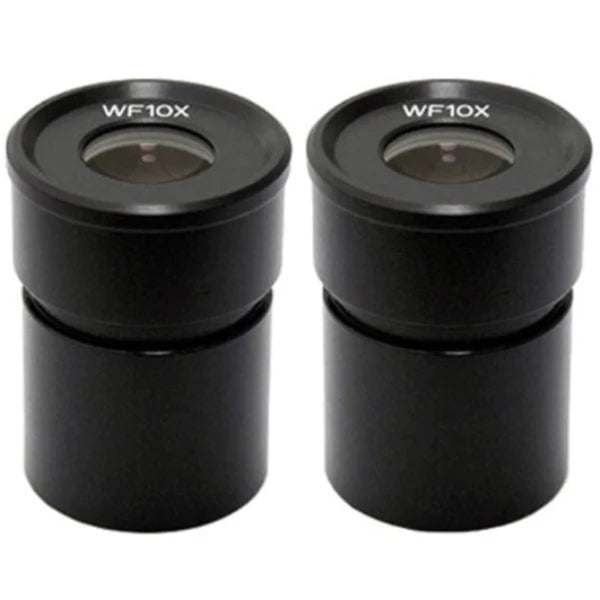

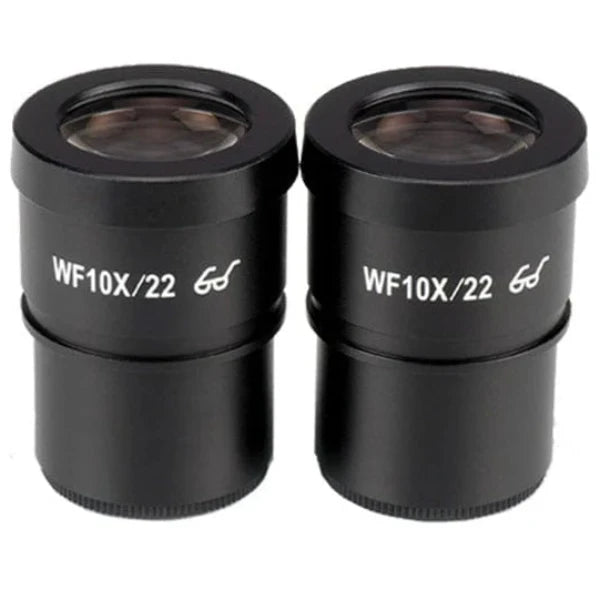

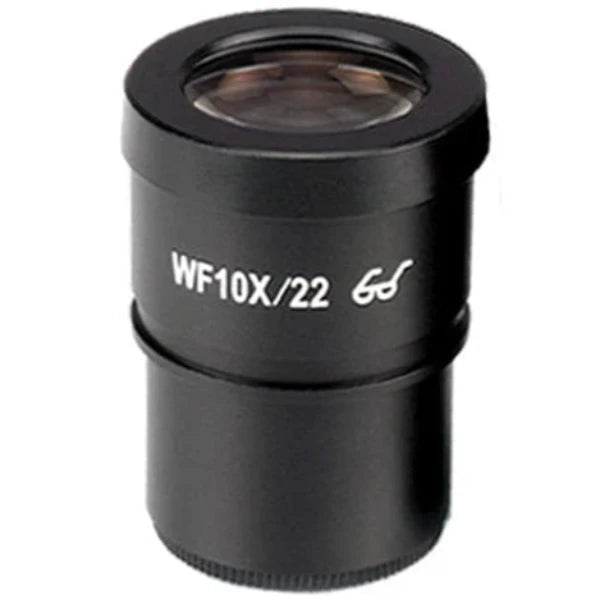

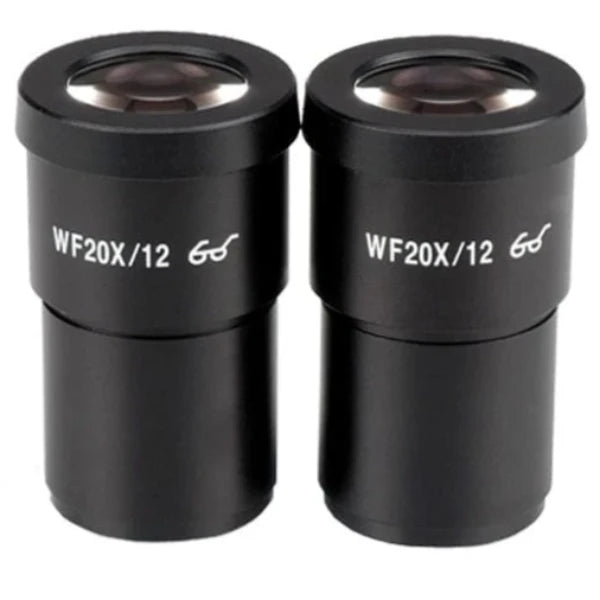

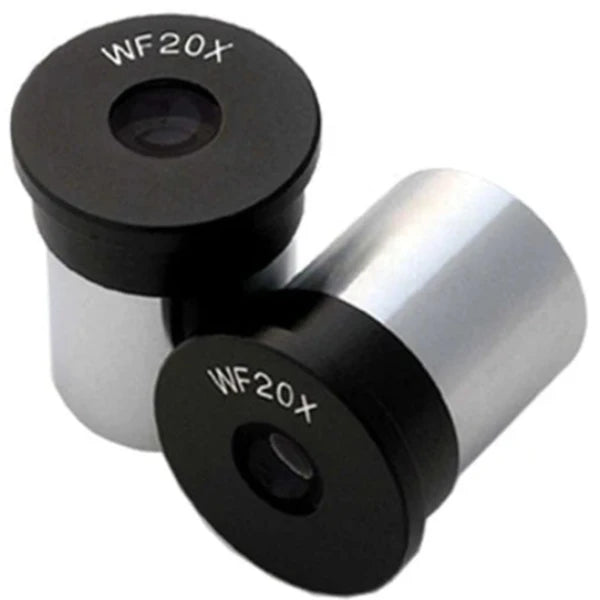

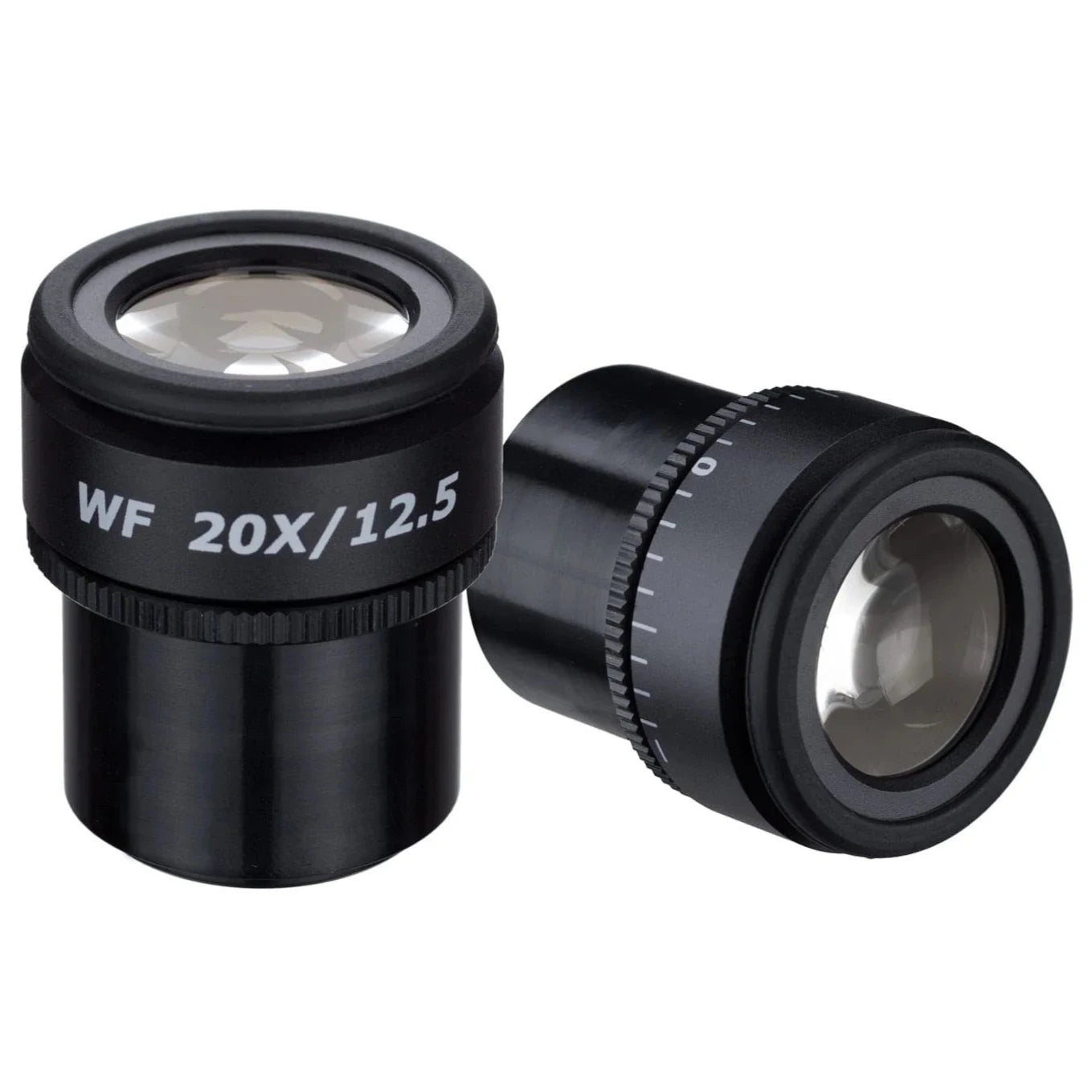

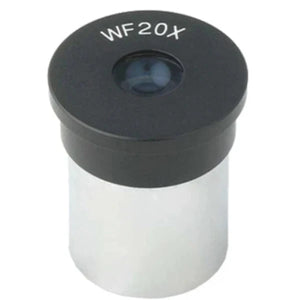

AmScope EP20 Series Microscope Eyepieces

Request Quote

Features EP20X30F EP20X30E EP20X30 EP20X305 EP20X23 EP20X30F-V374 EP20X23-S Magnification 20X Field of View 12 mm...

Ver todos os detalhes do produto »

AmScope Inspection Trinocular Zoom Stereo Microscopes 3.5X-90X

$ 371.90 USD

Ver todos os detalhes do produto »

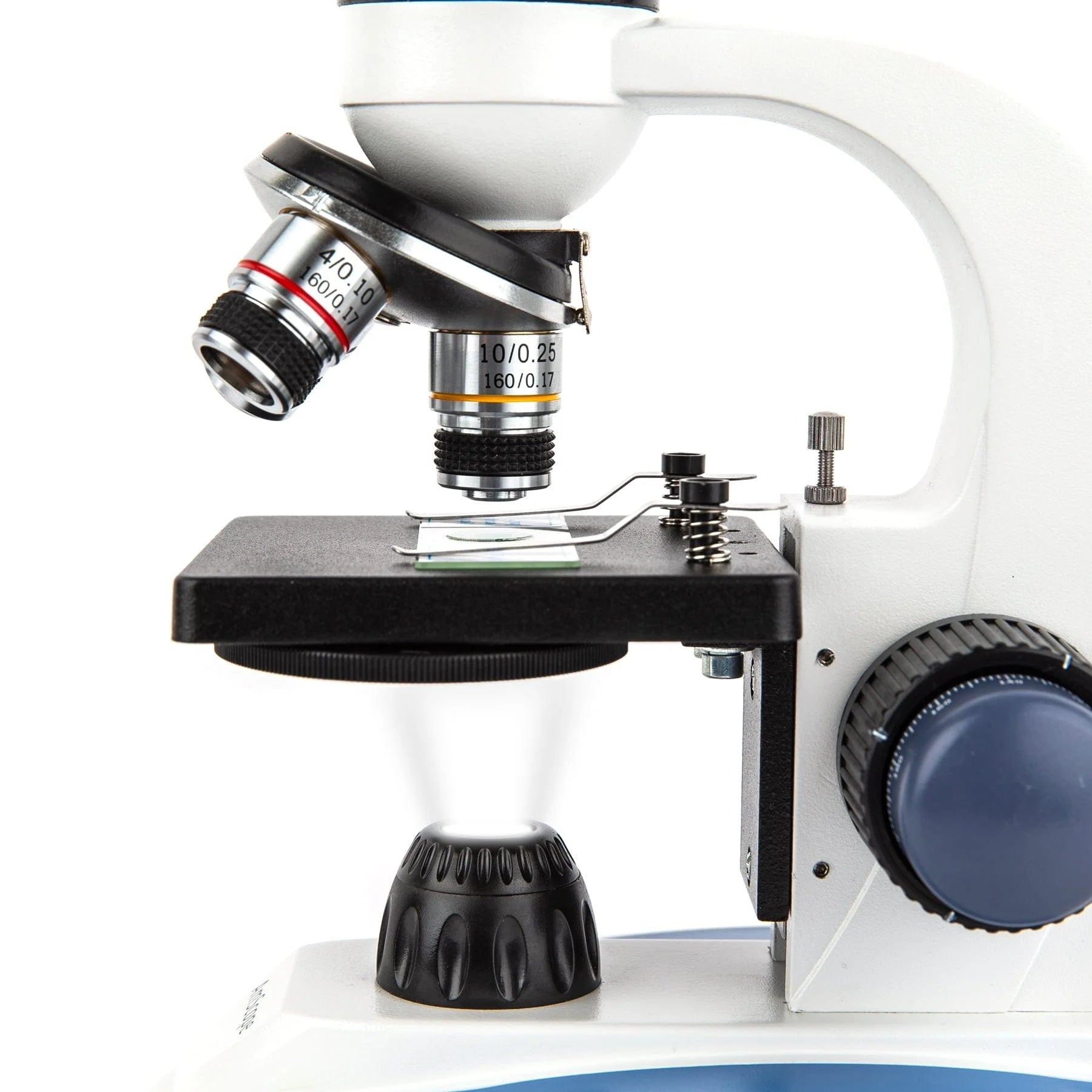

AmScope KIDS Beginner's Microscope Kit

Request Quote

Ver todos os detalhes do produto »

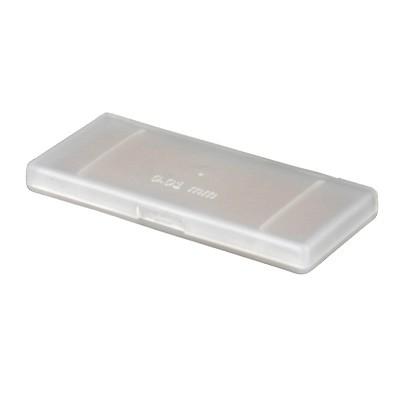

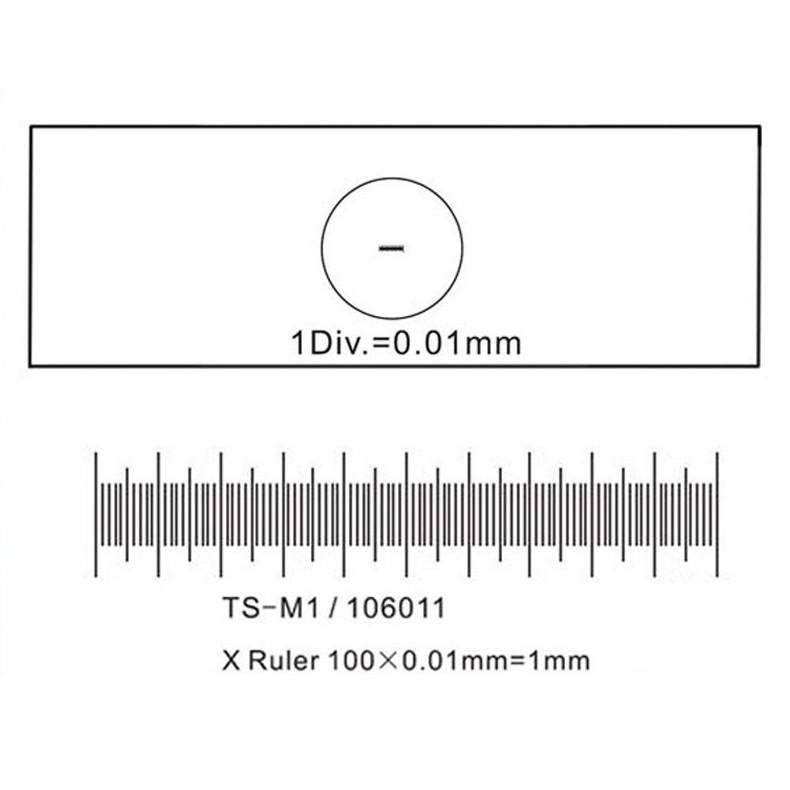

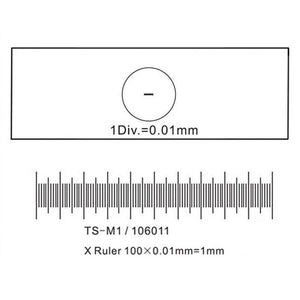

Amscope Micrometric Calibration Blade for Microscopes 0.01 mm

$ 13.99 USD

This micrometer is used to calibrate your microscope or microscope camera for precise measurement. It...

Ver todos os detalhes do produto »

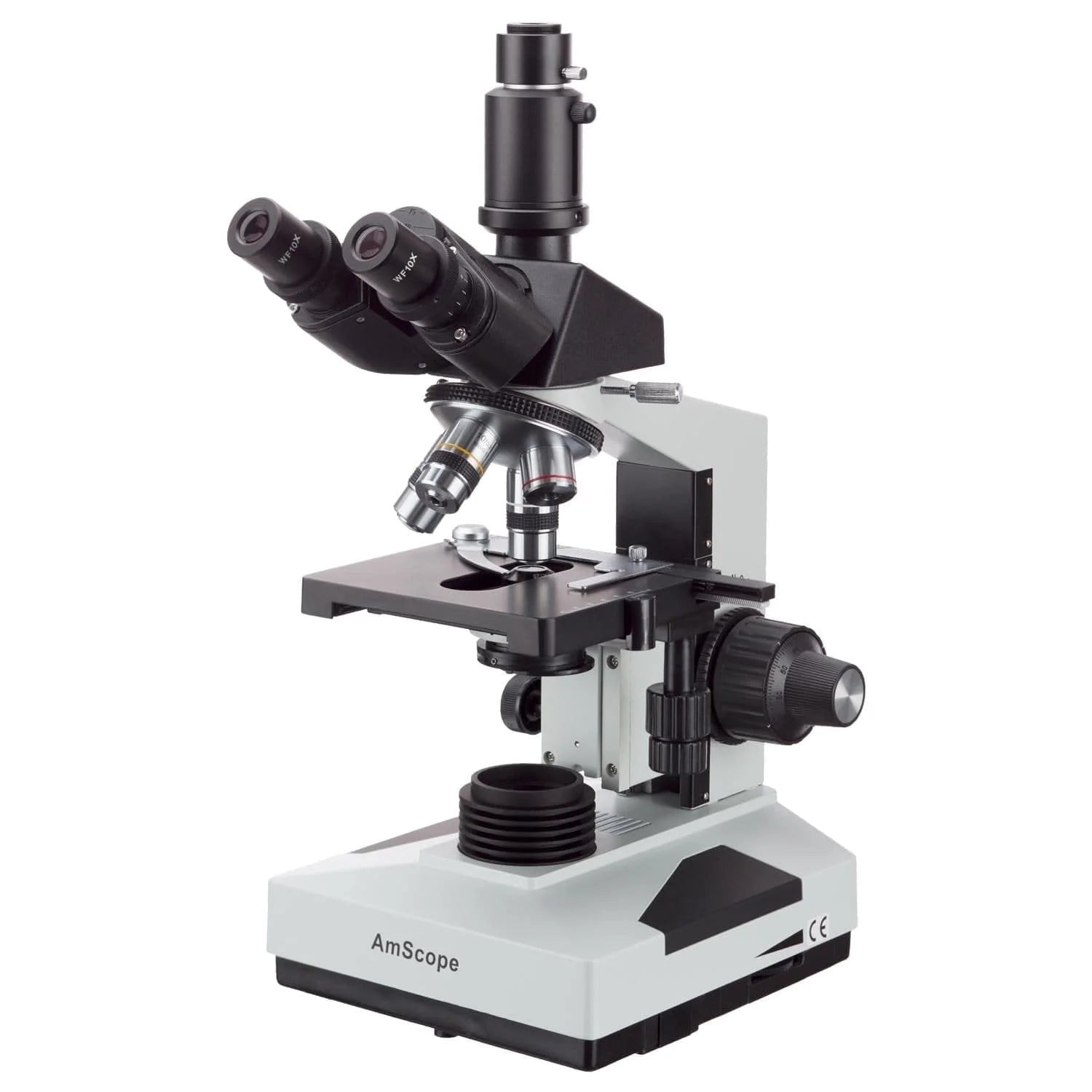

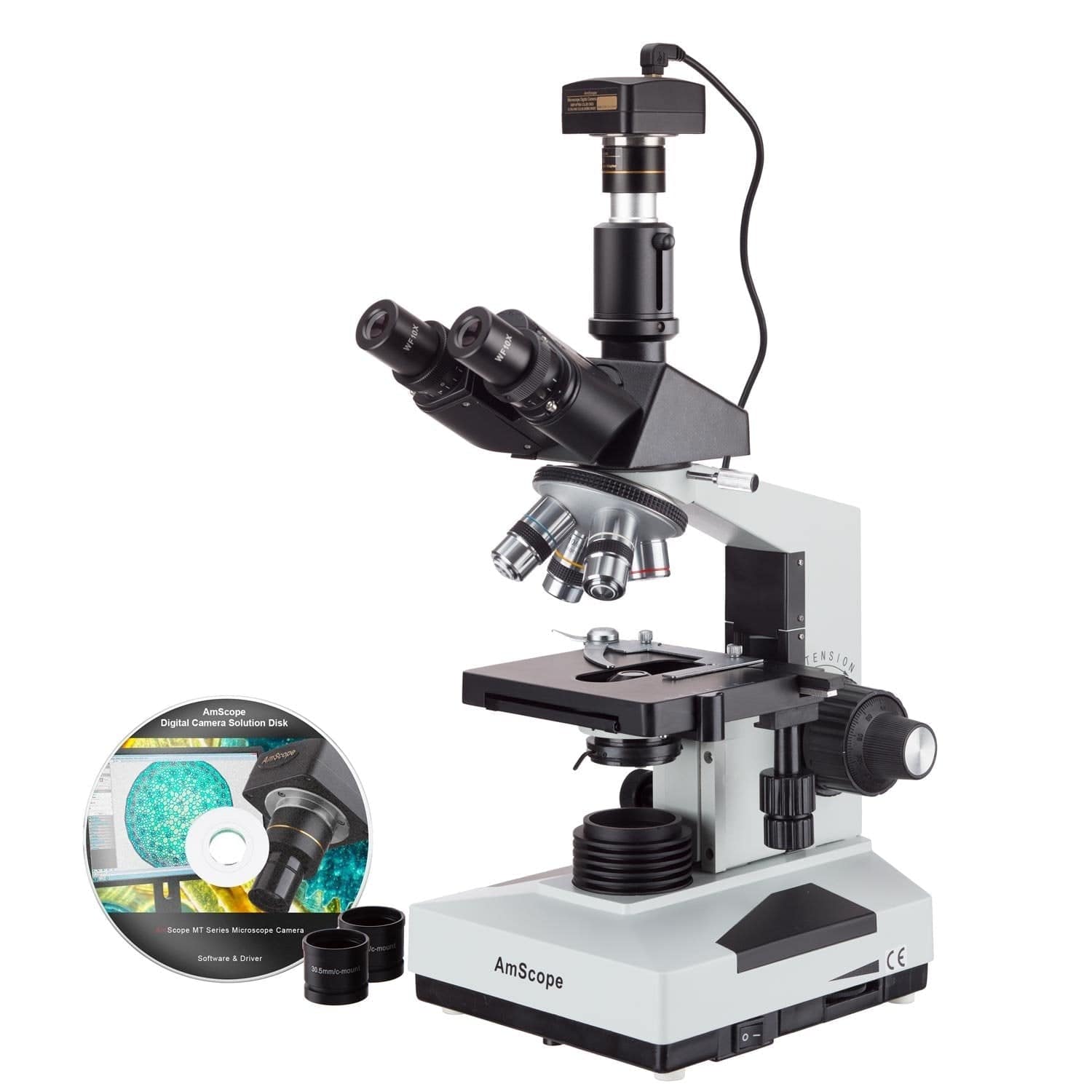

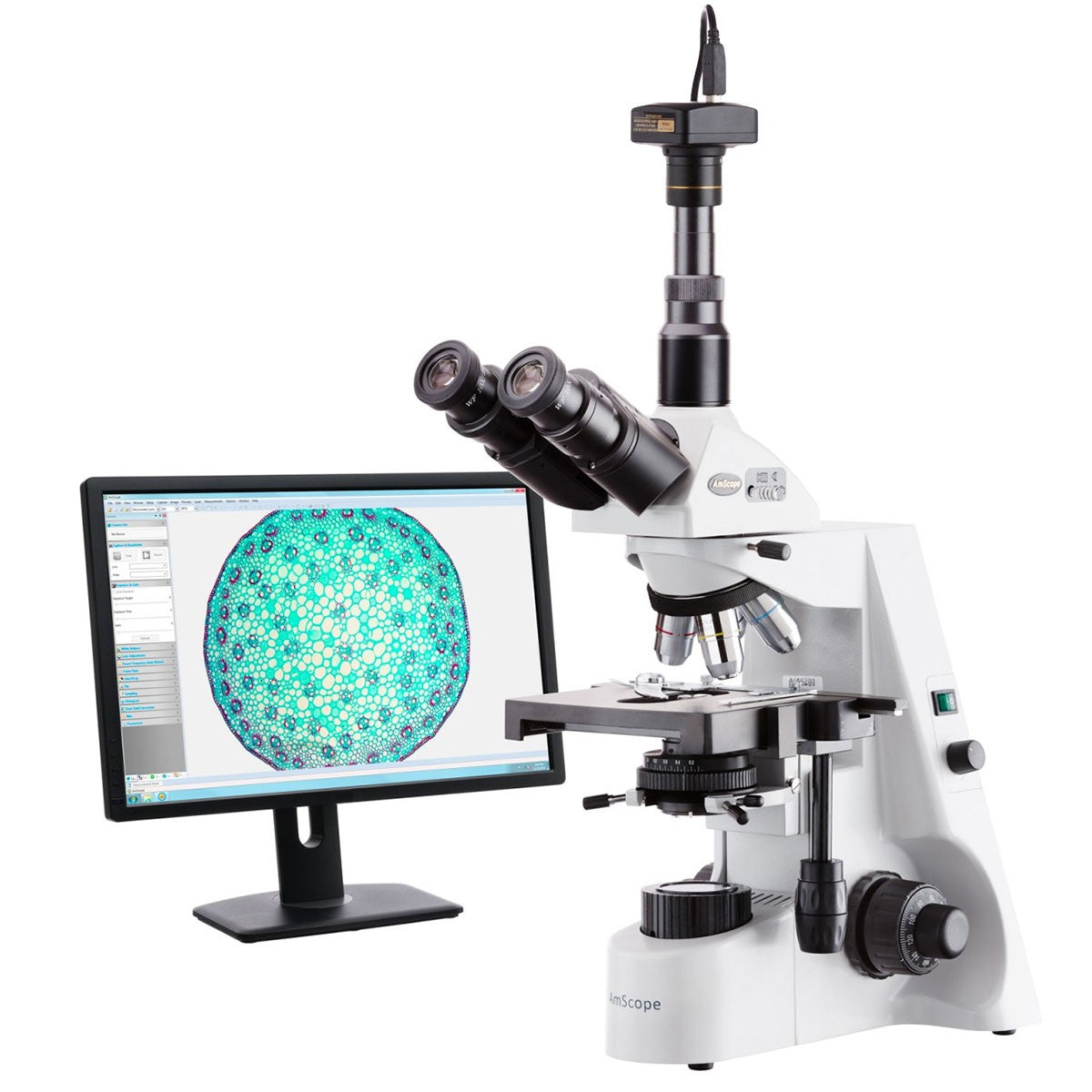

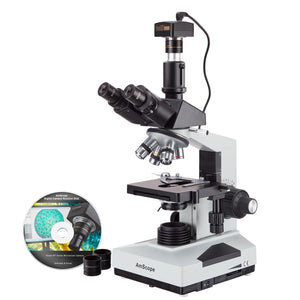

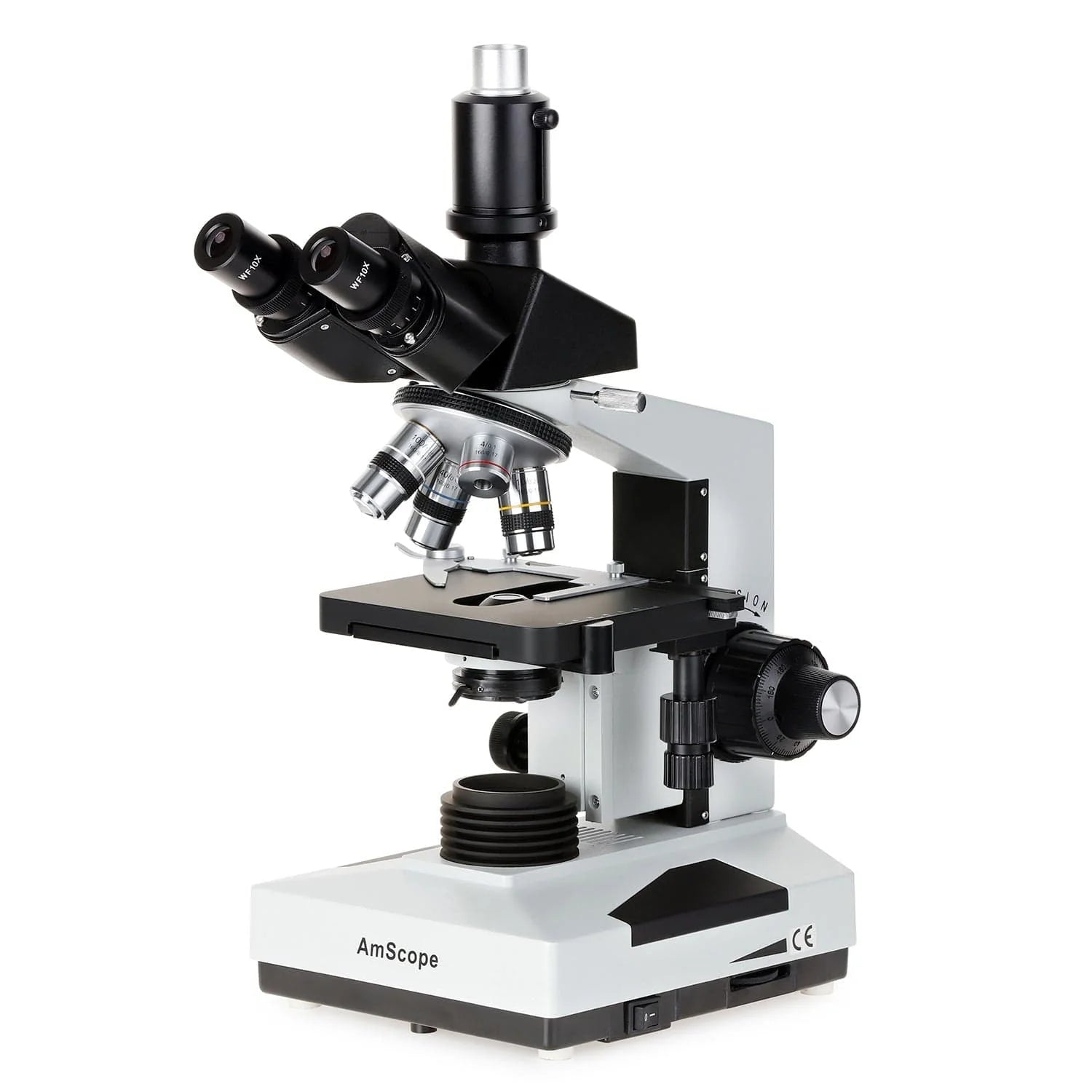

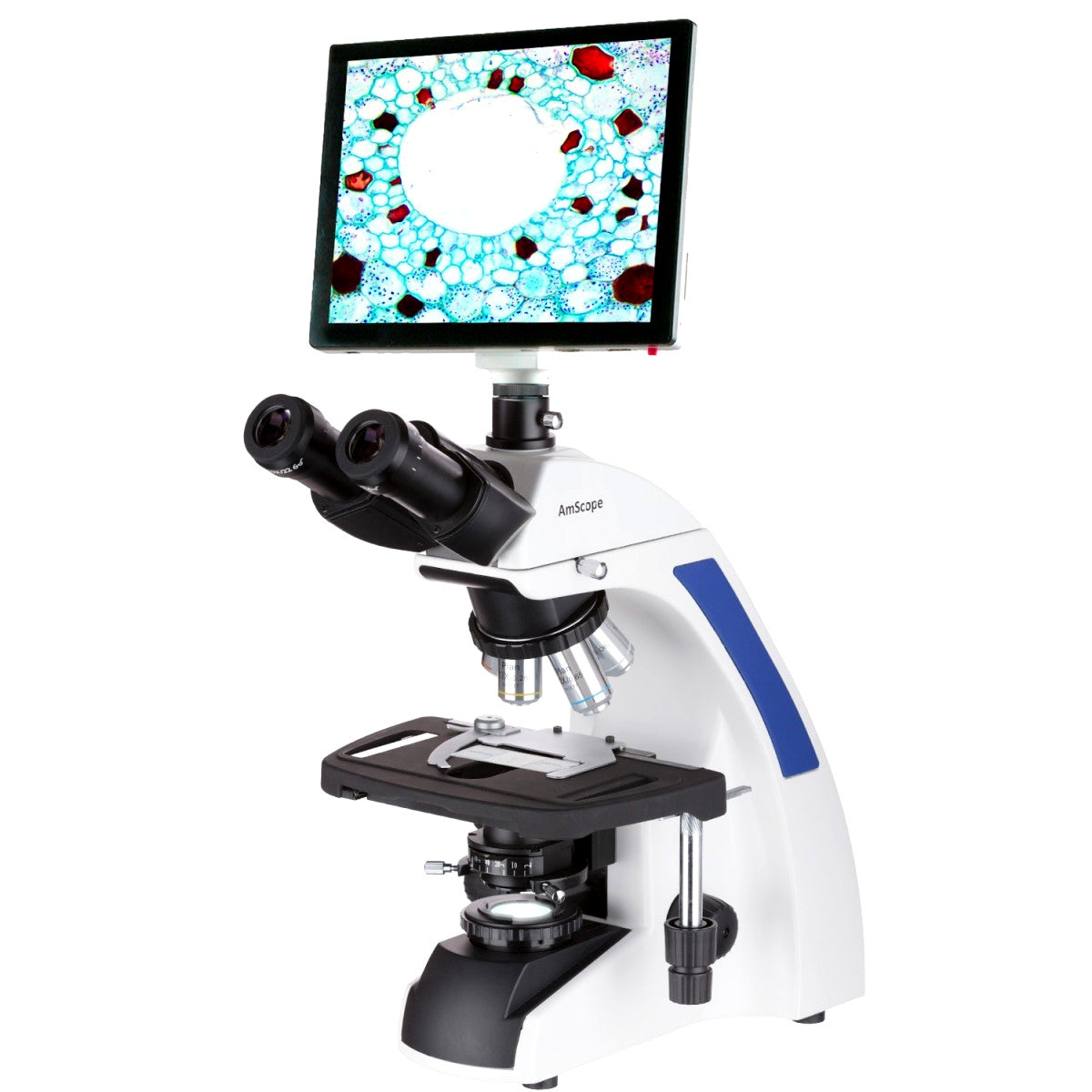

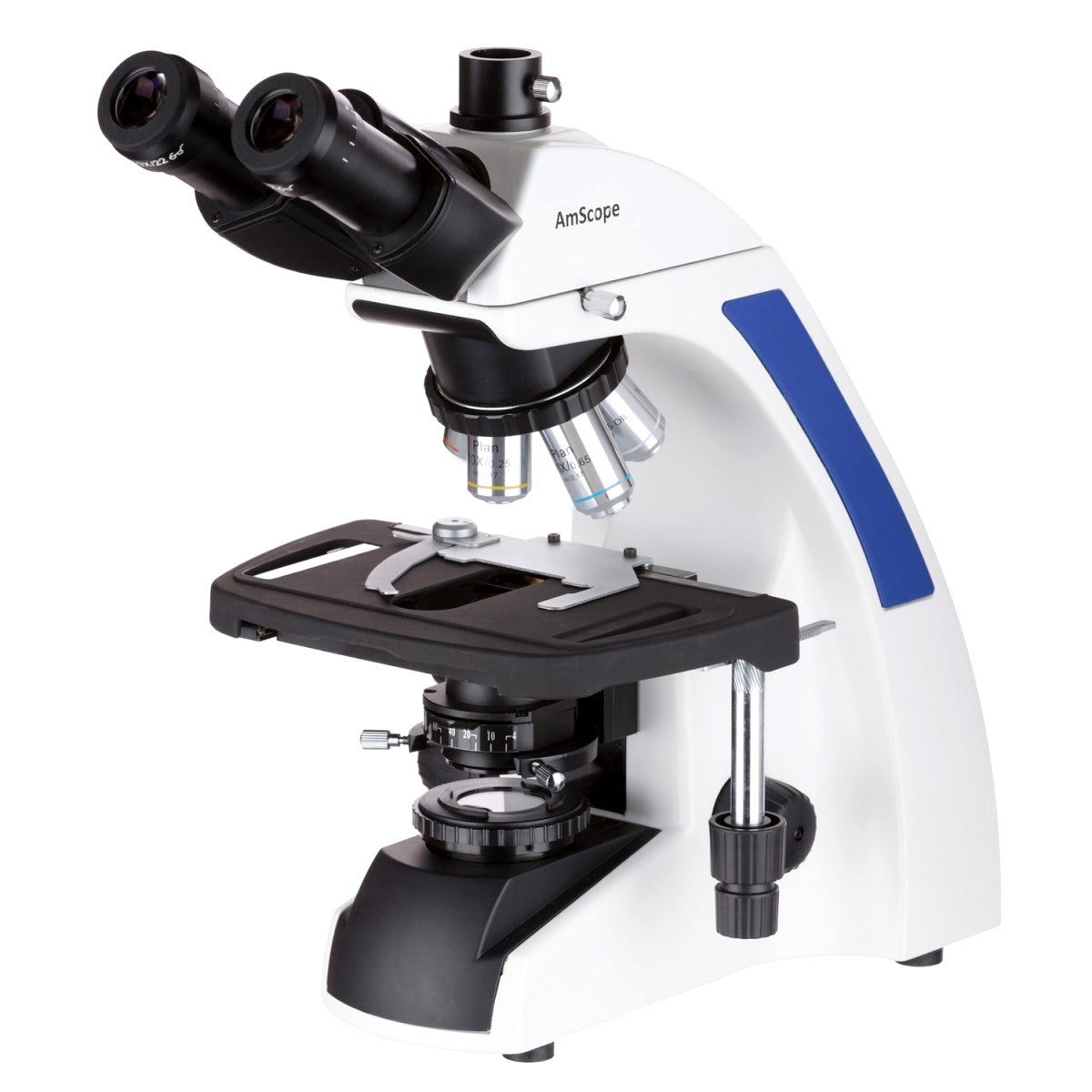

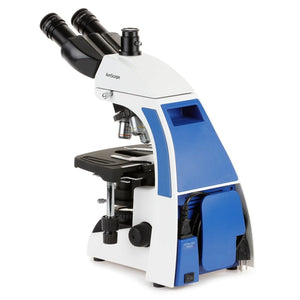

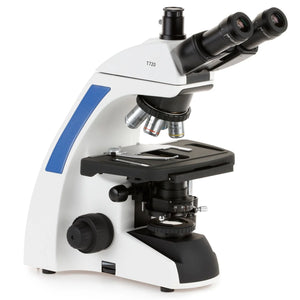

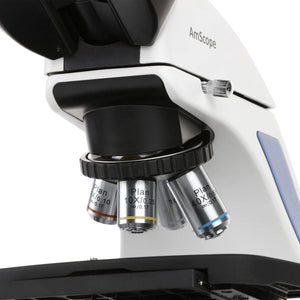

Amscope Microscope 40X-2500X Trinocular Biological Compound

Request Quote

Ver todos os detalhes do produto »

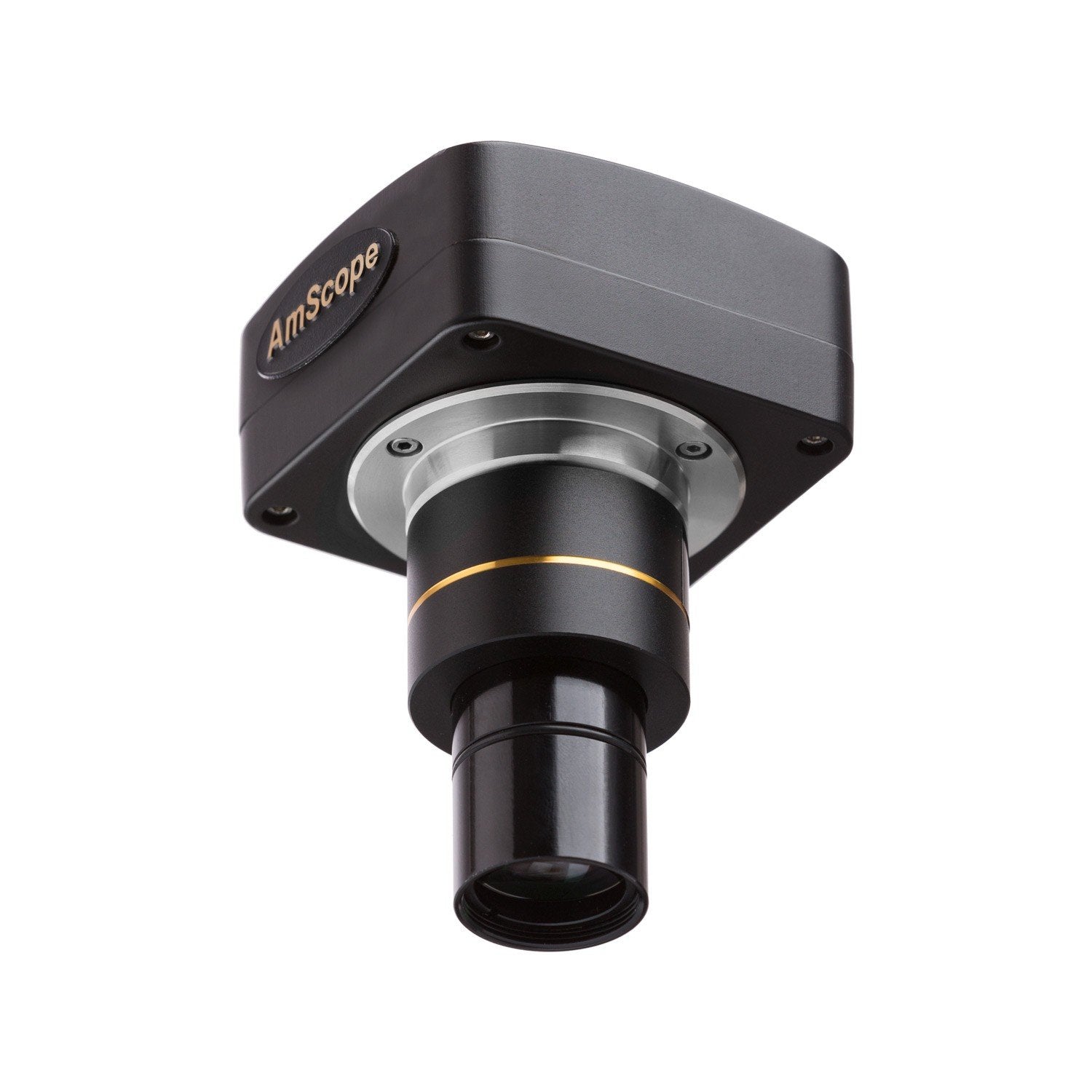

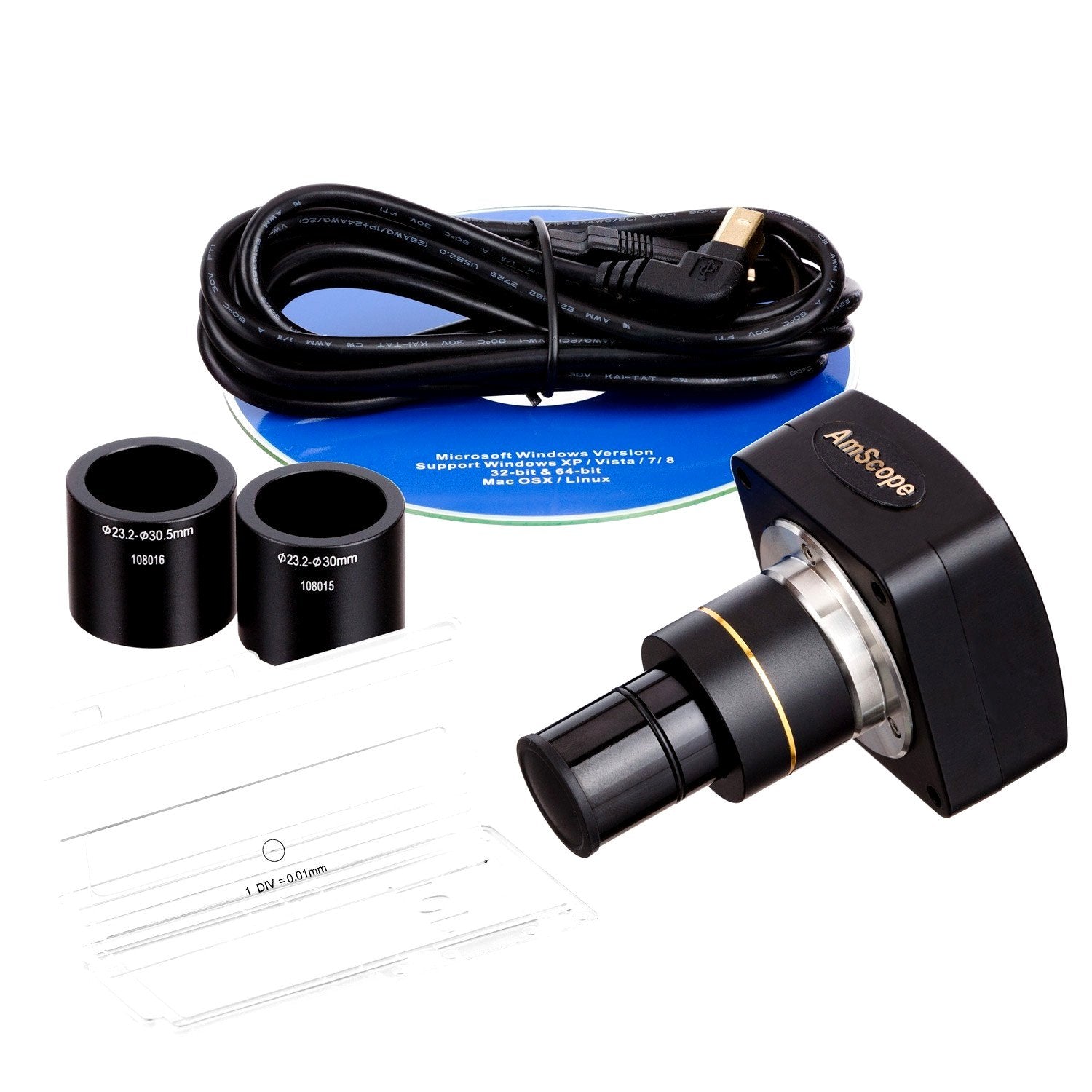

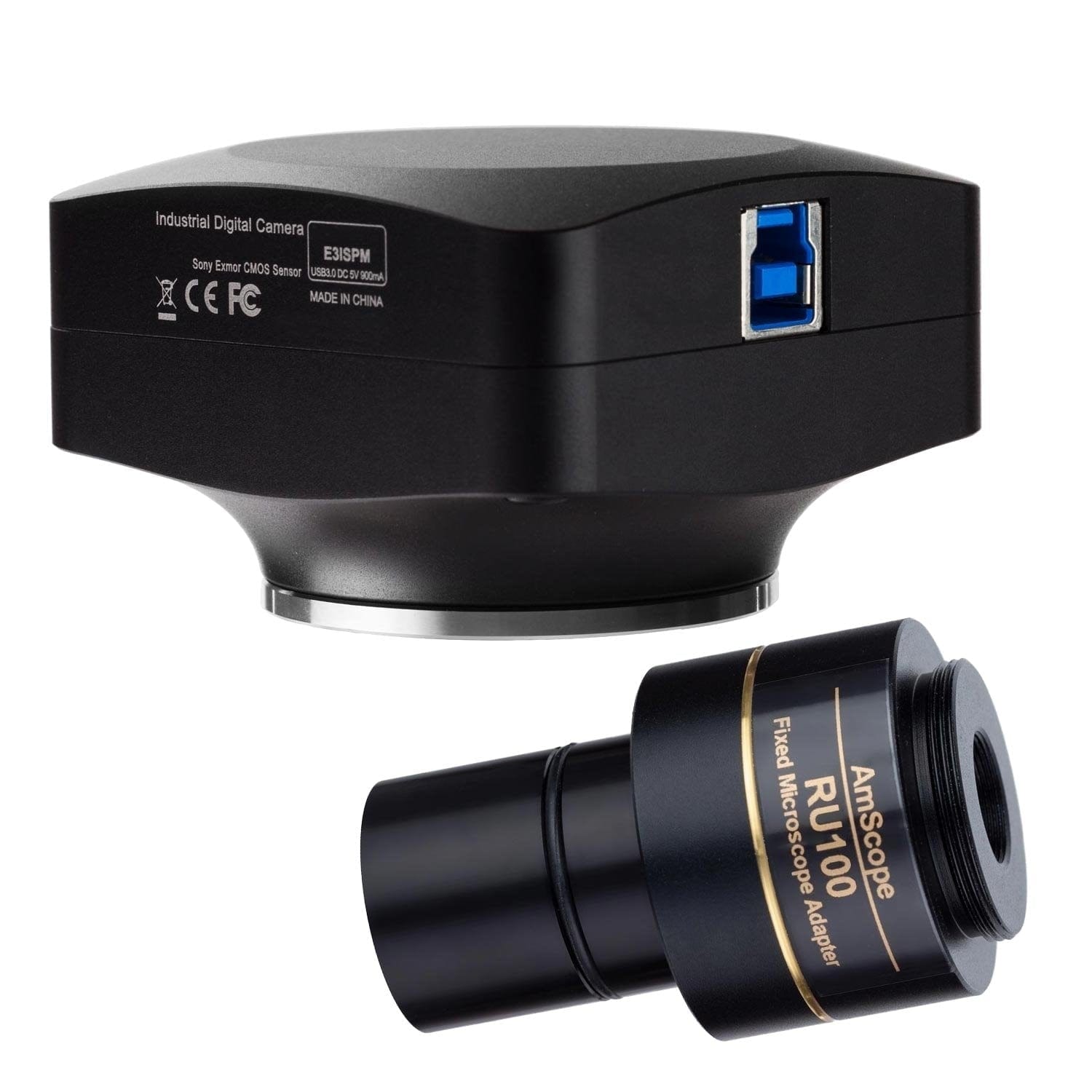

Amscope Microscope Cameras MU Series Color USB 3.0 up to 18MP

$ 260.00 USD

AmScope 18MP USB 3.0 Microscope Camera With C-Mount And CMOS Sensor

Ideal For High-Speed Imaging And Detailed Observations, Compatible With Most Microscopes And Easy To Install.

This is a faster version of our MU1803 microscopic camera, which features an 18 MP sensor and USB 3.0 connectivity. The kit includes a reduction lens, a USB cable, two eyepiece adapters, and a calibration kit. The digital camera captures still images and live video on your computer. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), and video recording. Live video capture and still image capture can be set at different resolutions simultaneously. The 0.5X reduction lens provides a wider field of view.

Features

• Sensor: Aptina AR1820 (color)
• Sensor Type: CMOS
• Sensor Size: 6.14 x 4.61 mm
• Pixel Size: 1.25
• Resolution: From 3 MP to 18 MP
• Maximum Frame Rate: 54.4 fps at 1228 x 922, 34.3 fps at 2456 x 1842, 13.1 fps at 4912 x 3684
• Sensitivity: 0.62 V/lux-sec
• Connectivity: USB 3.0
• Compatibility: Windows (32/64-bit) XP/Vista/7/8/10/11, Mac OSX, Linux

Program Specifications:

• Operating System Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: 2.8 GHz Intel Core2 or similar processor, 2 GB RAM, USB 3.0 port for maximum speed
• Advanced Software for Windows:
  • offers stitching, EDF, video recording, and measurement functions
  • performs measurements of lengths, angles, arcs, areas, etc.
  • saves still images in BMP, TIFF, JPG, PICT, PTL, or other formats
  • live video and still image capture can be set at different resolutions simultaneously. Additional features: add layers, watermarks, mosaics; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, grain, diffusion; transform images through edge detection, digital image warping; perform measurements of simple, parallel or perpendicular lines and rectangular, elliptical, and irregular areas; add notes, measurements, text, arrows, labels, etc., using customizable text with different sizes and colors; perform measurements in microns, millimeters, centimeters, inches, feet, etc., under any magnification power with desired tolerances
• Free software updates for life

† California Proposition 65 Warning: Cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov/chemicals

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Features
    Camera Connectivity	USB 3.0
    Camera Mount Size	23 mm, 30.5 mm, 30 mm, C-mount
    Camera Pixel	From 3MP to 18MP
    Reduction Lens	0.5X
    Camera Sensor	CMOS
    Type of Camera	Bright Field
    Compatibility	PC and Mac
    Mount Size	23 mm Camera, 30.5 mm Camera, 30 mm Camera, C-mount Camera
    Pixel	From 3MP to 18.0MP
    Reduction Lens	0.5X
    Sensor	CMOS Camera
    California Proposition 65

• • Digital camera
  • Reduction lens
  • 1.8 m USB cable
  • Two adapters: 30 mm and 30.5 mm
  • One calibration slide (only 18MP HS)
  • A CD with software and user instructions (English)
• • None
• • Cleaning kit
• • User Manual (English)

Ver todos os detalhes do produto »

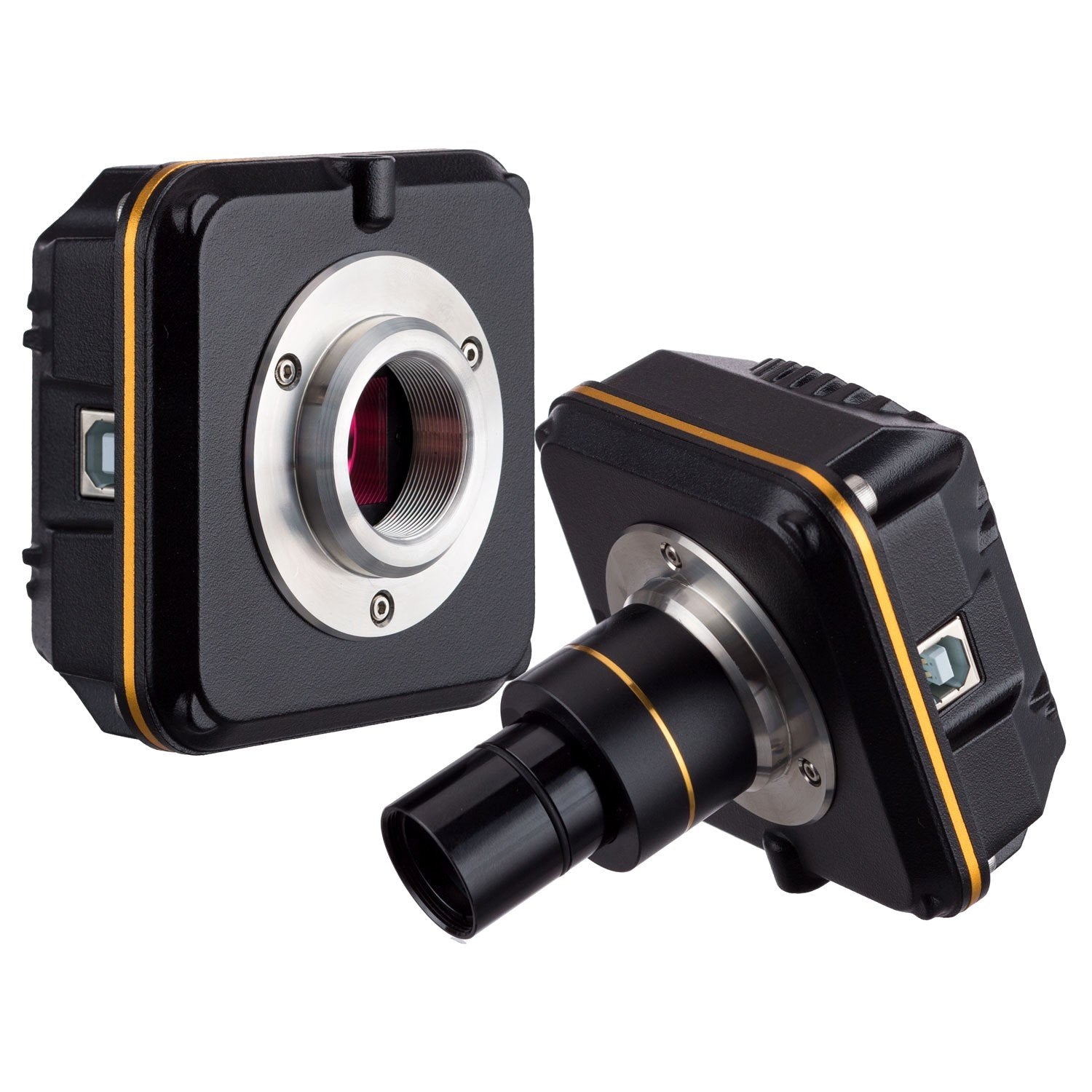

Amscope Microscope Cameras MU Series USB 3.0 High-Speed Back-Illuminated Color CMOS

Request Quote

Ver todos os detalhes do produto »

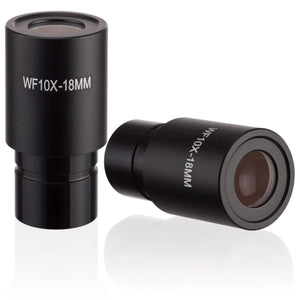

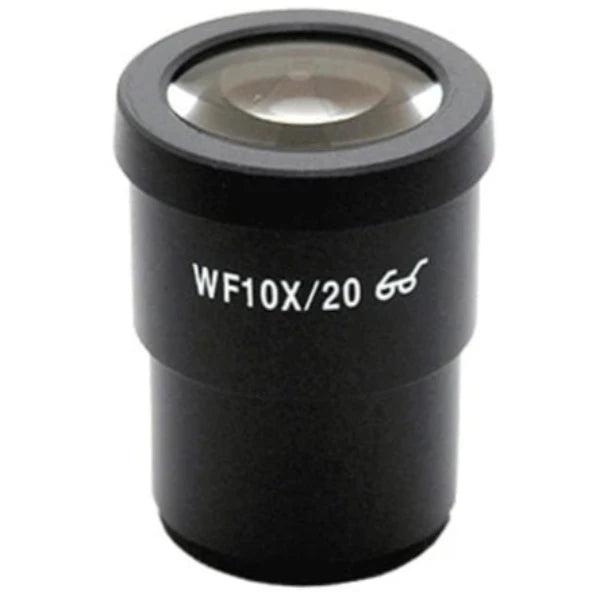

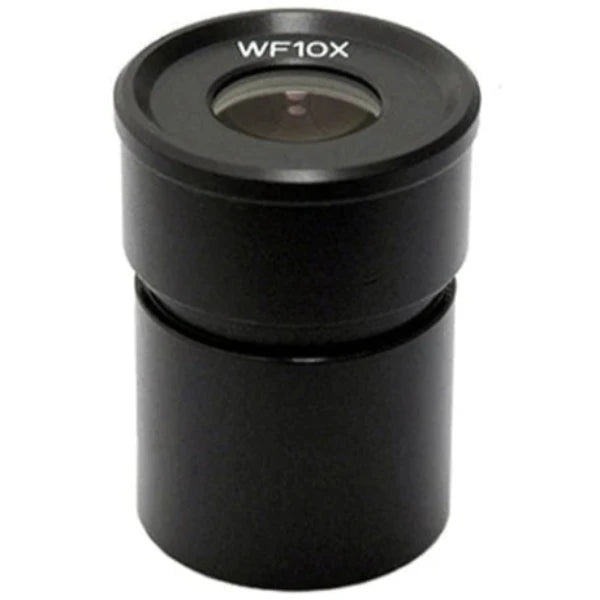

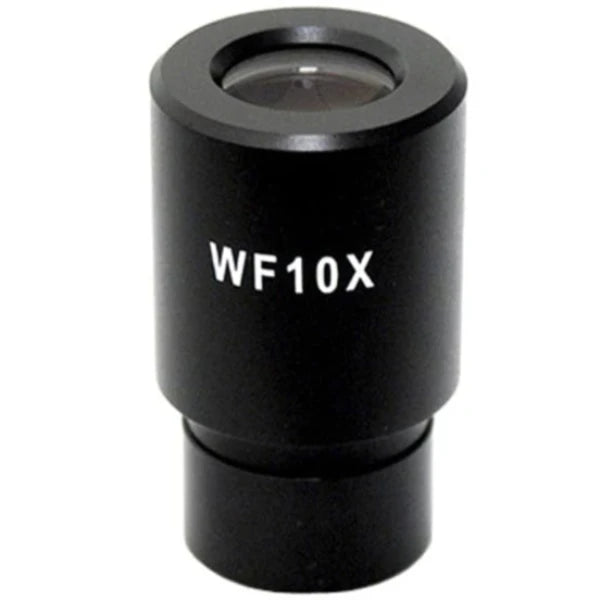

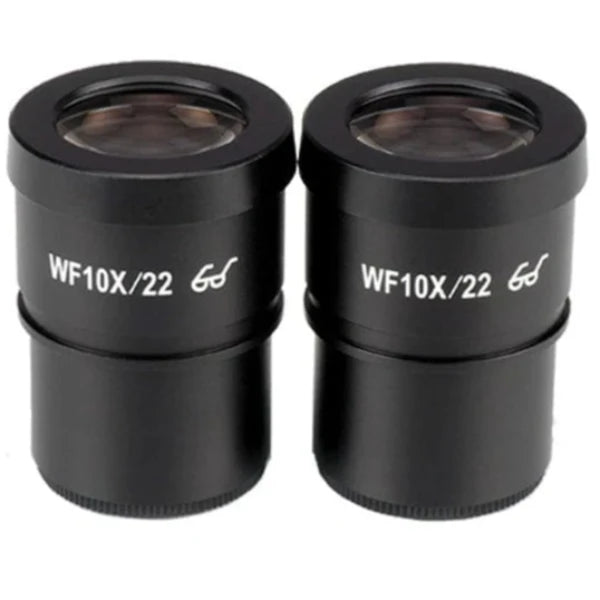

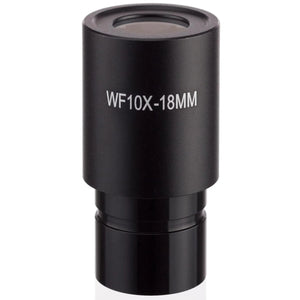

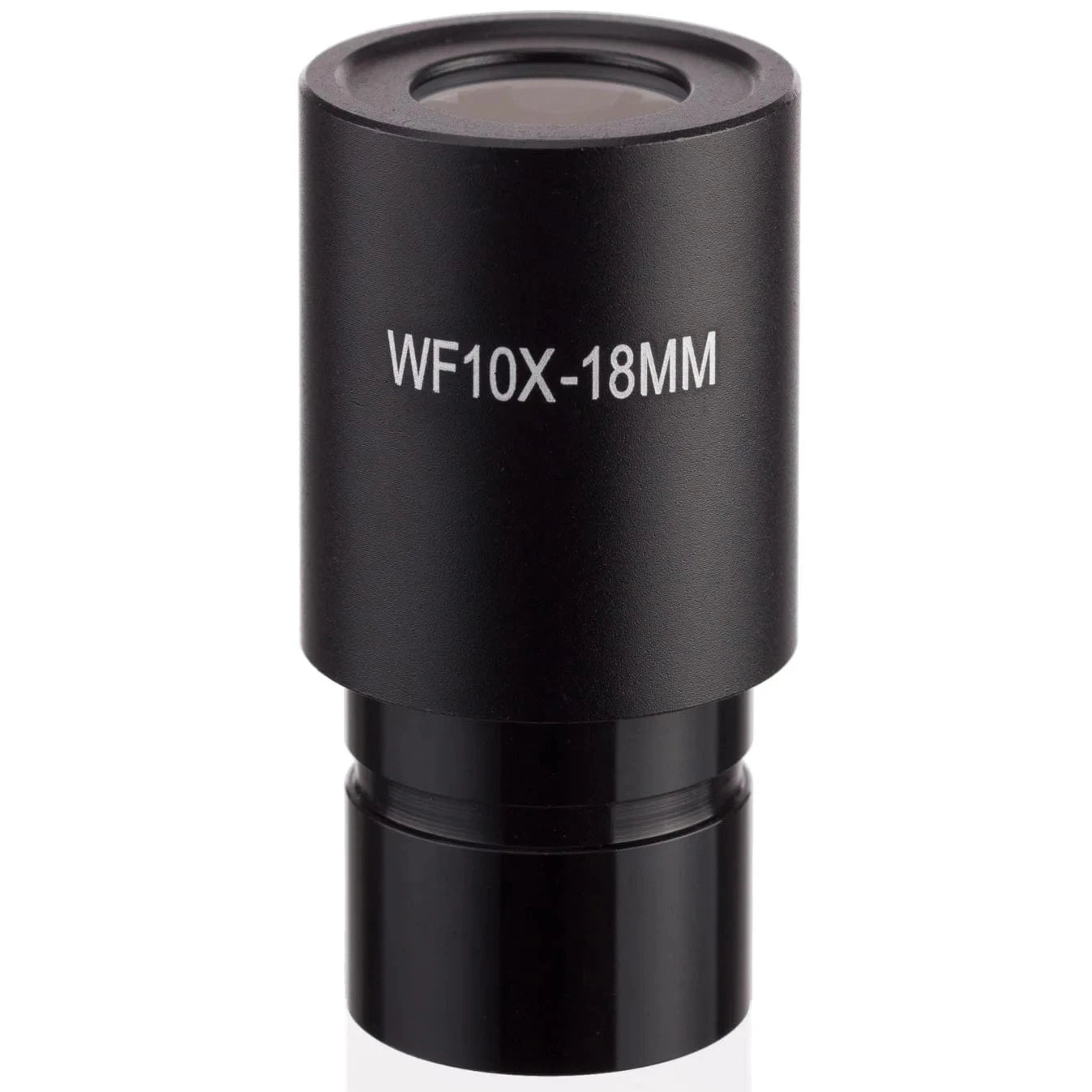

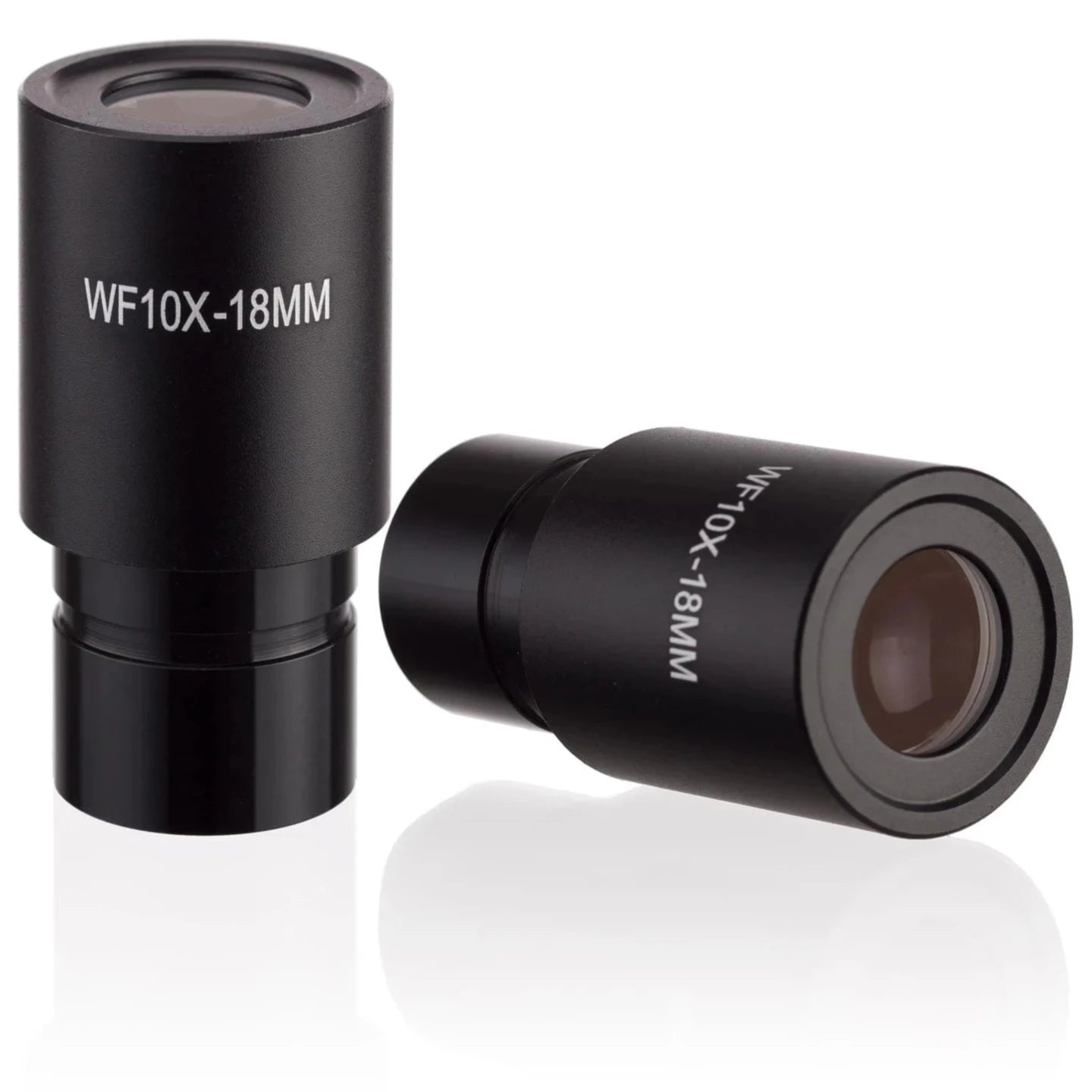

Amscope Microscope Eyepiece - 10x

Request Quote

Model Magnification Field of View Graduations Mount (Diameter) Other Features EP10X30FR 10X 20mm Super Wide...

Ver todos os detalhes do produto »

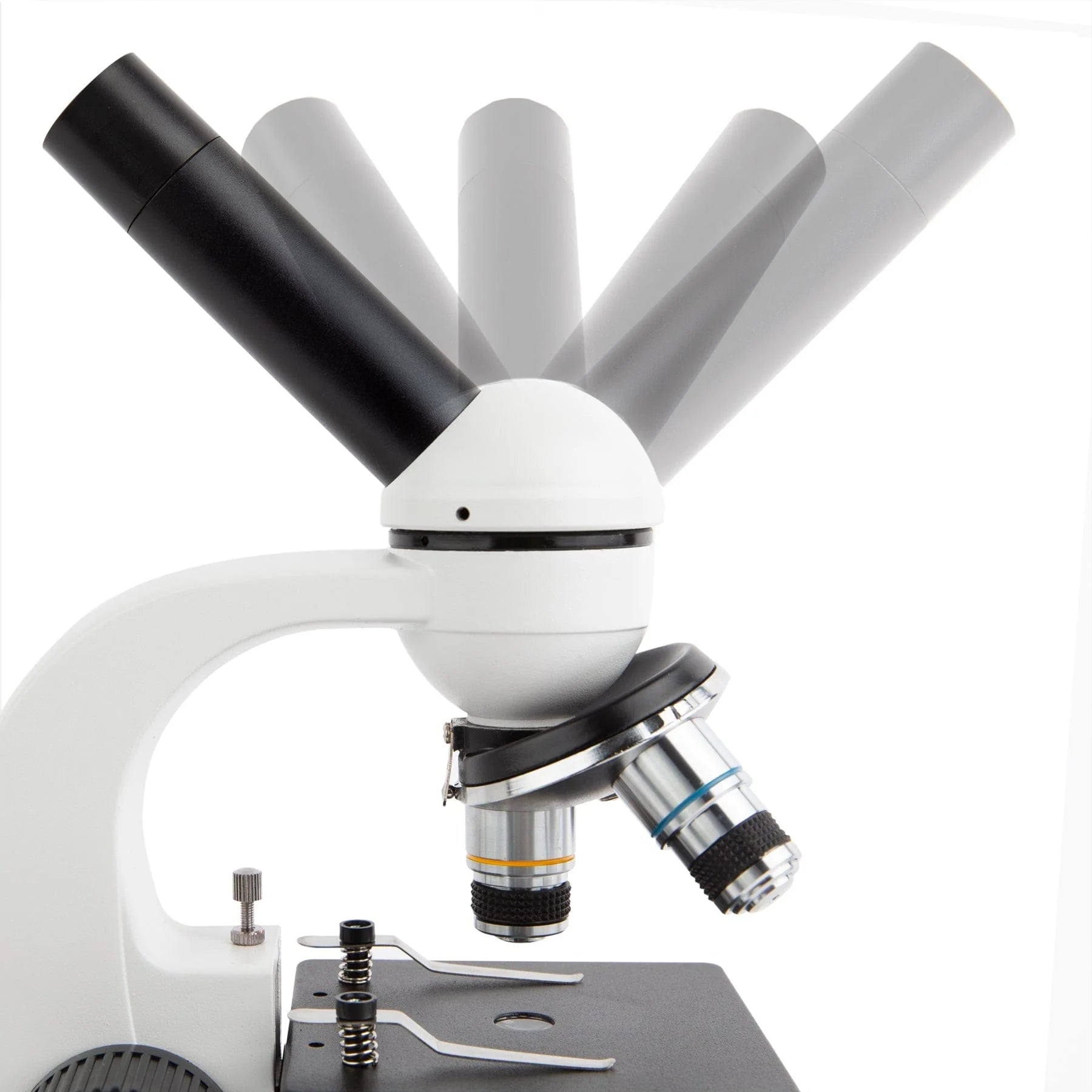

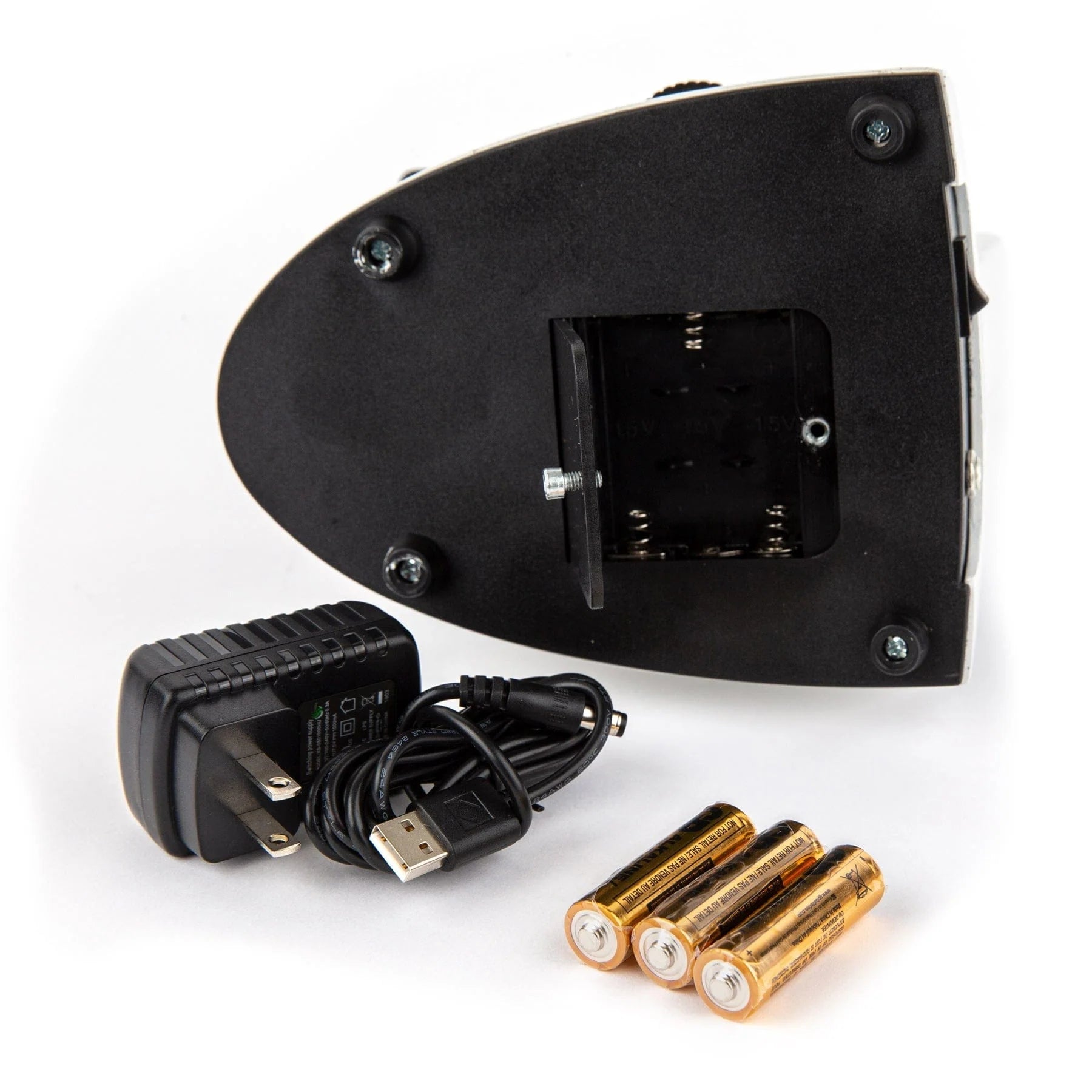

Amscope Monocular Microscope 360 Rotating Head + USB Camera / 40X-1000X

Request Quote

AmScope Monocular Microscope with 360° Rotating Head and USB Camera, 40x to 1000x Magnification

Ideal For Scientific And Educational Use, Offering High Precision And Ease Of Use With Its Rotating Head And Integrated USB Camera.

Features

• 360 degree rotating monocular head with optical glass lenses, offering five levels of magnification up to 1000X.
• Sturdy all-metal framework with single glass lens condenser and 6-hole disc diaphragm.
• LED illumination powered via outlet and/or batteries
• 640x480 USB 2.0 digital camera for photos and videos on Windows and Mac, with 3rd-party software support.
• User-friendly software (Windows only) offers processing and advanced features including Stitching, EDF, Video Recording and Measurement functions.
• Includes an AmScope Exclusive – digital camera software designed for middle and high school students that makes capturing and editing photos and videos easy and fun! Windows and Mac.

† California Proposition 65 WARNING: Cancer and reproductive harm for more information go to www.P65Warnings.ca.gov/chemicals

• Specifications
• In the box
• Required items
• Optional items

• Specs
  Compatibility	PC & Mac
  Illumination style	Transmitted (Bottom)
  Manufacturer	AmScope
  Microscope Application	Elementary
  Microscope Camera Pixel	0.3MP
  Microscope Category	Compound
  Microscope Color	White
  Microscope Condenser Design	Single Lens w/ disc
  Microscope Condenser Optics	NA 0.65
  Microscope Condenser Type	Brightfield
  Microscope Eyepiece Power	10X, 25X
  Microscope Eyepiece Size	23mm
  Microscope Field View	Widefield
  Microscope Head Style	Monocular
  Microscope Light Power	1W
  Microscope Light Shape	Built-in
  Microscope Light Type	LED
  Microscope Magnifying Power	40X to 1000X
  Microscope Number of Bulbs	1
  Microscope Objective Power	4X, 10X, 40X
  Microscope Objective Size	20mm
  Microscope Optics	Achromatic
  Microscope Power Supply	110V, 220V
  Microscope Sensor	CMOS
  Microscope Stage	Single-layer Stage with Clips
  Optics	Achromatic
  Prop 65

• • Microscope
  • Objectives, 4X, 10X and 40X (3)
  • One Widefield 10X (1)
  • One Widefield 25X (1)
  • Outlet power adapter (1)
  • Dust cover (1)
  • Two Clips
  • One 640x480 Pixel USB2.0 Digital Camera
  • One 6' (1.8m) USB Cable
  • One CD with Software, Driver and User's Instructions
  • User's Manual Download
• • None
• • Cleaning kit
  • Batteries

EO20230303

Ver todos os detalhes do produto »

AmScope Pre-Cleaned Blank Ground Edge Glass Microscope Slides x 50 u and Square Cover Glass x 100 u

$ 90.00 USD

This is a package of 50pc pre-cleaned blank microscope glass slides with ground edges plus...

Ver todos os detalhes do produto »

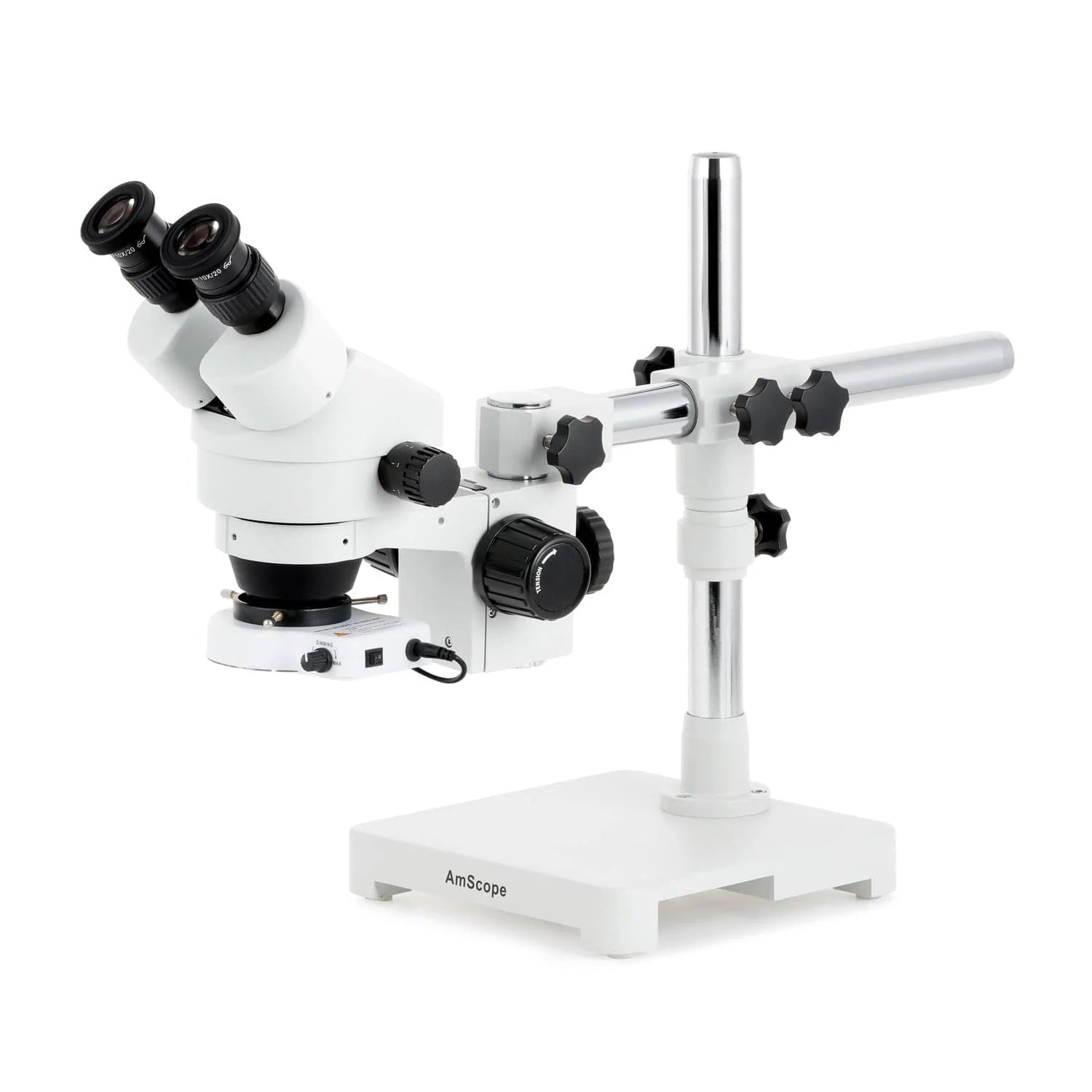

AmScope SM-3 Series Binocular Stereo Microscope

Request Quote

SM-3B Microscope: Versatility And Precision For Biological And Industrial Applications

Ideal For Laboratories And Workshops, Featuring High-Quality Optics And A Flexible Single-Arm Stand.

The AmScope C-SM-3B Series Binocular Zoom Stereo Microscope is a high-quality instrument designed for a wide range of applications, from laboratories to repairs and jewelry making. This binocular zoom microscope provides sharp, clear images with a wide field of view and low distortion. It features high-resolution optics and a robust arm stand that allows positioning the microscope at almost any angle.

• Specifications
• In The Box
• Required Items
• Optional Items

• Specification
  Head Type	Binocular, 45° inclination, 360° rotation	-
  Optical System	Greenough Stereoscopic	-
  Interpupillary Adjustment	Compensation-free gemel, 54-76mm	-
  Eyepiece Port Diameter	30mm	-
  Dioptric Adjustment	Both eyepieces, ±5dp	-
  Eyepieces	10X, 20X	-
  Objective Lenses	Zoom 0.7X-4.5X	-
  Objective Numerical Aperture	0.065 @ 4.5X	0.02 @ 0.7X
  Objective Resolution	195 lp/mm @ 4.5X	60 lp/mm @ 0.7X
  Native Field of View	4.4mm-28.6mm	-
  Native Working Distance	100mm	-
  Auxiliary Lens (Barlow)	0.5X, working distance of 165mm	2X, working distance of 30mm



  Specification
  Stand Type	Single-arm stand, cast steel base
  Stand Dimensions	16" arm (total length: 24"), 17" tall pillar, solid cast steel base 9" x 9" x 1-3/4"
  Focus Block Focus Range	50mm



  Specification
  Sensor Type	CMOS	-
  Sensor Optical Format	1/3"	-
  Active Pixels	3M (2048 x 1534)	-
  Pixel Size	2.2µm x 2.2µm	-
  Sensor Active Area	4.51mm x 3.37mm	-
  Shutter	Electronic rolling shutter	-
  Sensitivity	1.9V/Lux-sec	-
  Spectral Response	380-650nm with IR-cut filter	-
  Capture Resolution and Maximum Frame Rate	28fps @ 2048x1534	53fps @ 1024x770
  Connectivity	USB 3.0	-
  Lens Mount	C-Mount	-
  Relay Lens	0.37X	-
  Power	5VDC via USB	-



  Specification
  OS Requirements	Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM
  Features (Windows Version)	Live video preview Still image and video capture Time-lapse capture Exposure and white balance controls Dark field correction Digital binning Image processing Measurement tools, including lines, arcs, polygons Segmentation and counting tools Image stitching, extended depth of field, HDR Fluorescence color mapping
  Features (Mac/Linux Versions)	Live video preview Still image and video capture Exposure control Color adjustment Measurement tools, including lines, arcs, polygons



• • A binocular stereo microscope head
  • 10X eyepiece(s)
  • 20X eyepiece(s)
  • A 0.5X Barlow lens
  • A 2X Barlow lens
  • A pair of eye guards
  • A single-arm stand with focus rack
  • A USB C-mount camera
  • A 0.37X reduction lens
  • Two size adapters
  • A USB 3.0 Type B to Type A cable
  • A software CD
• • None
• • Interchangeable eyepieces with different magnifications
  • Additional objectives of various magnifications
  • Light filters (color, polarization, UV)
  • Condensers (Köhler, dark field, phase contrast)
  • Enhanced lighting (LED, halogen, fluorescent)
  • Motorized or high-precision stages
  • Calibration grids
  • Digital cameras or camera adapters
  • Sample holders (slides, sample holders, cuvettes)
  • Measurement accessories (reticles, scales)
  • Fiber optic light rings
  • Stabilizers or anti-vibration bases
  • Mobile device adapters
  • Specific cover slips and slides
  • Sample guides (with different thicknesses)
  • Oil immersion systems (oils and cuvettes)

Ver todos os detalhes do produto »

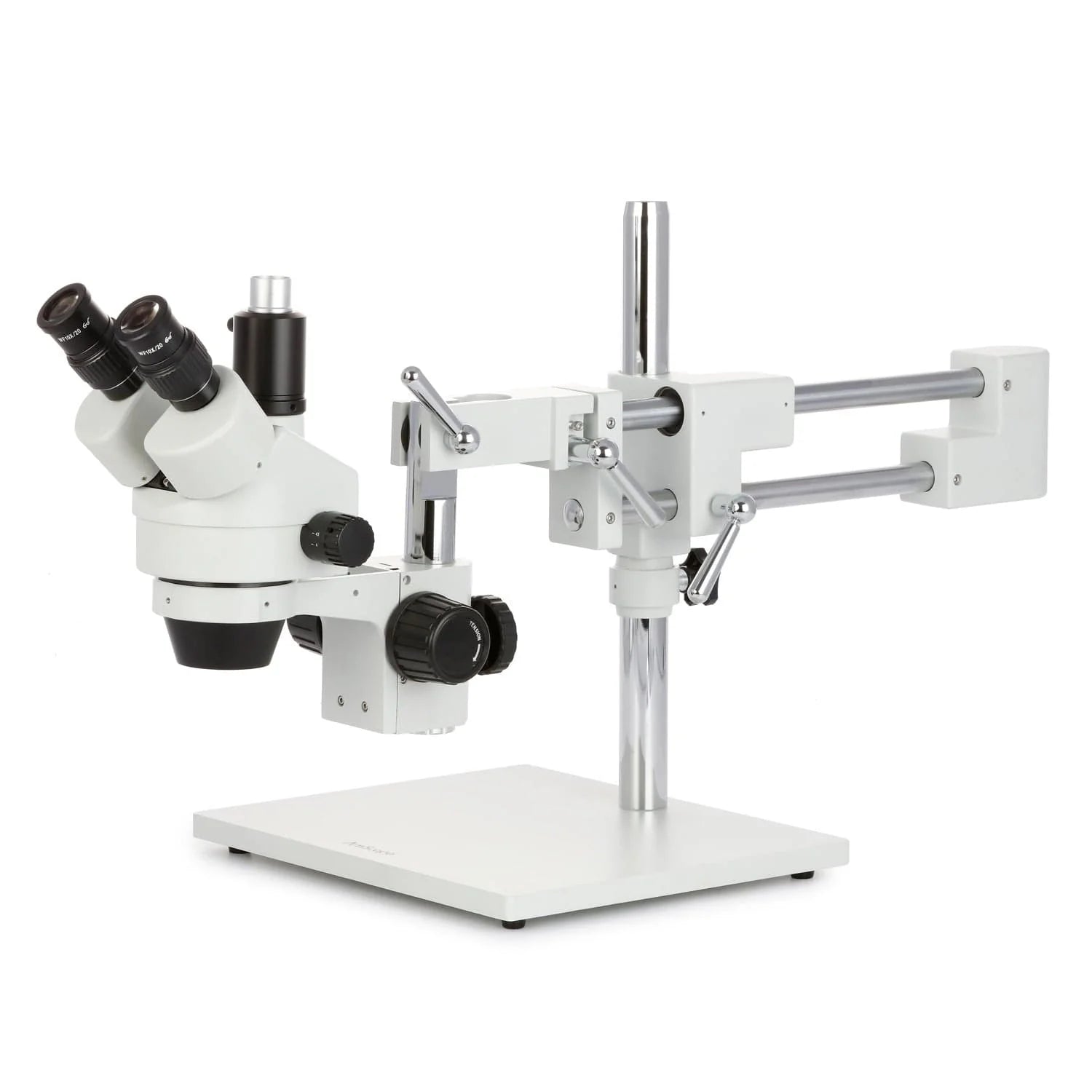

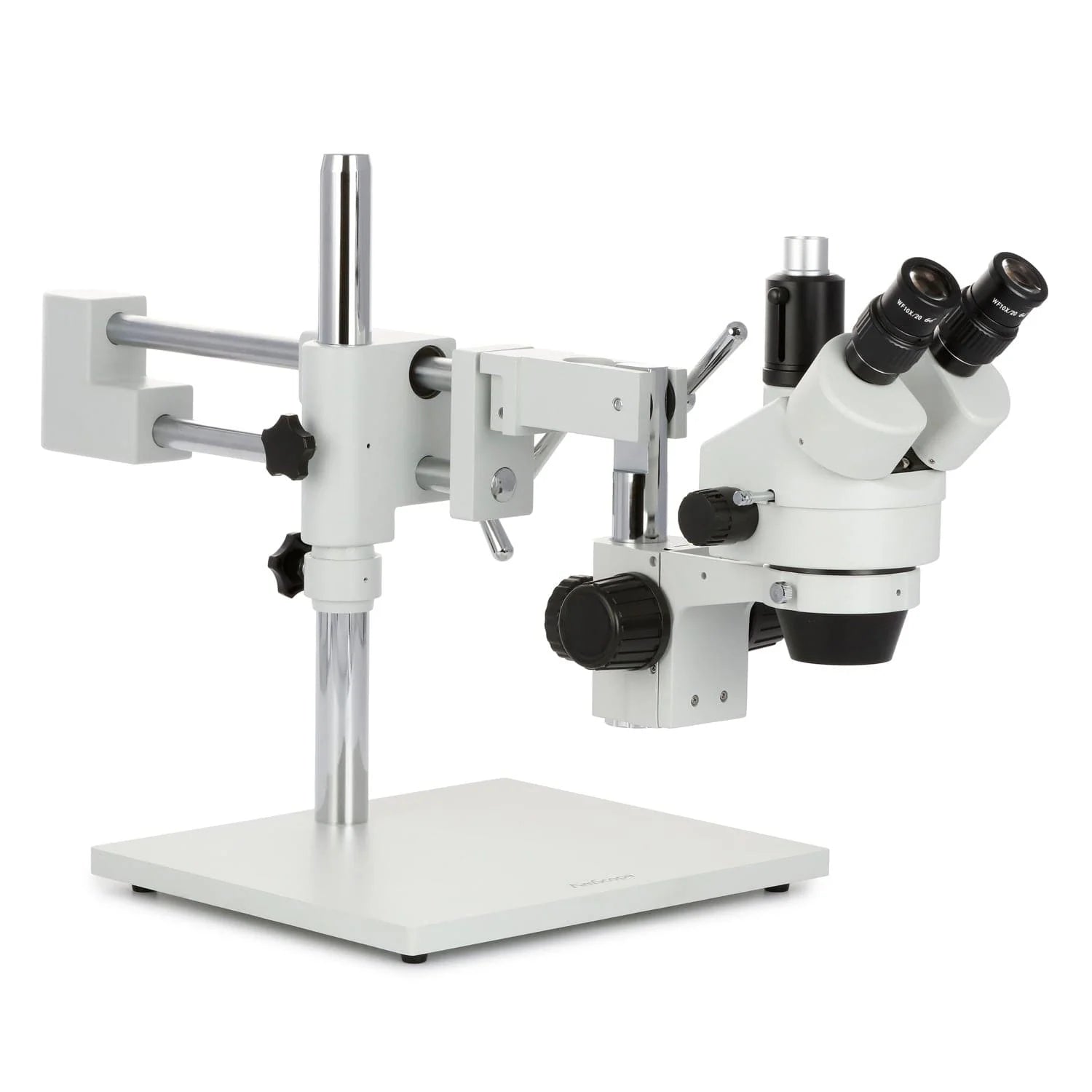

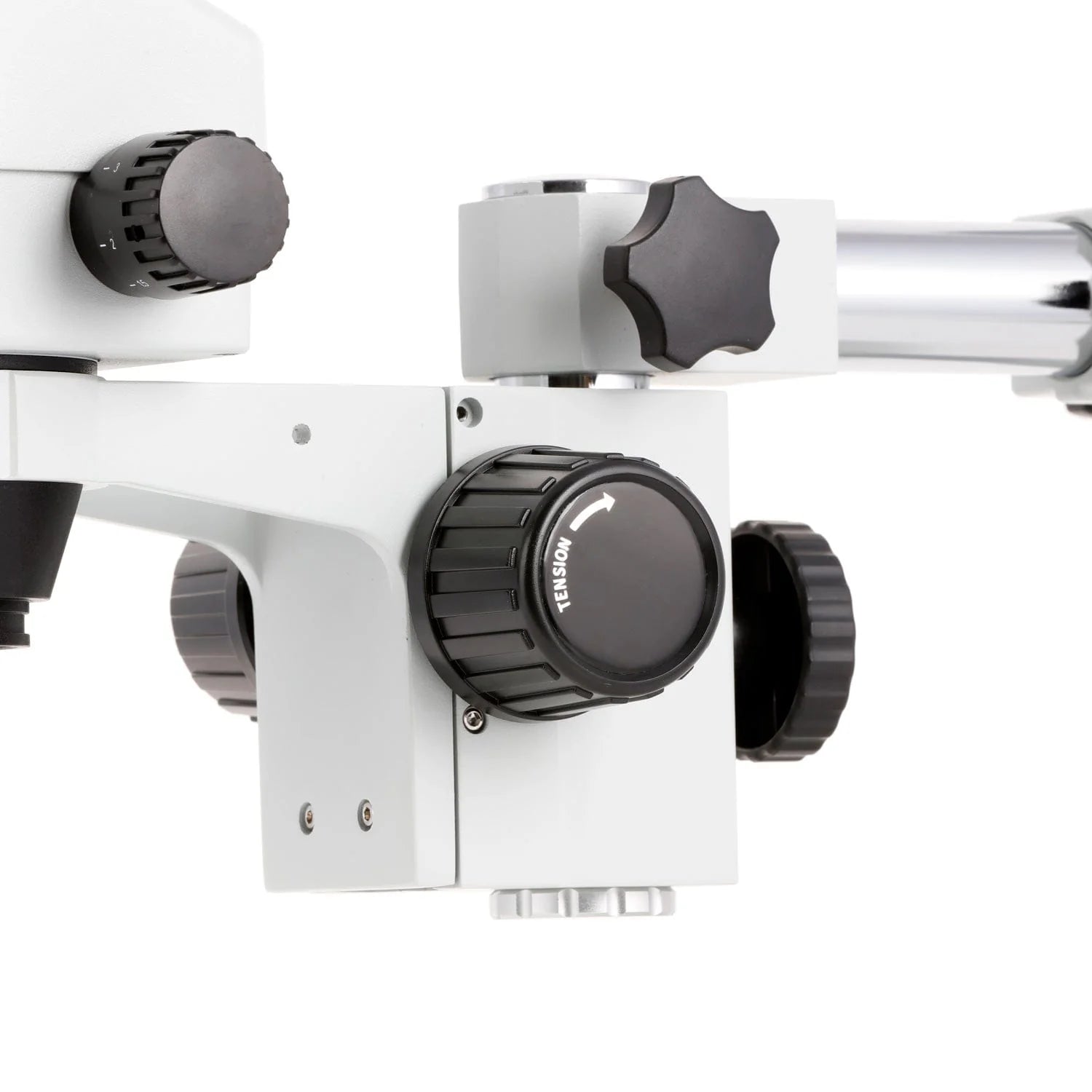

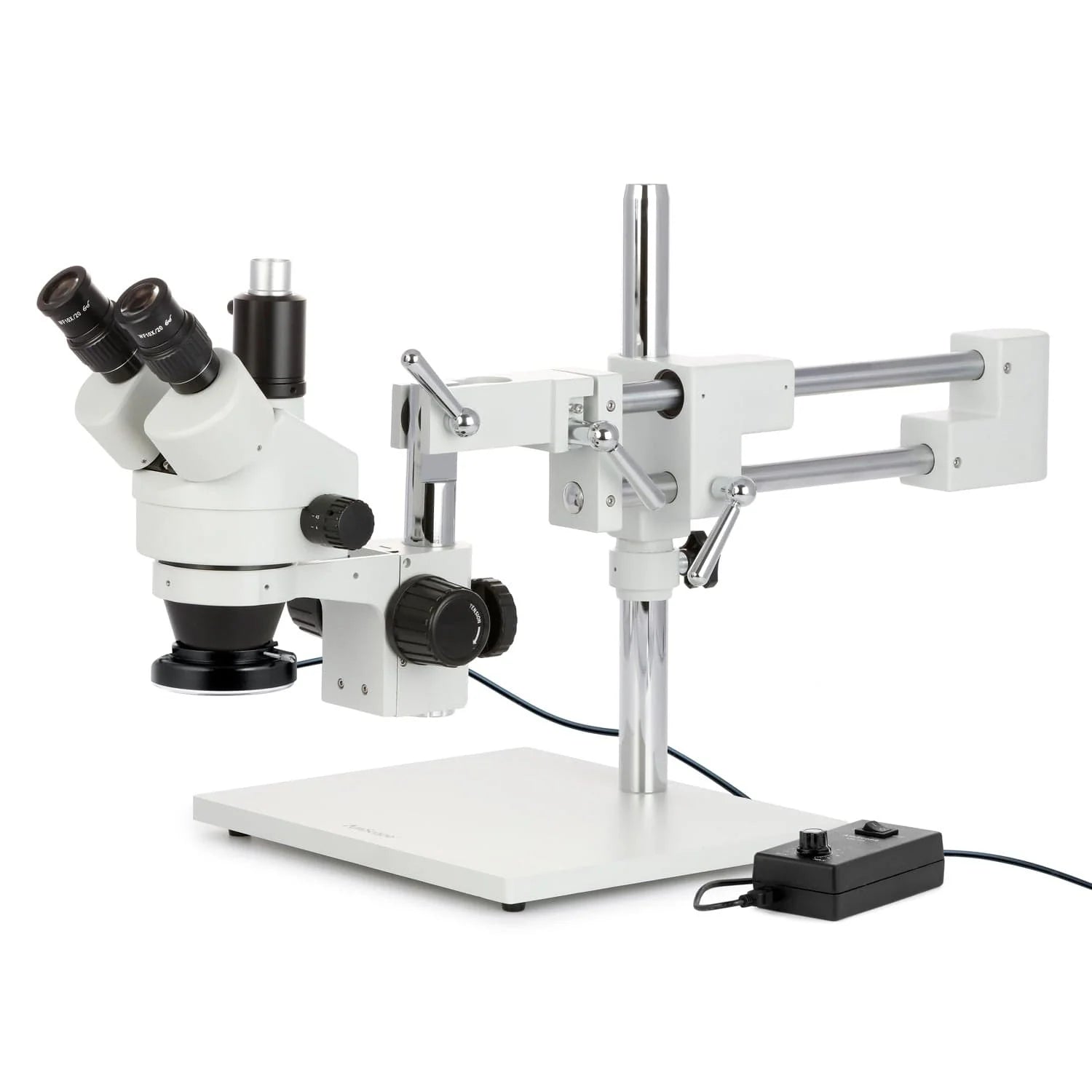

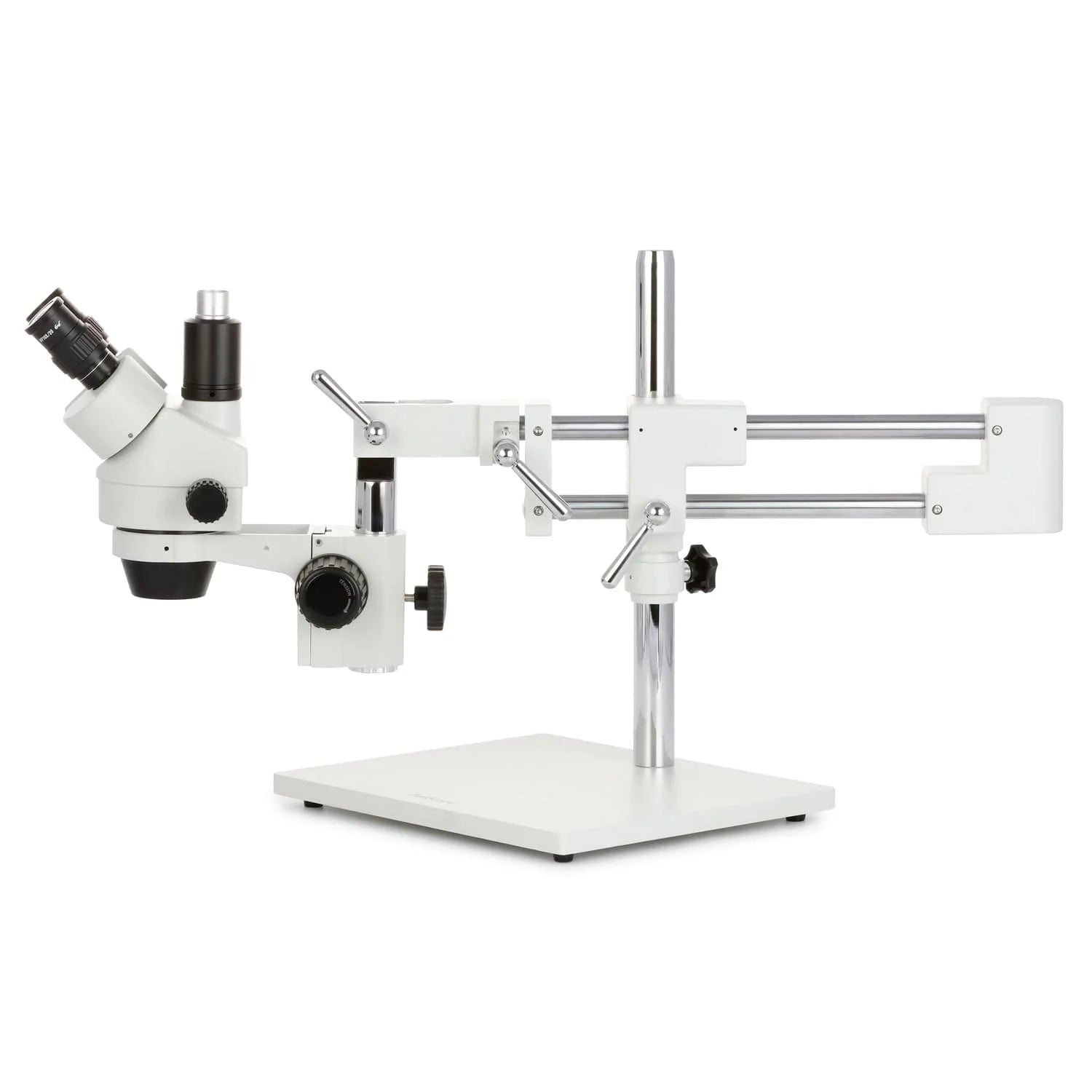

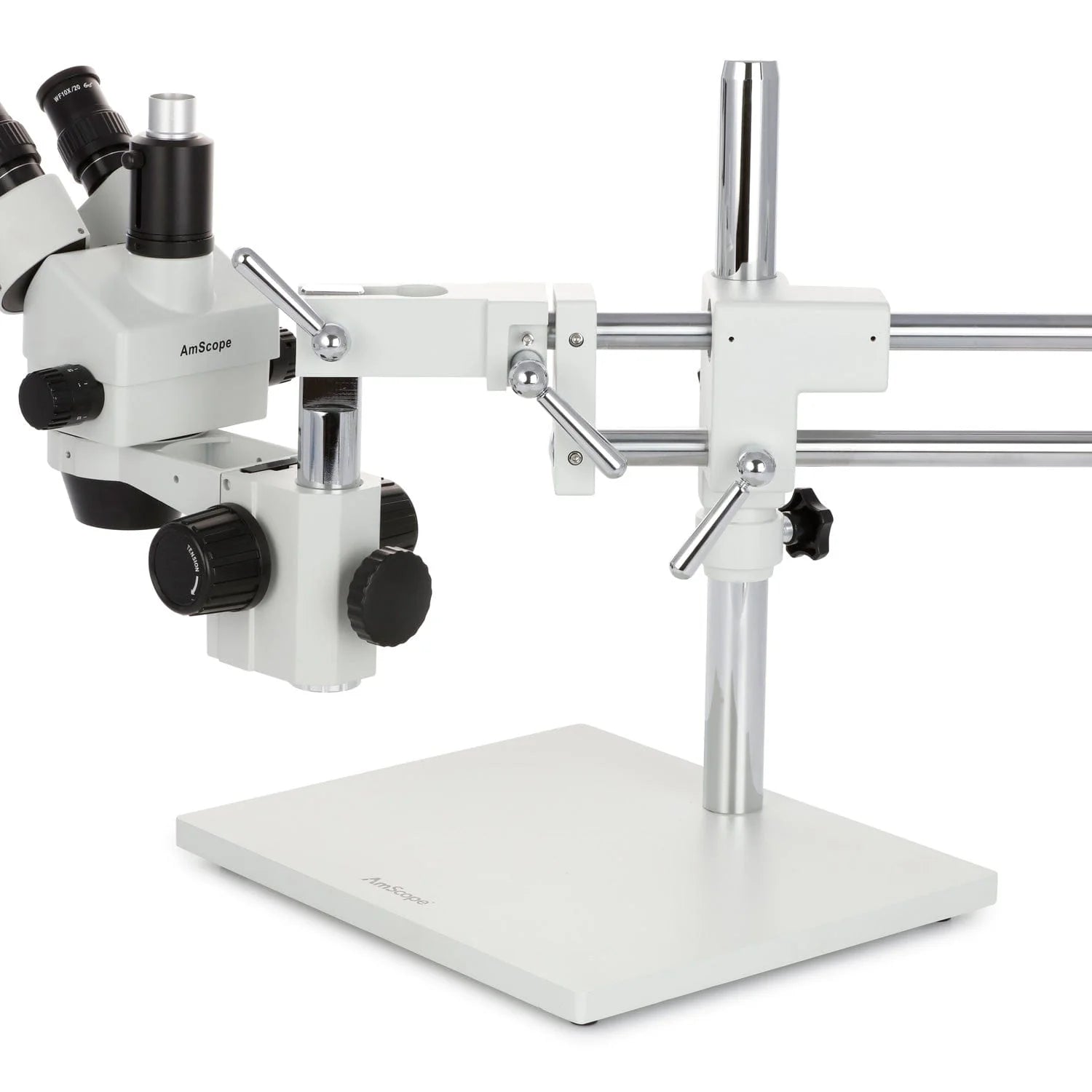

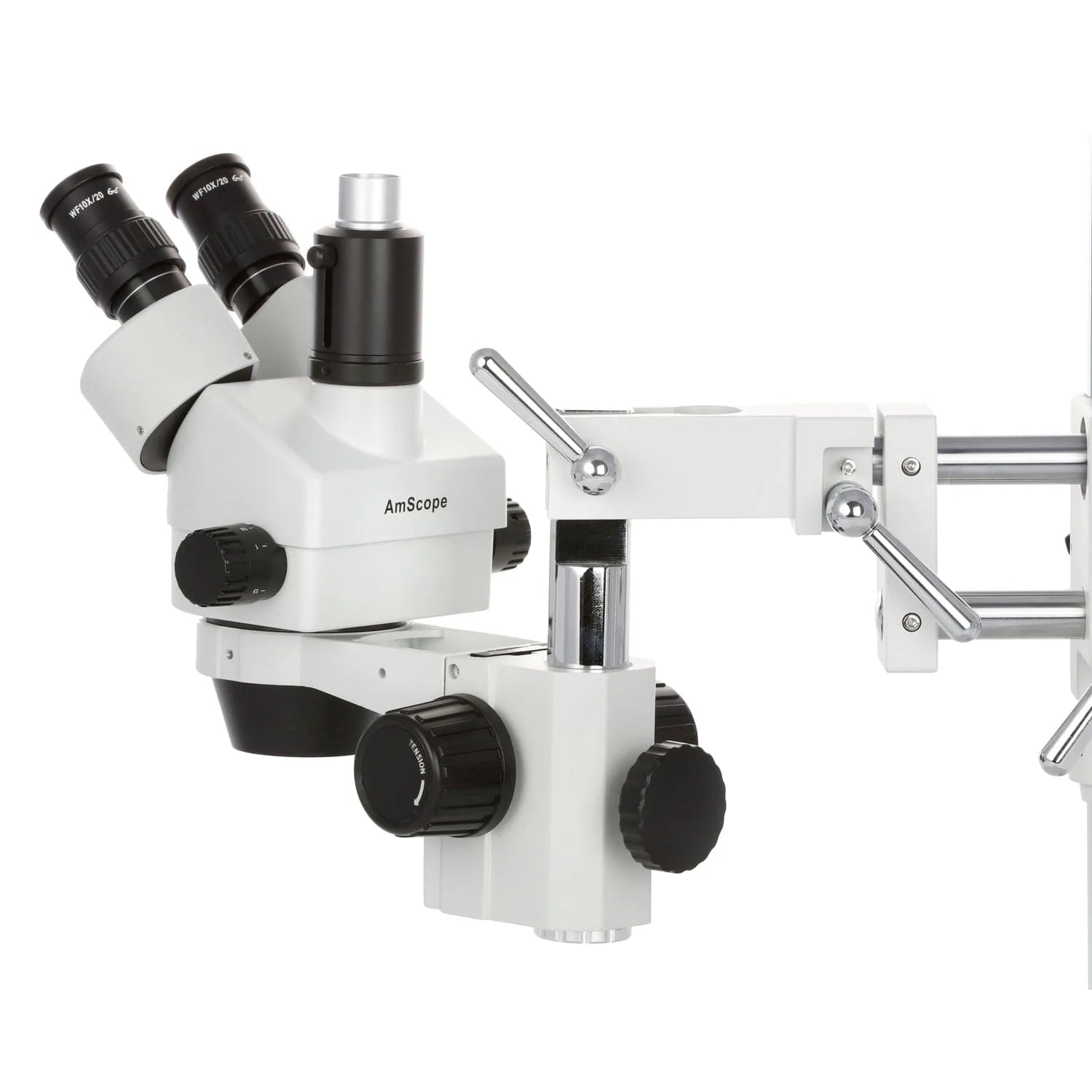

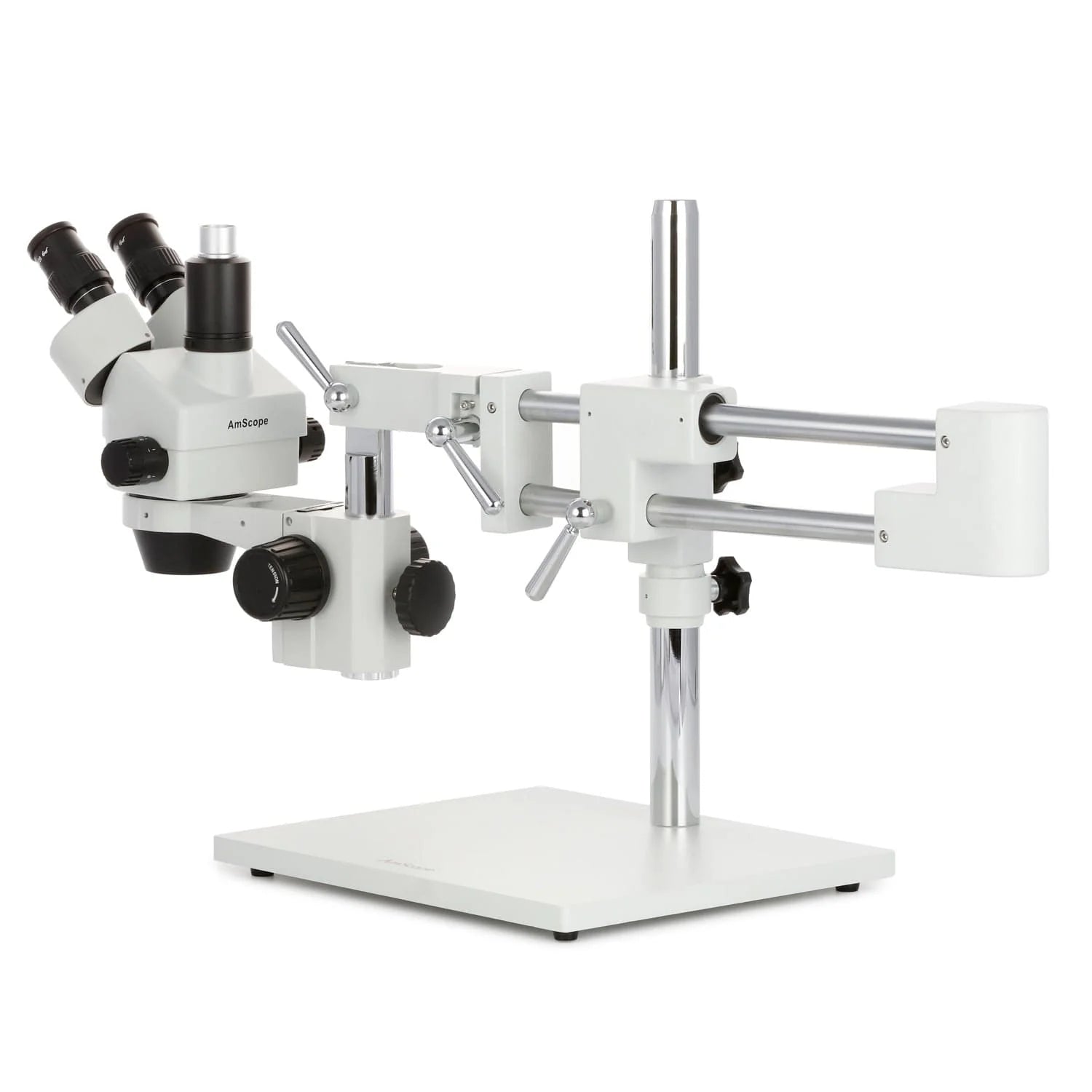

AmScope SM-4T Series Trinocular Stereo Microscope with Dual Arm Stand

Request Quote

Advanced Amscope Trinocular Stereo Zoom Microscope 7X-90X

High-Quality Optics With 5MP HDMI CMOS Camera For Detailed Observations

This high-quality stereo microscope offers a range of extended magnification options, utilizing precision Greenough objective lenses and additional Barlow lenses to suit various needs. With magnification options ranging from 7X to 180X, depending on the model, these microscopes provide sharp and detailed images, ideal for applications in laboratories, repair workshops, and engraving. Its versatile design on a multi-pivot arm stand allows easy adjustment of the microscope's position, ensuring comfort and efficiency during daily use.

Additionally, all models include dual adjustable diopters to maintain a consistent focus across the entire magnification range, improving productivity. They feature a trinocular photo port for adding cameras and a working distance ranging from 4" (100mm) to 6.5" (165mm), depending on the version. These features make the microscope an exceptional tool for those requiring clear and precise vision in precision work.

Features

• Use of high-quality Greenough stereo objective lenses.
• Microscope with a durable multi-pivot arm stand that allows the microscope to easily move into place when needed and be removed when not in use.
• Dual adjustable diopters to maintain consistent focus across the magnification range, significantly improving productivity.
• Stereoscopic optics that provide upright images with a clear depth of field and a wide field of view for practical applications.
• Trinocular photo port with a dedicated mount for adding a camera.
• Ideal for laboratories, repair workshops, and engravers.

• 7X-45X magnification with high-quality Greenough stereo objective lenses, with a working distance of 4" (100mm).
• 3.5X-45X extended magnification with high-quality Greenough stereo objective lenses and a 0.5X Barlow lens, with a working distance of up to 6.5" (165mm).
• 7X-90X extended magnification with high-quality Greenough stereo objective lenses and a 2X Barlow lens, with a working distance of up to 4" (100mm).
• 7X-135X extended magnification with high-quality Greenough stereo objective lenses, 10X and 15X eyepieces, and a 2X Barlow lens, with a working distance of up to 4" (100mm).
• 3.5X-90X extended magnification with high-quality Greenough stereo objective lenses and 0.5X and 2X Barlow lenses, with a working distance of up to 6.5" (165mm).
• 3.5X-180X extended magnification with high-quality Greenough stereo objective lenses, 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses, with a working distance of up to 6.5" (165mm).

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Details
  Head Type	Trinocular, 45° tilt, 360° rotation
  Optical System	Greenough Stereoscopic
  Pupillary Distance Adjustment	Non-compensating twin, 54-76mm
  Eyepiece Port Diameter	30mm
  Diopter Adjustment	Both eyepieces, ±5dp
  Eyepieces	10X
  Camera Port	Adjustable 23mm height tube, SM series
  Objective Lenses	Zoom from 0.7X to 4.5X
  Numerical Aperture of Objective	0.065 @ 4.5X 0.02 @ 0.7X
  Objective Resolution	195 lp/mm @ 4.5X 60 lp/mm @ 0.7X
  Native Field of View	4.4mm-28.6mm
  Native Working Distance	100mm
  Auxiliary Lens Mount	48mm thread
  Included Auxiliary Lenses (Barlow)	None included



  Specification	Details
  Support Type	Double-arm support with ball bearing movement, cast steel base
  Support Dimensions	20" double arm (total length: 30"), 17" height pillar, 10-1/4"x8-1/4"x2"
  Focusing Block Range	50mm



  Specification	Details
  Applications	Industrial Inspection
  Educational Level	Secondary School, Teaching/Training
  Eyepiece Mount Size	30mm
  Field of View Class	Super Wide Field of View
  Head Style	Trinocular
  Magnification	7X-45X
  Magnification Type	Zoom
  Objective Lens Power	0.7-4.5X
  Product Condition	New
  Product Type Category	Stereo
  Support	Boom Stand Support: Double Arm

• • A trinocular stereo microscope head
  • A camera port accessory
  • 10X eyepieces
  • A pair of eyepiece protectors
  • A double arm pen support with focus stand
• • None
• • Cleaning Kit
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (dark field, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stages
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, coverslips, tools)
  • Additional or enhanced lighting (LED, halogen, fluorescent)
  • High-quality immersion oils
  • Hard transport cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized usage guides

Ver todos os detalhes do produto »

AmScope SM-4TP Series Trinocular Stereo Microscope with LED Light

Request Quote

Advanced Amscope Trinocular Stereo Microscope

High-Quality Optics For Detailed And Versatile Biological Observations

The stereoscopic microscopes in this series stand out for their high versatility and precision, making them ideal for applications in laboratories, repair workshops, and engraving. They feature superior-quality Greenough objective lenses that deliver clear images, excellent depth of field, and wide fields of view. Their design includes a sturdy articulated arm stand and a trinocular simul-focal photo port for simultaneous use of a camera and eyepieces. Additionally, a LED lighting system with 144 lights provides a bright field with reduced shadows, adjustable to suit specific needs.

Each model offers different magnification ranges and working distances, from basic 7X-45X configurations with 100 mm working distance to advanced options of 3.5X-180X with additional lenses and up to 165 mm distance. These features allow adaptation to multiple tasks, maintaining constant focus and providing a comfortable visual experience for detailed work.

Features

• Stereoscopic microscope with high-quality Greenough objective lenses.
• Mounted on a heavy, multi-pivot articulated arm stand for greater versatility.
• Dual adjustable diopters to maintain consistent focus across the entire magnification range.
• Stereoscopic optics offering upright images with clear depth of field and a wide field of view.
• Trinocular simul-focal photo port allows the use of a camera along with both eyepieces.
• Ideal for laboratories, repair workshops, and engravers.
• 144-LED ring light providing a bright field with reduced shadows and a convenient module for brightness adjustment.

• 7X-45X
  • Magnification: 7X-45X.
  • Working distance: 4" (100 mm).
• 3.5X-45X
  • Magnification: 3.5X-45X (includes 0.5X Barlow lens).
  • Working distance: up to 6.5" (165 mm).
• 7X-90X
  • Magnification: 7X-90X (includes 2X Barlow lens).
  • Working distance: 4" (100 mm).
• 7X-135X
  • Magnification: 7X-135X (includes 10X and 15X eyepieces, and 2X Barlow lens).
  • Working distance: 4" (100 mm).
• 3.5X-90X
  • Magnification: 3.5X-90X (includes 0.5X and 2X Barlow lenses).
  • Working distance: up to 6.5" (165 mm).
• 3.5X-180X
  • Magnification: 3.5X-180X (includes 10X and 20X eyepieces, and 0.5X and 2X Barlow lenses).
  • Working distance: up to 6.5" (165 mm).

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Details
  Head Type	Simultaneous trinocular, 45° inclination, 360° rotation
  Optical System	Greenough Stereoscopic
  Interpupillary Adjustment	Twin non-compensating, 54-76mm
  Eyepiece Port Diameter	30mm
  Diopter Adjustment	Both eyepieces, ±5dp
  Eyepieces	10X
  Photography Port	Height-adjustable tube of 23mm, SM series, simultaneous
  Objectives	Zoom 0.7X-4.5X
  Objective Numerical Aperture	0.065 @ 4.5X 0.02 @ 0.7X
  Objective Resolution	195 lp/mm @ 4.5X 60 lp/mm @ 0.7X
  Native Field of View	4.4mm-28.6mm
  Native Working Distance	100mm
  Auxiliary Lens Mount	48mm thread
  Included Auxiliary Lenses	Not included



  Specification	Details
  Base Type	Double-arm base with ball bearing movement, cast steel base
  Base Dimensions	20" double arm (total length: 30"), 17" height pillar, base 10-1/4"x8-1/4"x2"
  Focus Block Range	50mm



  Specification	Details
  Applications	Industrial Inspection
  Educational Level	Secondary, Teaching/Training
  Eyepiece Mount Size	30mm
  Field of View Class	Super Wide Angle
  Head Style	Trinocular, Simul-Focal
  Lighting Style	Incident (Upper)
  Lighting Type	LED
  Magnification	3.5X-180X
  Magnification Type	Zoom
  Objective Lens Power	0.7-4.5X
  Power Compatibility	Broadband
  Product Condition	New
  Product Type Category	Stereoscopic
  Stand	Double Arm



• • A Trinocular Stereoscopic Microscope Head
  • An Adapter for Photo Port
  • 10X Eyepieces
  • A Pair of Eye Guards
  • A Double Arm Stand with Rack and Pinion Focus
  • An LED Ring Light
  • A Power Controller
  • A Power Cable
  • A Mount Adapter for Ring Light
• • None
• • Cleaning Kit
  • Color Filters for Contrast (blue, green, yellow, etc.)
  • Specialized Condensers (dark field, phase contrast, Köhler)
  • Digital Cameras for Capturing Images and Videos
  • Adapters for Mobile Devices
  • Motorized or High-Precision Mechanical Stage
  • Calibration Grids for Quantitative Measurements
  • Sample Preparation Kit (slides, cover slips, tools)
  • Additional or Enhanced Lighting (LED, halogen, fluorescent)
  • High-Quality Immersion Oils
  • Rigid Transport Cases
  • Cleaning Accessories (cloths, brushes, blowers)
  • Backup Power Supplies or Power Adapters
  • Reference Manuals and Specialized Usage Guides

Ver todos os detalhes do produto »

Amscope Stereo Binocular Microscope for Embryology 7X-45X

Request Quote

Ver todos os detalhes do produto »

AmScope T490 Trinocular Compound Microscopes Up to 40X-2500X with Digital Camera

Request Quote

T490 Microscope: Your Reliable Ally for Veterinarians and Clinics

A reference microscope for veterinarians and clinics, renowned for its quality and versatility. With a Siedentopf head, smooth stage, precise focusing, and photographic option, it's ideal for blood, fluid, and pathology analysis.

To customize the microscope for your viewing comfort, the interpupillary distance can be easily adjusted using a Siedentopf precision mechanism. Dioptric adjustment is available on both eyepieces to compensate for asymmetry, and the eyepiece tubes have a 30° angle for comfortable seated use without neck strain. The 23mm photographic port is height-adjustable to align with the eyepieces and can be replaced with an optional CX series C-mount port featuring built-in reduction for direct interaction with C-mount cameras.

The objective turret provides instant access to 4 levels of magnification, making it easy to focus on intricate details from 40X to 2500X. This covers the necessary magnifications for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to enhance resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examining specimen slides. Low stage position controls are conveniently located near the coaxial focus knobs for optimized workflow. Specimen slide examination is intuitive and accurate for users at any level. Halogen lighting beneath the stage delivers bright illumination with excellent color reproduction. Warm lighting is more suitable for extended use and causes less visual fatigue compared to LED and fluorescent lighting. The Abbe condenser has a high numerical aperture of 1.25 for oil immersion and an iris diaphragm to optimize contrast and depth of field. The condenser support uses rack and pinion movement for precise height adjustment.

Features

• Magnification range from 40X to 1000X using high-quality achromatic objective lenses.
• This microscope, one of the top choices for veterinarians, clinics, and classrooms, provides high-quality precision optics and mechanics.
• Professional features include a Siedentopf trinocular head for precise adjustments, a 2-layer mechanical stage with low-position controls, and coarse and fine coaxial focusing for ergonomics and efficient workflow.
• Halogen lighting reduces visual fatigue during extended use.
• The trinocular photographic port allows easy camera mounting. The T490 is compatible with our CX series C-mount photographic ports with built-in reduction.

• Specifications
• In the Box
• Required Items
• Optional Items

• • Features
    Optical System	Finite conjugate
    Mechanical Tube Length	160mm
    Head	Trinocular, 30° inclined, 360° rotatable
    Interpupillary Adjustment	Siedentopf, mixed without compensation
    Eyepiece Diameter	23mm
    Eyepieces	10X
    Photographic Port	Height-adjustable 23mm tube, CX series, simulfocal.
    Objective Lenses	DIN standard
    Objective Parafocal Distance	45mm
    Objective Mounting Thread	RMS 20.32mm
    Objective Turret	Quadruple
    Focusing System	Coarse and fine coaxial focus, upper limit stop, tension control
    Focusing Range	30mm
    Fine Focus Division	0.002mm
    Stage Design	Double-layer with clamp
    Stage Dimensions	140mm x 140mm
    XY Translation Range	75mm x 45mm
    Transmitted Illumination	20W Halogen
    Condenser	Abbe condenser NA1.25 with iris diaphragm, 32mm filter holder
    Substage Condenser Support	Rack and pinion
    Power	110V AC 60Hz

• • One trinocular head
  • Microscope body
  • Photographic port
  • Four objective lenses: 4X, 10X, 40X, 100X
  • One pair of 10X eyepieces
  • Power cord (US and Canada standard)
  • Dust cover
  • Color filters (blue, green, yellow)
  • Spare halogen bulb
  • Spare fuse
  • Immersion oil sample bottle
• • None
• • Cleaning kit

EO 20230911

Ver todos os detalhes do produto »

AmScope Trinocular Compound Microscopes T690 Series from 40X to 2500X

$ 755.00 USD

This is a top-tier professional infinite trinocular compound microscope with an extreme wide field optical infinite system, providing sharp and clear images. It features a 360-degree rotating Siedentopf trinocular head with a 30-degree incline, extreme wide field eyepieces, infinite objectives, coarse and fine coaxial focus, a three-dimensional mechanical stage, and variable-intensity halogen Kohler illumination with wide voltage (85-230V). Its revolving nosepiece configuration allows for ample space for convenient operation and comfortable observation. This microscope provides eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X. It is an excellent instrument for clinics, veterinary offices, and research laboratories.

Add a digital camera to capture still images and videos, allowing you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a multi-platform imaging solution. The included Windows software offers image development and measurement tools, as well as advanced compositing features like image stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed videos while capturing high-definition images. For Mac and Linux, a lite version with limited processing features is available.

Highlighted Features

• Large mechanical stage with dual microslide clamp.
• Humanized configuration design provides comfortable operation.
• Front house light frame open for easy bulb access.
• Fully coated optical system with high resolution.
• Sharp and crystal-clear images.
• Precise mechanical control system.
• Rear-facing nosepiece design for spacious operation room.
• Kohler illumination system with field diaphragm for lighting control.
• 30° inclined, 360° rotatable, Siedentopf trinocular head.
• Eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X.
• Variable intensity transmitted halogen lighting.
• Abbe condenser with iris diaphragm and flip-out filter holder.
• Rack and pinion adjustment for condenser.
• Low position coaxial stage movement control knobs.
• Dual-side coarse and fine focus control.
• Adjustable interpupillary distance.
• Adjustable dioptric on eyepiece.
• Durable alloy casting frame construction with stain-resistant enamel finish.
• Four infinite objectives: 4X, 10X, 40X, 100X.
• Two sets of extreme wide field eyepieces: Wide field 10X (22 mm field of view) and 20X.
• Large double-layer mechanical stage with stain-resistant finish.
• Stage stop to protect objectives and slides.
• Compatible with a wide range of optional accessories, including phase contrast and dark field condensers.
• Manufactured under ISO 9001 quality control standards.

• Specifications
• In the Box
• Required Items
• Optional Items

• Features
  Type of Microscope	Compound
  Application	Clinic, Veterinary, Laboratory
  Type of Head	Trinocular
  Camera	PC and Mac
  Application	Clinic, Veterinary, Laboratory, Teaching / Training
  Magnification Power	40X to 2500X
  Optics	Achromatic, Infinite
  Field of View	Extreme Wide Field
  Objective Power	4X, 10X, 40X, 100X
  Objective Size	20mm
  Eyepiece Power	10X, 20X
  Eyepiece Size	30mm
  Camera	PC and Mac
  Camera Sensor	CMOS
  Reduction Lens	0.5X
  Stage	Two-layer mechanical stage
  Type of Light	Halogen
  Light Power	20W
  Light Form	Built-in
  Number of Bulbs	1
  Stage DIV	1.00mm
  Condenser	Kohler
  Type of Condenser	Bright Field
  Condenser Optics	Other
  Power Supply	110V, 220V
  Education	University, Teaching / Training
  Color	White

• • AmScope Trinocular Compound Microscope 40X-2000X with 14 MP Camera (1)
  • Siedentopf trinocular head (1)
  • Microscope frame with base and Kohler lighting system (1)
  • High-quality infinity objectives (4)
  • Extreme Widefield WH10X eyepieces (2)
  • Extreme Widefield WH20X eyepieces (2)
  • Power cable (1)
  • Three-color filters
  • Dust cover (1)
  • Replacement halogen bulb (1)
  • Replacement fuse (1)
  • Immersion oil (1)
  • User manual download
  • Reduction lens (1)
  • Size adapters (1)
  • USB cable (1)
  • Software CD (1)
• • None
• • Camera

Ver todos os detalhes do produto »

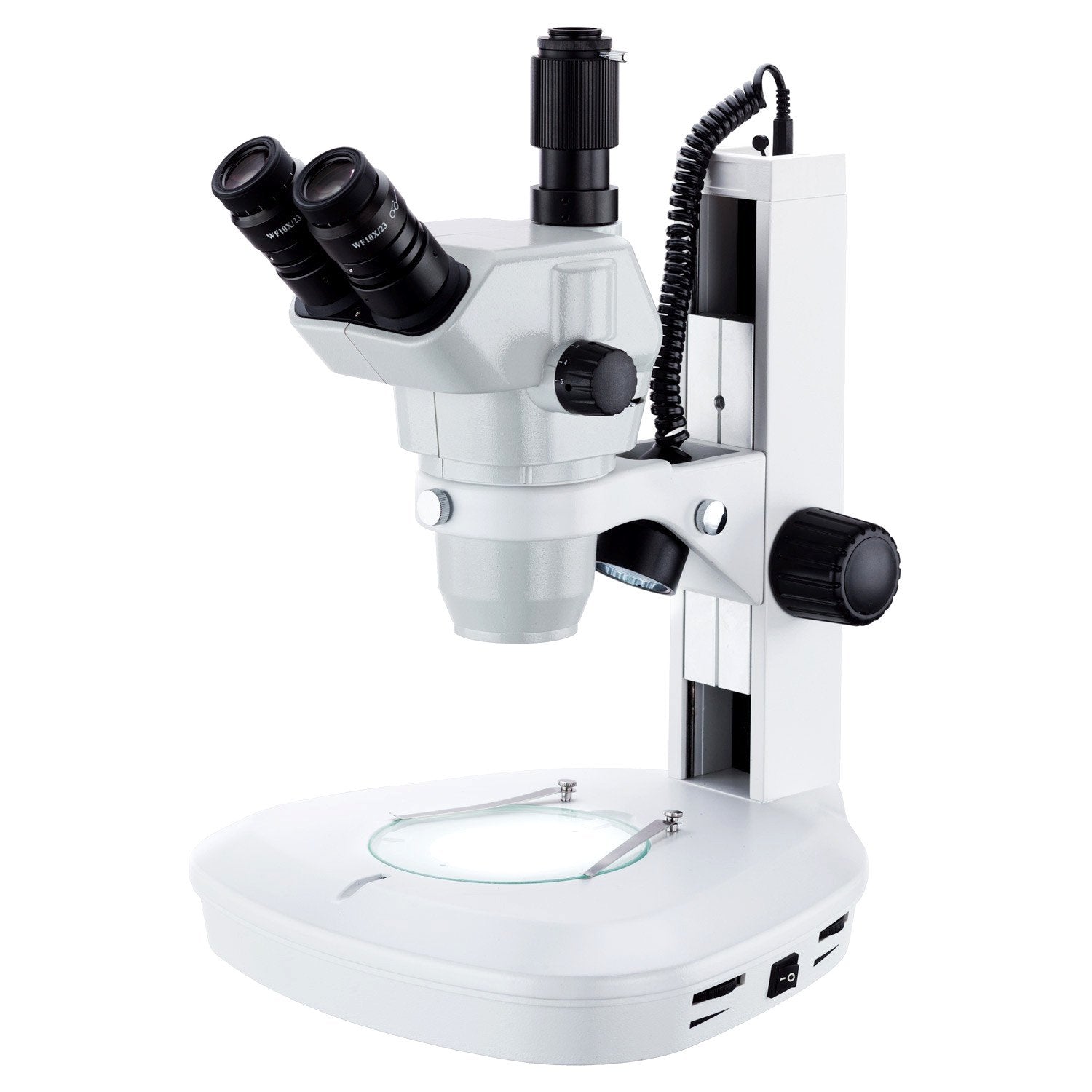

Amscope Trinocular Stereo Microscope 6.2-50X Dual LED Illumination

Request Quote

Ver todos os detalhes do produto »

Amscope Trinocular Stereo Microscope 7X-45X / 144-LED

Request Quote

Ver todos os detalhes do produto »

Amscope-KIDS Biological Microscope Kit for Beginners

Request Quote

AmScope Beginner's Biological Microscope Kit For Kids With Educational Accessories

Perfect For Introducing Children To The World Of Microscopy, This Kit Includes Everything Needed For Scientific Exploration And Learning.

The AMSCOPE-KIDS microscopes are made from the finest materials and with the best optics to ensure you get precise answers and solutions to all your endeavors. With this 48-piece microscope set, young scientists can investigate everything from cells to crystals. Perfect for individual or classroom use, the glass eyepieces and power settings—120X, 240X, 300X, 480X, 600X, and 1200X—offer users superior precision viewing. The integrated natural light illumination system (via mirror) and LED (powered by two AA batteries) and the rack-and-pinion focus help deliver clear and bright images. The 48-piece kit includes professionally prepared slides and everything users need to create their own slides. The microscope features a durable metal arm, simple coaxial coarse focus, and a sample stage with two built-in stage clips. It includes high-quality components and features that make it suitable for science learning at any age. The kit comes with sample slides, cover slips, tweezers, a scalpel, sample jars, adjustable lenses, as well as a sturdy hard case for easy storage and travel. This kit is ideal for beginner scientists. Two AA batteries for the LED light are included.

• Specifications
• In the Box
• Required Items
• Optional Items

• Ref	120X-1200X-48pc	1200X-48
  Magnifications	120X, 240X, 300X, 480X, 600X, and 1200X.
  Body Type	Durable metal construction.
  Lighting	Built-in LED light and reflective mirror.
  Eyepiece	Single mount type.
  Stage	70 x 65 mm.
  Head Type	Monocular.
  Microscope Type	Compound.
  Number of Bulbs	1.
  Power Source	110V, battery.

• • Petri dish (1)
  • Plastic tweezers (1)
  • Spare bulb (1)
  • Plastic scalpel (1)
  • Plastic spatula (1)
  • Plastic stirring rod (1)
  • Pipette, 5 prepared slides (1)
  • Blank slides (7)
  • Slide covers (16)
  • Slide labels (8)
  • Collector vials (3)
  • AA batteries (2)
• • None
• • Cleaning kit

Ver todos os detalhes do produto »

Binocular Stereo Microscope with LED Light AmScope / 20x - 40x

Request Quote

Ver todos os detalhes do produto »

Compound Binocular Microscope Amscope 40X Until 2500X

Request Quote

This entry-level biological compound microscope is designed to prioritize high-quality optics in a user-friendly form, making it ideal for classroom settings and first-time users. It features a traditional layout that is intuitive and easy to navigate. The binocular head offers customization for each user, including a sliding interpupillary adjuster for different eye spacing and diopters on both eyepieces for fine-tuning focus. The head is rotatable 360° and inclined at 45° for comfortable viewing from seated or standing positions. Interchangeable eyepieces expand the magnification range and allow the use of specialized eyepieces with pointers or measuring reticles. The stage includes clips to secure slides or specimens, and the independent coarse and fine focus knobs provide precise adjustments. A limit-stop mechanism prevents accidental contact between the lenses and specimens, protecting both the objectives and the slides. The LED light source ensures even illumination with excellent color rendering while minimizing eye strain. The rotating Abbe condenser features an iris diaphragm to control light and contrast, making it versatile for various applications. This microscope comes equipped with standard achromatic objectives (4X, 10X, 40X, 100X) and interchangeable 10X and 25X eyepieces, delivering a comprehensive magnification range suitable for a variety of educational and basic laboratory needs.

Features

• High-Quality Optics: Designed to prioritize visual clarity and precision, ideal for beginner or educational users.
• Adjustable Binocular Head: Offers sliding interpupillary adjustment and individual diopters to customize viewing for each user. 360° rotatable head and 45° incline for added comfort.
• Versatile Magnification: Includes interchangeable eyepieces (10X and 25X) and achromatic objectives (4X, 10X, 40X, 100X), providing a suitable range for basic biological analysis.
• Precise Focusing System: Independent coarse and fine focus knobs with an adjustable limit mechanism to prevent damage to lenses and slides.
• Efficient LED Illumination: LED light source reduces eye strain and provides uniform color representation.
• Advanced Abbe Condenser: Controls the amount of light and contrast, optimizing sample visualization.
• Functional Stage: Includes clips to hold samples in place, ensuring stability during observation.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Details
  Optical System	Finite-conjugate
  Tube Length	160mm
  Head	Binocular, 45° incline, 360° rotatable
  Interpupillary Adjustment	Sliding, 55-75mm
  Ocular Diameter	23mm
  Eyepieces	10X, 25X
  Objective Lenses	DIN standard
  Objective Parfocal Distance	45mm
  Objective Mounting Thread	RMS 20.32mm
  Objective Turret	Quadruple
  Focusing System	Independent coarse and fine focus
  Stage	Single layer with clips
  Stage Dimensions	110mm x 120mm
  Transmitted Illumination	0.5W LED
  Condenser	Abbe condenser with iris diaphragm, NA1.25
  Sub-stage Condenser-holder	Spiral control
  Power	100VAC 60Hz

  Magnification	Corrections	NA	Immersion Medium	Cover-glass Thickness
  4X	Achromatic	0.10	—	0.17mm
  10X	Achromatic	0.25	—	0.17mm
  40X	Achromatic	0.65	—	0.17mm
  100X	Achromatic	1.25	Oil	0.17mm

• • One binocular microscope head
  • One microscope body
  • Four objective lenses: 4X, 10X, 40X, 100X
  • One pair 10X eyepieces
  • One pair 25X eyepieces
  • One focus-tension wrench
  • Two color filters
  • One dust cover
• • Ninguno
• • Additional objectives with higher or lower magnification
  • Cleaning kit
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (darkfield, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stage
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, cover glasses, tools)
  • Additional or enhanced lighting (LED, halogen, fluorescent)
  • High-quality immersion oils
  • Rigid carrying cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized usage guides

Ver todos os detalhes do produto »

USB 2.0 Digital Cameras for Amscope C-Mount Microscopes with Reduction Lenses

Request Quote

Ver todos os detalhes do produto »
