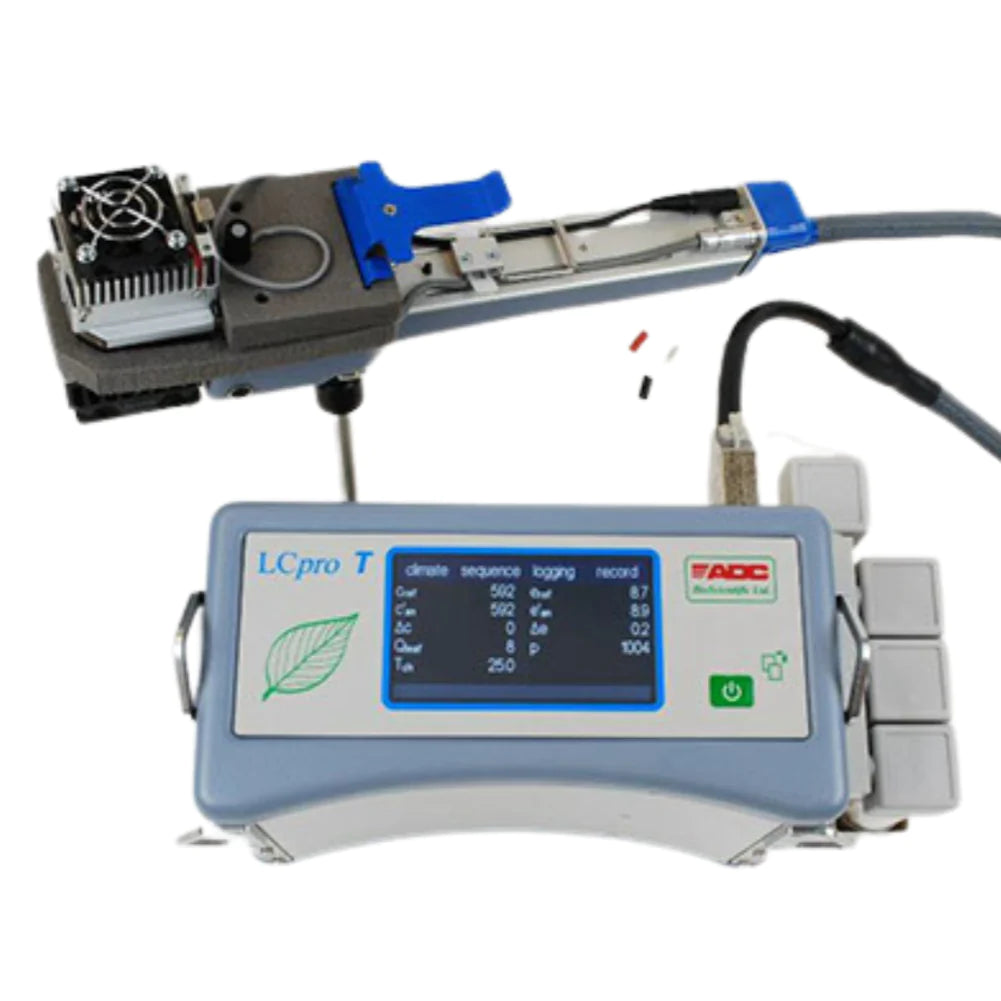

Opti-Sciences

Portable Field Laboratory-Grade Instrument Offering Highly Automated Photosynthesis.

Measurement with Microclimate Control, RGBW Light Source, and an All-Day Battery Life.

New features: RGBW light source allowing duplication of solar spectra or various artificial lamp spectra for more reliable measurements. Touchscreen color display and color graphics of A/Ci and A/Q curves. Now equipped with GPS for recording measurement locations.

ADC introduced the first commercially available IRGA photosynthesis in the 1970s. However, over the years, the instrumentation has evolved. The new LCpro-T is a laboratory-grade instrument that is highly portable in the field, weighing less than 11 pounds in total and with a battery life of 8 to 16 hours. Its unique IRGA self-calibration system minimizes instrument measurement errors and drift errors, while ensuring it is the easiest-to-use photosynthesis system available.

The new LCpro-T, with microclimate control, combines many advantages of the existing LCpro-SD with the latest available science and technology improvements.

The LCpro-T reduces or eliminates instrument babysitting while providing a new capability.
The development of powerful RGB LEDs allows researchers to approximate solar spectra at different times of the day, or approximate other actinic light spectra, providing more reliable A/Q and A/Ci curves.
GPS location information with each measurement.
Adjustment capability driven by the color touchscreen menu.

Advantages of the LCpro SD that still exist in the new LCpro T

Infrared gas analyzer with automatic zeroing for calibration of each measurement and measurement reliability of +/-1 μmol of CO2.
H2O sensors trimmed with lasers for +/- 1 millimole accuracy with no drift and less need for instrument care.
Humidity control allowing adjustment of the chamber, not only below ambient but also the unique ability to provide humidity above and near ambient to reduce instrument care and help prevent leaves from becoming inactive under the clamp.
Battery life of 8-16 hours.
Lightweight for a more enjoyable fieldwork experience.
Data transfer via SD card and USB up to 32 GB.

CO2	0-3000 ppm, 1 ppm resolution. Infrared gas analysis, open differential system, automatic zero, automatic compensation for atmospheric pressure and temperature.
H2O	0-75 mbar, 0.1 mbar resolution. Two fast-response laser-trimmed water vapor sensors.
PAR	0-3000 µmols/m2 / sec. Silicon photodiode.
Chamber Temperature	-5 to 50 degrees C. Precision thermistor +/- 0.2 o C accuracy.
Leaf Surface Temperature	-5 to 50 degrees C. Self-positioning microchip thermistor/Energy balance/manually positioned thermistor.
Leaf Chamber Flow Rate	100 to 500 ml/min.

Programming	Internal software controlled by LCpro T menu. Automatic and independent control of environmental conditions inside the leaf chamber. For automatic response curves, sequential control levels and dwell times can be set.
CO2	Up to 2000 ppm CO 2 , through integral high CO 2 delivery system.

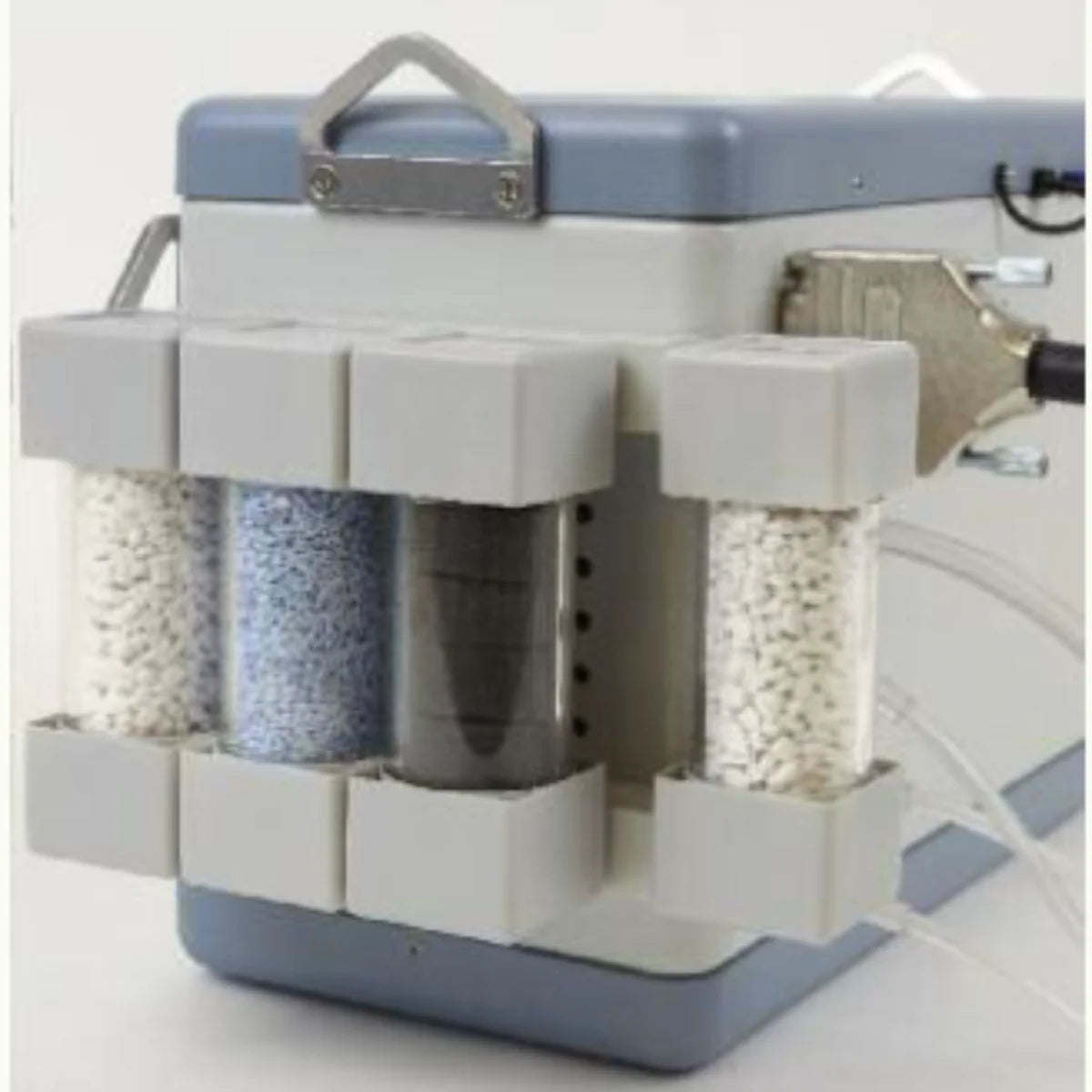

H2O	Above and below ambient temperature (depending on ambient conditions), through integrated self-indicating conditioning chemicals.

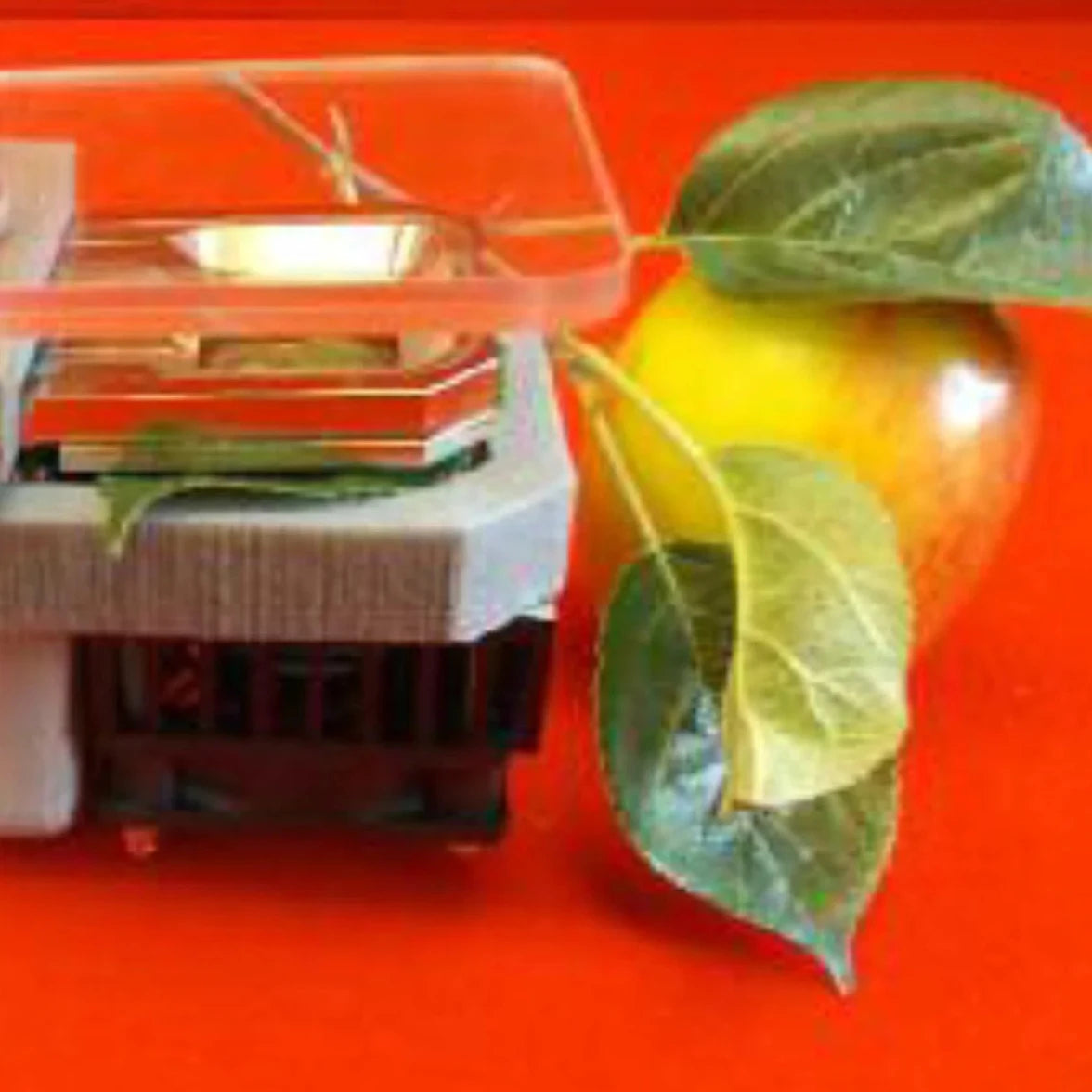

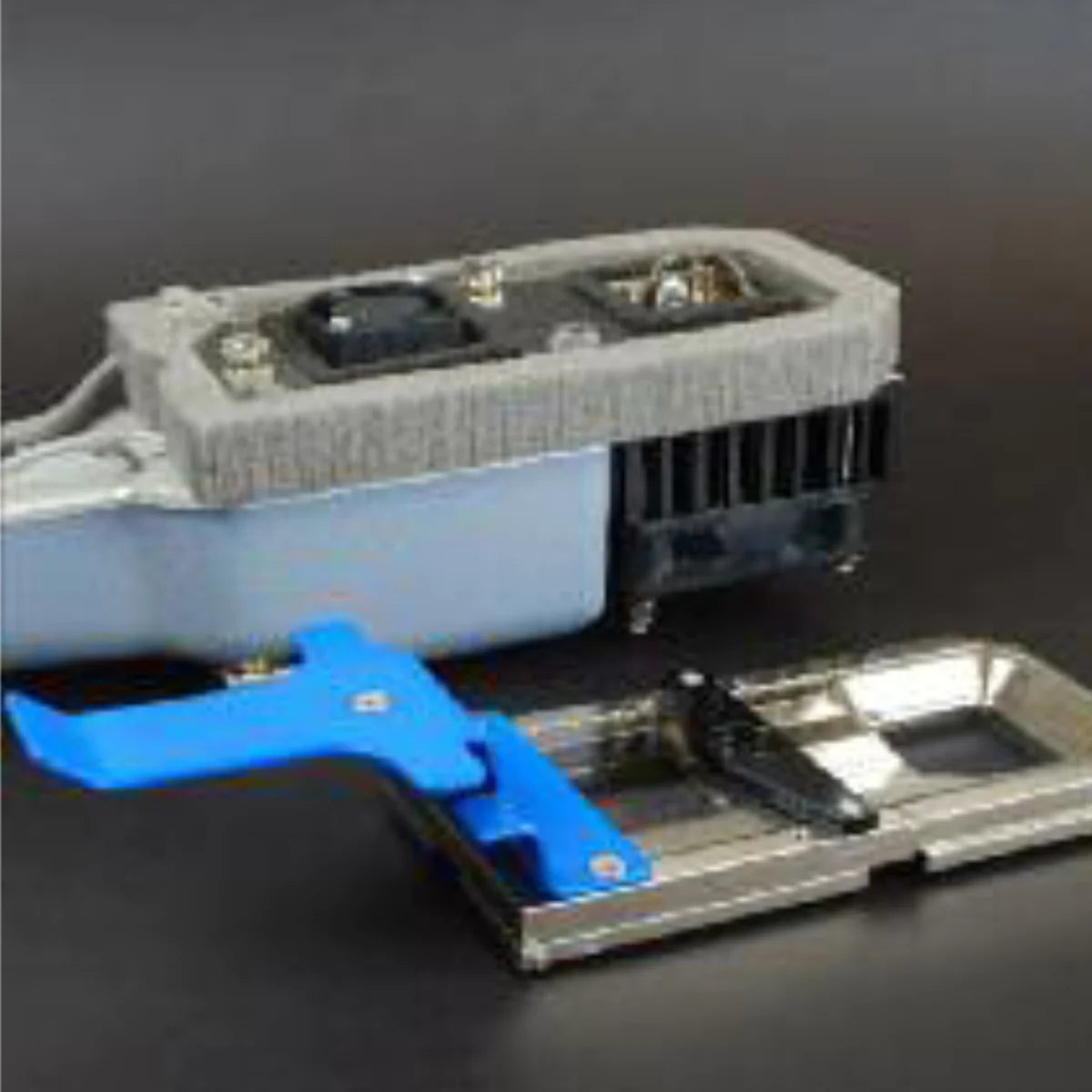

Temperature	Micro-peltier element. All chambers are automatically regulated +15 o C, -10 o C from ambient.

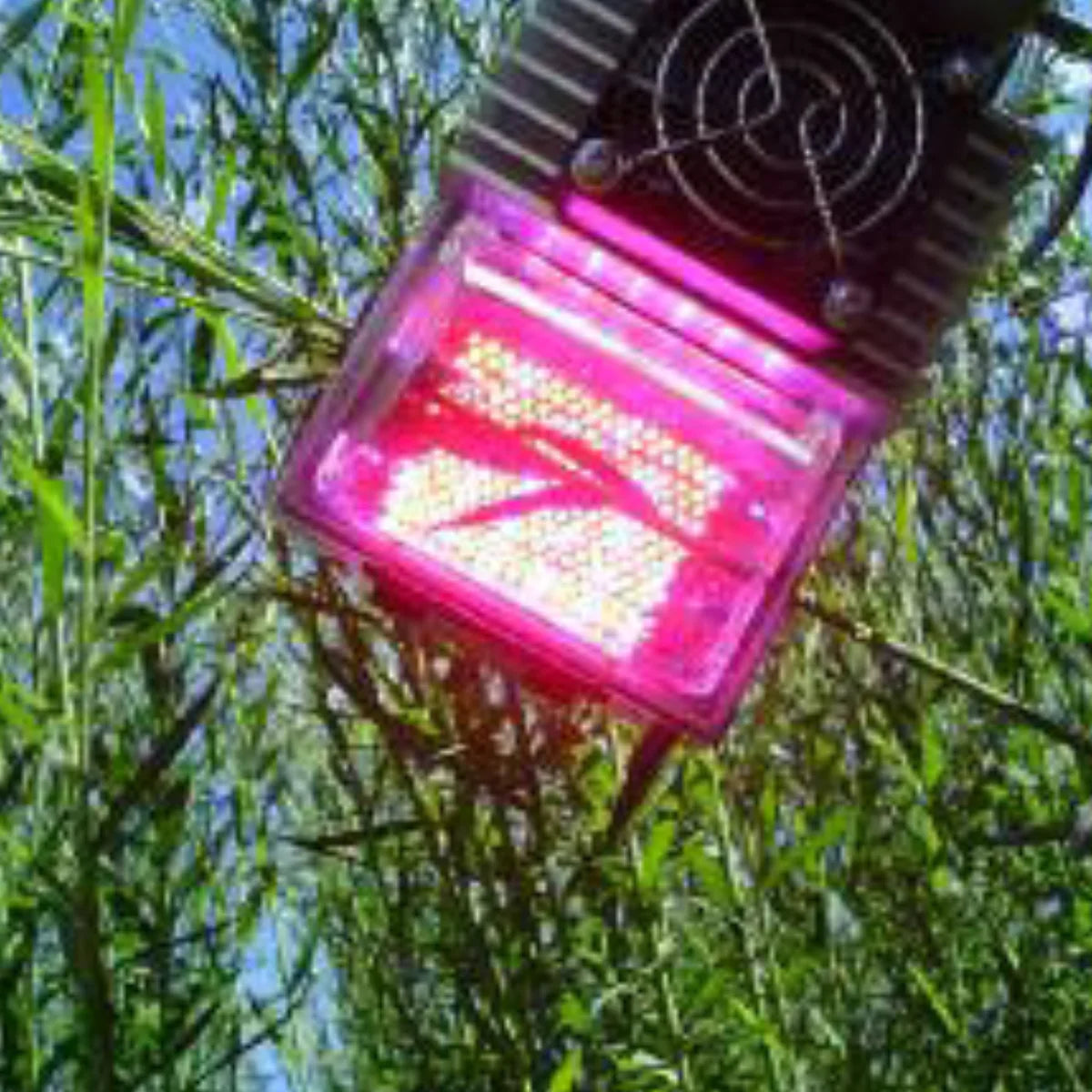

PAR	Mixed RGB LED array up to 2000 μmols/m 2 /sec or white LED array up to 2500 μmols/m 2 /sec.
Warm-up Time	5 minutes @ 20 o C.
Monitor	WQVGA color touchscreen LCD display.
Data Logged	Removable SD cards. Compatible with card sizes up to 32 GB.
Battery	7.5 Ah, 12 V lithium-ion battery. Up to 16 hours between charges.
Battery Charger	Universal input voltage, fixed output.

USB Connection	Mini-B. Functions as a mass storage device.
RS232 Output	9-pin Type "D". User-selectable baud rates up to 230,400 for computer or printer connection.
Operating Temperature Range	5 to 45 oC .
Dimensions H x W x D	Console: 230 x 110 x 170 mm. Leaf Chamber: 300 x 80 x 75 mm.
Weight	Console: 4.1 kg. Plant Leaf Chamber: 0.8 kg.

LCPro T

None

None

Brochure in English

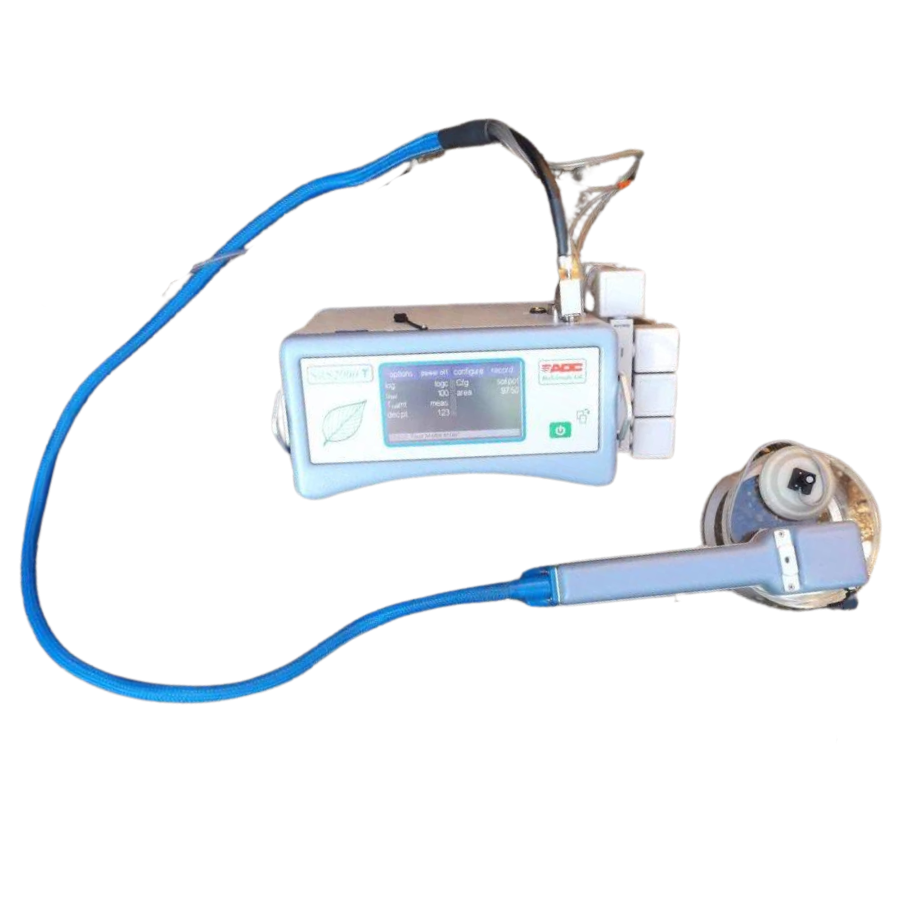

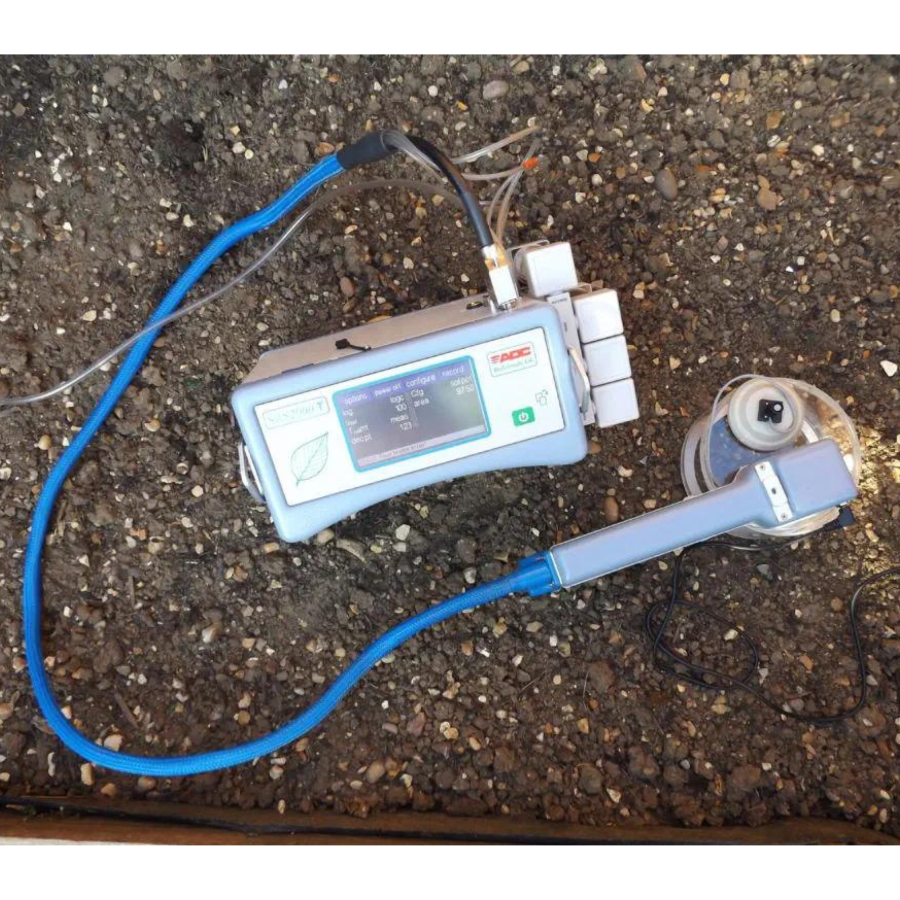

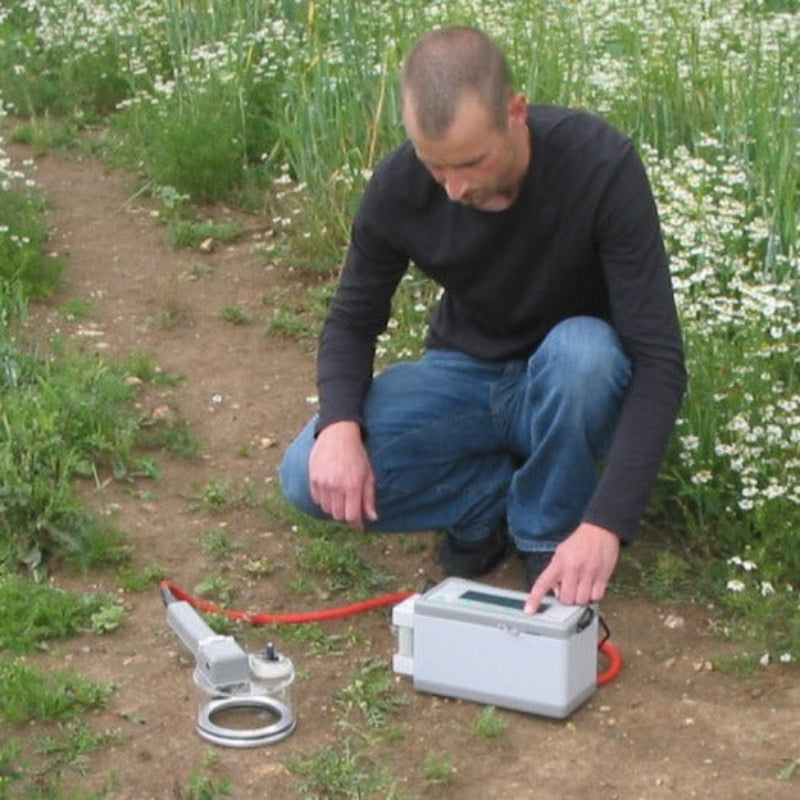

SRS-SD 2000: Portable Soil Respiration Measurement for All Soils

Efficient, portable, and advanced — the SRS-SD 2000 brings superior performance to field research, including spatial distribution studies, even with wet soils.

The SRS-SD 2000 is an advanced portable soil respiration measurement system that is ideal for field researchers. Whether you’re working in dry or wet soils, this system offers precise and reliable results. With the SRS-SD 2000, you get an enhanced capability for spatial distribution studies, environmental research, and much more. Equipped with advanced humidity control, this system excels in high-moisture environments, ensuring the accuracy of your data even under the most challenging conditions.

Key Features:

Lightweight and Compact: Designed for easy transport, weighing only 4.4 kg.

16-Hour Battery Life: Provides uninterrupted research with an impressive 16 hours of continuous use on a single charge.

Wind-Insensitive: Operates with high precision, even in windy conditions.

Unlimited Data Storage: Equipped with removable SD cards capable of storing up to 16 million data sets.

Integrated CO2 Chamber Analyzer: Includes built-in analysis for accurate measurement of soil respiration.

Graphical Display: Monitor real-time soil flux trends with ease through a graphical LCD screen.

Humidity Control: The system includes humidity regulation, making it suitable for wet soils.

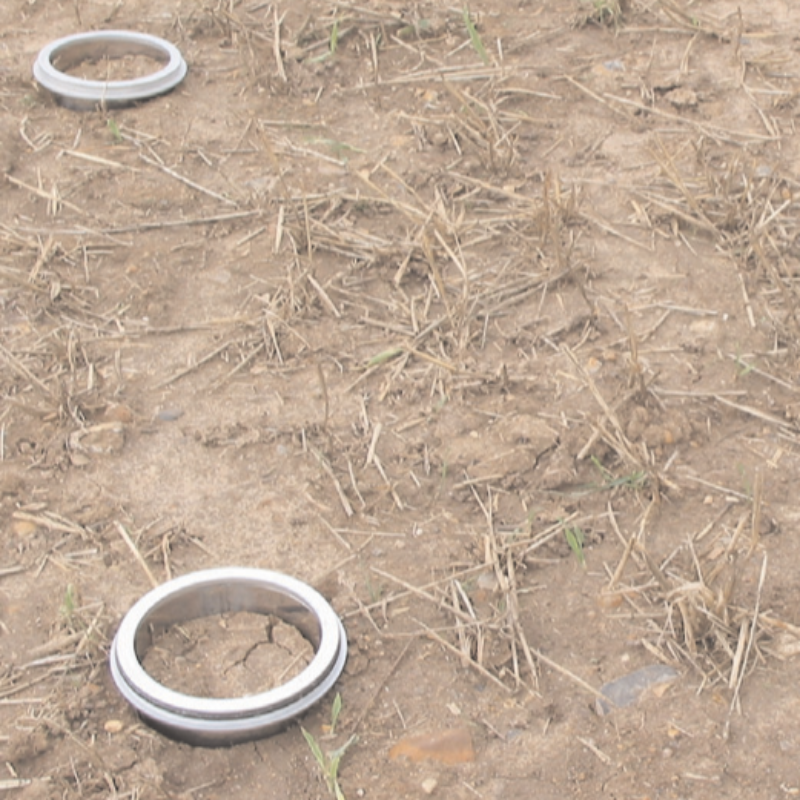

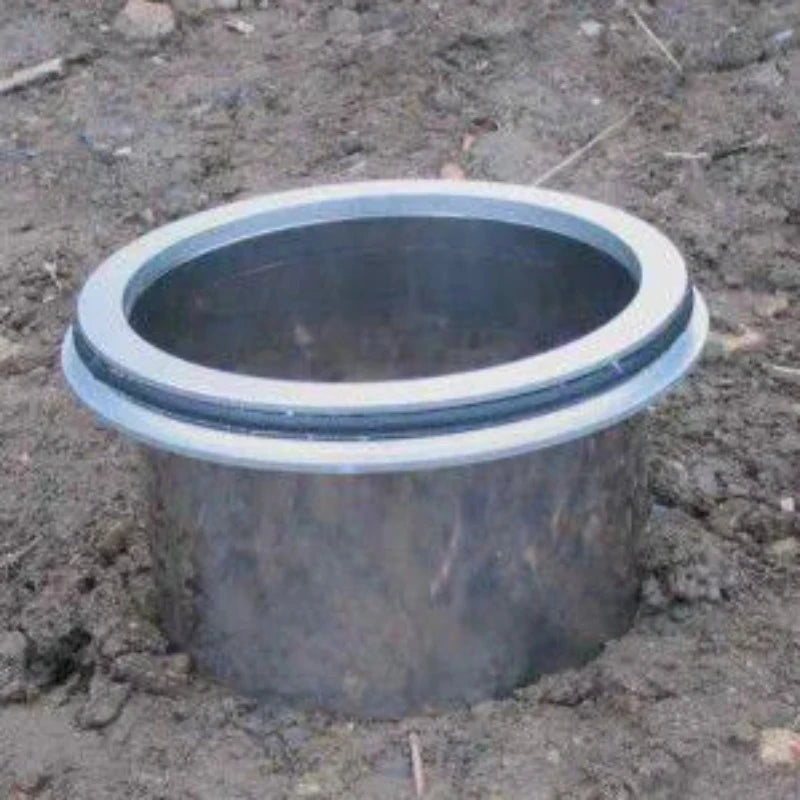

Compatible with PVC or Stainless Steel Soil Collars: Offers versatile collar options for different field setups.

CO2 and H2O Control (SRS-SD 2000 only): Automates the control of CO2 and H2O within the chamber at different levels, enhancing soil flux measurements.

Extended CO2 Range: The SRS-SD 2000 supports CO2 flux measurements from 0-3000 ppm, making it suitable for high CO2 flux environments.

Gas Exchange	SRS-SD1000	SRS-SD2000
CO2 Analyzer	Infrared gas analyzer, 1 ppm resolution	Infrared gas analyzer, 1 ppm resolution
CO2 Range	0-2000 ppm	0-3000 ppm
H2O Range	0-75 mbar, 0.1 mbar resolution	0-75 mbar, 0.1 mbar resolution
Chamber Temperature	0°C to 50°C	0°C to 50°C
Soil Temperature	5°C to 50°C	5°C to 50°C
P.A.R. (Photosynthetically Active Radiation)	0-3000 μmol/m²/s silicon photocell	0-3000 μmol/m²/s silicon photocell
Environmental Control (SRS-SD2000 only)	Manual	Automated CO2 and H2O control
Flow to Chamber	0-500 ml/min	0-500 ml/min
Warm-Up Time	5 minutes @ 20°C	5 minutes @ 20°C

Portable Soil Respiration Meter
Manual

User Manual

Idioma

Opti-Sciences

Idioma

Opti-Sciences

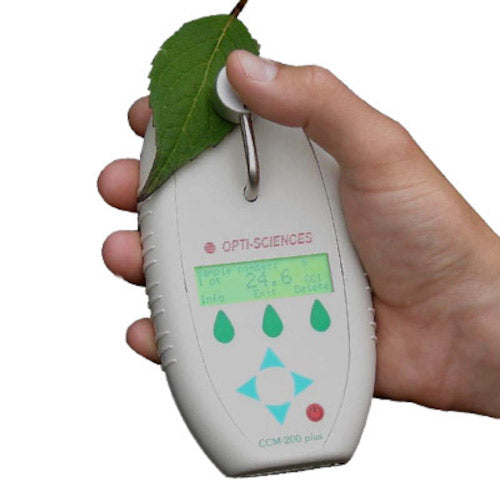

Medidor de Contenido de Clorofila Opti-Sciences Modelo CCM-200 Plus GPS
