Detectors & Recorders

AudioMoth ²⁵

$ 129.95 USD

Limited Units Available!

Acoustic Revolution: AudioMoth v1.2.0 Takes Wildlife Monitoring to New Heights

AudioMoth v1.2.0 redefines wildlife monitoring with its new MEMS microphone, ultra-fast recording, and optimized performance with 3 AA batteries.

AudioMoth v1.2.0 is an open-source acoustic monitoring device used to monitor wildlife. AudioMoth is sensitive to both audible sounds and ultrasonic frequency range. It records uncompressed audio from 8000 to 384,000 samples per second on a microSD card. AudioMoth 1.2.0 has an updated audio front end with reduced self noise, support for external microphones, and an updated internal microphone.

Included Improvements

• New integrated MEMS microphone.
• Improved recording quality.
• Enhanced performance with NiMH rechargeable batteries.
• Exposed footprint on the PCB for an external microphone via a 3.5mm jack. IMPORTANT TO KNOW: When the 3.5mm jack is connected, AudioMoth is no longer compatible with the official AudioMoth IPX7 case.

Comes with Preinstalled Firmware Version 1.5.0

• All AudioMoth firmware and applications are compatible with all hardware versions.
• Support for human-readable long filenames (e.g., 20181212_093000.WAV).
• Support for local time for file names and file system timestamps.
• Support for reporting the firmware version number.
• Improved reliability if an error occurs while writing to the SD card.

Battery Life

The AudioMoth configuration app uses the given recording settings and periods to calculate the device's approximate power consumption in milliamp-hours (mAh) and storage consumption in bytes per day.

Note: Batteries, microSD card, and USB cable not included.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • EFM32 Gecko processor.
  • Capable of recording uncompressed audio on micro SD from 8k to 384k samples/second.
  • Records uncompressed WAV files to the SD card.
  • Powered by 3 AA batteries.
  • Analog MEMS microphone.
  • Analog preamplifier with adjustable gain.
  • Measures just 58 x 48 x 15 mm.
  • Configurable USB interface.
  • Onboard real-time clock keeps track of time in UTC.
  • Serrated switch, SD card slot, and USB connector to better protect the switch from accidental damage and allow a flush fit within cases and enclosures.
  • Right-angled PMOD header for expansion boards using UART.
• • 1x AudioMoth
• • Batteries & Chargers
  • Micro SD Memory Card
  • USB Cable
  • AudioMoth App
• • AudioMoth Protective Case
• • Check Getting Started for help setting up a new AudioMoth.
  • Download the Operation Manual
  • Check the Support Forum

(S 8/10/2020, JC 20210511)

Ver todos os detalhes do produto »

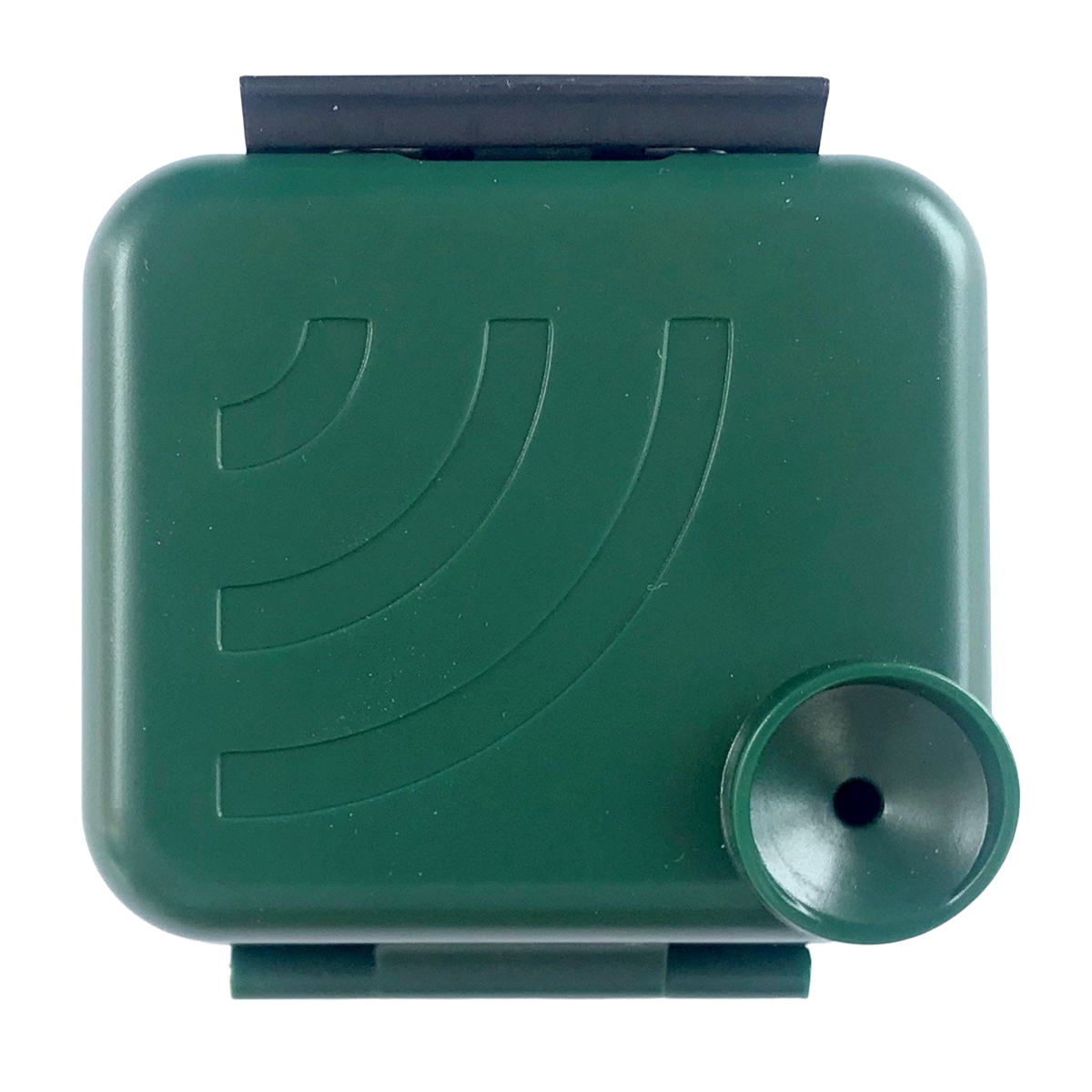

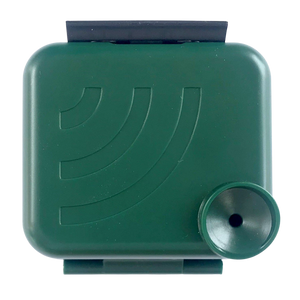

AudioMoth IPX7 Case

$ 55.95 USD

A waterproof case! The IPX7 case is designed specifically for all versions of Audiomoth. It...

Ver todos os detalhes do produto »

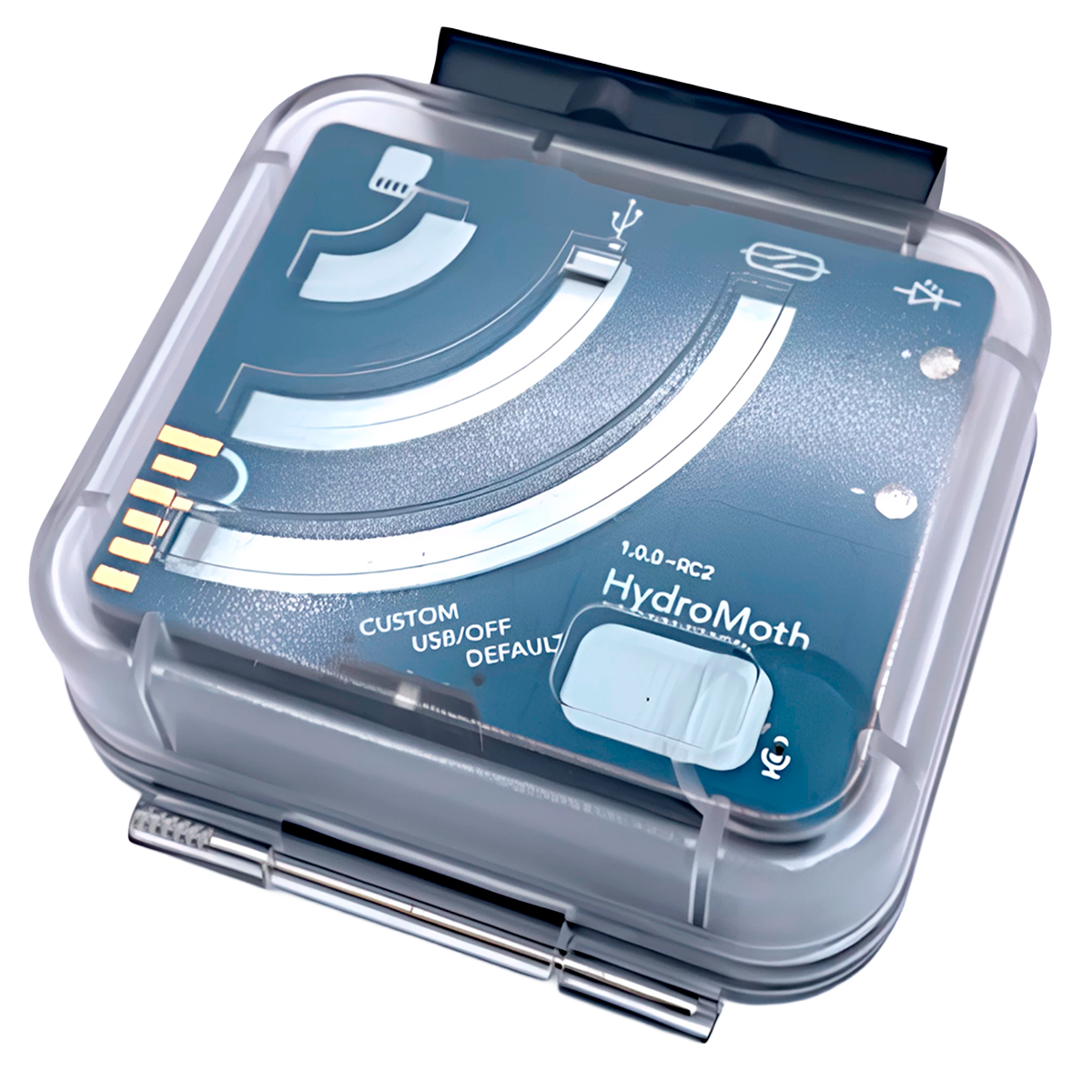

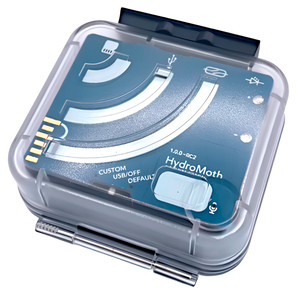

HydroMoth Available Now!

$ 55.95 USD

Reliable Underwater Recording for Long-Term Environmental Studies

HydroMoth v1.1.0: Compact and Efficient Acoustic Recorder for Monitoring in Aquatic Environments

The HydroMoth is a submersible acoustic recorder designed to capture sound in aquatic environments at depths of up to 60 meters. Based on the popular AudioMoth platform, it offers uncompressed WAV recording directly to a microSD card, allowing precise analysis of the captured sound. Its polycarbonate housing with a Velcro strap ensures durability and easy field attachment. It operates with 3 AA batteries and is ideal for monitoring marine wildlife, studying underwater noise, or conducting aquatic conservation research.

Underwater Case

The AudioMoth underwater case was specifically designed for the HydroMoth and the AudioMoth version 1.2.0 (without the 3.5 mm connector). Other versions of the AudioMoth fit inside the case, but we recommend version 1.2.0 to minimize self-noise in recordings. The case is made of injection-molded polycarbonate and comes with an adjustable Velcro strap, making AudioMoth attachment simple and easy. Unlike the original AudioMoth case, this one does not include an acoustic membrane. The case is compact, highly durable, and will protect the AudioMoth for long periods of time at depths ranging from 30 to 60 m.

Key Features

• Designed for underwater recordings up to 60 meters deep.
• Based on the AudioMoth platform with extended functions.
• Uncompressed WAV format recording.
• Runs on 3 standard AA batteries.
• Durable injection-molded polycarbonate housing.
• Velcro strap for secure attachment to various surfaces.

• Specifications
• In the Box
• Required Items
• Optional Items

• Technical Specifications
  Processor	Low-power EFM32 Gecko.
  Audio recording	Uncompressed (WAV) on micro SD.
  Sampling rate	From 8k to 384k samples per second.
  Storage	MicroSD card.
  Power supply	3 AA batteries.
  Microphone	Analog MEMS (contact hydrophone).
  Preamplifier	Analog with adjustable gain.
  Connectivity	Configurable USB interface.
  Clock	Real-time (RTC), UTC timestamp.
  Operating depth	Up to 60 m.
  Submersion test	2 months at 30 m depth.
  Case	Injection-molded polycarbonate with Velcro strap.

• • 1x HydroMoth v1.1.0 recorder.
  • 1x polycarbonate submersible case.
  • 1x adjustable Velcro strap.
• • 3x AA Batteries
  • 1x MicroSD
• • AudioMoth USB-Mic
  • Otter rugged case for AudioMoth
  • USB cable for configuration and transfer

Ver todos os detalhes do produto »

Wildlife Acoustics Song Meter Micro 2 Recorder ²⁶

$ 201.75 USD

Ver todos os detalhes do produto »

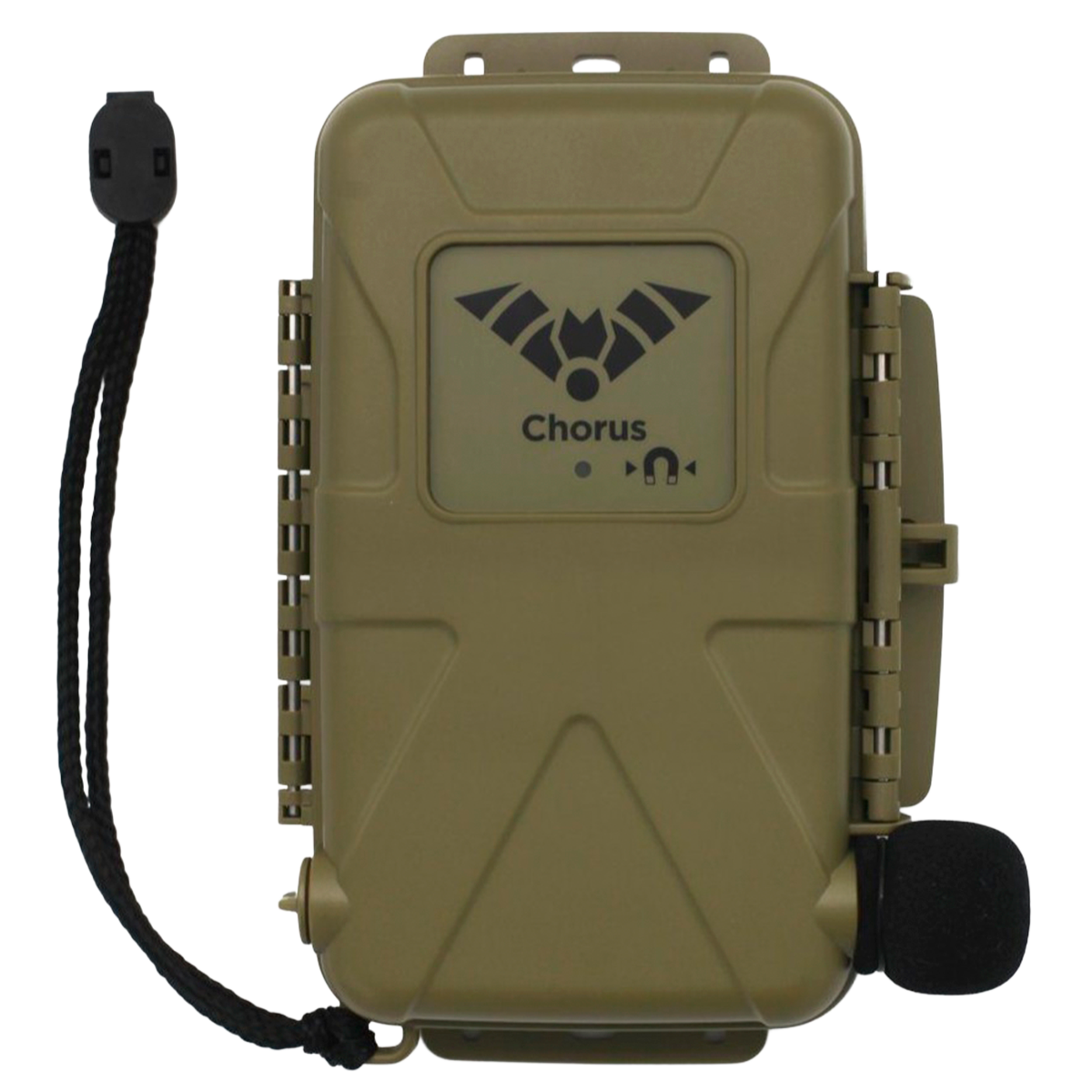

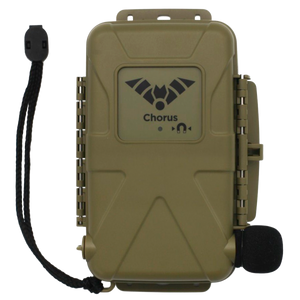

Titley Scientific Song Meter Chorus Acoustic and Ultrasonic Recorder ²⁶

$ 590.50 USD

Titley Scientific Chorus Wildlife Acoustic and Ultrasonic Recorder

An affordable, robust, and customizable solution designed for monitoring bats, birds, frogs, and other vocalizing wildlife in demanding field conditions.

The Chorus by Titley Scientific redefines wildlife recording by combining ultrasonic bat detection and acoustic recording for birds and herpetofauna into a single, compact device. Engineered to survive tough environments, it features weather-resistant housing and low-profile microphones that can be user-replaced in seconds directly in the field. With industry-leading battery life, the Chorus can record for up to 40 nights in full-spectrum ultrasonic mode or 300 hours in acoustic mode using just 4 AA batteries. Its internal OLED screen allows for standalone configuration without needing phones or Bluetooth, while the built-in GPS ensures every file is geotagged and recording schedules automatically adjust to local sunrise and sunset times.

Key Features

• Multi-Species Recording: Capture birds and frogs during the day and bats at night using customizable automatic schedules.
• Customizable Dual-Channel: Includes one acoustic microphone with the option to add a second (ultrasonic or acoustic) for stereo or dual-purpose recording.
• Ultra-Robust Design: Weatherproof housing with microphones designed to minimize damage from livestock or wildlife chewing.
• Integrated GPS: Automatic geotagging of files, precise sunset/sunrise calculations for scheduling, and transect mode for mobile recording.
• User-Replaceable Parts: Replace microphones in the field in seconds without needing to return the unit for technical service.
• Exceptional Efficiency: Operates on 4 AA batteries, eliminating the need for bulky external power packs during long deployments.

• Specifications
• In the Box
• Required Items
• Optional Items

• Brand	Titley Scientific
  Audio Channels	2 Channels (Mono, Stereo, or Acoustic/Ultrasonic)
  Acoustic Response	20 Hz – 20 kHz (-24dB sensitivity)
  Ultrasonic Response	10 kHz – 140 kHz (Useable response)
  Battery Life	Up to 40 nights (Ultrasonic) / 300 hours (Acoustic)
  Power Supply	4 AA batteries
  Storage	SD Card slot
  Sensors	Built-in GPS and Temperature sensor
  Recording Formats	Full Spectrum (WAV) and Zero Crossing (for bats)

• • 1x Chorus Wildlife Recorder
  • 1x Omnidirectional acoustic microphone
  • 1x Military-grade water-resistant wind sock
  • 1x Magnetic lanyard (for status checks)
• • AA batteries (4 units)
  • SD memory card
• • Additional omnidirectional ultrasonic microphone
  • Second acoustic microphone for stereo recordings
  • Flexible-gooseneck microphone extender
  • Anabat Insight analysis software (Free download)

EO20260423

Ver todos os detalhes do produto »

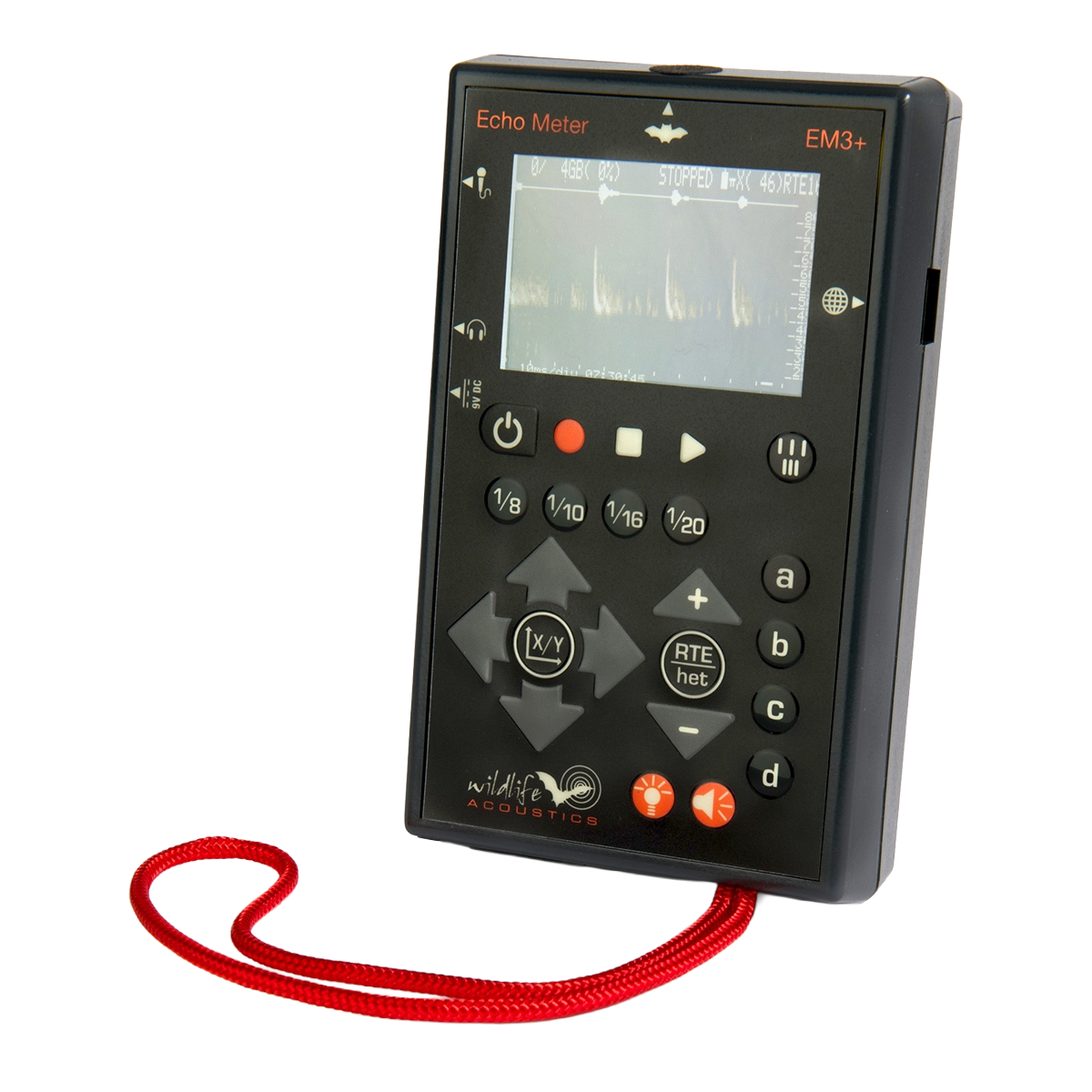

Echo Meter EM3+ Handheld Ultrasonic Recorder / Detector

$ 999.00 USD

Echo Meter EM3+ Handheld Ultrasound Bat Detector and Recorder

The most sophisticated and economical handheld bat detector for real-time identification and high-fidelity recording of ultrasonic echolocations during field research.

The Echo Meter EM3+ by Wildlife Acoustics represents the cutting edge in active bat detection technology. This lightweight, autonomous device allows researchers to visualize bat echolocations via an integrated real-time spectrogram, facilitating immediate in-field species identification without the need for additional hardware. Utilizing 16-bit full-spectrum technology and the patent-pending "Real Time Expansion" mode, users can listen to calls with an unprecedented amount of spectral and temporal detail. Its ergonomic design and the ability to capture voice notes and GPS data simultaneously make it the definitive tool for biological inventories and biodiversity monitoring.

Key Features

• Real-Time Spectrogram: Instantly visualize bat calls to facilitate taxonomic identification directly in the field.
• Versatile Monitoring Modes: Includes Real Time Expansion, Heterodyne (Auto-Het and manual), and Time Expansion playback at adjustable speeds.
• High-Quality Recording: Captures 16-bit full-spectrum WAV files with selectable sample rates of 256 kHz or 384 kHz.
• Live Tagging: Categorize bat passes into one of four configurable categories during recording to streamline post-processing.
• Data Integration: Capability to record voice notes and link signals to geographic locations using optional GPS accessories.
• Software Compatibility: Fast conversion to Zero Crossing format using the free Kaleidoscope software for advanced analysis.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Echo Meter EM3+
  Recording Technology	16-bit Full Spectrum
  Audio Sample Rate	256 kHz or 384 kHz
  Microphone Bandwidth	1 kHz to 192 kHz
  Storage	SDHC/XC card slot (Supports up to 128 GB)
  Battery Run Time	Up to 12 hours on a single charge
  Operating Temperature	-4ºF to +185ºF (-20ºC to +85ºC)
  Power Supply	4x AA rechargeable NiMH batteries (Integrated charger)
  Weight	12 oz (0.34 kg) with batteries included
  Dimensions	5.7 x 3.6 x 1.25 in (14.5 x 9.1 x 3.2 cm)

• • 1x Echo Meter EM3+ Detector/Recorder
  • 1x Protective case
  • 1x Lanyard
  • 4x AA rechargeable NiMH batteries
• • SDHC/XC memory card
• • GPS accessory for signal mapping
  • SMX-Horn for improved directionality
  • Spare rechargeable AA batteries
  • External cable adapter and microphone for vehicle-driven transects
• • Download Kaleidoscope Software

EO20260422

Ver todos os detalhes do produto »

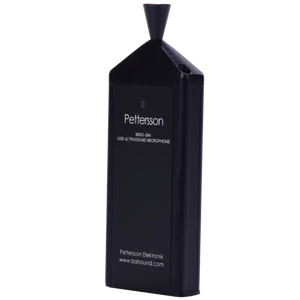

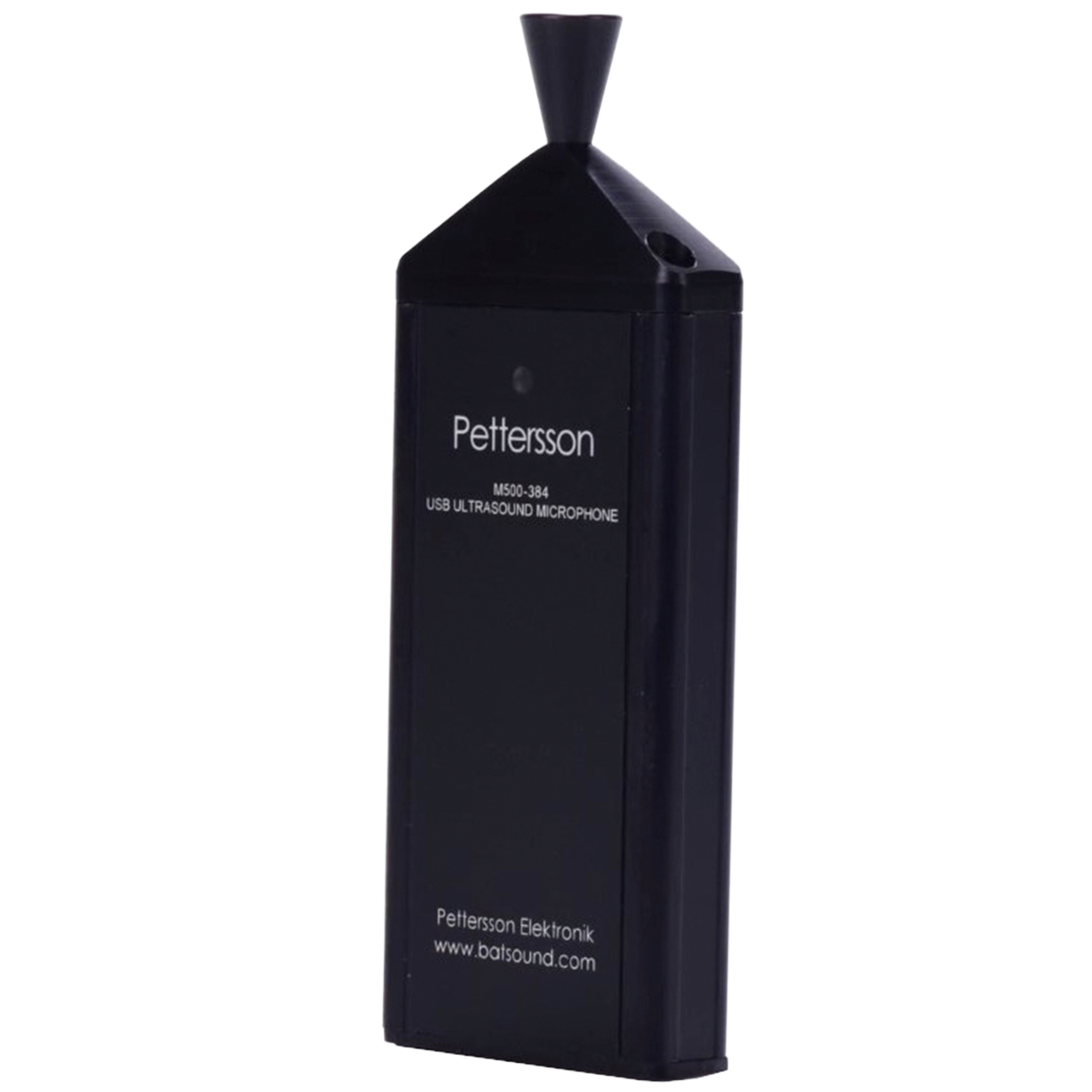

Pettersson Ultrasound Detector USB Microphones Serie 500 ²⁵

$ 421.00 USD

Pettersson M500 and M500-384 USB Ultrasound Microphones

Capture high-quality, full-spectrum recordings of bat calls directly on your smartphone, tablet, or computer with advanced acoustic monitoring technology.

The M500 and M500-384 USB microphones are versatile and compact tools that transform everyday devices into powerful ultrasound recording systems. Housed in a slim and durable aluminum enclosure, both models utilize the same high-precision electret microphone technology as the renowned D500X detector. While the M500 is optimized for Windows systems and offers a 500 kHz sampling frequency, the M500-384 stands out for its universal compatibility (Android, iOS, Windows, macOS, Linux), operating as a standard audio device that requires no custom drivers. Featuring an 8th-order anti-aliasing filter and low-noise technology, these microphones ensure the highest fidelity for recording biological signals and industrial ultrasonic emissions.

Key Features

• Full-Spectrum Recording: Captures precise acoustic details for in-depth taxonomic analysis of bats and other mammals.
• Dual Directivity Modes: Can be used in directional mode (using the included horn) or omni-directional mode depending on sampling needs.
• Plug & Play (M500-384): Works as a standard sound device, making it ideal for use with smartphones running apps like Bat Recorder or Ultrasonic Analyzer.
• Professional Build: Slim, rugged aluminum housing protects sensitive electronics during intensive field use.
• Included Software (M500): The M500 model comes with a free 'Lite' version of BatSound Touch for real-time waveform and spectrogram visualization.
• Efficient Powering: USB bus-powered directly from the host device, eliminating the need for external batteries or power sources.

• Specifications
• In the Box
• Required Items
• Optional Items

• Attribute	M500 Model	M500-384 Model
  Sampling Frequency	500 kHz	384 kHz
  Frequency Range	10 kHz – 210 kHz	10 kHz – 160 kHz
  ADC Resolution	16 bits
  Anti-aliasing Filter	8th order, 210 kHz	8th order, 160 kHz
  Operating Systems	Windows 7, 8, 10, 11	Android, iOS, Windows, macOS, Linux
  Dimensions	43 × 114 × 13 mm
  Weight	60 g

• • 1x Ultrasound Microphone (Selected model)
  • 1x USB Cable Mini-B to USB-A (0.5 m)
• • Host device (Smartphone, Tablet, or Laptop)
  • Compatible recording software (BatSound, Audacity, Bat Recorder, etc.)
• • USB OTG adapter cable (Mini-B to Micro-B or USB-C) for mobile devices
  • Full version of BatSound Touch software

EO20260422

Ver todos os detalhes do produto »

D240X Ultrasound Detector

$ 1,490.00 USD

Very popular heterodyne and time expansion detector with backlit, large digit, accurate digital display, showing the tuned frequency in the heterodyne mode. The frequency and volume controls are on the side of the case, making it easy to adjust. Using stereo headphones, the heterodyne signal is heard on the left channel and the time expansion signal on the right channel. When the built-in speaker is used, a switch is used to select the heterodyne or time expansion signal.

A digital recorder can be connected to the D240X to record the time expanded calls for analysis on a PC. If the recorder has a "voice activated" recording mode, a fully automatic bat recording system is obtained, which can be left in the field for unattended recording of bat calls.

A free demo version of BatSound is available for download by the link below. This evaluation version has limited functionality and a trial period of 30 days.

Download BatSound Demo

• Specifications
• In the Box
• Required Items
• Optional Items

• - Type: Heterodyne and time expansion (x10 or x20 - selectable via switch)
  - Microphone: Advanced electret
  - Frequency range: 10 - 120 kHz (min.)
  - Display accuracy: ±0.15 kHz (min.)
  - Bandwidth: 8 kHz (± 4 kHz), -6 dB
  - Battery: 1 x IEC 6LF22 (9 V)
  - Quiescent current: 30 mA typ. (replay) including LCD backlight
  - Comment switch: Yes
  - Memory size: 1M x 8
  - Sampling frequency: 307 kHz
  - Resolution: 8 bits
  - Storage time: 3.4, 1.7 or 0.1 sec. (selectable via switch)
  - Trigger modes: Manual, level - broadband, level - narrowband
  - Pretrigger: 50% of the selected storage time
  - Size: 4.7 x 2.4 x 1.0 in including knobs
  - Weight: 6.0 oz including battery
  - Outputs: 2 x 3.5 mm jacks for headphones and tape recorder
  - Miscellaneous: Overload indicator, adjustable input gain, replay of signal in memory through heterodyne system
• - Detector (1)
  - Wrist strap (1)
• None
• - BatSound Real-time Spectrogram Analysis Software

Detector de Ultrasonido D240X

Murciélagos, murciélago

Ver todos os detalhes do produto »

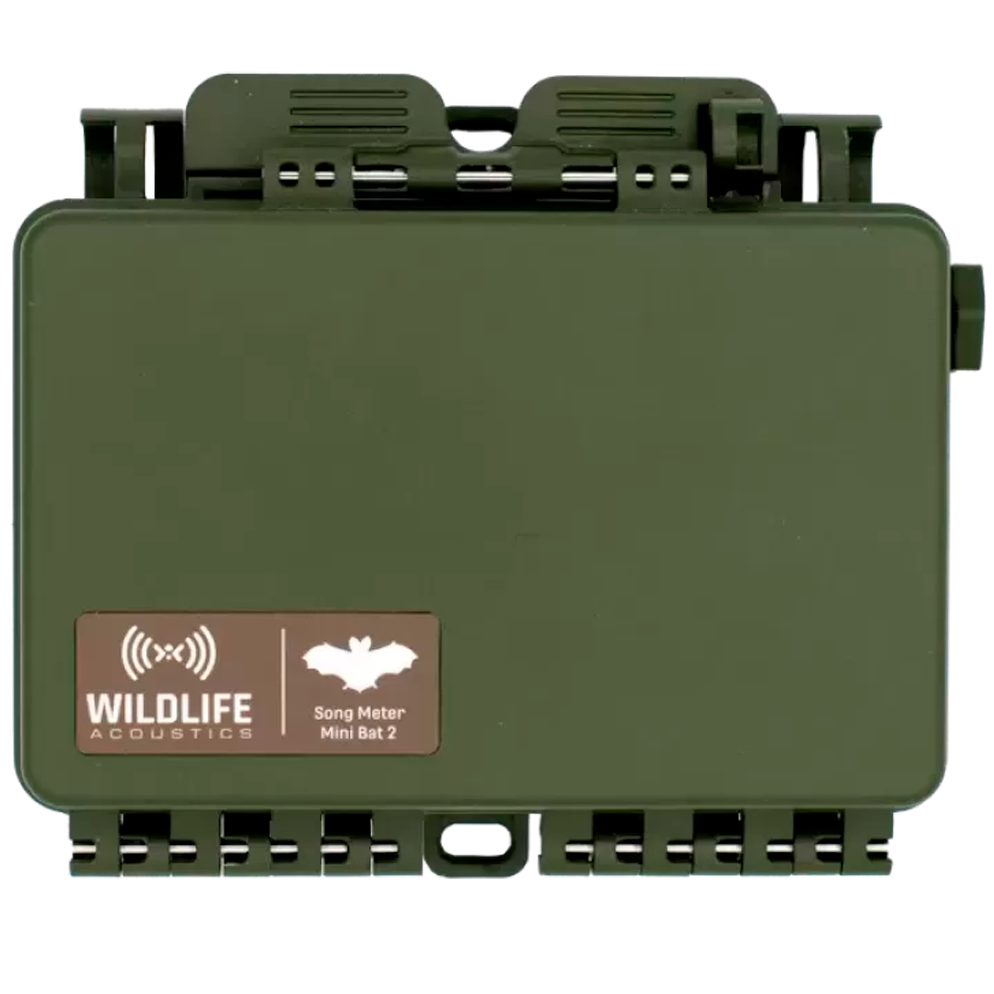

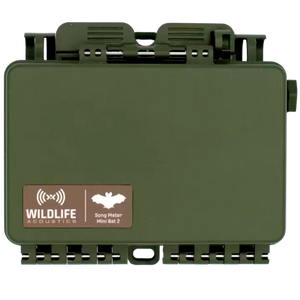

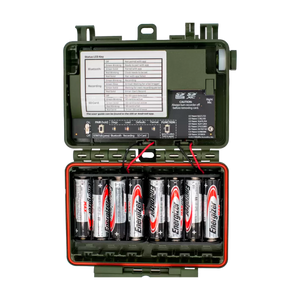

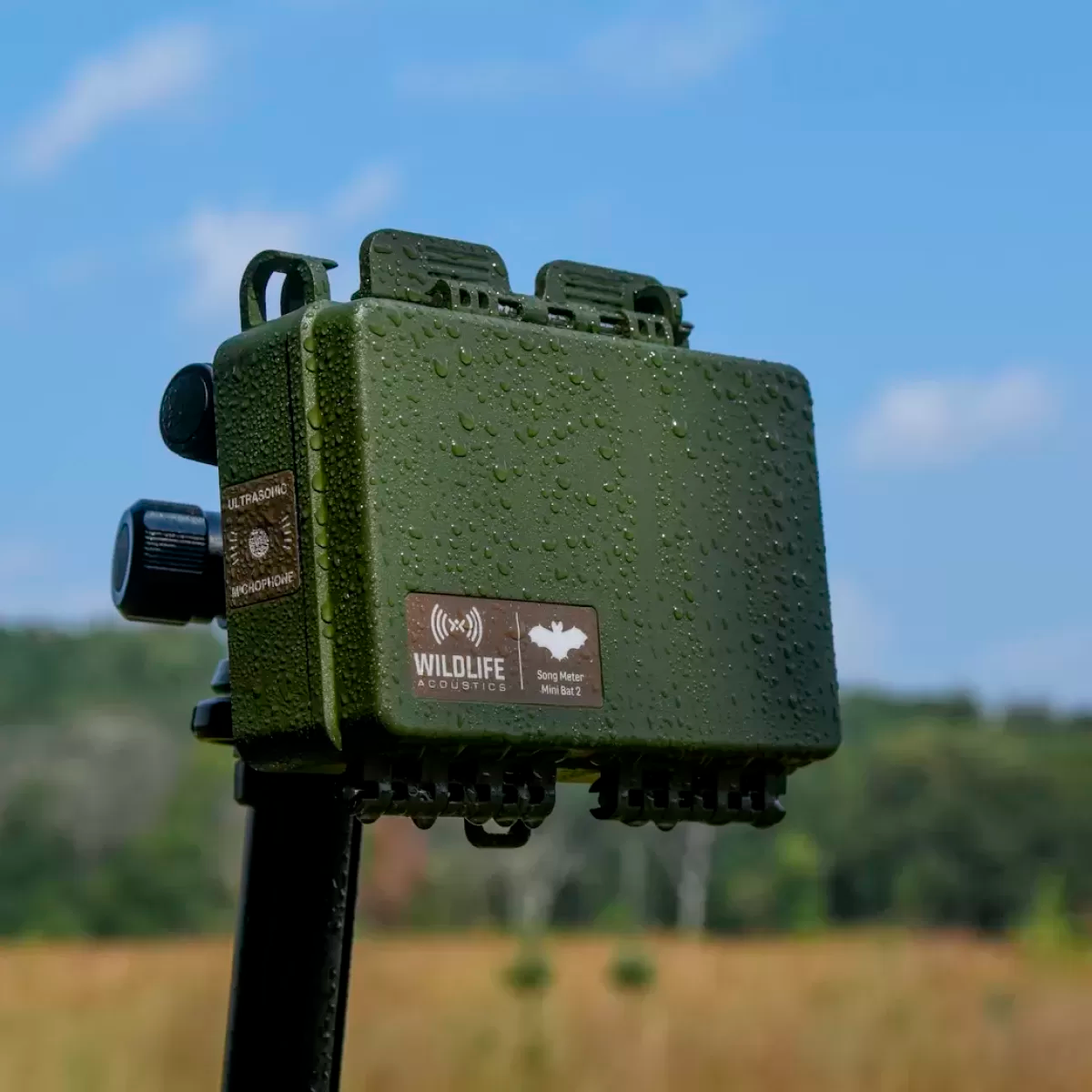

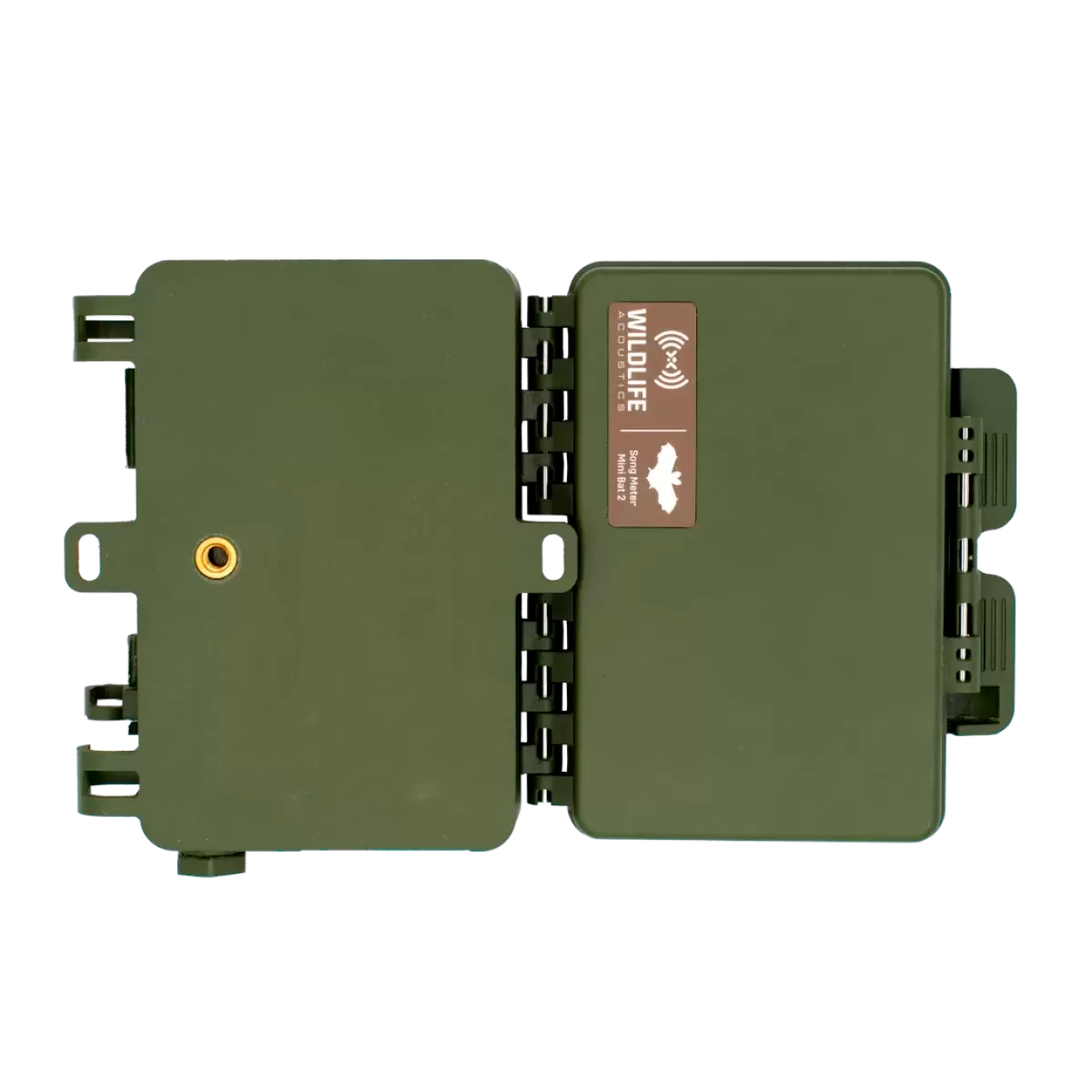

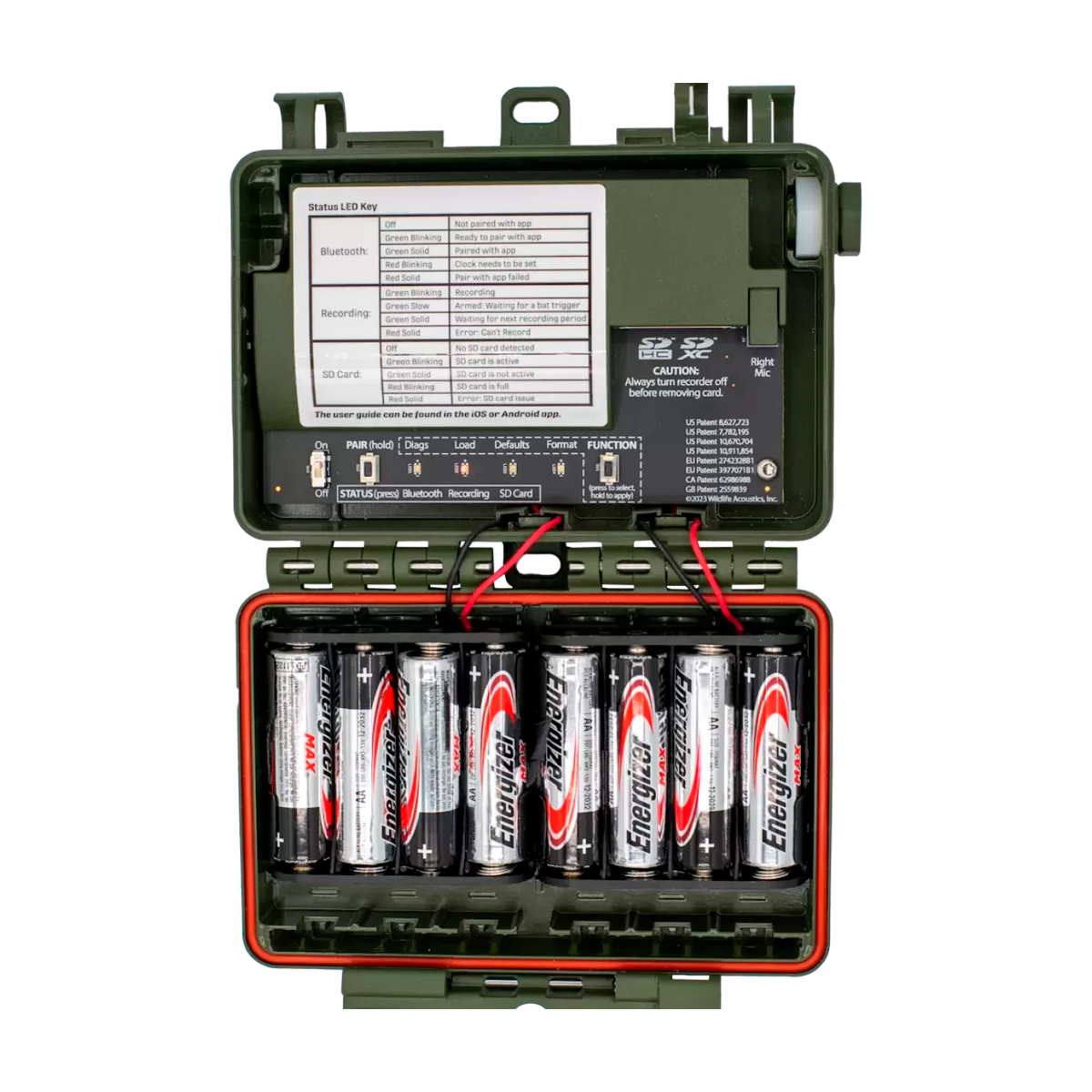

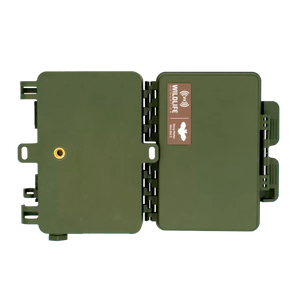

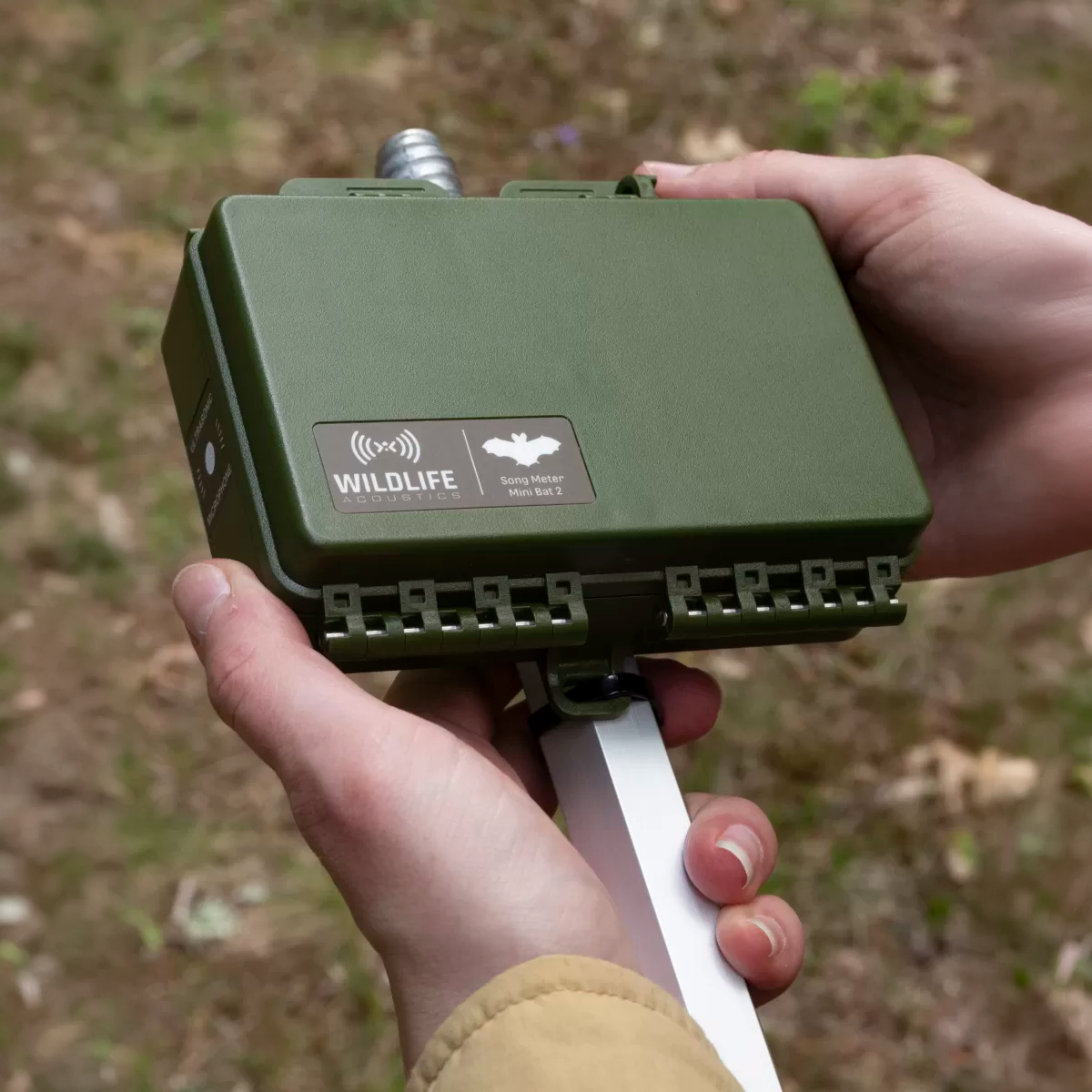

Wildlife Acoustics Song Meter Mini Bat 2 AA Ultrasonic and Acoustic Recorder

Request Quote

Song Meter Mini Bat 2 (AA) Ultrasonic-Acoustic Recorder: Capture Nature's Essence in High Fidelity

The most versatile and compact wildlife recorder, designed for monitoring bats and acoustic biodiversity with unprecedented energy efficiency and total weather resistance.

The Song Meter Mini Bat 2 redefines wildlife monitoring by merging advanced ultrasonic capture with ease of use. This device allows you to record bats and other species vocalizing in the ultrasonic range for extended periods of up to 50 ten-hour nights. Thanks to its low-noise microphone, it can detect distant and subtle echolocations, while integrating smart-triggering technology that filters out "false triggers," ensuring every stored file provides high scientific and commercial value.

Beyond ultrasonic capabilities, this recorder offers exceptional flexibility. By adding an optional acoustic microphone, it transforms into a comprehensive tool for studying birds, amphibians, and land mammals. Its nature-inspired design allows for seamless integration into the field, reducing analysis time by delivering cleaner and more precise recordings—allowing researchers to focus on what truly matters: understanding ecosystems.

Key Features

• Integrated low-noise ultrasonic microphone that records bats with high fidelity.
• Robust battery life capable of recording up to 50 ten-hour nights of activity.
• Compatible with an optional acoustic microphone for recording birds and amphibians.

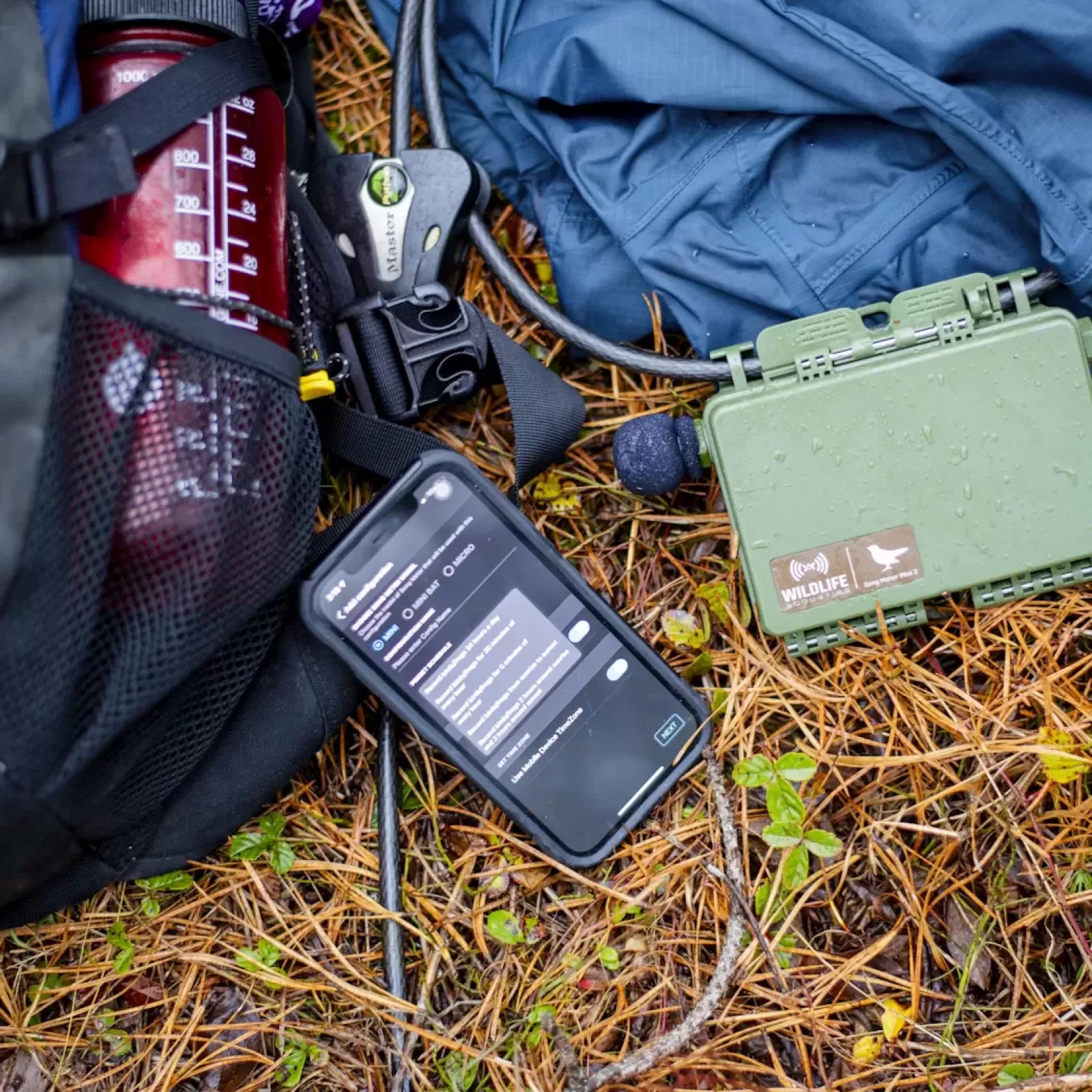

• Free companion app to program GPS location and settings via Bluetooth.
• IP67-rated waterproof housing for deployments in all weather conditions.

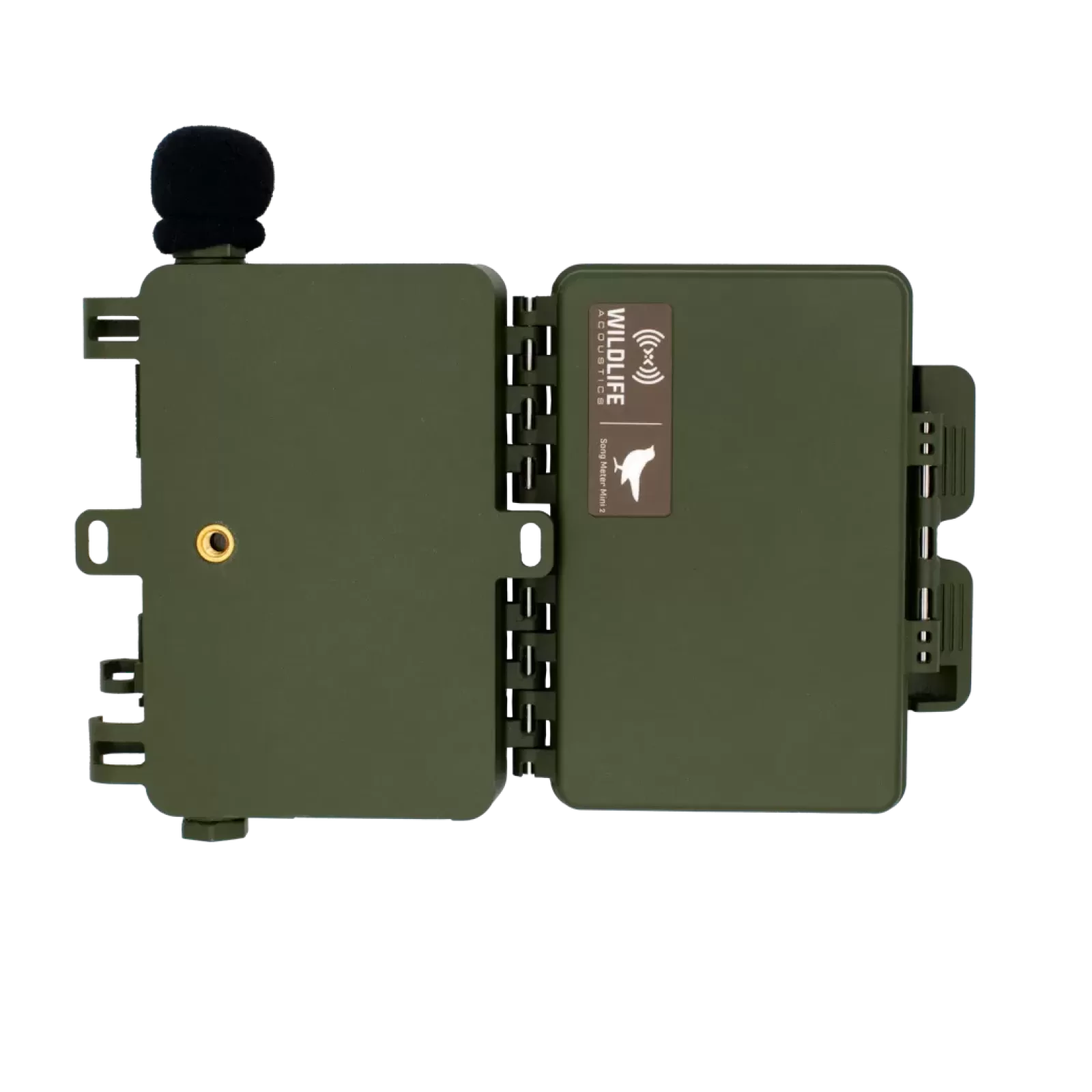

• Rear tripod mount for flexible microphone positioning.

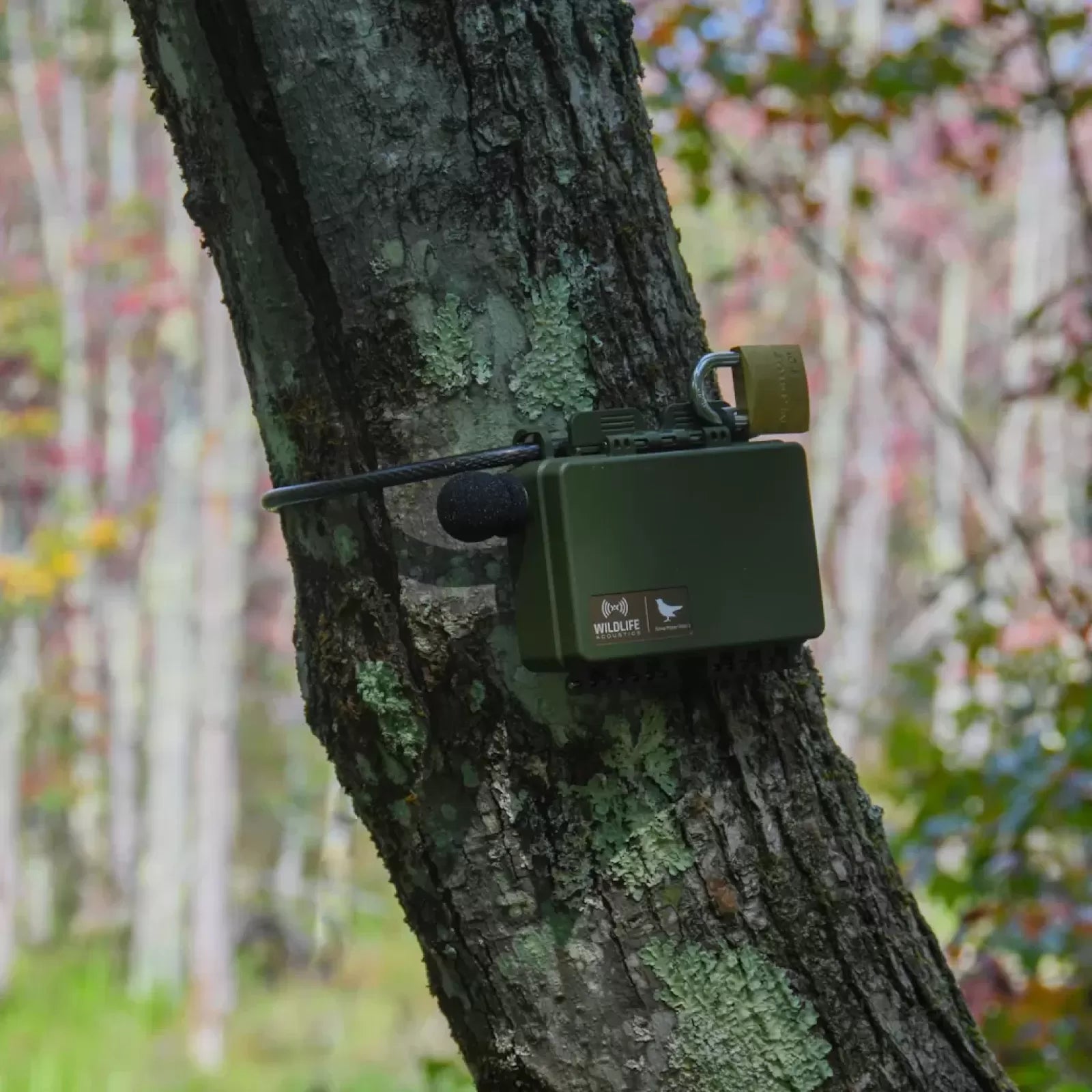

• Ergonomic, lockable housing to ensure field security.
• Compact and lightweight design for easy portability on demanding expeditions.

• Specifications
• In the Box
• Optional Items

• Model	SMMINI2-U-AA
  Recording Format	Full Spectrum and/or Zero Crossing
  Channels	1 integrated waterproof ultrasonic microphone (second acoustic microphone optional)
  Ultrasonic Sample Rates	256kHz, 384kHz, and 500kHz
  Acoustic Sample Rates	8kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 96kHz
  Power Options	4 or 8 AA Alkaline/NiMH batteries
  Runtime	Up to 50 ten-hour nights
  Storage	1 SDHC/SDXC card slot (up to 2 TB)
  Height	4.7" / 120 mm
  Width	5.6" / 142 mm
  Depth	1.6" / 40 mm
  Weight (no batteries)	0.53 lb / 240g
  Weight (with batteries)	0.93 lb / 424g
  Enclosure Material	IP67-rated Polycarbonate
  Environmental Protection	Fully weatherproof
  Operating Temperature	-4°F to +185°F (-20°C to 85°C)
  Warranty	2 years

  Comparison Chart: Song Meter Mini 2 AA vs. Song Meter Mini Bat 2 AA

  Model	Song Meter Mini 2 AA	Song Meter Mini Bat 2 AA
  Primary Use	Birds, amphibians, and land wildlife (acoustic range)	Bats and biodiversity (ultrasonic & acoustic range)
  Recording Format	16-bit PCM WAV	Full Spectrum and/or Zero Crossing
  Channels	1 internal (2 with additional mic)	1 integrated ultrasonic (acoustic optional)
  Sample Rates	8,000 – 96,000 Hz	Ultrasonic: up to 500kHz / Acoustic: up to 96kHz
  Microphone	Omnidirectional, low-noise	Waterproof, low-noise ultrasonic
  Battery Life	Up to 530 hours (8 AA, 24 kHz mono)	Up to 50 ten-hour nights
  Storage	1 SDHC/SDXC slot (up to 1 TB)	1 SDHC/SDXC slot (up to 2 TB)
  Power Supply	4 or 8 AA batteries (Alkaline or NiMH)	4 or 8 AA batteries (Alkaline or NiMH)
  Connectivity	Bluetooth® (iOS/Android App)	Bluetooth® (iOS/Android App)
  Housing Material	Polycarbonate, IP67	Polycarbonate, IP67
  Operating Temp.	-4°F to 185°F (-20°C to 85°C)	-4°F to 185°F (-20°C to 85°C)
  Weight (w/ batteries)	0.95 lb (429 g)	0.93 lb (424 g)

• • 1x Song Meter Mini Bat 2 (AA) Recorder
• • Alkaline/NiMH Batteries
  • Additional Acoustic Microphone
  • SDHC/SDXC Memory Cards

Ver todos os detalhes do produto »

Wildlife Acoustics Acoustic Recorder Song Meter SM5 Series SM5 A Long Haul Dual Channel with High Battery Performance

Request Quote

Professional Long-Duration Acoustic Recording with the Song Meter SM5-A

The leading recorder for professional ecologists, delivering the best battery performance on the market and unmatched versatility for field wildlife monitoring.

The Song Meter SM5-A Represents the Pinnacle of Acoustic Recording Technology for Ecology Professionals. Designed to Capture Vocalizations within the Audible Range, this Device Enables Documentation of Birds in the Canopy and Amphibians in the Understory with Exceptional Clarity. Its New Robust Design Withstands Extreme Conditions while Efficiently Managing Power, Using Lithium, Alkaline, or External Solar Power for Long-Term Deployments without Interruptions.

With Nearly Two Decades of Field Experience, Wildlife Acoustics Has Perfected this Equipment to Hear More and Carry Less. The Integration of Bluetooth Technology Allows Easy Setup via Mobile Devices, Workflow Optimization, and Precise GPS Synchronization. The SM5-A is the Ultimate Tool for Research Requiring High-Fidelity Data and Proven Reliability in Any Terrestrial Environment.

Key Features:

• Superior Battery Performance for Extended Deployments.
• IP67 Housing Fully Weatherproof.
• Dual-Channel Recording in Mono or Stereo Format.
• Wireless Configuration via Bluetooth App for iOS and Android.
• Integrated GPS for Accurate Time and Location Synchronization.
• Expansion Port Ready for Future Remote Access Accessories.
• Microphone Compatibility with Cable and Stub-Type Mics.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Acoustic Channels	2 (Mono or Stereo)
  Integrated Microphones	2 (Stub Mics)
  Additional Microphone Ports	2 (for SMM-A2)
  Recording Format	16-bit WAV or Compressed W4V
  Sample Rates	Up to 96kHz
  Battery Life (Stereo)	Up to 900 Hours (Alkaline) or 1,710 Hours (Li-ion)
  Storage Capacity	2 SDHC/SDXC up to 4 TB Total
  Protection Rating	IP67 Weatherproof
  Dimensions	191 x 175 x 64 mm
  Weight	1113 g to 1138 g Depending on Batteries

• • 1x Song Meter SM5-A Recorder
  • 1x Pair of Integrated Stub Acoustic Microphones
• • Set of Batteries (D Alkaline or Li-ion 18650)
  • SDHC/SDXC Memory Card
• • Kaleidoscope Pro Analysis Software
  • Solar Power Kit
  • SMM-A2 Acoustic Microphone
  • 10 m Microphone Cable
  • Marine-Grade Padlock
  • Surge Protector
• • Song Meter SM5-A User Manual
  • Quick Start Guide

Ver todos os detalhes do produto »

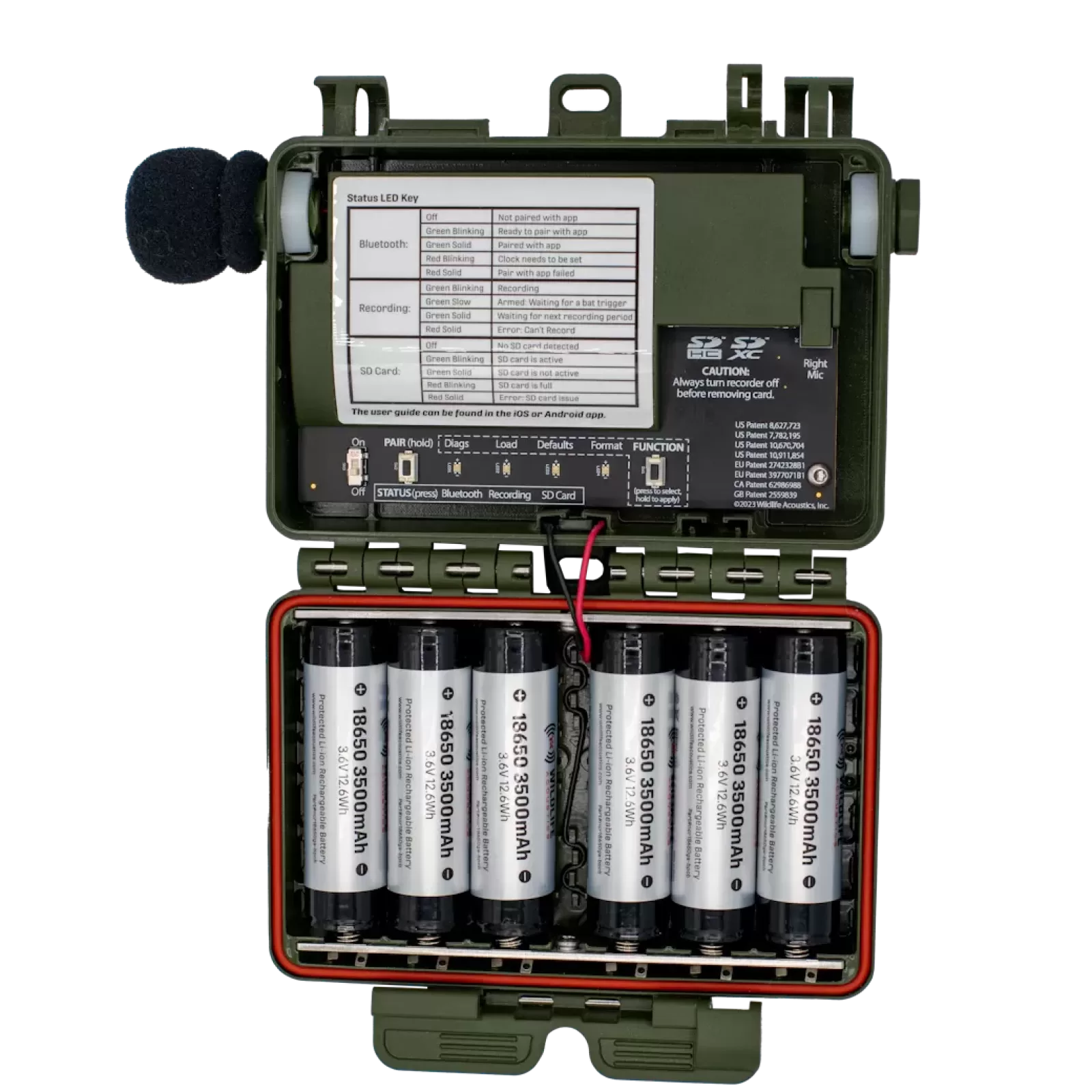

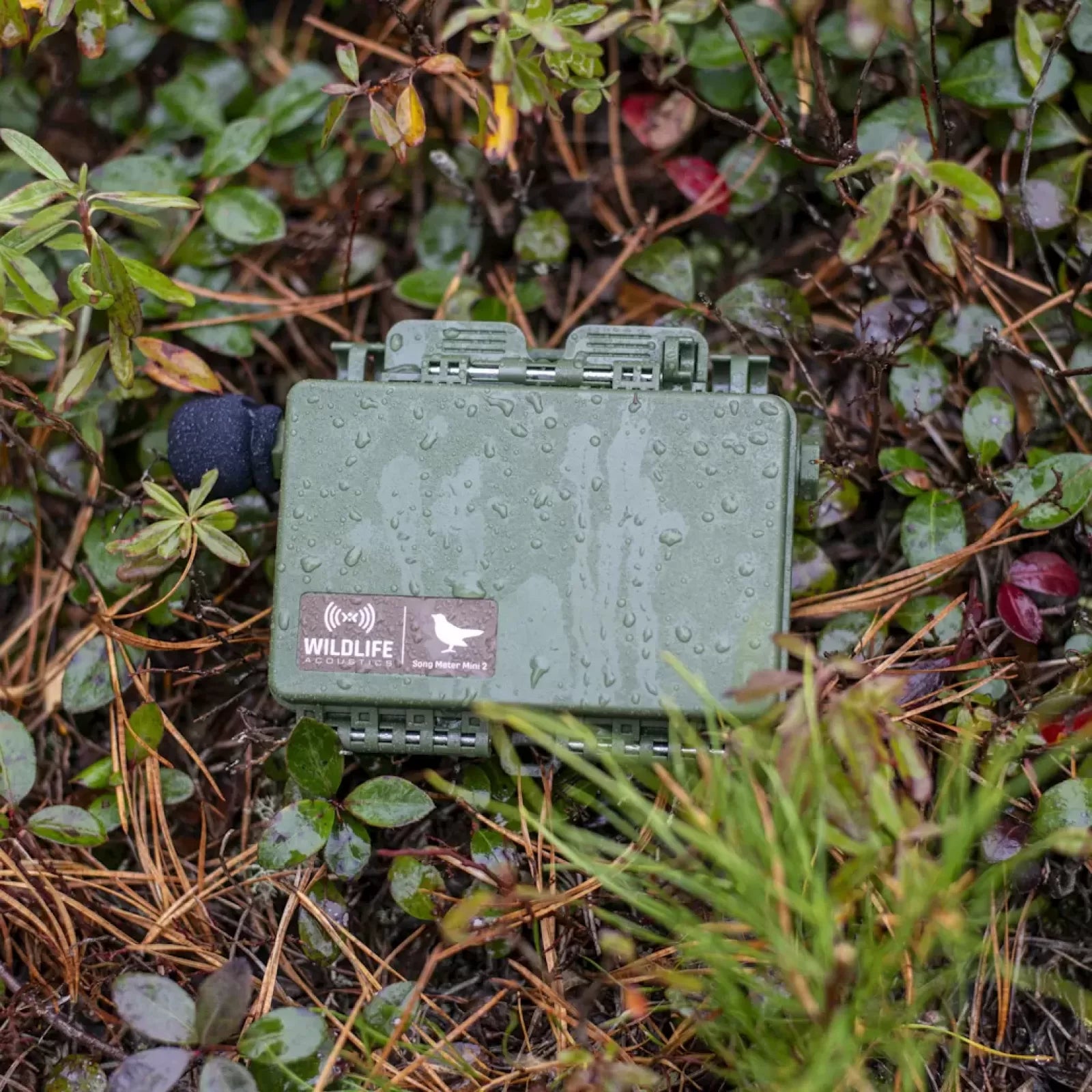

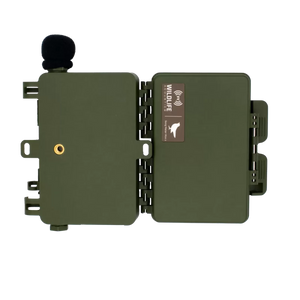

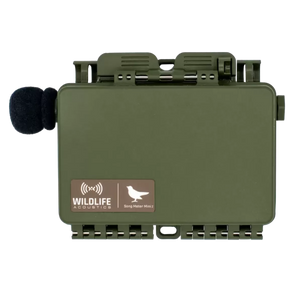

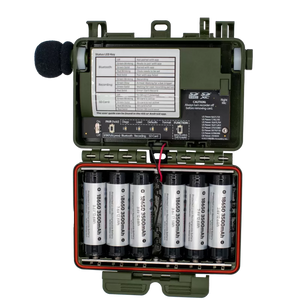

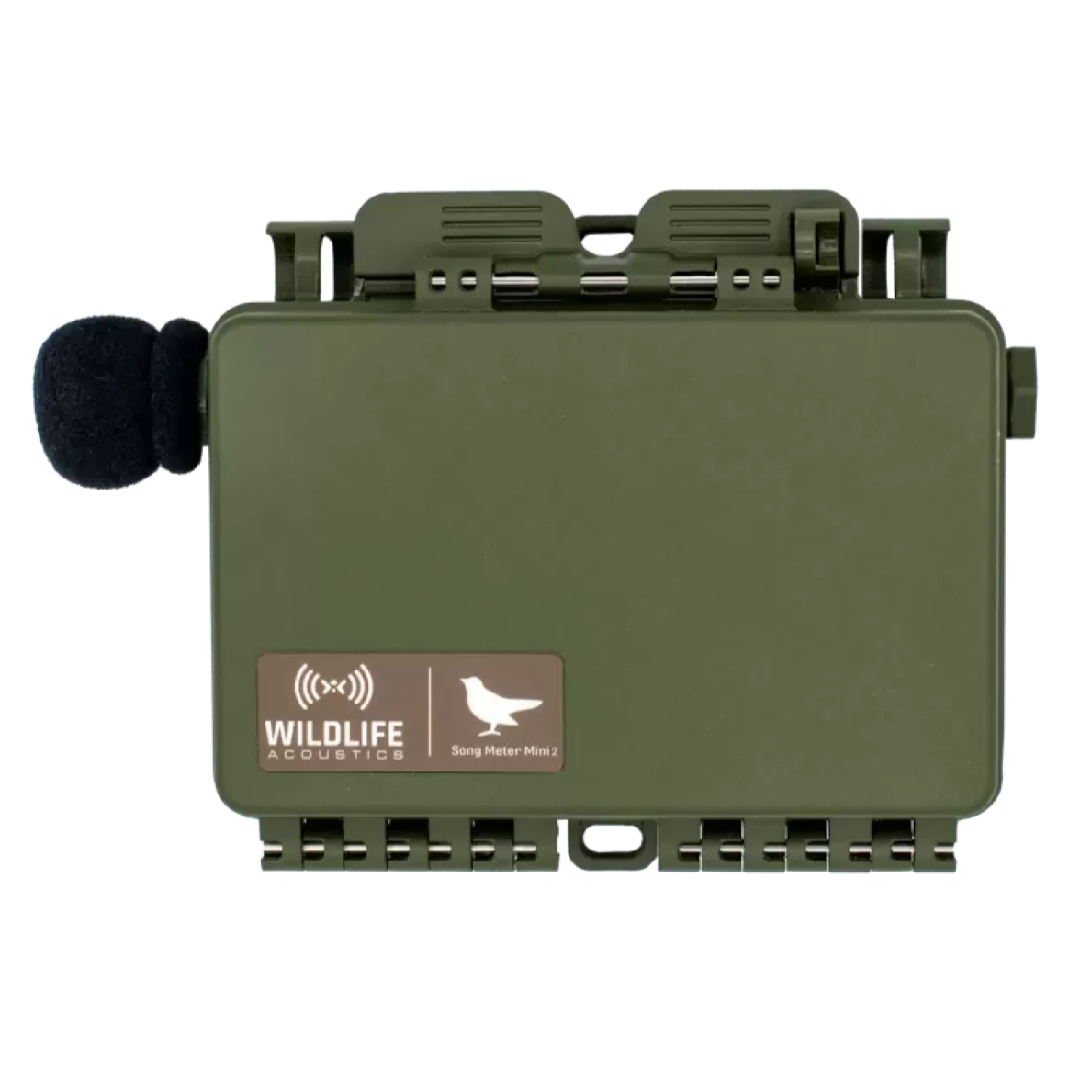

Wildlife Acoustics Song Meter Mini 2 Li-ion ²⁶

$ 745.50 USD

Record More, Recharge Less: New Song Meter Mini 2 Li-ion Acoustic Recorder

Up to 1,330 hours of recording with 6 rechargeable lithium batteries. Designed for wildlife monitoring with high-quality audio, rugged housing, and simplified operation via Bluetooth®.

The Song Meter Mini 2 Li-ion is a compact, rugged, and smart acoustic recorder designed for scientists and enthusiasts monitoring birds, amphibians, and other animals that vocalize within the acoustic range. With extended autonomy of up to 1,330 hours and an upgraded IP67 housing, this device enables long-term recordings without interruptions, even in harsh weather conditions. Controlled via Bluetooth® and a free app, it is easy to configure and deploy in the field.

Key Features

• Extended Duration: Up to 1,330 hours of continuous recording with 6 lithium batteries in low-power mode.

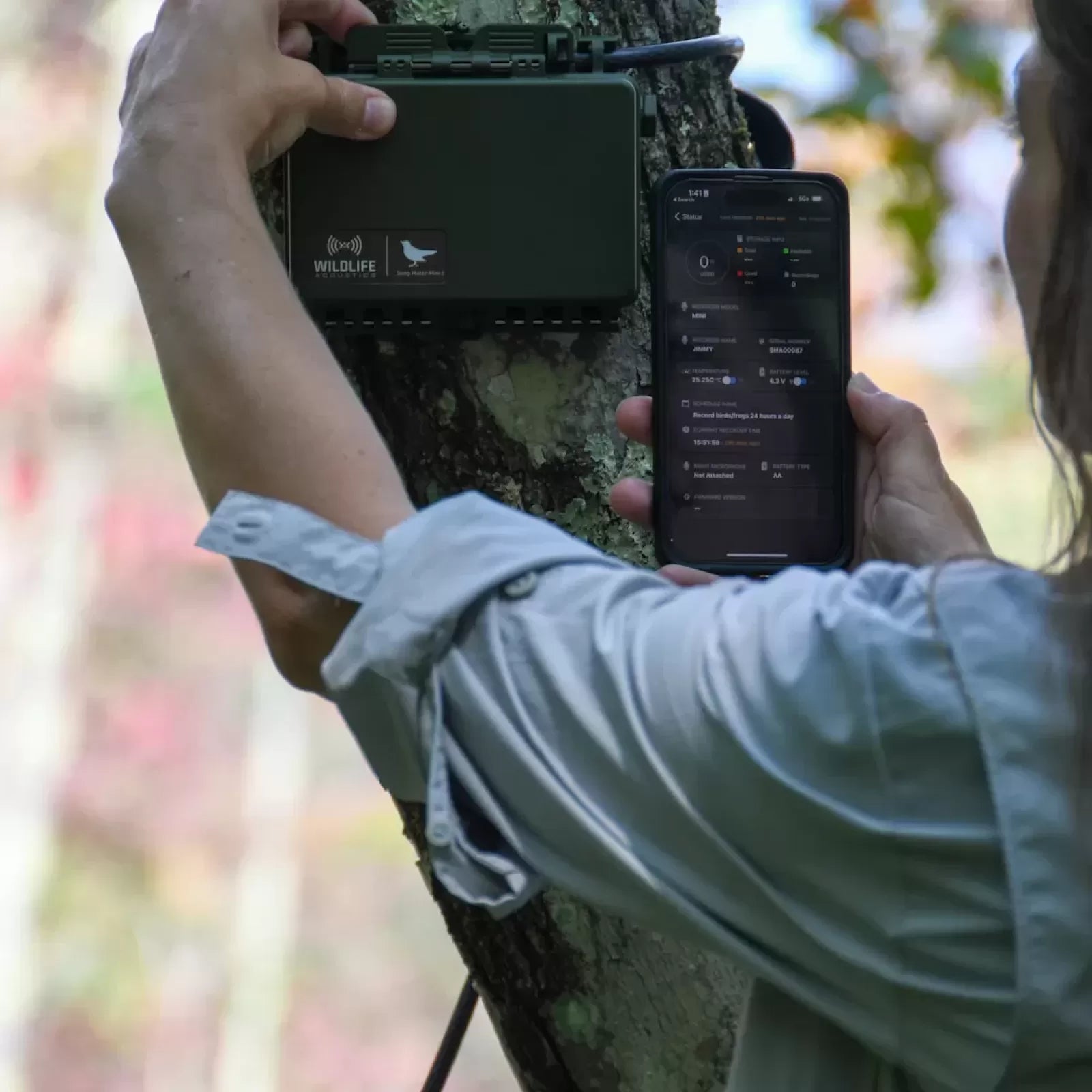

• App Control: Configure location and schedules via Bluetooth® from iOS® or Android™ devices.
• Rugged Design: IP67 water- and dust-resistant housing, ideal for long-term outdoor use.
• High-Quality Microphone: Internal omnidirectional microphone with low noise.
• Compact and Lightweight: Only 236 g without batteries and 522 g with 6 lithium batteries, easy to carry and mount in the field.
• Optional Stereo Recording: Add a second microphone to capture in stereo.
• Versatile Mounting: Includes tripod mount and padlock option.
• SDXC Card Compatible: Supports up to 1 TB (2 TB in the future).

Sensitivity and Noise Charts

The following charts reflect the default gain (+18 dB), a sampling rate of 48 kHz, a calibrated sound source one meter from the recorder, and perpendicular to the microphone axis.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Song Meter Mini 2 Li-ion
  Recording Format	16-bit PCM WAV
  Channels	1 internal (2 with additional microphone)
  Sampling Frequencies	8000–96000 Hz (9 options)
  Built-in Microphone	Omnidirectional, low noise
  Power Options	6 rechargeable lithium batteries
  Autonomy	Up to 1,330 hours (6 Li-ion, 24 kHz mono, low-power mode)
  Weight	236 g without batteries / 522 g with 6 Li-ion batteries
  Storage	1 SDHC/SDXC slot (up to 1 TB)
  Bluetooth	BLE 4.2 compatible with mobile app
  Operating Temperature	-20 °C to 85 °C
  Housing Material	Polycarbonate, IP67
  Mounting	Standard tripod thread

• • x1 Song Meter Mini 2 Li-ion Recorder
  • x1 Internal Acoustic Microphone
  • x1 Quick Start Guide
• • 6 Lithium-ion 18650 batteries
  • SDHC/SDXC card class 4 or higher
• • Additional acoustic microphone (acoustic stub)
  • Weather-resistant security cable
  • USB SDHC/SDXC card reader
  • Replacement windshields (pair)
  • Marine-grade padlock
  • Kaleidoscope Pro analysis software
• • User Manual

Ver todos os detalhes do produto »

Song Meter Mini 2 AA Acoustic Recorder ²⁶

$ 631.25 USD

Record More, Recharge Less: New Song Meter Mini 2 AA Acoustic Recorder

Up to 530 hours of recording with just 8 AA batteries. Designed for wildlife monitoring with high-quality audio, a rugged enclosure, and simplified operation via Bluetooth®.

The Song Meter Mini 2 AA is a compact, rugged, and intelligent acoustic recorder designed for scientists and enthusiasts monitoring birds, amphibians, and other vocalizing wildlife. With double the battery life of its predecessor and an upgraded IP67-rated enclosure, this device enables extended recording sessions even in harsh environmental conditions. Controlled via Bluetooth® and a free mobile app, it’s easy to set up and deploy in the field.

Key Features:

• Extended Battery Life: Up to 530 hours of continuous recording with 8 AA alkaline batteries.
• App Control: Set location and schedules via Bluetooth® from iOS® or Android™ devices.
• Rugged Design: IP67-rated water- and dust-resistant housing, ideal for long-term outdoor use.
• High-Quality Microphone: Built-in omnidirectional microphone with low noise.
• Lightweight and Compact: Weighs only 429 g with batteries; easy to carry and mount in the field.
• Optional Stereo Recording: Add a second microphone to record in stereo.
• Versatile Mounting: Includes tripod mount and padlock-ready design.
• SDXC Card Compatible: Supports up to 1 TB (2 TB in the future).

Sensitivity and Noise Charts

The following charts reflect default gain (+18 dB), 48 kHz sample rate, calibrated sound source one meter from the recorder, perpendicular to microphone axis.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Song Meter Mini 2 AA
  Recording Format	16-bit PCM WAV
  Channels	1 internal (2 with optional mic)
  Sample Rates	8000–96000 Hz (9 options)
  Built-in Microphone	Omnidirectional, low noise
  Power Options	4 or 8 AA alkaline or NiMH rechargeable batteries
  Battery Life	Up to 530 hours (8 AA, 24 kHz mono)
  Storage	1 SDHC/SDXC card slot (up to 1 TB)
  Bluetooth	BLE 4.2, mobile app compatible
  Operating Temperature	-4 °F to 185 °F (-20 °C to 85 °C)
  Enclosure Material	Polycarbonate, IP67-rated
  Mounting	Standard tripod thread

• • x1 Song Meter Mini 2 AA Recorder
  • x1 Internal Acoustic Microphone
  • x1 Quick Start Guide
• • 4 or 8 AA batteries (alkaline or rechargeable)
  • Class 4 or higher SDHC/SDXC card
• • Optional Acoustic Microphone (acoustic stub)
  • Weather-resistant Security Cable
  • USB SDHC/SDXC Card Reader
  • Replacement Windshields (pair)
  • Marine-grade Padlock
  • Kaleidoscope Pro Analysis Software
• • User Manual

Ver todos os detalhes do produto »

Micro-Lipo Charger for MicroMoth Battery

Request Quote

This little lipo charger is so small and easy to use you can keep it...

Ver todos os detalhes do produto »

Rens® P-4000 Metal Detector for Logs

Request Quote

Precision and Reliability for Industrial Use

The Rens P-4000 Metal Detector is a powerful and reliable tool designed to locate metal in logs and standing timber with pinpoint accuracy. Its automatic calibration and rugged build make it ideal for industrial environments with multiple operators.

The Rens P-4000 Metal Detector provides exceptional precision and ease of use in industrial and forestry applications. Featuring automatic self-calibration, it ensures optimal performance even in high-interference environments. Its lightweight yet durable design, combined with an adjustable handle and search head, allows for comfortable and efficient operation. The regulated power system maintains sensitivity as the battery depletes, ensuring consistent performance. The unit operates for ten hours on a full charge and includes a battery check indicator, calibration alert, and Poly-form carrying case for added convenience.

Key Features:

• Automatic self-calibration for hassle-free operation in industrial settings.
• Pinpoint metal detection along a narrow band on logs or standing timber.
• Lightweight yet durable construction for long-lasting performance.
• Adjustable handle length for comfortable use by different operators.
• Regulated power system prevents sensitivity loss as the battery depletes.
• Up to 10 hours of runtime on a full charge.
• Complete set included: earphone, shoulder strap, battery pack, recharger, and a Poly-form carrying case.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Brand	Rens
  Model	P-4000
  Dimensions (W x L x H)	17.5" x 36.5" x 8.5" (44.5 cm x 92.7 cm x 21.6 cm)
  Weight	7.5 lbs (3.4 kg)
  Battery Life	Up to 10 hours on a full charge
  Calibration	Automatic self-calibration
  Power System	Regulated to maintain sensitivity as battery depletes
  Adjustments	Adjustable handle length, search head, and chassis
  Additional Features	Battery check indicator, calibration alert
  Carrying Case	Poly-form hard case included
  Country of Manufacture	United States

• • Rens P-4000 Metal Detector
  • Earphone
  • Shoulder strap
  • Battery pack
  • Battery recharger
  • Adjustable search head and chassis
  • Poly-form carrying case
• • None
• • None
• • User Manual (English)

Ver todos os detalhes do produto »

MicroMoth (μMoth) 1.0.0 ²⁵

$ 129.95 USD

Miniature Acoustic Power

Discover MicroMoth, the world's smallest acoustic development board, capable of capturing sounds from audible to ultrasonic frequencies, all in a compact design of 25 x 36 mm and weighing 4 grams.

MicroMoth is the worlds smallest full-spectrum acoustic development board, based on AudioMoth and the Gecko processor range. Just like its namesake the moth, MicroMoth can listen at audible frequencies, well into ultrasonic frequencies. It measures just 25mm x 36mm and weighs 4 grams. It is capable of recording uncompressed audio to microSD card at rates from 8,000 to 384,000 samples per second. It also shares the same supporting software and firmware as AudioMoth.

Features

• EFM32 Gecko processor.
• Capable of recording at sample rates up to 384kHz.
• Records uncompressed WAV files to microSD card.
• Powered by a two pin JST-PH connector.
• Can be used with 3.7 V - 6 V batteries.
• Analog MEMS microphone.
• Analog pre-amplifier with adjustable gain.
• Measures just 26 x 36 mm.
• Configurable USB interface.
• Onboard real-time clock keeps track of time in UTC.
• Exposed header for GPIO expansion.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Comparing μMoth with AudioMoth 1.2.0

  	μMoth	AudioMoth 1.2.0
  Processor	EFM32 Gecko
  Recording Rates	from 8 kHz up to 384 kHz
  Format	Uncompressed WAV files
  Memory	microSD card slot
  Capacity	1 TB
  Microphone	Analog MEMS microphone
  Interface	Configurable USB
  Time	Onboard Real-time Clock keeps track of time in UTC
  Amplifier	Analog Pre-amplifier with Adjustable Gain
  Exposed Header	for GPIO	for 3.5 mm Jack Mic
  Dimensions	36 x 25 x 5 mm	58 x 48 x 15 mm
  Weight	5 g (w/o battery)	131 g (w/o batteries)
  Power	1x 3.7 V - 6 V battery (not included) Powered by a two pin JST-PH connector	3x AA batteries (not included)



• • 1x MicroMoth
• • Micro-Lipo Charger for MicroMoth Battery

  Some Compatible Batteries

  • Lithium-Ion Battery - 400mAh
  • Lithium-Ion Battery - 850mAh
  • SanDisk® MicroSD™ Extreme PLUS UHS-I Memory Cards
• • None
• • Operation Manual
  • MicroMoth Datasheet
  • Click Getting Started for help setting up a new AudioMoth.
  • Check the Support Forum

Ver todos os detalhes do produto »

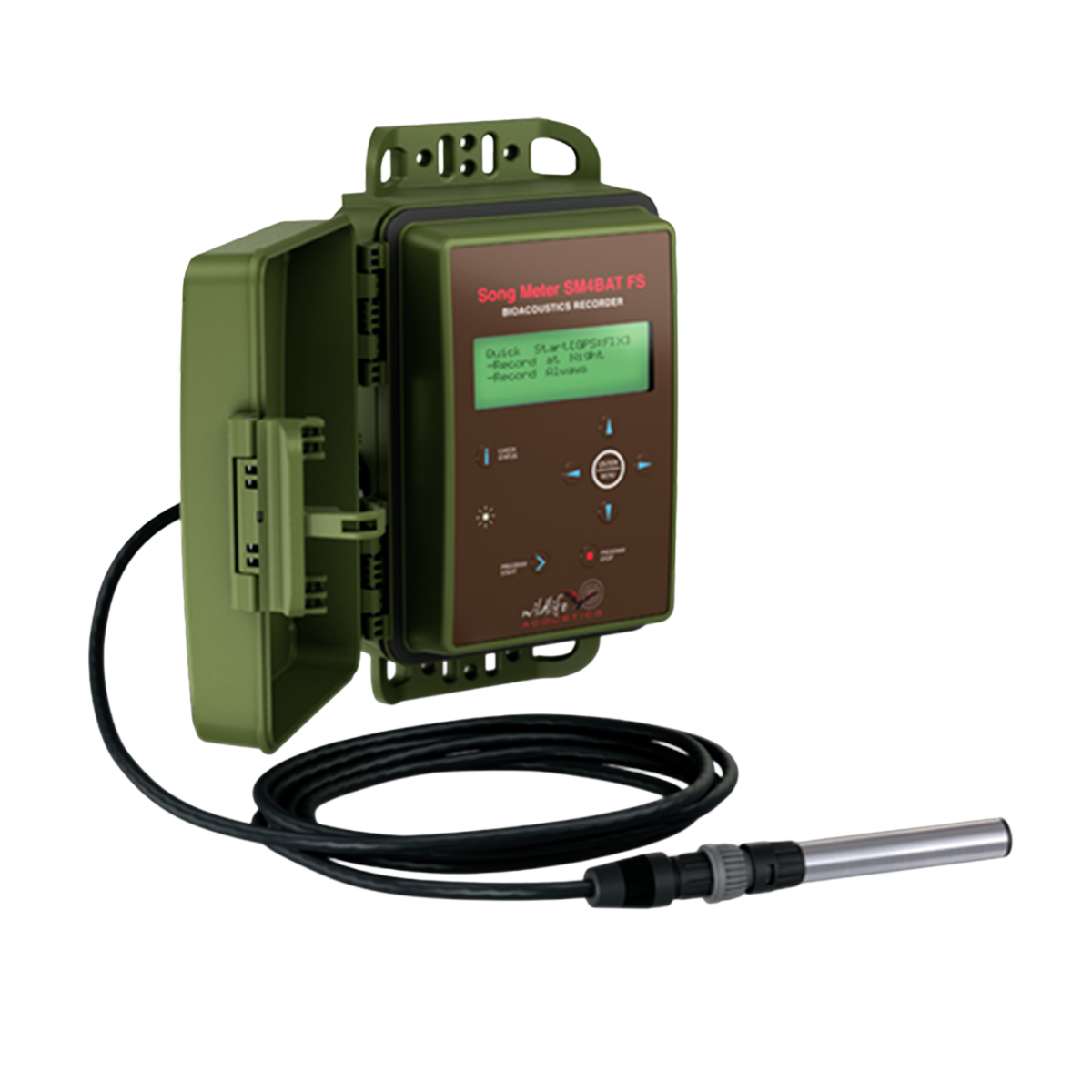

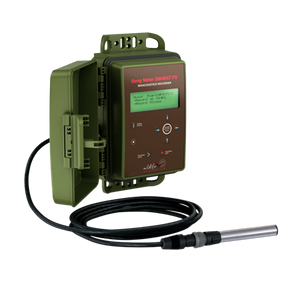

Song Meters SM4BAT

$ 899.00 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

Song Meter SM4BAT Ultrasound Recorder

The next-generation bat monitoring platform: smaller, lighter, and featuring the longest deployment times available for long-term research.

The Song Meter SM4BAT is a single-channel ultrasound detector and recorder specifically developed for advanced bat research. Combining innovative design with a new low-power processor, the SM4BAT simplifies field deployment through intuitive scheduling blocks and a quick-start menu. It is significantly smaller and lighter than the SM3BAT, making it easier to transport to remote sites. Built from rugged polycarbonate, it has been subjected to environmental shock, drop testing, and static discharge to ensure reliable operation in the most punishing environments—from caves and jungles to deserts—all backed by an industry-leading 3-year warranty.

» Learn more about the Song Meter SM3BAT

Available Models

• SM4BAT FS (Full Spectrum): Records to 16-bit full-spectrum .WAV files. Full-spectrum recordings offer a 20dB signal-to-noise ratio advantage over zero-crossing recorders, capturing more bats with higher quality for detailed analysis.
• SM4BAT ZC (Zero Crossing): A native zero-crossing recorder. While recording less information than full-spectrum, it provides an ideal solution for applications requiring lower power consumption, smaller storage requirements, and a lower cost.

Key Features

• Unmatched Deployment Times: The FS model can record between 250 and 450 hours, while the ZC model reaches 600 to 700 hours using just 4 D-size batteries.
• High-Fidelity Recording: Compatible with the weather-resistant SMM-U1 microphone, which reduces electrical noise interference even when using cables up to 100 meters long.
• Easy Programming: Features a brand new Quick Start menu and flexible Scheduler to meet almost any recording need.
• GPS Accessory Support: Automatically sync date, time, and location across multiple units and log paths for mobile transects.
• Efficient Analysis: Compatible with Kaleidoscope Pro software for bat auto-ID, saving countless hours of manual data sorting.

The SM4BAT does not include a microphone. You can select cabled ultrasonic and acoustic mics, as well as hydrophones. Directional microphone horns, system calibrators, SD cards, rechargeable batteries, and power adapters are also available for purchase.

• Specifications
• In the Box
• Required Items
• Optional Items

• Technology	Single-channel (FS: 16-bit WAV | ZC: Zero-Crossing)
  Sample Rates (FS)	192kHz, 256kHz, 384kHz, 500kHz
  Dimensions	8.6" x 6.0" x 3.1" (21.80 cm x 15.20 cm x 7.8 cm)
  Weight	1.6 lbs (0.7 kg) without batteries | 2.9 lbs (1.3 kg) with batteries
  Power Supply	4 D-size batteries (Internal) or 5-17V DC (External)
  Consumption	0.5 mW (sleeping); 250 – 800 mW (recording)
  Memory Slots	2 SDHC/SDXC slots (Up to 1.0 TB total capacity)
  Operating Temp.	-4°F to 122°F (-20°C to 50°C)

• • 1x Song Meter SM4BAT Recorder (Selected model)
• • Song Meter Microphone Options
  • Song Meter Microphone Cable Options
  • 4 D-size batteries and SD Memory Card (Class 4 or greater)
• • Song Meter GPS Accessory
  • Power and Storage Options
  • Kaleidoscope Pro Analysis Software
  • Additional Accessories for the SM4BAT Series

Medidor de Vocalizaciones SM4BAT

EO20260423

Ver todos os detalhes do produto »

Song Meter SM4 ²⁶

$ 999.50 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

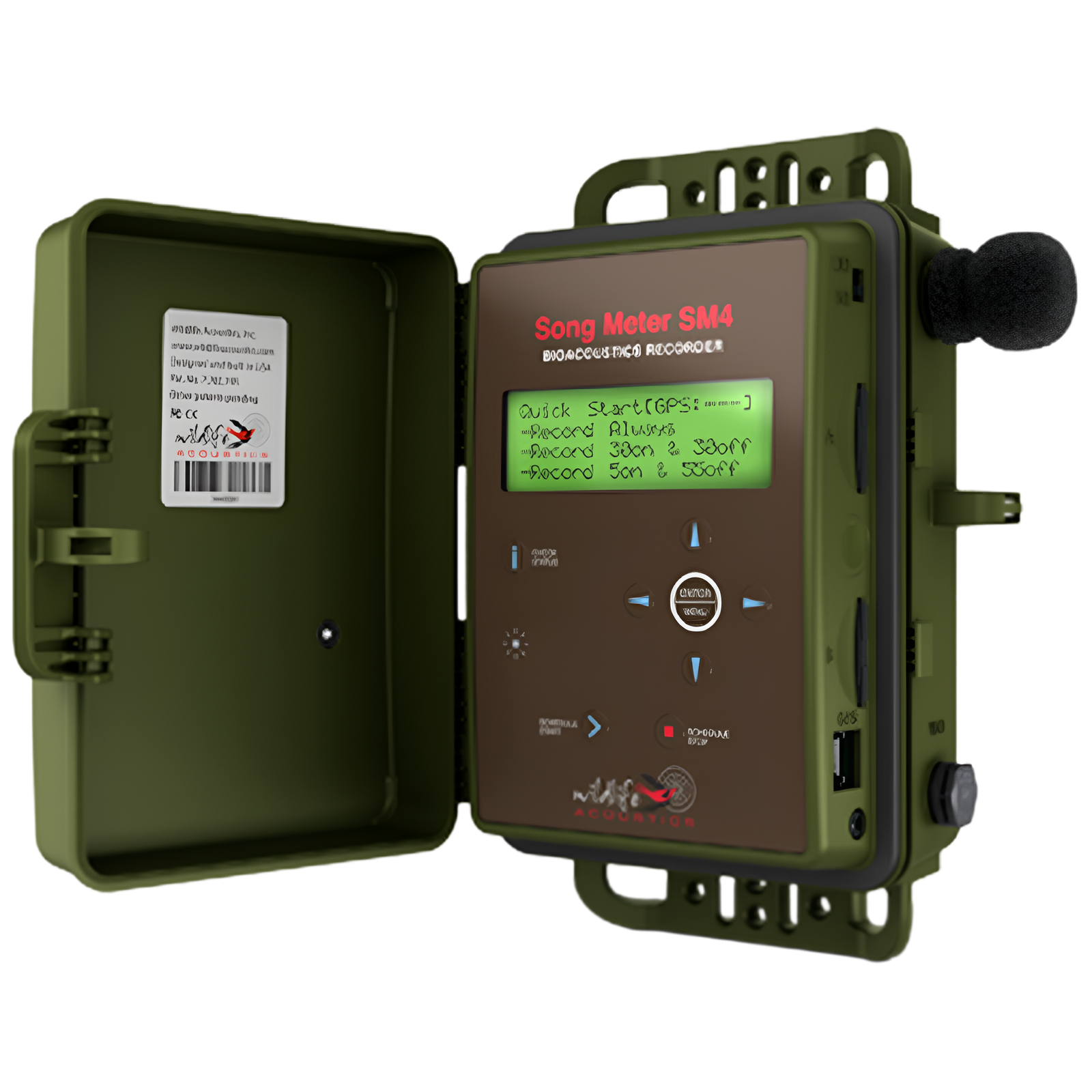

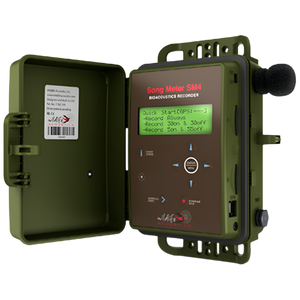

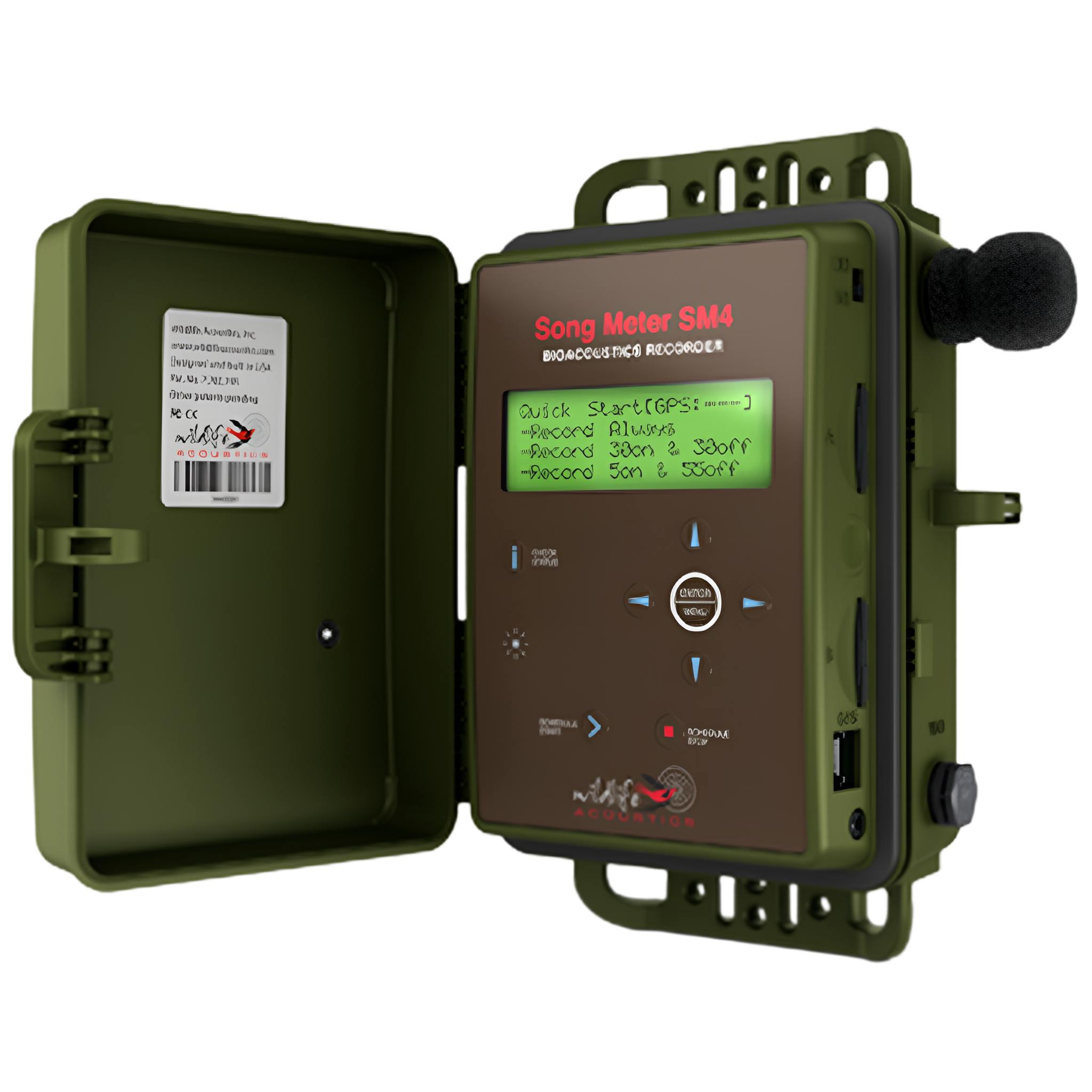

Song Meter SM4 Acoustic Recorder

The smallest and lightest dual-channel weatherproof acoustic recorder available: designed to capture months of data from birds, frogs, and aquatic life.

The 4th generation Song Meter SM4 represents a significant advancement in wildlife acoustic monitoring. This dual-channel device is capable of capturing large volumes of data from birds, amphibians, and aquatic life with superior audio quality, thanks to its high-performance built-in microphones. Smaller and lighter than the SM3, the SM4 combines innovative scheduling tools with ultra-low power consumption, enabling the longest deployment times of any acoustic recorder available. Its rugged polycarbonate construction ensures durability in extreme conditions, from humid jungles to arid deserts, backed by an industry-leading 3-year warranty.

» Learn more about the Song Meter SM3

Key Features

• Dual-Channel Flexibility: Record in stereo or mono using the built-in microphones, or connect external SMM-A2 microphones and/or hydrophones to capture audio from distant sources like the forest canopy or nearby ponds.
• Exceptional Battery Life: New power circuitry enables up to 400 hours of recording time using internal batteries. In Sleep Mode, the device uses almost no power, allowing for deployments lasting several months.
• Smart Programming: Features a Quick Start menu with pre-configured schedules (daytime, nighttime, continuous) and a flexible Scheduler for custom recording programs.
• Massive Storage Capacity: Two SD card slots support up to 1.0 terabyte of data, ensuring ample space for long-term high-quality recordings.
• GPS Synchronization: Compatible with GPS accessories to automatically set date, time, and location across multiple units—ideal for mobile transects and multi-unit deployments.
• In-Field Monitoring: Includes an integrated headphone jack to monitor audio activity in real-time during installation.
• Analysis with Kaleidoscope Pro: Optimize data processing with Kaleidoscope software for automated species identification and recording classification.

The SM4 includes two next-generation built-in weatherproof microphones. Cabled acoustic microphones, acoustic hydrophones, and a GPS option are also available. The power adapter cable connects the SM4 to alternative power sources. NiMH batteries and high-capacity SD cards are sold separately.

• Specifications
• In the Box
• Required Items
• Optional Items

• Recording Technology	Two-channel, 16-bit .wav
  Recording Bandwidth	20Hz – 48kHz
  Sample Rates	8kHz up to 96kHz (Multiple options available)
  Dimensions	8.6" x 7.3" x 3.1" (21.80 cm x 18.60 cm x 7.8 cm)
  Weight	1.6 lbs (0.7 kg) without batteries | 2.9 lbs (1.3 kg) with 4 D batteries
  Power Supply	4 D-size batteries (Internal) or 4.5 - 17V DC (External)
  Power Consumption	0.5 mW (sleeping) | 250 – 800 mW (recording)
  Enclosure Material	Polycarbonate (Fully weatherproof)
  Warranty	3 years

• • 1x Song Meter SM4 Recorder
  • 2x Built-in weatherproof microphones
• • Song Meter SM4 Microphone Options
  • Song Meter Microphone Cable Options
  • 4 D-size batteries (Alkaline, NiMH, or Lithium)
  • SD memory card (Class 4 or greater)
• • Song Meter GPS Accessory
  • External Power Options (SM3/SM4 Power Adapter Cable)
  • Kaleidoscope Pro Analysis Software
  • Additional Accessories for the SM4 Series

Medidor de Vocalizaciones SM4

EO20260423

Ver todos os detalhes do produto »

Song Meter SM3M Deep Water

$ 10,500.00 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

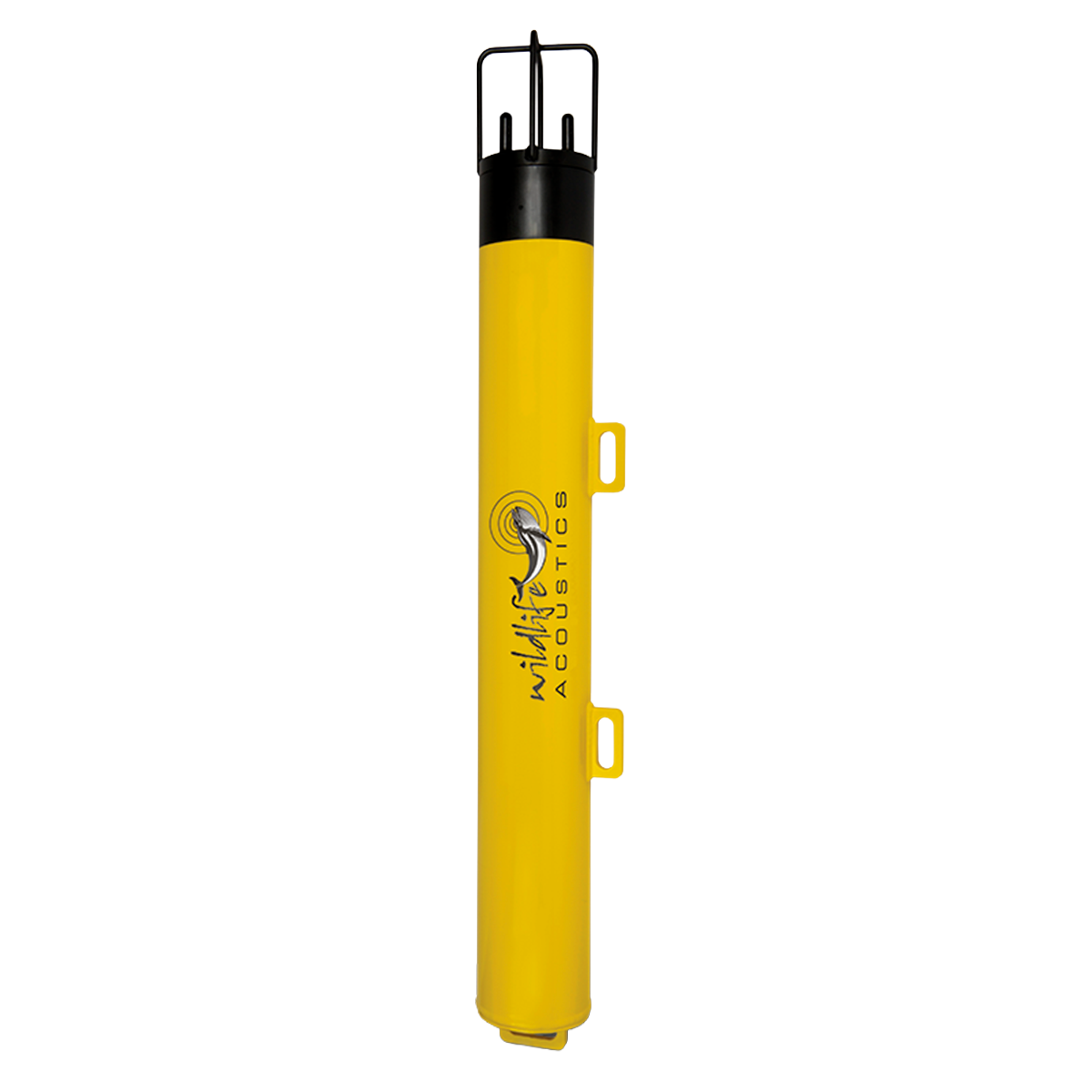

Song Meter SM3M Deep Water Submarine Bioacoustics Recorder

The most economical deep-water marine bioacoustics and ambient noise recorder designed for extended deployments down to 1,000 meters.

The 3rd generation Song Meter SM3M Deep Water is built for long-term monitoring in extreme offshore environments, providing the recording flexibility and precision of conventional recorders at a significantly lower cost. With a recording bandwidth of 2 Hz to 192 kHz, it is the ideal tool for characterizing baseline ambient noise levels and capturing loud anthropogenic sounds, such as pile drivers and airguns, within a single deployment. Its rugged design allows for operation at depths up to 1,000 meters, utilizing adaptive triggering and compression to maximize deployment times without human intervention.

Key Features

• Multi-Role Assignments: Program the SM3M to monitor multiple species simultaneously, from infrasonic to ultrasonic, by adjusting sample rates, gain, and filters across one or two hydrophones.
• Long-Term Deployment: Deploy for several weeks or months thanks to negligible power consumption in sleep mode and high energy efficiency, perfect for remote baseline studies.
• Massive Storage Capacity: Features four SDXC/SDHC card slots, enabling the storage of over a terabyte of acoustic data—from faint biological clicks and whistles to the loudest industrial noises.
• Shipside Serviceability: Designed for quick servicing and redeployment at sea; access SD cards and the PC board easily using the included spanner wrench.
• Customizable Hydrophone Setup: Choose from standard acoustic, ultrasonic, low-noise, or high-SPL hydrophones to meet specific performance criteria and research goals.
• Analysis with Song Scope: Compatible with Song Scope software, which allows for visualization of long-term sound energy and reviewing audio 10-20 times faster than traditional listening.

The most economical deep water marine bioacoustics and ambient noise recorder.

The new, 3rd generation Song Meter SM3M Deep Water is designed for extended deployments in extreme off-shore environments and offers the same recording flexibility and precision of conventional recorders costing much more.

With a recording bandwidth of 2 Hz to 192 kHz, it is ideal for recording ambient noise levels for baseline characterization and capturing loud noises, including anthropogenic sounds like those from pile drivers and airguns. Best of all this can be done with a single unit during the same deployment.

Program for multiple-role assignments
The SM3M Deep Water can be programmed to optimize for different recording objectives on the same hydrophone or two hydrophones using a flexible two-channel input. The recorder's configuration utility allows you adjust settings for sample rate, gain, filters, and triggers.

Should you need to monitor a variety of sea life in a single deployment, the SM3M Deep Water can monitor for multiple species’ acoustics from infrasonic to ultrasonic at the same time or by scheduling different sample rates at different times.

Deploy for several weeks or several months
The SM3M Deep Water is designed to record ambient, biological and anthropogenic sounds down to 1000 meters. Extreme depths typically involve longer-than-usual deployments and so the recorder features adaptive triggering and compression to further extend deployment times.

You can deploy for months at a time using a recording schedule or duty cycle with neglible power consumption during sleep mode.

Capture more than a terabyte of echolocation data
The SM3M Deep Water uses SDXC and SDHC cards. There are four card slots and with each card capable of storing 256 gigabytes of vocalization data. Combined with the SM3M's adaptive triggering and compression, storage capacity exceeds a terabyte. That means more data containing everything from the faintest drumming, clicks and whistles to the l baseline loudest anthropogenic noises.

Service and redeploy while at sea
The SM3M Deep Water is designed to be quickly serviced and redeployed shipside, saving valuable time and money. Simply unscrew the recorder's hydrophone cap with the supplied spanner wrench and pull out the pc board. SD cards can be easily accessed and the unit can be quickly reprogrammed for any changes in deployment objectives.

The SM3M can be quickly anchored and recovered via tether, diver or acoustic release.

Customize to suite your specific needs
The SM3M Deep Water can be configured in a variety ways to meet your recording needs. We have selected an assortment of hydrophones for specific applications that meet strict performance criteria. You can outfit the SM3M with our standing acoustic hydrophone, upgrade to either an ultrasonic hydrophone or low-noise hydrophone or choose our high SPL, dual hydrophone option.

Should you require more placement flexibility, you can special order cabled hydrophones as well.

Song Scope Analysis Software

One of the fastest and most intuitive spectrogram viewers available.

Song Scope software is fast and flexible, designed to help you quickly review recordings made by Song Meter or other conventional bioacoustics recording equipment. The software features a flexible spectrogram viewer that lets you scroll through large audio files and is typically 10-20 times more time efficient than simply listening. Song Scope’s Song Scape feature lets you visualize sounds on large temporal scales so you can measure sound energy in months and years instead of seconds.

• Specifications
• In the Box
• Required Items
• Optional Items

• Working Depth	Rated to 1,000 meters (800 meters standard rating)
  Recording Format	32-bit WAV (24-bit dynamic range) for acoustic | 16-bit for ultrasonic
  Recording Bandwidth	2 Hz to 192 kHz (Infrasonic, Acoustic, and Ultrasonic)
  Sample Rates	Up to 192,000 samples per second on one or two channels
  Internal Power	Up to 64 D-size alkaline or NiMH batteries
  Power Longevity	162 days continuous (2-48kHz) | 135 days continuous (96-192kHz)
  Storage Capacity	4 SDHC/SDXC slots (Up to 2.0 TB total capacity supported)
  Storage Longevity	618 days (at 8kHz) | 102 days (at 48kHz) | 26 days (at 192kHz) with 1 TB
  Dimensions	Diameter: 6.5” (16.5 cm) | Length: 58.3” (148.0 cm)
  Weight (Air)	24.4 kg (no batteries) | 32.2 kg (with 64 D batteries)
  Buoyancy (Water)	+1.0 kg (no batteries) | -9.8 kg (with 64 D batteries)

• • 1x Song Meter SM3M Deep Water Recorder
  • 1x Spanner wrench (for internal access and maintenance)
• • SM3M Deep Water Hydrophone Options
  • D-size alkaline or NiMH batteries (Up to 64 units)
  • SDHC/SDXC Memory Cards (Class 4 or higher)
  • Song Scope Analysis Software
• • GPS Time-Sync Receiver (for multi-unit synchronization)
  • External Power Cable (supports 5V to 17V DC)
  • Cabled hydrophones (Special order only)

Medidores, Medidor de Vocalizaciones SM3M Deep Water, grabadora, grabadoras, ultrasonido, detector, detectores, detectors, ultrasound, ultrasonic

EO20260423

Ver todos os detalhes do produto »

Song Meter SM3BAT

$ 1,599.00 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

Which Song Meter is right for you?

The SM4BAT is the next-generation bat detector/recorder. It's smaller, lighter and easier to use than the SM3BAT.

» Learn more about the Song Meter SM4BAT

Choose the SM3BAT if:
- You need to record birds or other wildlife on a second channel.
- You need a schedule that does different things on different days.
- You want to make sub-minute recordings.

A breakthrough in bat bioacoustics recording technology.
“This is not just an improved version of their (extremely successful) SM2BAT+... The changes are simply amazing!” – Al Milano, Bat Detector Blogspot

The 3rd generation Song Meter SM3BAT is a new benchmark for bat bioacoustics recorders. From innovative recording features, massive data storage capacity and a significant improvement in deployment time over the SM2BAT+, the new SM3BAT makes bat echolocation data capture, easier and more cost effective.

Double your effective field coverage.
The SM3BAT is the only recorder that can simultaneously record in full spectrum at 256 kHz on two channels AND zero crossing on the same channels. It's like having two full spectrum and two zero crossing recorders in one box.

Should you need a higher sampling rate, the SM3BAT can sample in full spectrum up to 384 kHz on one channel. If you want more options for zero crossing files, the recorder has an improved zero crossing auto level and division ratios of 4, 8, 12 or 16.

Record up to 180 hours in full spectrum.
Time is money and the SM3BAT was designed to reduce your cost of ownership. The SM3BAT has new power circuitry that increases deployment time by 50% over the SM2BAT+. In short, the SM3BAT can record up to 180 hours of echolocation data in full spectrum and up to 700 hours in zero crossing on one channel. That means longer deployments and fewer trips into the field. (Note: the SM3BAT owner's manual has a detailed listing of battery life per battery type and recording format.)

Choose a schedule or create your own.
The SM3BAT comes with out-of-the box recording programs; including daytime, night time, and continuous recording schedules with automatic configuration. Just pick your desired schedule and press the Start button to begin making recordings immediately. Or, you can create customized, sophisticated schedules and settings to suit your exact needs.

Capture more than a terabyte of echolocation data.
The SM3BAT is compatible with SDHC and SDXC cards. There are four weatherproof SD card slots and with each card capable of storing 256 gigabytes of echolocation data. Combined with the SMBAT's adaptive triggering and compression, storage capacity exceeds a terabyte. That means more echolocation data containing vast amounts of echolocation detail.

Record in high fidelity using the new ultrasonic and acoustic microphones.
The new, weather resistant SMM-U1 ultrasonic microphone features high quality FG microphone elements that have improved signal to noise ratios and flatter frequency response over our previous microphones. Gain is applied at the microphone to increase signals in the cables (up to 100 meters) therefore reducing electrical noise interference. The result is higher quality recordings, even when the cables are run along side other cables on metrology towers or in wind turbines.

Expand the use of the SM3BAT.
The SM3BAT is the only bat recorder that allows you to simultaneously record any combination of bats, birds, frogs and marine life. The new SM3-H1 hydrophone allows you to record above and below the surface. So if your field assignment includes monitoring an assortment of wildlife, the SM3BAT saves you money with its flexible and easily configurable design.

Feel confident knowing you're backed by the longest warranty available.
The Song Meter SM3BAT was designed for use in extreme weather conditions – from caves, jungles, deserts to parts in between. The recorder has been subjected to environmental shock, drop testing, static discharge and extreme water incursion. Al Milano of Bat Detector Blogspot said, "The Song Meter SM3BAT is by far the most solidly built bat recorder I've ever seen."

We're so confident that the SM3BAT can endure the most extreme environmental conditions, we back it with a 3 year warranty. That means you can focus on research, not equipment.

Save countless hours of analysis time using Kaleidoscope Pro bat auto-ID analysis software.
It's one matter to capture hundreds of hours of echolocation data but it's a another matter to quickly and accurately sort and analyze the data. Kaleidoscope Pro software can automate and speed up your analysis work. The software allows you to view and analyze your recordings and automatically identify recorded species.

Learn more about Kaleidoscope Software

The SM3BAT does not include a microphone. You can select cabled ultrasonic and acoustic mics, ultrasonic and acoustic hydrophones. Directional microphone horns and system calibrator are available. SD cards, rechargable batteries and power adaptors may be purchased as well.

• Specifications
• In the Box
• Required Items
• Optional Items

• Dimensions and Weight
  - Length/Height: 12.75 inches (32.40 cm)
  - Width: 7.875 inches (20.00 cm)
  - Depth (Upper): 2.31 inches (5.87 cm)
  - Depth (Lower): 2.56 inches (6.50 cm)
  - Weight: 5.5 pounds (2.5 kg)
  - Weight (with 4 Batteries): 7.0 pounds (3.2 kg)
  - Operating Temperature: -4°F to 122°F (-20°C to 50°C)

  Power
  - Main Power: 4.5 - 17V DC (4 internal D-size batteries)
  - External Power Connector: (5 to 17V DC)
  - Clock Backup Battery Type: CR2032 (approximate 3-year life)
  - Internal Clock Accuracy: Temperature-Compensated Crystal with 3.5ppm drift from -40°C to 0°C and 2.0ppm from 0°C to 40°C
  - Power Consumption: 0.5 mW (sleeping); 250 – 800 mW (recording)
  - Battery Specifications: The recorder uses four (4) standard D size disposable alkaline batteries, rechargeable NiMH batteries, or lithium batteries. Battery life can vary widely depending on the battery type, brand, charger, temperature, and other factors. The following battery life cycles are typical and assume 10-hour nights and nap mode activated for full spectrum:
       Alkaline batteries (estimated 12,000 milliamp hours at 1.5V each):
       - Full spectrum on 1 channel: 18 nights
       - Full spectrum on 2 channels: 15 nights
       - Zero crossing on 1 channel: 20 nights
       - Zero crossing on 2 channels: 15 nights
       NiMH batteries (estimated 10,000 milliamp hours at 1.2V each):
       - Full spectrum on 1 channel: 12 nights
       - Full spectrum on 2 channels: 10 nights
       - Zero crossing on 1 channel: 13 nights
       - Zero crossing on 2 channels: 10 nights

  Memory Cards
  - The four (4) memory card slots can be populated with at least one (1) and up to four (4) memory cards of assorted capacities. The device supports all class 4 or faster SDHC or SDXC cards.
  - Memory Sizes: Up to 1.0 terabyte (1024 gigabytes) supported total capacity using 256 GB SDXC memory cards for all four (4) memory slots. This is the maximum currently available; higher capacities may be available in the future.
  - Formats: FAT32 for SDHC or exFAT for SDXC
  - Compression typically increases effective capacity by 40%.

  Acoustic Audio
  - Channels: 2
  - Recording format: 16-bit PCM .wav or optional .wac proprietary lossless compressed format
  - Analog to Digital Converter: 1.06V RMS (3v p-p) full-scale
  - Amplifier Gain: 0 dB – 59.5 dB in 0.5-dB steps
  - Noise Floor: -134 dBfs/sqrt(Hz) @48 kHz rate, 1 K input impedance, 0 dB gain
  - High Pass Filter: Optional 2-pole at 220 Hz or 1 kHz
  - Sample Rates: The recorder supports the following sample rates in samples per second on one or two channels: 1000, 2000, 4000, 8000, 9600, 12000, 16000, 19200, 24000, 32000, 48000, 96000

  Ultrasonic Audio
  - Channels: 2
  - Recording format: 16-bit PCM .wav or optional .wac proprietary lossless compressed format or zero crossing
  - Analog to Digital Converter: 0.884V RMS (2.5v p-p) full-scale
  - Amplifier Gain: 0 dB or 12 dB
  - Noise Floor: -116 dBfs / sqrt(Hz) @ 384 kHz sample rate, 1K input impedance, 0dB gain
  - High Pass Filter: Optional 4-pole at 16 kHz
  - Sample Rates: The recorder supports the following rates in samples per second:
      WAC recording:
      - 192000 (one or two channels)
      - 256000 (one channel)
      - 384000 (one channel)
      WAV recording:
      - 192000 (one or two channels)
      - 256000 (one or two channels)
      - 384000 (one channel)
  - Anti-alias filter: 2-pole:
    - 128 kHz for 192 kHz and 256 kHz sample rates
    - 192 kHz for 384 kHz sample rate
• - SM3BAT (1)
  - Case
  - Cord
• - Song Meter SM3BAT Microphone Options
  - Song Meter Microphone Cable Options
  - Song Meter SM3BAT Power Options
  - Song Meter SM3BAT Storage Options
  - Song Meter SM3BAT Analysis Software
• - Song Meter SM3BAT Accessories

Medidor de Vocalizaciones SM3BAT

Ver todos os detalhes do produto »

Song Meter SM3 - Discontinued

$ 849.00 USD – Vendido

Which Song Meter is right for you?

The 4th generation Song Meter SM4 is a compact, weatherproof, dual-channel acoustic recorder capable of capturing large amounts of data from wildlife such as birds, frogs and aquatic life. It's smaller, lighter and easier to use than the SM3.

» Learn more about the Song Meter SM3

Choose the SM4 if:

- You need a quieter device to record more of the sounds that you want.
- You need less size and weight.
- You want scheduling blocks.

The smallest and lightest dual-channel weatherproof acoustic recorder available.

The SM4 features two built-in microphones, innovative scheduling tools, large data storage, and low power consumption – a unique combination of features that provide the longest deployment times of any acoustic recorder available.

Cabled acoustic microphones, acoustic hydrophones and a GPS option are available. The SM3/SM4 Power Adaptor Cable connects the SM4 to alternative power sources. NiHM batteries and high capacity SD cards are available as well.

Introducing a new generation of microphones.

The SM4 features entirely new, built-in microphones that create higher quality recordings than those from all previous Song Meter recorders. Alternatively to the built-in microphones, the SM4 includes two microphone ports – giving you the flexibility to record additional data from a cabled microphone; a new SMM-A2 cabled acoustic microphone, and/or hydrophone.

Two channels give you more recording flexibility.

If you need to record two sources of audio at the same time, take advantage of the SM4's dual channel feature. Record in stereo or mono using the built-in microphones, or connect one or two cabled microphone/hydrophones. Adding additional runs of cable to the external microphone give you the ability to capture audio from far-off wildlife such as birds in the forest canopy, or frogs at a nearby pond.

Capture months of acoustic data.

The SM4 features new power circuitry that significantly increases deployment time over the SM3 – up to 400 hours of recording time using internal batteries. In Sleep Mode, between scheduled recordings, the SM4 uses almost no power, allowing it to remain idle for months – meaning longer deployments, and fewer trips into the field.

Available GPS accessory to set clock and location.

When deploying multiple recorders, use a single GPS accessory to automatically set the date, time and location settings of all recorders. The GPS accessory can also be attached to log the recording locations and path for mobile transects.

Choose a schedule or create your own.

The SM4's new Quick Start menu and Scheduler feature are an industry first. The SM4 comes with out-of-the box recording programs; including daytime, nighttime, and continuous recording schedules. Simply choose schedule and press the Start button. The SM4's new Scheduler features makes it easy to create custom schedules that suit your exact needs.

Capture more than a terabyte of data.

The SM4 has two SD card slots that accept SDHC and SDXC cards. When fitted with two 512GB cards, the SM4 can store over a terabyte of data. In the future, when higher capacity cards come to market, the SM4 will store even more.

Listen to your recordings in the field.

The SM4 features an integrated headphone jack to monitor activity in real-time.

You're backed by the longest warranty available.

The Song Meter SM4 was designed for use in extreme weather conditions – from jungles and deserts to parts in between. In fact, we're so confident that the SM4 can endure the most extreme environmental conditions, we back it with a 3 year warranty. That means you can focus on research, not equipment.

We're so confident that the SM4BAT can endure the most extreme environmental conditions, we back it with a 3 year warranty. That means you can focus on research, not equipment.

Save countless hours of analysis time using Kaleidoscope Pro software.

Save countless hours of analysis time using Kaleidoscope Pro analysis software.
It's one matter to capture hundreds of hours of echolocation data but it's a another matter to quickly and accurately sort and analyze the data. Kaleidoscope Pro software can automate and speed up your analysis work. The software allows you to view and analyze your recordings and automatically identify recorded species.

Learn more about Kaleidoscope Software

The SM4 includes two, next-generation built-in weatherproof microphones. Cabled acoustic microphones, acoustic hydrophones and a GPS option are available. The SM3/SM4 Power Adaptor Cable connects the SM4 to alternative power sources. NiHM batteries and high capacity SD cards are available as well.

• Specifications
• In the Box
• Required Items
• Optional Items

• Recording Technology
  - Two-channel, 16 bit .wav

  Recording Bandwidth:
  - 20Hz – 48kHz

  Sample Rates
  - The recorder supports the following sample rates in samples per second on one or two channels: 8000, 12000, 16000, 22050, 24000, 32000, 44000, 48000,96000

  Dimensions and Weight
  - Length/Height: 8.6 inches (21.80 cm)
  - Width: 7.3 inches (18.60 cm)
  - Depth: 3.1 inches (7.8 cm)
  - Weight: 1.6 pounds (0.7 kg)
  - Weight (with 4 Batteries): 2.9 pounds (1.3 kg)
  - Operating Temperature: -4°F to 122°F (-20°C to 50°C)

  Power
  - Main Power: 4.5 - 17V DC (4 internal D-size batteries)
  - External Power Connector: (5 to 17V DC)
  - Power Consumption: 0.5 mW (sleeping); 250 – 800 mW (recording)
  - Battery Specifications: The recorder uses four (4) standard D size disposable alkaline batteries, rechargeable NiMH batteries, or lithium batteries. Battery life can vary widely depending on the battery type, brand, charger, temperature, and other factors.

  Memory Cards
  - 2 SDHC/SDXC flash card slots (Class 4 or greater).
  - Memory Sizes: Up to 1.0 terabyte (1024 gigabytes) supported total capacity using 512 GB SDXC memory cards for all memory slots.
  - Formats: FAT32 for SDHC or exFAT for SDXC
  - Compression typically increases effective capacity by 40%.

  Enclosure Material:
  - Polycarbonate
  - Fully weatherproof

  Warranty:
  - 3 years
• - SM4 (1)
• - Song Meter SM4 Microphone Options
  - Song Meter Microphone Cable Options
  - Song Meter SM4 Power Options
  - Song Meter SM4 Storage Options
  - Song Meter SM4 Analysis Software
• - Song Meter SM4 Accessories

Medidor de Vocalizaciones SM3BAT

Ver todos os detalhes do produto »

Song Meter SM3 - Discontinued

$ 1,049.00 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

The 3rd generation Song Meter SM3 is a fully ruggedized, long-deployment acoustic recorder. It is the only bioacoustics recording device of its kind that can simultaneously record any combination of birds, frogs, insectivorous and/or marine life. The SM3 design innovations were based on countless hours of development and feedback from biologist-users from all over the world.

A breakthrough in bat bioacoustics recording technology.

“This is not just an improved version of their (extremely successful) SM2BAT+... The changes are simply amazing!” – Al Milano, Bat Detector Blogspot

The 3rd generation Song Meter SM3BAT is a new benchmark for bat bioacoustics recorders. From innovative recording features, massive data storage capacity and a significant improvement in deployment time over the SM2BAT+, the new SM3BAT makes bat echolocation data capture, easier and more cost effective.

Double your effective field coverage.
The SM3BAT is the only recorder that can simultaneously record in full spectrum at 256 kHz on two channels AND zero crossing on the same channels. It's like having two full spectrum and two zero crossing recorders in one box.

Should you need a higher sampling rate, the SM3BAT can sample in full spectrum up to 384 kHz on one channel. If you want more options for zero crossing files, the recorder has an improved zero crossing auto level and division ratios of 4, 8, 12 or 16.

Record up to 180 hours in full spectrum.
Time is money and the SM3BAT was designed to reduce your cost of ownership. The SM3BAT has new power circuitry that increases deployment time by 50% over the SM2BAT+. In short, the SM3BAT can record up to 180 hours of echolocation data in full spectrum and up to 700 hours in zero crossing on one channel. That means longer deployments and fewer trips into the field. (Note: the SM3BAT owner's manual has a detailed listing of battery life per battery type and recording format.)

Choose a schedule or create your own.
The SM3BAT comes with out-of-the box recording programs; including daytime, night time, and continuous recording schedules with automatic configuration. Just pick your desired schedule and press the Start button to begin making recordings immediately. Or, you can create customized, sophisticated schedules and settings to suit your exact needs.

Capture more than a terabyte of echolocation data.
The SM3BAT is compatible with SDHC and SDXC cards. There are four weatherproof SD card slots and with each card capable of storing 256 gigabytes of echolocation data. Combined with the SMBAT's adaptive triggering and compression, storage capacity exceeds a terabyte. That means more echolocation data containing vast amounts of echolocation detail.

Record in high fidelity using the new ultrasonic and acoustic microphones.
The new, weather resistant SMM-U1 ultrasonic microphone features high quality FG microphone elements that have improved signal to noise ratios and flatter frequency response over our previous microphones. Gain is applied at the microphone to increase signals in the cables (up to 100 meters) therefore reducing electrical noise interference. The result is higher quality recordings, even when the cables are run along side other cables on metrology towers or in wind turbines.

Expand the use of the SM3BAT.
The SM3BAT is the only bat recorder that allows you to simultaneously record any combination of bats, birds, frogs and marine life. The new SM3-H1 hydrophone allows you to record above and below the surface. So if your field assignment includes monitoring an assortment of wildlife, the SM3BAT saves you money with its flexible and easily configurable design.

Feel confident knowing you're backed by the longest warranty available.
The Song Meter SM3BAT was designed for use in extreme weather conditions – from caves, jungles, deserts to parts in between. The recorder has been subjected to environmental shock, drop testing, static discharge and extreme water incursion. Al Milano of Bat Detector Blogspot said, "The Song Meter SM3BAT is by far the most solidly built bat recorder I've ever seen."

We're so confident that the SM3 can endure the most extreme environmental conditions, we back it with a 3 year warranty. That means you can focus on research, not equipment.

Save countless hours of analysis time using Kaleidoscope Pro bat auto-ID analysis software.
It's one matter to capture hundreds of hours of echolocation data but it's a another matter to quickly and accurately sort and analyze the data. Kaleidoscope Pro software can automate and speed up your analysis work. The software allows you to view and analyze your recordings and automatically identify recorded species.

Learn more about Kaleidoscope Software

The SM3BAT does not include a microphone. You can select cabled ultrasonic and acoustic mics, ultrasonic and acoustic hydrophones. Directional microphone horns and system calibrator are available. SD cards, rechargable batteries and power adaptors may be purchased as well.

• Specifications
• In the Box
• Required Items
• Optional Items

• Dimensions and Weight
  - Length/Height: 12.75 inches (32.40 cm)
  - Width: 7.875 inches (20.00 cm)
  - Depth (Upper): 2.31 inches (5.87 cm)
  - Depth (Lower): 2.56 inches (6.50 cm)
  - Weight: 5.5 pounds (2.5 kg)
  - Weight (with 4 Batteries): 7.0 pounds (3.2 kg)
  - Operating Temperature: -4°F to 122°F (-20°C to 50°C)

  Power
  - Main Power: 4.5 - 17V DC (4 internal D-size batteries)
  - External Power Connector: (5 to 17V DC)
  - Clock Backup Battery Type: CR2032 (approximate 3-year life)
  - Internal Clock Accuracy: Temperature-Compensated Crystal with 3.5ppm drift from -40°C to 0°C and 2.0ppm from 0°C to 40°C
  - Power Consumption: 0.5 mW (sleeping); 250 – 800 mW (recording)
  - Battery Specifications: The recorder uses four (4) standard D size disposable alkaline batteries, rechargeable NiMH batteries, or lithium batteries. Battery life can vary widely depending on the battery type, brand, charger, temperature, and other factors. The following battery life cycles are typical and assume 10-hour nights and nap mode activated for full spectrum:
       Alkaline batteries (estimated 12,000 milliamp hours at 1.5V each):
       - Full spectrum on 1 channel: 18 nights
       - Full spectrum on 2 channels: 15 nights
       - Zero crossing on 1 channel: 20 nights
       - Zero crossing on 2 channels: 15 nights
       NiMH batteries (estimated 10,000 milliamp hours at 1.2V each):
       - Full spectrum on 1 channel: 12 nights
       - Full spectrum on 2 channels: 10 nights
       - Zero crossing on 1 channel: 13 nights
       - Zero crossing on 2 channels: 10 nights

  Memory Cards
  - The four (4) memory card slots can be populated with at least one (1) and up to four (4) memory cards of assorted capacities. The device supports all class 4 or faster SDHC or SDXC cards.
  - Memory Sizes: Up to 1.0 terabyte (1024 gigabytes) supported total capacity using 256 GB SDXC memory cards for all four (4) memory slots. This is the maximum currently available; higher capacities may be available in the future.
  - Formats: FAT32 for SDHC or exFAT for SDXC
  - Compression typically increases effective capacity by 40%.

  Acoustic Audio
  - Channels: 2
  - Recording format: 16-bit PCM .wav or optional .wac proprietary lossless compressed format
  - Analog to Digital Converter: 1.06V RMS (3v p-p) full-scale
  - Amplifier Gain: 0 dB – 59.5 dB in 0.5-dB steps
  - Noise Floor: -134 dBfs/sqrt(Hz) @48 kHz rate, 1 K input impedance, 0 dB gain
  - High Pass Filter: Optional 2-pole at 220 Hz or 1 kHz
  - Sample Rates: The recorder supports the following sample rates in samples per second on one or two channels: 1000, 2000, 4000, 8000, 9600, 12000, 16000, 19200, 24000, 32000, 48000, 96000

  Ultrasonic Audio
  - Channels: 2
  - Recording format: 16-bit PCM .wav or optional .wac proprietary lossless compressed format or zero crossing
  - Analog to Digital Converter: 0.884V RMS (2.5v p-p) full-scale
  - Amplifier Gain: 0 dB or 12 dB
  - Noise Floor: -116 dBfs / sqrt(Hz) @ 384 kHz sample rate, 1K input impedance, 0dB gain
  - High Pass Filter: Optional 4-pole at 16 kHz
  - Sample Rates: The recorder supports the following rates in samples per second:
      WAC recording:
      - 192000 (one or two channels)
      - 256000 (one channel)
      - 384000 (one channel)
      WAV recording:
      - 192000 (one or two channels)
      - 256000 (one or two channels)
      - 384000 (one channel)
  - Anti-alias filter: 2-pole:
    - 128 kHz for 192 kHz and 256 kHz sample rates
    - 192 kHz for 384 kHz sample rate
• - SM3 (1)
  - Case
  - Cord
• - Song Meter Microphone Options
  - Song Meter Microphone Cable Options
  - Song Meter SM3 Power Options
  - Song Meter SM3 Storage Options
  - Song Meter SM3 Analysis Software
• - Song Meter SM3 Accessories

Medidor de Vocalizaciones SM3

Ver todos os detalhes do produto »

Song Meter SM2BAT+

$ 999.00 USD

Sold by BIOWEB just in America, excluding US and Canada.
To use into US and Canada, please contact Wildlife Acoustics directly.

The most flexible bat bioacoustics monitoring system available.

The song meter SM2BAT+ revolutionizes unattended automatic bat activity recording. Based on ten years of continuous research and refinement, the SM2BAT+ is a critical tool for bat biologists and researchers. The SM2BAT+ is also one of the only commercially available recorders that features a configurable amplifier that allows you to simultaneously record any combination of bats, birds, frogs and marine life.

- Capture high quality recordings with the SM3-Microphone-To-SM2 Adaptor. Use the new SM3-U1 microphone (featuring the Knowles FG microphone element) with your SM2BAT+ and SM2 cables. The SM3-U1 is weatherproof, immune to electromagnetic interference, produces a flatter frequency response than the SMX-US and SMX-UT microphones and has a higher signal-to-noise ratio. That means you will detect and record more bats.
- Turn the SMX-UX and SMX-UT omnidirectional micirophones into highly directional microphones while preserving call quality and minimizing the impact on the microphones' frequency response. The SMX-Horn is easy to install onto either the SMX-US or SMX-UT microphones and remains weatherproof when placed at angles of 45 degrees or less. Record native zero crossing files that can be opened in zero-crossing software–no conversion required.
- Effortlessly program simple or complex recording schedules relative to local sunrise and sunset on your computer or directly on the SM2BAT+.
- Improve storage capacity and extend deployments with SM2BAT+ adaptive triggering and compression.
- Detect bat calls in all directions with the omnidirectional microphone.
- Use any industry-standard bat analysis software.
- Apply automatic noise scrubbing using Wildlife Acoustics' Kaleidoscope software.
- Access your SM2BAT+ remotely with the optional Song Stream Remote Access Module.

The SM2BAT+ does not include a microphone. You can select cabled ultrasonic and acoustic mics, ultrasonic and acoustic hydrophones. Directional microphone horns and system calibrator are available. SD cards, rechargable batteries and power adaptors may be purchased as well. Please look included items within the kits or other required items to add them.

• Specifications
• In the Box
• Required Items
• Optional Items

• Audio Specifications
  - Recording Technology: 16-bit full-spectrum on two channels or zero-crossing on left channel
  - Sampling Rate: 4, 8, 16, 22.05, 24, 32, 44.1, 48kHz, 96kHz, 192kHz, and 384kHz (single channel)
  - Bias power: 2.5V 2.2K ohm, switch enabled per channel
  - High-pass filter: 2-pole butterworth, switch selectable per channel at 2, 180 or 1,000Hz
  - Pre-amplifier: 2-stage, switch selectable per channel, at +0, +12, +24, +36, +48, or +60dB gain. For sample rates less than or equal to 96kHz, third-stage is digitally-configurable +0 to +12dB in 1.5dB steps
  - Noise: -115dBV equivalent input noise (-105dBV for 192kHz and 384kHz sample rates)
  - ADC: 1V rms full-scale 16-bit, 90dB SNR
  - Filtering and triggering: Configurable digital high-pass and low-pass filters at sample rate divided by 3, 4, 6, 8, 12, 16, 24, 32, 48 and 96. Adaptable trigger with configurable threshold above background 1-88dB, absolute trigger with configurable threshold -1 to -88dB full scale, inactivity time for trigger off 0.1 to 9.9 seconds

  Power
  - Two AA batteries for internal clock lasts up to two years
  - Four D-size alkaline or NiMH batteries enable up to 230 hours of recording for main power
  - Accepts 6 to 12 volt DC from external power sources like solar panels through the SM2 Power Adaptor (sold separately)

  Storage
  - 4 SDHC/SDXC flash card slots (Class 4 or greater)
  - Up to 128GB total capacity with four 32GB SDHC cards or 512GB total capacity with four 128GB SDXC cards
  - 512GB supports storage up to 9 months

  Physical Specifications
  - Dimensions: 8.0" x 8.0" x 2.5"
  - Weight: 1.5 pounds without batteries
  - Enclosure: NEMA Type 1,4,4X and 6 (weatherproof,vented)
  - Operating Temp.: -4ºF to +185ºF or -20ºC to +85ºC

  Sensors
  - Channels: 2
  - Internal temperature sensor accurate to within ±2 ºC at 0 ºC
• SM2BAT+
  - Song Meter (1)

  SM2BAT+ Basic Kit
  - Song Meter (1)
  - SMX-U1 External Ultrasonic Microphone for SM2BAT (1)
  - SMX-II Weatherproof Acoustic Microphone for SM2 (1)
  - SM2 Microphone Cable (3 meters) (2)
  - 9,500mAh D IMEDION Rechargeable Batteries (4)
  - 16GB SDHC Class 4 Flash Card (4)
  - Kaleidoscope Viewer

  SM2BAT+ Complete Kit
  - Song Meter (1)
  - SMX-U1 External Ultrasonic Microphone for SM2BAT (1)
  - SMX-NFC Acoustic Night Flight Call Microphone (10 meters) (1)
  - SM2 Microphone Cable (10 meters) (1)
  - SM2 Power Adapter for 6/12VDC (Requires solar panel or battery sold separately) (1)
  - 9,500mAh D IMEDION Rechargeable Batteries (4)
  - 32GB SDHC Class 4 Flash Card (4)
  - Kaleidoscope Pro Software
• If you buy a kit, please make sure which items you need
  - Song Meter SM2BAT+ Microphone Options
  - Song Meter Microphone Cable Options
  - Song Meter SM2BAT+ Power Options
  - Song Meter SM2BAT+ Storage Options
  - Song Meter SM2BAT+ Analysis Software
• - Song Meter SM2BAT+ Accessories

Medidor de Vocalizaciones SM2BAT+, Grabadora

Ver todos os detalhes do produto »

Pettersson D1000X Ultrasound Detector ²⁶

$ 4,489.00 USD

D1000X Ultrasound Detector: Unmatched Precision for Wildlife Acoustic Monitoring

Next-generation professional bat detector featuring 16-bit recording, time expansion, and high-sensitivity tuning for expert species identification.

The D1000X stands as the definitive tool for researchers and wildlife specialists seeking to capture the acoustic secrets of the natural world. Ultrasound detectors are essential for converting sounds that are inaudible to the human ear into perceptible frequencies, allowing for the precise identification of various bat species, as each utilizes a unique frequency. Based on the latest innovation from Pettersson, this professional model integrates digital heterodyne systems, frequency division, and time expansion capabilities, ensuring unprecedented versatility in biodiversity studies.

Equipped with the advanced "Solid Dielectric Capacitance" microphone, the D1000X offers a superior dynamic range with minimal noise and distortion levels. It is the first device in its class to incorporate an internal 16-bit recorder, eliminating the need for external equipment and allowing data to be stored directly onto a CompactFlash card. With a tuner spanning from 10 to 200 kHz and the ability to expand ultrasounds up to x30 for detailed post-analysis, this equipment is ideal for capturing up to 3 seconds of sound continuously or via signal activation, facilitating professional analysis through software and the documentation of field comments.

Key Features

• Converts inaudible frequencies into audible sounds for accurate species identification.
• Integrated digital heterodyne, frequency division, and time expansion systems.
• High-sensitivity Solid Dielectric Capacitance microphone with reduced noise floor.
• Internal 16-bit recording system storing high-fidelity WAV files.
• Wide-range tuner covering frequencies from 10 kHz up to 200 kHz.
• Advanced x30 time expansion system for detailed acoustic playback and analysis.
• Flexible recording modes including continuous or signal-activated triggers.
• RS232 port for GPS connection to geotag acoustic data files.
• Adaptive anti-aliasing filter for maximum audio purity and scientific accuracy.
• Rugged and lightweight design optimized for demanding field research.

• Specifications
• In the Box
• Required Items

• Type	Digital Heterodyne, Frequency Division (x10), Time Expansion, and Direct Recording
  Frequency Range	5 - 235 kHz (Division and Heterodyne) / Tuner from 10 to 200 kHz
  Heterodyne Frequency	0.1 kHz (f < 18 kHz) / 0.2 kHz (18–43 kHz) / 0.5 kHz (43.5–107 kHz) / 1 kHz (108–235 kHz)
  Microphone	High-sensitivity Solid Dielectric Capacitance with enhanced dynamic range
  Sound Storage	Built-in buffer for 3 seconds of sound for time expansion
  Connectivity	RS232 port for GPS position data logging
  Headphone Output	3.5 mm stereo jack, load impedance 32 Ohms or higher
  HF / MEM Output	3.5 mm stereo jack, load impedance 500 Ohms or higher
  Batteries	5 x AA size (Alkaline or NiMH recommended)
  External Power	7–10 V, 250 mA (average), 700 mA (peak)
  Size	170 x 80 x 35 mm (excluding microphone)
  Weight	600 g (including batteries)
  ADC Resolution	16 Bits
  Sampling Rates	32, 44.1, 48, 96, 100, 192, 200, 250, 300, 384, 400, 500, 750, 768 kHz
  Expansion Factors	1, 2, 3, 5, 10, 20, 30 (x30 for detailed playback)

• • 1x Pettersson D1000X Ultrasound Detector
• • AA Batteries (Alkaline or NiMH recommended)
  • CompactFlash (CF) Memory Card

Ver todos os detalhes do produto »

Echo Meter Touch

$ 399.00 USD

Sold by BIOWEB just in America, excluding US and Canada. To use into US and...

Ver todos os detalhes do produto »

D500X Ultrasound Detector/Recorder

$ 1,775.00 USD

The D500X is an ultrasound recording unit intended for long-term, unattended recording of bat calls. In contrast to time expansion bat detectors, the D500X records full-spectrum ultrasound in real time with virtually no gaps between recordings. The recorder is equipped with four slots for CF cards, which typically makes it possible to leave the unit in the field for more than a month. The triggering system allows the device to automatically start recording as a sound is detected.

The recording length can be selected in steps from 0.3 up to 20 seconds (or continuous in manual mode). In order not to fill the card too fast at locations with high activity, a minimum time between two recordings can be applied. The recorder is normally operated in a low-power mode with no pre-trigger (i.e. the recording starts as the sound exceeds the chosen threshold level), but both pre-and post-trigger functions are available in the standard (not low-power) mode. The D500X stores the bat calls in time stamped wav files.

The D500X comes in a rugged and weather-protected aluminium housing. A soft protection case with straps to hang the unit in e.g. a tree is included.

Various accessories are available, such as an external microphone with extension cable up to 100 m.

"I spent the past two weeks teaching back-to-back workshops that focused heavily on acoustics..... and (as always) the D500X out-performed all the other models combined in number and quality of calls. I think our students were mightily impressed and my mantra "you get what you pay for" has started to sink in. Nothing beats how easy and user friendly the D500X is to operate and how easy it is to post-process the calls and get on with the business of analysis. I'm hoping it will become the "go to" device for applications requiring the best sound quality available in a passive detector."

– Janet Tyburec, wildlife biologist and consultant, Tucson, AZ, USA.

• Specifications
• In the Box
• Required Items
• Optional Items

• • Type: Direct, high-speed recording.
  • Microphone: Advanced electret, jack for external microphone.
  • Frequency Range: 15 kHz – 190 kHz (500 kHz sampling rate, high-pass filter enabled).
    5 kHz - 190 kHz (500 kHz sampling rate, high-pass filter disabled).
  • Connections: External microphone, external trigger, external DC supply.
  • Timer: Four on/off periods per day.
  • Batteries: 4 x AA size, Alkaline or NiMH recommended.
  • External DC Supply: 5.5-8 V, typically ca. 200 mA (average, when recording), depends on CF card type and number of CF cards
  • Size: 165 x 170 x 53 mm, excl. connectors etc.
  • Weight: 1.2 kg incl. batteries and front panel cover.

  Recording System

  • ADC resolution: 16 bits.
  • Anti-aliasing filter: Yes, 8th order, 190 kHz cut-off frequency.
  • Sampling rates: 44.1, 300, 500 kHz (optimized for 500 kHz).
  • Recording length: 0.3, 0.5, 1, 2, 3, 5, 10, 20 sec or manual recording.
  • Recording medium: CF card, 4 slots.
• • Detector/Recorder (1)
  • Compact Flash Card 16 GB (1)
  • Case (1)
• • Batteries AA (4)
• • External Microphones
  • BatSound Real-time Spectrogram Analysis Software

Ver todos os detalhes do produto »

D500X Ultrasound Detector/Recorder Mk II

$ 1,745.00 USD

Pettersson D500X Mk II Ultrasound Recorder

A professional full-spectrum recording system with high-speed direct recording, designed for long-term, unattended bat monitoring in extreme environments.

The Pettersson D500X Mk II is a specialized ultrasound recording unit built for high-fidelity bat research. Unlike traditional time-expansion detectors, the D500X records full-spectrum ultrasound in real-time, delivering virtually gapless data capture. This Mk II version features significant upgrades over the classic model, including a professional XLR microphone jack and enhanced power efficiency using 4 C-type batteries for deployments lasting over a month. Encased in a rugged aluminum housing, it utilizes a sophisticated triggering system to save time-stamped .WAV files automatically whenever bat activity is detected.

Key Features

• Full-Spectrum High-Speed Recording: Direct-to-card recording with 16-bit resolution and up to 500 kHz sampling rates.
• Extended Field Autonomy: Powered by 4 C-size batteries, providing approximately 3x the life of the previous AA-powered model.
• Professional Connectivity: Equipped with an XLR microphone jack for secure, direct connection of external microphones or extension cables up to 100 meters.
• Massive Storage Capacity: Four internal Compact Flash (CF) card slots allow for massive data accumulation during long-term field studies.
• Customizable Triggering: Adjustable recording lengths (0.3 to 20s or manual) with optional pre-trigger and post-trigger modes to capture the start of every call.
• Weatherproof Design: Rugged aluminum enclosure designed to withstand environmental stress, including a protective case for easy tree-mounting.

• Specifications
• In the Box
• Required Items
• Optional Items

• Recording Type	Direct high-speed, full-spectrum (.wav)
  ADC Resolution	16 bits
  Sampling Rates	44.1 kHz, 300 kHz, 500 kHz (Optimized for 500 kHz)
  Frequency Range	15 kHz – 190 kHz (HPF enabled) | 5 kHz – 190 kHz (HPF disabled)
  Anti-Aliasing Filter	Yes, 8th order, 190 kHz cut-off frequency
  Recording Length	0.3, 0.5, 1, 2, 3, 5, 10, 20 sec or manual
  Storage	4 CF (Compact Flash) card slots
  Timer	Built-in real-time clock; 4 on/off periods per day
  Power Supply	4 x C size (Alkaline/NiMH) or External DC (5.5 – 8 V, 2.5mm jack)
  Size & Weight	165 x 170 x 53 mm | 1.3 kg (including batteries)

• • 1x Pettersson D500X Mk II Detector/Recorder
  • 1x External Electret Microphone
  • 1x 16 GB Compact Flash (CF) Card
  • 1x Soft Protection Case with hanging straps
  • 1x Front Panel Cover
• • 4x C-size Batteries (Alkaline or NiMH recommended)
  • CF Cards (Additional cards for long deployments)
• • External Microphone Extension Cables (available up to 100m)
  • Additional External Electret Microphones
  • BatSound Real-time Spectrogram Analysis Software
  • External 6V Power Supply / Battery Pack

EO20260423

Ver todos os detalhes do produto »
