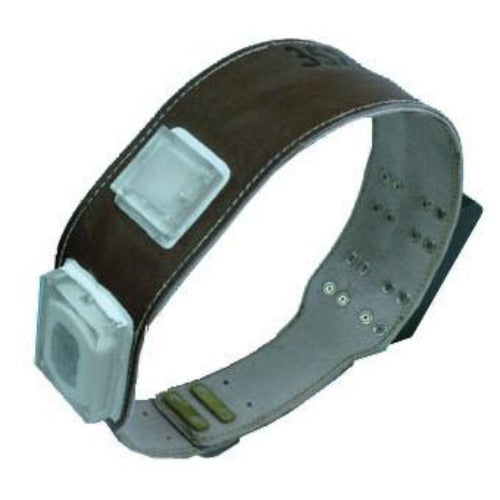

NorthStar Standard Satellite Tracking Collars

Precise and Reliable Solution for Data Measurement in Demanding Environments

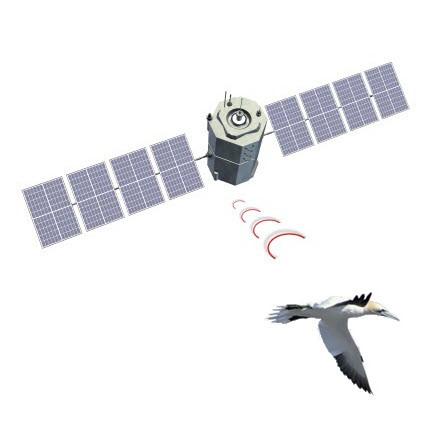

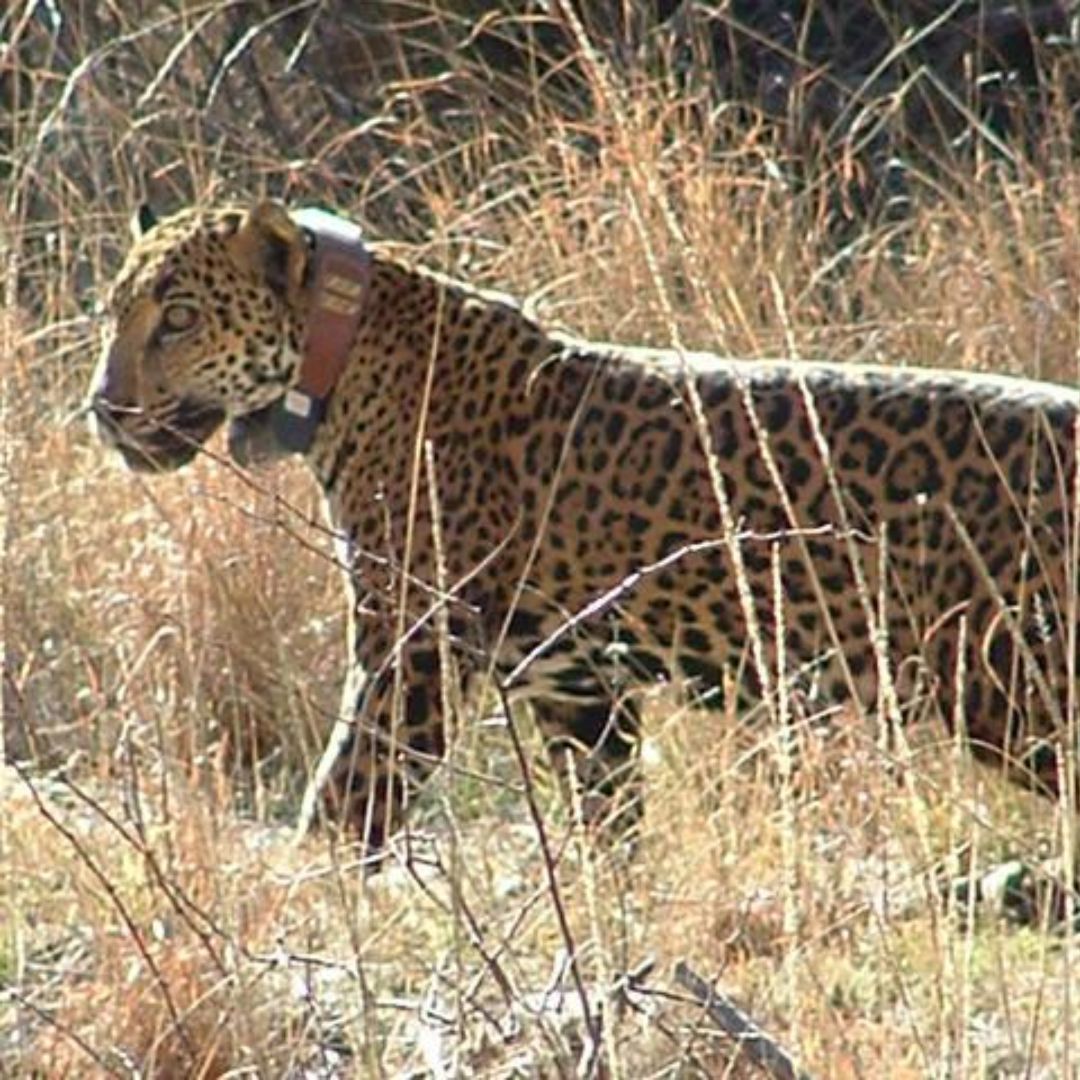

High-precision GPS tracking device, specifically designed for wildlife monitoring applications and other scientific research requiring detailed and reliable data. This collar utilizes Globalstar satellite technology to provide real-time data, making it an essential tool for researchers needing to track and study animal movements in their natural habitat.

Key Features

High Precision: Ensures accurate and reliable measurements.

Durability: Built with resilient materials to withstand harsh conditions.

Compatibility: Compatible with multiple sensors and devices.

Easy Installation: Intuitive design for quick and easy setup.

Minimal Maintenance: Requires little maintenance, reducing operational costs.

General Data

Specification	Value
Output Power	150 mW
Transmit Signal Length	1.5 seconds
Temp Range	-40 to +50 Degrees Celsius
Frequency	1611.25 to 1618.75 MHz
Modulation	BPSK-modulated PRN Code
GPS Engine	μBlox 16 Channel
GPS Accuracy	+/- 10 m horizontal, +/- 25 vertical
GPS Antenna	Active
GPS Datum	WGS84
VHF Power Output	1—2 mW, 30—45 ppm
Specified accuracy is 2.5 meters CEP and 5 meters SEP. CEP is Circular Error Probability. It is the radius of a horizontal circle, centered at the true antenna position, containing 50% of the fixes. SEP is Spherical Error Probability. It is the radius of a sphere, centered at the true antenna position, containing 50% of the fixes. Note: We are turning off our GPS engine after 5 positions in a row (1 per second) are acquired with a horizontal accuracy of 5 meters or less.

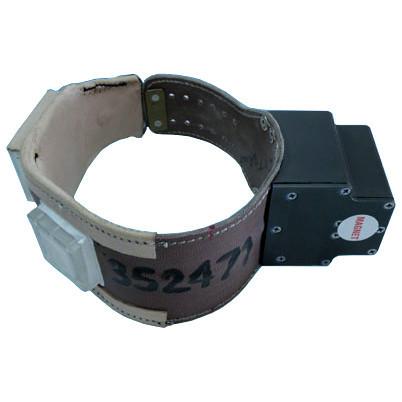

NSG-D2 Component Weights

Specification	Value
Housing and Hardware (with battery)	910 grams (Standard GPS antenna), 770 grams (Micro GPS antenna)
Peripherals	VHF 30-55 grams (smaller available)
Drop-off Mechanism	78-114 grams
Collar Average Weight Range	940 grams (24″ collar) to 1230 grams (36″ collar, no peripherals)
D-Cell Battery (alone)	150 grams
DD-cell Enclosure plus Board (alone)	370 grams
Note: Includes GPS Receiver and Globalstar Transmitter

Housing and Hardware (with battery)

Specification	Value
Drop-off Battery Life	3 years
VHF Battery Life	3+ years
Collect/Transmit 8 GPS loc. p/day	30-34 months
Collect/Transmit 6 GPS loc. p/day	40-45 months
Collect/Transmit 4 GPS loc. p/day	60-65 months
Collect/Transmit 3 GPS loc. p/day	75-80 months
Note: Environmental conditions, such as wide variations in ambient temperatures, will reduce actual battery lives, particularly over extended deployments.
