Solinst

Data Loggers Solinst Series Levelogger 5 Water Level

Request Quote

Unbeatable Precision for Water Monitoring in Any Environment

High-precision level and temperature logger, resistant to corrosion and extreme conditions, with Hastelloy® sensor, expanded memory, advanced optical communication, and telemetry options for reliable and continuous monitoring.

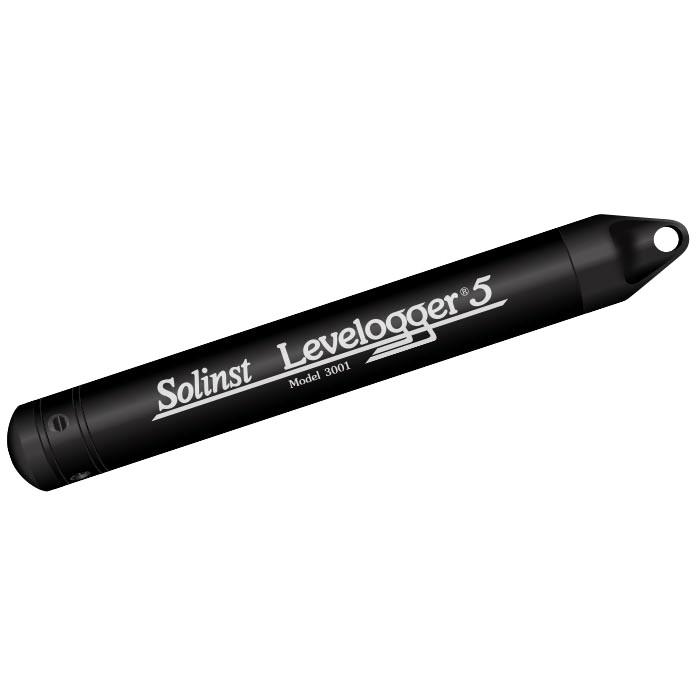

Levelogger 5

An excellent choice for long-term water level monitoring in a wide range of groundwater and surface water applications, including wells, lakes, streams, ports, tanks, etc. The standalone Levelogger 5 combines a Hastelloy® pressure sensor, a temperature detector, a 10-year lithium battery, and a data logger with memory for 150,000 reading sets. A single-eye optical interface allows for easy cleaning and more reliable and faster communication. The components are sealed within a 7/8˝ diameter x 6.3˝ long stainless steel housing with a corrosion-resistant baked polymer coating (inside and out). Double O-ring seals ensure excellent leak protection. The Levelogger 5 uses a Faraday cage design to protect against surges or electrical spikes caused by lightning. A Hastelloy® pressure sensor provides more stable readings under extreme pressure and temperature conditions. The Levelogger 5 measures pressure and temperature and displays temperature-compensated level readings and temperature readings. Choose from linear, event-based, or custom-scheduled sampling. The optimized software offers easy data logger programming, and simplified data compensation allows for barometric compensation of multiple data files at once. Absolute pressure (water pressure + atmospheric pressure) is measured and expressed in feet, meters, centimeters, psi, kPa, or mbar. For the most accurate water level readings, use a Barologger 5 (sold separately) to compensate for atmospheric pressure. The Levelogger 5 can be suspended on a stainless steel cable or Kevlar® cord. You can also use an optional L5 direct read cable (sold separately) to connect the Levelogger 5 to the surface for easy data download and reprogramming without removing the unit from the water. Programming the Levelogger 5 is easy. Simply connect it to a PC using an optical reader (Desktop Reader 5 or Field Reader 5, each sold separately) or a PC interface cable. A single screen allows you to complete project information and sampling regime. Configuration templates can be saved for convenient use.

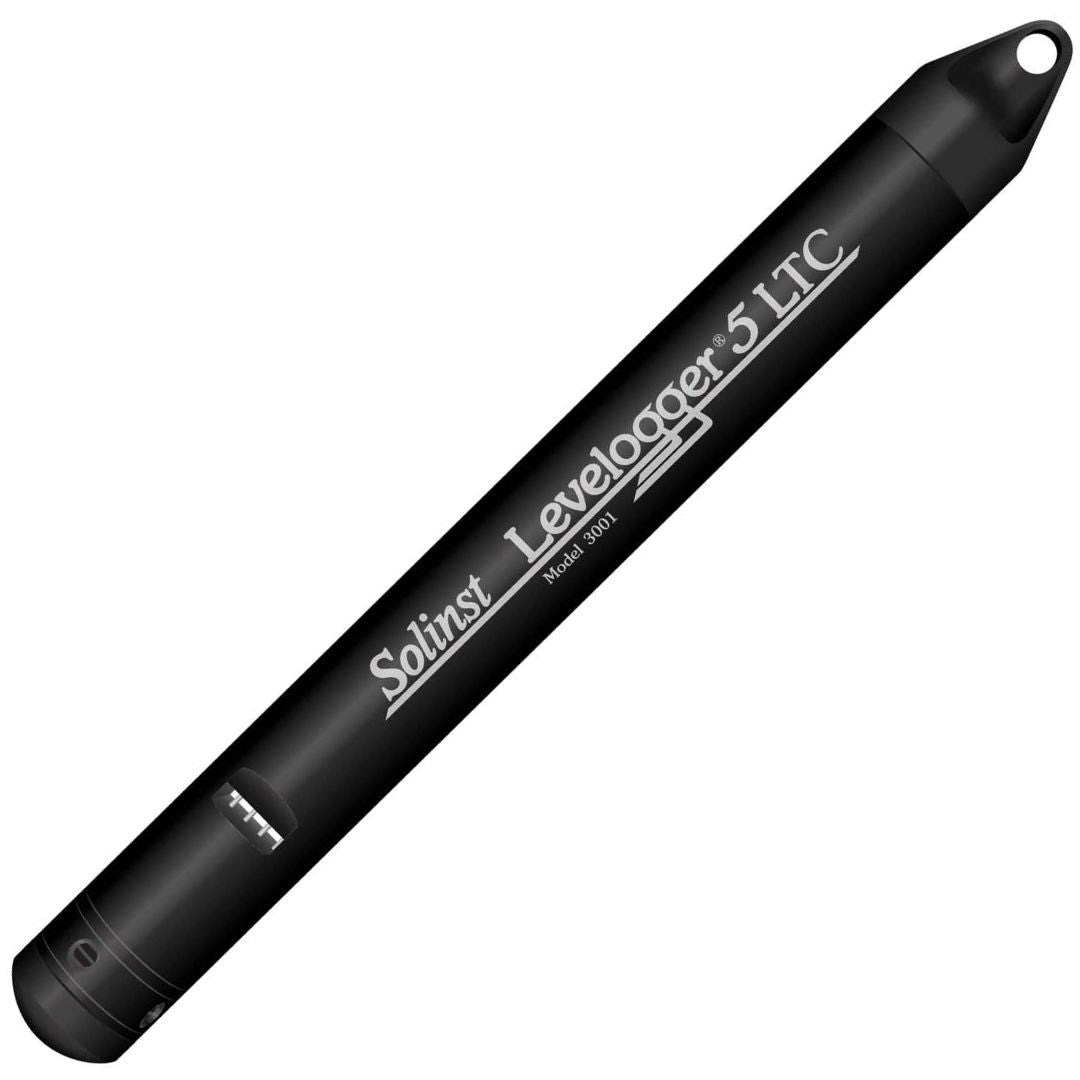

Levelogger 5 LTC

Records water level, temperature, and conductivity. The single-eye optical interface is easy to clean and scratch-resistant. Combines a data logger, an 8-year battery, a Hastelloy® pressure sensor, a temperature detector, and a conductivity sensor in a waterproof 7/8˝ x 8.2˝ housing. A baked polymer coating protects the body against corrosion, abrasion, and high temperatures.

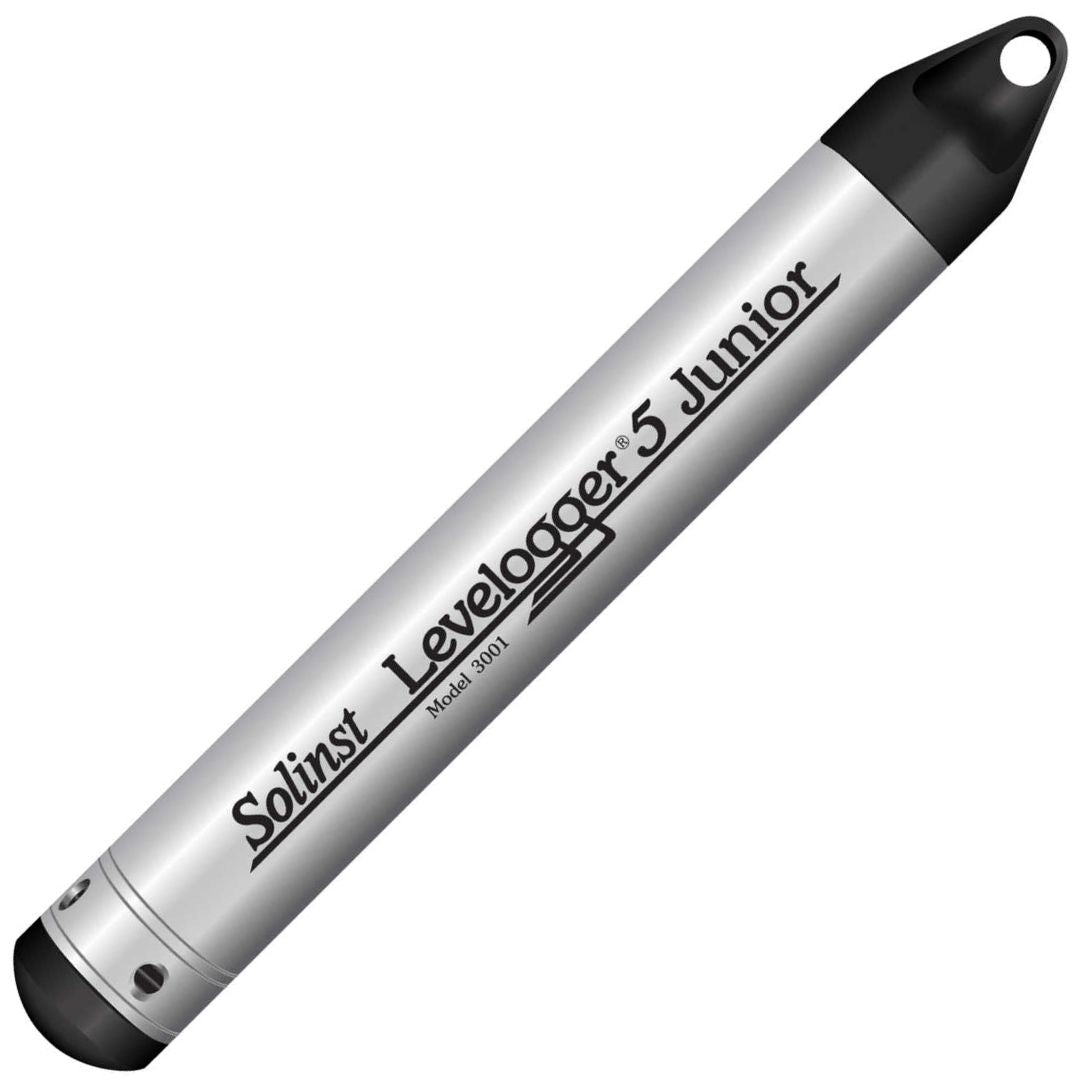

Levelogger 5 Junior

An economical alternative for measuring groundwater and surface water levels, as well as temperature. The single-eye optical interface ensures fast and reliable communication. Combines a data logger, a temperature detector, a Hastelloy® pressure sensor, and a 5-year battery in a 7/8˝ x 6.3˝ stainless steel housing.

Features

• Highly stable communication: single-eye optical interface—easier to clean, more scratch-resistant.
• Large memory: 150,000 data sets.
• Strong and robust design: double O-ring seals for better leak protection.
• High thermistor sensitivity: precise platinum RTD.
• Superior protection in harsh environments: corrosion- and abrasion-resistant coating—inside and out.
• Intuitive Levelogger software: diagnostic utility for more proactive "standalone" testing.

• Specifications
• In the Box
• Required Items
• Optional Items

• Features	Levelogger 5	Levelogger 5 LTC	Levelogger 5 Junior
  Level Sensor	Silicon Piezoresistive with Hastelloy Sensor
  Range	-	5 m	5 m
  Accuracy	±0.05% FS	±0.05% FS	±0.1% FS
  Resolution	0.002% FS to 0.0006% FS	0.001% FS to 0.0006% FS	0.02% FS to 0.01% FS
  Measurement Units	cm, m, ft, psi, kPa, bar, (°C, °F)
  Normalization	Automatic Temperature Compensation
  Temperature Compensation Range	0°C to 50°C	0°C to 50°C	0°C to 40°C
  Temperature Sensor	Platinum Resistance Temperature Detector (RTD)
  Temperature Accuracy	±0.05°C	±0.05°C	-
  Temperature Resolution	0.003°C	0.003°C	-
  Conductivity Sensor	-		4-Electrode Platinum
  Conductivity Range (Full / Calibrated)	-		0–100,000 μS/cm / 50–80,000 μS/cm
  Conductivity Accuracy	-		±1% (5,000–80,000 µS/cm); greater of ±2% or 15 µS/cm (50–5,000 µS/cm)
  Conductivity Resolution	-		±0.1 μS/cm
  Conductivity Normalization	-		Specific Conductance at 25°C
  Battery Life	-		8 Years (1 reading every 5 min)
  Clock Accuracy	±1 minute/year (-20°C to 80°C)
  Operating Temperature	-20°C to 80°C
  Maximum Readings	150,000 sets	100,000 sets	75,000 sets
  Memory Mode	Slate and Continuous	Slate or Continuous	Continuous or Slate
  Communication	High-Speed Optical
  Size	22 mm x 160 mm (7/8" x 6.3")	22 mm x 208 mm (7/8" x 8.2")	22 mm x 160 mm (7/8" x 6.3")
  Weight	166 g (5.9 oz)	197 g (6.95 oz)	166 g (5.6 oz)
  Corrosion Resistance	Polymerized Coating (Inside and Out)
  Wet Materials	Delrin, Viton, 316L SS, Hastelloy, PFAS-Free PTFE	Platinum, Delrin®, Viton®, 316L SS, Hastelloy, PFAS-Free PTFE	316L SS, Delrin, Viton, Hastelloy
  Sampling Modes	Linear, Event, and User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View	Linear, Event, and User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View	Linear, Real-Time View, Future Start
  Measurement Ranges	1/8 sec to 99 hrs	2 sec to 99 hrs	0.5 sec to 99 hrs
  Barometric Compensation	-		Software Assistant and Barologger 5

• • Levelogger 5
  • User Manual
• • USB Interface Cable for PC
  • Optical Reader
  • Field Reader 5
  • Desktop Reader 5
• • Direct Read Cables (L5 Direct Read Cables)

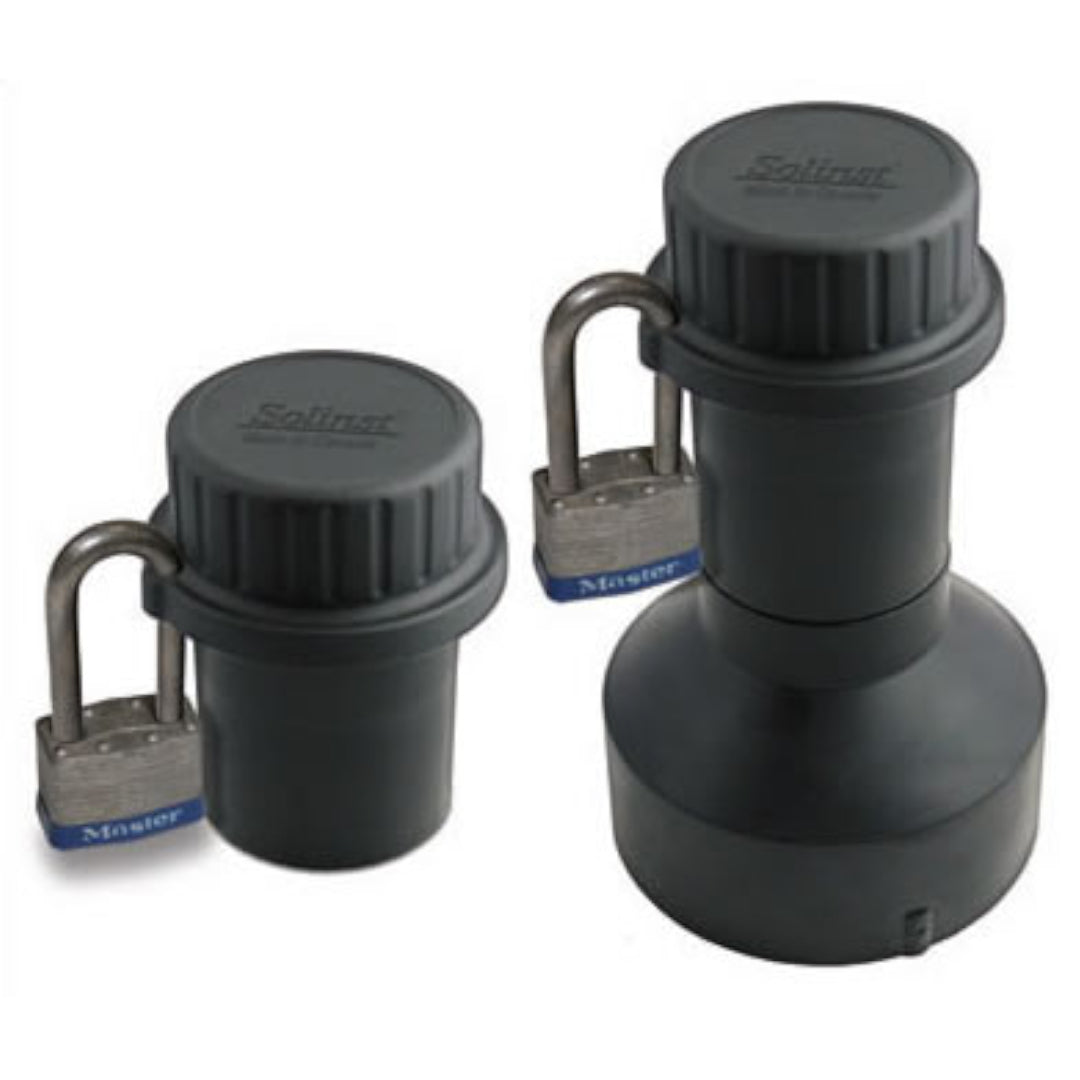

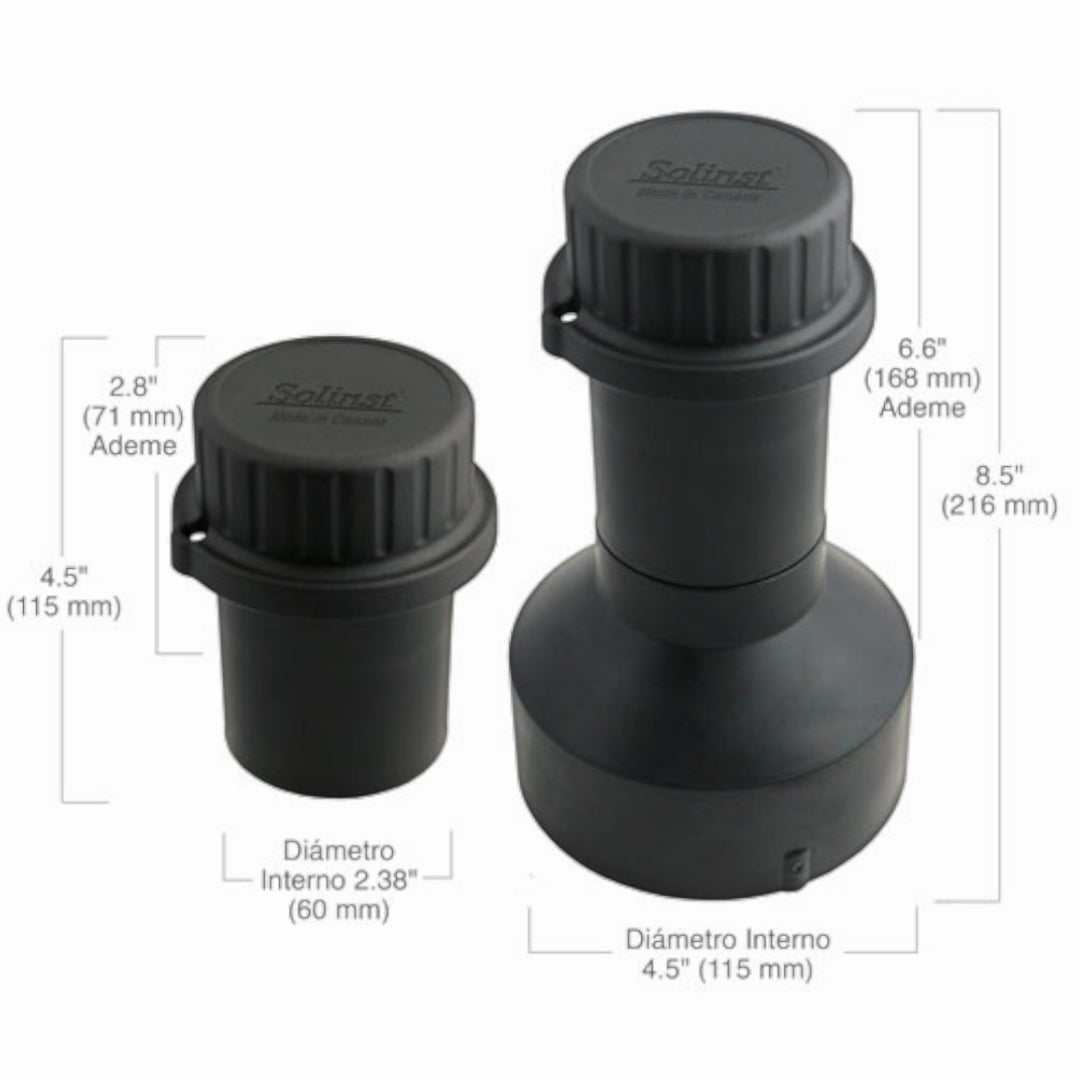

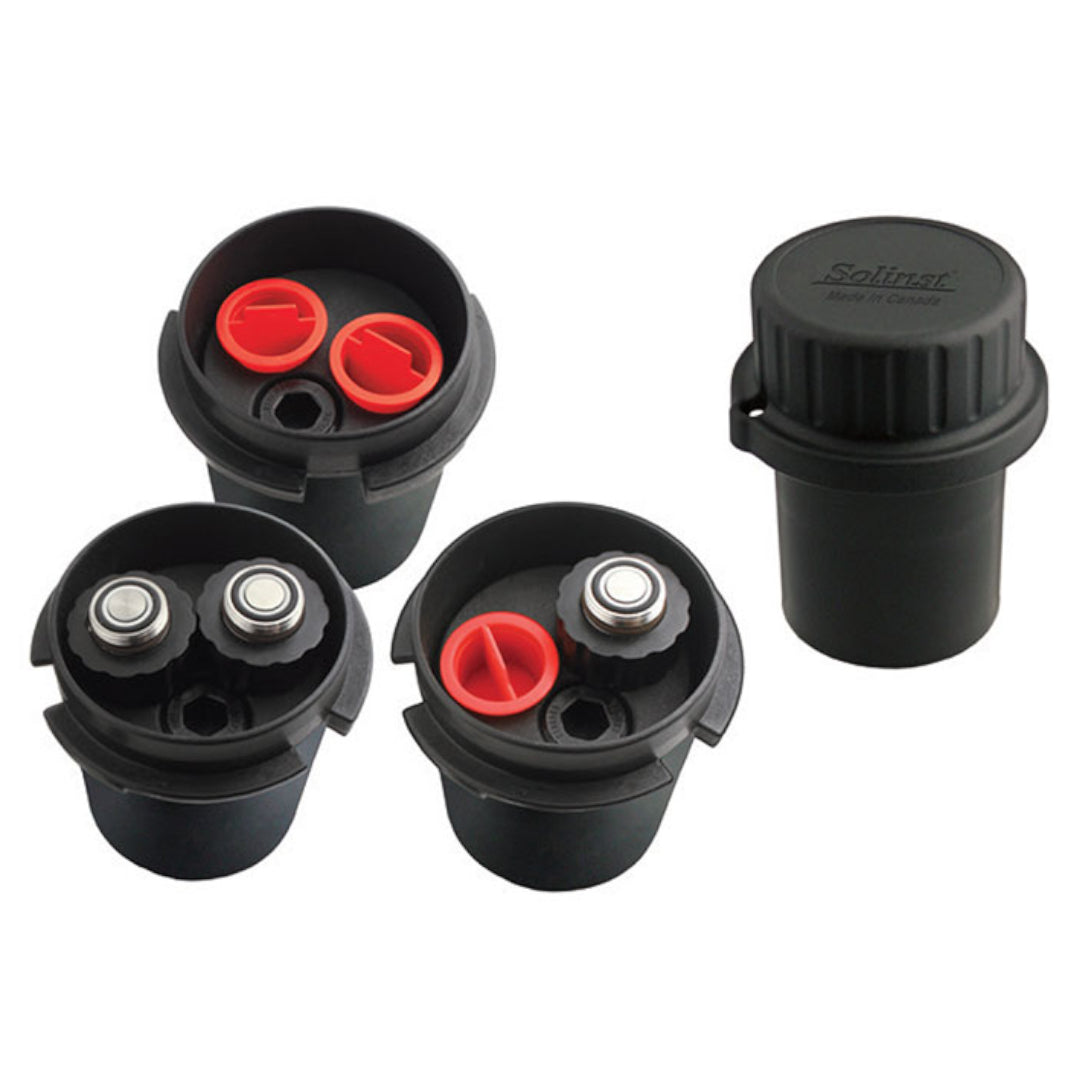

  • Locking Well Caps
  • Optical Adapters (L5 Optical Adaptors)
  • DataGrabber 5
  • Solinst Readout Unit (SRU)
  • Levelogger 5 App Interface
  • Barologger 5
  • Suspension Cables

Ver todos os detalhes do produto »

Registrador de Nivel de Agua Solinst AquaVent 5

Request Quote

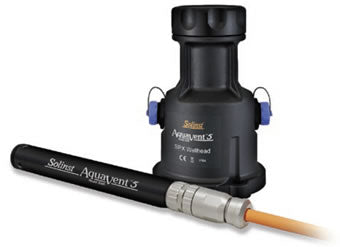

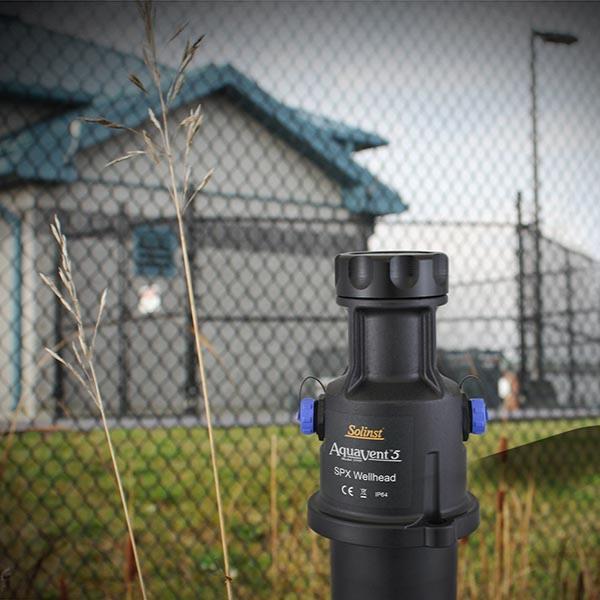

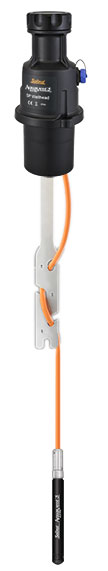

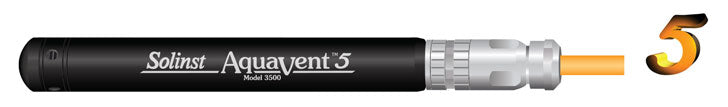

Solinst AquaVent 5

The Solinst AquaVent 5 is a vented water level datalogger designed to accurately measure water level and temperature in shallow groundwater and surface water applications. It combines pressure and temperature sensors, hydrophobic filters, and a datalogger in a corrosion-resistant stainless steel housing.

Features

• Calibrated pressure sensor.
• Integrated hydrophobic and desiccant filters.
• User-replaceable batteries.
• Communication options.
• Corrosion-resistant coating.
• Robust memory.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Sensor accuracy	0.05% FS
  Filters and desiccants	Hydrophobic, integrated, no replacement needed
  Batteries	User-replaceable in the wellhead
  Communication protocols	MODBUS (RS-232/RS-485), SDI-12
  Coating	Corrosion-resistant, polymerization technology
  Memory capacity	Up to 150,000 data sets
  Applications	Shallow groundwater and surface water, long-term monitoring

• • AquaVent 5 Datalogger (1)
  • Vented cable (1)
  • Wellhead (1)
  • Hydrophobic filters (2)
  • Desiccants (2)
  • User manual
• • Solinst software for configuration and data download
  • Communication cable to connect the logger to a PC
• • Telemetry module for remote monitoring
  • Additional batteries for replacement
  • Extra filters and desiccants for maintenance
• • Datasheet
  • Quick Start Guide
  • User Guide
  • MODBUS User Guide
  • SDI-12 User Guide
  • Hardware Compatibility

Ver todos os detalhes do produto »

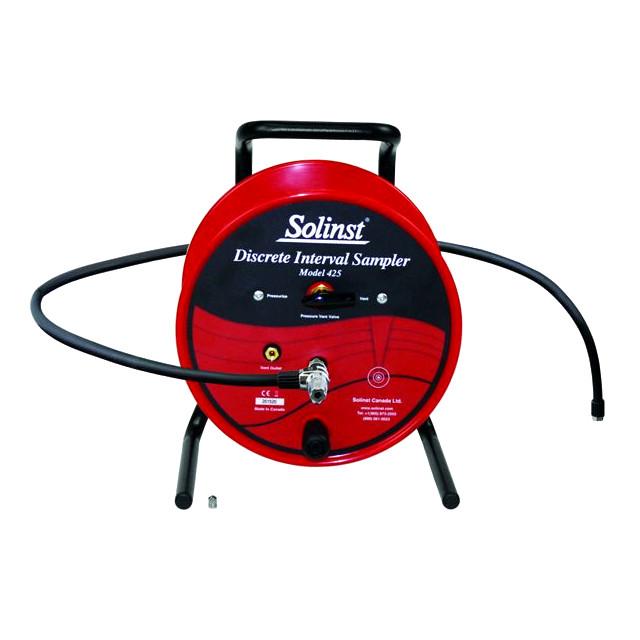

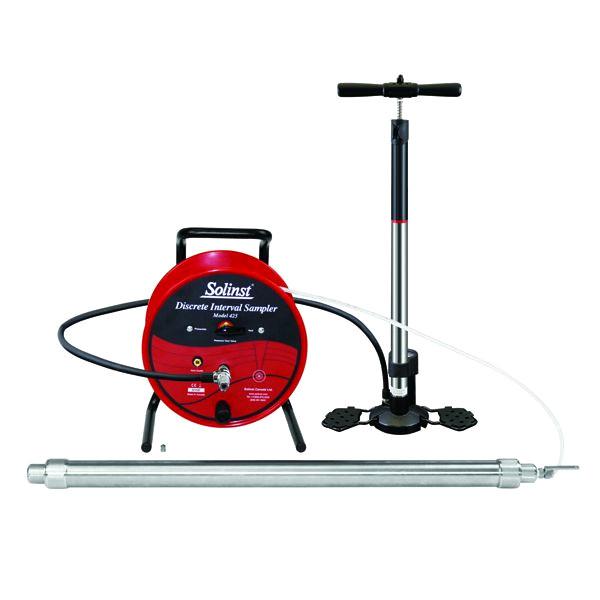

Solinist 425 Discrete Interval Sampler Reel

Request Quote

Ver todos os detalhes do produto »

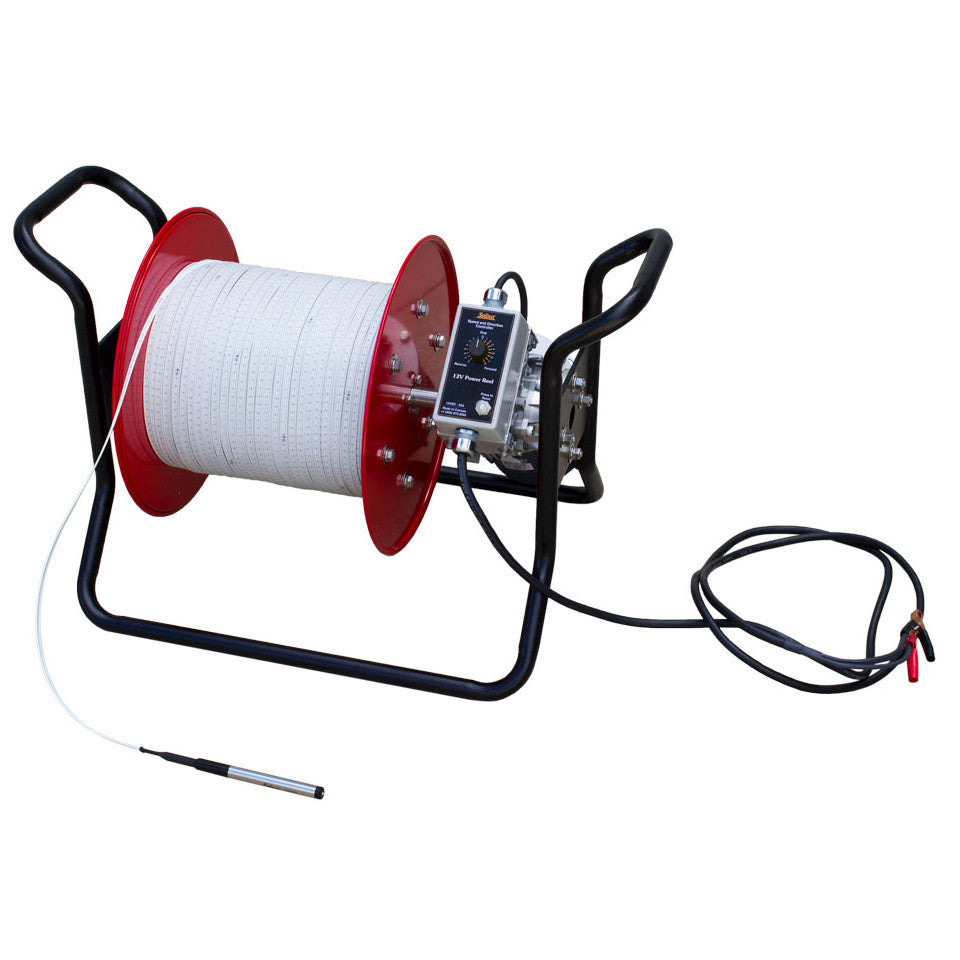

Solinst 101 P7 Water Level Meters with 12V Electric Reel

Request Quote

The Solinst 101 water level meter with P7 probe is an advanced tool for measuring...

Ver todos os detalhes do produto »

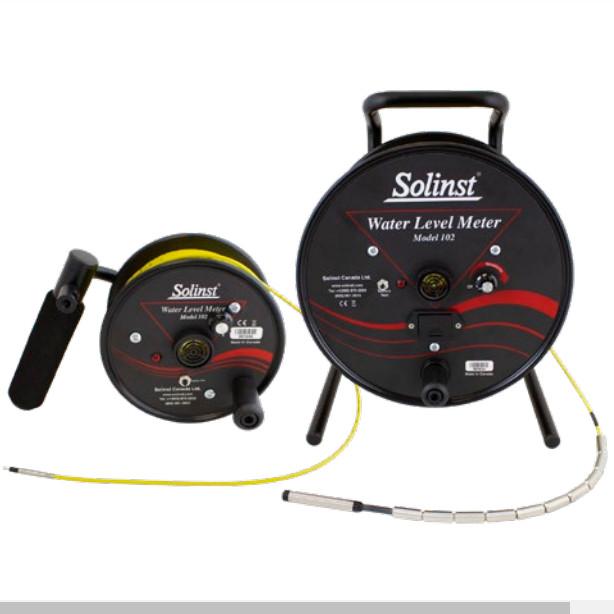

Solinst 102 Water Depth Gauges

Request Quote

Ver todos os detalhes do produto »

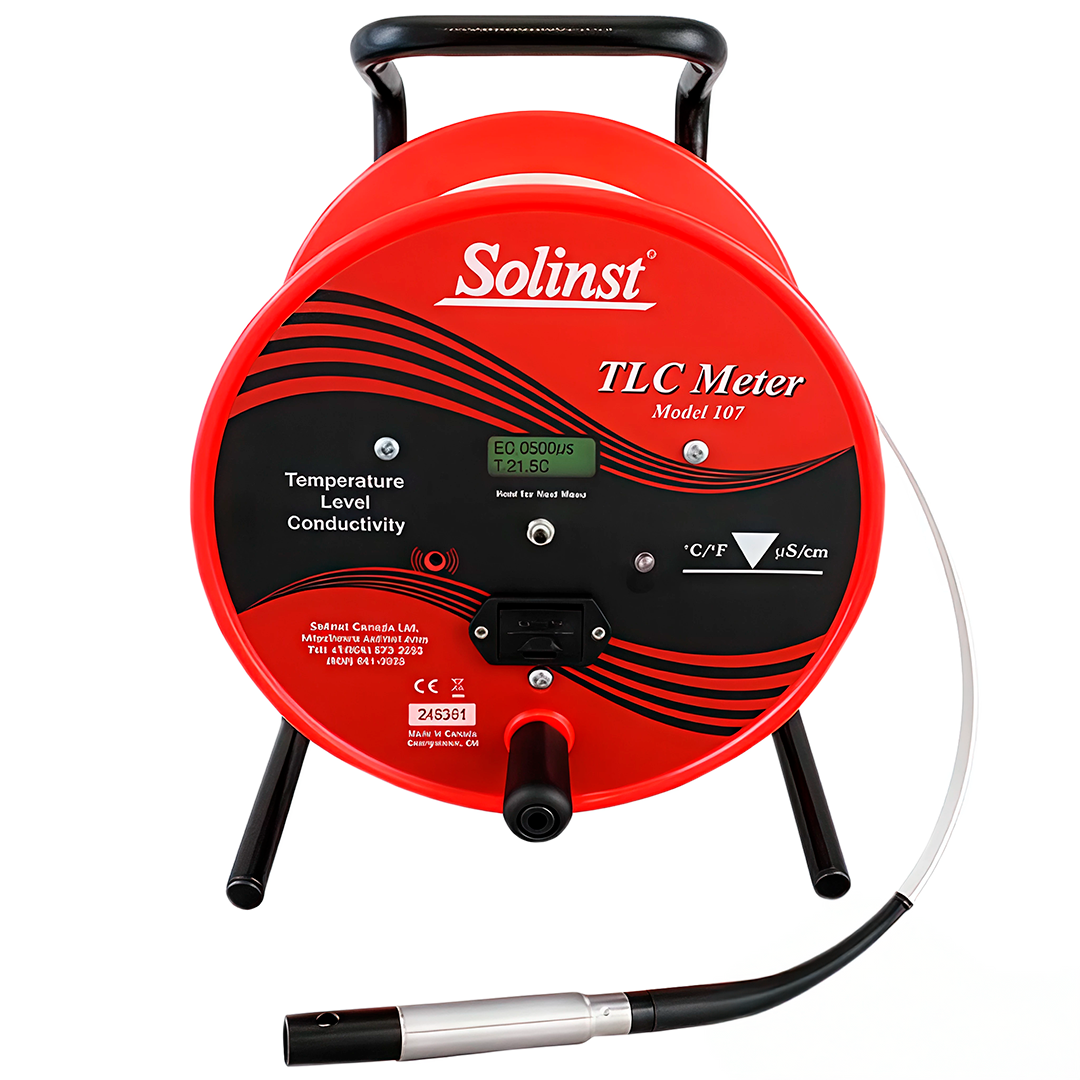

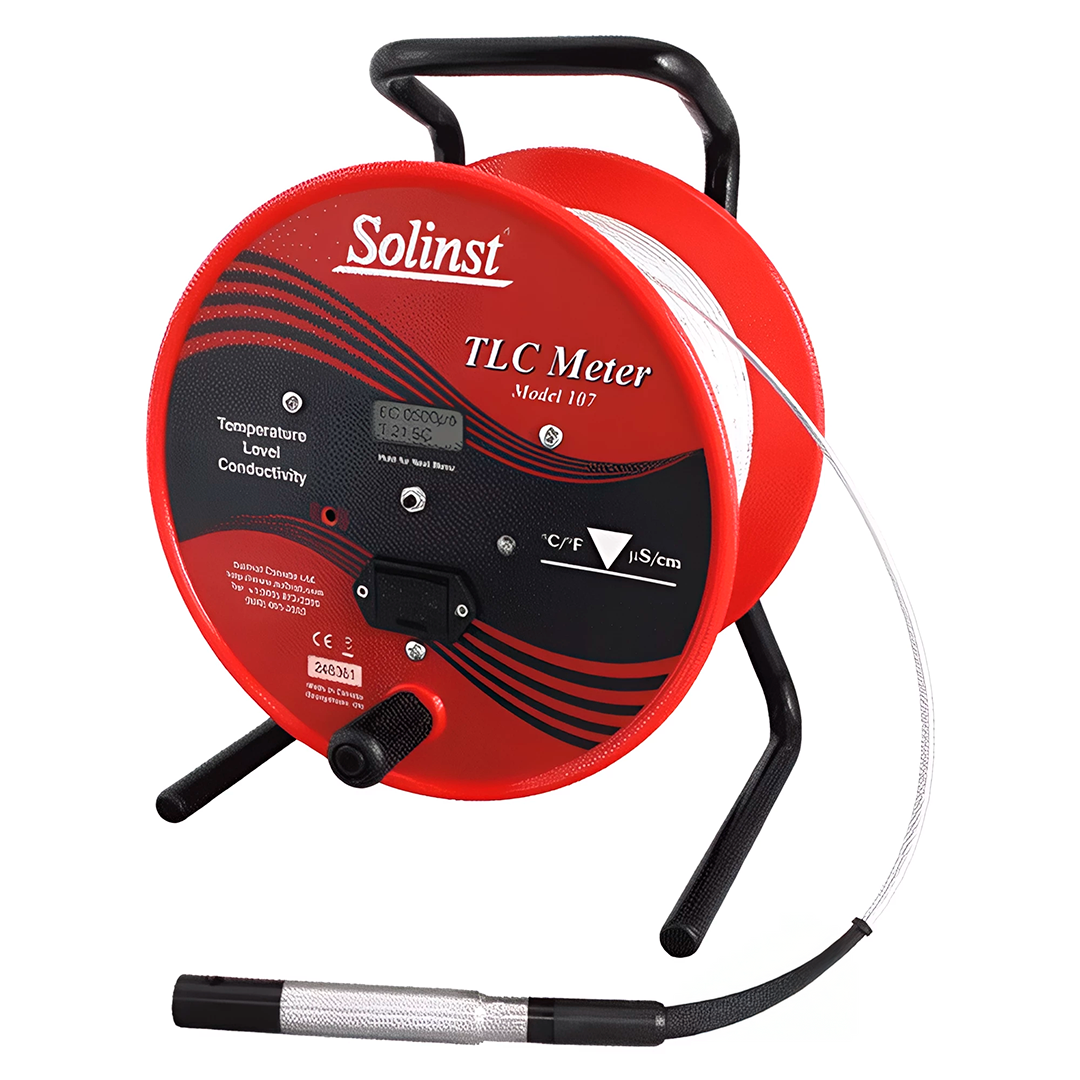

Solinst 107 Water Depth, Temperature and Conductivity Meters

$ 1,071.90 USD

Accuracy and Reliability with Solinst 107 Meters

Precise Measurement of Water Depth, Temperature, and Conductivity

Ideal for profiling conductivity and temperature in wells and open water, for saltwater intrusion studies, and as a general indicator of contamination levels. The 3/4" (19 mm) diameter probe is attached to the Solinst PVDF flat tape, laser-marked with precision every 1/100 ft or every millimeter. Lengths up to 1000 ft or 300 m, mounted on a Solinst reel.

The conductivity range is 0-80,000 µS/cm. Conductivity and temperature readings are displayed on a rotating LCD screen on the reel face. Conductivity accuracy is 5% of the reading or 100 µS (whichever is greater). A light and buzzer briefly activate when the probe's zero point enters the water. The water depth and depth of the displayed readings are read from the tape. The 9V alkaline battery is housed in an easily accessible battery drawer and provides up to 90 hours of use.

Highlighted Features:

• Ideal for profiling conductivity and temperature.
• Fast response, easy to use.
• Durable design.
• Reliable and built to last.
• Tape lengths up to 1000 ft (300 m).
• Robust Solinst reel and precision laser-marked PVDF tape.
• Probe diameter: 3/4" (19 mm).
• Standard 9V alkaline battery provides 90 hours of use.
• Automatic shut-off after 8 minutes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Parameter	Value
  Conductivity Range	0 to 80,000 µS/cm
  Conductivity Accuracy	±5% of the reading or 100 µS (whichever is greater)
  Temperature Coefficient	2% per °C
  Temperature Range	-15°C to 50°C (23°F to 122°F)
  Temperature Accuracy	±0.2°C or ±0.4°F
  Probe Diameter	19mm (3/4")
  Available Tape Lengths	30m, 60m, 100m, 150m, 250m, 300m (100', 200', 300', 500', 750', 1000')
  Tape Material	PVDF with laser markings every 1 mm or 1/100 ft
  Power Source	Standard 9V battery
  Battery Life	Up to 90 hours of use
  Automatic Shut-off	After 8 minutes of inactivity

• • Solinst Water Depth, Temperature, and Conductivity Meter (1)
  • 9V Batteries (1)
  • Manual (1)
• • None
• • Carrying Case
• Technical Specifications Manual (Spanish)

Ver todos os detalhes do produto »

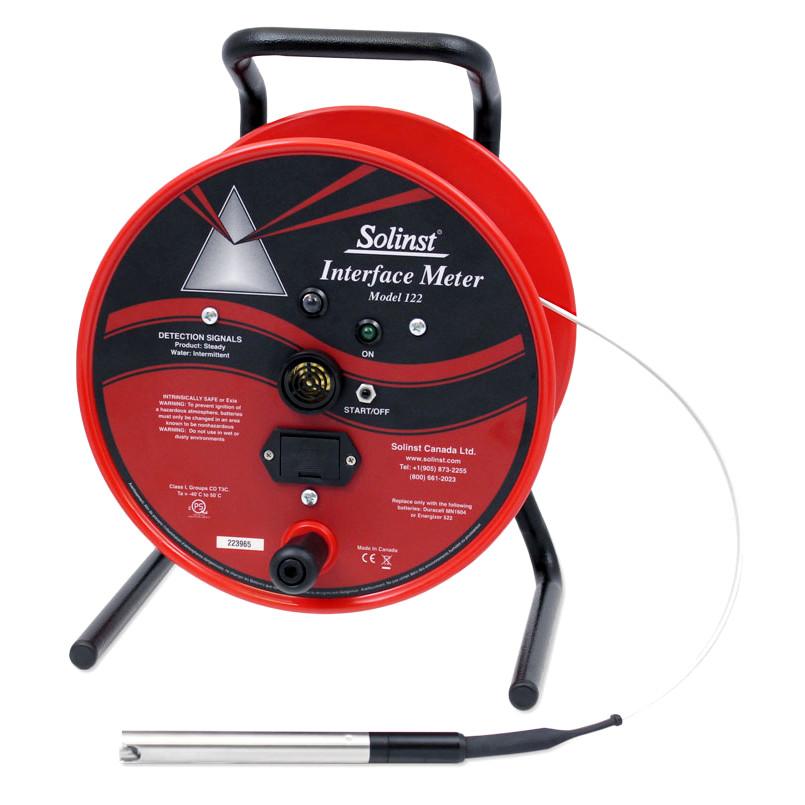

Solinst 122 Hydrocarbon Interface Meters

$ 951.90 USD

Ver todos os detalhes do produto »

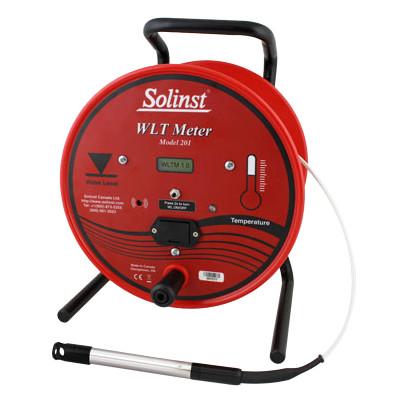

Solinst 201 WLT Temperature and Water Depth Gauges

Request Quote

Ver todos os detalhes do produto »

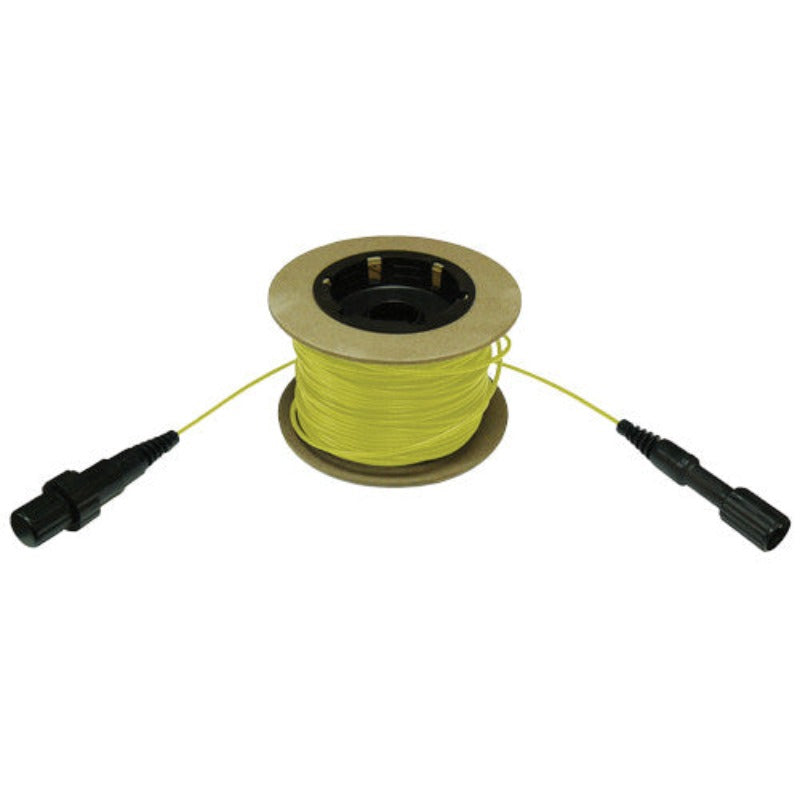

Solinst 3001 L5 Direct Read Cables for Levelogger 5

Request Quote

Discover the Advantages of Using L5 Direct Read Cables for Solinst Leveloggers Devices, whether suspended...

Ver todos os detalhes do produto »

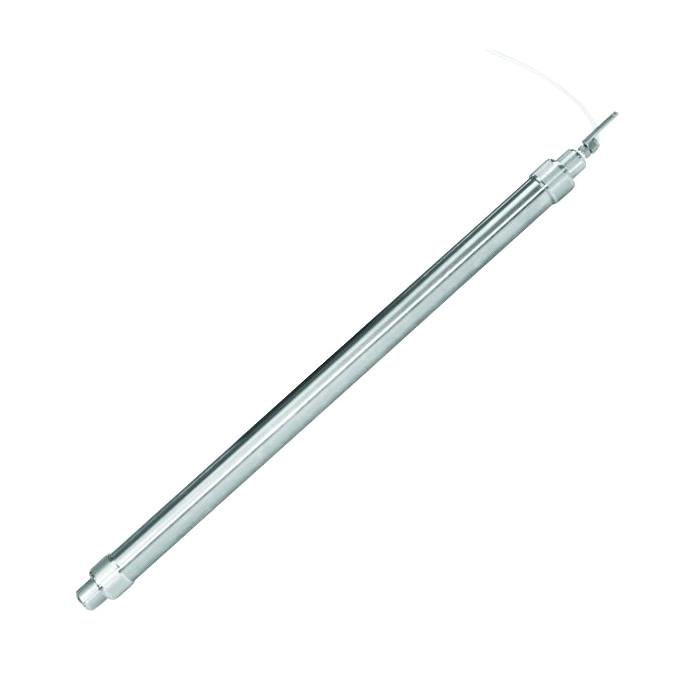

Solinst 425 Discrete Interval Samplers

Request Quote

Ver todos os detalhes do produto »

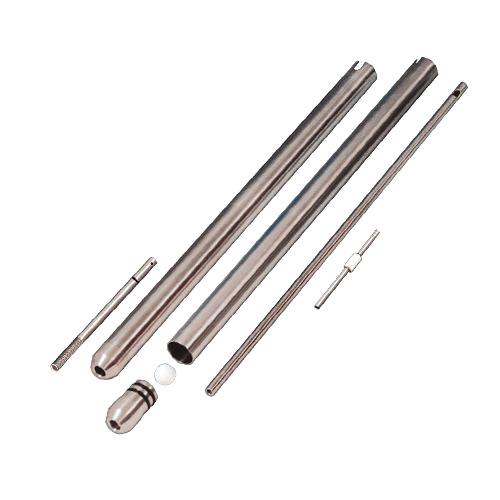

Solinst 429 Steel Double Valve Bailers

Request Quote

Ver todos os detalhes do produto »

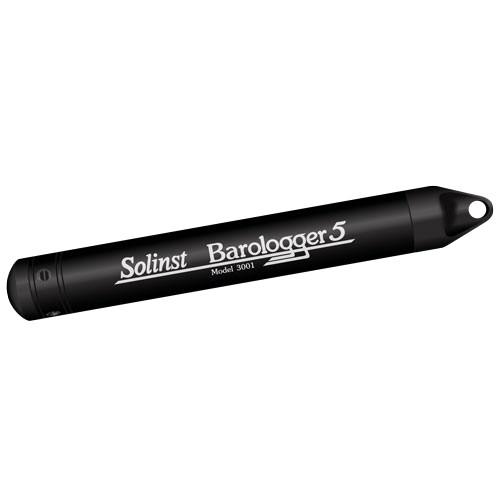

Solinst Barologger 5

Request Quote

Ver todos os detalhes do produto »

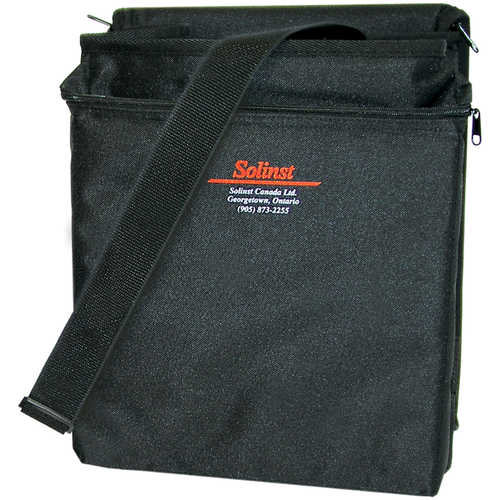

Solinst Carry Case Model 101

Request Quote

Solinst Model 101 Transport Case

Protection and Comfort for Your Water Level Meters

The Solinst Model 101 Transport Case is designed to protect and safely transport Solinst water level meters up to 500 feet (150 meters). This durable case ensures that your equipment remains organized and protected during field transport.

Key Features

• Durable Protection: Made with high-durability materials to withstand harsh field conditions.
• Efficient Organization: Internal compartments designed to store cables and accessories in an organized manner.
• Portability: Hands-free design that ensures comfortable and secure equipment transport.
• Adaptability: Compatible with water level meters up to 500 feet (150 meters).

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specifications
  Model	Capacity
  106253 (Mini)	Up to 30 m
  102974 (Small)	Up to 100 m
  100109 (Medium)	Up to 150 m

• • Solinst Model 101 Transport Case
• • None
• • None
• • None

Ver todos os detalhes do produto »

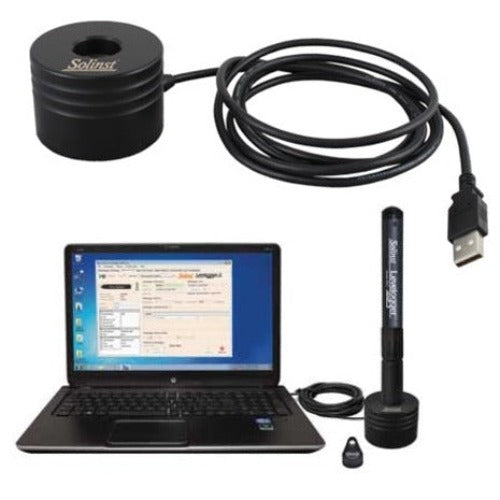

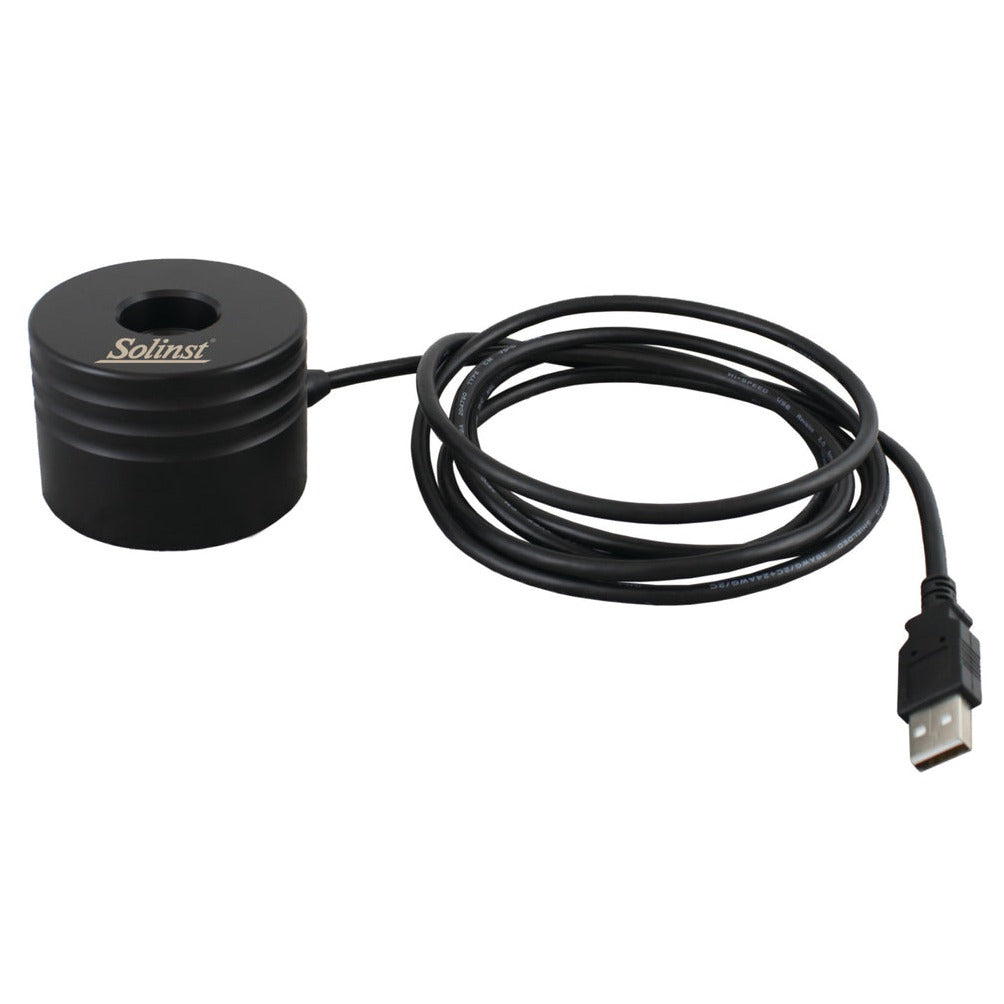

Solinst Desktop Reader for Levelogger 5 Series

Request Quote

Levelogger 5 Desktop Reader with Optical Reading Options

Optimize the programming of your series 5 dataloggers in the exclusive Connection office.

The most common optical reader for establishing efficient communication with your computer. Additionally, if you have deployed your Levelogger 5 in the field using direct read cables, our kit also offers the option of the Field Reader 5 for a hassle-free connection.

• Specifications
• In the Box
• Documents

•


  Features	Details
  Function	USB adapter for downloading and configuring data loggers
  Compatibility	Compatible with all Levelogger 5 series data loggers
  Download Speed	Up to 57,600 bps
  Power	USB
  Software	Includes desktop software

• • Reader Included
  • Manual
• • User Manual.

Ver todos os detalhes do produto »

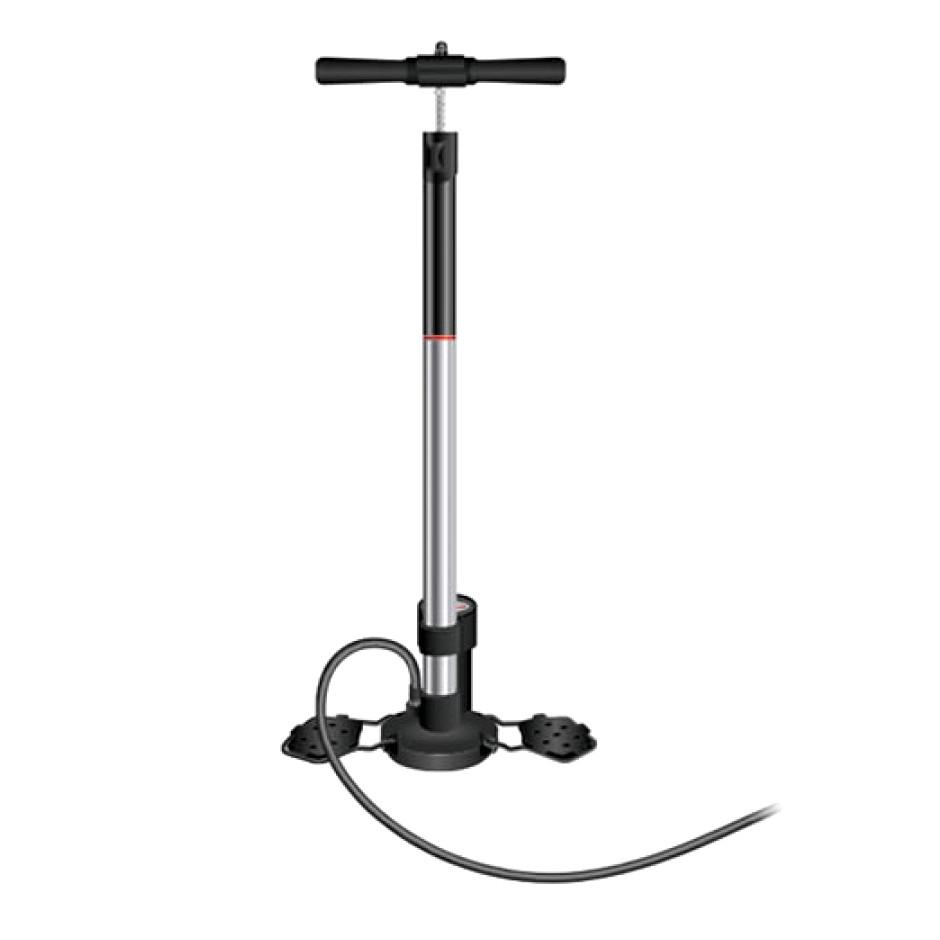

Solinst High Pressure Hand Pump

Request Quote

Ver todos os detalhes do produto »

Solinst L5 Direct Read Cables

Request Quote

Ver todos os detalhes do produto »

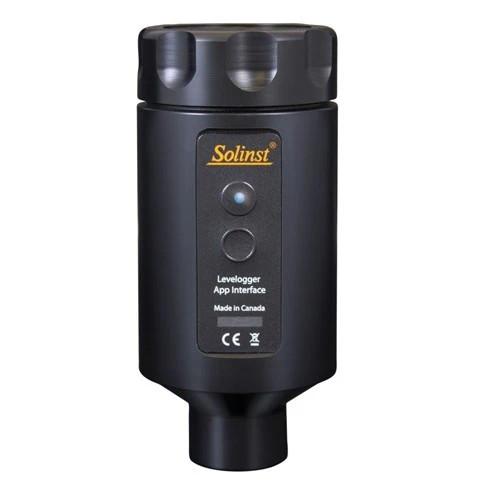

Solinst Levelogger 5 Application Interface

Request Quote

Uses Bluetooth® wireless technology to communicate with your iOS or Android™ smart device. It uses...

Ver todos os detalhes do produto »

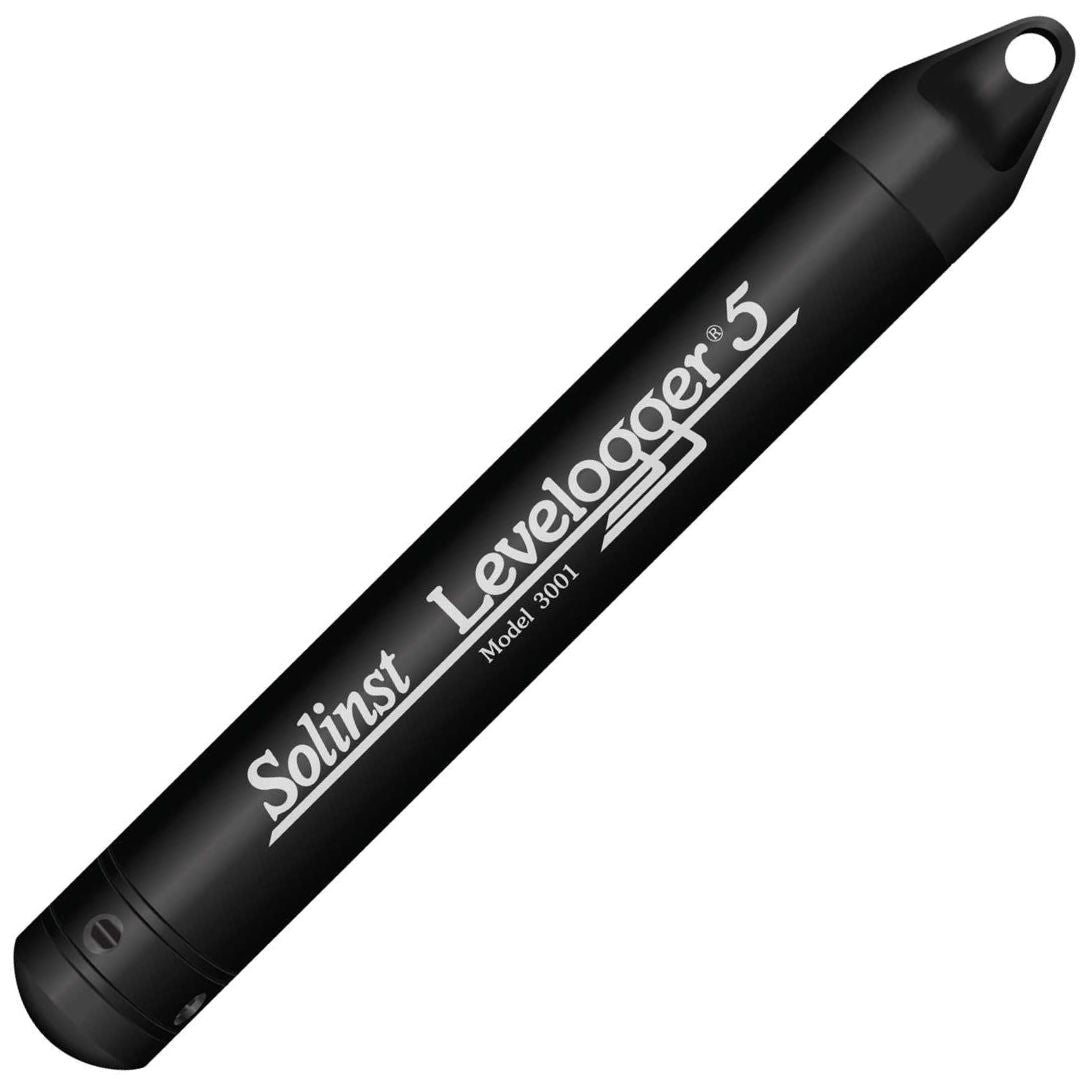

Solinst Levelogger 5 Water Depth Data Logger

$ 734.00 USD

Our Commitment to Providing the Best in Water Level Datalogging Levelogger 5 — the 5th...

Ver todos os detalhes do produto »

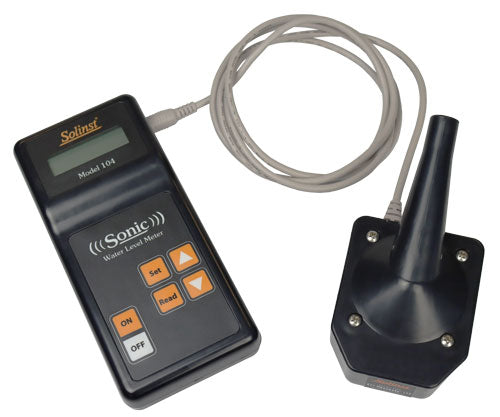

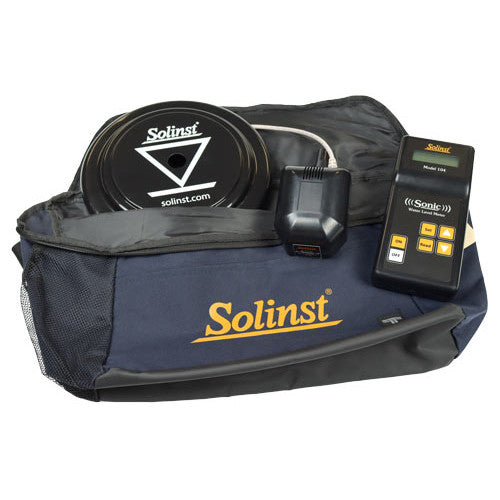

Solinst Sonic Water Level Meter Model 104

$ 1,612.75 USD

Characteristics Get a depth to static water level reading within seconds. No need to lower...

Ver todos os detalhes do produto »

Solinst Water Level Meters Model 101 P2

Request Quote

For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.

There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF flat tape.

The Model 101 P2 Water Level Meter features an easy-to-repair probe and heat embossed polyethylene flat tape.

P2 probes cannot be submersed, while P7 probes are submersible up to 1000′.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Shielded probes avoid false readings
  - All in one design
  - Easy maintenance and repair
  - Durable long-life tape available in Polyethylene or PVDF
  - Precision markings every 1/100th ft or mm
  - Resists corrosion and is easy to repair
  - Tape is strong, flexible, and easily spliced

  Polyethylene tape (comes with P2 probe):
  - Heat embossed markings
  - Seven strand stainless steel conductor

  PVDF tape (comes with P7 probe):
  - Laser marked
  - 13 strand stainless steel and 6 strand copper coated steel
  - Extremely durable PVDF coating
  - Traceable to NIST standards
• - Water level meter (1)
  - Tape guide/datum (1)
• - None
• - Case

Medidor del Nivel del Agua Solinst Modelo 101

Freatímetro

Ver todos os detalhes do produto »

Solinst Water Level Meters Model 101 P7

$ 632.50 USD

For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.

There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF flat tape.

The Model 101 P2 Water Level Meter features an easy-to-repair probe and heat embossed polyethylene flat tape.

P2 probes cannot be submersed, while P7 probes are submersible up to 1000′.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Shielded probes avoid false readings
  - All in one design
  - Easy maintenance and repair
  - Durable long-life tape available in Polyethylene or PVDF
  - Precision markings every 1/100th ft or mm
  - Resists corrosion and is easy to repair
  - Tape is strong, flexible, and easily spliced

  Polyethylene tape (comes with P2 probe):
  - Heat embossed markings
  - Seven strand stainless steel conductor

  PVDF tape (comes with P7 probe):
  - Laser marked
  - 13 strand stainless steel and 6 strand copper coated steel
  - Extremely durable PVDF coating
  - Traceable to NIST standards
• - Water level meter (1)
  - Tape guide/datum (1)
• - None
• - Case

Medidor del Nivel del Agua Solinst Modelo 101

Freatímetro

Ver todos os detalhes do produto »

Solinst Well Caps with Padlock Option

Request Quote – Vendido

The Key to Easy and Secure Deployment of Your Levelogger Devices! The caps are vented...

Ver todos os detalhes do produto »
