Products

Motic B1 Series Trinocular Microscopes

Request Quote

View full product details »

Motic B1-252 Series Binocular Compound Microscopes

Request Quote

B1-252LED and B1-252SP Binocular Microscopes Superior Design for Academic and Professional Use The B1-252LED and...

View full product details »

Motic BA210S Upright Compound Microscope up to 1000X with LED Illumination

Request Quote

Advanced Motic BA210S Series Compound Microscopes For Precision

High-Performance Microscopes Designed For Educational And Professional Use

The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and laboratory technicians. Every aspect of these microscopes contributes to facilitating your daily work. The ergonomic shape of the stand and the comfort of the different heads allow for fatigue-free viewing over many hours.

The BA210 microscope features a well-evaluated 3 W LED illumination system in a fixed Koehler configuration. The importance of LEDs as safe and long-term light sources has increased, especially in educational environments, as their lifespan and reduced heat output surpass halogen bulbs. For fieldwork without power supply, an optional mirror attachment can be installed. A high-quality condenser with NA 1.25 and aperture diaphragm is implemented for viewing weakly or unstained samples.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	BA210S Binocular	BA210S Trinocular
  Optical System	Infinity Optical System	Infinity Optical System
  Observation tube	Binocular Head Siedentopf type	Trinocular Head Siedentopf type, Light split 80/20, 100/0
  Inclination	30° inclined, 360º rotating	30° inclined, 360º rotating
  Interpupillary distance	55-75mm	55-75mm
  Diopter adjustment	On both tubes, +/- 5 diopter	On both tubes, +/- 5 diopter
  Eyepiece	WF10X/20mm	WF10X/20mm
  Nosepiece	Reverse quadruple revolving nosepiece with click stops	Reverse quadruple revolving nosepiece with click stops
  Objective classification	ASC Infinity Plan Achromat	ASC Infinity Plan Achromat
  Objectives	4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm)	4X/0.10 (DT 17mm), 10X/0.25 (DT 6.4mm), 40X/0.65/S (DT 0.45mm), 100X/1.25/S (DT 0.14mm)
  Objective mounting thread	W 4/5" x 1/36" (RMS standard)	W 4/5" x 1/36" (RMS standard)
  Mechanical stage	Built-in low position coaxial mechanical stage with sample holder	Built-in low position coaxial mechanical stage with sample holder
  Stage size Mechanical Stage X&Y	140mm x 135mm	140mm x 135mm
  Range	76 x 40mm	76 x 40mm
  Upper limit stop	Pre-set and adjustable	Pre-set and adjustable
  Condenser	Rack and pinion Abbe 1.25 N.A. with iris diaphragm	Rack and pinion Abbe 1.25 N.A. with iris diaphragm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Fine focus precision	2μm minimum increment	2μm minimum increment
  Z-Axis movement	20mm	20mm
  Filter	Built-in frosted glass, no blue filter needed	Built-in frosted glass, no blue filter needed
  Illumination	LED 3W with intensity control	LED 3W with intensity control
  Transformer	Internal	Internal
  Power supply	Universal 100 - 240V 50 - 60Hz	Universal 100 - 240V 50 - 60Hz
  Accessories included	Dust cover and immersion oil (5ml)	Dust cover and immersion oil (5ml)
  Length x Width x Height	360x190x395mm	360x190x395mm
  Weight	7,2Kg	7,2Kg

• • Microscope (1)
  • Manual
• • None
• • Cleaning Kit

• Binocular BA210S

  • Technical Specifications (English)
  • User Manual (English)

  BA210S Trinocular

  • Technical Specifications (English)
  • User Manual (English)

View full product details »

Motic BA310 POL Series Polarized Light Microscopes

Request Quote

View full product details »

Motic BA310 Series Epi LED FL Microscope

Request Quote

Motic BA310 Epi LED FL

Fluorescence Microscope with LED Illumination

Advanced microscope designed for laboratory, clinical, and educational applications, offering excellent image quality with LED illumination. This microscope is optimized for fluorescence techniques, allowing users to perform precise and detailed analysis on various biological samples. Its robust and ergonomic design makes it an essential tool for any laboratory requiring advanced observation techniques.

Features

• LED Illumination: Provides bright and uniform lighting for fluorescence observations.
• Superior Image Quality: Advanced optics ensure clear and detailed images.
• Ergonomics: Comfortable and user-friendly design for long working sessions.
• Versatility: Ideal for clinical, educational, and research applications.
• Durability: Robust construction for long-term use in demanding laboratory environments.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specifications
  Illumination	LED
  Microscope Type	Fluorescence
  Applications	Clinical, educational, research
  Optics	Advanced
  Ergonomics	Comfortable design
  Durability	Robust

  Specification	BA310E Binocular	BA310E Trinocular
  Model	BA310E Binocular	BA310E Trinocular
  Observation Tube	Binocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Optical System	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Darkfield	Optional slider/turret	Optional slider/turret
  Diaphragm	Iris diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment
  Filter Holder	On top of the illuminator with fixing cap	On top of the illuminator with fixing cap
  Fine Focus Precision	2µm	2µm
  Fluorescence	Optional LED	Optional LED
  Model	BA310E Binocular	BA310E Trinocular
  Observation Tube	Binocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Optical System	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Focusing Stroke	20mm	20mm
  Illumination Interchangeability	Quartz halogen 6V/30W or LED 3W	Quartz halogen 6V/30W or LED 3W
  Inclination	30° inclined, 360° rotating	30° inclined, 360° rotating
  Interpupillary Distance	48-75mm	48-75mm
  Nosepiece	Reversed quintuple	Reversed quintuple
  Objective Classification	CCIS® EC Plan Achromatic, DIN	CCIS® EC Plan Achromatic, DIN
  Objective Mounting Thread	W 4/5"x1/36" (Standard RMS)	W 4/5"x1/36" (Standard RMS)
  Objectives	4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)	4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  Phase Contrast	Optional slider/nosepiece	Optional slider/nosepiece
  Polarization	Optional accessory	Optional accessory
  Stage	Mechanical stage with coaxial control, low-position rackless, tension adjustment, and sample holder	Mechanical stage with coaxial control, low-position rackless, tension adjustment, and sample holder
  Stage Size	180x170mm	180x170mm
  Stand Type	Vertical	Vertical
  Standard Contrast Technique	Brightfield	Brightfield
  Transmitted Illumination	Koehler Quartz Halogen 6V/30W with intensity control	Koehler Quartz Halogen 6V/30W with intensity control
  Travel Range X&Y	80x55mm	80x55mm
  Upper Limit Stop	Preset but adjustable upper limit stop	Preset but adjustable upper limit stop
  Transformer	Internal	Internal
  Power Supply	100-240V (CE)	100-240V (CE)
  Included Accessories	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  Dimensions LxWxH	400x220x400mm	400x220x400mm
  Net Weight	8.6kg	8.6kg

• • BA310 Epi LED FL Microscope
  • Fluorescence Objectives
  • Fluorescence Filters
  • User Manual
  • Power Cable
• • Specific accessories for samples (slides, coverslips, etc.)
  • Fluorescence staining solutions
• • Camera for Microscope
  • Image Analysis Software
  • Additional Eyepieces
  • Maintenance Kit
• • Catalog - BA310E (English)
  • Catalog - EPI-LED S Fluorescence (English)
  • Specifications - Binocular (English)
  • Specifications - Trinocular (English)
  • Product Manual - BA310E (English)
  • Product Manual - EPI-LED S Fluorescence (English)

View full product details »

Motic BA310E Series Microscopes

Request Quote

View full product details »

Motic BA310E Upright Compound Microscope up to 1000X with LED or Halogen Illumination

Request Quote

Advanced Optical Precision for Scientific and Academic Studies

Explore invisible details with superior clarity through the Motic BA310E microscope series. Designed for demanding laboratories and high-level educational environments.

The Motic BA310E series represents a significant evolution in professional microscopy, offering superior optical and mechanical enhancements derived from the flagship BA410 model. They meet modern environmental standards thanks to lead-free manufacturing and an interchangeable illumination system (halogen or LED). Its rackless stage optimizes workspace and improves movement control, while the CCIS® optical system ensures sharp, accurate images, ideal for routine applications, university education, and research.

Key Features:

• CCIS® Optical System: Color Corrected Infinity Optical System for exceptional color fidelity.
• Siedentopf Binocular/Trinocular Head: 30° inclined and 360° rotatable for comfortable observation.
• Rackless Stage: Smooth and ergonomic coaxial displacement control.
• Plan EC DIN Objectives: 4X, 10X, 40X, 100X-Oil with superior image performance.
• Precise Focusing: Coaxial system with 2 μm fine graduation.
• Interchangeable Illumination: 6V/30W halogen or 3W LED (6000K / 4500K).
• Abbe Condenser NA 0.90/1.25: Adjustable and centerable with slot for filters and contrast.
• Designed for Comfort and Durability: Includes ergonomic parts, filters, and essential accessories.

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	BA310E Binocular	BA310E Trinocular
  Head Type	360° Siedentopf Binocular	360° Siedentopf Trinocular
  Optical System	CCIS® (Color Corrected Infinity Optical System)
  Included Objectives	4X, 10X, 40X, 100X-Oil (EC Plan DIN)
  Condenser	Abbe NA 0.90/1.25 adjustable and centerable with slot
  Stage	Rackless 180x170 mm, 80x55 mm travel range
  Focusing	Coaxial coarse/fine, 2 μm precision
  Illumination	Interchangeable 6V/30W Halogen or 3W LED
  Eyepieces	N-WF10X/20 mm with bilateral diopter adjustment
  Interpupillary Distance	48–75 mm
  Transmitted Illumination	Koehler with intensity control
  Fluorescence / Contrast	Optional (slider or turret)
  Polarization	Optional
  Power Supply	100–240V AC (internal transformer)

• • x1 BA310E Microscope (as configured: binocular or trinocular)
  • x1 Pair of N-WF10X/20 mm eyepieces
  • x1 Dust cover
  • x1 Allen key
  • x1 Immersion oil bottle (5 ml)
  • x1 Blue filter
  • x1 Spare fuse
  • x1 Cable clip and fixing screw
• • Cleaning Kit
• • Specifications - Binocular (English)
  • Specifications - Trinocular (English)
  • Product Manual (English)

View full product details »

Motic BA410 Series Microscope

Request Quote

View full product details »

Motic Compound Microscopes BA410E

Request Quote

Supreme Vision for Demanding Professionals

High-end optical microscope for biomedical and research applications, featuring Infinity Corrected optical system, plan achromatic optics, precise focusing, and broad accessory compatibility.

The BA410E is Motic's flagship model, and it displays the highest level of optical performance. With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in colour reproduction and resolution. The BA410E also allows a profound diagnosis for those in pathology, haematology and cytology who require the best colour fidelity. Increased numerical apertures provide an expanded resolution power for a more detailed specimen evaluation.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	BA410E Binocular Sextuple 50W	BA410E Trinocular Sextuple 50W
  Observation tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type
  Optical system	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13	Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13
  Darkfield	Iris diaphragm	Iris diaphragm
  Data transfer	Optional slider/turret	Optional slider/turret
  Diopter adjustment	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield N-WF10X/22mm with diopter adjustment	Widefield N-WF10X/22mm with diopter adjustment
  Filter holder	On top of the illuminator with fixing cap	On top of the illuminator with fixing cap
  Fine focus precision	1µm	1µm
  Fluorescence	Optional HBO	Optional HBO
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Focusing stroke	27mm	27mm
  Illumination features	Auto-OFF and Light Memory function. External lamphouse.	Auto-OFF and Light Memory function. External lamphouse.
  Illumination interchangeability	Quartz halogen 12V/50W or LED 3W	Quartz halogen 12V/50W or LED 3W
  Inclination	30° inclined, 360° rotating	30° inclined, 360° rotating
  Interpupillary distance	50-75mm	50-75mm
  Nosepiece	Reversed sextuple	Reversed sextuple
  Objective classification	CCIS® EC-H Plan Achromatic, DIN	CCIS® EC-H Plan Achromatic, DIN
  Objective mounting thread	W 4/5"x1/36" (RMS standard)	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)	4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  Phase contrast	Optional slider/turret	Optional slider/turret
  Polarization	Optional sliders/add on	Optional sliders/add on
  Stage	Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder	Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder
  Stage size	180x170mm	180x170mm
  Stand type	Upright	Upright
  Standard contrast technique	Brightfield	Brightfield
  Transmitted illumination	Koehler Quartz halogen 12V/50W with intensity control	Koehler Quartz halogen 12V/50W with intensity control
  Travel range X&Y	80x55mm	80x55mm
  Upper limit stop	Upper limit stop preset but adjustable	Upper limit stop preset but adjustable
  Transformer	Internal	Internal
  Power supply	100-240V (CE)	100-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
  Dimensions LxWxH	550x242x435mm	550x242x435mm
  Weight Net	14.2kg	14.2kg

• • 1x BA410E
• • None
• • Cleaning Kit
• • Flyer - English
  • Catalog - English
  • Catalog - Spanish
  • Specifications - Binocular
  • Specifications - Trinocular
  • Product Manual

View full product details »

Motic Digital Stereo Microscope Serie DM-143 - Discontinued

Request Quote

Motic offer a wide range of digital stereo microscopes suitable for any application and working...

View full product details »

Motic Eyepieces for Microscopes SMZ-168 Series x 2 u.

Request Quote

View full product details »

Motic Fiber Optic Illuminator for Stereo Microscopes

$ 458.00 USD

Light guides available with one or two gooseneck arms, 0.5m with standard straight distal end...

View full product details »

Motic K-400P Stereo Microscope

Request Quote

Motic K-400P Stereo Microscope with Infinite CMO Optical System and 4-Position Magnification Changer

The Motic K-400P Is A Binocular Stereo Microscope That Delivers Distortion-Free 3D Images Through Its Infinite CMO Optical System. Equipped With A 4-Position Magnification Changer, It Offers Magnifications Of 6X, 12X, 25X, And 50X, Making It Suitable For Various Applications In Biological Sciences And Industrial Inspection.

The Motic K-400P Stereo Microscope is a versatile and robust tool designed for precision imaging in biological and industrial applications. Featuring an infinite CMO (Common Main Objective) optical system, it delivers high-quality, distortion-free 3D images throughout the magnification range. The binocular head, inclined at 45°, ensures comfortable prolonged use, with adjustable interpupillary distance and ±5 diopter correction for optimal viewing.

Equipped with a 4-position magnification changer, the K-400P offers magnifications of 6X, 12X, 25X, and 50X, supported by standard WF10X eyepieces with a 23 mm field of view. Its 89 mm working distance provides ample room for manipulation of specimens, while the flat stand and reversible black-and-white stage plate enhance versatility.

Durable and adaptable, the Motic K-400P is the ideal choice for professionals seeking precision and reliability in a stereo microscope.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	K-400P
  Observation tube	Binocular head
  Optical system	Common Main Objective (CMO) Infinity optical System
  Base	329x277mm
  Column/Arm	Height 295mm, Ø32mm
  Darkfield	Optional add-on
  Diopter adjustment	On both tubes, +/- 5 diopter
  Eyepieces	Widefield WF10X/23mm
  Focus mechanism	Coarse focusing system with tension adjustment
  Focusing stroke	49mm
  Head holder	For Ø32mm column
  Inclination	45° inclined
  Model	K-400P
  Observation tube	Binocular head
  Optical system	Common Main Objective (CMO) Infinity optical System
  Base	329x277mm
  Column/Arm	Height 295mm, Ø32mm
  Darkfield	Optional add-on
  Diopter adjustment	On both tubes, +/- 5 diopter
  Eyepieces	Widefield WF10X/23mm
  Focus mechanism	Coarse focusing system with tension adjustment
  Focusing stroke	49mm
  Head holder	For Ø32mm column
  Inclination	45° inclined
  Interpupillary distance	54-76mm
  Objectives	6X, 12X, 25X, 50X
  Objectives system	4-position drum magnification changer
  Polarization	Optional add-on
  Stand type	Pole type stand
  Standard contrast technique	Brightfield
  Working distance	89mm
  Accessories included	Dust cover, black/white stage plate
  Dimensions LxWxH	329x277x399mm
  Weight Net	5.8kg (12.8lbs)

• • Binocular head inclined at 45°, with ±5 diopter adjustment on both tubes and interpupillary distance adjustable between 54 and 76 mm.
  • Wide-field WF10X eyepieces with a 23 mm field of view, suitable for eyeglass wearers.
  • Standard 1X achromatic objective with a 4-position magnification changer, offering magnifications of 6X, 12X, 25X, and 50X.
  • Flat stand without illumination with a Ø32 mm post.
  • Included accessories: dust cover and reversible black-and-white stage plate.
• • None
• • Polarizer
  • Microscope camera
  • Auxiliary objective lenses (e.g., 2X, 4X)
  • Additional eyepieces (e.g., WF15X, WF20X)
  • LED illumination attachment
  • Stage clips or holder
  • Extension tubes for increased working distance
  • Cleaning Kit
• • Catalog
  • Product Manual

View full product details »

Motic Microscopes BA210 Series - Discontinued

Request Quote

View full product details »

Motic Microscopes Panthera C2

Request Quote

Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences. Stunning Ultra Contrast Optics for best insights, convincing performance of the dual-slide holder for one-hand operation, and intelligent light management with an LED “Feedback indicator”: a setup ready to smoothen your daily workflow.

The Panthera C2 is prepared for Phase contrast with slider or turret condenser, Polarization contrast, and Darkfield. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with mercury bulb usage.

Available with the 100X objective!

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera C2 Binocular	Panthera C2 Binocular (without 100X)	Panthera C2 Trinocular	Panthera C2 Trinocular (without 100X)
  Optical system	Color Corrected Infinity Optical System (CCIS®)
  Observation tube	Binocular head, Siedentopf type, 360° swiveling		Trinocular head, Siedentopf type, 360° swiveling
  Inclination	25° inclined, 360° swiveling
  Trinocular light split	-	-	Fixed 50:50
  Interpupillary distance	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield UC-WF10X/20mm with diopter adjustment			Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded
  Objective classification	CCIS® UC Plan Achromatic (Pb free)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Stand type	Upright
  Stage	Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	185x145mm
  Travel range X&Y	75x50mm
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Diaphragm	Iris diaphragm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine focus precision	2μm
  Focusing stroke	25mm
  Upper limit stop	Upper limit stop preset but adjustable
  Filter holder	On top of the illuminator with fixing cap
  Transmitted illumination	Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
  Transformer	Internal
  Power supply	110-240V (CE)
  Other features	USB 2.0 for external camera power
  Accessories included	Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
  Dimensions (LxWxH)	282x210x396mm
  Net weight	8.4kg

• • Microscope (1)
  • Manual
• • None
• • Cleaning Kit
• • Catalog - English
  • Catalog - Spanish
  • Specifications – Panthera C2 Binocular - English
  • Specifications – Panthera C2 Trinocular - English
  • Product Manual - English

View full product details »

Motic Objectives for Microscopes SMZ-168 Series

Request Quote

View full product details »

Motic PA120MET Series Trinocular Upright Compound Microscope

Request Quote

Motic's PAA120MET: Upright Inspection Microscopes for Industrial/ Metallurgical Applications

The PA120MET series from Motic offers high-performance upright microscopes designed for precision inspection in industrial and metallurgical environments. With features like advanced optical systems, LED and halogen illumination options, and a range of objective lenses, these microscopes provide superior imaging for critical analysis of materials and structures. Ideal for quality control and research, the PA120MET delivers enhanced detail in a variety of inspection tasks.

Moti's PA120MET series microscopes feature a flexible, modular design that can be suited to your specific industrial inspection application. Our Plan S-APO series objectives and professional optical system design ensure excellent optical performance, while our frame and base design creates a low gravity, high stability system which reduces vibration commonly experienced during higher magnification observation in industrial environments. Our PA120MET series microscopes are widely used for FPD, LCD, and silicon wafer inspection.

Features

• Colour Corrected Infinity Optical System (CCIS®)
• Reflected and transmitted illumination (with Kohler illumination options)
• Adjustable eyepieces with optional reticle
• LWCD Condenser, N.A 0.55
• LED and halogen illumination

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	Brightfield		Brightfield / Darkfield
  Model	PA120MET	PA120MET-T	PA120MET-BD	PA120MET-BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination	Reflected	Reflected / Transmitted	Reflected	Reflected / Transmitted
  Observation Tube
  Trinocular	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
  Binocular (Optional)	Erect type (F.N 25), 20° inclined
  Eyepieces	10X (F.N 25), Diopter adjustable, Reticle optional
  Revolving Nosepiece
  Brightfield	5-position Nosepiece for Brightfield objective lens with DIC slot		/
  Brightfield/Darkfield	/		5-position Nosepiece for Brightfield, Darkfield objective lens with DIC slot
  Plan S-APO	Plan S-APO 5X/0.15 Plan S-APO 10X/0.3 Plan S-APO 20X/0.45 Plan S-APO 50X/0.8 Plan S-APO 100X/0.9 (Optional)		Plan S-APO BD 5X/0.15 Plan S-APO BD 10X/0.3 Plan S-APO BD 20X/0.45 Plan S-APO BD 50X/0.8 Plan S-APO BD 100X/0.9 (Optional)
  LPlan S-APO	LPlan S-APO 20X/0.4 LPlan S-APO 50X/0.55 LPlan S-APO 100X/0.8		LPlan S-APO BD 20X/0.4 LPlan S-APO BD 50X/0.55 LPlan S-APO BD 100X/0.8
  Base Unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring
  Base Unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  3D Profile Module	No
  Reflected Illumination	Kohler illumination system / Brightfield, Reflected DIC, simple Polarization		Kohler illumination system / Brightfield, Darkfield, Reflected DIC, simple Polarization
  Light Source	12V/100W halogen
  Transmitted Illumination	/	Yes	/	Yes
  Light Source	/	10W LED	/	10W LED
  Condenser	/	LWCD, N.A 0.55	/	LWCD, N.A 0.55
  Stage	Dimensions : 520mm X 400mm Moving stroke: 300mm X 300mm Optional: wafer stage

• • PA120MET Microscope (PA120MET)
  • 10X Eyepieces (PA120MET-T, PA120MET-BD)
  • 5-Position Nosepiece (PA120MET-BD, PA120MET-T)
  • LED or Halogen Light (PA120MET)
• • None
• • Cleaning Kit
  • Additional Objectives
  • Optional Stage Movement Base
  • Automated Stages
• • Catalog

View full product details »

Motic PA43 BIO Trinocular Upright Compound Microscope and Rackless Stage

Request Quote

High-Performance Microscope Designed for Versatile Laboratory Applications, Featuring Trinocular Observation and Modular Configurations.

Comprehensive Microscope for Clinical, Biological, and Research Applications, Offering Precision Optics and Customizable Features.

The PA43 BIOMED has a strong selection of contrast accessories that are available and easily upgradable to meet different requirements:

• Phase contrast methods for various microbiology applications.
• Darkfield accessories for blood cell studies for natural therapy.
• Polarizing contrast accessories for protein crystal, tissue, gout and kidney stone observations.

Features

• Kohler illumination with option of Halogen or LED illumination
• Environmentally Friendly ECO function
• Consistent, Even Illumination with IL Function
• Rackless stage

Applications

Pathology and Cytology

Pathology is sometimes considered to be the foundation of medicine, and the study of biopsy tissue has brought us to many different methods of disease diagnosis. Whether it be H&E slides or Immunohistochemistry studies (IHC), the PA43 provides a very reliable, affordable platform to meet the research requirements. With options for both manual observation or digital image capture for quantitative study, the PA43 also boasts a series of high-quality objectives with best-in-class resolution. It is also a very useful microscope for Cytology, such as for PAP-smears, TCT samples for cervical cancer diagnosis.

Cytogenetics

Karyotyping has always been a gold standard for the diagnosis of genetic disease, pre-natal screening and leukemia diagnosis. Specialists need good resolution through their 100x objectives, as they need to scan through the slides with an oil objective to look for the right Metaphase to study. The rackless stage of the PA43 offers smooth movement of the stage with zero-backlash. Together with our quality oil objectives, the PA43 becomes an excellent companion for Cytogeneticist

Hematology

White Blood cell classification and counting is commonplace for both routine screening and Leukemia diagnosis. Although we now have fully automatic screening systems to do most of the tests, confirmations under microscopes are still important and often demanding. Other than Motic’s routine oil immersion objective, specially designed non-cover glassed objectives are also available as part of the PA43’s accessory lineup. Moreover, the PA43 is also very ideal for Karyotyping for Leukemia studies.

Toxicology and Biodosimetry

Constant monitoring of various environmental hazard on human DNA damage is always a topic for clinical specialists and pharmaceutical companies. The gold standards of evaluation, such as “Chromosome Aberration Scoring”, “Dicentric Scoring”, and “Micro-nuclei (in-vitro and in-vivo)” are all microscope-based methods that are very labor intensive. The PA43 provides a comfortable, quality solution for these intensive, demanding routine tests.

Software - Motic Analysis Bio

Digital imaging and automation make the life of a clinical specialist easier and more productive. Analysis Bio is our entry into a new generation of software, and not only makes the operation of the PA43 and PA53 simple and easy, but also provides the breadth of analysis and measurement tools needed for digital documentation and analysis.

This full featured microscope has the following:

• Fully encoded objectives
• Phase contrast package
• Pathology package
• Optional ergonomic head to reduce neck strain

Applications	Cytology	Haemotoxylin and Eosin Stain (HE)	Immunohistochemistry (IHC)	Hematology

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Package 1 (PH Basic Configuration)	Package 4 (PH Advanced Configuration)	Package 2 (Standard)	Package 3 (Pathology)
  Base	/	/	/	/
  Observation Tube	Trinocular Head			Inclined Trinocular Head
  Eyepiece	N-WF10X/22mm
  Arm	/	/	/	/
  Nosepiece	5-Position Nosepiece
  Objectives
  Plan UC Objective	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 2X/0.05, W.D=7.2mm • Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 20X/0.45, W.D=0.8mm • Plan UC 40X/0.65, W.D=0.6mm
  Phase Contrast Objective	• Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm		-
  Condenser	N.A 0.9/1.25 Abbe with Slider Slot	Turret Condenser	N.A 0.9/1.25 Abbe with Slider Slot	N.A 0.90/0.13 Swing In/Out
  Stage	Rackless Stage
  Transmitted Illumination	Condenser (with Field Diaphragm)
  Illumination	• LED Module (High Color Temperature) • Halogen Module
  Phase Contrast & Dark Field Accessories	• PH Slider (Ph1) • Phase Centering Telescope	Phase Centering Telescope	-
  Filter	Blue Filter

• • PA43 microscope stand.
  • Trinocular or tilting trinocular observation tube, depending on the configuration.
  • N-WF10X/22mm eyepieces.
  • 5-position revolving nosepiece.
  • Plan UC objectives, varying by package configuration.
  • Condenser appropriate to the selected package.
  • Rackless stage.
  • Illumination module (LED or Halogen) as per chosen configuration.
  • Blue filter.
• • None
• • Cleaning Kit
  • Phase contrast accessories for various microbiology applications.
  • Darkfield accessories suitable for objectives up to 40x magnification.
  • Polarizing contrast accessories for studies such as protein crystals, muscle fibers, and tissue observations.
  • LED illuminator modules with options for high or low color temperature.
  • Halogen illuminator module with 30W power.
  • Rackless stage with a ceramic-coated surface for durability and ease of use.
  • ECO function for automatic power saving mode.
  • IL function to maintain consistent, even brightness during magnification changes.
• • Catalog
  • Specifications
  • Product Manual

View full product details »

Motic PA53 BIO SCAN Trinocular Compound Microscope with Motorized Stage

Request Quote

PA53 BIO SCAN Trinocular Microscope With Scanning Tube And Motorized Stage

Advanced microscope designed for scanning applications, featuring high-precision objectives, motorized stage, specialized condensers, and versatile lighting options.

PA53 Bio Scan mainly meant for transmitted light scan. Various contrasting method can be used for scan and stitch, from Phase contrast to polarizing contrast…… Scanning of transparent sample is not a problem now.

"Benefit of using microscope base digital slide scanning system like PA53 Scan"

• Better quality as it is completed optical path with full Kohler illumination setting
• High precision stage allow physical relocation of Region of Interest and rescan with high resolution high N.A. objective.
• No limitation on the use of objective, super high resolution scan with oil immersion objective becoming possible
• No limitation on the use of contrasting methods, phase contrast, Polarizing contrast, etc… can be used. To scan sample without staining becoming possible.

Features

• PA53 Scan series using a specially designed tube with built-in 1.2 Mpixel camera for focusing and a 5 Mpxiel high resolution sCMOS camera for imaging.
• Lumos LED is recommended for the scan which allow stable and homogenous illumination with very low consumable cost. HBO mercury burner can also be used if preferred.
• 100mm x 100mm high precision motorized stage with smallest step size of 10nm (repeatability better than 200nm) is used, relocation even with 100x objective is not a problem.
• Motorized 5x position nosepiece to allow smooth switching of objectives.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	PA53 BIO SCAN
  Trinocular Tube	Special scanning trinocular tube with 2x built-in camera
  Eyepieces	Adjustable Wide-Field (FN25) Eyepiece 10X/FN25 [Optional] Adjustable wide-field (FN22) Eyepiece
  Intermediate Piece	PA53 series intermediate piece
  Main Body (Upper)	Main upper mot body PA53 Bio Scan
  3D Profiler Controller	3D-Profiler control box/pad
  Objective Nosepiece (Mot)
  Fluorescent Attachment	-
  Transmitted Light Halogen Illuminator	100W Halogen lamp housing
  Halogen Bulb	100W Halogen bulb
  High-Quality Fluorescent LED Illuminator With Control Panel	-
  Motorized Stage	Motorized Stage 100mm x 10mm (without Light shutter) completed Controller box (without light shutter) Specimen holder (for scanning application) [Optional] Motorized Stage 100mm x 10mm (with Light shutter) completed [Optional] Controller box (with light shutter) [Optional] XY controller joystick and controller box for stage
  Objectives (Sapo, Good For FL Too)	Plan UC 2X/0.05, W.D=7.2mm HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17 HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17 HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17 HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17 [Optional] HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17
  Long Working Distance Condenser	[Optional] LWD N.A. 0.63 WD 10.7mm Condenser
  Condenser	N.A. 0.9/1.30 swing-out condenser [Optional] Push slider condenser 0.9/1.25 [Optional] Phase contrast turret condenser
  Fluorescent Filter Set With Cube	-
  Diffuser	-
  PA-25ND25 ND Filter	Optional
  Transmitted Light Filter	[Optional] Yellow filter [Optional] Green filter [Optional] Neodymium (contrast enhancement) filter [Optional] Blue conversion filter
  LBD Filter (White Balanced Filter)	Yes
  ND25 Neutral Density Filter	Yes
  ND6 Neutral Density Filter	Yes
  Analyzer Slider	[Optional] 360° Rotation analyzer Filter
  Polarizer	[Optional] Polarizer Filter

• • Trinocular Tube: Special scanning trinocular tube with 2x built-in camera.
  • Eyepieces: Adjustable Wide-Field (FN25) Eyepiece 10X/FN25.
  • Intermediate Piece: PA53 series intermediate piece.
  • Main Body (Upper): Main upper mot body PA53 Bio Scan.
  • 3D Profiler Controller: 3D-Profiler control box/pad.
  • Transmitted Light Halogen Illuminator: 100W Halogen lamp housing.
  • Halogen Bulb: 100W Halogen bulb.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (without Light shutter) completed.
    • Controller box (without light shutter).
    • Specimen holder (for scanning application).
  • Objectives:
    • Plan UC 2X/0.05, W.D=7.2mm.
    • HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17.
    • HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17.
    • HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17.
    • HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17.
  • Condenser: N.A. 0.9/1.30 swing-out condenser.
  • Filters:
    • LBD Filter (White balanced filter).
    • ND25 Neutral Density filter.
    • ND6 Neutral Density filter.
• • None
• • Cleaning Kit
  • Eyepieces: Adjustable wide-field (FN22) Eyepiece.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (with Light shutter) completed.
    • Controller box (with light shutter).
    • XY controller joystick and controller box for stage.
  • Objectives: HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17.
  • Long Working Distance Condenser: LWD N.A. 0.63 WD 10.7mm Condenser.
  • Condenser:
    • Push slider condenser 0.9/1.25.
    • Phase contrast turret condenser.
  • Filters:
    • PA-25ND25 ND filter.
    • Yellow filter.
    • Green filter.
    • Neodymium (contrast enhancement) filter.
    • Blue conversion filter.
  • Analyzer Slider: 360° Rotation analyzer filter.
  • Polarizer: Polarizer filter.
• • Flyer

View full product details »

Motic PA53 FS6 Laboratory Scanner with LED Illumination

Request Quote

High-Precision Digital Scanning for Laboratories with Advanced Technology

The Motic PA53 FS6 delivers detailed imaging and efficient analysis, optimizing workflow in modern laboratories.

The PA53 FS6 Scan system is an advanced platform offering maximum flexibility for scanning and assembling images of fluorescent samples. It allows you to choose between using an HBO illuminator or a high-quality LED illuminator, adapting to different fluorochrome combinations. Additionally, it includes options such as extended focus, an excellent solution for applications like FISH, and Z-stack scanning to obtain detailed images across multiple planes.

This digital slide scanning system, based on a microscope, ensures superior quality thanks to its full optical path and Köhler illumination.

Features

• PA53 FS6 Scan scanning platform designed for flexibility in scanning and combining fluorescent samples.
• Compatibility with HBO or high-quality LED illuminators for use with different fluorochromes.
• Option for scanning with extended focus or Z-stacking, ideal for applications like FISH.
• Complete optical system with Köhler illumination configuration for superior quality.
• High-precision stage that allows physically relocating the Region of Interest and re-scanning with high-resolution objectives and high N.A.
• No limitations on the use of objectives, allowing super high-resolution scans with oil immersion objectives.
• Ability to use different contrast methods, such as phase contrast or polarization, and scan unstained samples.
• Includes a specially designed tube with a 1.2 Mpixel focus camera and a high-resolution 5 Mpixel sCMOS camera for imaging.
• Recommendation for using Lumos LED illumination for stable and homogeneous lighting with low consumable costs.
• Compatibility with HBO mercury burners as an alternative.
• High-precision motorized stage with 100mm x 100mm travel and a minimum step size of 10 nm, with repeatability better than 200 nm.
• Motorized 5-position nosepiece that allows smooth objective changes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Trinocular Tube	Special trinocular tube for scanning with 2 integrated cameras
  Eyepieces	Adjustable wide-field eyepiece (FN 22)
  Intermediate Tube	-
  Upper Main Body	Motorized upper body PA53 FS6 Scan
  3D Profiler Controller	3D-Profiler control box/panel
  Motorized Revolver	Full motorized quintuple revolver
  Fluorescence Accessory	Epi fluorescence accessory PA53 FS6 Scan with 6-position filter turret
  Transmitted Light Illuminator	100W halogen lamp housing
  Halogen Bulb	100W halogen bulb
  LED Illuminator	Lumos LED illuminator with 3 color LEDs and external control for each LED intensity
  Motorized Stage	100mm x 100mm motorized stage with light shutter Control box with light shutter Sample holder for scanning applications [Optional] XY joystick controller and control box for stage
  Objectives (Sapo, Suitable for Fluorescence)	Plan UC 2X/0.05, W.D=7.2mm HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17 HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17 HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17 HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17 [Optional] HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17
  Long Working Distance Condenser	[Optional] LWD N.A. 0.63 WD 10.7mm
  Condenser	N.A. 0.9/1.30 swing-out condenser [Optional] Sliding condenser 0.9/1.25 [Optional] Condenser with turret for phase contrast
  Fluorescent Filter Set	Fluorescent filter with cube AT-DAPI/Hoechst/AlexaFluor 350 AT-EGFP/FITC/Cy2/AlexaFluor 48 AT-TRITC/Cy3/TagRFP/AlexaFluor 546 [Optional] AT-Cy5/AlexaFluor 647/Draq5/Cy5
  Diffuser	Yes
  Transmitted Light Filters	[Optional] Yellow filter [Optional] Green filter [Optional] Neodymium filter (contrast enhancement) [Optional] Blue conversion filter
  LBD (White Balance) Filter	Optional
  Neutral Density Filters	ND25 (Optional) ND6 (Optional)
  Rotary Analyzer	[Optional] 360° rotary analyzer filter
  Polarizer	[Optional] Polarizer filter

• • Main Body of the Microscope: Robust structure housing the optical and mechanical systems.
  • Trinocular Head: Allows simultaneous observation through the eyepieces and camera output, facilitating image capture.
  • Wide-Field Eyepieces 10X/23mm: Provide a clear and wide view of the observation field.
  • High-Quality Objectives: Includes objectives with different magnifications for a variety of applications.
  • Dark Field Condenser: Essential for phase contrast techniques and observation of transparent samples.
  • Mechanical Stage: Facilitates precise movement of samples during observation.
  • Illumination System: Equipped with a light source suitable for user needs.
  • Image Acquisition Software: Includes Motic Images Plus 3.0 software for image capture and analysis.
  • 3D-Profiler Controller: Allows precise control of focus and 3D image acquisition.
  • Fluorescence Filters: Includes filter cubes for different fluorochromes such as DAPI, FITC, and TRITC, facilitating the observation of fluorescent samples.
  • Integrated Camera: Equipped with a high-resolution camera for image capture.
  • User Manual: Provides detailed instructions for assembly, operation, and maintenance of the equipment.
  • Assembly and Calibration Tools and Accessories: Includes all necessary items for assembling and calibrating the microscope.
  • Transport Case: Facilitates the safe transport of the equipment.
• • None
• • Fluorescence Filters with Cube:
    • AT-DAPI/Hoechst/AlexaFluor 350
    • AT-EGFP/FITC/Cy2/AlexaFluor 488
    • AT-TRITC/Cy3/TagRFP/AlexaFluor 546
    • AT-Cy5/AlexaFluor 647/Draq5/Cy5
  • Transmitted Light Filters:
    • Yellow Filter
    • Green Filter
    • Neodymium Filter (contrast enhancement)
    • Blue Conversion Filter
  • Neutral Density Filters:
    • ND25 Filter
    • ND6 Filter
  • 360° Rotary Analyzer
  • Polarizer
  • Specialized Condensers:
    • Dark Field Condenser
    • Phase Contrast Condenser
  • Camera Adapters:
    • C-mount 0.5X Adapter
    • C-mount 1X Adapter
    • C-mount 0.35X Adapter
    • C-mount 0.65X Adapter
  • Wide-Field Eyepieces 10X/23mm with Diopter Adjustment
  • Mechanical Stage for Precise Sample Movement
  • Cleaning and Maintenance Accessories
  • Rigid Transport Case
  • Cleaning Kit
• • Flyer

View full product details »

Motic PA53MET Trinocular Compound Microscope up to 100X with Reflected Illumination

Request Quote

Motic PA53-MET Metallurgical Microscope: Optical Excellence for Precision Analysis

Cutting-edge technology with infinity-corrected optics illumination, and interchangeable modules for advanced metallurgical applications

The Motic PA53-MET Metallurgical Microscope redefines microscopic analysis standards with its CCIS® infinity optical system and modular versatility. Designed for metal, ceramic, and industrial material inspection, it combines high-resolution S-APO optics with ergonomic controls that minimize fatigue during prolonged sessions. With Brightfield, Nomarski DIC, and polarization capabilities, it's the preferred tool for quality control labs and metallographic research.

Key Features:

• Professional Optics: Plan S-APO lenses with chromatic correction (5X-100X) and wide WD for distortion-free images.
• Modular System: Configurable with transmitted/reflected illumination, XY stages or 12" wafers.
• DIC Technology: Single Nomarski prism for differential contrast at all magnifications.
• Köhler Illumination: 100W halogen with integrated ND filters for precise light regulation.
• Ultra-Precise Focus: Dual coarse/fine knobs (1μm resolution) with adjustable stop.
• Ergonomic Design: 20° inclined trinocular head with 100% eyepiece/camera selection.
• 3D Compatibility: PA53MET-3D option with controlled Z-axis for volumetric measurements.
• Robust Construction: 19kg chassis with vibration damping for industrial environments.

PA53MET Model Comparison

• Specifications
• In the Box
• Optional Items
• Documents

• Specification	PA53MET	PA53MET-3D	PA53MET-T	PA53MET-BD	PA53MET-BD-3D	PA53MET-BD-T
  Optical System
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination
  Illumination Type	Reflected	Reflected	Reflected/Transmitted	Reflected	Reflected	Reflected/Transmitted
  Observation Tube
  Configuration	Binocular (Optional) Upright type (F.N 25), 20° inclined		Trinocular Upright type (F.N 25), 20° inclined, Trinocular light path selection: 2 steps (100:0 / 0:100)	Binocular (Optional) Upright type (F.N 25), 20° inclined		Trinocular Upright type (F.N 25), 20° inclined, Trinocular light path selection: 2 steps (100:0 / 0:100)
  Eyepieces	10X (F.N 25), Adjustable diopter, Optional reticle
  Objective Turret
  Type	5-position Brightfield objective lens turret with DIC slot		Brightfield/Darkfield/5-position Brightfield, Darkfield objective lens turret with DIC slot	5-position Brightfield objective lens turret with DIC slot		Brightfield/Darkfield/5-position Brightfield, Darkfield objective lens turret with DIC slot
  Objectives
  Plan S-APO	5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)		Plan S-APO BD/5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)	5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)		Plan S-APO BD/5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)
  LPlan S-APO (Optional)	20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm		LPlan S-APO BD (Optional)/20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm	20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm		LPlan S-APO BD (Optional)/20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm
  Base Unit - Focus
  Specifications	Travel range: 29.5 mm / Coarse and fine focus knobs. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stop, Torque adjustment ring
  Base Unit - Electronics
  Features	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  3D Profile Module
  Availability	No	Yes	No	No	Yes	No
  Mechanism
  Motor	High-resolution 5-phase stepping motor, Long cross roller guide system		-	High-resolution 5-phase stepping motor, Long cross roller guide system		-
  Travel distance	30 mm		-	30 mm		-
  Resolution	0.01μm		-	0.01μm		-
  Repeatability	0.5μm		-	0.5μm		-
  Maximum speed	1.4 mm/sec		-	1.4 mm/sec		-
  Dimensions	240(W) X 157(D) X 202.5 (H) mm		-	240(W) X 157(D) X 202.5 (H) mm		-
  Weight	5 kg		-	5 kg		-
  Load capacity	15 kg		-	15 kg		-
  Reflected Illumination
  System	Köhler illumination system Brightfield, Normaski DIC, Simple polarization		BF/DF/Köhler illumination system Brightfield/Darkfield, Normaski DIC, Simple polarization	Köhler illumination system Brightfield, Normaski DIC, Simple polarization		BF/DF/Köhler illumination system Brightfield/Darkfield, Normaski DIC, Simple polarization
  Light source	12V 100W halogen
  Transmitted Illumination
  Availability	No	No	Yes	No	No	Yes
  Illumination System	-		Köhler illumination system Brightfield/Built-in filters	-		Köhler illumination system Brightfield/Built-in filters
  Light Source	-		12V 100W halogen	-		12V 100W halogen
  Lamp	-		Long-life 12V 100W halogen bulb (Philips 7724)	-		Long-life 12V 100W halogen bulb (Philips 7724)
  Condenser	No		Yes	No		Yes
  Abbe-N.A	-		1.20	-		1.20
  Long-working	-		LWCD, N.A 0.65	-		LWCD, N.A 0.65
  Stage
  Standard	4x4 inch size 210(W) X 170(D) mm, Travel 104(X) X 102(Y) mm, metal plate, glass plate
  Options	6x6" Stage, 6x6" Stage, 8" Wafer Stage, 12" Wafer Stage

• • PA53MET Microscope
  • 10X Eyepieces (F.N 25) with Diopter Adjustment
  • Metal Plate and Glass Plate for the Stage
  • Integrated Power Supply
  • 12V 100W Halogen Bulb
  • Instruction Manual
  • Protective Cover
• • Additional Reflected Light Illuminators
  • Transmitted Light Illuminators
  • XY Stages
  • 3D Profile Module

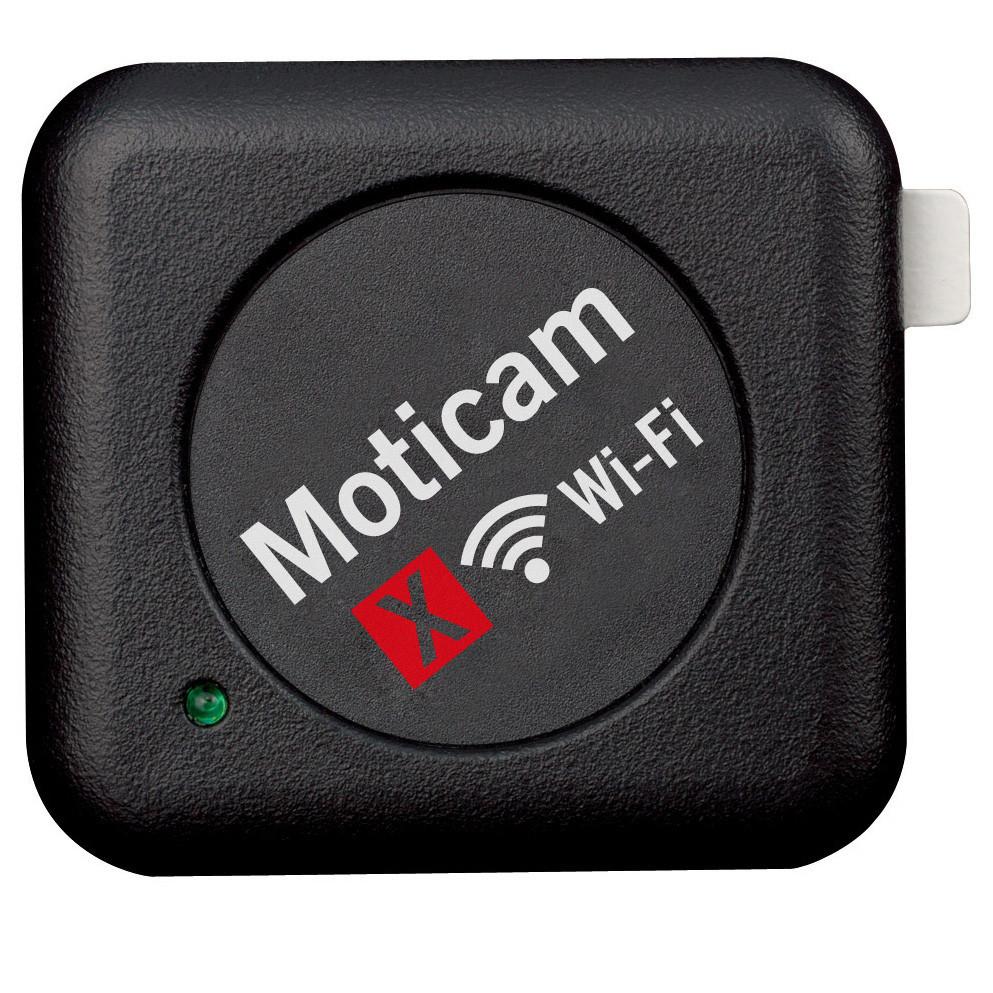

  • Moticam Digital Cameras
  • Plan S-APO and LPlan S-APO Objectives
• • Catalog
  • Specifications
  • Instructions

View full product details »

Motic Panthera Cloud Digital Compound Microscope up to 1000X with Wi-Fi HDMI Ethernet Connectivity

Request Quote

Panthera Cloud: Revolutionizing Microscopy with Cutting-Edge Connectivity and Precision

Experience the Future of Microscopy with Superior Optics, Versatile Imaging, and Seamless Data Sharing

The Panthera Cloud microscope is a state-of-the-art instrument designed for professionals who demand precision, innovation, and connectivity. Featuring the advanced CCIS® optical system, it delivers unparalleled clarity and color fidelity for a wide range of applications. The integrated ImagingOnDevice system and multiple live display modes (Ethernet, HDMI, Wi-Fi) make data sharing effortless, while the Motic LightTracer technology ensures optimal illumination control. Equipped with a robust mechanical stage, versatile contrast options, and high-performance objectives, the Panthera Cloud is the ideal solution for research, education, and clinical diagnostics.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Panthera Cloud
  Observation tube	Binocular head, Siedentopf type 25°, 360° swiveling
  Optical system	Colour Corrected Infinity Optical System (CCIS®)
  Sensor Type	CMOS
  Sensor Size	1/2.5"
  Capture Resolution Info	8MP
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Darkfield	Optional slider/turret
  Data transfer	Wi-Fi, HDMI, Ethernet
  Diaphragm	Iris diaphragm
  Diopter adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Filter holder	On top of the illuminator with fixing cap
  Fine focus precision	2µm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing stroke	25mm
  Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
  Inclination	25° inclined, 360° swivelling
  Interpupillary distance	48-75mm
  Live display mode through Ethernet	1280x720, 1920x1080 pixels (Full HD)
  Live display mode through HDMI	1920x1080 (Full HD)
  Live display mode through Wi-Fi	1920x1080 (Full HD)
  Nosepiece	Reversed quintuple, coded
  Objective classification	CCIS® UC Plan Achromatic (Pb free), DIN
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Other features	USB 2.0 for external Devices (x2)
  Phase contrast	Optional slider/turret
  Polarization	Optional add-on
  Stage	Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	185x145mm
  Stand type	Upright
  Standard contrast technique	Brightfield
  Transmitted illumination	Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  Travel range X&Y	75x50mm
  Upper limit stop	Upper limit stop preset but adjustable
  Software	ImagingOnDevice System (Panthera App embedded)
  Transformer	Internal
  Power supply	110-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
  Dimensions LxWxH	282x210x394mm
  Weight Net	8.8 kg (19,4 lbs)

• • Panthera Cloud Microscope
  • Dust cover
  • Power cord
  • Allen key
  • Immersion oil (5ml)
  • Blue filter
  • Halogen bulb
  • LED module
  • HDMI cable
  • Wi-Fi USB dongle
  • Calibration slide
• • None
• • Cleaning Kit
  • Darkfield slider/turret
  • Phase contrast slider/turret
  • Polarization add-on
  • Additional objectives
  • LED color temperature modules
• • Catalog
  • Specifications
  • Product Manual

View full product details »

Motic Panthera E2 Upright Compound Microscope up to 1000X

Request Quote

Panthera E2 Compound Microscopes: Advanced Optics and Ergonomic Design for Professionals

Designed for Clarity and Versatility in a Compact Form

The Panthera E2 offers exceptional image quality with its Color Corrected Infinity Optical System (CCIS®). Ideal for educational and laboratory settings, it features a user-friendly design, adjustable optics, and efficient LED illumination. This upright microscope is equipped with a wide range of objectives and accessories to ensure accuracy in imaging and versatility for various research needs.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera E2 Binocular	Panthera E2 Trinocular
  Model	1100104601116	1100104601126
  Optical system	Color Corrected Infinity Optical System (CCIS®)
  Observation tube type	Binocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Inclination	25° inclined, 360° rotating (storage saving), 360° swiveling
  Trinocular light division	-	Fixed 50:50
  Interpupillary distance	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield UC-WF10X/20mm with diopter adjustment
  Revolver	Reversed quadruple
  Objective classification	CCIS® UC Plan Achromatic (Pb free)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Base type	Upright
  Stage	Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	140x135mm
  X&Y travel range	75x40mm
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Diaphragm	Iris diaphragm
  Focusing mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine focusing precision	2μm
  Focusing travel	25mm
  Upper limit stop	Upper limit stop preset but adjustable
  Filter holder	On top of the illuminator
  Transmitted illumination	Fixed Koehler LED 1W with intensity control
  Illumination features	Nosepiece LED light intensity indicator
  Transformer	Internal
  Power supply	110-240V (CE), USB 2.0 for battery pack
  Other features	USB 2.0 for external camera power
  Included accessories	Dust cover, power cord, Allen key
  Dimensions LxWxH	282x210x396mm
  Net weight	7.5kg (16.5lbs)

• • Objectives:
    • 4X/0.10 (WD 30.5mm)
    • 10X/0.25 (WD 17.4mm)
    • 40X/0.65/S (WD 0.6mm)
    • 100X/1.25/S-Oil (WD 0.16mm)
  • Dust Cover
  • Power Cord
  • Allen Key
  • Immersion Oil (5ml)
  • Manufacturer's Documentation
• • None
• • Cleaning Kit
  • Camera (for digital imaging)
  • Polarizer
  • Fluorescence kit
  • Additional objectives
  • Stage clips
  • Contrast filters
  • Advanced illumination system
  • Battery pack
• • Catalog - English
  • Catalog - Spanish
  • Specifications – Panthera E2 Binocular
  • Specifications – Panthera E2 Trinocular
  • Product Manual

View full product details »

Motic Panthera TEC MAT Trinocular Upright Compound Microscope up to 500X

Request Quote

Panthera TEC MAT - Powerful Solutions for Material Sciences

High-Precision Microscopes With Corrected Optical System And Integrated LED Technology For Professional Applications In Research And Education

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

Features

• Smart Darkfield with 5 Segment illumination mode
• New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
• Pure incident or incident/ transmitted microscope stands available
• LED color temperature interchangeable
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC MAT BF	Panthera TEC MAT BF-T	Panthera TEC MAT BD	Panthera TEC MAT BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Trinocular head, Siedentopf type, 360º swiveling
  Inclination	25º inclined, 360º swivelling
  Trinocular Light Split	Fixed 50:50
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Intermediate Body	Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
  Nosepiece	Reversed quintuple, coded
  Objective Classification	CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN		CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)
  Objectives	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm), S-Apo 100X/0.90 (WD 0.5mm) (Optional)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)		M32
  Stand Type	Upright
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
  Stage Size	300x180mm
  Travel Range X&Y	150x100mm (6"x4")
  Condenser	-	LED condenser	-	LED condenser
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Incident Illumination	LED 3W with integrated field and aperture diaphragms		LED 3W smart segmental ringlight with integrated field and aperture diaphragms
  Transmitted Illumination	-	0.06Wx39 LEDs	-	0.06Wx39 LEDs
  Illumination Interchangeability	LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, screws for metal extension support
  Dimensions LxWxH	410x300x450mm
  Weight Net	10.4kg (23 lbs)	10.6kg (23,1 lbs)	10.5kg (23,3 lbs)	10.7kg (23,5 lbs)
  Standard Contrast Technique	Brightfield		Brightfield, Darkfield
  Optional Contrast Technique	Polarization

• • Microscope Panthera TEC MAT
  • Dust cover
  • Power cord
  • Allen key
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Polarization kit
  • Darkfield condenser
  • Fluorescence module
  • Camera for external USB connection
  • Objective lens (e.g., 100X/0.90 for higher magnification)
  • Microscope cover or case for added protection
• • Catalog
  • Specifications – BF (6"x4")
  • Specifications – BF-T (6"x4")
  • Specifications – BD (6"x4")
  • Specifications – BD-T (6"x4")

View full product details »

Motic Panthera TEC POL EPI Upright Compound Microscope up to 600X

Request Quote

Panthera TEC POL EPI- Powerful Solutions for Incident and Transmitted Light Methods

The Panthera TEC POL EPI Is Designed For Precise, High-Resolution Observations, Equipped With Advanced Optics, Built-In LED Illumination, And A Customizable Configuration (Binocular, Trinocular, Or Digital). It's Ideal For Polarization Applications In Research Or Laboratory Environments.

The Panthera TEC POL EPI series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL EPI (Binocular)	Panthera TEC POL EPI (Trinocular)	Panthera TEC POL EPI (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-		CMOS
  Sensor Size	-		1/2.5"
  Capture Resolution	-		5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-		1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-		1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-		1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators
  Objective Classification	Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22,9 lbs)	9.8kg (21,6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL EPI Microscope (Binocular/Trinocular/Digital version)
  • Power cord
  • Dust cover
  • Allen key
  • Blue filter
  • Halogen bulb
  • Adjustable key for nosepiece
  • Interference color chart
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Motic Cameras (USB, HDMI, Wi-Fi models)
  • Motic Software
  • C-Mount Adapters
  • Additional objectives
  • Replacement bulbs
  • Fluorescence filters
• • Catalog
  • Specifications – Binocular
  • Specifications – Trinocular
  • Specifications – Digital

View full product details »

Motic Panthera TEC POL Upright Compound Microscope up to 600X with Circular Rotating Stage

Request Quote

Panthera TEC POL - Powerful Solutions for Incident and Transmitted Light Methods

The Motic Panthera TEC POL Polarizing Microscope Is Designed For Material Science Applications, Enabling The Analysis Of Transparent And Opaque Samples With Birefringence And Bireflection Characteristics.

The Panthera TEC POL series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL (Binocular)	Panthera TEC POL (Trinocular)	Panthera TEC POL (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-	-	CMOS
  Sensor Size	-	-	1/2.5"
  Capture Resolution	-	-	5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-	-	1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-	-	1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-	-	1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Rotatable analyzer 360º, Bertrand lens and slot for compensators
  Objective Classification	CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22.9 lbs)	9.8kg (21.6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL Polarizing Microscope
  • Binocular or Trinocular Siedentopf Head with 25° Inclined Eyepiece Tubes
  • Widefield 10x Eyepieces with Diopter Adjustment
  • Intermediate Tube with 360° Rotatable Analyzer, Bertrand Lens, and Compensator Slot
  • CCIS® UC Plan Achromatic (Stress-Free) Objectives: 4X, 10X, 40X, and 60X
  • 360° Rotating Circular Stage with 0.1° Vernier Scale
  • Abbe Swing-Out Achromatic Condenser N.A. 0.90/0.13 (Stress-Free) with Rotatable Polarizer
  • Koehler Illumination with 6V/30W Quartz Halogen and Intensity Control
  • Motic LightTracer Features: Light Memory, Sleep Mode (Auto On-Off), LED Nosepiece Light Intensity Indicator
  • Dust Cover
  • Power Cord
  • Allen Key
  • Blue Filter
  • Halogen Bulb
  • Adjustable Wrench for Nosepiece
  • Interference Color Chart
  • Screws for Metal Extension Support
• • None
• • Cleaning Kit
  • Empty Insertion Plate
  • Quartz Wedge
  • 1/4 Wave Plate
  • Wave Tint Plate
  • 45mm Microscope Filters (Yellow, Green, Neutral Density N.D.2, Didymium, Blue)
  • Mechanical Stage for Polarizing Microscope
  • Reticle with Pointer, 25mm Diameter
  • KIMTECH Kimwipes Cleaning Cloths
• • Catalog
  • Specifications - Binocular
  • Specifications - Trinocular
  • Specifications - Digital

View full product details »

Motic PX43MET Trinocular Inverted Compound Microscope with Brightfield Darkfield Contrast and Polarization

Request Quote

PX43MET Inverted Microscope - Advanced Optical Solution for Precision Research

High-Quality Imaging and Exceptional Features for Industrial and Biomedical Applications

Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.

Features

• DIC for better depth imaging
• Polarization
• Brightfield and Darkfield contrast methods
• Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	PX43MET Inverted Microscope
  Optical System	Color Corrected Infinity Optical System (CCIS)
  Observation Tube	360° swivel range, height difference 40mm
  Interpupillary Distance	Adjustment range: 48mm to 75mm
  Eyepieces	UC-WF 10X/FN22
  Trinocular Light Path	20:80
  Nosepiece	Quintuple Revolving Nosepiece
  Objectives	Plan S-Apo BD 5X; Plan S-Apo BD 10X; Plan S-Apo BD 20X; LPlan S-Apo BD 50X
  Stage Size (mm)	Size: 320(W) x 194(L) mm, Stroke: 50 x 50 mm
  Focus	Course/Fine Focus Knob, Course 42mm/revolution, Fine 0.2mm/revolution, 0.002mm/marks
  Transmitted Light	Reflected Light 100W Light House RL100.00
  Electronics	115/230V~, 60/50Hz Halogen Light: 12V / 100W
  DIC	Optional
  Analyzer	Optional
  Polarizer	Optional

• • PX43MET Inverted Microscope
  • UC-WF 10X/FN22 Eyepieces
  • Plan S-Apo BD Objectives: 5X, 10X, 20X, 50X
  • Quintuple Revolving Nosepiece
  • Course and Fine Focus Knob
  • Reflected Light 100W Light House RL100.00
  • Power Cable (115/230V, 60/50Hz)
  • Instruction Manual
• • None
• • Cleaning Kit
  • Microcope Cameras Moticam
  • Led Lights
• • Catalog
  • Specifications
  • Manual

View full product details »

Motic SMZ-171 Series Trinocular Stereo Microscope Zoom 7.5X-50X

Request Quote

Estereomicroscopio Motic SMZ-171 para investigación y control de calidad

Microscopio estéreo de alta precisión con óptica avanzada Greenough

Un estereomicroscopio flexible diseñado para trabajos de investigación avanzada en biomedicina y control de calidad industrial. Su sistema óptico Greenough proporciona imágenes tridimensionales nítidas con un rango de zoom de 6,7:1, ofreciendo ampliaciones de 7,5X a 50X en configuraciones estándar. Las paradas de clic garantizan la reproducción precisa de la ampliación, facilitando el trabajo en serie. Su sistema de iluminación LED transmitida e incidente, integrado y listo para usar, lo convierte en una herramienta ideal para laboratorios y centros de investigación.

Características Destacadas

• Sistema óptico Greenough para imágenes 3D de alta calidad.
• Zoom de 6,7:1 con ampliación de 7,5X-50X.
• Iluminación LED transmitida e incidente integrada.
• Paradas de clic para reproducción precisa de la ampliación.
• Distancia de trabajo de 110 mm para mayor comodidad.
• Base amplia de 303x239 mm para estabilidad.
• Opciones de iluminación y polarización adicionales disponibles.
• Diseño ergonómico con ajuste de dioptrías en ambas oculares.

• Especificaciones
• En la Caja
• Artículos Requeridos
• Artículos Opcionales
• Documentos

• Especificaciones
  Tipo de Iluminación	SMZ-171-TLED	SMZ-171-TP
  Tubo de Observación	Cabeza trinocular
  Sistema Óptico	Greenough
  Base	303x239 mm
  Columna / Brazo	Altura 232 mm, Ø32 mm	Altura 290 mm, Ø32 mm
  Campo Oscuro	Complemento opcional
  Ajuste de Dioptrías	En ambas oculares, +/- 5 dioptrías
  Oculares	Widefield N-WF10X / 23 mm con ajuste de dioptrías
  Mecanismo de Enfoque	Sistema de foco grueso con ajuste de tensión
  Curso de Foco	49 mm
  Suporte para Cabeza	Para columna de Ø32 mm y cabeza de Ø76 mm
  Funciones de Iluminación	Luz transmitida con reflector inclinable	N/A
  Iluminación Incidente	LED 3W con control de intensidad	N/A
  Inclinação	45° inclinado
  Distancia Interpupilar	52-75 mm
  Objetivos	0,75X ~ 5X
  Sistema de Objetivos	Zoom, relación 6,7:1
  Polarización	Complemento opcional	N/A
  Tipo de Soporte	Soporte tipo poste con iluminación transmitida	Soporte tipo poste sin iluminación
  Técnica de Contraste Estándar	Campo claro
  Iluminación Transmitida	LED 3W con reflector y control de intensidad	N/A
  Distancia de Trabajo	110 mm
  Transformador	Externo	N/A
  Fuente de Alimentación	100-240 V (CE)	N/A
  Dimensiones	303x239x405 mm	303x239x370 mm
  Peso	6,2 kg	5,7 kg

• • Microscopio trinocular Motic Serie SMZ-171 (1)
  • Cobertura contra polvo (1)
  • Placa de platina negra/blanca (Solo en la versión SMZ-171-TP)
  • Placas de escenario negra/blanca y mate (Solo en la versión SMZ-171-TLED)
• • Ninguno
• • Ninguno
• • Manual de especificaciones técnicas (Inglés)

View full product details »

Motic Stereo Microcopes SMZ-160 Series

$ 799.00 USD

Advanced Motic Stereo Microscopes SMZ160 Series

High-Quality Optics For Precise And Versatile Biological Observations

The SMZ-160 is a professional-quality stereoscopic microscope designed for industrial and educational environments. The 6:1 zoom ratio and a standard working distance of 100 mm provide the flexibility to support a wide range of potential applications, while the addition of an auxiliary lens or replacement eyepieces expands the magnification up to a maximum of 180X.

Additional contrast methods, such as polarization microscopy and darkfield microscopy, are easily achieved through the addition of optional accessories.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Especification	SMZ-160-BLED	SMZ-160-BP	SMZ-160-TLED	SMZ-160-TP
  Observation tube	Binocular head	Binocular head	Trinocular head	Trinocular head
  Optical system	Greenough	Greenough	Greenough	Greenough
  Base	237x170mm	280x220mm	237x170mm	280x220mm
  Column/Arm	Height 205mm, Ø25mm	Height 221mm, Ø25mm	Height 205mm, Ø25mm	Height 221mm, Ø25mm
  Diopter adjustment	On both tubes, +/- 5 diopter	On both tubes, +/- 5 diopter	On both tubes, +/- 5 diopter	On both tubes, +/- 5 diopter
  Eyepieces	Widefield WF10X/20mm	Widefield WF10X/20mm	Widefield WF10X/20mm	Widefield WF10X/20mm
  Focus mechanism	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment
  Focusing stroke	43mm	43mm	43mm	43mm
  Head holder	For Ø 25mm column and Ø76mm head with incident illumination	For Ø 25mm column and Ø76mm head	For Ø 25mm column and Ø76mm head with incident illumination	For Ø 25mm column and Ø76mm head with incident illumination
  Inclination	45° inclined	45° inclined	45° inclined	45° inclined
  Interpupillary Distance	55-75mm (2.17-2.95 inches)	55-75mm (2.17-2.95 inches)	55-75mm (2.17-2.95 inches)	55-75mm (2.17-2.95 inches)
  Objectives	0.75X~4.5X	0.75X~4.5X	0.75X~4.5X	0.75X~4.5X
  Objective System	Zoom, 6:1 ratio	Zoom, 6:1 ratio	Zoom, 6:1 ratio	Zoom, 6:1 ratio
  Stand Type	Post stand with transmitted illumination	Post stand without illumination	Post stand with transmitted illumination	Post stand with transmitted illumination
  Standard Contrast Technique	Brightfield	Brightfield	Brightfield	Brightfield
  Working Distance	100mm (3.94 inches)	100mm (3.94 inches)	100mm (3.94 inches)	100mm (3.94 inches)
  Transformer	Internal	Fixed 50:50	Internal	Fixed 50:50
  Included Accessories	Black, white, and frosted stage plates, and dust cover	Black, white, and frosted stage plates, and dust cover	Black, white, and frosted stage plates, and dust cover	Black and white stage plates, and dust cover
  Dimensions (LxWxH)	237x170x398mm (9.33x6.69x15.67 inches)	280x220x367mm (11.02x8.66x14.45 inches)	237x170x398mm (9.33x6.69x15.67 inches)	280x220x367mm (11.02x8.66x14.45 inches)
  Net Weight	3.5kg (7.72 lbs)	3.2kg (7.05 lbs)	3.7kg (8.16 lbs)	3.4kg (7.50 lbs)

• • Stereo Microscope (1)
  • Manual (1)
• • Motic Photography Camera (Only for Trinocular Models)
• • Carrying Case
  • Eyepieces
  • Cleaning Kit
  • Micrometer Eyepieces
  • Reticle for N-WF Eyepieces
  • Objectives
  • Stands
  • Photo Adapters
  • C-Mount Adapters
  • Additional Illumination
• Brochure (English)

View full product details »

Motic Stereo Microcopes SMZ140 Series

$ 606.00 USD

Make use of the convenience and versatility of seeing a large image at 10X magnification,...

View full product details »

Motic Swift Line M3800 Series Microscope

Request Quote

View full product details »

Motic SwiftLine Swift3H-B 1X-40X Binocular Microscope

Request Quote

View full product details »

Moticam 1080 HDMI & USB Microscope Camera

Request Quote

View full product details »

Moticam 4000X Camera for Microscopes

Request Quote

Moticam 4000X Camera: True 4K Live Imaging

Total Versatility for Microscopy with Direct HDMI Screen Connection, Built-In Software, and Capture Without a Computer

Discover our new Moticam 4000X, designed for efficiency and to quickly deliver live images in 4K (3840 x 2160 px).

Connect it to a screen via the HDMI port and display your live image. With the built-in software and a USB mouse, you can perform live measurements, take notes, adjust images, and more, directly on the HDMI screen, without the need for a computer.

Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easier to save and organize your images and videos. You can also connect your camera via USB to a Windows or Mac computer and even display your samples simultaneously.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Moticam 4000X
  Sensor type	CMOS
  Sensor size	1/2.8"
  Imaging area	6.4mm (diagonal)
  Capture resolution	8MP (3840x2160 pixels)
  Image capture resolution (on SD-card)	8MP (3840x2160 pixels)
  Video capture resolution (on SD-card)	1080P (1920x1080 pixels)
  Live display mode through USB	4K (3840x2160 pixels)
  Live display mode through Wi-Fi	4K (3840x2160 pixels)
  Live display mode through Ethernet	4K (3840x2160 pixels)
  Live display mode through HDMI	4K (3840x2160 pixels)
  Pixel size	1.45 x 1.45μm
  Scan mode	Progressive
  Shutter mode	Rolling Shutter
  Data transfer	HDMI, USB, Wi-Fi, Ethernet, Micro SD-card
  Max. frames per second (fps)	HDMI: 4K (3840x2160) @30fps USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps
  Exposure Time	0.03ms ~ 1000ms
  Operating Temperature	From -10 to +50 degrees Celsius non-condensing
  Sensitivity	300mV with 1/30s
  Slot	Micro SD-Card
  Buttons	On/Off
  Compatible Devices	TWAIN, SDK, and Direct Show Driver
  Minimum Computer Requirements	Core2, 2.8GHz, RAM Memory 8GB
  Lens Mount	C-Mount
  Focusable Lens	12mm
  Software	On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher, and the MotiConnect App for iOS and Android
  Functions	Including exposure, gain, white balance, color adjustment, sharpness, and noise reduction control, zoom, mirror, comparison, freeze, measurement, cross, and navigation function
  Power Supply	12V (External power supply)
  Package Includes	CS ring adapter, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1
  Notes	USB port for connecting a mouse to enable software control Transport and storage case

• • CS ring adapter
  • Focusable lens
  • 30mm and 38mm eyepiece adapters
  • Motic 4-dot calibration slide
  • Macro calibration card
  • Macro tube
  • Universal power supply
  • HDMI cable
  • USB 3.0 cable
  • Motic Images Plus 3.1
• • Microscope
  • • C-mount adapters
    • Reduction lenses
    • Capture and analysis software
    • Color filters
    • Additional light sources
    • USB or HDMI extension cables
    • Cleaning Kit
    • Memory cards
    • Carrying case
  • • Flyer (English)
    • Catalog (English)
    • Specifications (English)
    • Software Details (English)
    • Instructions - Moticam 4000X (English)
    • CCD Adapters for Moticams (English)
    • Connect Your Moticam (English)

View full product details »

Moticam BMH4000X Camera for Microscopes with LCD Screen

Request Quote

Moticam BMH4000X Camera: 4K Image Capture with Maximum Versatility

Comprehensive Microscopy Solution with Built-in LCD Screen, HDMI Connectivity, and Portable Storage

The Moticam BMH4000X is a multitasking microscopy camera with a C-mount, offering an impressive Full HD live image with maximum color fidelity on an integrated LCD screen.

It does not require a computer for standard operation, as it includes built-in software that allows it to be used through its 11.6” Full HD screen, with a mouse connected to the camera's USB port.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Moticam BMH4000X
  Sensor Size	1/2.8"
  Image Output	HDMI, UXC, WIFI 5
  Capture Resolution	8MP
  Pixel Size	1.45 x 1.45μm
  Scan Mode	Progressive
  Shutter Mode	Rolling Shutter
  Lens Mount	C-Mount
  Maximum Frames Per Second (fps)	HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160
  Image Capture	JPEG/TIFF format with 4K resolution (3840x2160) on SD card
  Video Recording	4K (30fps @ 3840x2160) MP4 file encoded with H264/H265 on SD card
  Screen	11.6" LCD native 1920x1080 pixels Full HD
  Software	Motic Images Plus 3.1 for Windows/Mac OS

• • Moticam BMH4000X Camera
• • Microscope
• • C-mount adapters
  • Reduction lenses
  • Capture and analysis software
  • Color filters
  • Additional light sources
  • USB or HDMI extension cables
  • Cleaning Kit
  • Memory cards
  • Carrying case
• • Brochure
  • Catalog
  • Specifications
  • Software Details
  • Instructions - Moticam 4000X
  • CCD Adapters for Moticams
  • Connect Your Moticam

View full product details »

Moticam BTI Tablet Cameras for Microscopes

Request Quote

View full product details »

Moticam BTX8 WiFi Camera with Tablet

Request Quote

View full product details »

Moticam Camera for S1 Microscopes 1.2 MP

Request Quote

The Moticam S1, as an entry-level model for back-illuminated sensor technology and fast data transfer (excellent frame rates of up to 120 fps), creates an optimal imaging environment and facilitates image capture. Create your perfect images for a professional database.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Features
  Model	Moticam S1
  Sensor Type	sCMOS
  Sensor Size	1/3 "
  Imaging Area	6.09 mm (diagonal)
  Resolution Capture Information	1.2MP
  Live View Mode Via USB	1280x960, 640x480 pixels
  Pixel Size	3.75 x 3.75 μm
  Scanning Mode	Progressive
  Shutter Mode	Rolling
  Data Transfer	USB 3.1
  Max. Frames Per Second (fps)	1280x960 @ 120fps 640x480 @ 240fps (*)
  Exposure Time	15 μsec to 2 sec
  Operating Temperature	From -10 to +60 degrees Celsius without condensation
  Max. Signal-to-Noise Ratio	0.15 mV at 1/30 seconds
  Sensitivity	2350mV (G) at 1/30 seconds
  Support Device	TWAIN Driver, SDK, and DirectShow
  TAN Compatible	Windows 7/8/10, MAC OSX, Linux or higher
  Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Minimum video memory: 512 MB
  Lens Mount	C-Mount
  Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
  Functions	Capture still images and videos, live and still image measurement, image adjustments, white balance, automatic and manual exposure, individual objective calibration system.
  Power Supply	5 V (from USB port)
  Other Features	(*) Frames per second under optimal lighting conditions and meeting technical computer requirements.

• • Moticam Microscope Camera S1 1.2 MP (1)
  • CS Ring Adapter (1)
  • USB 3.1 Cable (1)
  • 4-Point Motic Calibration Slide (1)
  • Motic Images Plus 3.0 for Windows / OSX / Linux (1)
• • C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series.
  • C-Mount for Trinocular Microscopes for Motic BA & AE Series.
  • C-Mount for Trinocular Microscopes for Motic B1 Series.
• • None
• • Software (English)
  • Catalog (English)
  • Flyer (English)
  • Specifications (English)
  • Software Details
  • CCD Adapters for Moticams (English)
  • Connect Your Moticam (English)

View full product details »

Moticam Camera for S12 Microscopes 12 MP

Request Quote

If it's about maximum resolution for printing purposes, the Moticam S12 is your choice. A frame rate of 25 fps manages the largest data volume from Motic's S-LINE. If you are interested in resolution on the screen or for printing purposes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Technical Specifications Manual (English).
• • Moticam Camera for Microscopes S1 1.2 MP (1)
  • CS Ring Adapter (1)
  • USB 3.1 Cable (1)
  • Motic 4-point Calibration Slide (1)
  • Motic Images Plus 3.0 for Windows / OSX / Linux (1)
• • C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series.
  • C-Mount for Trinocular Microscopes for Motic BA & AE Series.
  • C-Mount for Trinocular Microscopes for Motic B1 Series.
• • None
• • Catalog
  • Brochure
  • Specifications
  • Software Details
  • CCD Adapters for Moticams
  • Connect Your Moticam
