Amscope 3.5X-180X 144 LED Stereo Microscope with 10MP Camera

Request Quote

This is a trinocular stereo microscope with a compact 144 LED ring light and a 10MP USB digital camera. The microscope has a super-wide field optical system that provides a very large zoom magnification power (52:1) offering a long working distance (8", 200mm). The trinocular port uses the third port for camera capabilities or for a third person to also view, allowing you to use the remaining two ports to view your sample. The 144 LED ring light features a compact design with a built-in dimmer, providing cool, uniform, and bright LED illumination.

The digital camera captures still images and videos, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a cross-platform imaging solution. The included Windows software provides measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. Independent capture and preview resolutions let you view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in the electronics and semiconductor industries. It is also the right microscope for biological lab applications requiring low heat emission.

Key Features

• A perfect LED stereo inspection microscope with a 10MP color digital camera.
• Variable, cool, uniform, and bright 144 LED ring light illumination.
• Super wide zoom magnification power of 3.5X-180X.
• Extremely large working distance of 8" (200mm).
• High resolution with great flatness and contrast, providing sharp and clear images.
• Trinocular head with 360-degree rotating eyepiece tubes inclined at 45 degrees.
• 30mm SUPER widefield high-eyepoint eyepieces with a 20mm field of view.
• Stereo erect images with a wide field of view.
• True-color, crystal-clear, and original microscope images.
• Dual eye tubes with adjustable diopters.
• Contemporary table stand.
• Precise alignment reduces eye strain during longer viewing periods.
• Full optical glass elements.
• Precision-ground glass lenses.
• Fully chromed all-metal mechanical components.
• Adjustable interpupillary distance.
• Includes rubber eye guards.
• Manufactured under ISO 9001 quality control standard.

• Specifications
• In the Box

• Specifications
  Camera Pixels	10 megapixels
  Microscope Type	Stereo
  Application	Industrial inspection, gemology/jewelry, coin/stamp, engraving, dissection, dental lab, mineralogy
  Magnification Power	3.5X-180X
  Field of View	Extremely wide field
  Head Type	Trinocular
  Objective Power	0.7-4.5X
  Eyepiece Power	10X, 20X
  Eyepiece Size	30 mm
  Camera Sensor	CMOS
  Reduction Lens	0.5X
  Microscope Stand	Table stand: 254 x 200 x 275 mm
  Lighting Configuration	Incident (above)
  Light Type	LED
  Illumination	Ring
  Number of Bulbs	144
  Barlow Lens	0.5X, 2.0X
  Power Supply	Broadband
  Education	University, Teaching/Training
  Interpupillary Distance	55-75 mm
  Working Distance	200 mm
  Frame Rate	1.9@3584x2748 , 8 @ 1792x1374 , 27 @ 896x684
  Compatibility	Windows (32/64 bit) XP / Vista / 7/8/10, Mac OSX, Linux
  Software Specifications	Operating System Requirements: Windows (32/64 bit) XP / Vista / 7/8/10, Mac OS 10.8+, Linux kernel 3.13+. Hardware Requirements: Intel Core2 2.8GHz processor or comparable, 2GB RAM, USB2.0 port.

• • Trinocular stereo zoom head (1)
  • 10x eyepieces (2)
  • 20x eyepieces (2)
  • 0.5x Barlow lens (1)
  • 2.0x Barlow lens (1)
  • 144 LED compact ring light (1)
  • Pillar table stand (1)
  • Focusing rack (1)
  • Round plastic stage plate (1)
  • Eye guards (2)
  • Clips (2)
  • Dust cover (1)
  • User manual download (1)
  • 10MP USB2.0 digital camera with reduction lens (1)
  • 1.8m USB cable (1)
  • CD with software, driver, and user instructions (1)

EO20230505

View full product details »

Techniquip ProLine 80 66 mm, Daylight, Standard Working Distance, 8 Segments

$ 503.75 USD

View full product details »

Olympus SZ-LGR66 Ring Light Adapter for SZ51 & SZ61

$ 82.95 USD

View full product details »

Amscope 10X-200X 0.3MP USB Digital Microscope with LED Illumination and Stand

Request Quote

View full product details »

Amscope 40X to 640X Trinocular Inverted Biological Microscope + 1.3MP USB

Request Quote

View full product details »

Amscope 40X-2500X LED Trinocular Compound Microscope 3D USB 3.0MP Camera USB 3.0MP

Request Quote

View full product details »

Amscope Microscope 40X-2500X Trinocular Biological Compound

Request Quote

View full product details »

Amscope 80 LED Ring Light with Power Source

$ 91.75 USD

This is an adjustable 80-LED ring light with a 75 mm inner diameter, a 110-240...

View full product details »

Motic Microscopes Panthera C2

$ 1,854.00 USD

Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now...

View full product details »

Motic Microscopes BA210 Series

$ 1,394.00 USD

View full product details »

Motic SMZ-168 Trinocular Stereo Microscopes

$ 1,039.00 USD

View full product details »

Motic Microscopes BA410E Series

$ 3,400.00 USD

View full product details »

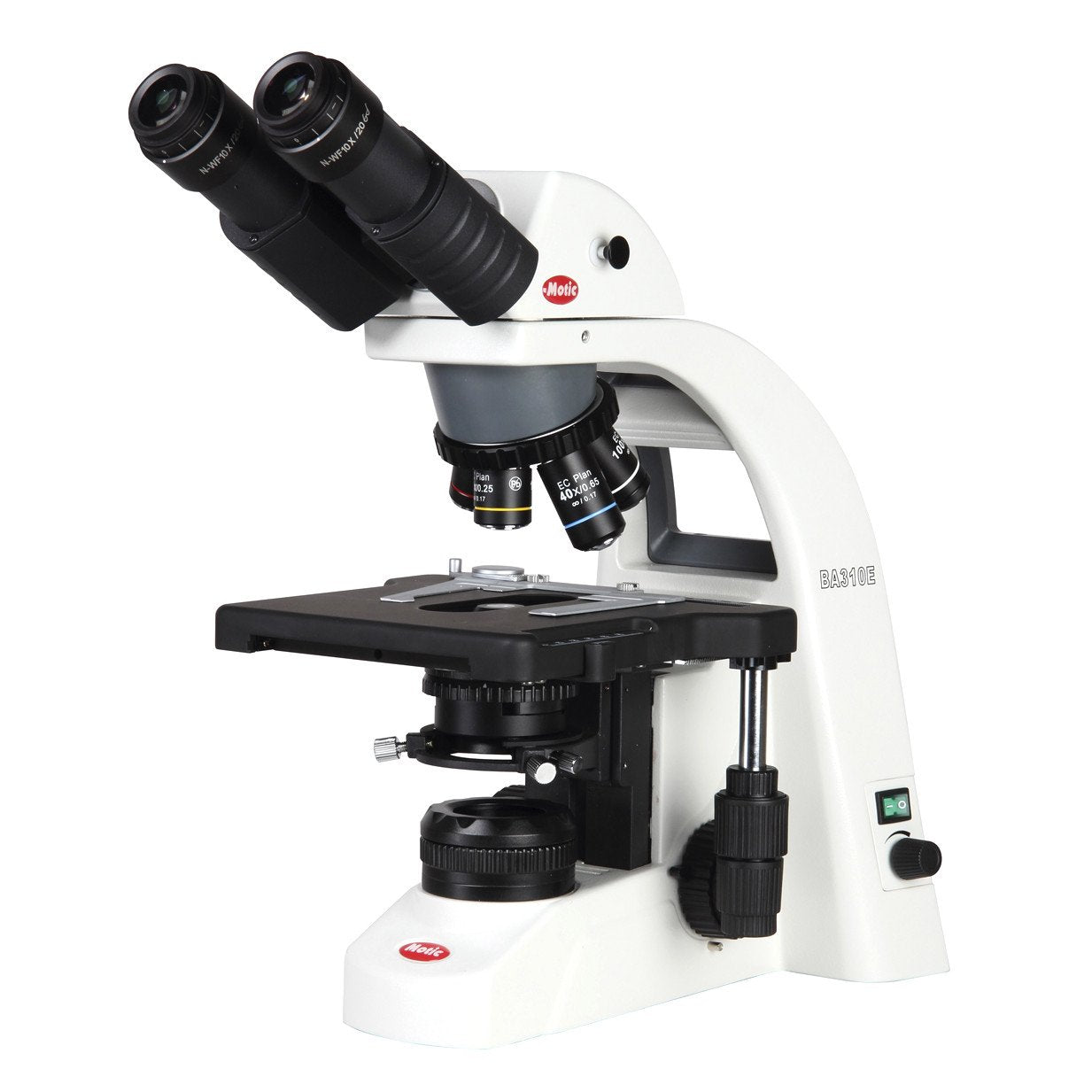

Motic BA310E Series Microscopes

Request Quote

View full product details »

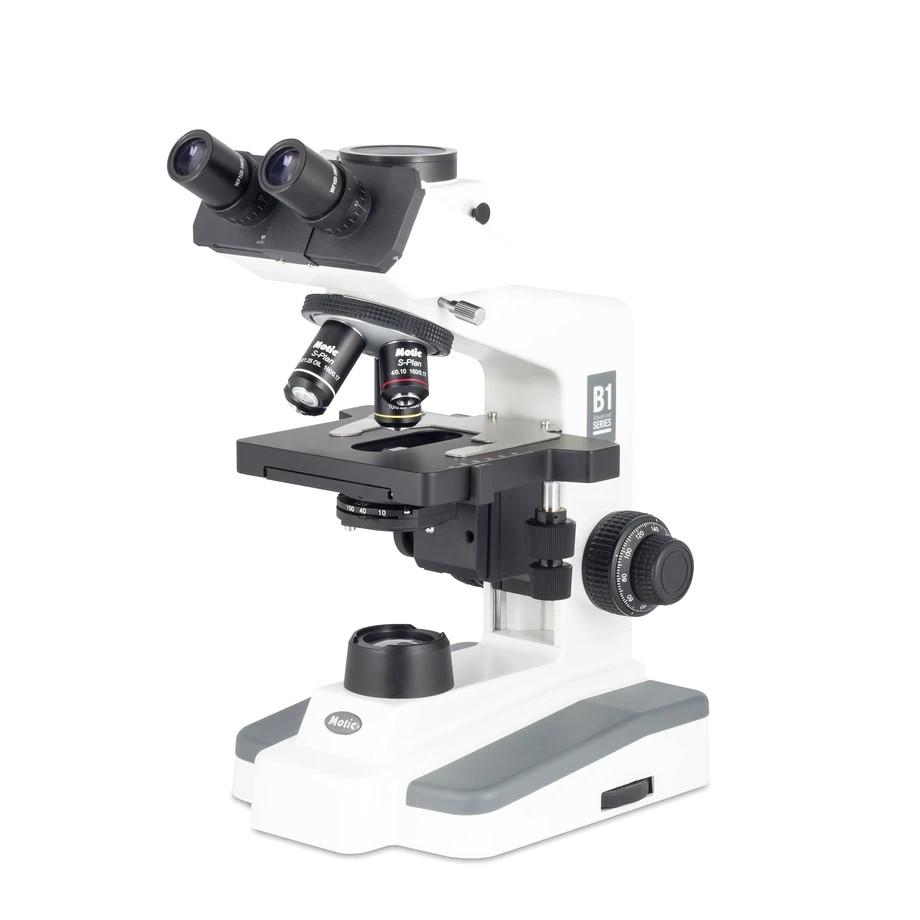

Motic B1 Series Trinocular Microscopes

Request Quote

View full product details »

Motic Swift Line M3800 Series Microscope

Request Quote

View full product details »

Amscope 40X-2000X Trinocular Microscopes

Request Quote

View full product details »

Amscope 3.5x-90x Trinocular Microscope with 1.3MP Camera

Request Quote

View full product details »

Amscope 40X-2500X Binocular Compound Microscope

$ 237.50 USD

View full product details »

Motic SwiftLine Swift3H-B 1X-40X Binocular Microscope

Request Quote

View full product details »

Motic BA310 POL Series Polarized Light Microscopes

Request Quote

View full product details »

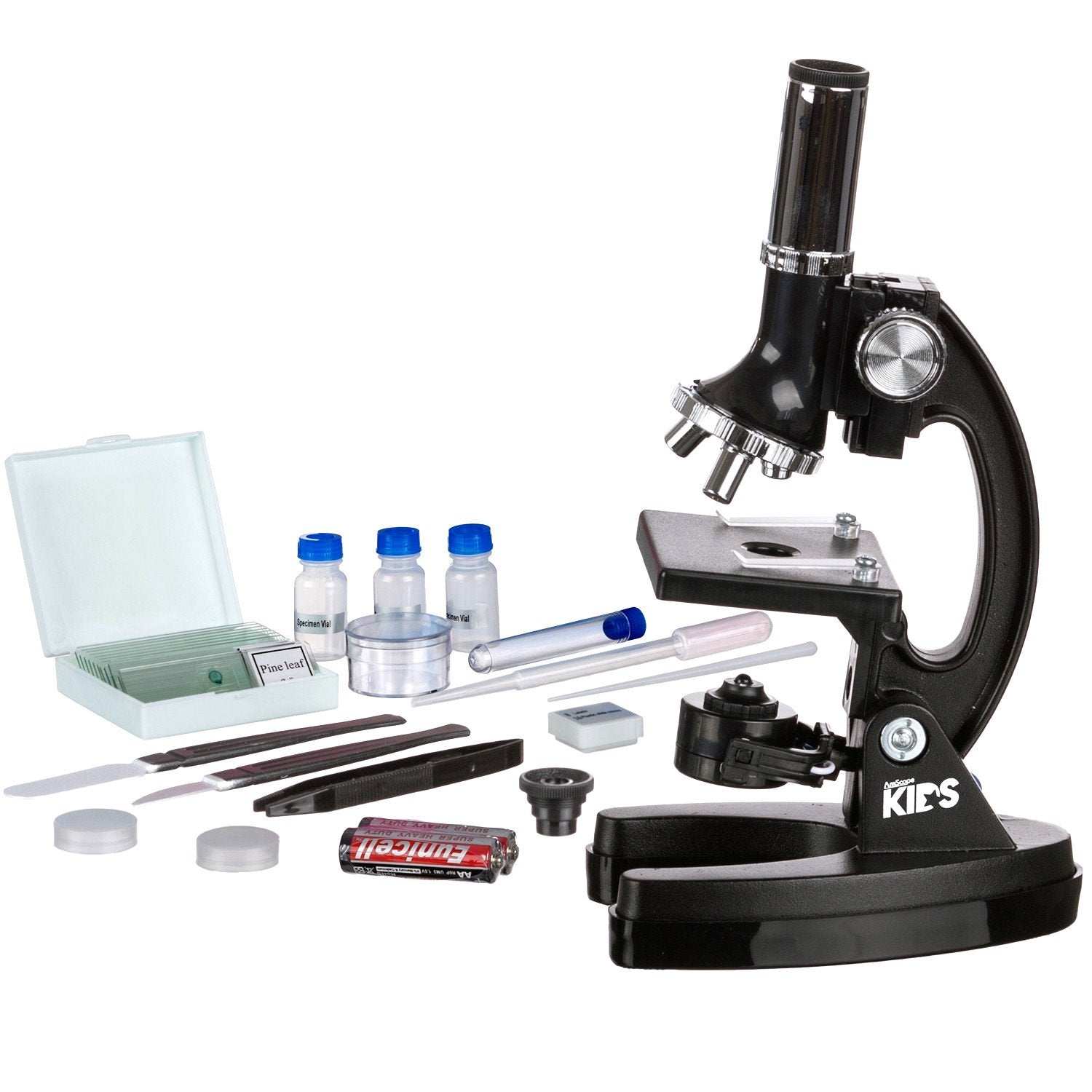

Amscope-KIDS Biological Microscope Kit for Beginners

Request Quote

The AMSCOPE-KIDS microscopes are made from the finest materials and with the best optics to ensure you get precise answers and solutions to all your endeavors. With this 48-piece microscope set, young scientists can investigate everything from cells to crystals. Perfect for individual or classroom use, the glass eyepieces and power settings—120X, 240X, 300X, 480X, 600X, and 1200X—offer users superior precision viewing. The integrated natural light illumination system (via mirror) and LED (powered by two AA batteries) and the rack-and-pinion focus help deliver clear and bright images. The 48-piece kit includes professionally prepared slides and everything users need to create their own slides. The microscope features a durable metal arm, simple coaxial coarse focus, and a sample stage with two built-in stage clips. It includes high-quality components and features that make it suitable for science learning at any age. The kit comes with sample slides, cover slips, tweezers, a scalpel, sample jars, adjustable lenses, as well as a sturdy hard case for easy storage and travel. This kit is ideal for beginner scientists. Two AA batteries for the LED light are included.

• Specifications
• In the Box
• Required Items
• Optional Items

• Ref	120X-1200X-48pc	1200X-48
  Magnifications	120X, 240X, 300X, 480X, 600X, and 1200X.
  Body Type	Durable metal construction.
  Lighting	Built-in LED light and reflective mirror.
  Eyepiece	Single mount type.
  Stage	70 x 65 mm.
  Head Type	Monocular.
  Microscope Type	Compound.
  Number of Bulbs	1.
  Power Source	110V, battery.

• • Petri dish (1)
  • Plastic tweezers (1)
  • Spare bulb (1)
  • Plastic scalpel (1)
  • Plastic spatula (1)
  • Plastic stirring rod (1)
  • Pipette, 5 prepared slides (1)
  • Blank slides (7)
  • Slide covers (16)
  • Slide labels (8)
  • Collector vials (3)
  • AA batteries (2)
• • None
• • Cleaning kit

View full product details »

AmScope KIDS Beginner's Microscope Kit

Request Quote

View full product details »

Motic BA410 Series Microscope

Request Quote

View full product details »

Motic BA310 Series Epi LED FL Microscope

Request Quote

View full product details »

Motic EcoBino LED Series Binocular Microscopes

$ 658.00 USD

The popular choice of microscope for grade schools, home schooling students and microscopic enthusiasts who...

View full product details »

Motic B1 Series Binocular Microscopes

Request Quote

View full product details »

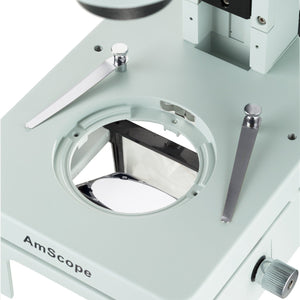

Amscope Stereo Binocular Microscope for Embryology 7X-45X

Request Quote

View full product details »

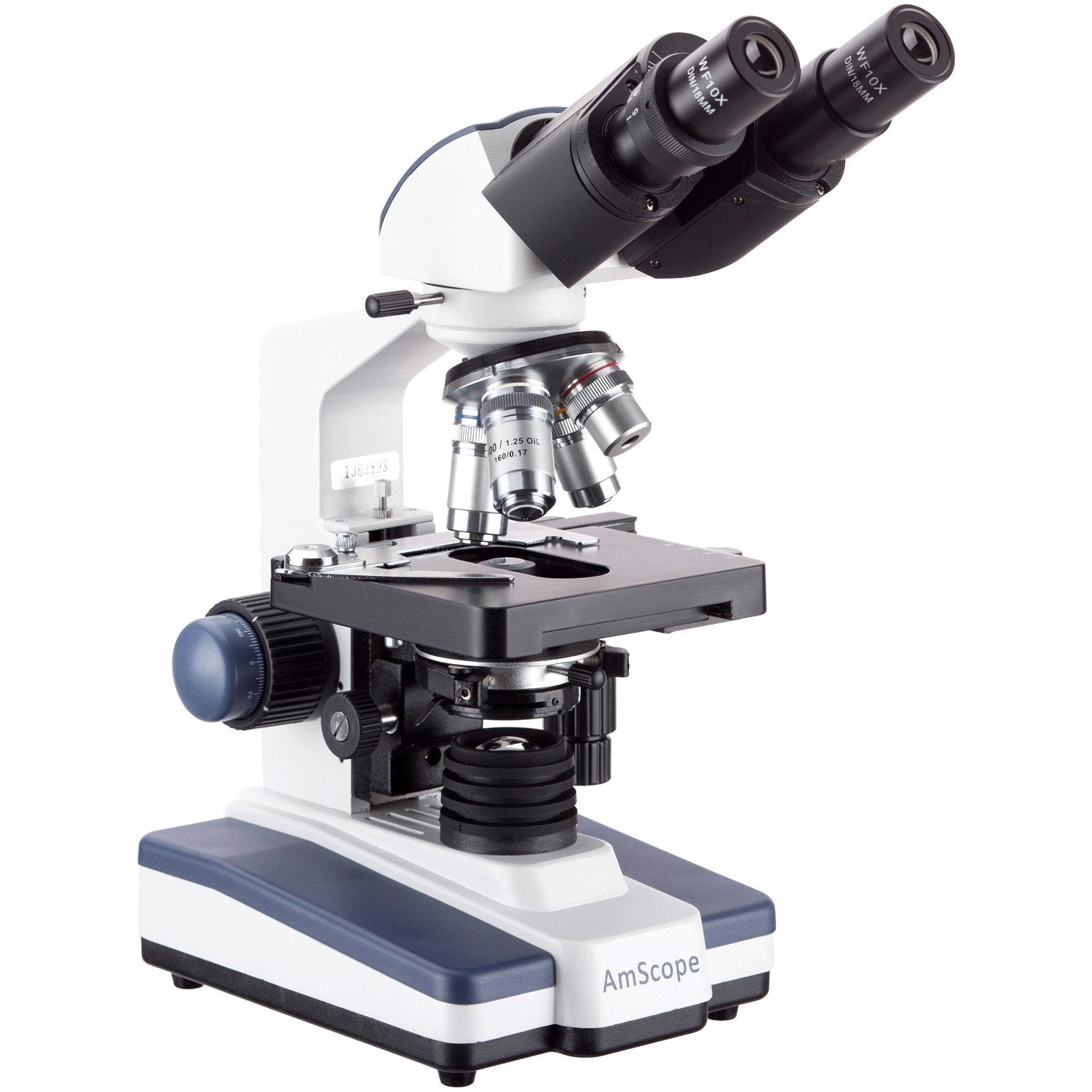

Compound Binocular Microscope Amscope 40X Until 2500X

Request Quote

This entry-level biological compound microscope is designed to prioritize high-quality optics in a user-friendly form, making it ideal for classroom settings and first-time users. It features a traditional layout that is intuitive and easy to navigate. The binocular head offers customization for each user, including a sliding interpupillary adjuster for different eye spacing and diopters on both eyepieces for fine-tuning focus. The head is rotatable 360° and inclined at 45° for comfortable viewing from seated or standing positions. Interchangeable eyepieces expand the magnification range and allow the use of specialized eyepieces with pointers or measuring reticles. The stage includes clips to secure slides or specimens, and the independent coarse and fine focus knobs provide precise adjustments. A limit-stop mechanism prevents accidental contact between the lenses and specimens, protecting both the objectives and the slides. The LED light source ensures even illumination with excellent color rendering while minimizing eye strain. The rotating Abbe condenser features an iris diaphragm to control light and contrast, making it versatile for various applications. This microscope comes equipped with standard achromatic objectives (4X, 10X, 40X, 100X) and interchangeable 10X and 25X eyepieces, delivering a comprehensive magnification range suitable for a variety of educational and basic laboratory needs.

Features

• High-Quality Optics: Designed to prioritize visual clarity and precision, ideal for beginner or educational users.
• Adjustable Binocular Head: Offers sliding interpupillary adjustment and individual diopters to customize viewing for each user. 360° rotatable head and 45° incline for added comfort.
• Versatile Magnification: Includes interchangeable eyepieces (10X and 25X) and achromatic objectives (4X, 10X, 40X, 100X), providing a suitable range for basic biological analysis.
• Precise Focusing System: Independent coarse and fine focus knobs with an adjustable limit mechanism to prevent damage to lenses and slides.
• Efficient LED Illumination: LED light source reduces eye strain and provides uniform color representation.
• Advanced Abbe Condenser: Controls the amount of light and contrast, optimizing sample visualization.
• Functional Stage: Includes clips to hold samples in place, ensuring stability during observation.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specification	Details
  Optical System	Finite-conjugate
  Tube Length	160mm
  Head	Binocular, 45° incline, 360° rotatable
  Interpupillary Adjustment	Sliding, 55-75mm
  Ocular Diameter	23mm
  Eyepieces	10X, 25X
  Objective Lenses	DIN standard
  Objective Parfocal Distance	45mm
  Objective Mounting Thread	RMS 20.32mm
  Objective Turret	Quadruple
  Focusing System	Independent coarse and fine focus
  Stage	Single layer with clips
  Stage Dimensions	110mm x 120mm
  Transmitted Illumination	0.5W LED
  Condenser	Abbe condenser with iris diaphragm, NA1.25
  Sub-stage Condenser-holder	Spiral control
  Power	100VAC 60Hz

  Magnification	Corrections	NA	Immersion Medium	Cover-glass Thickness
  4X	Achromatic	0.10	—	0.17mm
  10X	Achromatic	0.25	—	0.17mm
  40X	Achromatic	0.65	—	0.17mm
  100X	Achromatic	1.25	Oil	0.17mm

• • One binocular microscope head
  • One microscope body
  • Four objective lenses: 4X, 10X, 40X, 100X
  • One pair 10X eyepieces
  • One pair 25X eyepieces
  • One focus-tension wrench
  • Two color filters
  • One dust cover
• • Ninguno
• • Additional objectives with higher or lower magnification
  • Cleaning kit
  • Color filters for contrast (blue, green, yellow, etc.)
  • Specialized condensers (darkfield, phase contrast, Köhler)
  • Digital cameras for image and video capture
  • Adapters for mobile devices
  • Motorized or high-precision mechanical stage
  • Calibration grids for quantitative measurements
  • Sample preparation kit (slides, cover glasses, tools)
  • Additional or enhanced lighting (LED, halogen, fluorescent)
  • High-quality immersion oils
  • Rigid carrying cases
  • Cleaning accessories (cloths, brushes, blowers)
  • Backup power supplies or power adapters
  • Reference manuals and specialized usage guides

View full product details »

Binocular Stereo Microscope with LED Light AmScope / 20x - 40x

Request Quote

View full product details »

Amscope Trinocular Stereo Microscope 7X-45X / 144-LED

Request Quote

View full product details »

Amscope / 40X-2500X Binocular Compound Microscope 1.3MP Camera

Request Quote

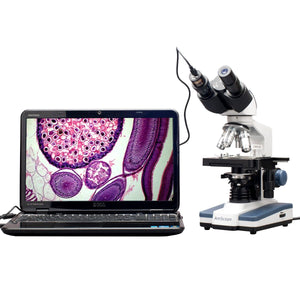

1MP USB Camera Compound Binocular Microscope

Discover the ideal microscope for your educational and professional needs. The 1MP USB Camera Compound Binocular Microscope is designed to teach demonstrations, clinical examinations, and laboratory applications. Perfect for a wide range of individuals, from professionals and high school students to teachers and those with a degree in biology or enrolled in medical school.

The 1MP USB Camera Compound Binocular Microscope is designed to teach demonstrations, clinical examinations, and laboratory applications. It is a perfect microscope for a wide range of people, from professionals and high school students to teachers and those with a degree in biology or enrolled in medical school. It comes with a professional Siedentopf binocular head, double-layer stage, coarse and fine focus, LED illumination, and a 1.3 MP USB digital camera. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X, and 2500X. The digital camera captures still images and videos, and allows you to view a live stream on your PC. The included software for Windows offers image development and measurement tools, as well as features such as image stitching and depth of focus. Independent preview and high-speed video capture resolutions let you view while capturing high-definition images. On Mac computers, the camera can be used as a driver-free imaging device, compatible with several applications such as Proscope and Photo Booth. This microscope is an ideal instrument for biological, bacterial, and pharmaceutical research.

Highlighted Features

• Five wide field magnification settings: 40X, 100X, 250X, 400X, 1000X, and 2500X.
• Professional 30-degree inclined Siedentopf binocular head, 360-degree rotatable.
• Sturdy 3D frame with double-layer mechanical stage, coarse and fine coaxial focus, Abbe condenser, iris diaphragm, and color filter.
• Powerful single LED illumination with dimmer.
• 1MP camera comes with user-friendly editing and processing software for Windows, offering advanced features such as stitching, EDF, and measurement, compatible with Windows XP, Vista, 7, 8, and 10.

† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals

• Specifications
• In the Box
• Required Items
• Optional Items

• Features
  Head Type	Binocular
  Camera Connection Type	Mini-USB
  Illumination Style	Transmitted (bottom)
  Magnification Power Setting	40X-2500X
  Manufacturer	AmScope
  Microscope Application	High school, college, teaching/training
  Microscope Camera Pixel	1MP
  Microscope Category	Compound
  Microscope Color	White
  Microscope Condenser Design	Rack and pinion Abbe with diaphragm
  Microscope Condenser Optics	NA 1.25
  Microscope Condenser Type	Brightfield
  Microscope Eyepiece Power	10X, 25X
  Microscope Eyepiece Size	23mm
  Microscope Field View	Wide field
  Microscope Head Style	Binocular
  Microscope Iris	with Iris
  Microscope Light Power	1W
  Microscope Light Shape	Built-in
  Microscope Light Type	LED
  Microscope Magnification Power	40X to 2500X
  Microscope Number of Bulbs	1
  Microscope Objective Power	4X, 10X, 40X, 100X
  Microscope Objective Size	20mm
  Microscope Optics	Achromatic
  Microscope Power Supply	Broadband
  Microscope Sensor	CMOS
  Microscope Stage	Double layer mechanical stage
  Optics	Achromatic
  Support 65

• • Compound Binocular Microscope (1)
  • Microscope body frame with double layer mechanical stage and LED illumination (1)
  • Four standard DIN objectives, 4X, 10X, 40X, and 100X (4)
  • Widefield 10X eyepieces (2)
  • Widefield 25X eyepieces (2)
  • Blue color filter (1)
  • Dust cover (1)
  • Sample of immersion oil (1)
  • User manual download (1)
  • 1MP USB2.0 digital camera (1)
  • 1.5m USB cable (1)
• • Batteries
• • Cleaning kit

View full product details »

Amscope 40X-2500X Compound Binocular Microscope 3D 5.0MP USB Camera

$ 405.50 USD

View full product details »

Amscope 20X-40X-80X Stereo Microscopes with USB Camera and Inverted Head

Request Quote

View full product details »

Motic Stereo Microcopes SMZ140 Series

$ 606.00 USD

Make use of the convenience and versatility of seeing a large image at 10X magnification,...

View full product details »

AmScope Inspection Trinocular Zoom Stereo Microscopes 3.5X-90X

$ 371.90 USD

View full product details »

Motic Digital Stereo Microscope Serie DM-143

$ 1,500.00 USD

Motic offer a wide range of digital stereo microscopes suitable for any application and working...

View full product details »
