Microscope Cameras

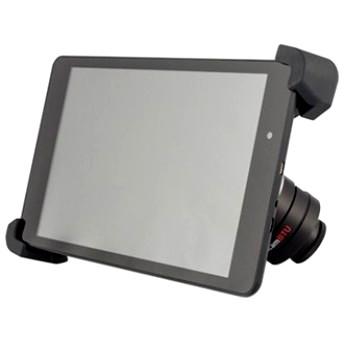

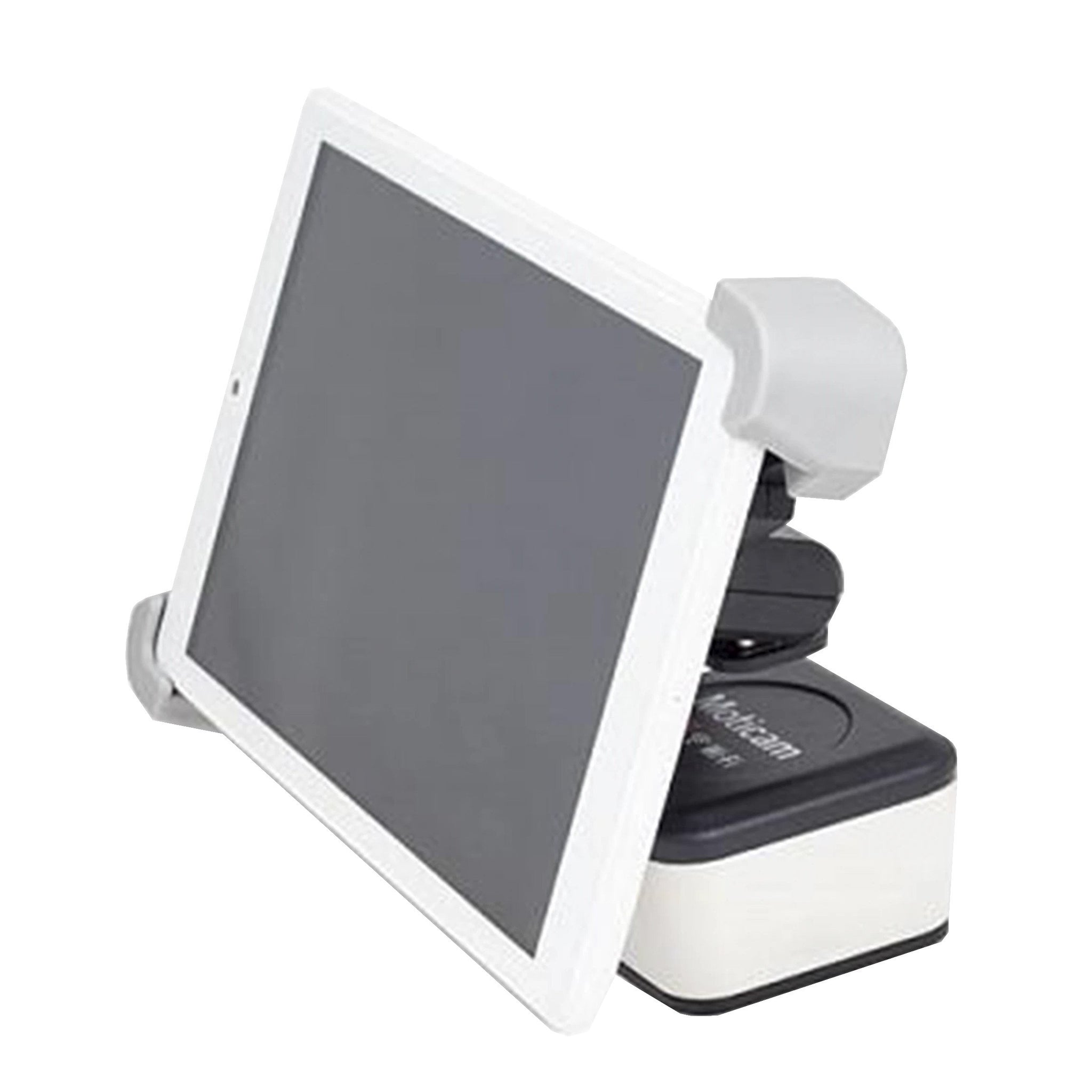

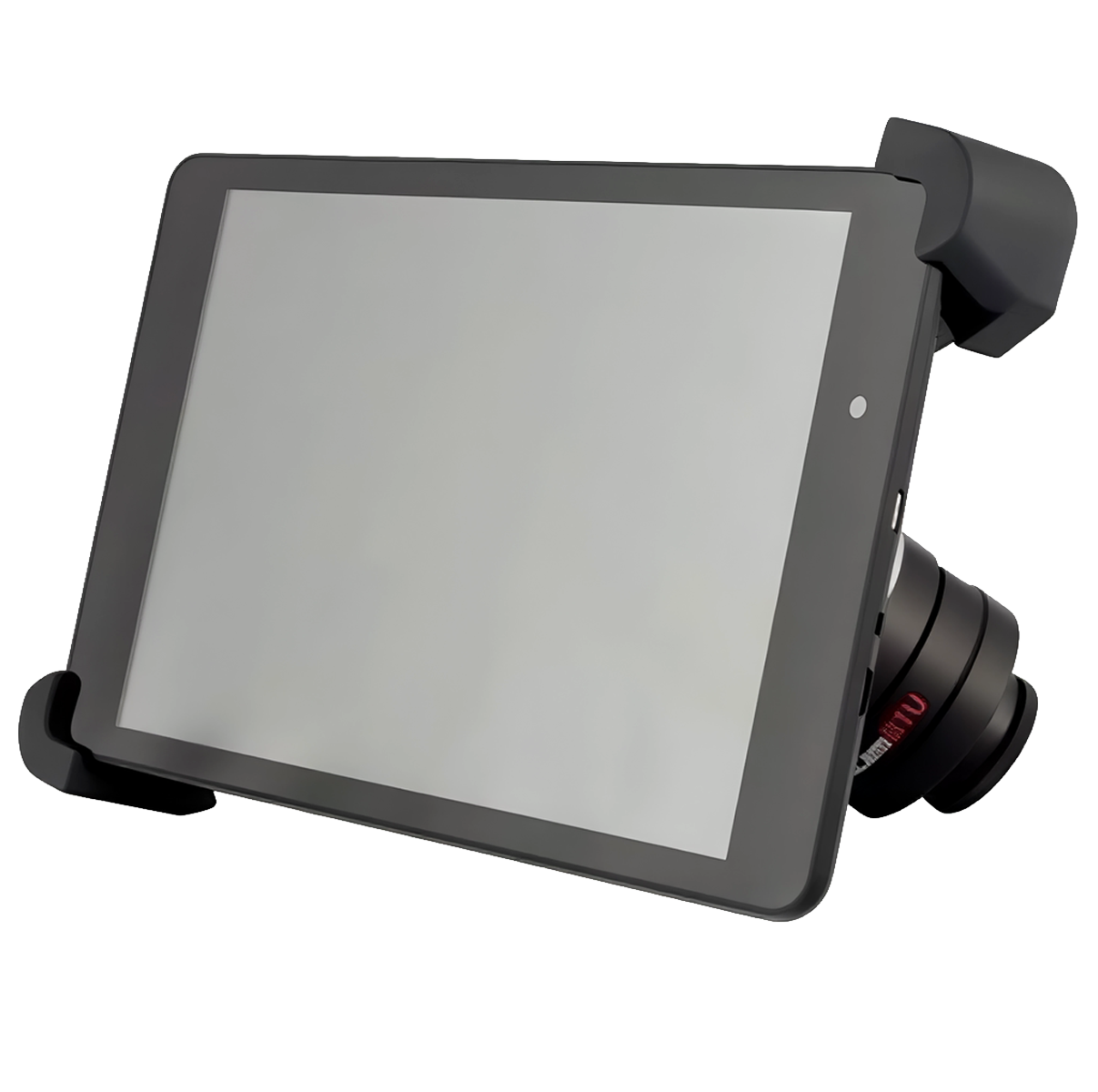

Moticam BTI Tablet Camera for Microscopes

Quick Shop

Moticam BTI Tablet Cameras for Microscopes

Request Quote

Moticam BTI Tablet Cameras for Microscopes

Request Quote

Versatile Tablet Microscopy Solution

Moticam BTI Tablet Camera: Wireless, High-Resolution Imaging for Education and Research

The Moticam BTI combines a space-saving camera hardware with new Wi-Fi technology. The 4MP Wi-Fi camera comes together with an 8”/10" Android tablet to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube. This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer. Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.

Specifications
In the Box
Required Items
Optional Items
Documents

Specification	Moticam BTI 8	Moticam BTI 10
Camera Specifications
Sensor Type	CMOS
Sensor Size	1/3"
Live Resolution	1920x1080, 1280x720 (display resolution)
Image Capture Resolution	4.0MP
Video Capture Resolution	720P (HD)
Data Transfer	Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
Pixel Size	2.0μmx2.0μm
Lens Mount	C-Mount
Tablet Bracket Holder	For tablets from 7" to 10"
Tablet Specifications
Size	209x126x9.9mm	218x136x9.1mm
System	Android 5.1	Android 10
Pre-Installed App	MotiConnect
Language	Multi-Language
CPU	1.3GHz Quad core	2.0GHz 8-core
RAM	1GB DDR3	6GB DDR3
NAND FLASH	8GB	128GB
Display	8" (IPS) 16:10 Ratio	1920x1200
Ports	MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
Support Display Format	MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
Support Audio Format	MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
Picture Format	JPEG, GIF, BMP, PNG
Camera	Front (VGA) + Rear (2M Pixels)	Front (5M Pixels) + Rear (8M Pixels)
Package Includes	USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)

- Moticam BTI Tablet Camera
- USB Cable
- Motic 4-dot Calibration Slide
- Universal Power Supply (100V-240V, CE certified)
- Microscope
- None

View full product details »

Quick Shop

Moticam Cameras for PROS5 Microscopes

Request Quote

Moticam Cameras for PROS5 Microscopes

Request Quote

PROS5 Lite PROS5 Plus The 6MP resolution of the Moticam S6 is designed for large-screen...

View full product details »

Quick Shop

Moticam BMH4000X Camera for Microscopes with LCD Screen

Request Quote

Moticam BMH4000X Camera for Microscopes with LCD Screen

Request Quote

Moticam BMH4000X Camera: 4K Image Capture with Maximum Versatility

Comprehensive Microscopy Solution with Built-in LCD Screen, HDMI Connectivity, and Portable Storage

The Moticam BMH4000X is a multitasking microscopy camera with a C-mount, offering an impressive Full HD live image with maximum color fidelity on an integrated LCD screen.

It does not require a computer for standard operation, as it includes built-in software that allows it to be used through its 11.6” Full HD screen, with a mouse connected to the camera's USB port.

Specifications
In the Box
Required Items
Optional Items
Documents

Specification	Details
Model	Moticam BMH4000X
Sensor Size	1/2.8"
Image Output	HDMI, UXC, WIFI 5
Capture Resolution	8MP
Pixel Size	1.45 x 1.45μm
Scan Mode	Progressive
Shutter Mode	Rolling Shutter
Lens Mount	C-Mount
Maximum Frames Per Second (fps)	HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160
Image Capture	JPEG/TIFF format with 4K resolution (3840x2160) on SD card
Video Recording	4K (30fps @ 3840x2160) MP4 file encoded with H264/H265 on SD card
Screen	11.6" LCD native 1920x1080 pixels Full HD
Software	Motic Images Plus 3.1 for Windows/Mac OS

- Moticam BMH4000X Camera
- Microscope
- C-mount adapters
- Reduction lenses
- Capture and analysis software
- Color filters
- Additional light sources
- USB or HDMI extension cables
- Cleaning Kit
- Memory cards
- Carrying case

View full product details »

Quick Shop

Moticam 4000X Camera for Microscopes

$ 1,345.00 USD

Moticam 4000X Camera for Microscopes

$ 1,345.00 USD

Moticam 4000X Camera: True 4K Live Imaging

Total Versatility for Microscopy with Direct HDMI Screen Connection, Built-In Software, and Capture Without a Computer

Discover our new Moticam 4000X, designed for efficiency and to quickly deliver live images in 4K (3840 x 2160 px).

Connect it to a screen via the HDMI port and display your live image. With the built-in software and a USB mouse, you can perform live measurements, take notes, adjust images, and more, directly on the HDMI screen, without the need for a computer.

Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easier to save and organize your images and videos. You can also connect your camera via USB to a Windows or Mac computer and even display your samples simultaneously.

Specifications
In the Box
Required Items
Optional Items
Documents

Specification	Details
Model	Moticam 4000X
Sensor type	CMOS
Sensor size	1/2.8"
Imaging area	6.4mm (diagonal)
Capture resolution	8MP (3840x2160 pixels)
Image capture resolution (on SD-card)	8MP (3840x2160 pixels)
Video capture resolution (on SD-card)	1080P (1920x1080 pixels)
Live display mode through USB	4K (3840x2160 pixels)
Live display mode through Wi-Fi	4K (3840x2160 pixels)
Live display mode through Ethernet	4K (3840x2160 pixels)
Live display mode through HDMI	4K (3840x2160 pixels)
Pixel size	1.45 x 1.45μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	HDMI, USB, Wi-Fi, Ethernet, Micro SD-card
Max. frames per second (fps)	HDMI: 4K (3840x2160) @30fps USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps
Exposure Time	0.03ms ~ 1000ms
Operating Temperature	From -10 to +50 degrees Celsius non-condensing
Sensitivity	300mV with 1/30s
Slot	Micro SD-Card
Buttons	On/Off
Compatible Devices	TWAIN, SDK, and Direct Show Driver
Minimum Computer Requirements	Core2, 2.8GHz, RAM Memory 8GB
Lens Mount	C-Mount
Focusable Lens	12mm
Software	On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher, and the MotiConnect App for iOS and Android
Functions	Including exposure, gain, white balance, color adjustment, sharpness, and noise reduction control, zoom, mirror, comparison, freeze, measurement, cross, and navigation function
Power Supply	12V (External power supply)
Package Includes	CS ring adapter, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1
Notes	USB port for connecting a mouse to enable software control Transport and storage case

- CS ring adapter
- Focusable lens
- 30mm and 38mm eyepiece adapters
- Motic 4-dot calibration slide
- Macro calibration card
- Macro tube
- Universal power supply
- HDMI cable
- USB 3.0 cable
- Motic Images Plus 3.1
- Microscope
- - C-mount adapters
  - Reduction lenses
  - Capture and analysis software
  - Color filters
  - Additional light sources
  - USB or HDMI extension cables
  - Cleaning Kit
  - Memory cards
  - Carrying case

View full product details »

Moticam A Series Cameras for Motic Microscopes

Quick Shop

Moticam Cameras A Series for Motic Microscopes

Request Quote

Moticam Cameras A Series for Motic Microscopes

Request Quote

High-Definition Imaging With 1080p Resolution For Clear And Detailed Observations

Exceptional High-Definition Camera Providing Crystal-Clear 1080p Imaging for Precision and Clarity in Microscopic Observations

The Moticam A series is a line of digital cameras designed for use with microscopes, ideal for both hobbyists and advanced professionals. These cameras are engineered to capture high-quality images and provide an intuitive and efficient user experience.

The Moticam A series by Motic redefines image capture in microscopy with a combination of advanced technology and ease of use. Designed to deliver optimal performance across a wide range of applications, these digital cameras allow users to obtain sharp and detailed images with exceptional quality. Thanks to their integration with optical microscopes, the Moticam A series facilitates the documentation and analysis of biological, industrial, and educational samples, providing precise and reliable results.

Each model within this line has been developed to ensure versatility, adaptability, and an intuitive user experience. Their compact and lightweight design makes them easy to install on different types of microscopes, allowing for a seamless transition between live observation and digital image capture. Additionally, their modern connectivity and compatibility with specialized software provide users with advanced tools to efficiently process and analyze their images.

Whether in academic settings, research laboratories, or professional applications, the Moticam A series stands out as an ideal choice for those seeking a reliable and high-performance solution for image capture in microscopy.

Features

sCMOS Sensor: The Moticam A series cameras feature high-resolution sCMOS sensors, capable of capturing images with resolutions exceeding 4K.
Frame Rate: They offer a frame rate of 15 to 30 fps, enabling smooth real-time image capture.
Adaptability: Includes focusable lenses, adapters for eyepieces of different sizes (30 mm and 38 mm), macro tubes, and a calibration slide.
Compatibility: Works with USB2 and USB3 ports, ensuring a fast and stable connection.
MotiConnect Software: Comes with the MotiConnect software, allowing live viewing, image capture, and data analysis.

Learn how to easily connect your Moticam to the eyepiece.

Learn how to easily connect your Moticam to the trinocular tube.

Specifications
In the Box
Required Items
Optional Items
Documents

Specification	A1	A2	A5	A8	A16
Sensor Type	sCMOS
Sensor Size	1 / 3.1"	1 / 3.1"	1 / 2.8"	1 / 3"	1 / 2.3"
Capture Resolution	1MP	2MP	5MP	8MP	16MP
Live View Modes	1280x720, 1024x768	1920x1080, 1280x720	2592x1944, 2048x1536, 1920x1080	3840x2160, 1920x1080	4608x3456, 3263x2448, 1920x1080
Pixel Size	4.1x4.1 microns	2.7x2.7 microns	2x2 microns	1.34x1.34 microns	1.34x1.34 microns
Max FPS	30fps @ 1280x720	30fps @ 1024x768, 30fps @ 1920x1080	30fps @ 2592x1944, 30fps @ 1920x1080	15fps @ 3840x2160, 30fps @ 1920x1080	15fps @ 4608x3456, 30fps @ 1920x1080
Lens Mount	C-Mount
Additional Support	TWAIN, SDK, DS Driver
Operating System	Windows 10 or later, OSX10.9 or later
Software	MotiConnect available for free download. Free updates included.
Included Accessories	Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap

- Moticam A2 Camera
- Focusable Lens
- 30mm & 38mm Eyepiece Adapters
- Calibration Slide
- Macro Viewing Tube
- C-Ring
- USB Cable
- Dust Cap
- Microscope
- Cleaning Accessories
- USB or HDMI Extension Cables

View full product details »

Ref

Quantity

Continue Shopping or View Cart

Quick Shop

Moticam Camera for S20 Microscopes 20 MP

Request Quote

Moticam Camera for S20 Microscopes 20 MP

Request Quote

The Moticam S20 is the highest resolution model for backlit sensor technology. With fast data transfer (excellent frame rates of up to 50 fps), it creates an optimal imaging environment and facilitates the capture of microscopic images. Create your perfect images for a professional database.

Features

USB 3.1 Data Transfer
20MP Capture Resolution
Live View Mode via USB: 4000 x 3000, 2048 x 1080 pixels
Pixel Size: 2.4x2.4 μm
Image Area: 15.86 mm (diagonal)

Specifications
In the Box
Required Items
Optional Items
Documents

Features
Sensor Type	sCMOS
Sensor Size	1"
Image Area	15.86 mm
Capture Resolution Information	20MP
Live View Mode via USB	5472x3648 @18fps / 2736x1824 @50fps
Pixel Size	2.4 μm x 2.4 μm
Scanning Mode	Progressive
Shutter Mode	Rolling
Data Transfer	USB 3.1
Exposure Time	15 μs to 2 seconds
Operating Temperature	-10 to +60 degrees Celsius, non-condensing
Sensitivity	461mV @ 1/30 sec
Support Device	TWAIN Driver, SDK, and DirectShow
Compatible OS	Windows 7/8/10, MAC OSX, Linux or higher
Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Video memory min. 512 megabytes
Lens Mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
Functions	Still image and video capture, measurement of still and live images, image adjustments, white balance, auto and manual exposure, individual objective calibration system.
Power Supply	5V (from USB port)

- Camera
- CS Ring Adapter
- USB 3.1 Cable
- Calibration Slide
- Motic Images Plus 3.0
- Manual
Ninguno
- Specifications (English)

View full product details »

Quick Shop

Moticam Camera for S12 Microscopes 12 MP

Request Quote

Quick Shop

Moticam Camera for S6 Microscopes 6MP

Request Quote

Moticam Camera for S6 Microscopes 6MP

Request Quote

The 6MP resolution of the Moticam S6 is designed for large monitors and printing purposes. Presentations to a broader audience via video projector, as well as printed reports, are easily handled. Take advantage of the advanced sensor technology of Motic's S-series cameras.

Specifications
In the Box
Required Items
Optional Items
Documents

Features
Model	Moticam S6
Sensor Type	sCMOS
Sensor Size	1 / 1.8 "
Imaging Area	8.92 mm (diagonal)
Resolution	6MP
Live Viewing Mode via USB	3072x2048, 1536x1024 pixels
Pixel Size	2.4x2.4μm
Scanning Mode	Progressive
Shutter Mode	Rolling
Data Transfer	USB 3.1
Max. Frames per Second (fps)	3072x2048 @ 30fps 1536x1024 @ 50fps (*)
Exposure Time	16 μs to 2 s
Operating Temperature	-10 to +60 degrees Celsius without condensation
Max. Signal-to-Noise Ratio	0.15 mV at 1/30 seconds
Sensitivity	425 mV (G) at 1/30 seconds
Supported Devices	TWAIN Driver, SDK, and DirectShow
OS Compatibility	Windows 7/8/10, MAC OSX, Linux or higher
Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Minimum video memory 512 MB
Lens Mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
Functions	Capture still images and video, measure still and live images, image adjustments, white balance, automatic and manual exposure, individual objective calibration system.
Power Supply	5 V (via USB port)
Other Features	(*) Frames per second under optimal lighting conditions and meeting technical computer requirements.

- None

View full product details »

Quick Shop

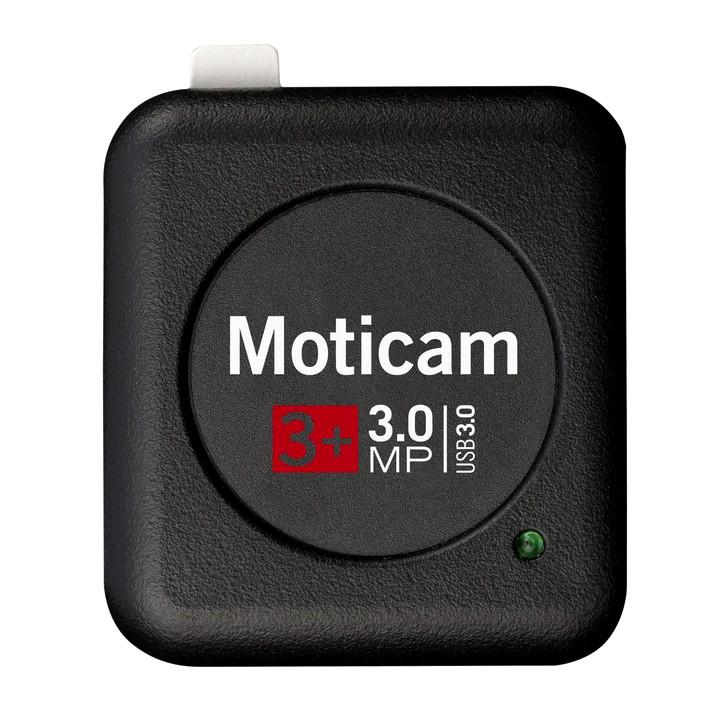

Moticam Camera for S3 Microscopes 3 MP

Request Quote

Moticam Camera for S3 Microscopes 3 MP

Request Quote

Moticam S3 offers a medium resolution of 3MP, maintaining the balance between speed and resolution. A universal tool for teaching and routine laboratory use in biology, medicine, and industry. The sCMOS sensor ensures state-of-the-art imaging results at an unbeatable price.

Specifications
In the Box
Required Items
Optional Items
Documents

Features
Model	Moticam S3
Sensor Type	sCMOS
Sensor Size	1 / 2.8 "
Imaging Area	6.44 mm (diagonal)
Resolution	3MP
Live View Mode via USB	2048x1536, 1920x1080 pixels
Pixel Size	2.5x2.5μm
Scanning Mode	Progressive
Shutter Mode	Rolling
Data Transfer	USB 3.1
Max. Frames Per Second (fps)	2048x1536 @ 60 fps, 1920x1080 @ 60 fps (*)
Exposure Time	21 μsec to 2 sec
Operating Temperature	-10 to +60 degrees Celsius without condensation
Max. Signal-to-Noise Ratio	0.15 mV at 1/30 seconds
Sensitivity	600 mV (G) at 1/30 seconds
Support Device	TWAIN driver, SDK, and DirectShow
TAN Compatible	Windows 7/8/10, MAC OSX, Linux or higher
Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Minimum video memory 512 MB
Lens Mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
Features	Still image and video capture, live and still image measurements, image adjustments, white balance, auto and manual exposure, individual objective calibration system.
Power Supply	5 V (from USB port)
Other Features	(*) Frames per second under optimal lighting conditions and meeting technical computer requirements.

Moticam Camera for Microscopes S3 3 MP (1)
CS Ring Adapter (1)
USB 3.1 Cable (1)
Motic 4-Point Calibration Slide (1)
Motic Images Plus 3.0 for Windows / OSX / Linux (1)

None

View full product details »

Quick Shop

Moticam Camera for S1 Microscopes 1.2 MP

Request Quote

Moticam Camera for S1 Microscopes 1.2 MP

Request Quote

The Moticam S1, as an entry-level model for back-illuminated sensor technology and fast data transfer (excellent frame rates of up to 120 fps), creates an optimal imaging environment and facilitates image capture. Create your perfect images for a professional database.

Specifications
In the Box
Required Items
Optional Items
Documents

Features
Model	Moticam S1
Sensor Type	sCMOS
Sensor Size	1/3 "
Imaging Area	6.09 mm (diagonal)
Resolution Capture Information	1.2MP
Live View Mode Via USB	1280x960, 640x480 pixels
Pixel Size	3.75 x 3.75 μm
Scanning Mode	Progressive
Shutter Mode	Rolling
Data Transfer	USB 3.1
Max. Frames Per Second (fps)	1280x960 @ 120fps 640x480 @ 240fps (*)
Exposure Time	15 μsec to 2 sec
Operating Temperature	From -10 to +60 degrees Celsius without condensation
Max. Signal-to-Noise Ratio	0.15 mV at 1/30 seconds
Sensitivity	2350mV (G) at 1/30 seconds
Support Device	TWAIN Driver, SDK, and DirectShow
TAN Compatible	Windows 7/8/10, MAC OSX, Linux or higher
Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Minimum video memory: 512 MB
Lens Mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
Functions	Capture still images and videos, live and still image measurement, image adjustments, white balance, automatic and manual exposure, individual objective calibration system.
Power Supply	5 V (from USB port)
Other Features	(*) Frames per second under optimal lighting conditions and meeting technical computer requirements.

- Moticam Microscope Camera S1 1.2 MP (1)
- CS Ring Adapter (1)
- USB 3.1 Cable (1)
- 4-Point Motic Calibration Slide (1)
- Motic Images Plus 3.0 for Windows / OSX / Linux (1)
- None

View full product details »

Quick Shop

C-Mount for Trinocular Microscopes for the Motic B1 Series

Request Quote

Quick Shop

C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series

Request Quote

Quick Shop

Amscope Microscope Cameras MU Series Color USB 3.0 up to 18MP

from $ 260.00 USD

Amscope Microscope Cameras MU Series Color USB 3.0 up to 18MP

$ 260.00 USD

AmScope 18MP USB 3.0 Microscope Camera With C-Mount And CMOS Sensor

Ideal For High-Speed Imaging And Detailed Observations, Compatible With Most Microscopes And Easy To Install.

This is a faster version of our MU1803 microscopic camera, which features an 18 MP sensor and USB 3.0 connectivity. The kit includes a reduction lens, a USB cable, two eyepiece adapters, and a calibration kit. The digital camera captures still images and live video on your computer. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), and video recording. Live video capture and still image capture can be set at different resolutions simultaneously. The 0.5X reduction lens provides a wider field of view.

Features

Sensor: Aptina AR1820 (color)
Sensor Type: CMOS
Sensor Size: 6.14 x 4.61 mm
Pixel Size: 1.25
Resolution: From 3 MP to 18 MP
Maximum Frame Rate: 54.4 fps at 1228 x 922, 34.3 fps at 2456 x 1842, 13.1 fps at 4912 x 3684
Sensitivity: 0.62 V/lux-sec
Connectivity: USB 3.0
Compatibility: Windows (32/64-bit) XP/Vista/7/8/10/11, Mac OSX, Linux

Program Specifications:

Operating System Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: 2.8 GHz Intel Core2 or similar processor, 2 GB RAM, USB 3.0 port for maximum speed
Advanced Software for Windows:
- offers stitching, EDF, video recording, and measurement functions
- performs measurements of lengths, angles, arcs, areas, etc.
- saves still images in BMP, TIFF, JPG, PICT, PTL, or other formats
- live video and still image capture can be set at different resolutions simultaneously. Additional features: add layers, watermarks, mosaics; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, grain, diffusion; transform images through edge detection, digital image warping; perform measurements of simple, parallel or perpendicular lines and rectangular, elliptical, and irregular areas; add notes, measurements, text, arrows, labels, etc., using customizable text with different sizes and colors; perform measurements in microns, millimeters, centimeters, inches, feet, etc., under any magnification power with desired tolerances
Free software updates for life

† California Proposition 65 Warning: Cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov/chemicals

Specifications
In the Box
Required Items
Optional Items
Documents

Features
Camera Connectivity	USB 3.0
Camera Mount Size	23 mm, 30.5 mm, 30 mm, C-mount
Camera Pixel	From 3MP to 18MP
Reduction Lens	0.5X
Camera Sensor	CMOS
Type of Camera	Bright Field
Compatibility	PC and Mac
Mount Size	23 mm Camera, 30.5 mm Camera, 30 mm Camera, C-mount Camera
Pixel	From 3MP to 18.0MP
Reduction Lens	0.5X
Sensor	CMOS Camera
California Proposition 65

- Digital camera
- Reduction lens
- 1.8 m USB cable
- Two adapters: 30 mm and 30.5 mm
- One calibration slide (only 18MP HS)
- A CD with software and user instructions (English)
- None
- Cleaning kit
- User Manual (English)

View full product details »

Quantity

Continue Shopping or View Cart

Quick Shop

Amscope Microscope Cameras MU Series USB 3.0 High-Speed Back-Illuminated Color CMOS

Request Quote

Quick Shop

Amscope Color CMOS + Wi-Fi 5 MP Microscope Camera

Request Quote

Amscope Color CMOS + Wi-Fi 5 MP Microscope Camera

Request Quote

Based on the HD200 series, it offers live 1080p viewing via HDMI and you can record 5MP photos and 1080p video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of autofocus limits the need to make focus adjustments when using the camera as the main observation medium.

Connected to an HDMI monitor or TV, live 1080p video can be viewed at super smooth 60 fps. The included USB mouse allows you to control the camera through its easy-to-use interface. Alternatively, connect the camera via WiFi for remote control of the software, with 25 fps streaming. The included Windows software offers measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. With the ability to calibrate scales with multiple magnifications, the software can be used for multi-level inspections. For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited processing features.

The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo ports.

Notice: due to the autofocus mechanism, the C-mount lens thread should not exceed 5 mm.

Specifications
In the Box
Required Items
Optional Items

Sensor
Sensor Type	CMOS
Sensor Optical Format	1/1.8"
Active Pixels	5.04 million (2592 x 1944)
Pixel Size	2.4 µm x 2.4 µm
Active Sensor Area	6.22 mm x 4.67 mm
Shutter	Electronic rolling shutter
Sensitivity	425 mV at 1/30 s (f/5.6)
Spectral Response	380-650nm with IR cut filter
Camera
Video Preview Resolution (HDMI)	1920 x 1080
Video Preview Frame Rate (HDMI)	60 fps
Video Capture Resolution	1920 x 1080
Video Capture Frame Rate	30 fps (SecureDigital) 25 fps (Wi-Fi)
Internal Video Capture Format	PPA
Internal Photo Capture Format	2592 x 1944, 1920 x 1080
Internal Photo Capture Format	JPG
Recording Media	SecureDigital card
Connectivity	HDMI, Wi-Fi
Wi-Fi Standard	802.11n 150 Mbps
Lens Mount	C-mount
Reducer Lens	0.5X (optional)
Power	12VDC 1A
Dimensions	78 mm x 70 mm x 92 mm
Operating Temperature	-10-50 °C
Operating Humidity	30-80%
Software
Operating System Requirements	Windows (32/64 bit) XP / Vista / 7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements	Intel Core2 2.8GHz or comparable processor, 4GB RAM
Features	Windows Version: Live video preview. Captures still images and videos. Time-lapse capture. Exposure and white balance controls. Dark field correction. Digital binning. Image processing. Measurement tools, including lines, arcs, polygons. Segmentation and counting tools. Image stitching, extended depth of field, HDR. Fluorescence color mapping. Mac / Linux Versions: Live video preview. Captures still images and videos. Exposure control. Color adjustment. Measurement tools, including lines, arcs, polygons.

- Digital camera (1)
- USB mouse (1)
- Wi-Fi USB key (1)
- HDMI cable (1)
- SD card (1)
- Power adapter (1)
- Software CD (1)
- Tripod
- Software
- 0.5X Reducer Lens
