NMT is specialized in fish tags and fish tagging. We invite you to explore their applications to your project. Managers and scientists use fish tags to learn about how fish grow, who catches them, where they go, and how long they live, for example.
Coded Wire Tags (CWT), Visible Implant Elastomer (VIE) and Visible Implant Alpha (VI Alpha) are available. They technology were first developed for salmon, but are now used worldwide with a wide range of fish species, crustaceans, cephalopods, reptiles, amphibians and other animals throughout the world. Projects range from identifying a few animals in the lab to coastwide programs. In the Pacific NW, over 2 billion juvenile salmon have been tagged with Coded Wire Tags. This vast program inspired the development of AutoFish System for clipping and tagging tens of millions of fish per year.
$ 1,334.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United States or Canada please contact the vendor Northwest Marine Technology directly.
NOTE: If you need less colors check the smallest kit of 6 ml. Also is available the trial pack for starter projects.
Visible Implant Elastomer (VIE) is a two-part silicone based material that is mixed immediately before use. VIE tags are injected as a liquid that soon cures into a pliable, biocompatible solid. The tags are implanted beneath transparent or translucent tissue and remain externally visible. In many amphibians, VIE tags are even visible through darkly pigmented skin. VIE tags are widely used for marking an ever-broadening range of finfish, crustaceans, reptiles, amphibians and small mammals. Check some papers below. Extensive information about using VIE is available in the Visible Implant Elastomer Tag Project Manual (English PDF 294KB; Spanish PDF 217KB).

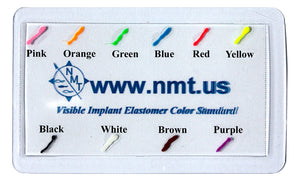

VIE is available in six fluorescent and four non-fluorescent colors. The fluorescent colors are highly visible under ambient light and provide the option of greatly enhanced tag detection when fluoresced with the VI Light.
Proper color selection is a vital part of good experimental design. Your choice depends on how much contrast you need with the background pigmentation, how many different colors you require, and the type of light you will use to fluoresce the tags.
VIE is a medical-grade, two-part silicone based material that is mixed immediately before use and then injected as a liquid that cures into a pliable, biocompatible solid. Immediately after mixing, the user will have between 45 to 60 minutes (in warm environments) and 2 hours (in cold environments) of working time during which the tags can be injected.
The time that the prepared elastomer can be used (the "working time") depends on the temperature of the place. At normal room temperature (20°C), it usually lasts 45-60 minutes before it is too thick to push through the syringe. It lasts longer when it's colder and less when it's hotter. Working time can be greatly extended by keeping the unused prepared elastomer on ice as much as possible.
For unmixed elastomer, you can store it for one year from the date of purchase in a cupboard, away from sunlight or heat. The unmixed elastomer should never be stored in the freezer.
While VIE is primarily used for batch identification, you can generate a VIE coding scheme by combining multiple tags, tag locations, and colors. For example, researchers tracking seahorses used this method to distinguish more than 500 individual seahorses at one time.
Six fluorescent colors (red, yellow, blue, orange, green, and pink) and four non-fluorescent colors (black, brown, white, and purple) constitute the only intrinsic VIE codes. If you use just one tag per fish, the number of unique codes is simply the product of the numbers of colors used and the number of tag locations.
However, if you inject two or more tags in each animal, in combination with several different locations and colors, you can generate an extensive VIE coding scheme. In any tagging program, it is important that all of the study animals have the same number of tags. That way, there can be no confusion between animals which lost tags and those which began with fewer tags.
Calculate the number of unique codes you could create using the formula:
[L!/(L-N)!N!] CN
Where: C= Number of colors used, L= Number of body locations and N = Number of tags per animal.
For example, three body locations used with four colors (C = 4, L = 3, N = 3) would provide: (3!/0!3!) 43 = 64 unique codes. Recall that 0!=1.
You can download two softwares to do this automatic calculation. NMT Calculator or Salamarker. Both based in windows. Not available for iOS.
- Davy, Christina M.;, Suzanne M. Coombes; Amelia K. Whitear & Alistair S. MacKenzie. 2010. Visible Implant Elastomer: A simple, non-harmful method for marking hatchlings turtles. Herpetological Review. 41(4), 442-445.
- Waudby, Helen P.; & Sophie Petit. 2011. Comments on the efficacy and use of Visible Implant Elastomer (VIE) for marking lizards. The South Australian Naturalist 85(1): 7–13.
- Daniel, Jeremy A.; Kevin A. Baker & Kevin R. Bonine. 2006. Retention Rates of Surface and Implantable Marking Methods in the Mediterranean House Gecko (Hemidactylus turcicus), with Notes on Capture Methods and Rates of Skin Shedding. Herpetological Review, 37(3), 319–321.
- Penney, Kistren M.; Kristie D. Gianopulos & Henry R. Mushinsky. 2001. The Visible Implant Elastomer marking technique in use for small reptiles. Herpetological Review, 32(4), 236-241.
- Hutchens, Tan J.; Christopher S. Deperno; Charlotte E. Matthews; Kenneth H. Pollock & David K. Woodward. 2008. Visible Implant Fluorescent Elastomer: A reliable marking alternative for snakes. Herpetological Review, 39(3), 301–303.
- Kondo, Junko & Sharon J. Downes. Using Visible Implant Elastomer to Individually Mark Geckos. School of Botany and Zoology, Australian National University.
Etiqueta Tipo Implante Visible Elastómer (VIE), Tipo de etiqueta elastômero de implante visível
$ 100.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United States or Canada please contact the vendor Northwest Marine Technology directly.
The VI Alpha Tags are a small, fluorescent tags with an alphanumeric code designed to identify individual animals. VI Alpha Tags are implanted internally but remain externally visible for easy recovery. The new VI Alpha Tags were introduced in 2010.
VI Alpha Tags are available in two sizes: standard (1.2 mm x 2.7 mm), shown in yellow, and large (2 mm x 5 mm), shown in orange. The larger tags are easier to read than the standard tags, and are suitable for larger animals.
Large tags have black lettering on a fluorescent orange background, while standard tags are available with black lettering on a fluorescent orange, red, yellow or green background. Each color has 2,500 different codes. The codes available are the letter-number-number combinations from A00 through Z99 (excluding Q00-Q99).
Tag readability and detection can be enhanced by fluorescing the tags with the VI Light.
VI Alpha Tags are easy to load. Slide the tag into the needle, and snap it off.
Each 100 tags ordered must be the same color, and will have consecutive coding.
Please contact us for advice about applications to particular species.
Etiqueta Tipo Implante Visible (VI Alpha) x 100 u, Implante Visível Tipo Etiqueta
Etiqueta, etiquetas, marca, marcas, tag, fish, fishes, pez, peces, anfibios, reptiles, frogs
$ 16.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United...
$ 157.90 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United...
$ 115.00 USD
This product is sold by BIOWEB in America countries, but if you are in United States...
$ 288.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United States or Canada please contact the vendor Northwest Marine Technology directly.
NOTE: If you need more colors check the biggest kits of 24 and 60 ml. Also is available the trial pack for starter projects.
Visible Implant Elastomer (VIE) is a two-part silicone based material that is mixed immediately before use. VIE tags are injected as a liquid that soon cures into a pliable, biocompatible solid. The tags are implanted beneath transparent or translucent tissue and remain externally visible. In many amphibians, VIE tags are even visible through darkly pigmented skin. VIE tags are widely used for marking an ever-broadening range of finfish, crustaceans, reptiles, amphibians and small mammals. Check some papers below. Extensive information about using VIE is available in the Visible Implant Elastomer Tag Project Manual (English PDF 294KB; Spanish PDF 217KB).
VIE is available in six fluorescent and four non-fluorescent colors. The fluorescent colors are highly visible under ambient light and provide the option of greatly enhanced tag detection when fluoresced with the VI Light.
Proper color selection is a vital part of good experimental design. Your choice depends on how much contrast you need with the background pigmentation, how many different colors you require, and the type of light you will use to fluoresce the tags.
VIE is a medical-grade, two-part silicone based material that is mixed immediately before use and then injected as a liquid that cures into a pliable, biocompatible solid. Immediately after mixing, the user will have between 45 to 60 minutes (in warm environments) and 2 hours (in cold environments) of working time during which the tags can be injected.
The time that the prepared elastomer can be used (the "working time") depends on the temperature of the place. At normal room temperature (20°C), it usually lasts 45-60 minutes before it is too thick to push through the syringe. It lasts longer when it's colder and less when it's hotter. Working time can be greatly extended by keeping the unused prepared elastomer on ice as much as possible.
For unmixed elastomer, you can store it for one year from the date of purchase in a cupboard, away from sunlight or heat. The unmixed elastomer should never be stored in the freezer.
While VIE is primarily used for batch identification, you can generate a VIE coding scheme by combining multiple tags, tag locations, and colors. For example, researchers tracking seahorses used this method to distinguish more than 500 individual seahorses at one time.
Six fluorescent colors (red, yellow, blue, orange, green, and pink) and four non-fluorescent colors (black, brown, white, and purple) constitute the only intrinsic VIE codes. If you use just one tag per fish, the number of unique codes is simply the product of the numbers of colors used and the number of tag locations.
However, if you inject two or more tags in each animal, in combination with several different locations and colors, you can generate an extensive VIE coding scheme. In any tagging program, it is important that all of the study animals have the same number of tags. That way, there can be no confusion between animals which lost tags and those which began with fewer tags.
Calculate the number of unique codes you could create using the formula:
[L!/(L-N)!N!] CN
Where: C= Number of colors used, L= Number of body locations and N = Number of tags per animal.
For example, three body locations used with four colors (C = 4, L = 3, N = 3) would provide: (3!/0!3!) 43 = 64 unique codes. Recall that 0!=1.
You can download two softwares to do this automatic calculation. NMT Calculator or Salamarker. Both based in windows. Not available for iOS.
- Davy, Christina M.;, Suzanne M. Coombes; Amelia K. Whitear & Alistair S. MacKenzie. 2010. Visible Implant Elastomer: A simple, non-harmful method for marking hatchlings turtles. Herpetological Review. 41(4), 442-445.
- Waudby, Helen P.; & Sophie Petit. 2011. Comments on the efficacy and use of Visible Implant Elastomer (VIE) for marking lizards. The South Australian Naturalist 85(1): 7–13.
- Daniel, Jeremy A.; Kevin A. Baker & Kevin R. Bonine. 2006. Retention Rates of Surface and Implantable Marking Methods in the Mediterranean House Gecko (Hemidactylus turcicus), with Notes on Capture Methods and Rates of Skin Shedding. Herpetological Review, 37(3), 319–321.
- Penney, Kistren M.; Kristie D. Gianopulos & Henry R. Mushinsky. 2001. The Visible Implant Elastomer marking technique in use for small reptiles. Herpetological Review, 32(4), 236-241.
- Hutchens, Tan J.; Christopher S. Deperno; Charlotte E. Matthews; Kenneth H. Pollock & David K. Woodward. 2008. Visible Implant Fluorescent Elastomer: A reliable marking alternative for snakes. Herpetological Review, 39(3), 301–303.
- Kondo, Junko & Sharon J. Downes. Using Visible Implant Elastomer to Individually Mark Geckos. School of Botany and Zoology, Australian National University.
Etiqueta Tipo Implante Visible Elastómer (VIE), Tipo de etiqueta elastômero de implante visível
$ 110.00 USD
This product is sold by BIOWEB in America countries but if you are in United States...
$ 105.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United...
$ 105.00 USD
This product is sold by BIOWEB in America countries, but if you are in United States...
$ 52.50 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United States or Canada please contact the vendor Northwest Marine Technology directly.
Visible Implant Elastomer (VIE) is a two-part silicone based material that is mixed immediately before use. VIE tags are injected as a liquid that soon cures into a pliable, biocompatible solid. The tags are implanted beneath transparent or translucent tissue and remain externally visible. In many amphibians, VIE tags are even visible through darkly pigmented skin. VIE tags are widely used for marking an ever-broadening range of finfish, crustaceans, reptiles, amphibians and small mammals. Check some papers below. Extensive information about using VIE is available in the Visible Implant Elastomer Tag Project Manual (English PDF 294KB; Spanish PDF 217KB).
VIE is available in six fluorescent and four non-fluorescent colors. The fluorescent colors are highly visible under ambient light and provide the option of greatly enhanced tag detection when fluoresced with the VI Light.
Proper color selection is a vital part of good experimental design. Your choice depends on how much contrast you need with the background pigmentation, how many different colors you require, and the type of light you will use to fluoresce the tags.
VIE is a medical-grade, two-part silicone based material that is mixed immediately before use and then injected as a liquid that cures into a pliable, biocompatible solid. Immediately after mixing, the user will have between 45 to 60 minutes (in warm environments) and 2 hours (in cold environments) of working time during which the tags can be injected.
The time that the prepared elastomer can be used (the "working time") depends on the temperature of the place. At normal room temperature (20°C), it usually lasts 45-60 minutes before it is too thick to push through the syringe. It lasts longer when it's colder and less when it's hotter. Working time can be greatly extended by keeping the unused prepared elastomer on ice as much as possible.
For unmixed elastomer, you can store it for one year from the date of purchase in a cupboard, away from sunlight or heat. The unmixed elastomer should never be stored in the freezer.
While VIE is primarily used for batch identification, you can generate a VIE coding scheme by combining multiple tags, tag locations, and colors. For example, researchers tracking seahorses used this method to distinguish more than 500 individual seahorses at one time.
Six fluorescent colors (red, yellow, blue, orange, green, and pink) and four non-fluorescent colors (black, brown, white, and purple) constitute the only intrinsic VIE codes. If you use just one tag per fish, the number of unique codes is simply the product of the numbers of colors used and the number of tag locations.
However, if you inject two or more tags in each animal, in combination with several different locations and colors, you can generate an extensive VIE coding scheme. In any tagging program, it is important that all of the study animals have the same number of tags. That way, there can be no confusion between animals which lost tags and those which began with fewer tags.
Calculate the number of unique codes you could create using the formula:
[L!/(L-N)!N!] CN
Where: C= Number of colors used, L= Number of body locations and N = Number of tags per animal.
For example, three body locations used with four colors (C = 4, L = 3, N = 3) would provide: (3!/0!3!) 43 = 64 unique codes. Recall that 0!=1.
You can download two softwares to do this automatic calculation. NMT Calculator or Salamarker. Both based in windows. Not available for iOS.
- Davy, Christina M.;, Suzanne M. Coombes; Amelia K. Whitear & Alistair S. MacKenzie. 2010. Visible Implant Elastomer: A simple, non-harmful method for marking hatchlings turtles. Herpetological Review. 41(4), 442-445.
- Waudby, Helen P.; & Sophie Petit. 2011. Comments on the efficacy and use of Visible Implant Elastomer (VIE) for marking lizards. The South Australian Naturalist 85(1): 7–13.
- Daniel, Jeremy A.; Kevin A. Baker & Kevin R. Bonine. 2006. Retention Rates of Surface and Implantable Marking Methods in the Mediterranean House Gecko (Hemidactylus turcicus), with Notes on Capture Methods and Rates of Skin Shedding. Herpetological Review, 37(3), 319–321.
- Penney, Kistren M.; Kristie D. Gianopulos & Henry R. Mushinsky. 2001. The Visible Implant Elastomer marking technique in use for small reptiles. Herpetological Review, 32(4), 236-241.
- Hutchens, Tan J.; Christopher S. Deperno; Charlotte E. Matthews; Kenneth H. Pollock & David K. Woodward. 2008. Visible Implant Fluorescent Elastomer: A reliable marking alternative for snakes. Herpetological Review, 39(3), 301–303.
- Kondo, Junko & Sharon J. Downes. Using Visible Implant Elastomer to Individually Mark Geckos. School of Botany and Zoology, Australian National University.
Etiqueta Tipo Implante Visible Elastómer (VIE), Tipo de etiqueta elastômero de implante visível
$ 205.00 USD
Refunds — there are no refunds on orders of Coded Wire Tags. The CWT is...
$ 7,800.00 USD
This product is sold by BIOWEB in America countries, but if you are in United States...
$ 1,052.00 USD
If you have thousands of fish to tag, we recommend that you consider using our...
$ 205.00 USD
This product is sold by BIOWEB Global in LATAM, but if you are in United...
