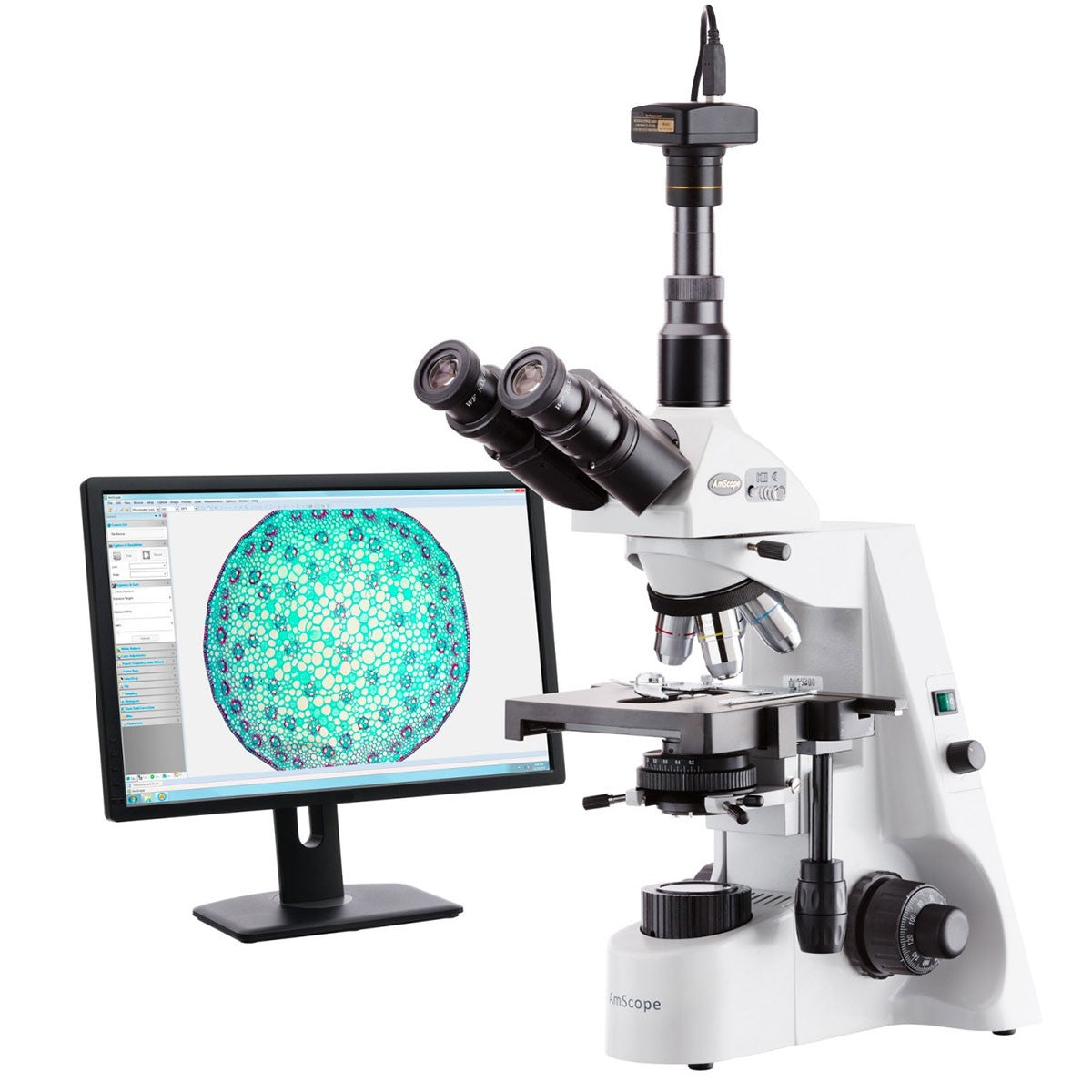

AmScope Trinocular Compound Microscopes T690 Series from 40X to 2500X

This is a top-tier professional infinite trinocular compound microscope with an extreme wide field optical infinite system, providing sharp and clear images. It features a 360-degree rotating Siedentopf trinocular head with a 30-degree incline, extreme wide field eyepieces, infinite objectives, coarse and fine coaxial focus, a three-dimensional mechanical stage, and variable-intensity halogen Kohler illumination with wide voltage (85-230V). Its revolving nosepiece configuration allows for ample space for convenient operation and comfortable observation. This microscope provides eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X. It is an excellent instrument for clinics, veterinary offices, and research laboratories.

Add a digital camera to capture still images and videos, allowing you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a multi-platform imaging solution. The included Windows software offers image development and measurement tools, as well as advanced compositing features like image stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed videos while capturing high-definition images. For Mac and Linux, a lite version with limited processing features is available.

Highlighted Features

• Large mechanical stage with dual microslide clamp.
• Humanized configuration design provides comfortable operation.
• Front house light frame open for easy bulb access.
• Fully coated optical system with high resolution.
• Sharp and crystal-clear images.
• Precise mechanical control system.
• Rear-facing nosepiece design for spacious operation room.
• Kohler illumination system with field diaphragm for lighting control.
• 30° inclined, 360° rotatable, Siedentopf trinocular head.
• Eight levels of magnification: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, and 2000X.
• Variable intensity transmitted halogen lighting.
• Abbe condenser with iris diaphragm and flip-out filter holder.
• Rack and pinion adjustment for condenser.
• Low position coaxial stage movement control knobs.
• Dual-side coarse and fine focus control.
• Adjustable interpupillary distance.
• Adjustable dioptric on eyepiece.
• Durable alloy casting frame construction with stain-resistant enamel finish.
• Four infinite objectives: 4X, 10X, 40X, 100X.
• Two sets of extreme wide field eyepieces: Wide field 10X (22 mm field of view) and 20X.
• Large double-layer mechanical stage with stain-resistant finish.
• Stage stop to protect objectives and slides.
• Compatible with a wide range of optional accessories, including phase contrast and dark field condensers.
• Manufactured under ISO 9001 quality control standards.

• Specifications
• In the Box
• Required Items
• Optional Items

• Features
  Type of Microscope	Compound
  Application	Clinic, Veterinary, Laboratory
  Type of Head	Trinocular
  Camera	PC and Mac
  Application	Clinic, Veterinary, Laboratory, Teaching / Training
  Magnification Power	40X to 2500X
  Optics	Achromatic, Infinite
  Field of View	Extreme Wide Field
  Objective Power	4X, 10X, 40X, 100X
  Objective Size	20mm
  Eyepiece Power	10X, 20X
  Eyepiece Size	30mm
  Camera	PC and Mac
  Camera Sensor	CMOS
  Reduction Lens	0.5X
  Stage	Two-layer mechanical stage
  Type of Light	Halogen
  Light Power	20W
  Light Form	Built-in
  Number of Bulbs	1
  Stage DIV	1.00mm
  Condenser	Kohler
  Type of Condenser	Bright Field
  Condenser Optics	Other
  Power Supply	110V, 220V
  Education	University, Teaching / Training
  Color	White

• • AmScope Trinocular Compound Microscope 40X-2000X with 14 MP Camera (1)
  • Siedentopf trinocular head (1)
  • Microscope frame with base and Kohler lighting system (1)
  • High-quality infinity objectives (4)
  • Extreme Widefield WH10X eyepieces (2)
  • Extreme Widefield WH20X eyepieces (2)
  • Power cable (1)
  • Three-color filters
  • Dust cover (1)
  • Replacement halogen bulb (1)
  • Replacement fuse (1)
  • Immersion oil (1)
  • User manual download
  • Reduction lens (1)
  • Size adapters (1)
  • USB cable (1)
  • Software CD (1)
• • None
• • Camera
