R-600A Telemetry Receiver - Discontinued

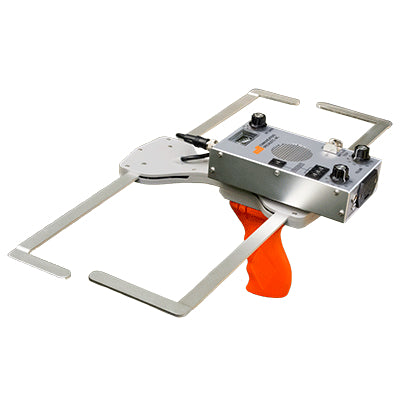

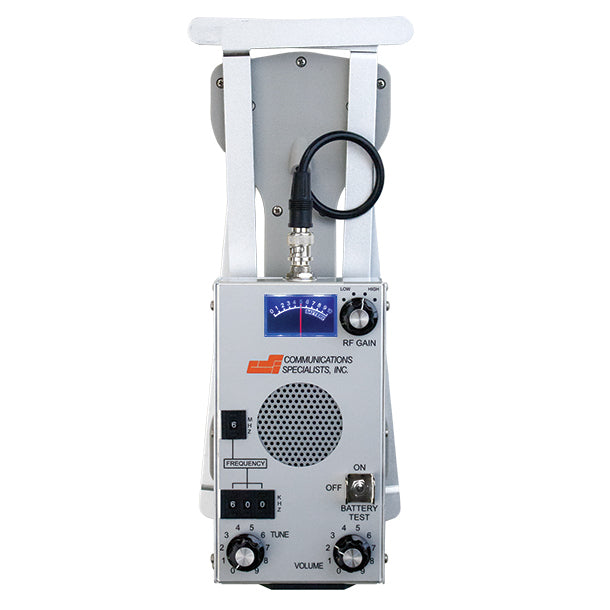

This receiver is an exceptional value for a synthesized receiver covering any frequency between 216.000 and 222.000MHz with no gaps in coverage. This not only allows you to hunt with multiple birds transmitting at the same time, but multiple dogs also. The R-600A is supplied with a folding high gain, and very directional antenna which mounts directly to the receiver and rivals a Yagi in performance. No coax is required, allowing one handed operation. A standard 9 volt alkaline battery powers the unit and is easily changed using a fingernail. Not only is the R-600A extremely sensitive to hear the weakest telemetry signals, it also employs very effective filters to eliminate unwanted interference sources. The synthesized design provides excellent temperature stability with no drift in frequency settings. A four step attenuator allows full receiver sensitivity for longest range or reduced sensitivity for extremely close-in tracking to a few inches. The R-600A employs a large, full range, speaker for rich sounding loud audio. A very sensitive signal strength meter also doubles to let you know when the battery needs replacing. A rugged, light weight, aluminum case is standard as well as a 3.5 mm mono headphone jack and adaptor for the larger 1/4” headphone plugs. A standard circ., 5.5mm x 2.1mm, center positive, power jack allows the R-600A to be powered from an external 9-14VDC source.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• • Frequency range: Continuous from 216.000-221.999 MHz
  • Sensitivity: -150dBm
  • Channel steps: 1kHz with ±500Hz fine tuning
  • Antenna connector: BNC female.
  • RF attenuator: -20db, -40db, -70db switchable.
  • Battery: 9 volt replaceable alkaline.
  • Size: 6.2" x 3.5" x 1.4" without antenna - Total footprint of receiver and antenna when viewed from above is 20.25" x 11.25". When antenna elements are folded, footprint becomes 12" x 4.75".
  • 1 year warranty.
• • Receiver (1).
  • Headset adapter cable (1).
  • 9 volt battery (1).
  • Pistol grip (1).
  • Yagi antenna (1).
  • Holster style carrying case (1).
• • Headset.
• • Folding Directional Antenna
  • Receiver/Antenna Case.
  • Mono Headphone Adaptor, 1/4” Female to 3.5 mm Male.
  • Coax Assembly
  • Omni directional magnet mount auto rooftop antenna w/coax
• • Operating Manual.
