YSI ProDSS Multiparameter Water Quality Meter

ProDSS Digital System: Explore, Measure & Trust Your Water Quality Data

Scientific precision in your hands: measure multiple water parameters in the field and lab

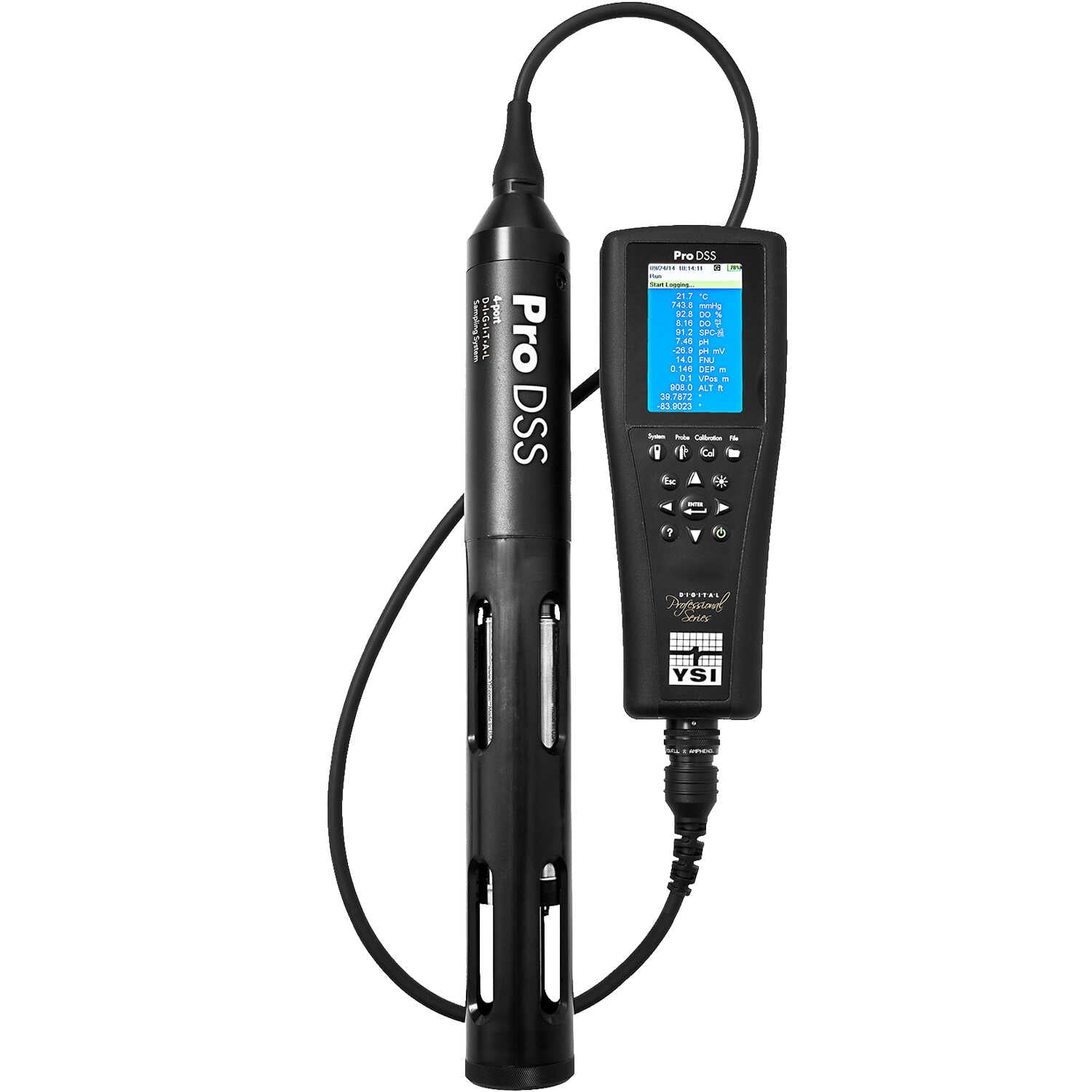

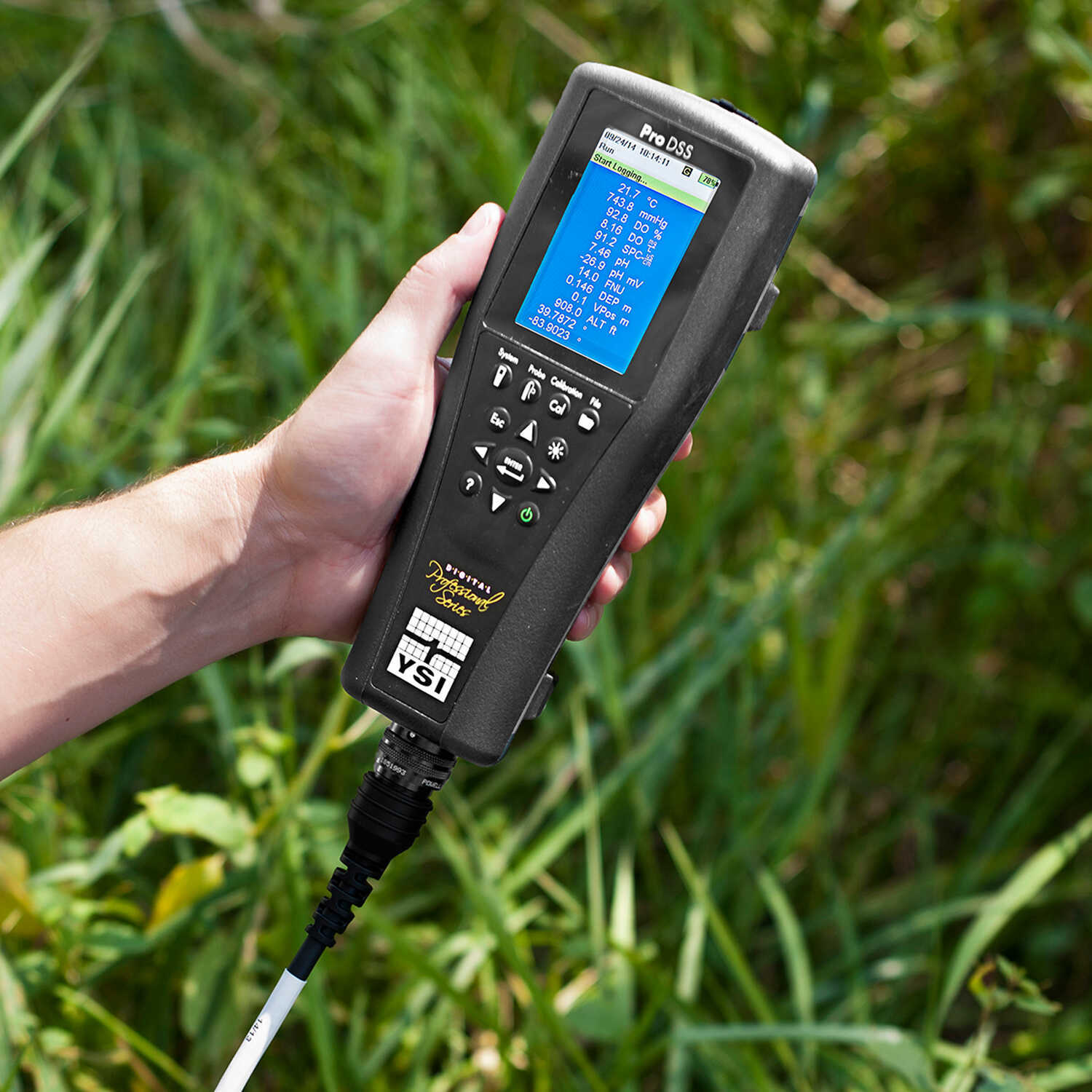

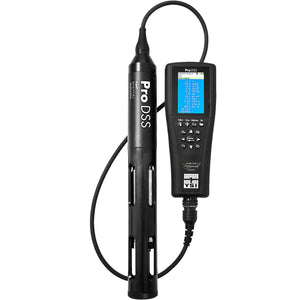

The YSI ProDSS (Digital Sampling System) Multiparameter Handheld is a portable water sampling instrument that combines ruggedness, flexibility, and accuracy. Designed for scientific, environmental, and regulatory applications, it allows you to connect up to four smart sensors simultaneously, providing reliable data in surface water, groundwater, coastal water, aquaculture, laboratories, and wastewater. Its advanced digital technology automatically recognizes sensors and retains calibration, saving time and ensuring reproducible results. Available in two versions: with integrated GPS (to record field coordinates) or without GPS.

Key Features

• Total Flexibility: 4 universal ports to connect any combination of sensors.
• Extreme Durability: IP-67 waterproof housing, military-grade connectors, and replaceable titanium sensors.
• Extended Battery Life: rechargeable lithium-ion battery with up to 48 hours of continuous use.
• Large Memory: stores over 100,000 data sets with customizable labels.
• Clear Display: color LCD with backlit keypad, even in direct sunlight.
• Kor Software Compatible: advanced data analysis, calibration, and management on PC and mobile.
• Advanced Options: integrated GPS in the “With GPS” version and optional depth sensor.
• Reliable Support: up to 3-year warranty on the instrument and 2 years on cables.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	ProDSS Handheld (No GPS)	ProDSS Handheld (With GPS)
  Instrument Type	Portable digital multiparameter for water sampling (field and lab compatible)
  Sensor Ports	4 universal, compatible with any ProDSS sensor
  Internal GPS	No	Yes, stores coordinates with data and site lists
  Memory	>100,000 data logs, 400 GLP files
  Connectivity	Micro USB On-The-Go port for PC, charging, and USB memory connection
  Data Management	Kor Software (PC included and mobile app), data viewing and download
  Battery	Rechargeable lithium-ion (~48h autonomy without backlight)

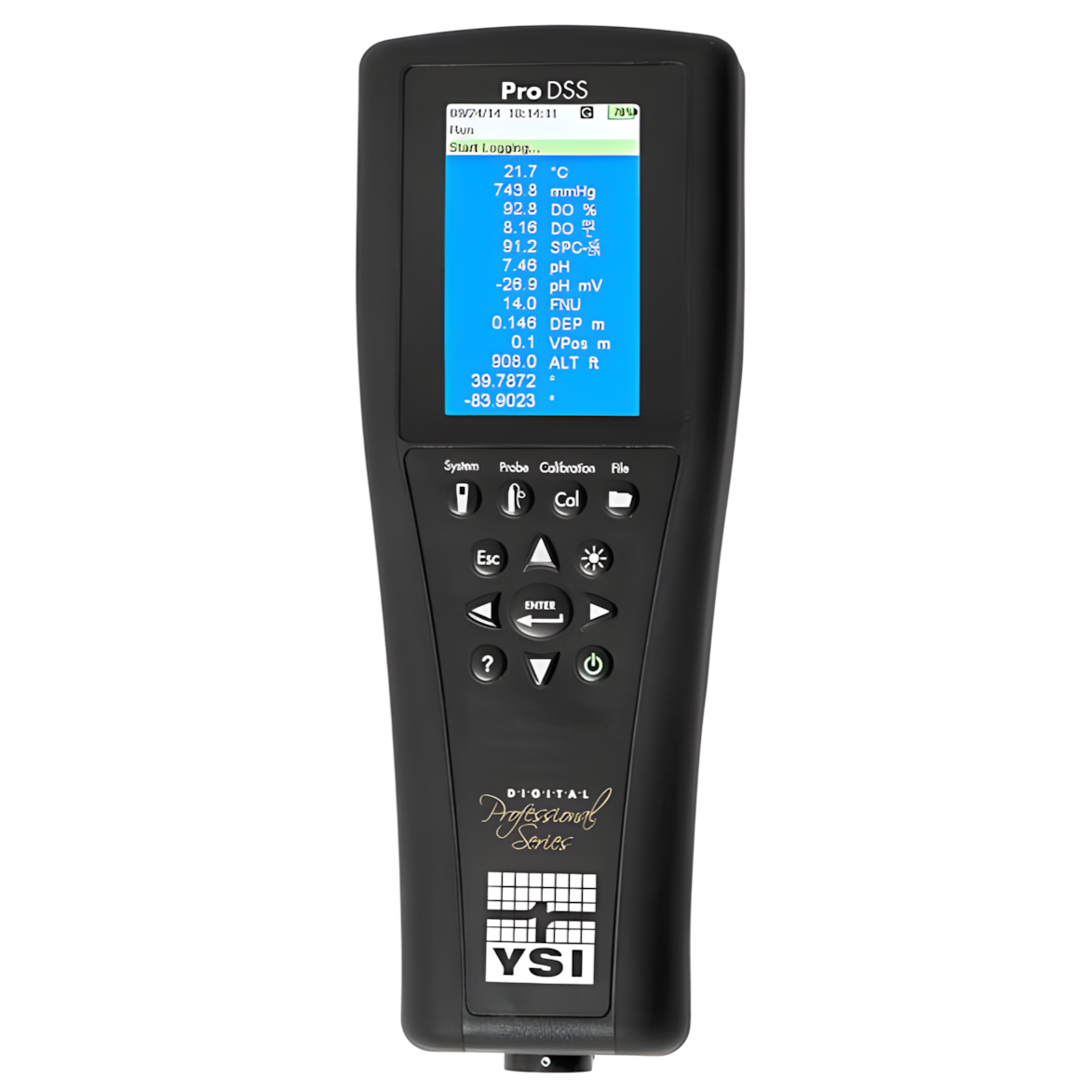

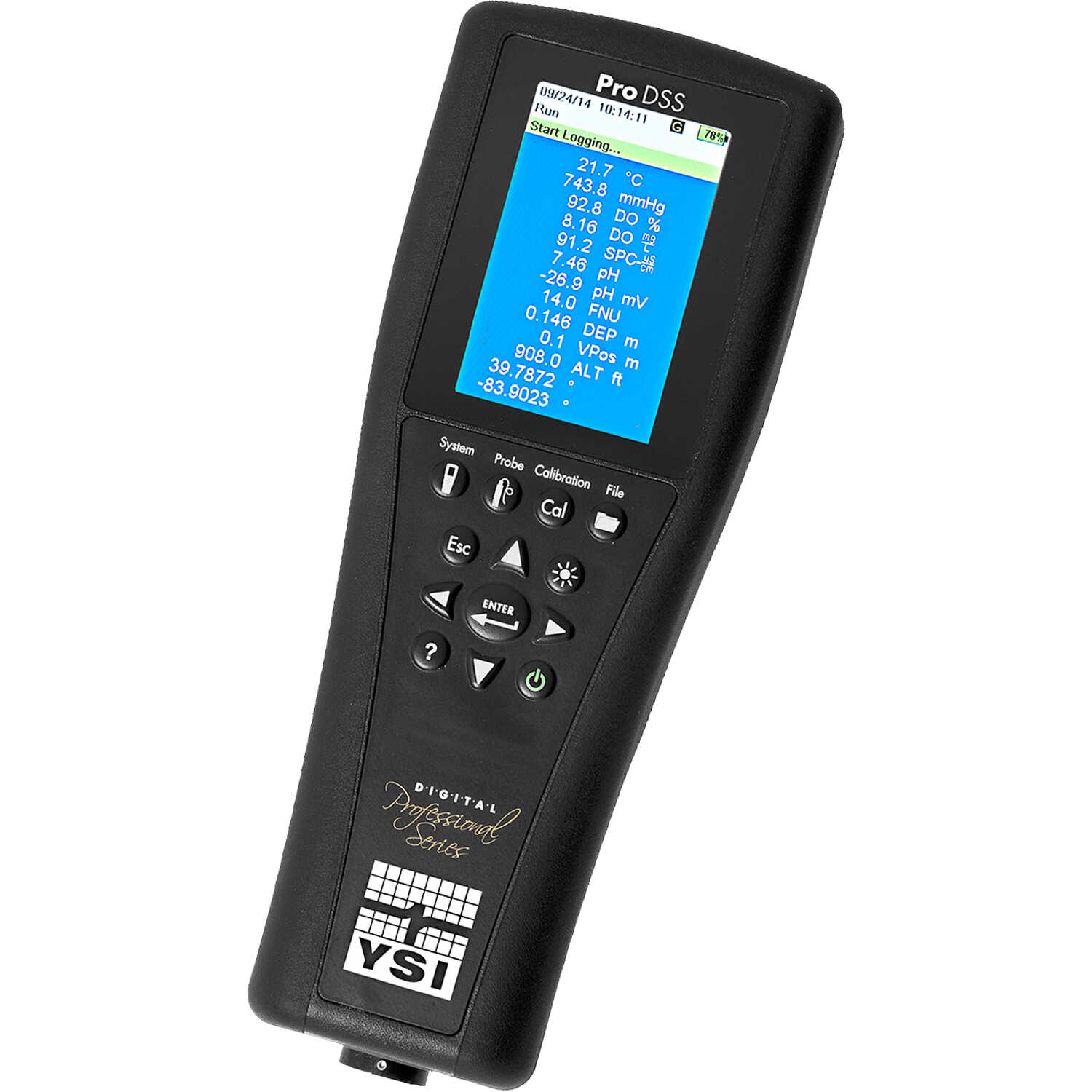

  Display	Color LCD with backlit keypad
  Certifications	CE, FCC, RoHS, WEEE, IP-67, 1m drop test, UN 38.3, assembled in USA
  Languages	Spanish, English, Portuguese, German, French, Italian, Norwegian, Japanese, Chinese (Simplified and Traditional)
  Buffer Recognition	Automatic, compatible with USA (4.00, 7.00, 10.00) and NIST (4.01, 6.86, 9.18), temperature compensated
  Sensors	Digital, replaceable, up to 4 simultaneously
  GLP Compliance	Stores detailed GLP info, available for download/printing
  Data Logging	Single-point or continuous mode
  Measurable Parameters	DO (% and mg/L), Temp., Turbidity, Conductivity, Resistivity, Salinity, Density, pH, ORP, Ammonium, Nitrate, Chloride, TDS, TSS, Depth, Barometer
  Operating Temperature Range	0 to 50 °C (32–122 °F)
  Storage Temperature	0–45 °C with battery | 0–60 °C without battery
  Size (handheld)	8.3 cm (width) × 21.6 cm (length) × 5.6 cm (depth)
  Size (bulkhead)	With sensors: 33–36 cm | With guard: 42–45 cm | Ø 4.75 cm
  Protection	Waterproof, floats, IP-67 even with battery cover open

• • x1 ProDSS Handheld (selected version)
  • x1 Rechargeable lithium-ion battery (pre-installed)
  • x1 Hand strap
  • x1 USB cable for charging and PC connection
  • x1 Universal AC charger
  • x1 Cable for USB memory connection
  • x1 USB memory with Kor software
  • x1 ProDSS Quick Guide
  • x1 User manual in digital format
• • ProDSS 4 Port Cable Assembly (with or without depth sensor, depending on configuration)
  • ProDSS multiparameter sensors (ODO, pH, ORP, Turbidity, Algae, etc.)
  • Conductivity/Temperature Sensor (recommended for accurate compensation)
• • Depth sensor
  • ODO/CT Probe and cable
  • ProODO Sensor and cable
  • ProOBOD Optical BOD Probe (lab use)
  • ProDSS 4 Port Cable Assembly, With Depth – Cable with depth sensor
  • ProDSS 4 Port Cable Assembly, No Depth – Cable without depth sensor
  • ProDIGITAL ODO/CT Cable Assembly – Integrated optical DO and conductivity cable
  • ProDSS ODO Optical Dissolved Oxygen Sensor
  • ProDSS Turbidity Sensor
  • ProDSS Conductivity and Temperature Sensor
  • ProDSS pH Sensor with Module
  • ProDSS pH/ORP Sensor with Module
  • ProDSS Total Algae PC Sensor
  • ProDSS Large, Hard Sided Carrying Case
  • Pro Series Soft Sided Carrying Case
  • ProDSS Small, Hard-sided Carrying Case
• • ProDIGITAL User Manual (EN)
  • Dissolved Oxygen Solubility Table | XA00055
  • YSI ProDSS Quick Start Guide
