SHIPPING QUOTE FOR OVERSIZED ITEMS MUST BE REQUESTED | WhatsApp Global CLICK HERE
Request Quote
For the first time ever, you can contemplate All the Birds of the World together...
Request Quote
For the first time ever, you can contemplate All the Mammals of the World together...
$ 48.95 USD
Made to U.S. Weather Bureau specifications. Collects rain in top, funnels it to removable inner...
$ 23.90 USD

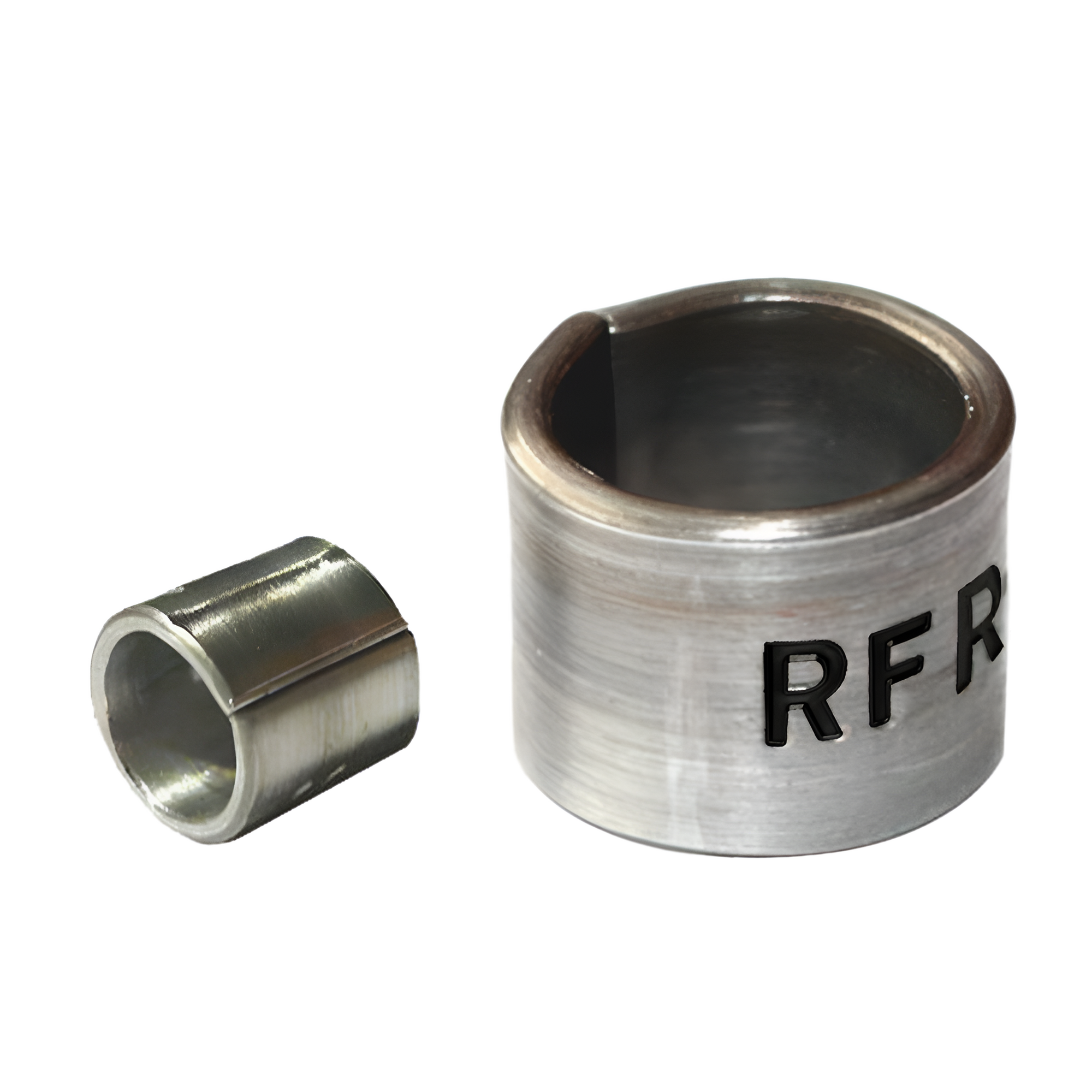

Receive a discount per volume. These bands are made of aluminum, whose edges are treated...
$ 44.50 USD
Receive a discount per volume. These bands are made of aluminum, whose edges are treated...
$ 12.50 USD
Made from component materials which comply with FDA Regulations for food contact. Contain no natural...
Request Quote
During the development of the Ambient Sound Fish, the focus was on high sound quality with the best possible handling.
It was important to us to offer a linear, low-distortion frequency response from 10 Hz to 40 kHz. This allows the ASF-1 MKII to record far into the infra- and ultrasound range. The ASF-1 MKII was specially developed by us for use with professional audio equipment. Therefore, it works directly and without an adapter on a microphone input with 48V phantom power without additional external power supply.
The underwater microphone is made from high-quality aluminum bronze and can easily withstand pressures up to a water depth of 100 m. At the same time, all materials used, from the PUR sensor encapsulation to the special polyurethane cable, are characterized by exceptionally good saltwater resistance.
The delivery includes a 10 m long underwater cable with a molded AHS underwater connector. This allows the ASF-1 MKII to be used directly and without additional accessories. Further cable lengths are available on request at any time.
Microphone | |
---|---|
Microphone Type | Hydrophone |
Polar Pattern | Omnidirectional |
Sound Field | Mono |
Orientation | End Address |
Controls | No |
Performance | |
Frequency Response | 7 Hz to 40 kHz |
Connectivity | |
Analog Output | 1x TA4M/Mini-XLR 4-Pin Male |
USB/Digital Output | No |
USB Class-Compliant | No USB Connectivity |
Cable Length | 33' / 10.1 m |
Wireless | No |
Power | |
Power Sources | Phantom Power |
Operating Voltage | 48 V |
Physical | |
Color | Black |
Environmental Resistance | Water-Resistant to 328.1' / 100.00488000000001 m (Unrated) |
Dimensions | ø: 0.98 x L: 7.09" / ø: 25 x L: 180 mm |
Weight | 0.6 lb / 0.27 kg (without Cable) |
Request Quote
Our underwater cables with molded AHS underwater connectors are available in various lengths. Ambient Recording...
$ 19.95 USD
Costa Rica is a remarkable place for amphibians and reptiles. Known for its biological diversity,...
Request Quote
Very Short Introductions: Brilliant, sharp, inspiring. From frogs, toads, newts, and salamanders to the lesser-known...
$ 1,690.00 USD
This quality kit has what you need when it comes to basic sampling of mud,...
$ 2,075.00 USD
This unique sampling kit comes with everything necessary to take accurate interval specific core samples...
$ 685.00 USD $ 710.70 USD
This mini kit includes a core sampler cup, a core sampler cap, 15 2˝ x...
$ 212.00 USD
5/8" and 3/4" threaded connections use standard, national course, threads. 3/4" are used with the...
Request Quote
The Signature Series chromoly drill extensions feature a yellow zinc coating to make them corrosion-resistant.
$ 778.80 USD
Use this 6” x 6” dredge in all types of bottom substrates, except hard packed...
$ 2,221.90 USD
You asked for it and we listened. No more threaded connections! The New AMS 3-1/4”...
$ 252.81 USD
The quick-connect button-and-hex coupling system allows components to connect and disconnect faster and with less...
$ 571.95 USD
Ideal for obtaining most types of bottom material! The dredge’s two-way mechanism prevents accidental closure...
Request Quote – Sold Out
Soil Core Samplers are tools used to gather nearly undisturbed soil samples for studying soil...
$ 405.50 USD
Request Quote
The 1MP USB Camera Compound Binocular Microscope is designed to teach demonstrations, clinical examinations, and laboratory applications. It is a perfect microscope for a wide range of people, from professionals and high school students to teachers and those with a degree in biology or enrolled in medical school. It comes with a professional Siedentopf binocular head, double-layer stage, coarse and fine focus, LED illumination, and a 1.3 MP USB digital camera. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X, and 2500X. The digital camera captures still images and videos, and allows you to view a live stream on your PC. The included software for Windows offers image development and measurement tools, as well as features such as image stitching and depth of focus. Independent preview and high-speed video capture resolutions let you view while capturing high-definition images. On Mac computers, the camera can be used as a driver-free imaging device, compatible with several applications such as Proscope and Photo Booth. This microscope is an ideal instrument for biological, bacterial, and pharmaceutical research.
† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals
Features | |
---|---|
Head Type | Binocular |
Camera Connection Type | Mini-USB |
Illumination Style | Transmitted (bottom) |
Magnification Power Setting | 40X-2500X |
Manufacturer | AmScope |
Microscope Application | High school, college, teaching/training |
Microscope Camera Pixel | 1MP |
Microscope Category | Compound |
Microscope Color | White |
Microscope Condenser Design | Rack and pinion Abbe with diaphragm |
Microscope Condenser Optics | NA 1.25 |
Microscope Condenser Type | Brightfield |
Microscope Eyepiece Power | 10X, 25X |
Microscope Eyepiece Size | 23mm |
Microscope Field View | Wide field |
Microscope Head Style | Binocular |
Microscope Iris | with Iris |
Microscope Light Power | 1W |
Microscope Light Shape | Built-in |
Microscope Light Type | LED |
Microscope Magnification Power | 40X to 2500X |
Microscope Number of Bulbs | 1 |
Microscope Objective Power | 4X, 10X, 40X, 100X |
Microscope Objective Size | 20mm |
Microscope Optics | Achromatic |
Microscope Power Supply | Broadband |
Microscope Sensor | CMOS |
Microscope Stage | Double layer mechanical stage |
Optics | Achromatic |
Support 65 | ![]() |
Request Quote
Request Quote
Request Quote
This professional cleaning kit cleans messy fingerprints, dirt and dust, stains etc. The non-aerosol cleaner is safe for using on optical lens of microscope, DC DV lens of professional cameras, iPhone, iPad, laptop screens, LCD screens, plasma TV, VCD, DVD, CD etc. The cleaning kit includes a bottle of liquid, a piece of cleaning cloth and a brush for cleaning corners and sidings of the screen.
California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals
Características |
|
---|---|
Brush Length: | 5-1/2" (13.5cm) |
Liquid Cleaning: | 100 ml |
Cleaning Cloth: | 5-7/8" x 6-3/4" (15 x 17cm) |
Material: | rubber, plastic, nylon |
Prop 65 | ![]() |
EO20231203
Request Quote
This is a trinocular stereo microscope with a compact 144 LED ring light and a 10MP USB digital camera. The microscope has a super-wide field optical system that provides a very large zoom magnification power (52:1) offering a long working distance (8", 200mm). The trinocular port uses the third port for camera capabilities or for a third person to also view, allowing you to use the remaining two ports to view your sample. The 144 LED ring light features a compact design with a built-in dimmer, providing cool, uniform, and bright LED illumination.
The digital camera captures still images and videos, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it is a cross-platform imaging solution. The included Windows software provides measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. Independent capture and preview resolutions let you view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in the electronics and semiconductor industries. It is also the right microscope for biological lab applications requiring low heat emission.
Specifications | |
---|---|
Camera Pixels | 10 megapixels |
Microscope Type | Stereo |
Application | Industrial inspection, gemology/jewelry, coin/stamp, engraving, dissection, dental lab, mineralogy |
Magnification Power | 3.5X-180X |
Field of View | Extremely wide field |
Head Type | Trinocular |
Objective Power | 0.7-4.5X |
Eyepiece Power | 10X, 20X |
Eyepiece Size | 30 mm |
Camera Sensor | CMOS |
Reduction Lens | 0.5X |
Microscope Stand | Table stand: 254 x 200 x 275 mm |
Lighting Configuration | Incident (above) |
Light Type | LED |
Illumination | Ring |
Number of Bulbs | 144 |
Barlow Lens | 0.5X, 2.0X |
Power Supply | Broadband |
Education | University, Teaching/Training |
Interpupillary Distance | 55-75 mm |
Working Distance | 200 mm |
Frame Rate | 1.9@3584x2748 , 8 @ 1792x1374 , 27 @ 896x684 |
Compatibility | Windows (32/64 bit) XP / Vista / 7/8/10, Mac OSX, Linux |
Software Specifications |
|
EO20230505
Request Quote
This is a new high-quality 40X Plan achromatic microscope objective lens. It is an international DIN/JIS lens. It fits common-sized biological/compound microscopes (DIN/JIS standard). Enhance your microscope with greater power and clarity at a fraction of the cost.
† California Proposition 65 WARNING: Cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov/chemicals.
Features |
|
---|---|
Magnification Power | Objective-40X |
Manufacturer | AmScope |
Mounting Size | Objective-20mm |
Objective Iris | No iris |
Objective Mounting Size | 20 mm |
Objective Optics | Plan |
Objective Power | 40X |
Objective Type | Compound, brightfield, darkfield |
Optics |
Plan |
Proposition 65 | ![]() |
Special Feature | Objective-No Iris |
Type | Objective-brightfield, objective-darkfield |
EO 20230822
Request Quote
The B490 model is a reliable and versatile microscope, ideal for veterinarians, breeders, and clinical laboratories. Designed to deliver superior optical quality and ease of use, it features advanced functions such as a compensation-free Siedentopf head, a precise focusing system with tension adjustment and vertical lock, and a double-layer mechanical stage for smooth and precise movements. This instrument can be customized for different needs with a wide variety of accessories and lenses, offering magnifications ranging from 40X to 2600X (depending on the version).
Specification | Value |
---|---|
Optical System | Finite conjugate |
Mechanical Tube Length | 160mm |
Head | Binocular, 30° inclination, 360° rotation |
Interpupillary Adjustment | Siedentopf compensation-free |
Eyepiece Diameter | 23mm |
Eyepieces | 10X, 25X |
Objectives | Standard DIN |
Parfocal Objective Distance | 45mm |
Objective Mounting Thread | RMS 20.32mm |
Nosepiece | Quadruple |
Focusing System | Coaxial coarse and fine focus, upper limit stop, tension control |
Focus Range | 30mm |
Fine Focus Division | 0.002mm |
Stage Design | Double-layer with calibrator |
Stage Dimensions | 140mm x 140mm |
X-Y Translation Range | 75mm x 45mm |
Transmitted Illumination | 20W Halogen |
Condenser | Abbe condenser with iris diaphragm, NA1.25 |
Condenser Holder | Rack and pinion |
Power Supply | 110VAC 60Hz |
Magnification | Corrections | NA | Immersion Medium | Cover Glass Thickness |
---|---|---|---|---|
4X | achromatic | 0.10 | — | 0.17mm |
10X | achromatic | 0.25 | — | 0.17mm |
40X | achromatic | 0.65 | — | 0.17mm |
100X | achromatic | 1.25 | oil | 0.17mm |
Request Quote
Request Quote – Sold Out
These new professional-quality microscopes feature long-working-distance wide-field optics. They are designed for applications involving large vessels or samples in biology, microbiology, histology, immunology, and iatrology, among others. Allowing the observation of samples in culture flasks, Petri dishes, or other containers, they come with long-working-distance plan objectives, high-quality phase contrast objectives, super-wide-field eyepieces, and a trinocular head inclined at 45°. They offer magnification settings of 40X, 100X, 100X, 200X, 250X, 400X, 500X, and 1000X, as well as phase contrast microscopy functions. They provide clear, high-quality microscopic images of cells in containers or large vessels. These microscopes are ideal for observing live cells in micro-research laboratories. They are a perfect model for universities, medical offices, epidemic prevention departments, and animal breeding and livestock laboratories, among others.
Ref | IN300TC | IN300TC-FL | IN300TC-FL-5MF | IN300TC-FL-MF603 | IN300TC-FL-MF |
---|---|---|---|---|---|
Head | Compensation-free trinocular head inclined at 45° | ||||
Eyepiece | WH10X / 20 mm and WH25X / 9 mm, super wide field | WH10X / 22 mm and WH25X ultra-wide field | WH10X / 20 mm and WH25X / 9 mm, super wide field | WH10X / 20 mm and WH25X ultra-wide field | |
Objective |
|
Long working distance achromatic plan 4X, 10X (phase contrast), 20X (phase contrast), and 40X (s) | |||
Mechanical Stage | Two-layer, (242x172 mm), travel range: (115x75 mm) | ||||
Central Stage | (110 mm) diameter | ||||
Condenser | NA 0.3 Abbe with iris diaphragm, working distance: (75 mm) | ||||
Focusing | Coaxial coarse and fine focusing system with tension control; fine focus scale value (0.002 mm) | ||||
Phase Contrast Slider | Adjustable center phase contrast ring plate | N/A | |||
Centering Telescope | Included | N/A | |||
Filter | Blue, green, yellow, and frosted glass. | N/A | |||
Interpupillary Distance | N/A | (50-75mm) | |||
Transmitted Illumination | N/A | 12V / 30W halogen bulb, adjustable brightness | |||
Epi-Fluorescence Illumination | N/A | 100W ultra-high-pressure mercury; constant mercury lamp power with digital display | |||
Power Supply | N/A | 110V / 60Hz |
Ref | IN300TC-3M | IN300TC-M | IN300TC-5MA | IN300TC-10MA | IN300TC-10M | IN300TC-8M |
---|---|---|---|---|---|---|
Head | Trinocular head, compensation-free, 45° inclined | |||||
Eyepiece | WH10X / 20 mm and WH25X extra-wide field | |||||
Objective | Long working distance plan (LWDPL), 4X / 0.1 WD 25 mm, 10X / 0.25 Phase contrast WD 11 mm, LWDPL20X, 20X / 0.4 Phase contrast WD 6 mm, and 40X / 0.6 WD 3.8 mm | |||||
Mechanical Stage | Two-layer, size: 9.53" (242x172 mm), travel range: (115x75 mm) | |||||
Central Stage | (110 mm) diameter | |||||
Condenser | NA 0.3 Abbe with iris diaphragm, working distance: (75 mm) | |||||
Focusing | Coaxial coarse and fine focusing system with tension control; fine focus scale value (0.002 mm) | |||||
Phase Contrast Slider | Adjustable phase contrast centering ring plate | |||||
Centering Telescope | Included | |||||
Filter | Blue, green, yellow, and frosted glass | |||||
Interpupillary Distance | N/A | (50-75 mm) | ||||
Illumination | 12V / 30W halogen bulb | |||||
Power Supply | 110V / 60Hz | |||||
Interpupillary Distance | (50 mm-75 mm) |
Camera Features | 1.3MP Camera | 3MP Camera | 5MP Camera | Fluorescence Camera | Low Light CCD Camera | 8MP Camera | 10MP Camera |
---|---|---|---|---|---|---|---|
Image Sensor | Aptina MT9T001 | Sony Color CCD, model ICX282AQ | Sony IMX035 (color) | Aptina | Aptina MT9J003 | ||
Sensor Type | CMOS | Sony Color CCD, model ICX282AQ | CCD | CMOS | |||
CCD Scanning Mode | N/A | Interline | N/A | ||||
Sensor Size | 4.6x3.7 mm | 6.55x4.92 mm | 130 x 111 x 54 mm | 8.4 mm | 14.6 x 12.8 mm | 5.45x4.09 mm | 6.44x4.616 mm |
Pixel Size | 3.6 | 3.2 | 3.4 microns x 3.4 microns | 3.63µm | 4.54 | 1.67 | |
Resolution | 1.3MP | 2580 (H) x 1944 (V) pixels | 6.0MP | 8.0MP | 10.0MP | ||
G Sensitivity | N/A | 280mV | N/A | ||||
Filter | N/A | RGB Bayer Pattern | N/A | ||||
Port | N/A | Standard C-Mount | N/A | ||||
Low-Speed Reading | N/A | Yes | N/A | ||||
A/D Conversion | N/A | 12 bits | N/A | ||||
Peltier Cooling | N/A | -30°C below ambient temperature | N/A | ||||
Power Supply | N/A | External 3.5V | N/A | ||||
Exposure Control | N/A | Automatic / Manual | N/A | ||||
Exposure Time | N/A | 0.1 - 60 minutes | N/A | ||||
Angle Light Control | N/A | Yes | N/A | ||||
Frame Rate | 15 @ 1280x1024, 26 @ 640x512, 50 @ 320x256 | 8 @ 2048x1536, 22 @ 1024x768, 43 @ 680x510 | 3 fps @ 2580x1944 pixels; 10 fps @ 1280x932 pixels | 25 fps @ 664x512, 13.5 fps @ 1280x1038 | 7.5 fps @ 2748x2200, 14 fps @ 2748x1092 | 1.9 @ 3264x2448, 8 @ 1600x1200, 27 @ 800x600 | |
Sensitivity | 1.0V / lux-sec | N/A | 1 / 30s | 0.31 V / lux-sec | |||
Compatibility | Windows (32/64 bit) XP / Vista / 7/8/10, Mac OSX, Linux |
Request Quote
Request Quote – Sold Out
Discover the Invisible World Explore the Fascinating Microscopic Universe With our Kit that Includes 72...
$ 91.75 USD
This is an adjustable 80-LED ring light with a 75 mm inner diameter, a 110-240...
Request Quote
This is a 100X achromatic oil-immersion objective lens for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
† California Proposition 65 WARNING: Cancer and Reproductive Harm for more information go to www.P65Warnings.ca.gov/chemicals
Features |
||||
---|---|---|---|---|
Ref | AMSC-A4X-490 | AMSC-A10X-490 | AMSC-A40X-490 | AMSC-A100X-490 |
Compatibility |
||||
Optical System | Finite | |||
Mechanical Tube Length | 160 mm | |||
Mounting Thread | RMS 20,32 mm | |||
Parfocal Distance | 45 mm | |||
Lens Specifications |
||||
Magnification | 4X | 10X | 40X | 100X |
Numerical Aperture | 0,10 | 0,25 | 0,65 | 1.25 |
Corrections | Achromatic | |||
Cover-glass Thickness | 0,17 mm | |||
Immersion Medium | None | Oil | ||
Magnifying Power | Objective-4X | Objective-10X | Objective-40X | Objective-100X |
Zounting Size | Objetive-20mm | |||
Objective Iris | Without Iris | |||
Objective Mounting Size | 20 mm | |||
Objective Optics | Achromatic | |||
Objective Type | Compound, Brightfield | |||
Proposition 65 WARNING | ![]() |
EO 20230713
Request Quote
This is a 1X C-mount photo adapter for Nikon microscopes. The adapter allows the mounting...
Request Quote
Based on the HD200 series, it offers live 1080p viewing via HDMI and you can record 5MP photos and 1080p video directly to Secure Digital media. The internal software provides control over exposure and color, and tools for measurements and comparisons. The addition of autofocus limits the need to make focus adjustments when using the camera as the main observation medium.
Connected to an HDMI monitor or TV, live 1080p video can be viewed at super smooth 60 fps. The included USB mouse allows you to control the camera through its easy-to-use interface. Alternatively, connect the camera via WiFi for remote control of the software, with 25 fps streaming. The included Windows software offers measurement and image development tools, as well as advanced composition features such as image stitching and extended depth of focus. With the ability to calibrate scales with multiple magnifications, the software can be used for multi-level inspections. For Mac and Linux, there is a lite version of the software that can capture video and still images and includes limited processing features.
The camera uses a C-mount interface, making it compatible with a wide range of reduction lenses and photo ports.
Notice: due to the autofocus mechanism, the C-mount lens thread should not exceed 5 mm.
Sensor | |
---|---|
Sensor Type | CMOS |
Sensor Optical Format | 1/1.8" |
Active Pixels | 5.04 million (2592 x 1944) |
Pixel Size | 2.4 µm x 2.4 µm |
Active Sensor Area | 6.22 mm x 4.67 mm |
Shutter | Electronic rolling shutter |
Sensitivity | 425 mV at 1/30 s (f/5.6) |
Spectral Response | 380-650nm with IR cut filter |
Camera | |
Video Preview Resolution (HDMI) | 1920 x 1080 |
Video Preview Frame Rate (HDMI) | 60 fps |
Video Capture Resolution | 1920 x 1080 |
Video Capture Frame Rate | 30 fps (SecureDigital) 25 fps (Wi-Fi) |
Internal Video Capture Format | PPA |
Internal Photo Capture Format | 2592 x 1944, 1920 x 1080 |
Internal Photo Capture Format | JPG |
Recording Media | SecureDigital card |
Connectivity | HDMI, Wi-Fi |
Wi-Fi Standard | 802.11n 150 Mbps |
Lens Mount | C-mount |
Reducer Lens | 0.5X (optional) |
Power | 12VDC 1A |
Dimensions | 78 mm x 70 mm x 92 mm |
Operating Temperature | -10-50 °C |
Operating Humidity | 30-80% |
Software | |
Operating System Requirements | Windows (32/64 bit) XP / Vista / 7/8/10, Mac OS 10.8+, Linux kernel 3.13+ |
Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM |
Features |
Windows Version:
|
Request Quote
This is a heavy-duty double-arm stand with ball bearings for stereo microscopes. The ball bearing...
Request Quote
Features EP20X30F EP20X30E EP20X30 EP20X305 EP20X23 EP20X30F-V374 EP20X23-S Magnification 20X Field of View 12 mm...
$ 371.90 USD
