Combined Plate Chamber (Utermöhl-Chamber) Aquatic BioTechnology

$ 870.00 USD

What is it Used for?

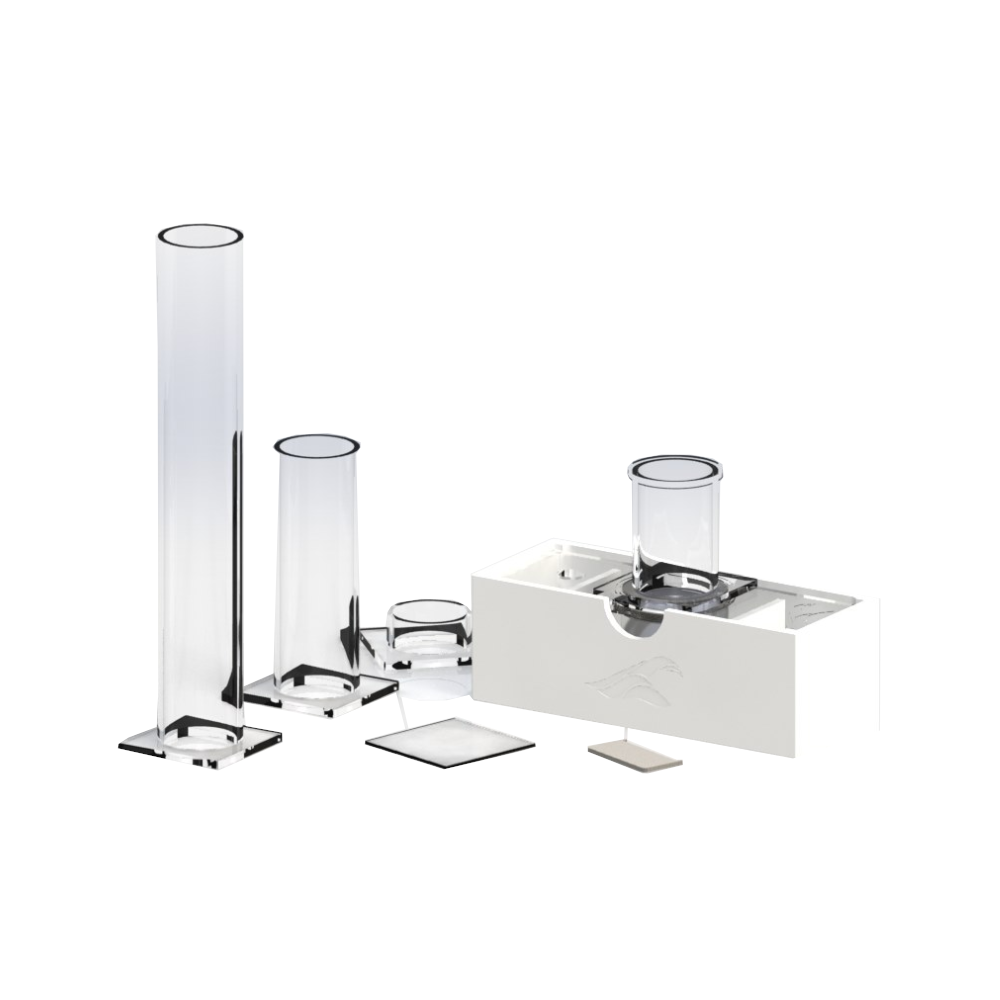

The Utermöhl Pack is a complete tool for quantitatively analysing phytoplankton using the Utermöhl method. It allows you to sediment a sample of phytoplankton, and later analyse this in an inverted microscope.

Make your Pack

The Utermöhl Pack components can be bought separately so you can select the products you most frequently use or add a larger quantity of any given product.



Base Plate and Threaded Ring



Precision Thanks to the painstaking manufacturing process, the join between the stainless steel threaded ring and methacrylate plate is better than ever.
	Our Sedimentation Chambers Manufactured to contain 10ml, 25ml, 50ml or 100ml, with a tolerance of +/- 0.3ml. Volume obtained with our base plate, threaded ring, and sedimentation chamber used together.



New Handling Support

The design of the new handling support means everything fits together better. The base plate fits perfectly on the top of the handling support, facilitating the sliding of the sedimentation chambers and square cover, and avoiding splashes.

Utermöhl Support Made of aluminium, this support allows the our Utermöhl base plate to be adapted to any inverted microscope. It is custom built according to the needs of the client.

---

Note: Sedimentation chambers are not suitable for use with alcohols

---

• Specifications
• In the Box
• Required Items
• Optional Items

• • Base plate
    Manufacturing materials	Made of methacrylate, with threaded channel to place the threaded ring.
    Size	Base plate size 120mm x 43mm.
    Volume	3ML volume (when used with our threaded ring and glass coverslip circle).
    Threaded Ring
    Manufacturing materials	Made of AISI 316 stainless steel, allowing precise adjustment of the glass “Coverslip Circle” (incluided in the pack).
    Size	Ring size: Ø ext. 37mm / Ø int. 26mm.
    Key
    Manufacturing materials	Made of AISI 316 stainless steel, it is used to adjust the threaded ring on base plate.
    Size	1mm thick.
    Handling Support
    Manufacturing materials	Made of white acetal, it serves as a support for the base plate and simplifies the handling of the Utermöhl Pack.
    Volume	100ml volume allows.
    Size	135x53x45mm.
    Sedimentation Chamber
    10ml sedimentation chamber.
    25ml sedimentation chamber.
    50ml sedimentation chamber.
    100ml sedimentation chamber.
    Glass Covers
    Glass Coverslip Circle, 100 units: Ø ext. 28mm / 0,17mm thick.
    Square Covers, 4 units: 42mm x 42mm / 1,2mm thick.
    Round covers, 4 units: Ø ext. 33mm / 3mm thick.

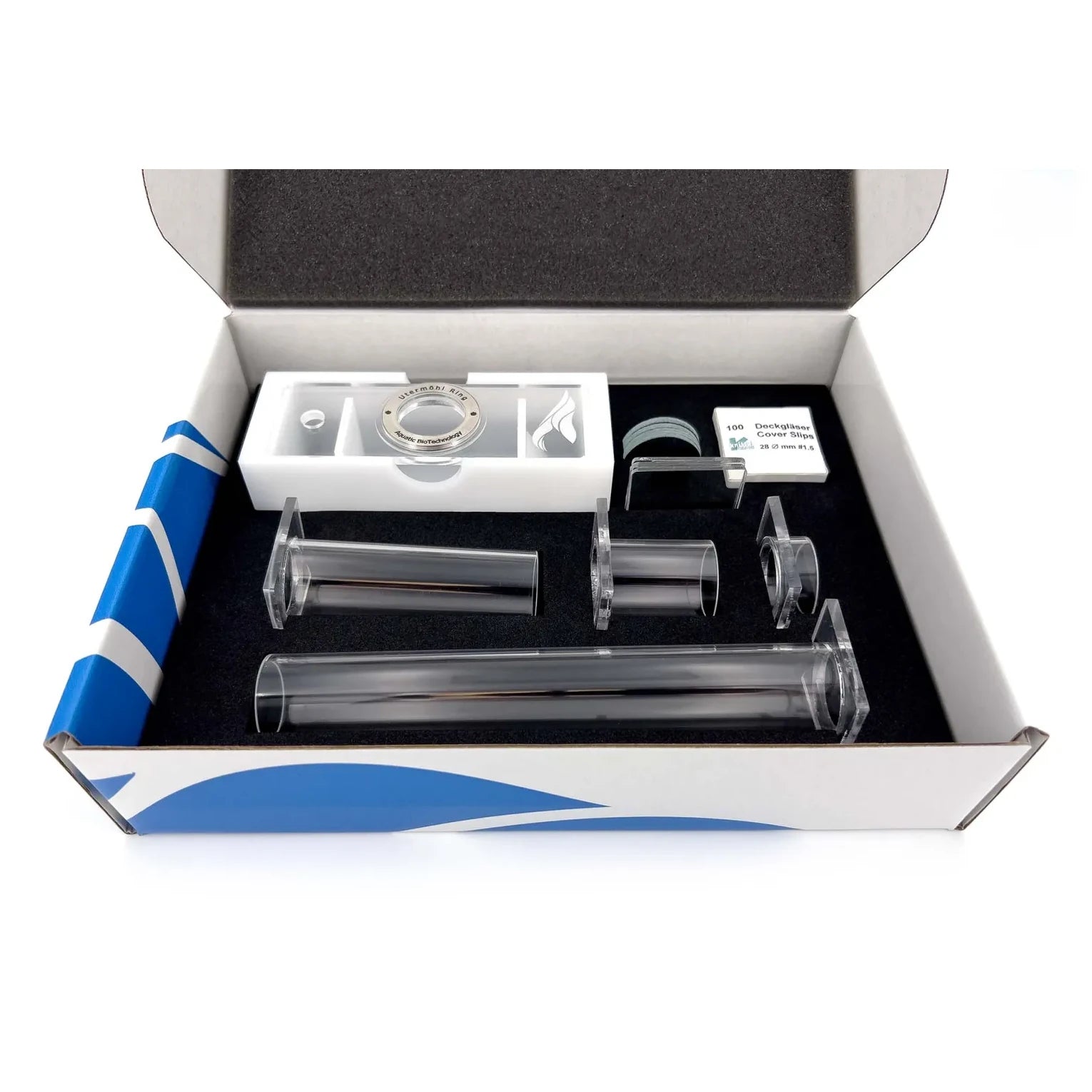

• • (1) Utermöhl Pack
  • (1) Base plate
  • (1) Threaded ring
  • (1) Key
  • (1) Handling support
  • (4) Sedimentation chamber
  • (3) Glass covers
  • Manual
• • None
• • None

EO20232403

View full product details »

---

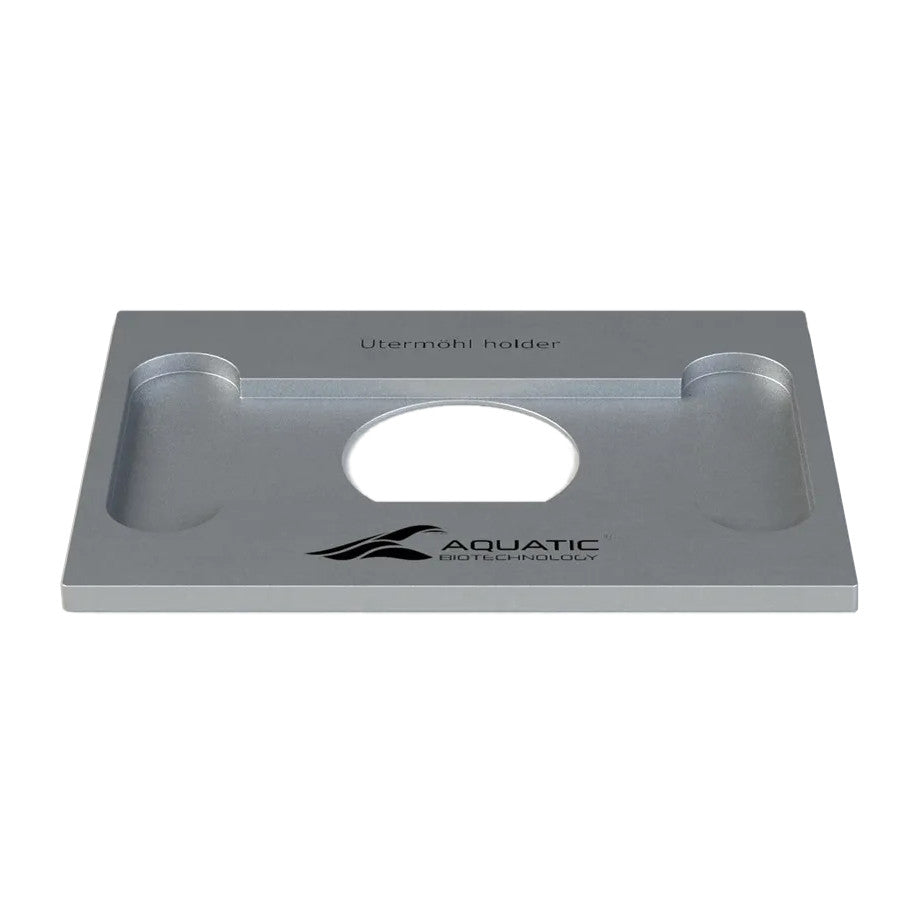

Utermöhl Holder
