Laser Technology

Criterion RD 1000 Electronic BAF-Scope Dendrometer - Discontinued

$ 1,595.00 USD – Sold Out

This product is sold by BIOWEB for use within the United States only

Criterion RD 1000 Electronic BAF-Scope and Dendrometer

Optimize forest inventory with diameter measurements at any height and precise determination of basal area factors through integrated tilt sensor technology.

The Criterion RD 1000 is a revolutionary measurement device designed for forestry professionals who demand precision and versatility in the field. Thanks to its integrated tilt sensor, this dendrometer allows for the collection of diameter data at any point up the tree stem and determines the exact height at which a specific diameter is reached. Its Basal Area Factor (BAF) routine instantly indicates whether trees are "In" or "Out" of the sample, simplifying forest surveys. Featuring an in-scope LED display with variable brightness and an included 2.4x magnifier, the RD 1000 ensures clear readings in all lighting conditions and at significant distances.

Key Features

• Flexible Diameter Measurement: Measure tree trunk diameter at any vertical section without the need for climbing.
• Integrated Tilt Sensor: Automatically calculates heights and relative diameters using advanced angle detection technology.
• Advanced BAF Functionality: Evaluates trees for basal area sampling with a wide range of adjustable factors.
• High-Resolution Optics: Includes a 2.4x magnifier to improve data precision during long-distance measurements.
• Data Connectivity: Dual serial ports for distance input from rangefinders and data output to external collectors.
• Professional Durability: Water and dust resistant construction, ideal for intensive operations in rugged forest environments.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Criterion RD 1000
  Technology	Electronic dendrometer with tilt sensor
  Main Functions	Diameter, Height, BAF, Inclination
  Display	In-scope LED with variable brightness
  Magnification	2.4x (Lens included)
  Communication Ports	RS232 Serial (Input and Output)
  Mount	1/4” x 20 thread for tripod or monopod
  Protection	Water and dust resistant

• • 1x Criterion RD 1000 Electronic Dendrometer
  • 1x 2.4x Magnifier
  • 1x Carrying case
  • 1x Lens cloth
  • 1x Neck strap
  • 1x User manual
• • 2x AA Batteries or 1x CRV3 Battery
• • Laser Rangefinder
  • Forestry Tripod or Monopod
  • External Data Collector
• • Criterion RD 1000 User Manual (English)
  • Criterion RD 1000 Technical Specifications (English)

EO20260422

View full product details »

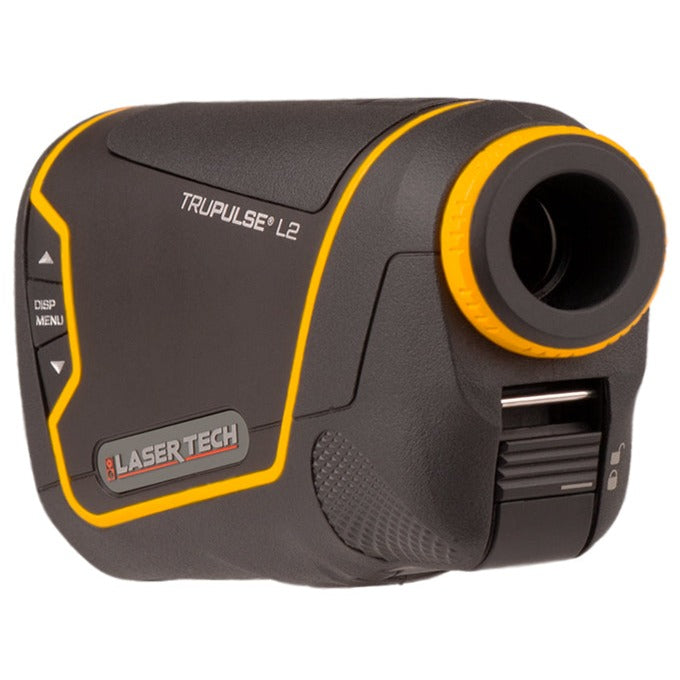

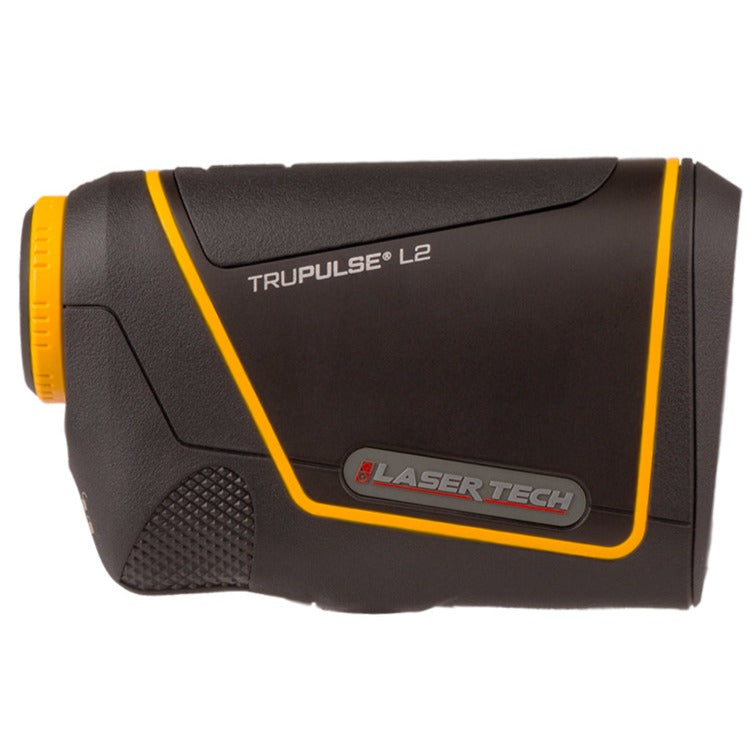

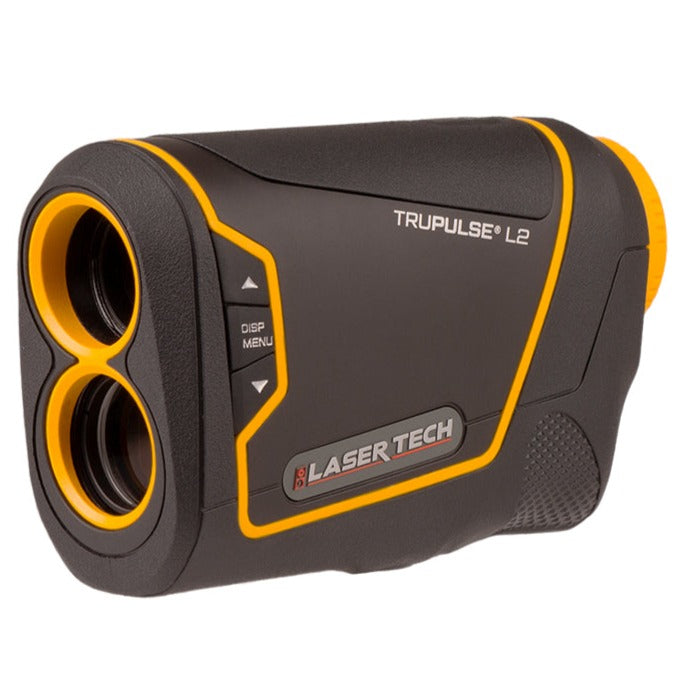

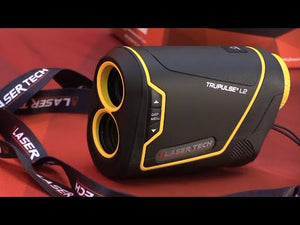

TruPulse Rangefinder L2

$ 640.25 USD

Power for any size crew to make professional measurements. The TruPulse L2 laser rangefinder is...

View full product details »

TruPulse 360° Rangefinder / Hypsometer - Discontinued

$ 1,695.00 USD – Sold Out

Check the New TruPulse L2 Compact and lightweight, TruPulse rangefinders/hypsometers allow you to view through...

View full product details »

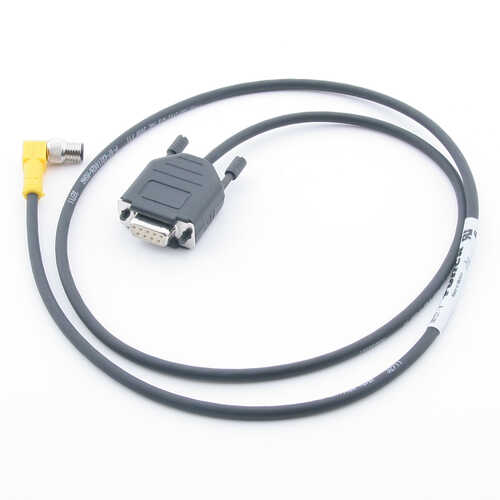

LaserTech Download Cable 36-inch LTI 4-Pin to DB9

Request Quote

A 4-pin to DB9 download data cable for TruPulse series instruments.

View full product details »

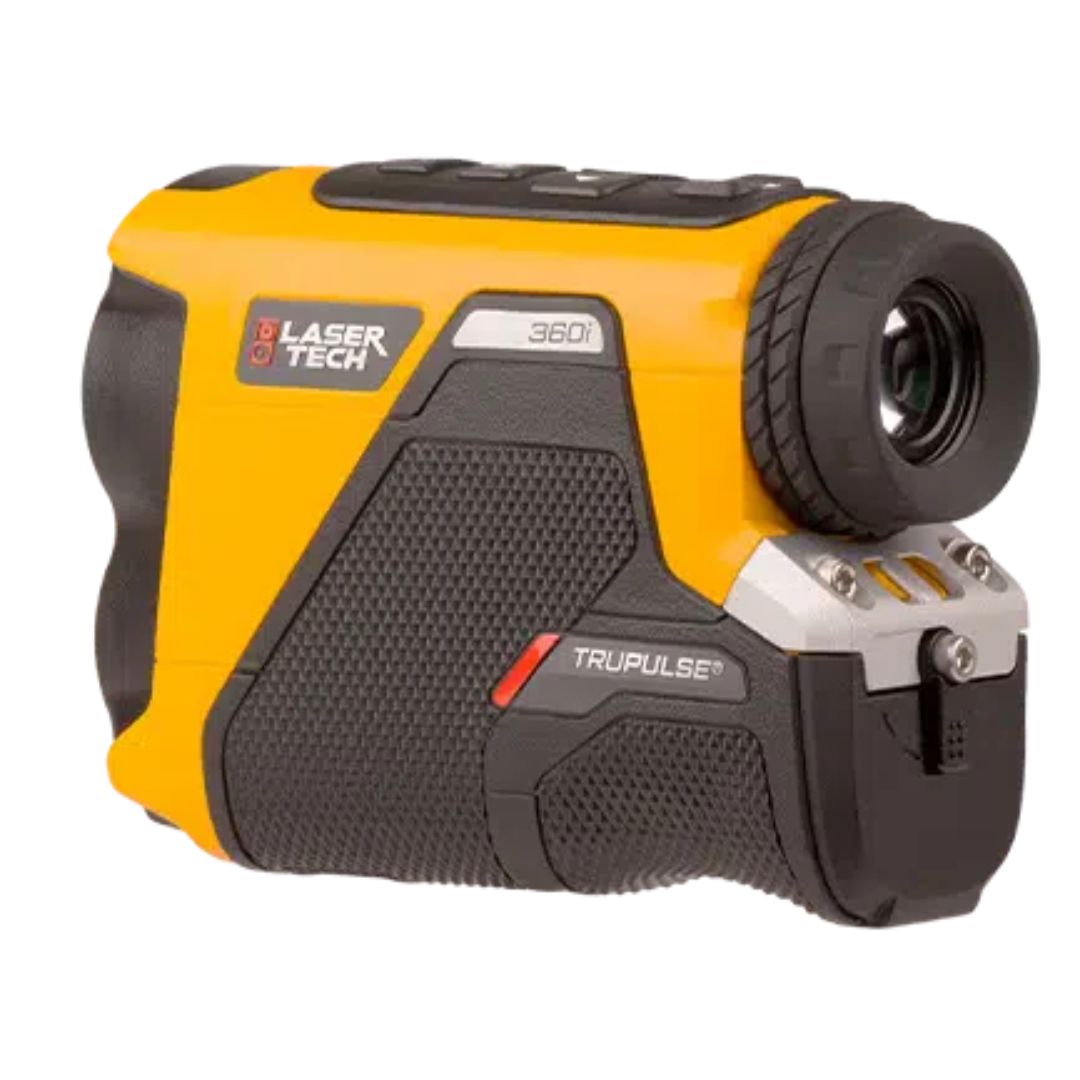

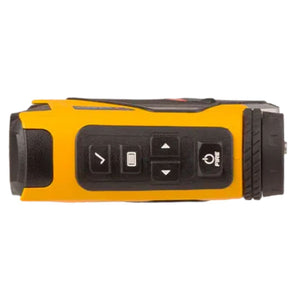

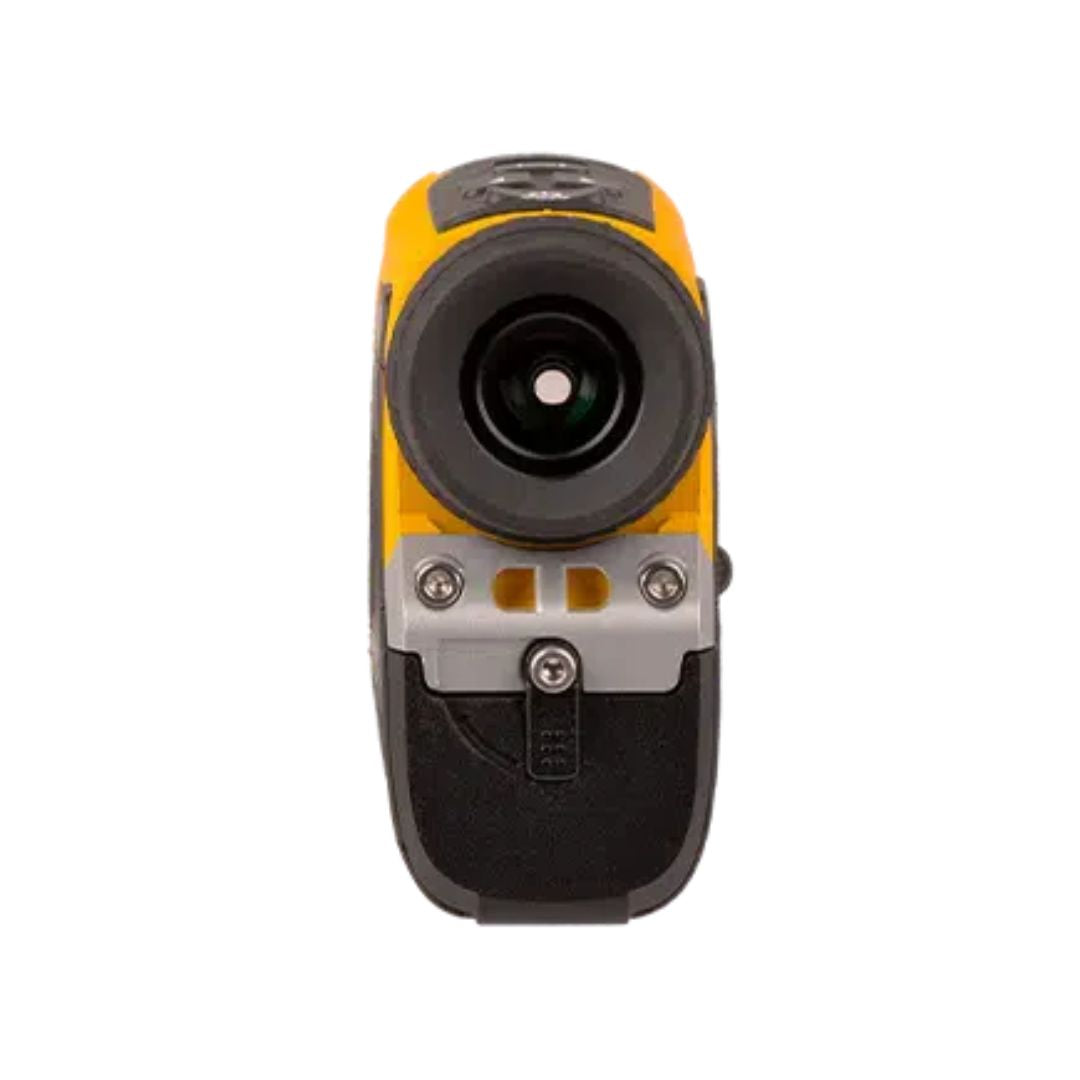

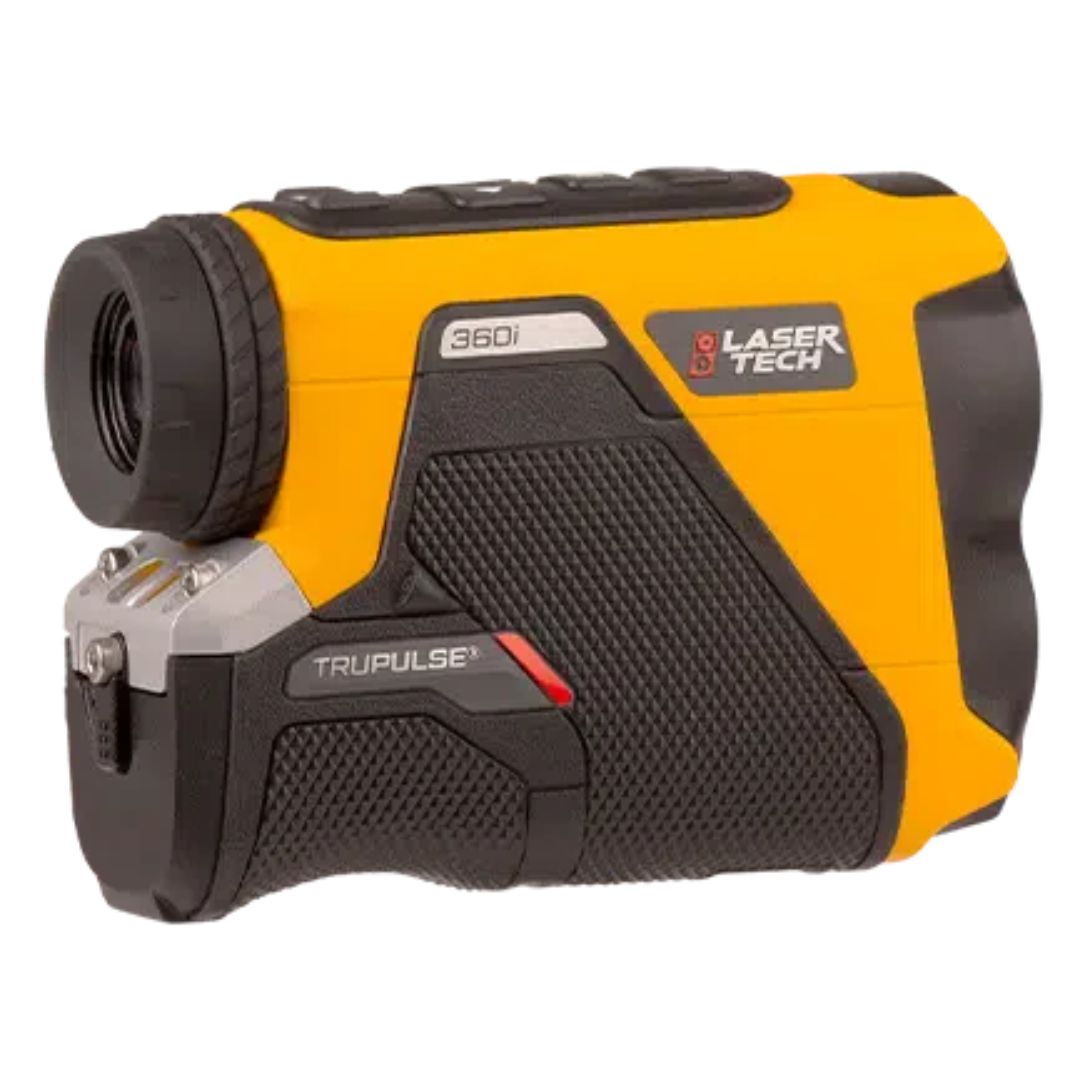

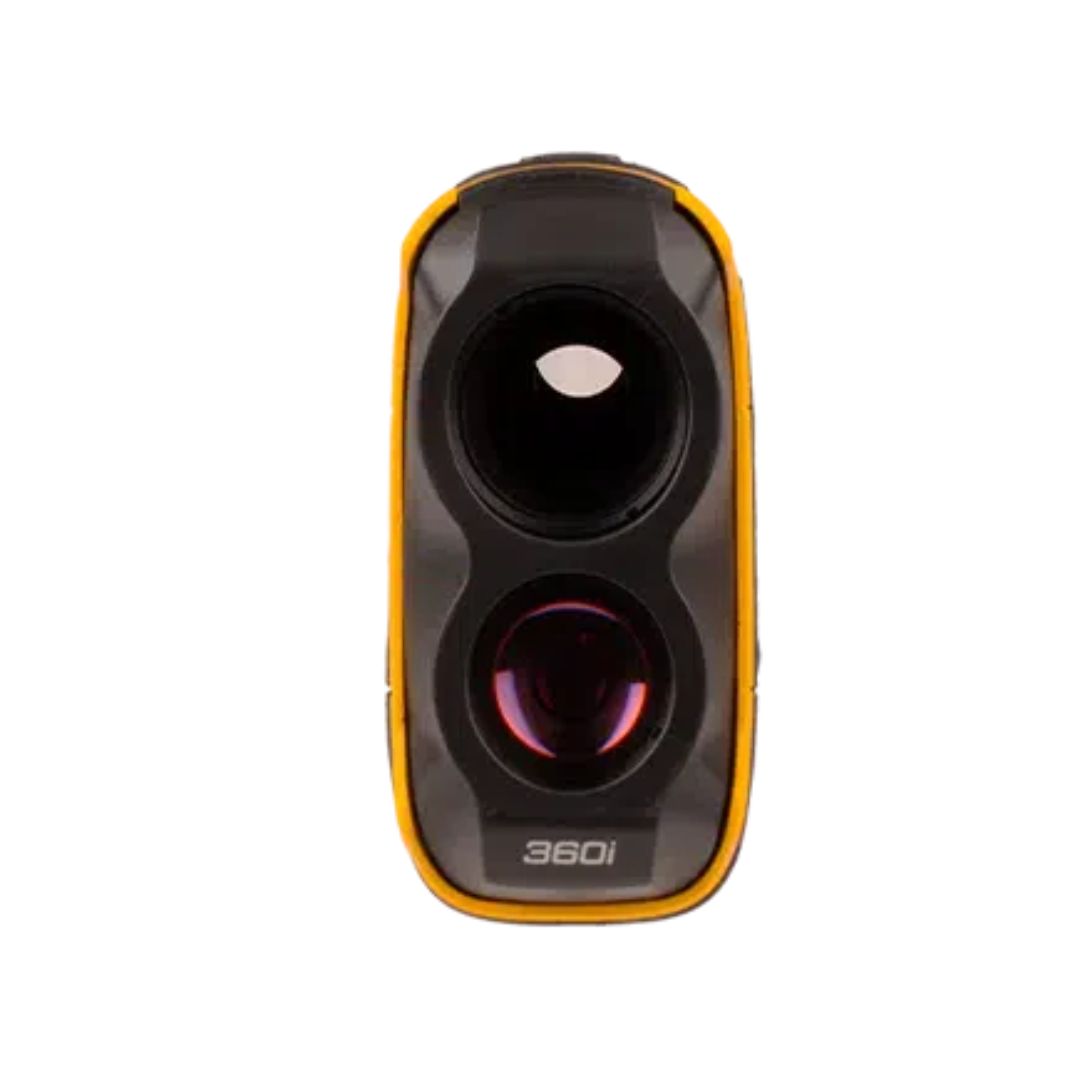

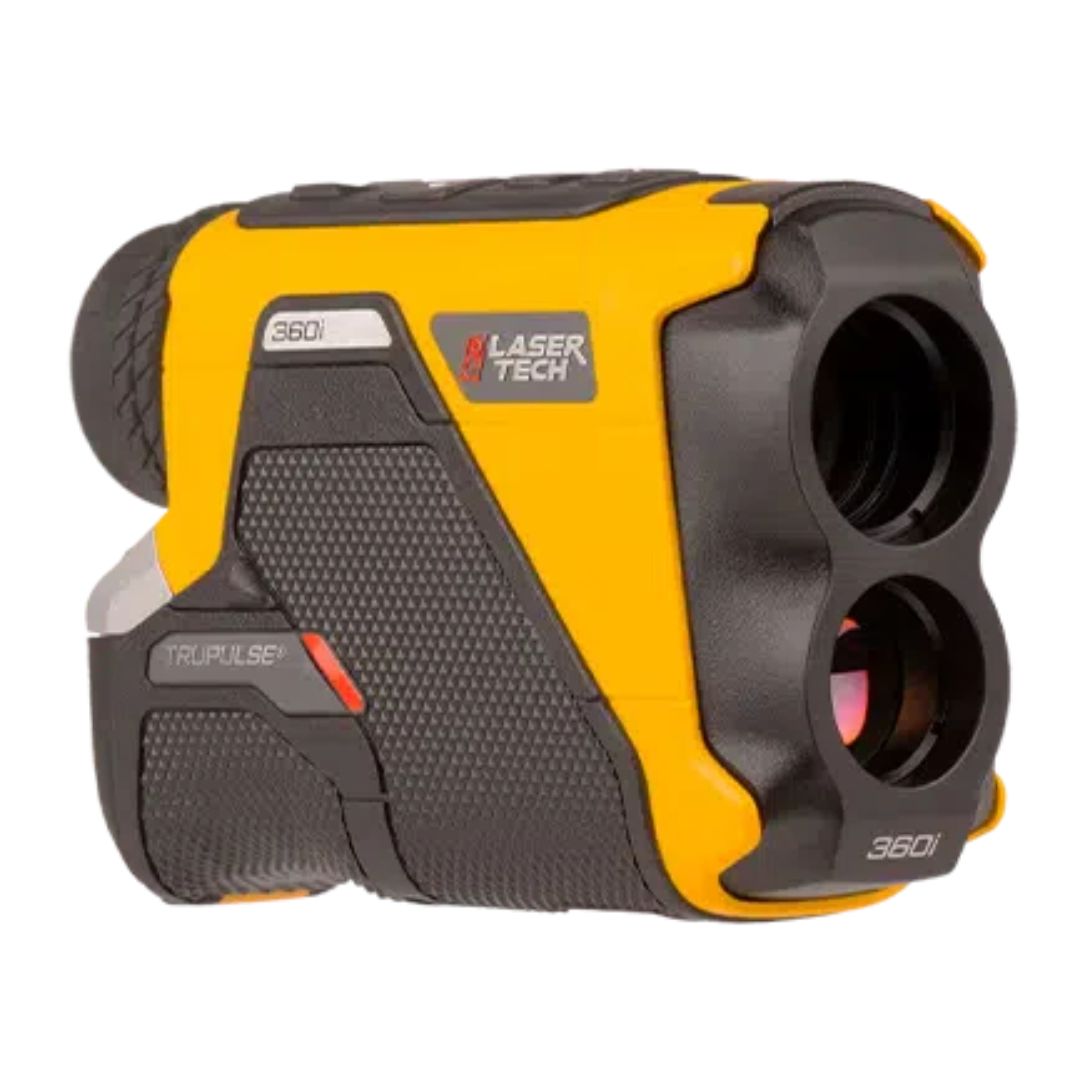

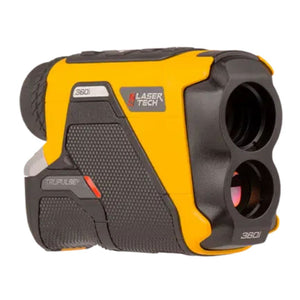

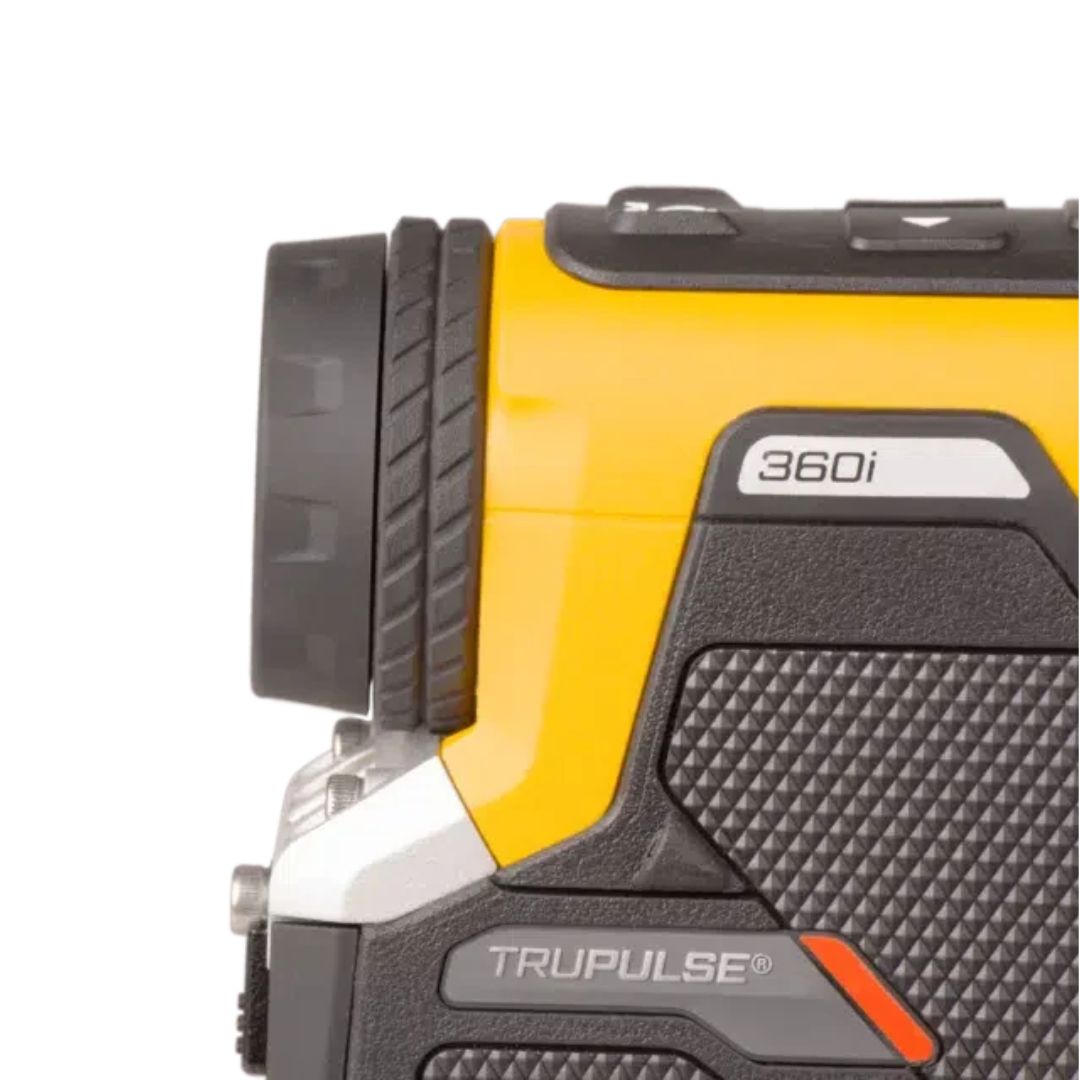

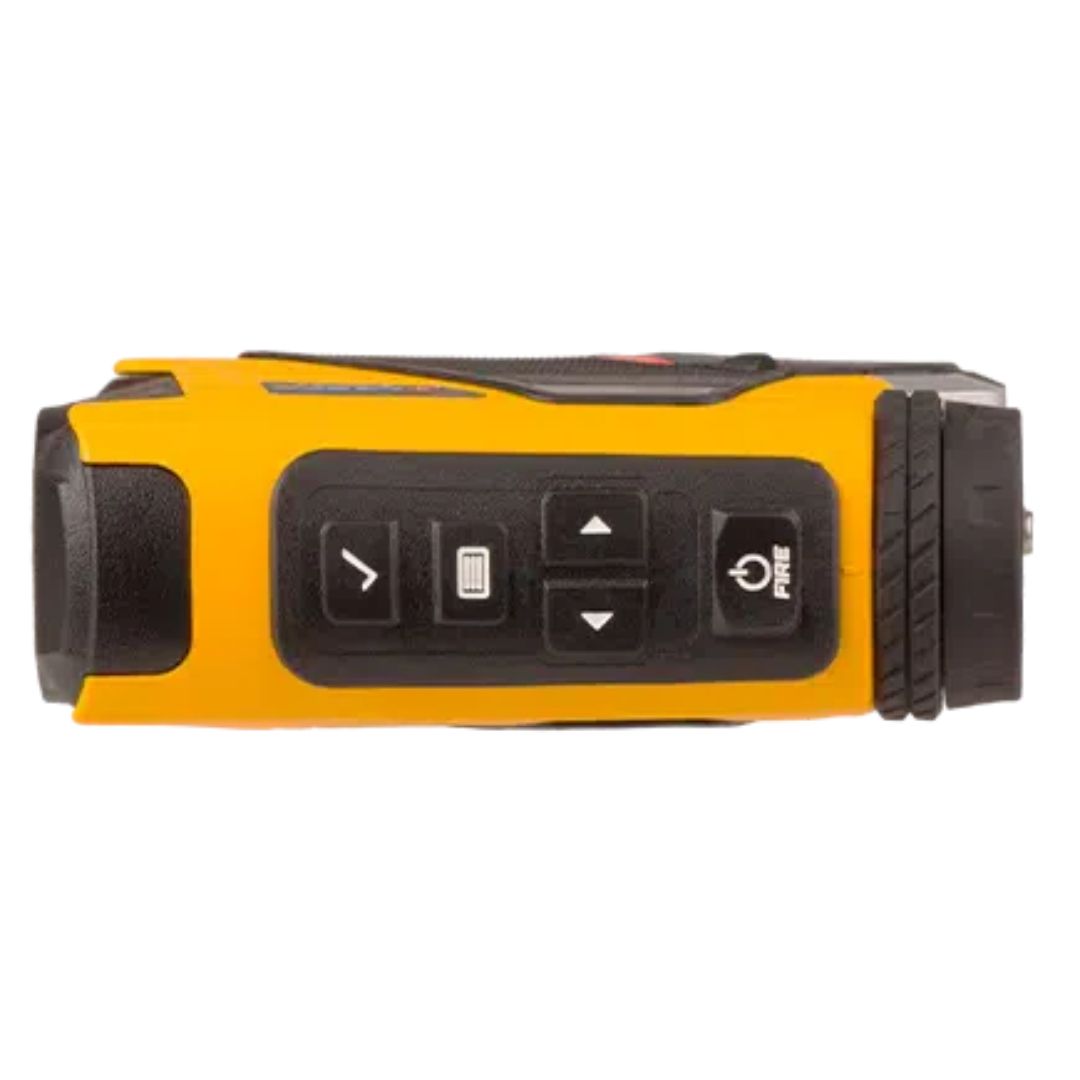

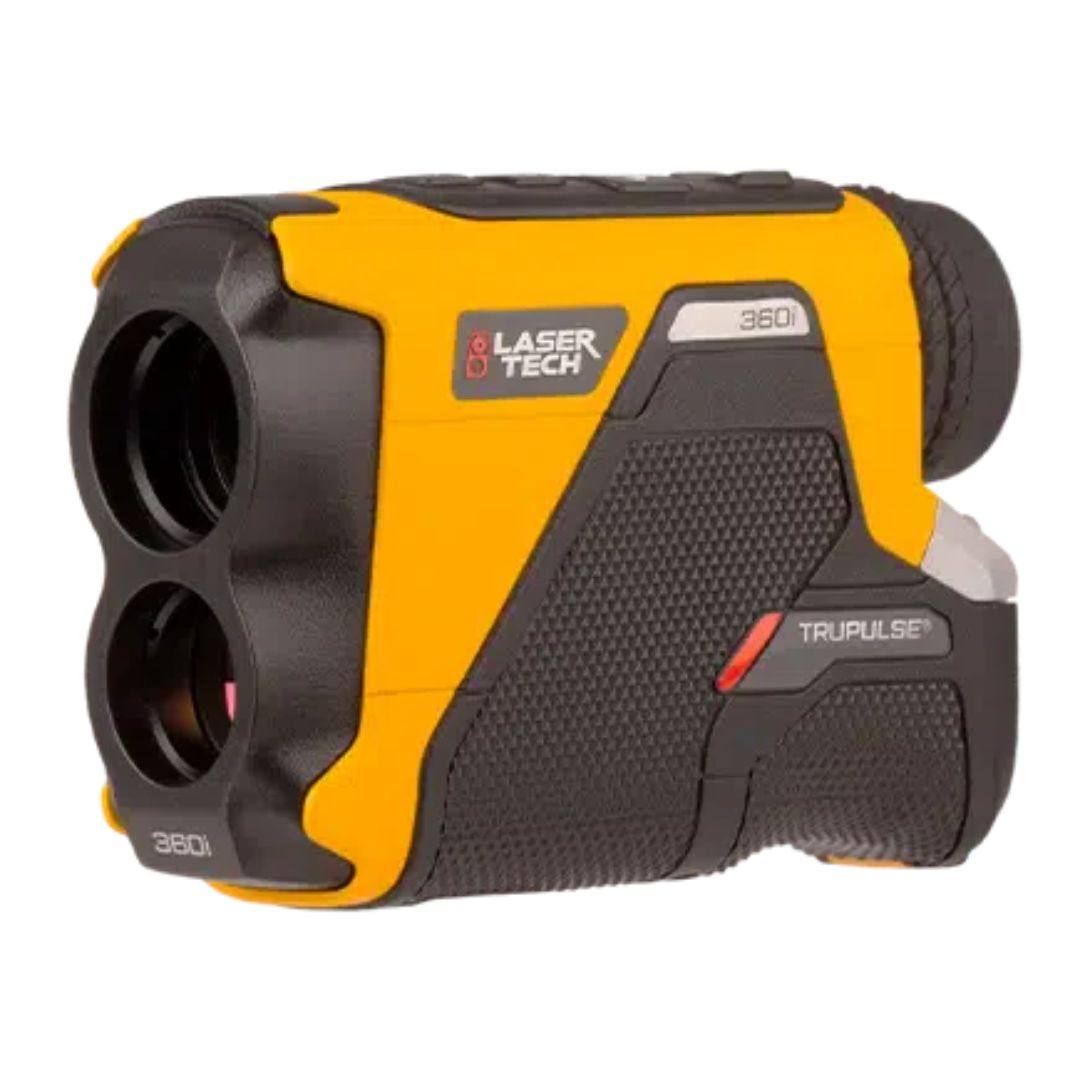

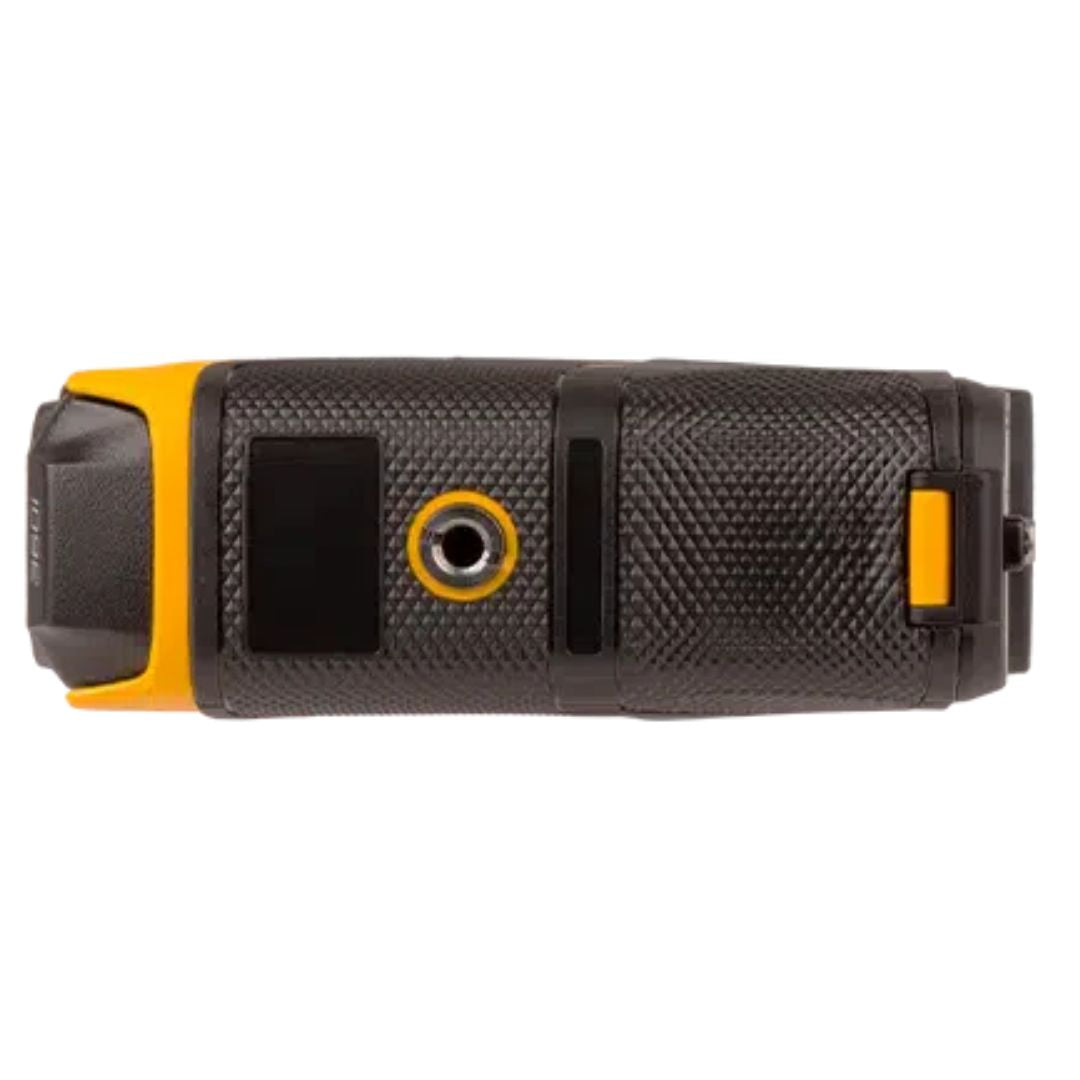

TruPulse 360i Laser Rangefinder ²⁶

$ 2,218.00 USD

Laser Technology TruPulse 360i - Advanced Laser Rangefinder with Bluetooth and TruVector 360° Technology

Capture 3D data with precision and ease

i-Series rangefinders are made to measure from the ground up. The TruPulse 360i is capable of 50% higher distance accuracy and 60% higher inclination accuracy than the previous TruPulse 360° model while increasing the overall effective range by 25%. Faster target acquisition speeds and new feedback features boost confidence in each measurement.

Take your measurements up a notch with TruVector 360° Compass Technology. The TruPulse 360i adds azimuth data to your measurements allowing efficient, single-shot positioning of remote features and 3D point-to-point calculations, a major advantage when completing projects that require accurate asset location and facility mapping.

This next-generation laser rangefinder gives you confidence for every measurement with faster target acquisition speeds along with visual feedback for each shot. Use Bluetooth Dual Mode to expand connection capabilities. Challenging targets are no match for the ultra-bright heads-up display with 5 brightness levels to work in any lighting condition. This rugged unit is built to last with a lightweight and strong magnesium chassis and rubber-armored aluminum housing with a 100% waterproof rating.

Features

• Measurement: Provides measurement capability with distance, azimuth & inclination values.
• Accuracy (Range): 50% Increased range accuracy, can achieve 10cm accuracy when higher accuracy jobs demand nothing less.
• Accuracy (Tilt Inclination): More Precise Tilt Accuracy: 2.5X more precise tilt measurement (0.1° vs. 0.25°).
• Accuracy (Compass): Confidence in repeatable azimuth measurement; less than 1 Degree.
• TruTargeting: Faster acquisition, greater accuracy, and visual feedback upon target acquisition means confidence, efficiency, and greater safety in the field.
• LTI TruVector 360° Compass Technology
  • ®Produces accurate and repeatable Azimuth (AZ) results regardless of the tilt or pitch used when aiming the laser.
  • Intuitively recognizes conditions that will affect the reliability of the compass accuracy and prompts you to recalibrate.
  • Calibration is easily done with a simple field routine that can be completed in less than a minute.
• Targeting Mode: Advanced Targeting Modes (Closest, Farthest, Continuous and Filter).
• Ergonomics: Easy to hold and operate with rubberized grips and tactile button feedback.
• Rugged: Withstands harsh conditions with rugged, waterproof, dustproof housing. designed with a strong magnesium chassis and rubber-armored aluminum housing for extra durability. Holds up to everyday uses under any conditions.
• On Board Calculations: Auto calculates horizontal distance, vertical distance, height and 3D missing line values; inclination Percent Slope.
• Optics/Display: The new Ultra-Bright Display has five brightness settings and works in any lighting condition. Our enhanced optical designs provides 80% light transmission, which simply means you will be able to see with greater clarity and bring smaller hard to see objects into focus.
• Communicates with multiple platforms: Bluetooth Dual Mode: BLE and Classic BT options; Android, iOS & Windows Compatible.
• User Experience: Intuitive User Interface and workflows with an icon driven display to provide 7 onboard measurement solutions

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Ranging Performance	50cm – 2,500 Meters (20 in – 8,202 ft)
  Distance Accuracy	10 cm < 1,000 m (4 in < 3,280 ft) and to a High-Quality target 20 cm > 1,000 m (8 in > 3,280 ft) or to a Low-Quality target
  Distance Precision	0.01 = High-Quality Target 0.1 = Low-Quality Target
  Inclination Accuracy	0.1° @ 0° to +/-30° 0.2° @ +/-30° to +/-90°
  Azimuth Accuracy	< 1.0° RMS
  Wireless Communication	Bluetooth V4.0 Dual Mode: BLE / Classic BT; iOS, Android™, and Windows® Compatible
  Scope Magnification / In-Scope Display Type	Optics: 5X magnification; Ultra Bright LED HUD; 5 Brightness levels
  Battery Type / Life	Two AA / ~ 3,600 measurements
  Environmental Rating	IP67: Waterproof & Dustproof
  Operating Temperature	-20°C to +60°C (-22°F to 140°F)
  Size	Height: 88 mm Width: 43.4 mm Length: 118.3 mm
  Weight	382.6 g with batteries, or 337.4 g w/o batteries
  Eye Safety	CLASS 1 LASER PRODUCT: Product complies with IEC60825-1 Ed. 3:2014-5 and 21CFR1040.10/11 per Notice 50:2007

• • TruPulse 360i Laser Rangefinder
  • Power Charger
  • Charging Cable
  • User Manual

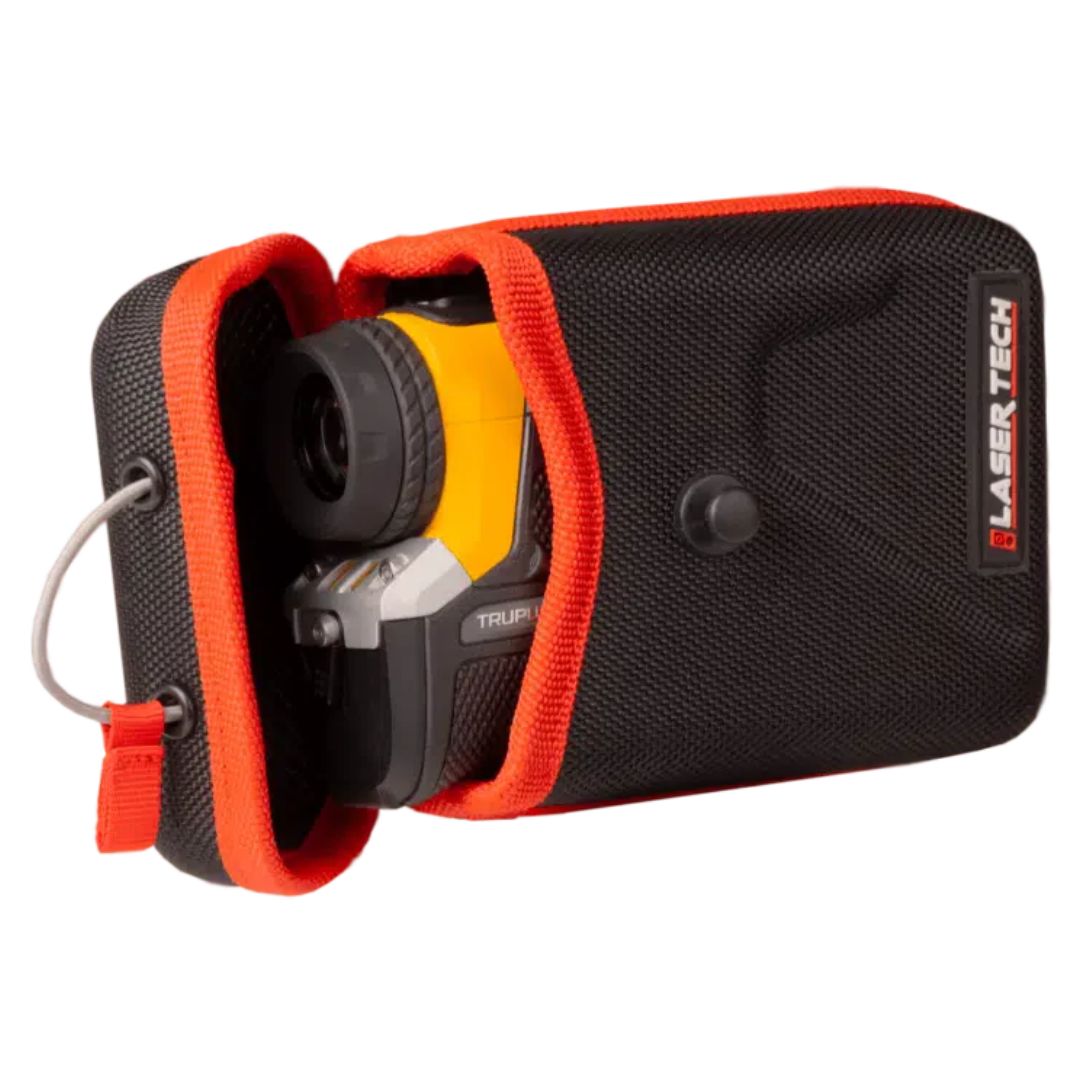

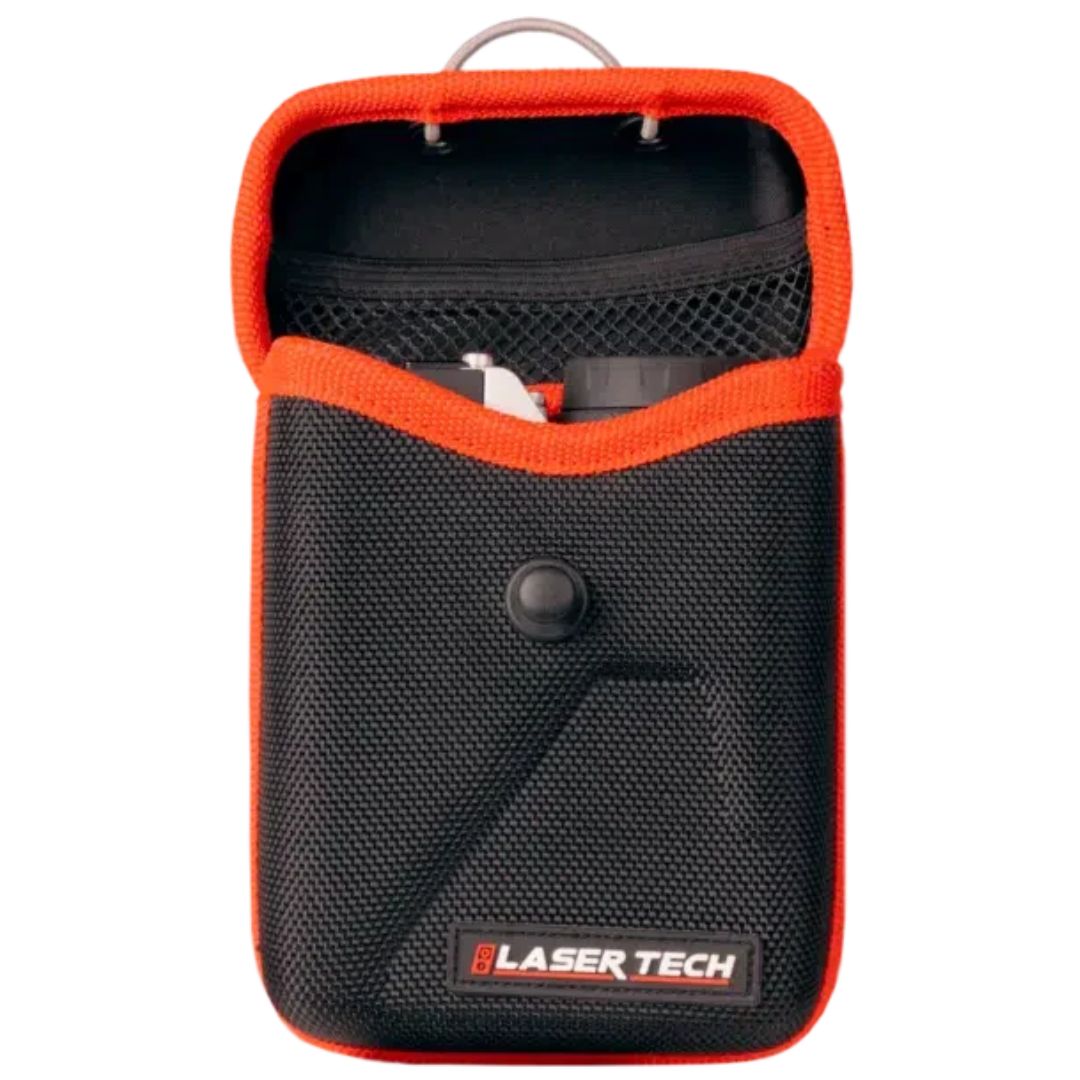

  • Carrying Case
• • Rechargeable Battery (not included)
• • TruAngle Mounting Bracket
  • Additional Protective Case
• • TruPulse 360i Brochure
  • TruPulse 360i Compass Calibration Sheet
  • TruPulse 360i User Manual
  • TruPulse 360i Quick Reference Field Guide
  • Professional Measurement Product Solutions

View full product details »

TruPulse Foliage Filter

$ 89.50 USD – Sold Out

View full product details »

TruPulse 200X Rangefinder / Hypsometer

$ 2,250.00 USD

Models TruPulse 200X TruPulse 360 TruPulse 360R Measures Azimuth with TruVector 360° Compass Technology N/A Yes...
