Motic

Motic SMZ-171 Series Trinocular Stereo Microscope Zoom 7.5X-50X

Request Quote

Estereomicroscopio Motic SMZ-171 para investigación y control de calidad

Microscopio estéreo de alta precisión con óptica avanzada Greenough

Un estereomicroscopio flexible diseñado para trabajos de investigación avanzada en biomedicina y control de calidad industrial. Su sistema óptico Greenough proporciona imágenes tridimensionales nítidas con un rango de zoom de 6,7:1, ofreciendo ampliaciones de 7,5X a 50X en configuraciones estándar. Las paradas de clic garantizan la reproducción precisa de la ampliación, facilitando el trabajo en serie. Su sistema de iluminación LED transmitida e incidente, integrado y listo para usar, lo convierte en una herramienta ideal para laboratorios y centros de investigación.

Características destacadas

• Sistema óptico Greenough para imágenes 3D de alta calidad.
• Zoom de 6,7:1 con ampliación de 7,5X-50X.
• Iluminación LED transmitida e incidente integrada.
• Paradas de clic para reproducción precisa de la ampliación.
• Distancia de trabajo de 110 mm para mayor comodidad.
• Base amplia de 303x239 mm para estabilidad.
• Opciones de iluminación y polarización adicionales disponibles.
• Diseño ergonómico con ajuste de dioptrías en ambas oculares.

• Especificaciones
• En la Caja
• Artículos Requeridos
• Artículos Opcionales
• Documentos

• Especificaciones
  Tipo de Iluminación	SMZ-171-TLED	SMZ-171-TP
  Tubo de Observación	Cabeza trinocular
  Sistema Óptico	Greenough
  Base	303x239 mm
  Columna / Brazo	Altura 232 mm, Ø32 mm	Altura 290 mm, Ø32 mm
  Campo Oscuro	Complemento opcional
  Ajuste de Dioptrías	En ambas oculares, +/- 5 dioptrías
  Oculares	Widefield N-WF10X / 23 mm con ajuste de dioptrías
  Mecanismo de Enfoque	Sistema de foco grueso con ajuste de tensión
  Curso de Foco	49 mm
  Suporte para Cabeza	Para columna de Ø32 mm y cabeza de Ø76 mm
  Funciones de Iluminación	Luz transmitida con reflector inclinable	N/A
  Iluminación Incidente	LED 3W con control de intensidad	N/A
  Inclinação	45° inclinado
  Distancia Interpupilar	52-75 mm
  Objetivos	0,75X ~ 5X
  Sistema de Objetivos	Zoom, relación 6,7:1
  Polarización	Complemento opcional	N/A
  Tipo de Soporte	Soporte tipo poste con iluminación transmitida	Soporte tipo poste sin iluminación
  Técnica de Contraste Estándar	Campo claro
  Iluminación Transmitida	LED 3W con reflector y control de intensidad	N/A
  Distancia de Trabajo	110 mm
  Transformador	Externo	N/A
  Fuente de Alimentación	100-240 V (CE)	N/A
  Dimensiones	303x239x405 mm	303x239x370 mm
  Peso	6,2 kg	5,7 kg

• • Microscopio trinocular Motic Serie SMZ-171 (1)
  • Cobertura contra polvo (1)
  • Placa de platina negra/blanca (Solo en la versión SMZ-171-TP)
  • Placas de escenario negra/blanca y mate (Solo en la versión SMZ-171-TLED)
• • Ninguno
• • Ninguno
• • Manual de especificaciones técnicas (Inglés)

View full product details »

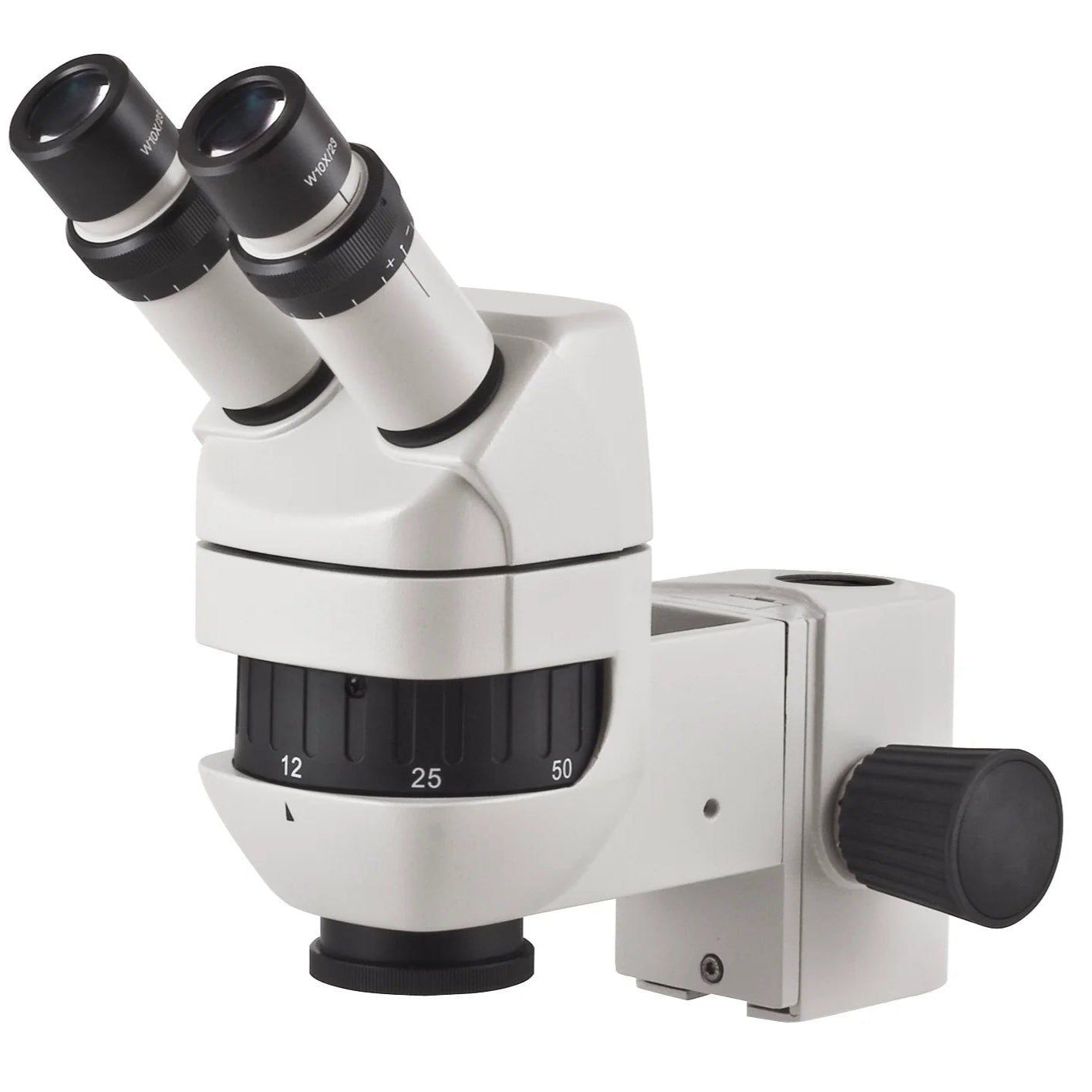

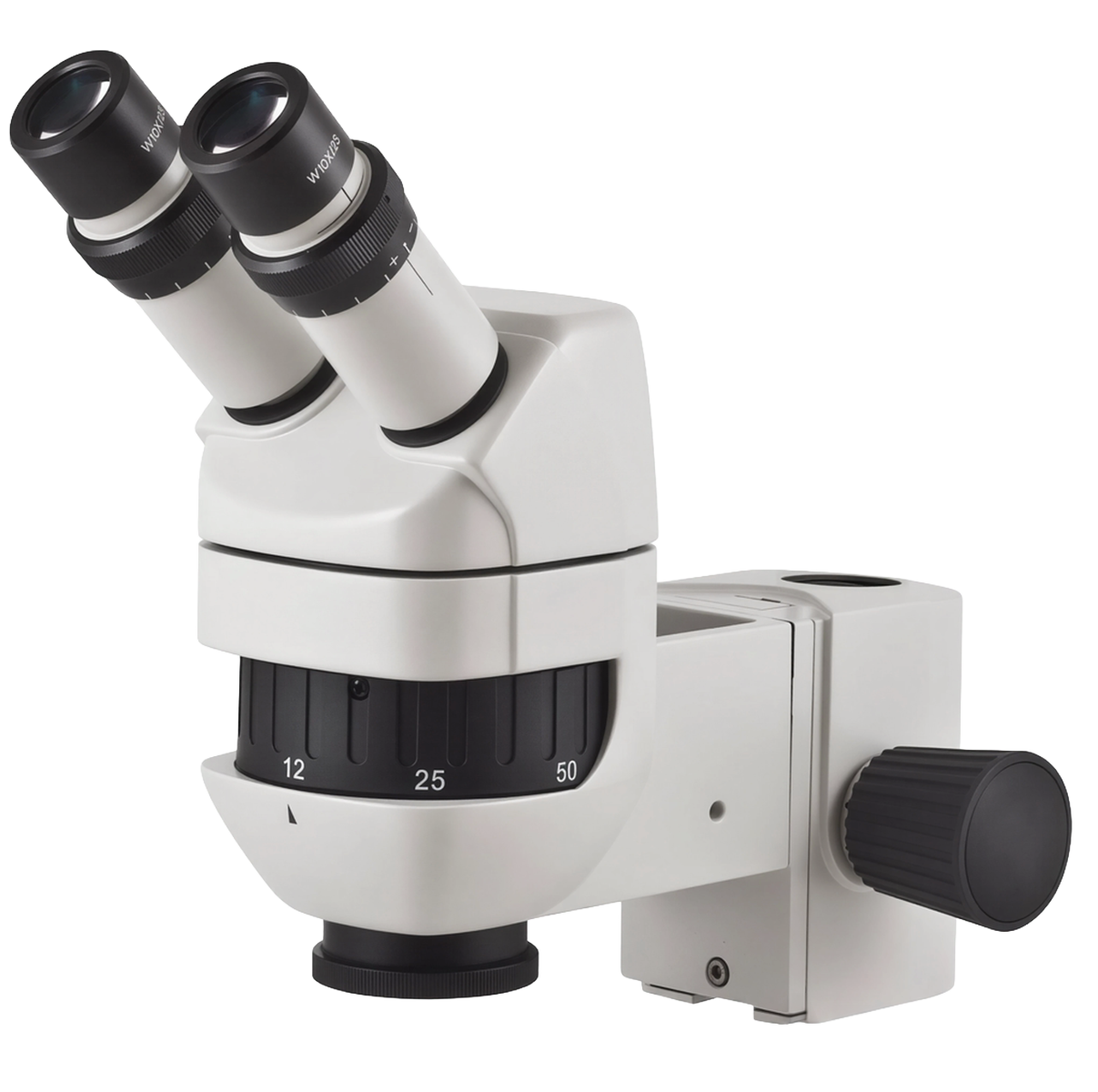

Stereo Microscope Motic K-400 HS (Solo Cabezal y Luz Incidente)

Request Quote

In today's ever-changing environment, combining infinity optics into a Common Main Objective [CMO] stereomicroscope system...

View full product details »

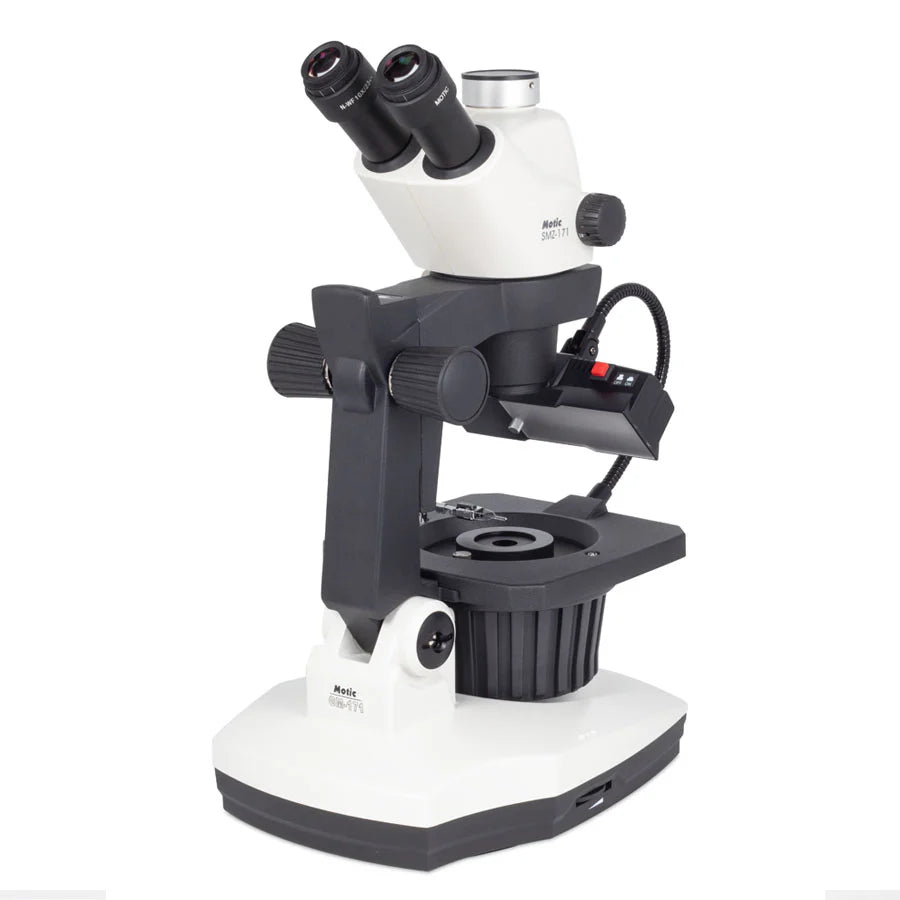

Stereo Microscope Motic GM-171

Request Quote

GM-171 Binocular and Trinocular Microscope for Gemology and Precious Minerals

Precise and Fast Analysis of Gems and Minerals with Advanced Zoom and Illumination

The GM-171 microscope from Motic is ideal for gemologists and experts in precious minerals. Equipped with a Greenough optical system and a binocular or trinocular head inclined at 45°, it allows magnification from 7.5X to 50X with a 6.7:1 zoom ratio. The illumination includes an adjustable 7W fluorescent source and a 6V/30W quartz halogen light with intensity control. Additionally, it features an adjustable diaphragm and a coarse focus system with tension adjustment for precise and comfortable analysis. Perfect for the inspection and documentation of gems and precious minerals.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	GM-171 Binocular	GM-171 Trinocular
  SKU	1100200600842	1100200600852
  Optical System	Greenough	Greenough
  Observation Tube	Binocular Head	Trinocular Head
  Inclination	45° Inclined	45° Inclined
  Trinocular Light Split	-	50:50
  Interpupillary Distance	52-75 mm	52-75 mm
  Diopter Adjustment	Both Eyepieces, ±5	Both Eyepieces, ±5
  Eyepieces	Widefield WF10X/23mm	Widefield WF10X/23mm
  Objective System	Zoom, 6.7:1 Ratio	Zoom, 6.7:1 Ratio
  Objectives	0.75X - 5X	0.75X - 5X
  Working Distance	110 mm	110 mm
  Stand Type	360° Rotary Base	360° Rotary Base
  Diaphragm	Iris, Adjustable Ø41mm - Ø2mm	Iris, Adjustable Ø41mm - Ø2mm
  Head Holder	For Ø76mm Head	For Ø76mm Head
  Focus Mechanism	Coarse Focus with Tension Adjustment	Coarse Focus with Tension Adjustment
  Focusing Stroke	125 mm	125 mm
  Incident Illumination	Fluorescent 7W, Gooseneck Adjustable	Fluorescent 7W, Gooseneck Adjustable
  Transmitted Illumination	Quartz Halogen 6V/30W, Intensity Control	Quartz Halogen 6V/30W, Intensity Control
  Illumination Features	Darkfield Illuminator	Darkfield Illuminator
  Transformer	Internal	Internal
  Power Supply	100-240V (CE)	100-240V (CE)
  Included Accessories	Dust Cover, Stainless Steel Wire Stone Holder, Aluminum Carrying Case	Dust Cover, Stainless Steel Wire Stone Holder, Aluminum Carrying Case
  Dimensions (LxWxH)	391x236x505 mm (15.4x9.3x19.9 in)	391x236x505 mm (15.4x9.3x19.9 in)
  Base	306x236 mm (12.0x9.3 in)	306x236 mm (12.0x9.3 in)
  Column/Arm	Height 268 mm (10.6 in), 45° Tilting Arm	Height 268 mm (10.6 in), 45° Tilting Arm
  Net Weight	8.2 kg (18.1 lb)	8.2 kg (18.1 lb)
  Standard Contrast Technique	Brightfield, Darkfield	Brightfield, Darkfield
  Polarization	Optional Add-on	Optional Add-on
  Darkfield	Condenser	Condenser

• • GM-171 Microscope
  • Dust Cover
  • Stainless Steel Wire Stone Holder
  • Aluminum Carrying Case
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights
• • Catalog
  • Specifications

View full product details »

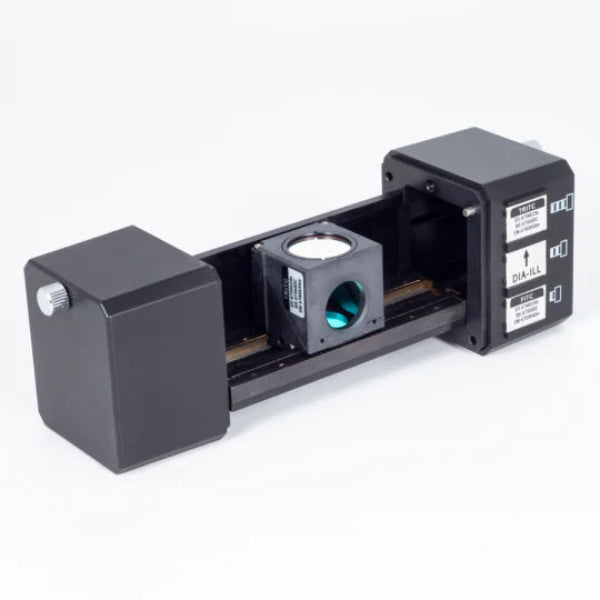

AE31E Fluorescence - Epi-Fluorescence attachment with filter cassette for AE31E

Request Quote

At Motic Instruments, we take pride in the quality of our products and our user...

View full product details »

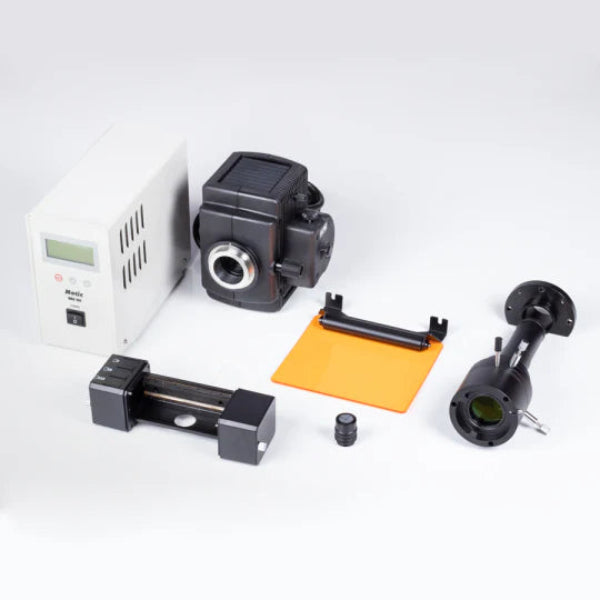

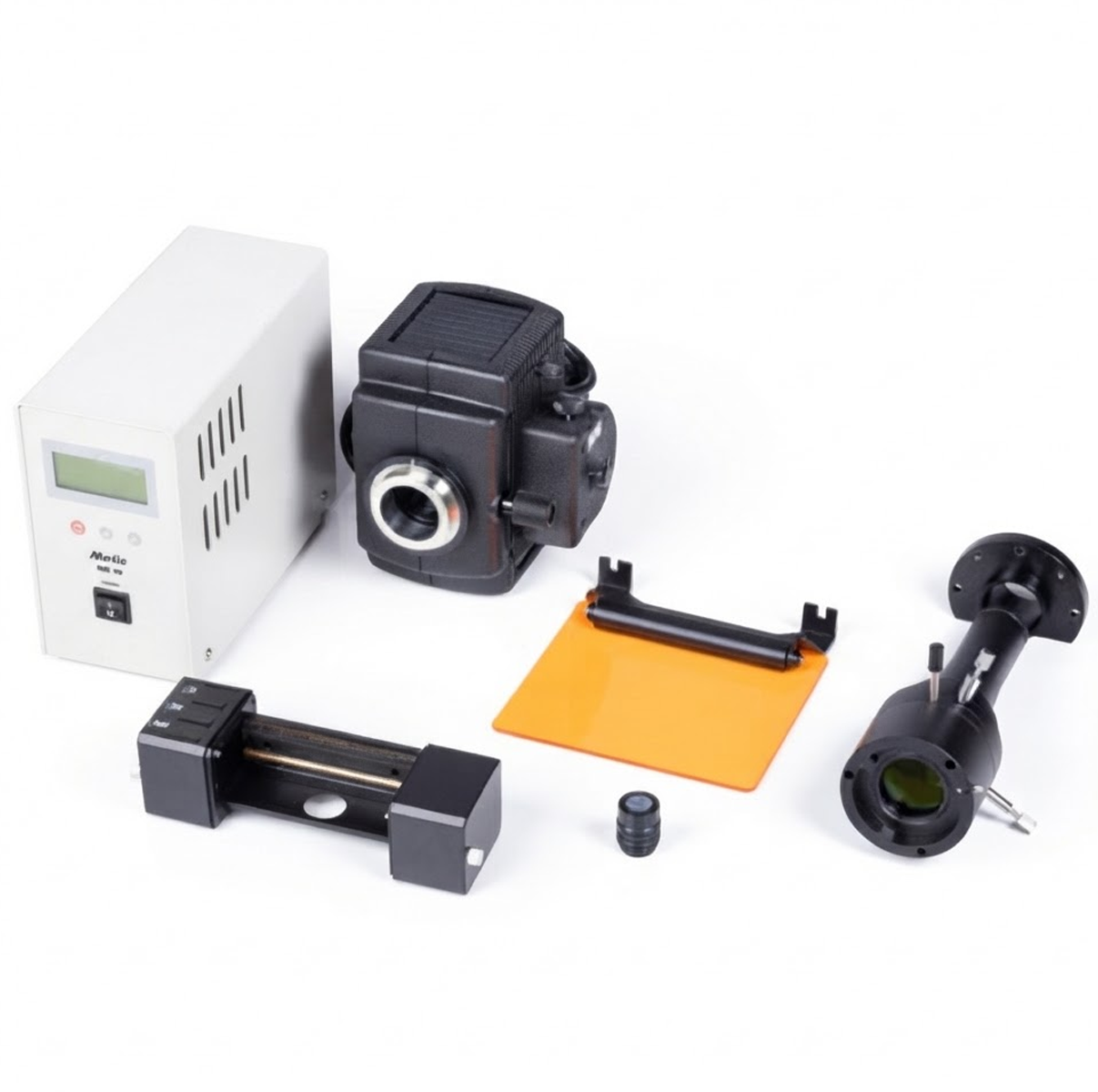

AE31E Fluorescence - Complete Epi-Fluorescence Attachment for AE31E

Request Quote

At Motic Instruments, we take pride in the quality of our products and our user...

View full product details »

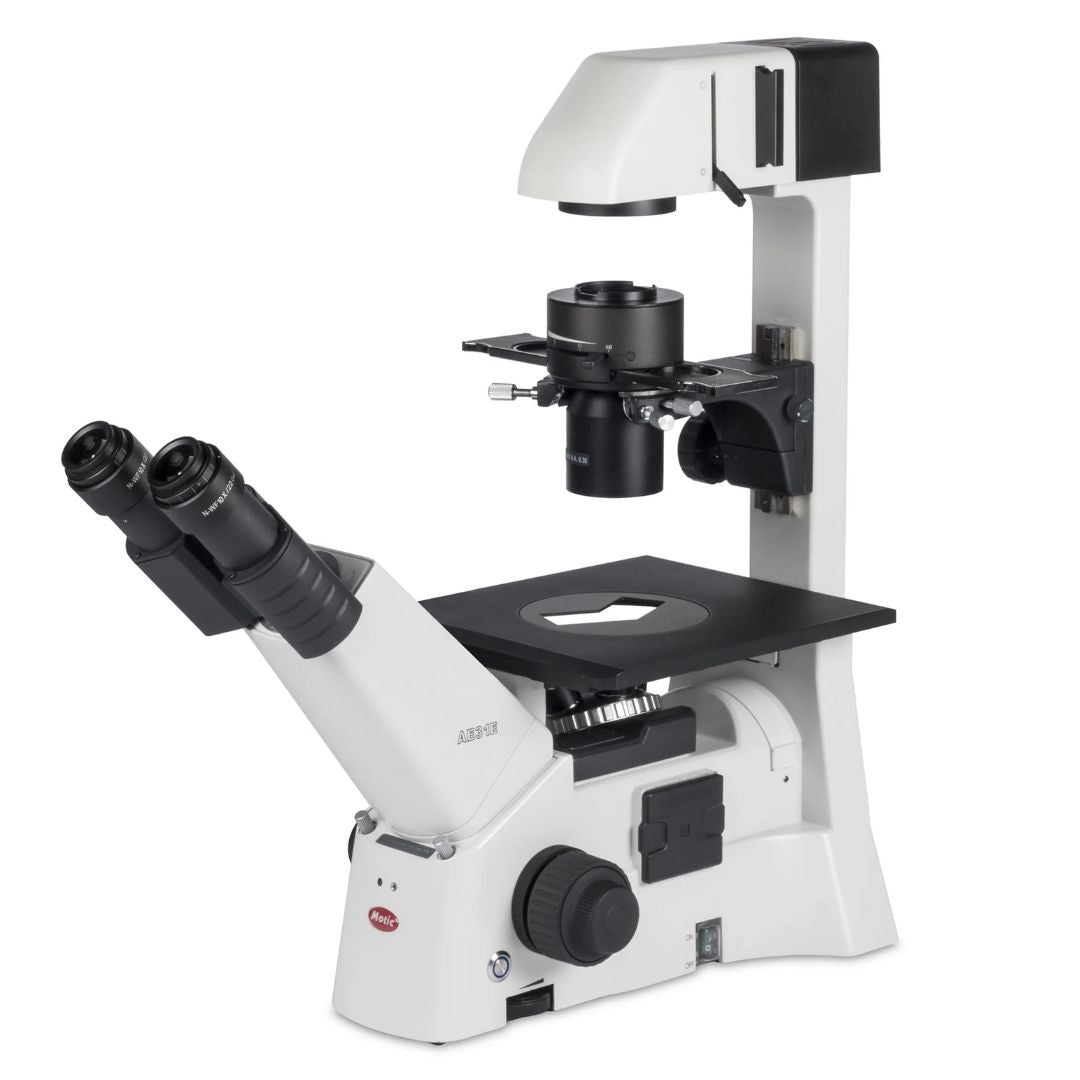

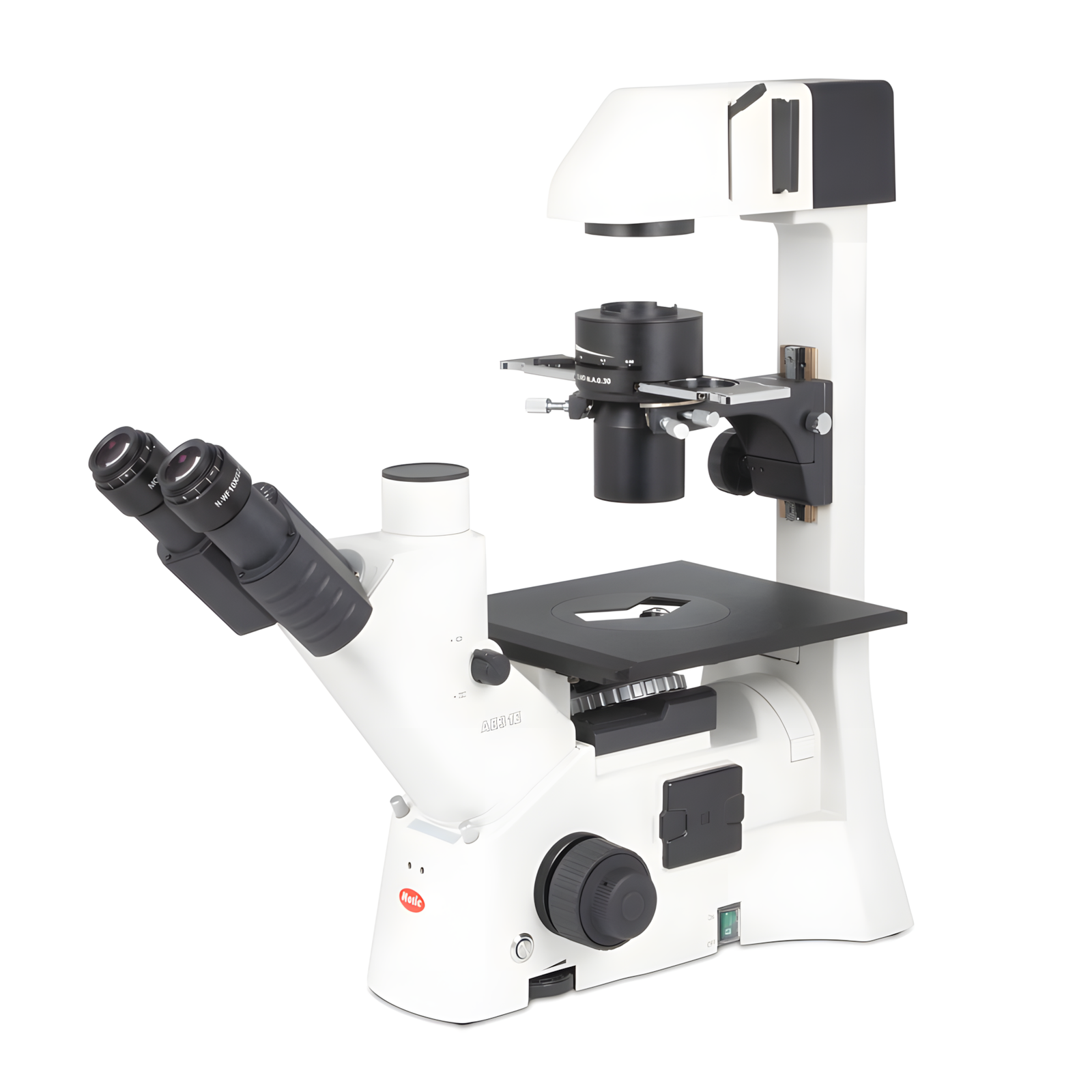

Motic AE31E Inverted Trinocular Microscope with FITC and TRITC Filters - Discontinued

Request Quote

Complete Fluorescence Solution for Cellular and Biomolecular Research

Comprehensive Fluorescence Equipment for Detailed and Precise Observations in Biomedical and Cellular Research

The Motic AE31E inverted trinocular microscope is a precision tool designed for researchers and laboratory professionals who require advanced fluorescence capabilities. This package includes FITC and TRITC filters, ideal for detecting specific fluorophores in biological samples. Equipped with a set of LWD Plan Achromat objectives, universal Petri dish holder, and an adjustable ELWD condenser, the AE31E guarantees clear and detailed images. The integration of the Motic Lumos LED fluorescence illuminator allows for bright and efficient observations, while the coaxial focus system ensures comfortable and precise handling. Perfect for applications in cellular biology, biomedical research, and more, this microscope is an essential addition to any modern laboratory.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE31E Trinocular
  Observation Tube	Trinocular head, Siedentopf type, 360° swiveling
  Optical System	Color Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable ELWD condenser N.A. 0.30 (WD 72 mm)
  Diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, ±5 diopter
  Eyepieces	Widefield WF10X/22 mm with diopter adjustment
  Fine Focus Precision	2 µm
  Fluorescence	Optional HBO
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing Stroke	10 mm
  Working Distance	Without condenser: 231 mm
  Illumination Features	Auto-OFF and Light Memory function
  Illumination	Quartz halogen 6V/30W or LED 3W
  Inclination	45° inclined
  Interpupillary Distance	48-75 mm
  Nosepiece	Left side facing quintuple
  Objective Classification	CCIS® Plan Achromatic, DIC
  Objective Thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 12.6 mm), PH 10X/0.25 (WD 4.1 mm), LWD PH 20X/0.30 (WD 4.7 mm), [Optional] LWD PH 40X/0.50 (WD 3.0 mm)
  Phase Contrast	Slider
  Stage	Plain stage with metal and glass stage inserts
  Stage Size	200 x 239 mm
  Stand Type	Inverted
  Standard Contrast Technique	Brightfield, phase contrast
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Transformer	Internal
  Power Supply	100-240V (CE)
  Accessories Included	Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
  Dimensions (LxWxH)	556 x 200 x 529 mm
  Net Weight	11.7 kg (25,8 lbs)

• • AE31E LED Inverted Trinocular Microscope
  • LWD Plan Achromat Objectives
  • Petri Dish Holder for 35mm, 54mm, and 65mm dishes
  • Universal Holder for Well Plates
  • Complete EPI-Fluorescence Attachment for AE31
  • EGFP/FITC/Cy2/AlexaFluor 488 Filter
  • TRITC/Cy3/TagRFP/AlexaFluor 546 Filter
  • Adjustable and Centerable ELWD Condenser
  • Coaxial Coarse and Fine Focus System with Tension Adjustment
  • Motic Lumos LED Fluorescence Illuminator
  • Dust Cover, Power Cord, Allen Key, Blue and Green Interference Filters, Phase Ring, Centering Telescope, Centering Keys, Spare Fuse
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights
• • Catalog
  • Specifications
  • Product Manual

View full product details »

Compound Microscope Motic AE31 ELite

Request Quote

Motic AE31 Elite Inverted Microscope – Innovation and Advanced Optical Precision

Explore the Microscopic World with the Motic AE31 Elite: A High-Performance Microscope for Research and Biomedical Applications, Equipped with World-Class Optics and an Advanced LED Illumination System

The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the C-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE31E Binocular
  Observation Tube	Binocular head, Siedentopf type, 360° swiveling
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Condenser	Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm / 2.83in)
  Diaphragm	Iris diaphragm
  Diopter Adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield WF10X/22mm with diopter adjustment
  Fine Focus Precision	2µm
  Fluorescence	Optional HBO
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing Stroke	10mm / 0.39in
  Free Working Distance	231mm / 9.09in (without condenser)
  Illumination Features	Auto-OFF and Light Memory function
  Illumination Interchangeability	Quartz halogen 6V/30W or LED 3W
  Inclination	45° inclined
  Interpupillary Distance	48-75mm / 1.89-2.95in
  Nosepiece	Left side facing quintuple
  Objective Classification	CCIS® Plan Achromatic, DIN
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 12.6mm / 0.50in), PH10X/0.25 (WD 4.1mm / 0.16in), LWD PH20X/0.30 (WD 4.7mm / 0.18in), [Optional] LWD PH40X/0.50 (WD 3.0mm / 0.12in)
  Phase Contrast	Slider
  Stage	Plain stage with metal and glass stage inserts
  Stage Size	200x239mm / 7.87x9.41in
  Stand Type	Inverted
  Standard Contrast Technique	Brightfield, phase contrast
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Transformer	Internal
  Power Supply	100-240V (CE)
  Accessories Included	Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse
  Dimensions (LxWxH)	556x200x529mm / 21.89x7.87x20.83in
  Weight (Net)	11.7kg / 25.79lb

• • Inverted microscope AE31 Elite
  • Trinocular head with interpupillary distance adjustment (50-75 mm)
  • Widefield eyepieces WF10x / 22 mm field of view
  • Five-position nosepiece
  • Objectives:
    • CCIS Plan Achromat 4x / 0.10, WD 12.6 mm
    • CCIS Plan Achromat Phase 10x / 0.25, WD 4.1 mm
    • CCIS Plan Achromat Phase LWD 20x / 0.30, WD 4.7 mm
  • Glass and metal plate for the platform
  • ELWD condenser NA 0.30 (WD=72 mm) with phase ring
  • LED lighting system with intensity control
  • Filters: blue (45 mm), colored glass and green interference (546 nm)
  • Variable power supply: 100V-240V
  • Hexagonal Allen key
  • Vinyl dust cover
  • Glass plate for the platform
  • Centering screws
  • Power cable
• • None
• • Cleaning Kit
  • Microscope Cameras Moticam
  • LED Lights
• • Catalog - AE31E

  • Catalog - LUMOS
  • Specifications - Binocular
  • Specifications - Trinocular
  • Product Manual

View full product details »

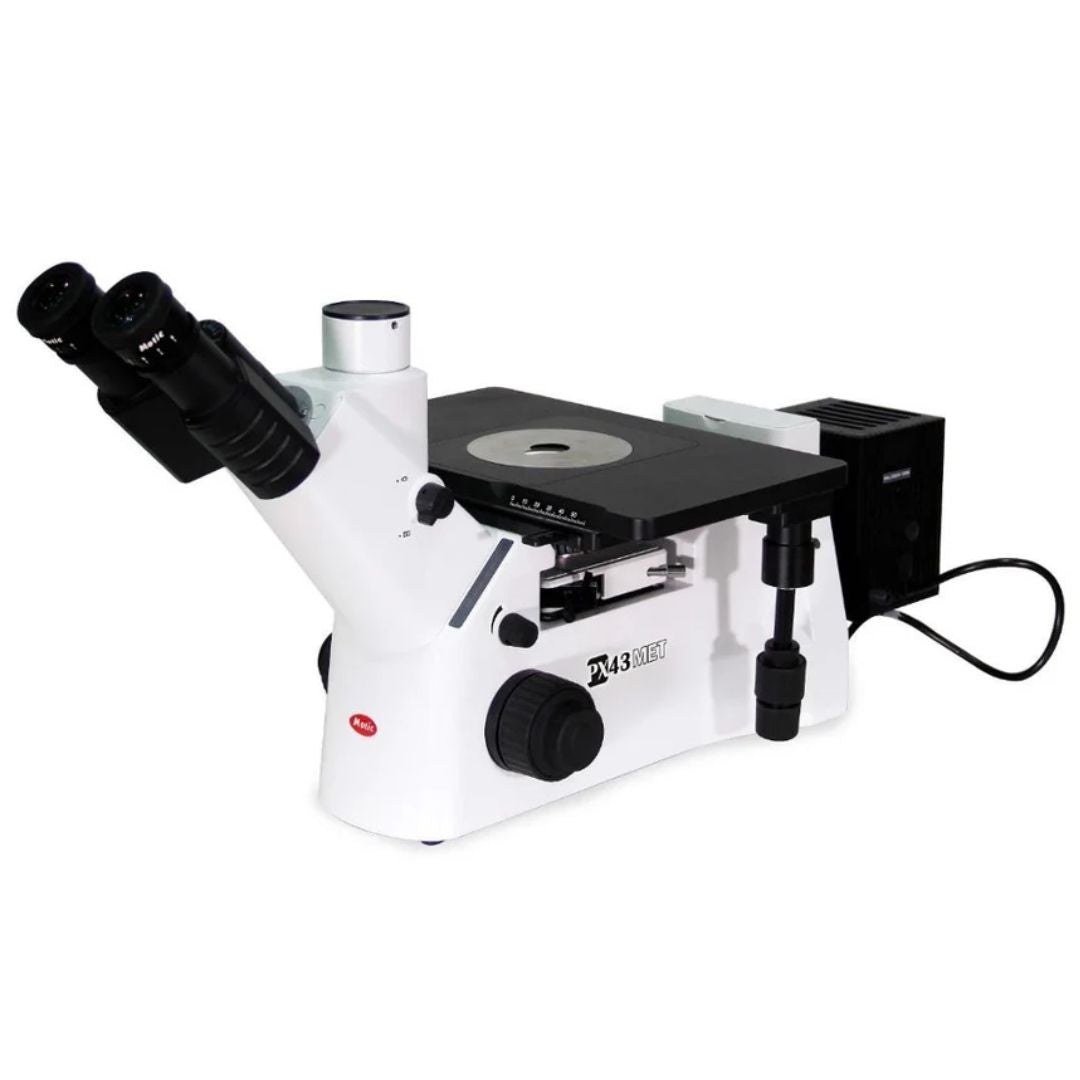

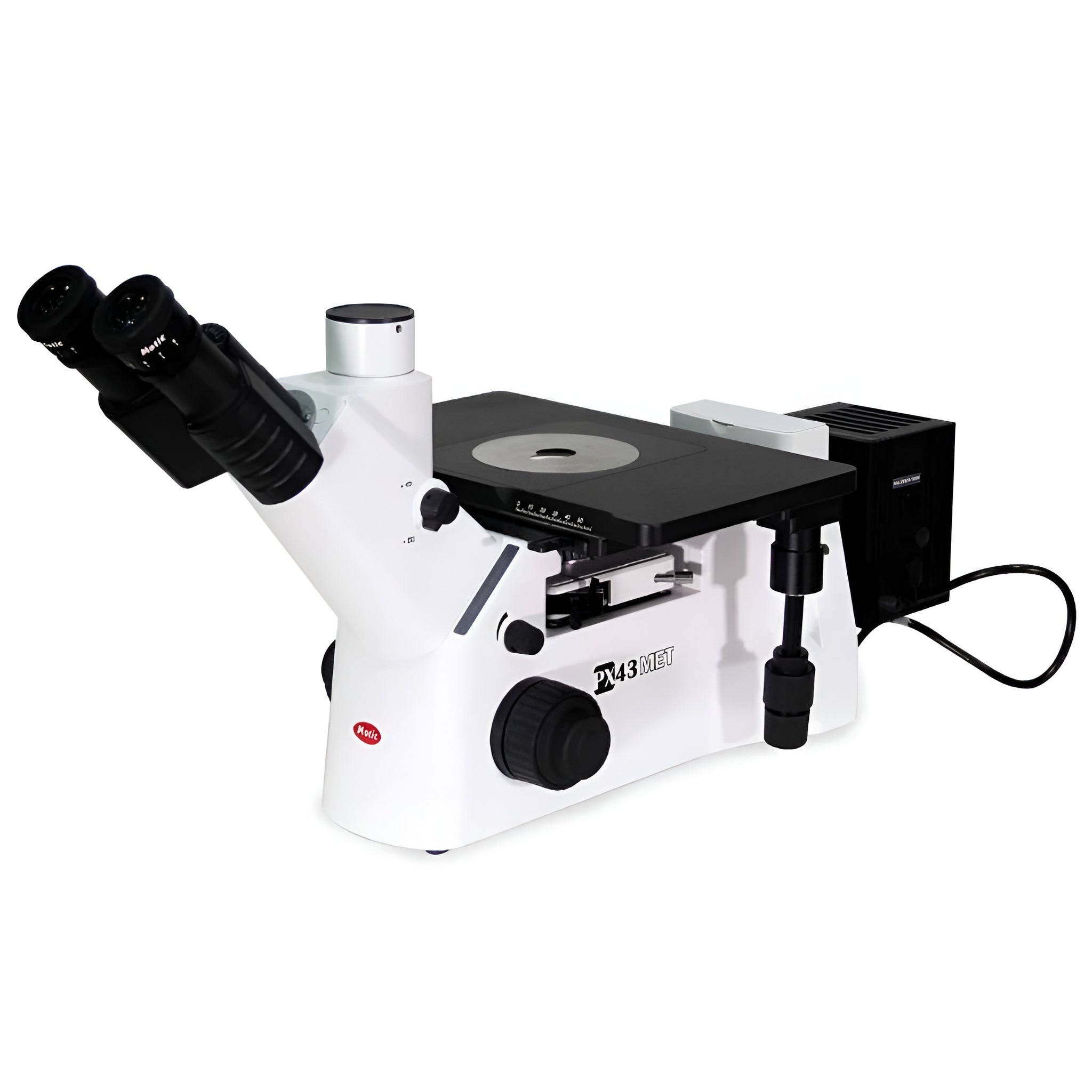

Compound Microscope Motic PX43 MET

Request Quote

PX43MET Inverted Microscope - Advanced Optical Solution for Precision Research

High-Quality Imaging and Exceptional Features for Industrial and Biomedical Applications

Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.

Features

• DIC for better depth imaging
• Polarization
• Brightfield and Darkfield contrast methods
• Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	PX43MET Inverted Microscope
  Optical System	Color Corrected Infinity Optical System (CCIS)
  Observation Tube	360° swivel range, height difference 40mm
  Interpupillary Distance	Adjustment range: 48mm to 75mm

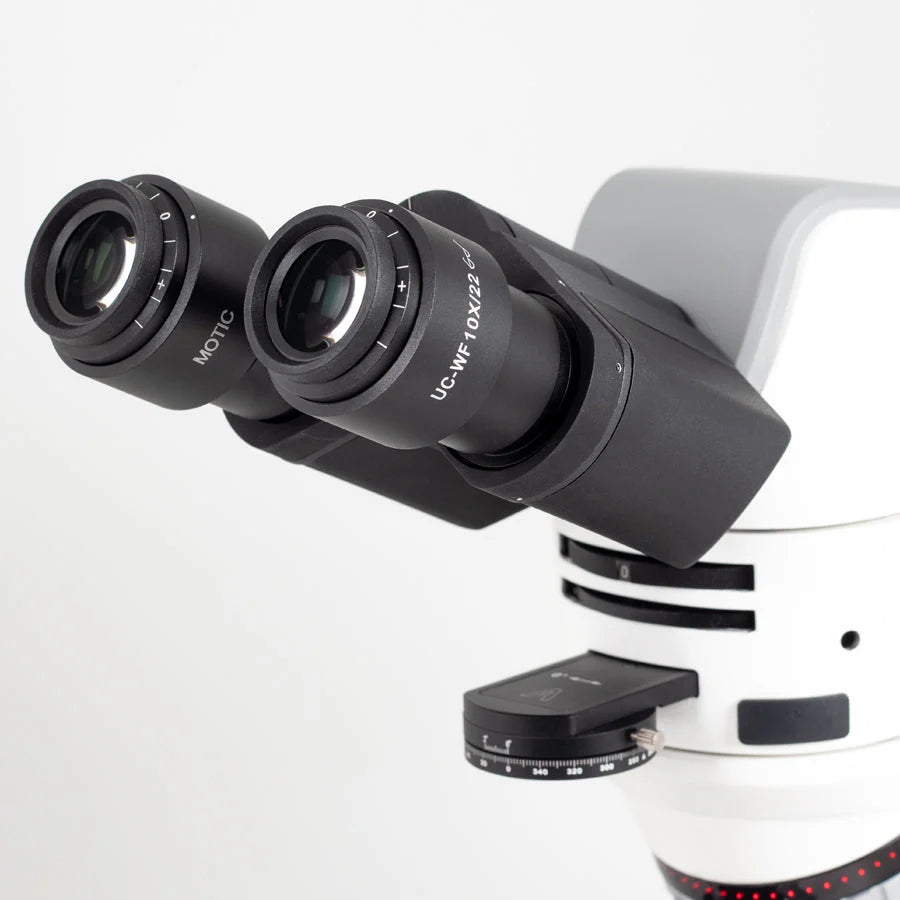

  Eyepieces	UC-WF 10X/FN22
  Trinocular Light Path	20:80
  Nosepiece	Quintuple Revolving Nosepiece
  Objectives	Plan S-Apo BD 5X; Plan S-Apo BD 10X; Plan S-Apo BD 20X; LPlan S-Apo BD 50X
  Stage Size (mm)	Size: 320(W) x 194(L) mm, Stroke: 50 x 50 mm
  Focus	Course/Fine Focus Knob, Course 42mm/revolution, Fine 0.2mm/revolution, 0.002mm/marks
  Transmitted Light	Reflected Light 100W Light House RL100.00
  Electronics	115/230V~, 60/50Hz Halogen Light: 12V / 100W
  DIC	Optional
  Analyzer	Optional
  Polarizer	Optional

• • PX43MET Inverted Microscope
  • UC-WF 10X/FN22 Eyepieces
  • Plan S-Apo BD Objectives: 5X, 10X, 20X, 50X
  • Quintuple Revolving Nosepiece
  • Course and Fine Focus Knob
  • Reflected Light 100W Light House RL100.00
  • Power Cable (115/230V, 60/50Hz)
  • Instruction Manual
• • None
• • Cleaning Kit

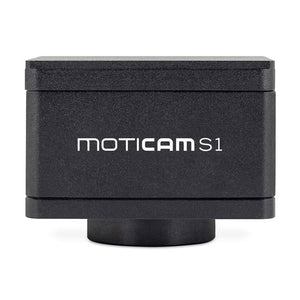

  • Microcope Cameras Moticam
  • Led Lights
• • Catalog
  • Specifications
  • Manual

View full product details »

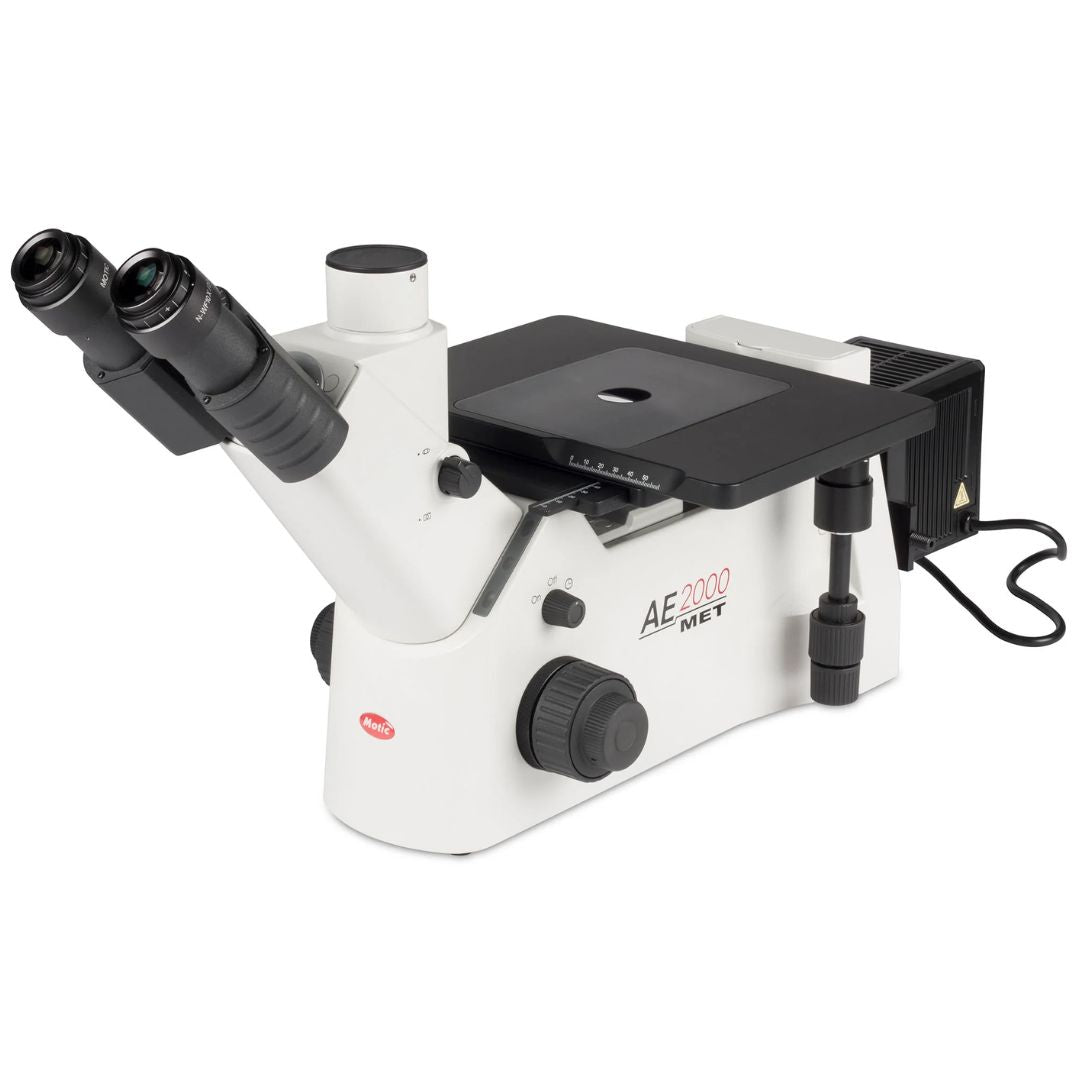

Compound Microscope Motic AE2000 MET

Request Quote

Advanced Inverted Metallurgical Microscope for Material Analysis

AE2000 MET Trinocular Microscope with High-Performance Optics, Flexible Contrast Techniques, and Robust Design for Laboratory Applications

Motic’s AE2000MET is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication. Large metal or die cast parts, too large to view under a conventional upright microscope, can easily be examined for failure analysis, material research or quality control.

With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control.

Features

• Robust manufacturing quality for a long lifetime
• New BF/DF objectives for metallurgy
• Sufficient power resources
• A flexible upgrade for digital results

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	AE2000 MET Trinocular 100W	AE2000 MET Trinocular 100W (with LM PL objectives)	AE2000 MET Trinocular 100W (with LM BD objectives)
  Observation tube	Trinocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Optical system	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)	Colour Corrected Infinity Optical System (CCIS®)
  Inclination	45° inclined	45° inclined	45° inclined
  Trinocular light split	100:0/20:80	100:0/20:80	100:0/20:80
  Interpupillary distance	48-75mm	48-75mm	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment	Widefield N-WF10X/20mm with diopter adjustment
  Nosepiece	Side facing quintuple	Side facing quintuple	Side facing quintuple
  Objective classification	-	CCIS® LM Plan Achromatic, DIN	CCIS® LM BD Plan Achromatic, DIN (for Brightfield and Darkfield)
  Objectives	-	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), 50X/0.55 (WD 7.2mm)
  Objective mounting thread	M32	M32 with adapters to W 4/5" x 1/36" (RMS standard)	M32
  Stand type	Inverted	Inverted	Inverted
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts	Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts
  Stage size	280x192mm	280x192mm	280x192mm
  Travel range X&Y	50x50mm	50x50mm	50x50mm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment	Coaxial coarse and fine focusing system with tension adjustment
  Fine focus precision	2µm	2µm	2µm
  Focusing stroke	10mm	10mm	10mm
  Transmitted illumination	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse	Koehler Quartz halogen 12V/100W with intensity control, External lamphouse
  Illumination features	Sleeping mode	Sleeping mode	Sleeping mode
  Transformer	External	External	External
  Power supply	100-240V (CE)	100-240V (CE)	100-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, blue filter	Dust cover, power cord, Allen key, blue filter	Dust cover, power cord, Allen key, blue filter
  Dimensions LxWxH	673x280x345mm	673x280x345mm	673x280x345mm
  Weight Net	13kg	13kg	13kg
  Standard contrast technique	Brightfield	Brightfield	Brightfield, darkfield
  Polarization	Optional sliders	Optional sliders	Optional sliders
  Darkfield	Optional objectives	-	Objectives

• • Motic AE2000 MET Trinocular 100W
  • Dust cover
  • power cord
  • Allen key
  • Blue Filter
• • None
• • Cleaning Kit
  • Moticam
  • LED Lights
• • Catalog

  • Specifications - AE2000 MET Trinocular 100W
  • Specifications - AE2000 MET Trinocular 100W (LM PL objectives)
  • Specifications - AE2000 MET Trinocular 100W (LM BD objectives)
  • Instructions

View full product details »

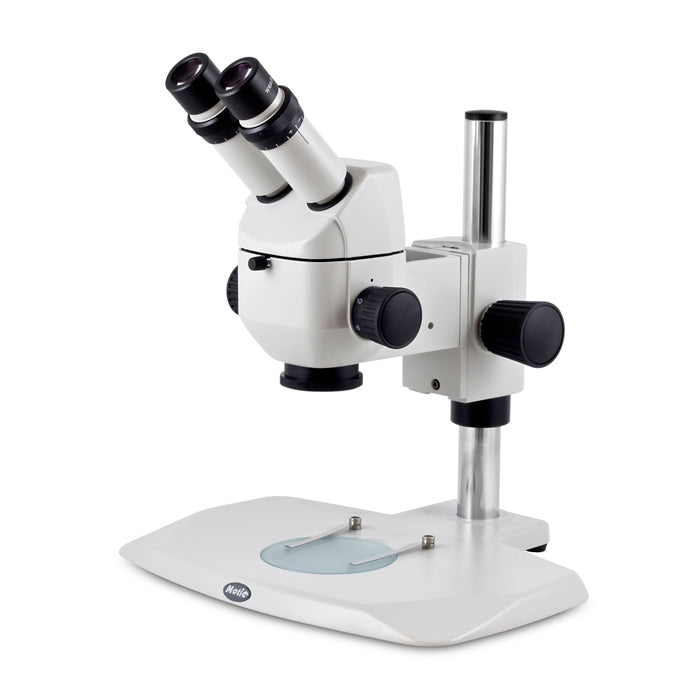

Stereo Microscope Motic K500P

Request Quote

Motic K500P Stereoscopic Microscope With Infinity Optical System

Perfect for Inspection and Precise Analysis, Featuring Binocular Head and Wide Range of Magnifications

Employing a Common Main Objective (CMO) infinity optical system, the Motic K-500 Series stereo microscope produce and showcase crisp, distortion-free, 3-Dimensional images. The CMO and infinity combination lower the fatigue of long term usage to ensure viewing is no longer a task in itself.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• K500P Specification Details
  Optical System	Common Main Objective (CMO) Infinity optical system
  Observation Tube	Binocular head
  Inclination	45° inclined
  Interpupillary Distance	54-76mm
  Eyepiece(s)	Widefield WF10X/23mm with diopter adjustment, +/- 5 diopter on both eyepieces
  Objectives System	5-position drum magnification changer
  Objectives Magnification	6.4X, 10X, 16X, 25X, 40X
  Working Distance	89mm
  Stand Type	Pole type plain stand
  Column/Arm	Ø32mm, 295mm high
  Head Holder	For Ø32mm column
  Focus Mechanism	Coarse focusing system with tension adjustment
  Focusing Stoke	49mm
  Accessories Included	Dust cover, black/white stage plates
  Base	329 x 277mm
  Length x Width x Height	329 x 277 x 399mm
  Weight	5.8kg

• • Motic K500P Microscope
  • Dust Cover
  • Black and White Stage Plates
• • None
• • Cleaning Kit
  • Moticam
  • LED Lights
• • Catalog

View full product details »

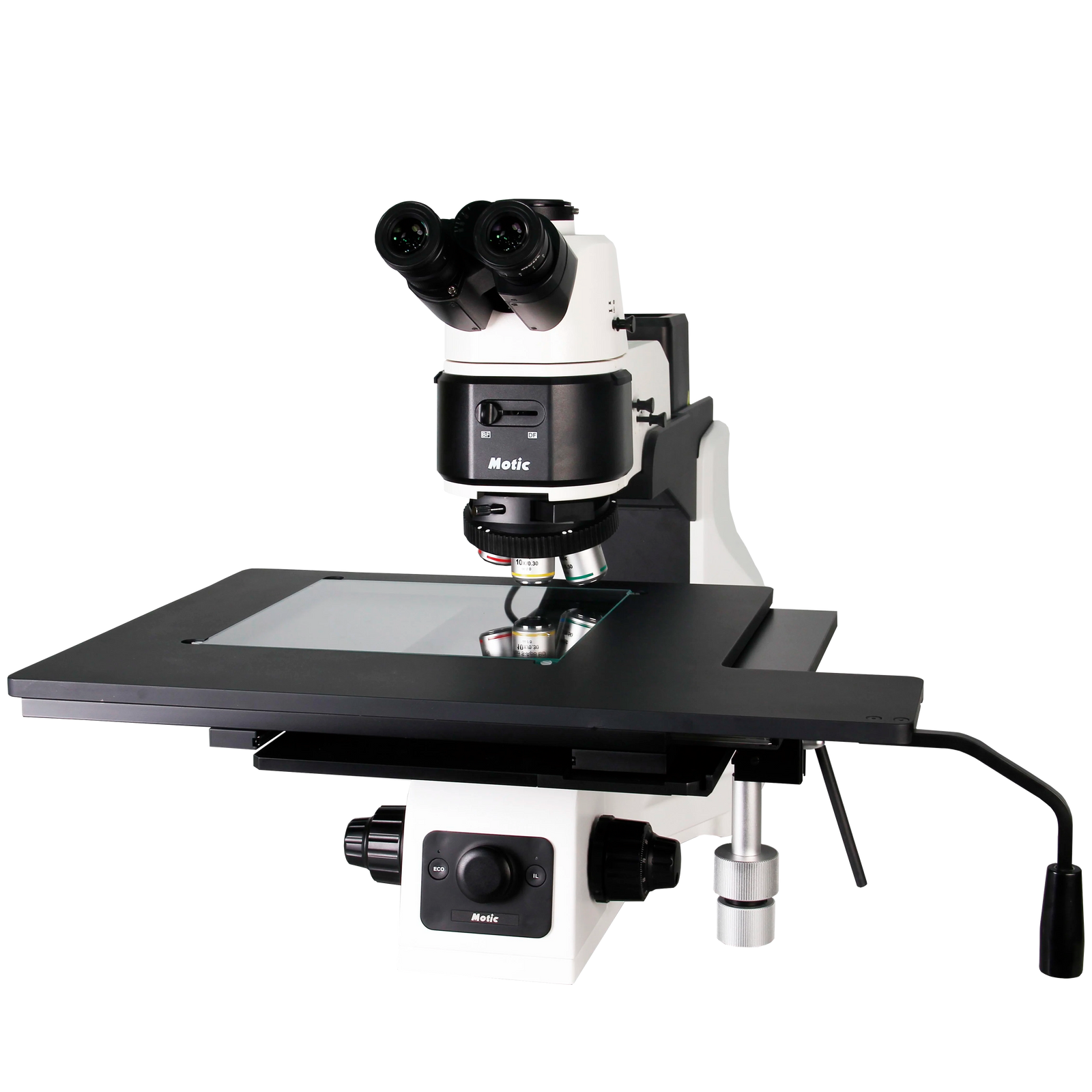

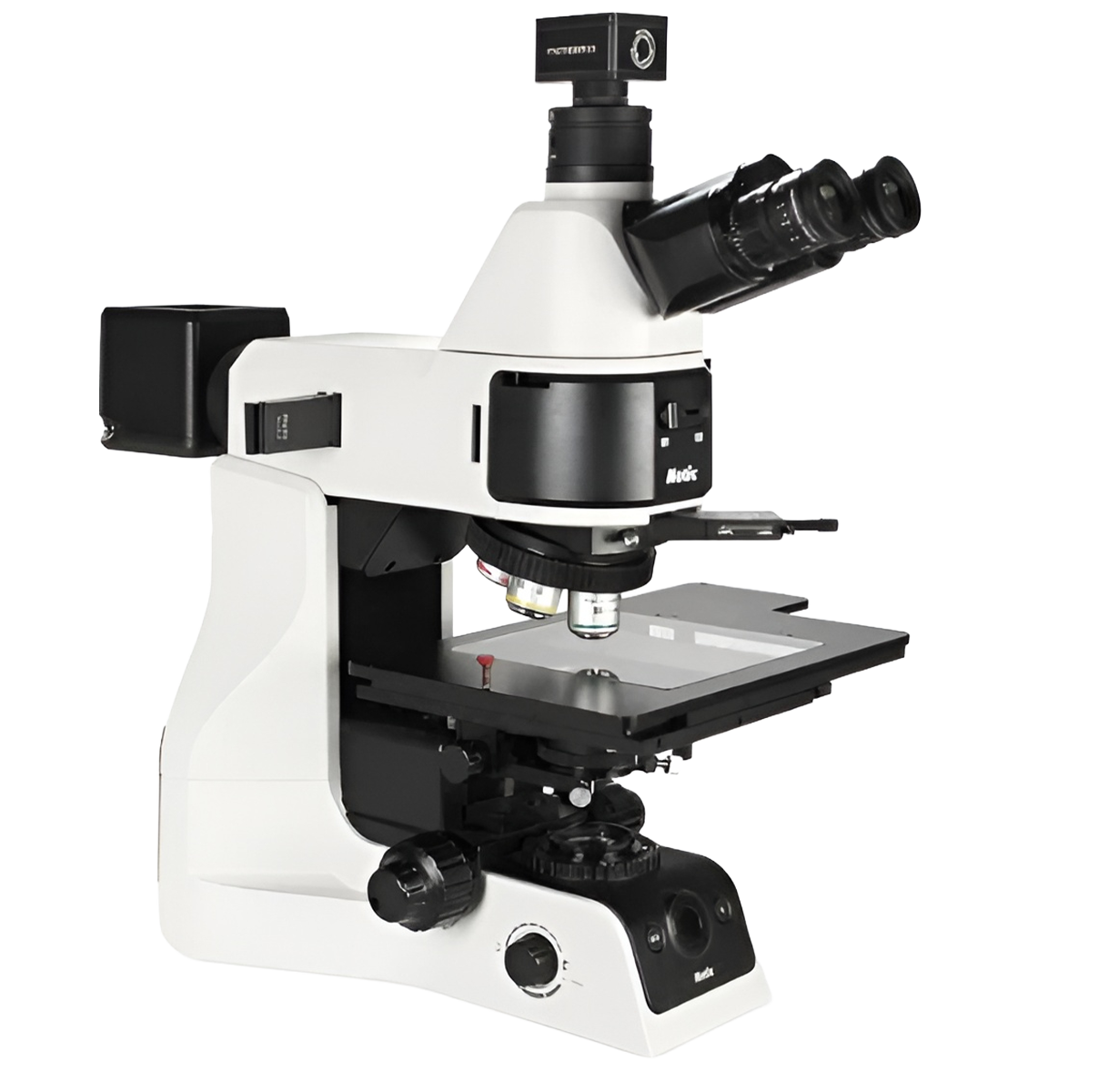

Compound Microscope Series Motic PA120MET

Request Quote

Motic's PAA120MET: Upright Inspection Microscopes for Industrial/ Metallurgical Applications

The PA120MET series from Motic offers high-performance upright microscopes designed for precision inspection in industrial and metallurgical environments. With features like advanced optical systems, LED and halogen illumination options, and a range of objective lenses, these microscopes provide superior imaging for critical analysis of materials and structures. Ideal for quality control and research, the PA120MET delivers enhanced detail in a variety of inspection tasks.

Moti's PA120MET series microscopes feature a flexible, modular design that can be suited to your specific industrial inspection application. Our Plan S-APO series objectives and professional optical system design ensure excellent optical performance, while our frame and base design creates a low gravity, high stability system which reduces vibration commonly experienced during higher magnification observation in industrial environments. Our PA120MET series microscopes are widely used for FPD, LCD, and silicon wafer inspection.

Features

• Colour Corrected Infinity Optical System (CCIS®)
• Reflected and transmitted illumination (with Kohler illumination options)
• Adjustable eyepieces with optional reticle
• LWCD Condenser, N.A 0.55
• LED and halogen illumination

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	Brightfield		Brightfield / Darkfield
  Model	PA120MET	PA120MET-T	PA120MET-BD	PA120MET-BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination	Reflected	Reflected / Transmitted	Reflected	Reflected / Transmitted
  Observation Tube
  Trinocular	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
  Binocular (Optional)	Erect type (F.N 25), 20° inclined
  Eyepieces	10X (F.N 25), Diopter adjustable, Reticle optional
  Revolving Nosepiece
  Brightfield	5-position Nosepiece for Brightfield objective lens with DIC slot		/
  Brightfield/Darkfield	/		5-position Nosepiece for Brightfield, Darkfield objective lens with DIC slot
  Plan S-APO	Plan S-APO 5X/0.15 Plan S-APO 10X/0.3 Plan S-APO 20X/0.45 Plan S-APO 50X/0.8 Plan S-APO 100X/0.9 (Optional)		Plan S-APO BD 5X/0.15 Plan S-APO BD 10X/0.3 Plan S-APO BD 20X/0.45 Plan S-APO BD 50X/0.8 Plan S-APO BD 100X/0.9 (Optional)
  LPlan S-APO	LPlan S-APO 20X/0.4 LPlan S-APO 50X/0.55 LPlan S-APO 100X/0.8		LPlan S-APO BD 20X/0.4 LPlan S-APO BD 50X/0.55 LPlan S-APO BD 100X/0.8
  Base Unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring
  Base Unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  3D Profile Module	No
  Reflected Illumination	Kohler illumination system / Brightfield, Reflected DIC, simple Polarization		Kohler illumination system / Brightfield, Darkfield, Reflected DIC, simple Polarization
  Light Source	12V/100W halogen
  Transmitted Illumination	/	Yes	/	Yes
  Light Source	/	10W LED	/	10W LED
  Condenser	/	LWCD, N.A 0.55	/	LWCD, N.A 0.55
  Stage	Dimensions : 520mm X 400mm Moving stroke: 300mm X 300mm Optional: wafer stage

• • PA120MET Microscope (PA120MET)
  • 10X Eyepieces (PA120MET-T, PA120MET-BD)
  • 5-Position Nosepiece (PA120MET-BD, PA120MET-T)
  • LED or Halogen Light (PA120MET)
• • None
• • Cleaning Kit
  • Additional Objectives
  • Optional Stage Movement Base
  • Automated Stages
• • Catalog

View full product details »

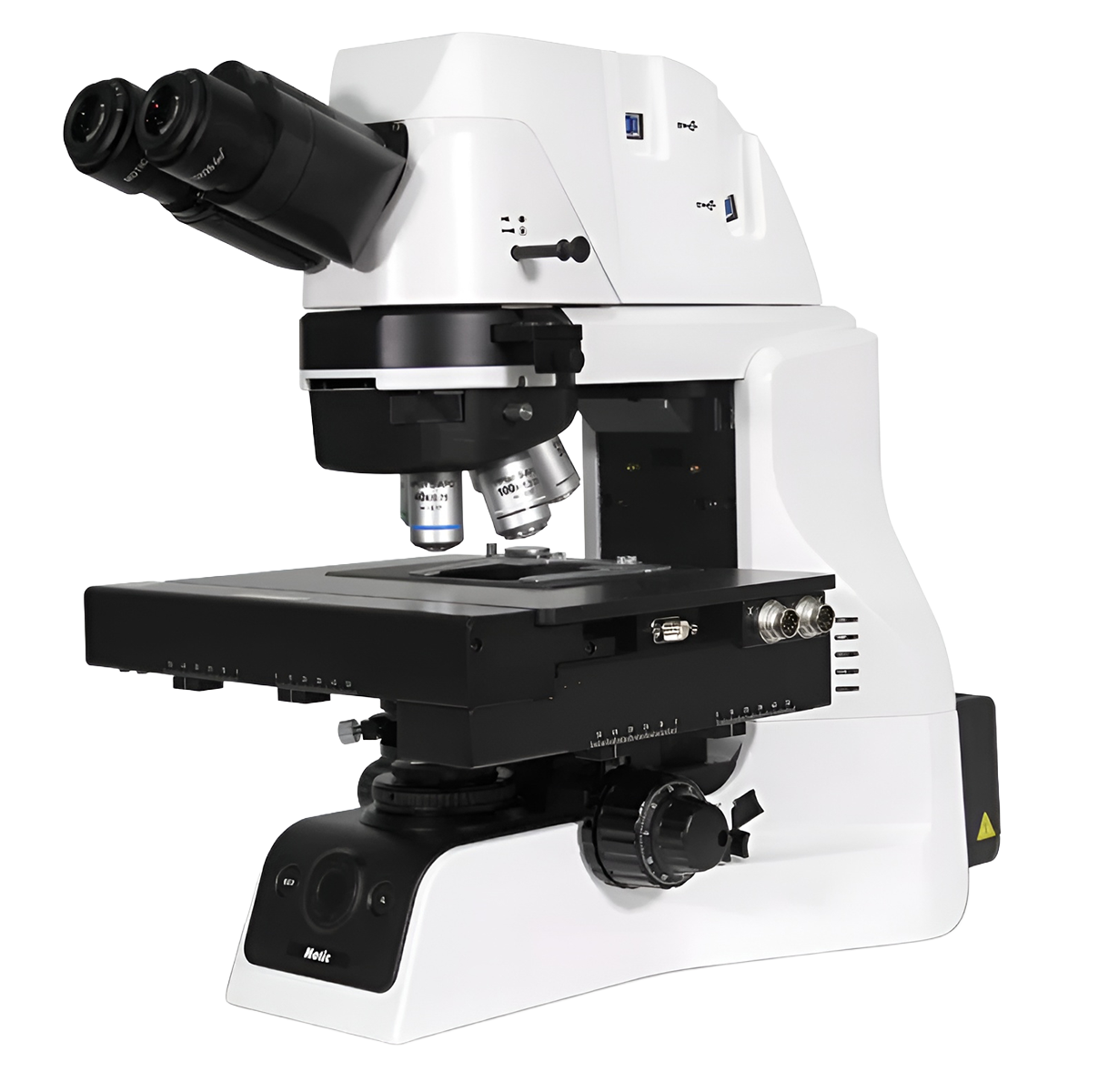

Compound Microscope Motic PA53 BIO SCAN

Request Quote

PA53 BIO SCAN Trinocular Microscope With Scanning Tube And Motorized Stage

Advanced microscope designed for scanning applications, featuring high-precision objectives, motorized stage, specialized condensers, and versatile lighting options.

PA53 Bio Scan mainly meant for transmitted light scan. Various contrasting method can be used for scan and stitch, from Phase contrast to polarizing contrast…… Scanning of transparent sample is not a problem now.

"Benefit of using microscope base digital slide scanning system like PA53 Scan"

• Better quality as it is completed optical path with full Kohler illumination setting
• High precision stage allow physical relocation of Region of Interest and rescan with high resolution high N.A. objective.
• No limitation on the use of objective, super high resolution scan with oil immersion objective becoming possible
• No limitation on the use of contrasting methods, phase contrast, Polarizing contrast, etc… can be used. To scan sample without staining becoming possible.

Features

• PA53 Scan series using a specially designed tube with built-in 1.2 Mpixel camera for focusing and a 5 Mpxiel high resolution sCMOS camera for imaging.
• Lumos LED is recommended for the scan which allow stable and homogenous illumination with very low consumable cost. HBO mercury burner can also be used if preferred.
• 100mm x 100mm high precision motorized stage with smallest step size of 10nm (repeatability better than 200nm) is used, relocation even with 100x objective is not a problem.
• Motorized 5x position nosepiece to allow smooth switching of objectives.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• 	PA53 BIO SCAN
  Trinocular Tube	Special scanning trinocular tube with 2x built-in camera
  Eyepieces	Adjustable Wide-Field (FN25) Eyepiece 10X/FN25 [Optional] Adjustable wide-field (FN22) Eyepiece
  Intermediate Piece	PA53 series intermediate piece
  Main Body (Upper)	Main upper mot body PA53 Bio Scan
  3D Profiler Controller	3D-Profiler control box/pad
  Objective Nosepiece (Mot)
  Fluorescent Attachment	-
  Transmitted Light Halogen Illuminator	100W Halogen lamp housing
  Halogen Bulb	100W Halogen bulb
  High-Quality Fluorescent LED Illuminator With Control Panel	-
  Motorized Stage	Motorized Stage 100mm x 10mm (without Light shutter) completed Controller box (without light shutter) Specimen holder (for scanning application) [Optional] Motorized Stage 100mm x 10mm (with Light shutter) completed [Optional] Controller box (with light shutter) [Optional] XY controller joystick and controller box for stage
  Objectives (Sapo, Good For FL Too)	Plan UC 2X/0.05, W.D=7.2mm HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17 HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17 HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17 HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17 [Optional] HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17
  Long Working Distance Condenser	[Optional] LWD N.A. 0.63 WD 10.7mm Condenser
  Condenser	N.A. 0.9/1.30 swing-out condenser [Optional] Push slider condenser 0.9/1.25 [Optional] Phase contrast turret condenser
  Fluorescent Filter Set With Cube	-
  Diffuser	-
  PA-25ND25 ND Filter	Optional
  Transmitted Light Filter	[Optional] Yellow filter [Optional] Green filter [Optional] Neodymium (contrast enhancement) filter [Optional] Blue conversion filter
  LBD Filter (White Balanced Filter)	Yes
  ND25 Neutral Density Filter	Yes
  ND6 Neutral Density Filter	Yes
  Analyzer Slider	[Optional] 360° Rotation analyzer Filter
  Polarizer	[Optional] Polarizer Filter

• • Trinocular Tube: Special scanning trinocular tube with 2x built-in camera.
  • Eyepieces: Adjustable Wide-Field (FN25) Eyepiece 10X/FN25.
  • Intermediate Piece: PA53 series intermediate piece.
  • Main Body (Upper): Main upper mot body PA53 Bio Scan.
  • 3D Profiler Controller: 3D-Profiler control box/pad.
  • Transmitted Light Halogen Illuminator: 100W Halogen lamp housing.
  • Halogen Bulb: 100W Halogen bulb.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (without Light shutter) completed.
    • Controller box (without light shutter).
    • Specimen holder (for scanning application).
  • Objectives:
    • Plan UC 2X/0.05, W.D=7.2mm.
    • HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17.
    • HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17.
    • HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17.
    • HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17.
  • Condenser: N.A. 0.9/1.30 swing-out condenser.
  • Filters:
    • LBD Filter (White balanced filter).
    • ND25 Neutral Density filter.
    • ND6 Neutral Density filter.
• • None
• • Cleaning Kit
  • Eyepieces: Adjustable wide-field (FN22) Eyepiece.
  • Motorized Stage:
    • Motorized Stage 100mm x 10mm (with Light shutter) completed.
    • Controller box (with light shutter).
    • XY controller joystick and controller box for stage.
  • Objectives: HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17.
  • Long Working Distance Condenser: LWD N.A. 0.63 WD 10.7mm Condenser.
  • Condenser:
    • Push slider condenser 0.9/1.25.
    • Phase contrast turret condenser.
  • Filters:
    • PA-25ND25 ND filter.
    • Yellow filter.
    • Green filter.
    • Neodymium (contrast enhancement) filter.
    • Blue conversion filter.
  • Analyzer Slider: 360° Rotation analyzer filter.
  • Polarizer: Polarizer filter.
• • Flyer

View full product details »

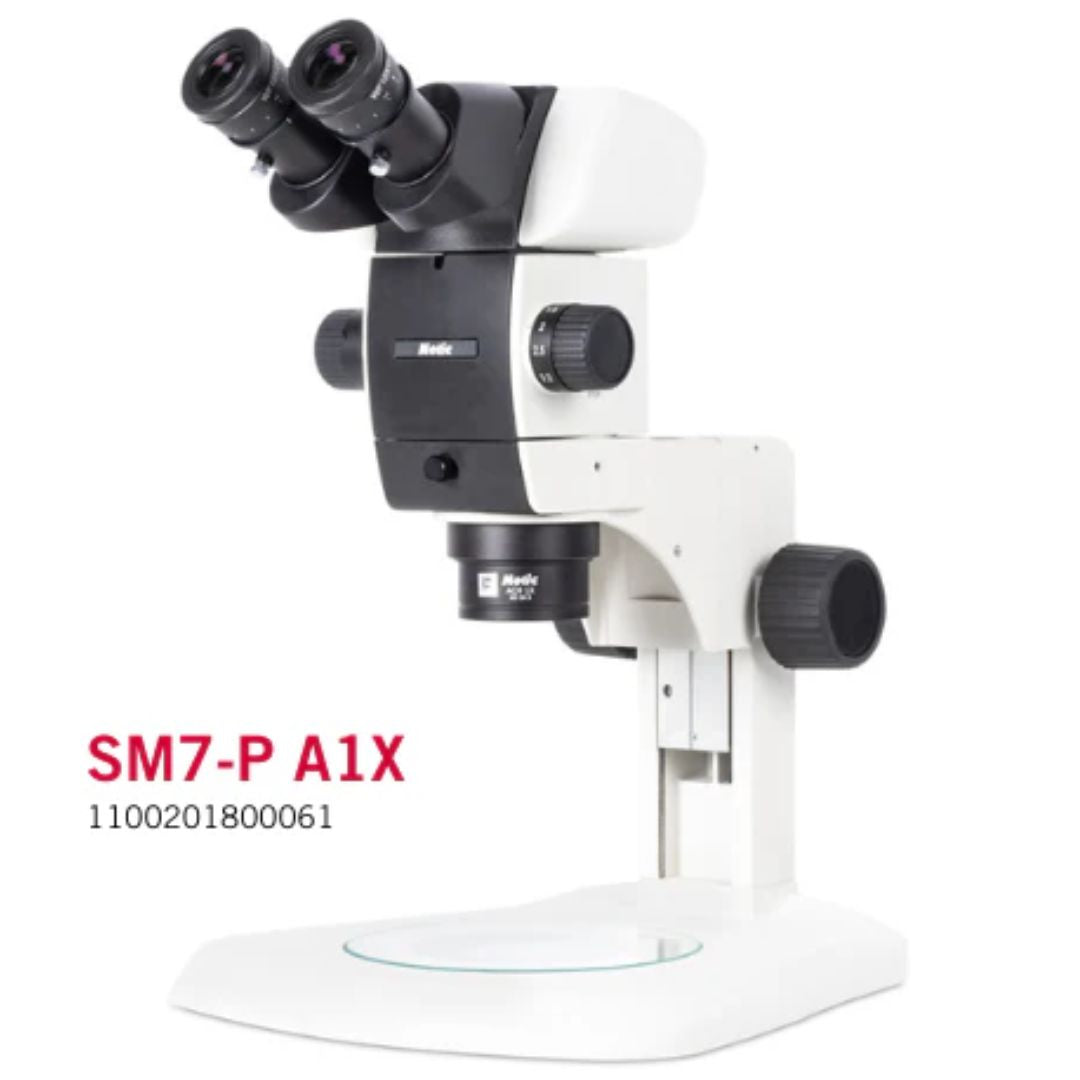

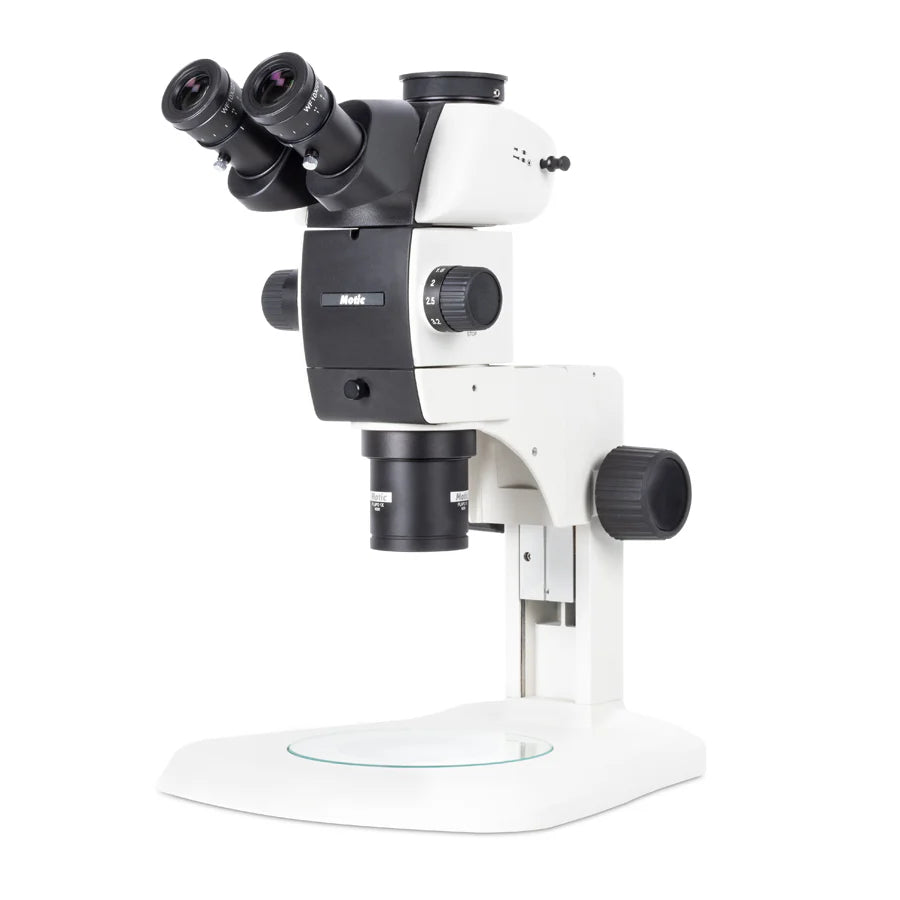

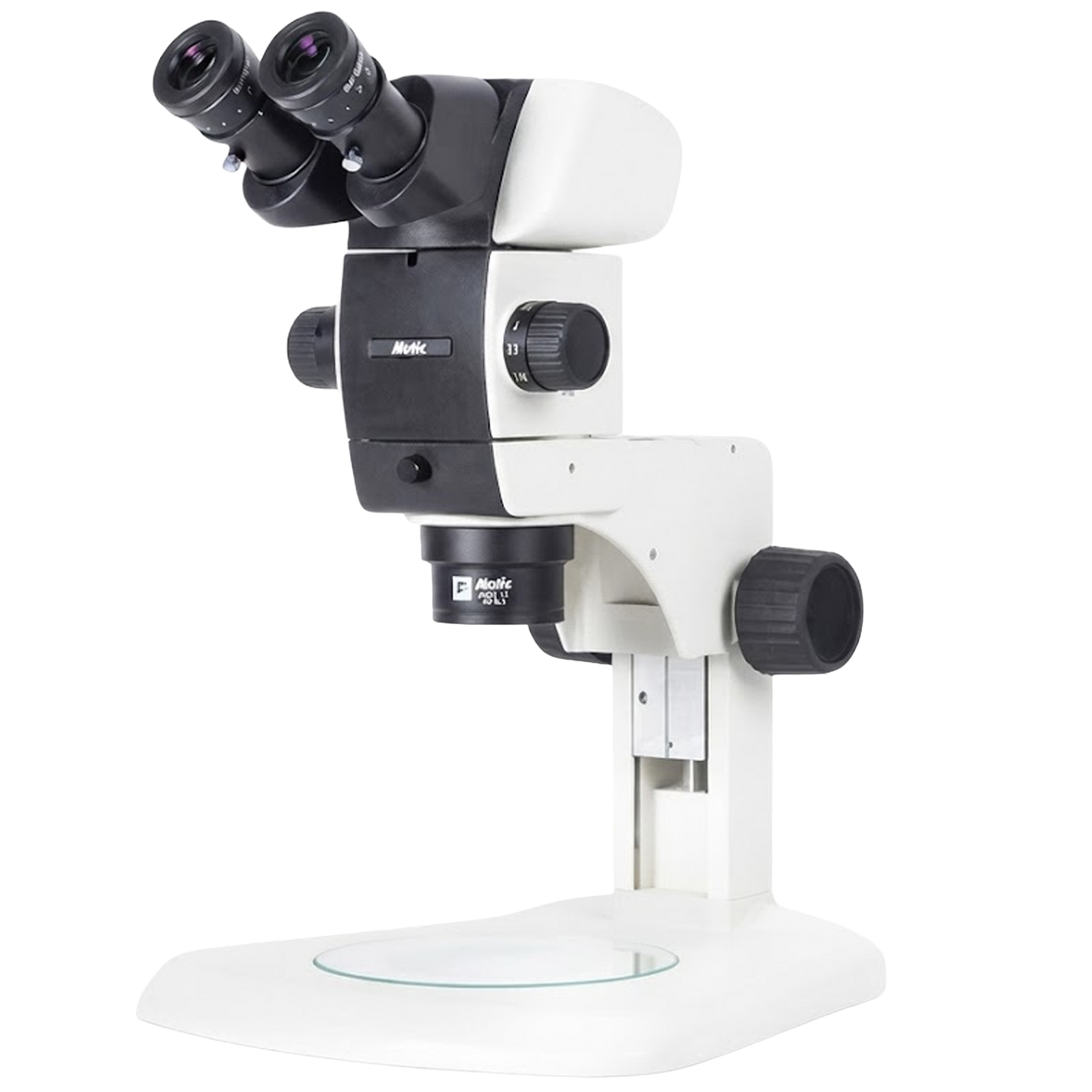

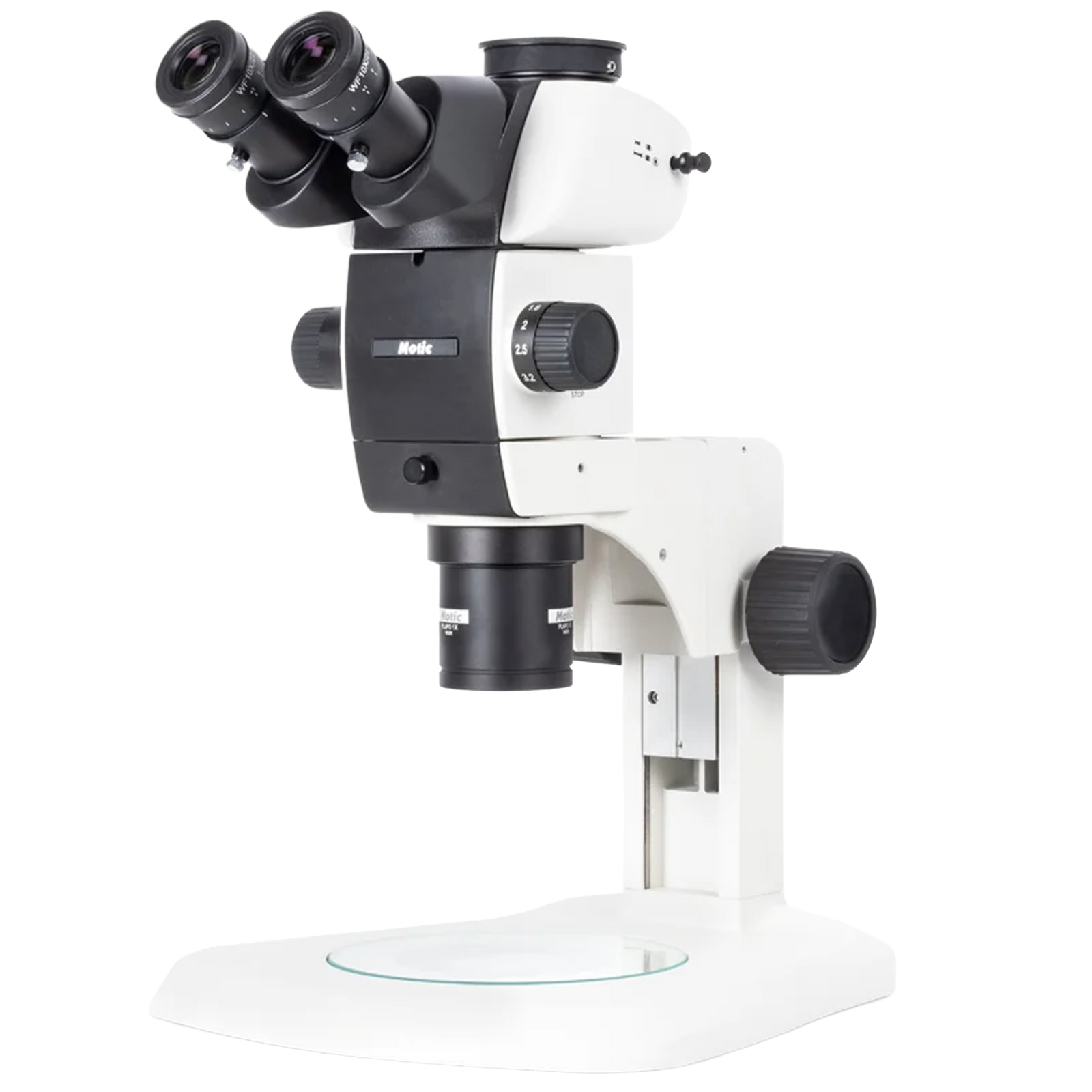

Stereo Microscope Motic SM7 Plan Apochromat Objective

Request Quote

High-Performance SM7 Plan Apochromat Objective for Superior Image Clarity

Designed for precision and versatility, the SM7 Plan Apochromat objective offers advanced optical performance for enhanced resolution and contrast in scientific imaging.

Motic's SM7 Plan Apochromat is meant specifically for opaque samples, as it comes with a plain stand, although external light sources can be implemented. The SM7 Series features an optical performance with true colour reproduction, high resolution and low distortion. Motic's new Galilean stereomicroscopes are our new highlight in terms of colour reproduction, resolution and spatial information for users from biology, medicine and incustrial QC.

Features

• Power in any Aspect: The SM7 features an optical performance with true colour reproduction, high resolution and low distortion.
• Stand Design: Ultra-flat stand bases for a relaxed positioning of hands and forearms facilitate lengthy preparation work.
• Flexibility for Individual Demands: A variety of objectives and eyepieces allow tailoring a personal SM7.
• Galilean Optical System: The Galilean Optics of the SM7 show a 7:1 Zoom system, resulting in a standard magnification range of 8X-56X.
• Superior Optics: For the best possible image results, a 1X Plan-Apochromatic objective with a Working Distance of 81mm is available.
• Resolution Power of Tiny Details: Besides minimized chromatic and spherical aberrations, it is the resolution of the 1X Apochromatic objective which makes the SM7 especially interesting for technical applications.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	SM7TR-P APO1X	SM7TR-TLED APO1X	SM7-P APO1X	SM7-TLED APO1X
  Observation tube	Trinocular head	Trinocular head	Binocular head	Binocular head
  Optical system	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)
  Inclination	30° inclined	30° inclined	30° inclined	30° inclined
  Trinocular light split	100:0/20:80	100:0/20:80	-	-
  Interpupillary Distance	55-75mm	55-75mm	55-75mm	55-75mm
  Diopter adjustment	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter
  Eyepieces	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment
  Objective classification	Plan Apochromat	Plan Apochromat	Plan Apochromat	Plan Apochromat
  Objectives system	Zoom, ratio 7:1	Zoom, ratio 7:1	Zoom, ratio 7:1	Zoom, ratio 7:1
  Objectives	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)
  Working distance	81mm	81mm	81mm	81mm
  Stand type	Fixed-arm stand	Fixed-arm stand with transmitted illumination	Fixed-arm stand	Fixed-arm stand with transmitted illumination
  Head holder	For Ø76mm head	For Ø76mm head with incident illumination	For Ø76mm head	For Ø76mm head with incident illumination
  Focus mechanism	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment
  Focusing stroke	120mm	120mm	120mm	120mm
  Incident illumination	-	LED 3W with intensity control	-	LED 3W with intensity control
  Transmitted illumination	-	LED 3W with intensity control	-	LED 3W with intensity control
  Transformer	-	External	-	External
  Power supply	-	110-240V (CE)	-	110-240V (CE)
  Accessories included	Dust cover, Black/White plate Ø160mm	Dust cover, Glass plate Ø160mm	Dust cover, Black/White plate Ø160mm	Dust cover, Glass plate Ø160mm
  Dimensions LxWxH	367x290x372mm	367x290x372mm	367x290x372mm	367x290x372mm
  Base	310x290mm	310x290mm	310x290mm	310x290mm
  Column/Arm	254mm	254mm	254mm	254mm
  Weight net	7.1kg (15.65 lbs)	7.5kg (16.53 lbs)	7kg (15.43 lbs)	7.4kg (16.31 lbs)
  Standard contrast technique	Brightfield	Brightfield	Brightfield	Brightfield

• • SM7 (Plan Apochromat Objective)
  • Dust cover
  • Black/White plate Ø160mm
• • None
• • Cleaning Kit
  • Moticam Cameras
  • Boom Stand
  • Transmitted Light Base

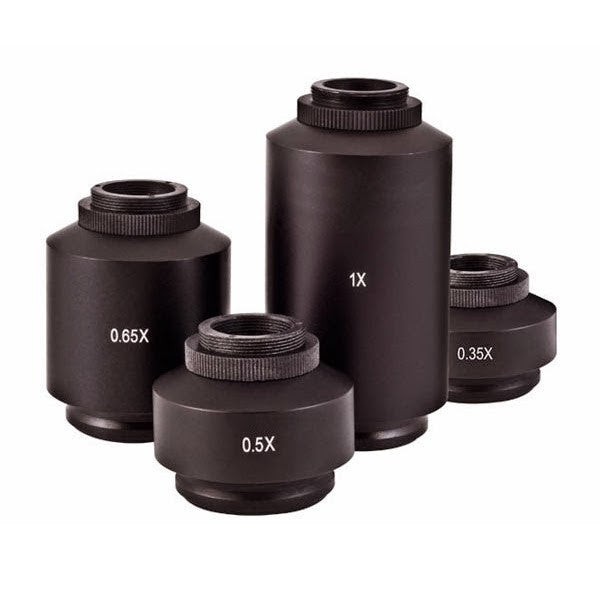

  • C-Mount and SLR Adapters
  • Polarization Accessories
  • Reticles and Scale Micrometers
• • Catalog
  • Specifications
  • Instructions

View full product details »

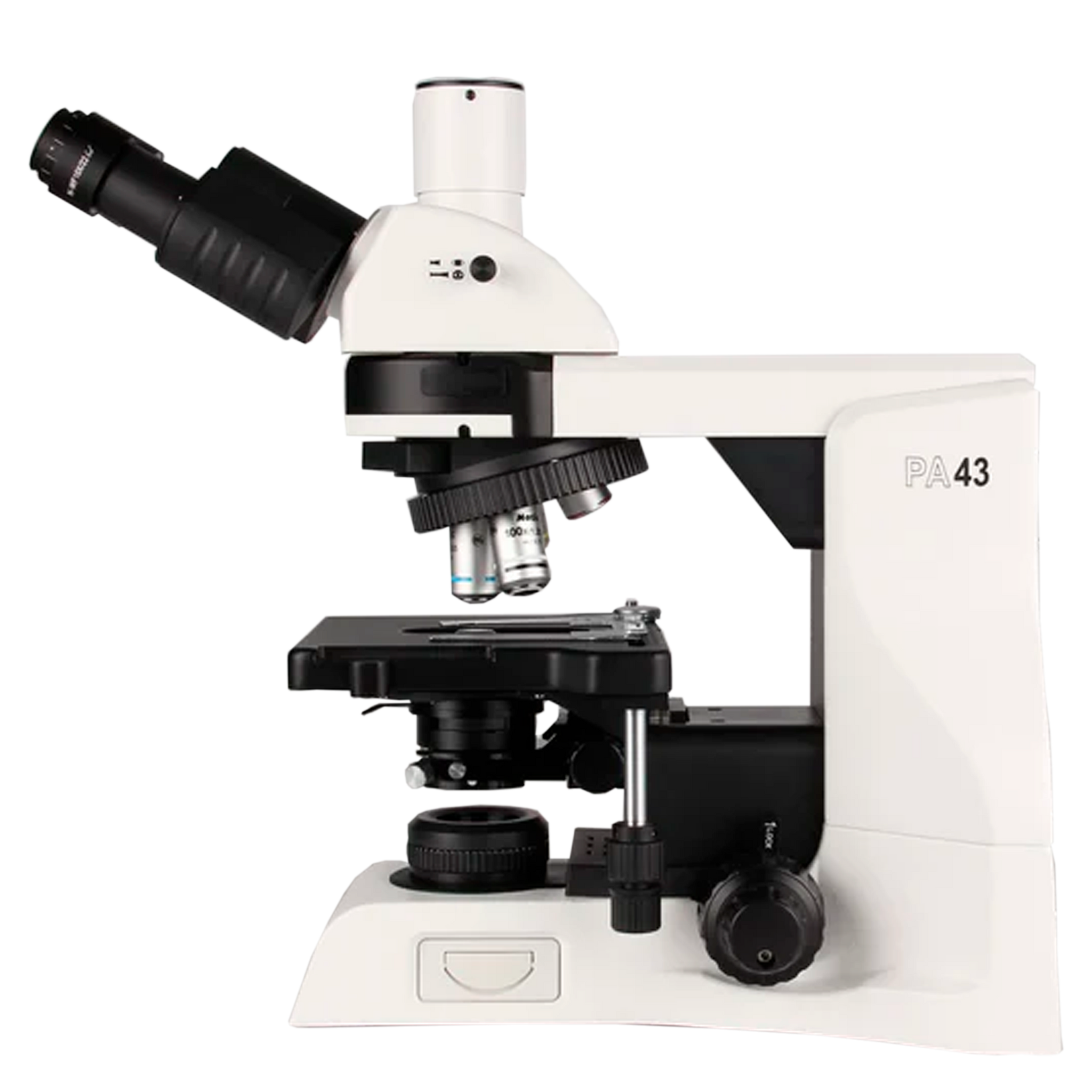

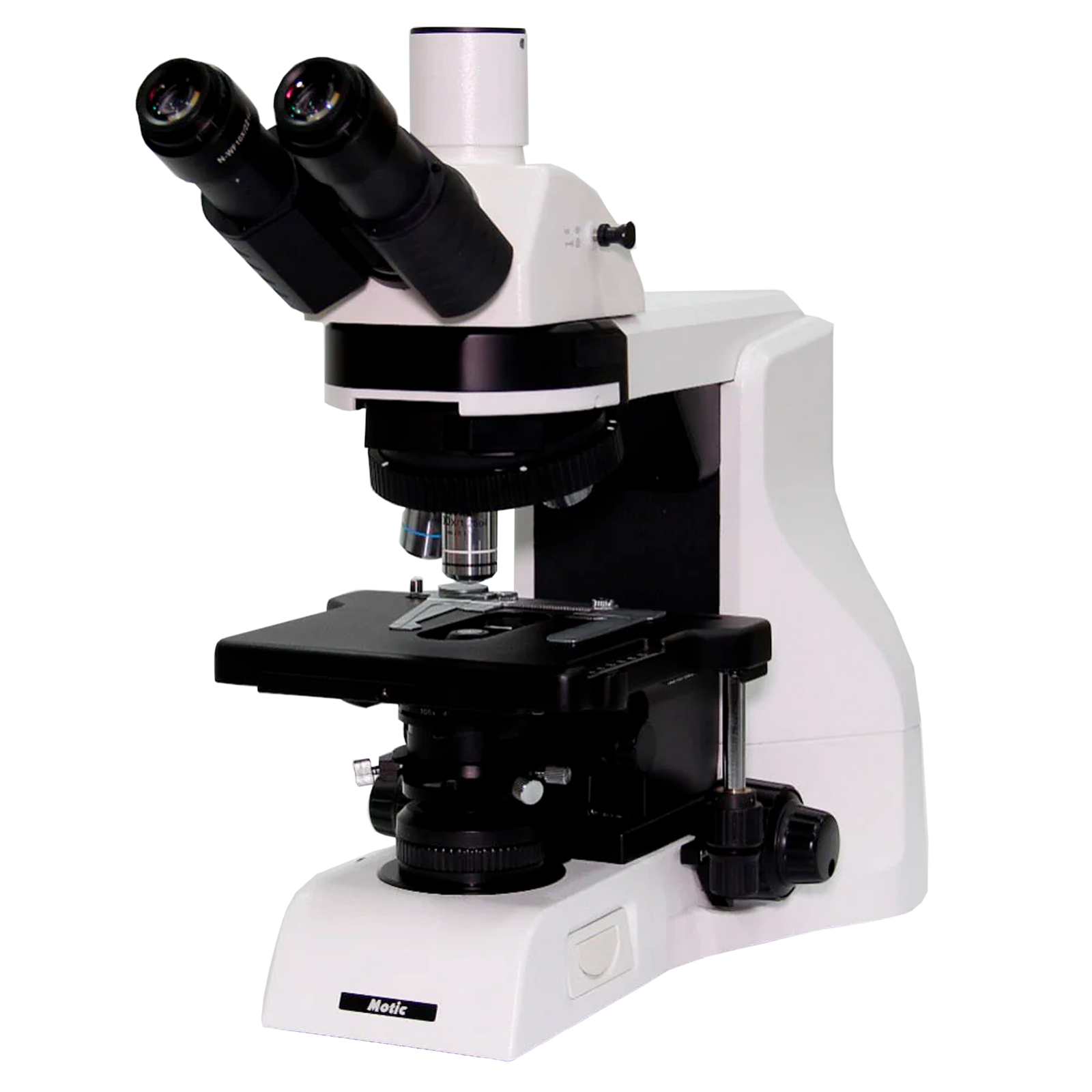

Compound Microscope Motic PA43 BIO

Request Quote

High-Performance Microscope Designed for Versatile Laboratory Applications, Featuring Trinocular Observation and Modular Configurations.

Comprehensive Microscope for Clinical, Biological, and Research Applications, Offering Precision Optics and Customizable Features.

The PA43 BIOMED has a strong selection of contrast accessories that are available and easily upgradable to meet different requirements:

• Phase contrast methods for various microbiology applications.
• Darkfield accessories for blood cell studies for natural therapy.
• Polarizing contrast accessories for protein crystal, tissue, gout and kidney stone observations.

Features

• Kohler illumination with option of Halogen or LED illumination
• Environmentally Friendly ECO function
• Consistent, Even Illumination with IL Function
• Rackless stage

Applications

Pathology and Cytology

Pathology is sometimes considered to be the foundation of medicine, and the study of biopsy tissue has brought us to many different methods of disease diagnosis. Whether it be H&E slides or Immunohistochemistry studies (IHC), the PA43 provides a very reliable, affordable platform to meet the research requirements. With options for both manual observation or digital image capture for quantitative study, the PA43 also boasts a series of high-quality objectives with best-in-class resolution. It is also a very useful microscope for Cytology, such as for PAP-smears, TCT samples for cervical cancer diagnosis.

Cytogenetics

Karyotyping has always been a gold standard for the diagnosis of genetic disease, pre-natal screening and leukemia diagnosis. Specialists need good resolution through their 100x objectives, as they need to scan through the slides with an oil objective to look for the right Metaphase to study. The rackless stage of the PA43 offers smooth movement of the stage with zero-backlash. Together with our quality oil objectives, the PA43 becomes an excellent companion for Cytogeneticist

Hematology

White Blood cell classification and counting is commonplace for both routine screening and Leukemia diagnosis. Although we now have fully automatic screening systems to do most of the tests, confirmations under microscopes are still important and often demanding. Other than Motic’s routine oil immersion objective, specially designed non-cover glassed objectives are also available as part of the PA43’s accessory lineup. Moreover, the PA43 is also very ideal for Karyotyping for Leukemia studies.

Toxicology and Biodosimetry

Constant monitoring of various environmental hazard on human DNA damage is always a topic for clinical specialists and pharmaceutical companies. The gold standards of evaluation, such as “Chromosome Aberration Scoring”, “Dicentric Scoring”, and “Micro-nuclei (in-vitro and in-vivo)” are all microscope-based methods that are very labor intensive. The PA43 provides a comfortable, quality solution for these intensive, demanding routine tests.

Software - Motic Analysis Bio

Digital imaging and automation make the life of a clinical specialist easier and more productive. Analysis Bio is our entry into a new generation of software, and not only makes the operation of the PA43 and PA53 simple and easy, but also provides the breadth of analysis and measurement tools needed for digital documentation and analysis.

This full featured microscope has the following:

• Fully encoded objectives
• Phase contrast package
• Pathology package
• Optional ergonomic head to reduce neck strain

Applications	Cytology	Haemotoxylin and Eosin Stain (HE)	Immunohistochemistry (IHC)	Hematology

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Package 1 (PH Basic Configuration)	Package 4 (PH Advanced Configuration)	Package 2 (Standard)	Package 3 (Pathology)
  Base	/	/	/	/
  Observation Tube	Trinocular Head			Inclined Trinocular Head
  Eyepiece	N-WF10X/22mm
  Arm	/	/	/	/
  Nosepiece	5-Position Nosepiece
  Objectives
  Plan UC Objective	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm • Plan UC 100X/1.25 Oil, W.D=0.16mm	• Plan UC 2X/0.05, W.D=7.2mm • Plan UC 4X/0.1, W.D=30.5mm • Plan UC 10X/0.25, W.D=17.4mm • Plan UC 20X/0.45, W.D=0.8mm • Plan UC 40X/0.65, W.D=0.6mm
  Phase Contrast Objective	• Plan UC 10X/0.25, W.D=17.4mm • Plan UC 40X/0.65, W.D=0.6mm		-
  Condenser	N.A 0.9/1.25 Abbe with Slider Slot	Turret Condenser	N.A 0.9/1.25 Abbe with Slider Slot	N.A 0.90/0.13 Swing In/Out
  Stage	Rackless Stage
  Transmitted Illumination	Condenser (with Field Diaphragm)
  Illumination	• LED Module (High Color Temperature) • Halogen Module
  Phase Contrast & Dark Field Accessories	• PH Slider (Ph1) • Phase Centering Telescope	Phase Centering Telescope	-
  Filter	Blue Filter

• • PA43 microscope stand.
  • Trinocular or tilting trinocular observation tube, depending on the configuration.
  • N-WF10X/22mm eyepieces.
  • 5-position revolving nosepiece.
  • Plan UC objectives, varying by package configuration.
  • Condenser appropriate to the selected package.
  • Rackless stage.
  • Illumination module (LED or Halogen) as per chosen configuration.
  • Blue filter.
• • None
• • Cleaning Kit
  • Phase contrast accessories for various microbiology applications.
  • Darkfield accessories suitable for objectives up to 40x magnification.
  • Polarizing contrast accessories for studies such as protein crystals, muscle fibers, and tissue observations.
  • LED illuminator modules with options for high or low color temperature.
  • Halogen illuminator module with 30W power.
  • Rackless stage with a ceramic-coated surface for durability and ease of use.
  • ECO function for automatic power saving mode.
  • IL function to maintain consistent, even brightness during magnification changes.
• • Catalog
  • Specifications
  • Product Manual

View full product details »

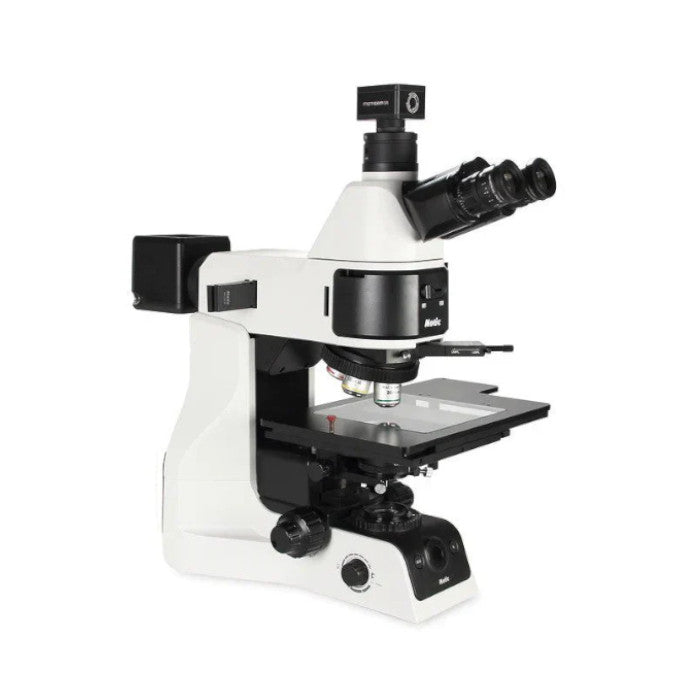

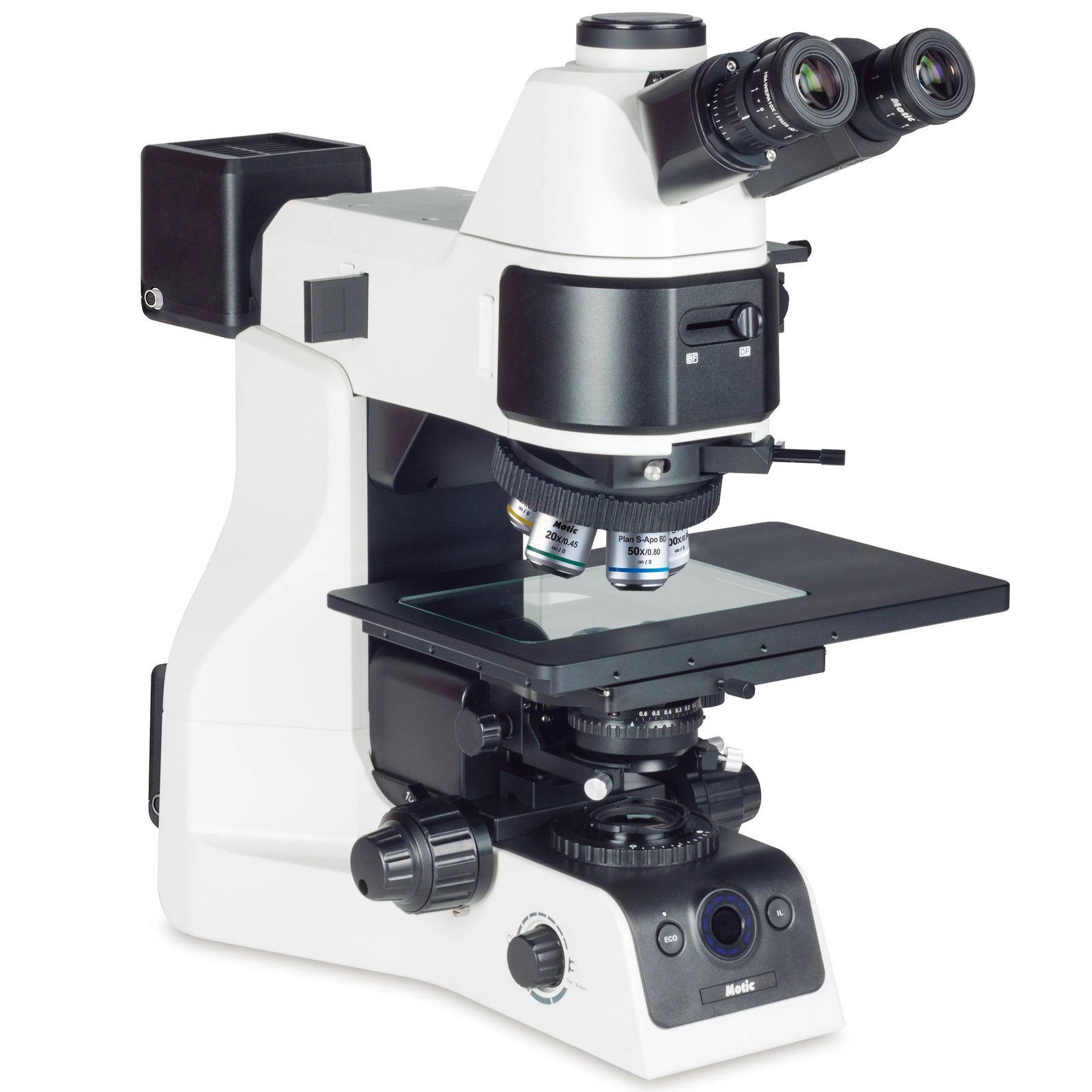

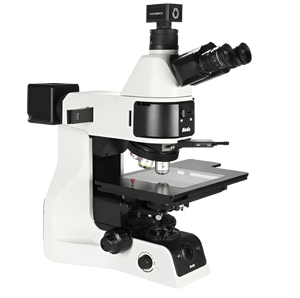

Advanced Compound Microscope Motic PA53MET

Request Quote

The PA53MET Features Superior Optical Performance and Next-Generation Technology.

The PA53MET Is An Advanced Metallurgical Microscope Designed For Research And Industrial Analysis Applications, Combining A High-Precision Optical System With Versatile Illumination And Digital Imaging Capabilities For Superior Performance In Modern Laboratories.

Superior Optical Performance

Expertly designed, carefully crafted, high-performance Motic objective lenses provide excellent clarity in any observation environment. Experience this high optical performance for yourself and find out why so many top researchers, inspectors, and technicians praise the quality of Motic Instruments products.

Intelligent, Sleek Design

Advanced ergonomic design, compact size, carefully sourced high-quality materials, and versatile digital capabilities ensure minimal operator fatigue during extended periods of operation.

Innovative Module Design

The compact size of the PA53MET minimizes required installation space. Interchangeable individual modules meet the needs of any application. You can select the appropriate optional accessories for your task: reflected light illuminators, transmitted light illuminators, XY stage, Z-axis, etc.

6 models available to meet your needs:

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	PA53MET	PA53MET-3D (w/ Analysis Professional Software Suite)	PA53MET-T	PA53MET-BD	PA53MET-BD-3D (w/ Analysis Professional Software Suite)	PA53MET-BD-T
  SKU	1100104600851	1100104600871	1100104600861	1100104600881	1100104600901	1100104600891
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Illumination	Reflected	Reflected	Reflected & Transmitted	Reflected	Reflected	Reflected & Transmitted
  Observation Tube
  Binocular (Optional)	Erect type (F.N 25), 20° inclined
  Trinocular	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
  Eyepieces	10X (F.N 25), Diopter adjustable, Reticle optional
  Revolving Nosepiece
  Brightfield	5-position Nosepiece for Brightfield objective lens with DIC slot			/
  Brightfield / Darkfield	/			5-position Nosepiece for Brightfield, Darkfield objective lens with DIC slot
  Objectives
  Plan S-APO	5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)			/
  Plan S-APO BD	/			5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)
  LPlan S-APO (Optional)	20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm			/
  LPlan S-APO BD (Optional)	/			20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm
  Base unit
  Base unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob.
  	Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale)
  	Upper limit stopper, Torque adjustment ring
  Base unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
  Camera
  Model	-	Moticam S6	-	-	Moticam S6	-
  Sensor type	-	sCMOS	-	-	sCMOS	-
  Sensor size	-	1/1.8"	-	-	1/1.8"	-
  Capture resolution info	-	6MP	-	-	6MP	-
  Live display mode through USB	-	3072x2048, 1536x1024 pixels	-	-	3072x22048, 1536x1024 pixels	-
  Scan Mode	-	Progressive	-	-	Progressive	-
  Data Transfer	-	USB 3.1	-	-	USB 3.1	-
  Accessories Included	-	0.5x C-mount Camera Adapter	-	-	0.5x C-mount Camera Adapter	-
  Software	-	Motic Analysis Professional Software	-	-	Motic Analysis Professional Software	-
  3D Profile Module
  3D Profile Module	No	Yes	No	No	Yes	No
  Mechanism	-	High-resolution 5-phase Stepping Motor, Long Crossroller Guide System	-	-	High-resolution 5-phase Stepping Motor, Long Crossroller Guide System	-
  Stroke Distance	-	30 mm	-	-	30 mm	-
  Resolution	-	0.01μm	-	-	0.01μm	-
  Repeatability	-	0.5μm	-	-	0.5μm	-
  Max Speed	-	1.4 mm/sec	-	-	1.4 mm/sec	-
  Dimensions	-	240(W) X 157(D) X 202.5 (H) mm	-	-	240(W) X 157(D) X 202.5 (H) mm	-
  Weight	-	5 kg	-	-	5 kg	-
  Load Capacity	-	15 kg	-	-	15 kg	-
  Reflected Illumination
  BF	Kohler illumination system / Brightfield, Normaski DIC, simple Polarized			/
  BF/DF	/			Kohler illumination system / Brightfield / Darkfield, Normaski DIC, simple Polarized
  Light Source	12V 100W halogen
  Transmitted Illumination
  Transmitted Illumination	No	-	Yes	No	-	Yes
  Illumination	-	-	Kohler illumination system Brightfield / Built-in filters	-	-	Kohler illumination system Brightfield / Built-in filters
  Lamp	-	-	12V 100W longlife halogen bulb (Philips 7724)	-	-	12V 100W longlife halogen bulb (Philips 7724)
  Condenser
  Condenser	No	-	Yes	No	-	Yes
  Abbe	-	-	N.A 1.20	-	-	N.A 1.20
  Long-working	-	-	LWCD, N.A 0.65	-	-	LWCD, N.A 0.65
  Stage
  4x4 inch	Size 210(W) X 170(D) mm, Stroke 104(X) X 102(Y) mm, metal plate, glass plate
  Optional	6x6” stage, 6x6” stage, 8” wafer stage, 12” wafer stage
  Dimension	Approx. 246(W) x 572(D) x 514(H)
  Weight	Approx. 19kg (44.1 lbs)

• • PA53MET Microscope
  • 10X Eyepieces (F.N 25) with Diopter Adjustment
  • Metal Plate and Glass Plate for the Stage
  • Integrated Power Supply
  • 12V 100W Halogen Bulb
  • Instruction Manual
  • Protective Cover
• • None
• • Cleaning Kit
  • Additional Reflected Light Illuminators
  • Transmitted Light Illuminators
  • XY Stages
  • 3D Profile Module
  • Moticam Digital Cameras
  • Plan S-APO and LPlan S-APO Objectives
• • Catalog
  • Specifications
  • Instructions

View full product details »

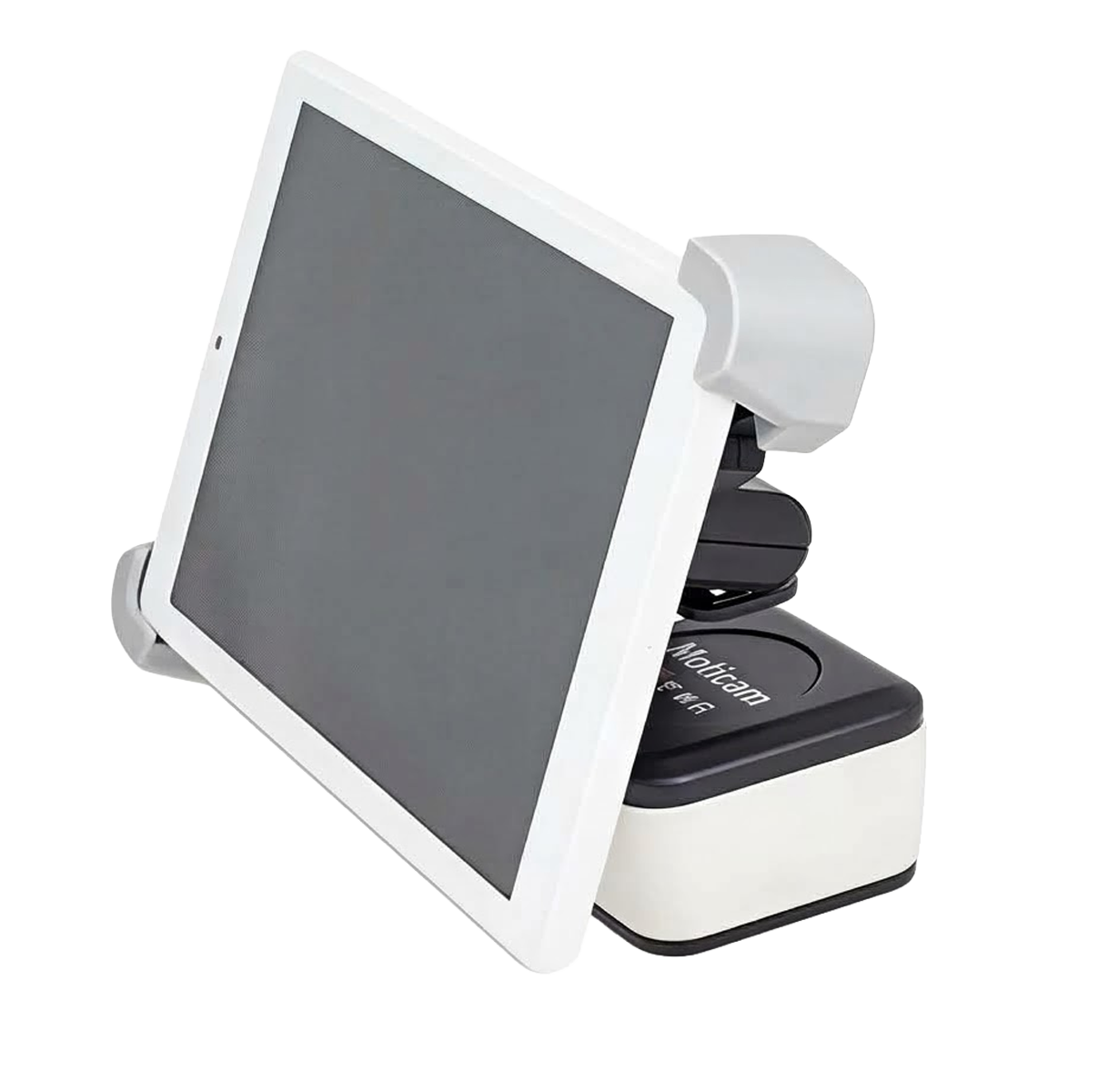

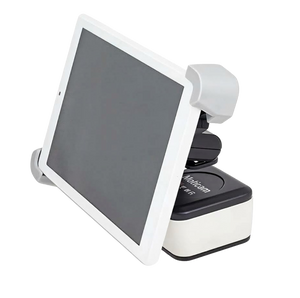

Moticam BTI Tablet Cameras for Microscopes

Request Quote

View full product details »

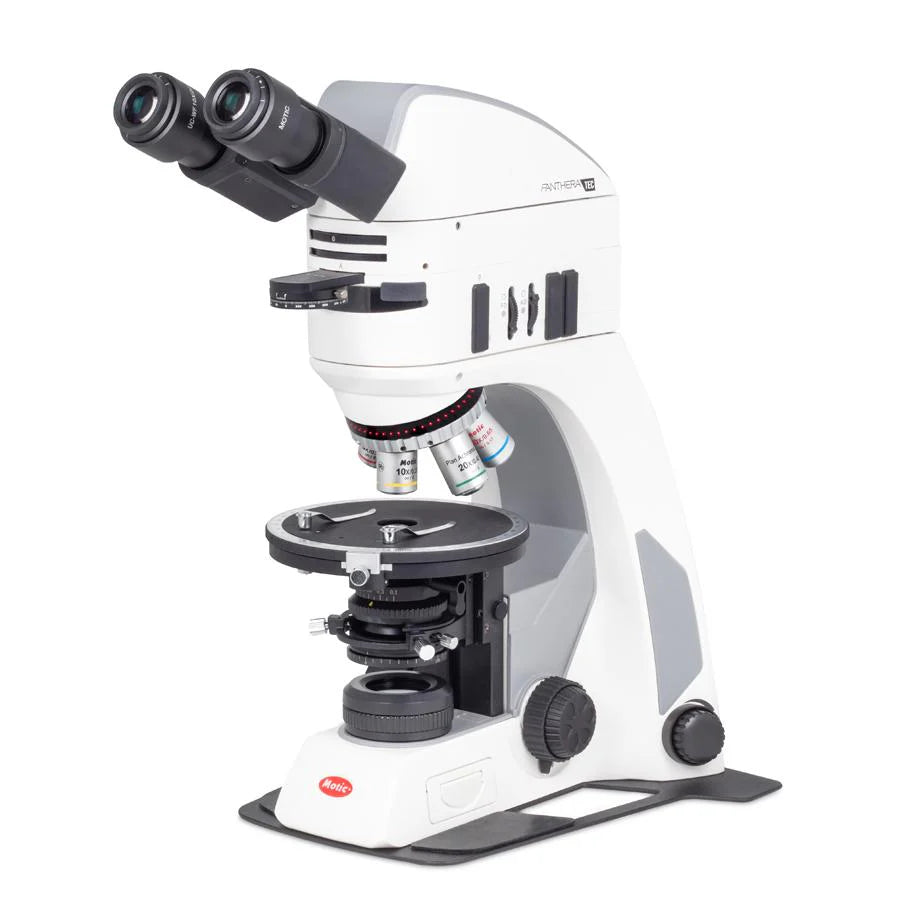

Panthera TEC POL EPI Polarizing Compound Microscopes

Request Quote

Panthera TEC POL EPI- Powerful Solutions for Incident and Transmitted Light Methods

The Panthera TEC POL EPI Is Designed For Precise, High-Resolution Observations, Equipped With Advanced Optics, Built-In LED Illumination, And A Customizable Configuration (Binocular, Trinocular, Or Digital). It's Ideal For Polarization Applications In Research Or Laboratory Environments.

The Panthera TEC POL EPI series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL EPI (Binocular)	Panthera TEC POL EPI (Trinocular)	Panthera TEC POL EPI (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-		CMOS
  Sensor Size	-		1/2.5"
  Capture Resolution	-		5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-		1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-		1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-		1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Epi-illuminator LED with rotatable analyzer 360º, Bertrand lens, fixed polarizer and slot for compensators
  Objective Classification	Plan Achromatic objectives & CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22,9 lbs)	9.8kg (21,6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL EPI Microscope (Binocular/Trinocular/Digital version)
  • Power cord
  • Dust cover
  • Allen key
  • Blue filter
  • Halogen bulb
  • Adjustable key for nosepiece
  • Interference color chart
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Motic Cameras (USB, HDMI, Wi-Fi models)
  • Motic Software
  • C-Mount Adapters
  • Additional objectives
  • Replacement bulbs
  • Fluorescence filters
• • Catalog
  • Specifications – Binocular
  • Specifications – Trinocular
  • Specifications – Digital

View full product details »

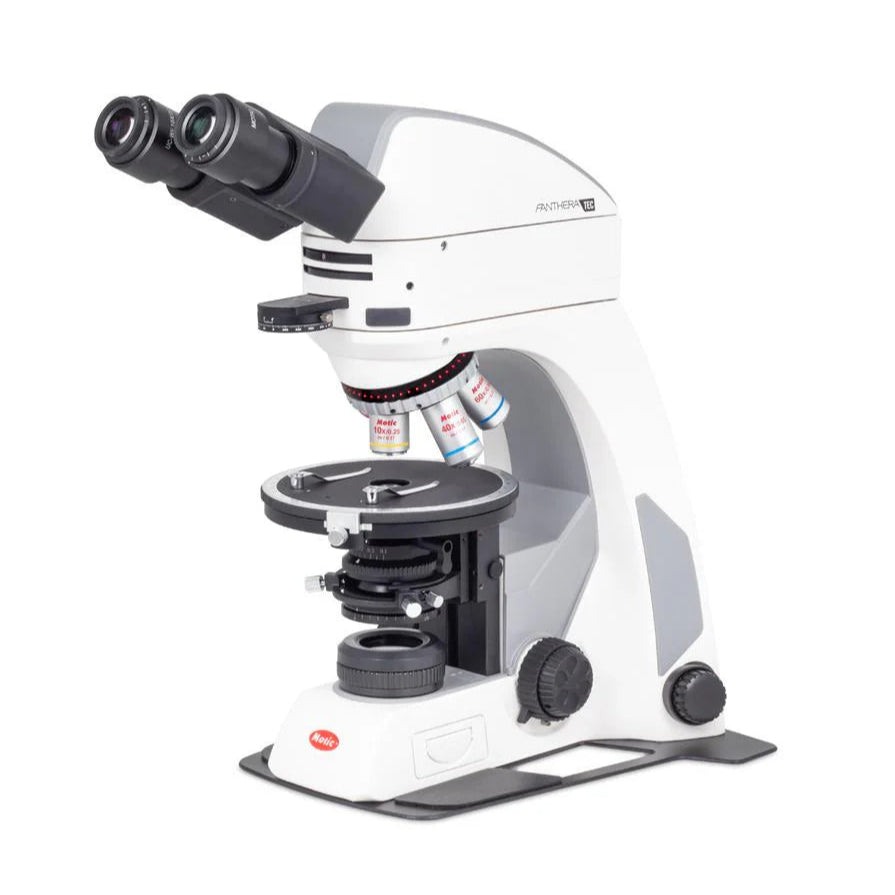

Motic Panthera TEC POL Compound Microscopes

Request Quote

Panthera TEC POL - Powerful Solutions for Incident and Transmitted Light Methods

The Motic Panthera TEC POL Polarizing Microscope Is Designed For Material Science Applications, Enabling The Analysis Of Transparent And Opaque Samples With Birefringence And Bireflection Characteristics.

The Panthera TEC POL series fills a last gap in the Panthera family: Polarization microscopes for all material sciences, ready to handle transparent samples like fibers and foils with their inherent birefringence. The Incident light models for opaque materials work out the specific reflectivity (bireflection) of flat surfaces. To extend the application fields, all microscopes carry an intermediate tube with Bertrand lens to analyze the crystal structure and interference figures of gems, precious stones and minerals.

Features

• UC Plan Achromat objectives (strain-free) for FOV 22mm
• Transmitted and transmitted/ incident stand options
• Transmitted light: LED/HAL light source interchangeable
• Integrated focusable/ centerable Bertrand lens
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC POL (Binocular)	Panthera TEC POL (Trinocular)	Panthera TEC POL (Digital)
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Binocular head, Siedentopf type	Trinocular head, Siedentopf type	Binocular head, Siedentopf type with built-in digital camera
  Sensor Type	-	-	CMOS
  Sensor Size	-	-	1/2.5"
  Capture Resolution	-	-	5MP (2592x1944)
  Live Display Mode (Through Wi-Fi)	-	-	1920x1080 (Full HD)
  Live Display Mode (Through Ethernet)	-	-	1280x720, 1920x1080 (Full HD)
  Live Display Mode (Through HDMI)	-	-	1280x720, 1920x1080 (Full HD)
  Inclination	25º inclined
  Trinocular Light Split	-	Fixed 50:50	-
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Nosepiece	Reversed quintuple, coded with single centering holes
  Intermediate Body	Rotatable analyzer 360º, Bertrand lens and slot for compensators
  Objective Classification	CCIS® UC Plan Achromatic (strain-free), DIN
  Objectives	4X/0.1 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 60X/0.8/S (WD 0.35mm)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)
  Stage	Circular rotating 360º, lockable
  Stage Size	Ø160mm
  Travel Range X&Y	1º increments, 0,1º vernier scale
  Condenser	Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polarizer
  Diaphragm	Iris diaphragm
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Filter Holder	On top of the illuminator with fixing cap
  Transmitted Illumination	Koehler Quartz halogen 6V/30W with intensity control
  Illumination Interchangeability	Halogen/LED and LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, blue filter, halogen bulb, adjustable key for nosepiece, interference color chart, screws for metal extension support
  Dimensions LxWxH	410x300x395mm
  Net Weight	10.4kg (22.9 lbs)	9.8kg (21.6 lbs)	9.9kg (21,8 lbs)

• • Panthera TEC POL Polarizing Microscope
  • Binocular or Trinocular Siedentopf Head with 25° Inclined Eyepiece Tubes
  • Widefield 10x Eyepieces with Diopter Adjustment
  • Intermediate Tube with 360° Rotatable Analyzer, Bertrand Lens, and Compensator Slot
  • CCIS® UC Plan Achromatic (Stress-Free) Objectives: 4X, 10X, 40X, and 60X
  • 360° Rotating Circular Stage with 0.1° Vernier Scale
  • Abbe Swing-Out Achromatic Condenser N.A. 0.90/0.13 (Stress-Free) with Rotatable Polarizer
  • Koehler Illumination with 6V/30W Quartz Halogen and Intensity Control
  • Motic LightTracer Features: Light Memory, Sleep Mode (Auto On-Off), LED Nosepiece Light Intensity Indicator
  • Dust Cover
  • Power Cord
  • Allen Key
  • Blue Filter
  • Halogen Bulb
  • Adjustable Wrench for Nosepiece
  • Interference Color Chart
  • Screws for Metal Extension Support
• • None
• • Cleaning Kit
  • Empty Insertion Plate
  • Quartz Wedge
  • 1/4 Wave Plate
  • Wave Tint Plate
  • 45mm Microscope Filters (Yellow, Green, Neutral Density N.D.2, Didymium, Blue)
  • Mechanical Stage for Polarizing Microscope
  • Reticle with Pointer, 25mm Diameter
  • KIMTECH Kimwipes Cleaning Cloths
• • Catalog
  • Specifications - Binocular
  • Specifications - Trinocular
  • Specifications - Digital

View full product details »

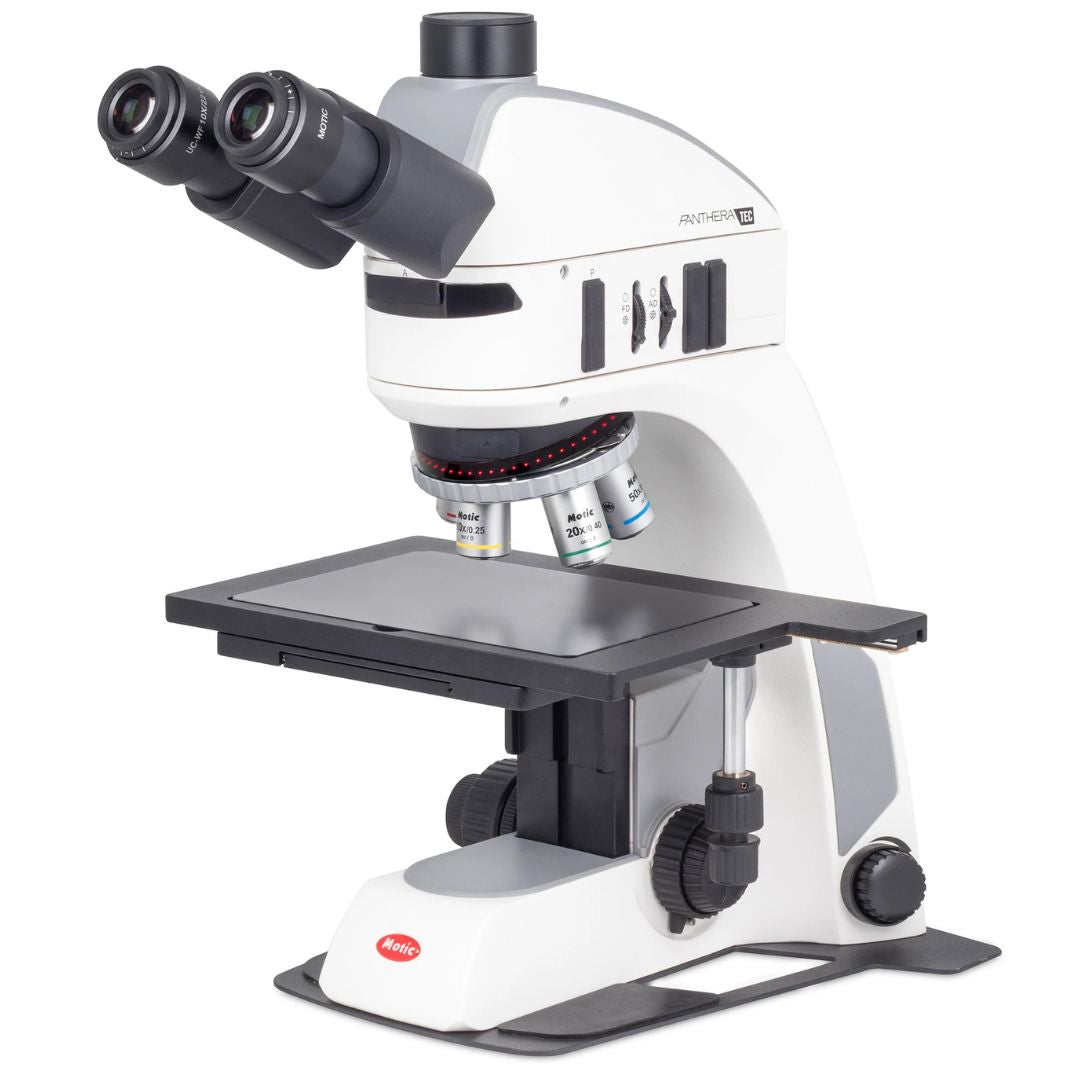

Compound Microscopes Motic Panthera TEC MAT

Request Quote

Panthera TEC MAT - Powerful Solutions for Material Sciences

High-Precision Microscopes With Corrected Optical System And Integrated LED Technology For Professional Applications In Research And Education

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

Features

• Smart Darkfield with 5 Segment illumination mode
• New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
• Pure incident or incident/ transmitted microscope stands available
• LED color temperature interchangeable
• Motic LightTracer: Coded nosepiece & Digital light intensity knob

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera TEC MAT BF	Panthera TEC MAT BF-T	Panthera TEC MAT BD	Panthera TEC MAT BD-T
  Optical System	Colour Corrected Infinity Optical System (CCIS®)
  Observation Tube	Trinocular head, Siedentopf type, 360º swiveling
  Inclination	25º inclined, 360º swivelling
  Trinocular Light Split	Fixed 50:50
  Interpupillary Distance	48-75mm
  Diopter Adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Intermediate Body	Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
  Nosepiece	Reversed quintuple, coded
  Objective Classification	CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN		CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)
  Objectives	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm)	5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), S-Apo 50X/0.80 (WD 1mm), S-Apo 100X/0.90 (WD 0.5mm) (Optional)
  Objective Mounting Thread	W 4/5"x1/36" (RMS standard)		M32
  Stand Type	Upright
  Stage	Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
  Stage Size	300x180mm
  Travel Range X&Y	150x100mm (6"x4")
  Condenser	-	LED condenser	-	LED condenser
  Focus Mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine Focus Precision	2µm
  Focusing Stroke	25mm
  Upper Limit Stop	Upper limit stop preset but adjustable
  Incident Illumination	LED 3W with integrated field and aperture diaphragms		LED 3W smart segmental ringlight with integrated field and aperture diaphragms
  Transmitted Illumination	-	0.06Wx39 LEDs	-	0.06Wx39 LEDs
  Illumination Interchangeability	LED color temperature interchangeability
  Illumination Features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Transformer	Internal
  Power Supply	110-240V (CE)
  Other Features	USB 2.0 for external camera power
  Accessories Included	Dust cover, power cord, Allen key, screws for metal extension support
  Dimensions LxWxH	410x300x450mm
  Weight Net	10.4kg (23 lbs)	10.6kg (23,1 lbs)	10.5kg (23,3 lbs)	10.7kg (23,5 lbs)
  Standard Contrast Technique	Brightfield		Brightfield, Darkfield
  Optional Contrast Technique	Polarization

• • Microscope Panthera TEC MAT
  • Dust cover
  • Power cord
  • Allen key
  • Screws for metal extension support
• • None
• • Cleaning Kit
  • Polarization kit
  • Darkfield condenser
  • Fluorescence module
  • Camera for external USB connection
  • Objective lens (e.g., 100X/0.90 for higher magnification)
  • Microscope cover or case for added protection
• • Catalog
  • Specifications – BF (6"x4")
  • Specifications – BF-T (6"x4")
  • Specifications – BD (6"x4")
  • Specifications – BD-T (6"x4")

View full product details »

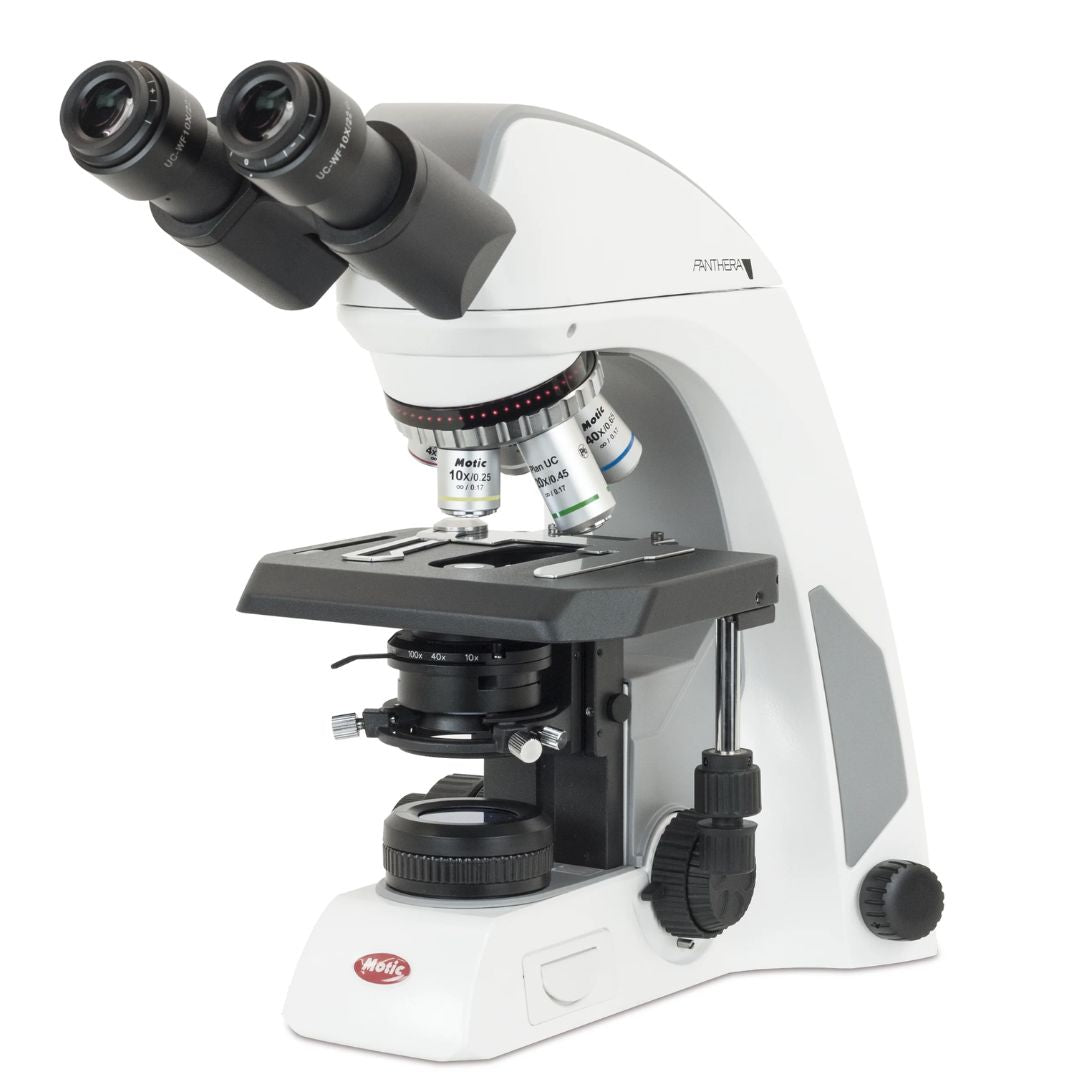

Advanced Digital Compound Microscope - Motic Panthera Cloud

Request Quote

Panthera Cloud: Revolutionizing Microscopy with Cutting-Edge Connectivity and Precision

Experience the Future of Microscopy with Superior Optics, Versatile Imaging, and Seamless Data Sharing

The Panthera Cloud microscope is a state-of-the-art instrument designed for professionals who demand precision, innovation, and connectivity. Featuring the advanced CCIS® optical system, it delivers unparalleled clarity and color fidelity for a wide range of applications. The integrated ImagingOnDevice system and multiple live display modes (Ethernet, HDMI, Wi-Fi) make data sharing effortless, while the Motic LightTracer technology ensures optimal illumination control. Equipped with a robust mechanical stage, versatile contrast options, and high-performance objectives, the Panthera Cloud is the ideal solution for research, education, and clinical diagnostics.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Panthera Cloud
  Observation tube	Binocular head, Siedentopf type 25°, 360° swiveling
  Optical system	Colour Corrected Infinity Optical System (CCIS®)
  Sensor Type	CMOS
  Sensor Size	1/2.5"
  Capture Resolution Info	8MP
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Darkfield	Optional slider/turret
  Data transfer	Wi-Fi, HDMI, Ethernet
  Diaphragm	Iris diaphragm
  Diopter adjustment	On both eyepieces, +/- 4 diopter
  Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
  Filter holder	On top of the illuminator with fixing cap
  Fine focus precision	2µm
  Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Focusing stroke	25mm
  Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
  Inclination	25° inclined, 360° swivelling
  Interpupillary distance	48-75mm
  Live display mode through Ethernet	1280x720, 1920x1080 pixels (Full HD)
  Live display mode through HDMI	1920x1080 (Full HD)
  Live display mode through Wi-Fi	1920x1080 (Full HD)
  Nosepiece	Reversed quintuple, coded
  Objective classification	CCIS® UC Plan Achromatic (Pb free), DIN
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Other features	USB 2.0 for external Devices (x2)
  Phase contrast	Optional slider/turret
  Polarization	Optional add-on
  Stage	Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	185x145mm
  Stand type	Upright
  Standard contrast technique	Brightfield
  Transmitted illumination	Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  Travel range X&Y	75x50mm
  Upper limit stop	Upper limit stop preset but adjustable
  Software	ImagingOnDevice System (Panthera App embedded)
  Transformer	Internal
  Power supply	110-240V (CE)
  Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
  Dimensions LxWxH	282x210x394mm
  Weight Net	8.8 kg (19,4 lbs)

• • Panthera Cloud Microscope
  • Dust cover
  • Power cord
  • Allen key
  • Immersion oil (5ml)
  • Blue filter
  • Halogen bulb
  • LED module
  • HDMI cable
  • Wi-Fi USB dongle
  • Calibration slide
• • None
• • Cleaning Kit
  • Darkfield slider/turret
  • Phase contrast slider/turret
  • Polarization add-on
  • Additional objectives
  • LED color temperature modules
• • Catalog
  • Specifications
  • Product Manual

View full product details »

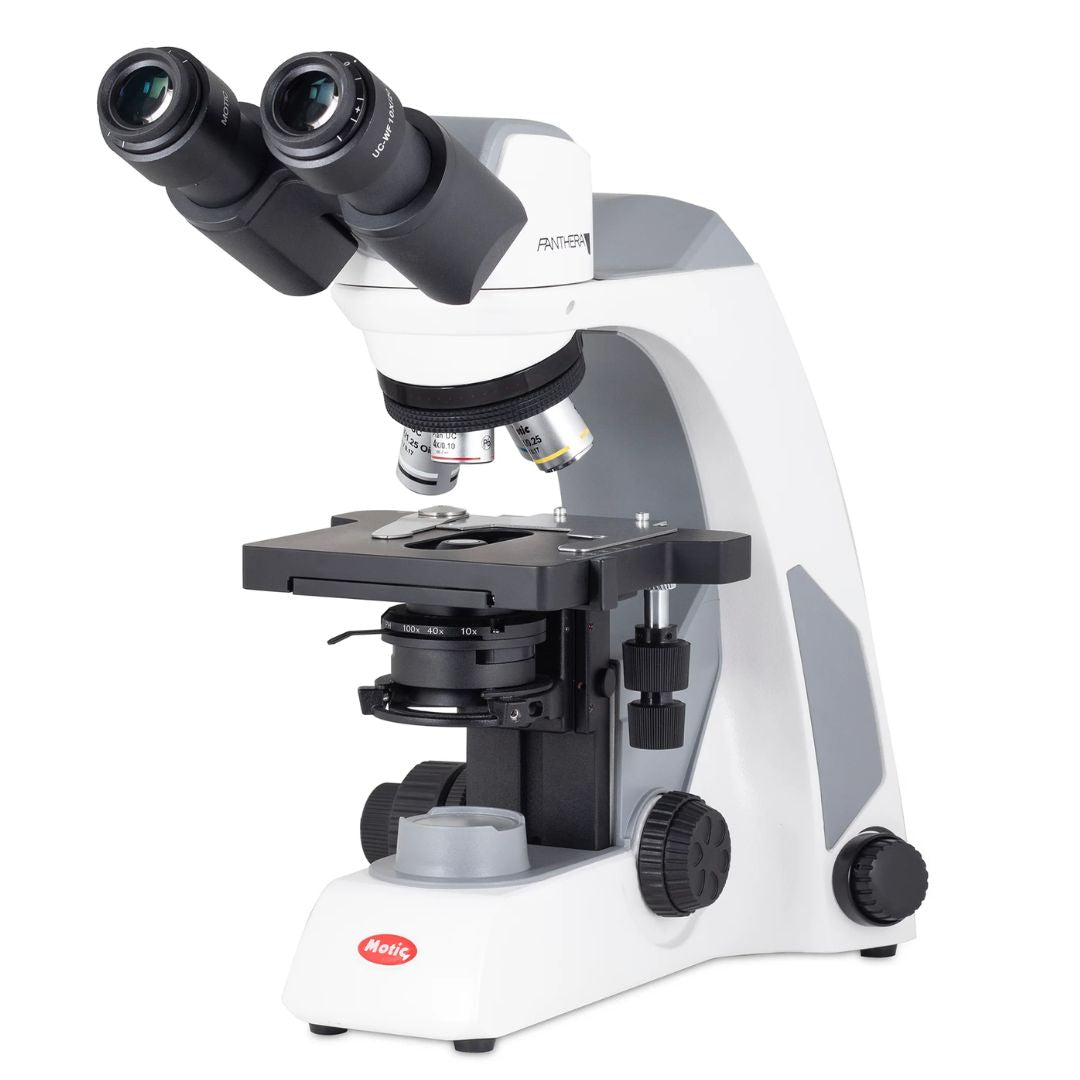

Motic Panthera E2 Series Compound Microscopes

Request Quote

Panthera E2 Compound Microscopes: Advanced Optics and Ergonomic Design for Professionals

Designed for Clarity and Versatility in a Compact Form

The Panthera E2 offers exceptional image quality with its Color Corrected Infinity Optical System (CCIS®). Ideal for educational and laboratory settings, it features a user-friendly design, adjustable optics, and efficient LED illumination. This upright microscope is equipped with a wide range of objectives and accessories to ensure accuracy in imaging and versatility for various research needs.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Panthera E2 Binocular	Panthera E2 Trinocular
  Model	1100104601116	1100104601126
  Optical system	Color Corrected Infinity Optical System (CCIS®)
  Observation tube type	Binocular head, Siedentopf type, 360° swiveling	Trinocular head, Siedentopf type, 360° swiveling
  Inclination	25° inclined, 360° rotating (storage saving), 360° swiveling
  Trinocular light division	-	Fixed 50:50
  Interpupillary distance	48-75mm
  Diopter adjustment	On both eyepieces, +/- 5 diopter
  Eyepieces	Widefield UC-WF10X/20mm with diopter adjustment
  Revolver	Reversed quadruple
  Objective classification	CCIS® UC Plan Achromatic (Pb free)
  Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  Objective mounting thread	W 4/5"x1/36" (RMS standard)
  Base type	Upright
  Stage	Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  Stage size	140x135mm
  X&Y travel range	75x40mm
  Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  Diaphragm	Iris diaphragm
  Focusing mechanism	Coaxial coarse and fine focusing system with tension adjustment
  Fine focusing precision	2μm
  Focusing travel	25mm
  Upper limit stop	Upper limit stop preset but adjustable
  Filter holder	On top of the illuminator
  Transmitted illumination	Fixed Koehler LED 1W with intensity control
  Illumination features	Nosepiece LED light intensity indicator
  Transformer	Internal
  Power supply	110-240V (CE), USB 2.0 for battery pack
  Other features	USB 2.0 for external camera power
  Included accessories	Dust cover, power cord, Allen key
  Dimensions LxWxH	282x210x396mm
  Net weight	7.5kg (16.5lbs)

• • Objectives:
    • 4X/0.10 (WD 30.5mm)
    • 10X/0.25 (WD 17.4mm)
    • 40X/0.65/S (WD 0.6mm)
    • 100X/1.25/S-Oil (WD 0.16mm)
  • Dust Cover
  • Power Cord
  • Allen Key
  • Immersion Oil (5ml)
  • Manufacturer's Documentation
• • None
• • Cleaning Kit
  • Camera (for digital imaging)
  • Polarizer
  • Fluorescence kit
  • Additional objectives
  • Stage clips
  • Contrast filters
  • Advanced illumination system
  • Battery pack
• • Catalog - English
  • Catalog - Spanish
  • Specifications – Panthera E2 Binocular
  • Specifications – Panthera E2 Trinocular
  • Product Manual

View full product details »

Motic K-400P Stereo Microscope

Request Quote

Motic K-400P Stereo Microscope with Infinite CMO Optical System and 4-Position Magnification Changer

The Motic K-400P Is A Binocular Stereo Microscope That Delivers Distortion-Free 3D Images Through Its Infinite CMO Optical System. Equipped With A 4-Position Magnification Changer, It Offers Magnifications Of 6X, 12X, 25X, And 50X, Making It Suitable For Various Applications In Biological Sciences And Industrial Inspection.

The Motic K-400P Stereo Microscope is a versatile and robust tool designed for precision imaging in biological and industrial applications. Featuring an infinite CMO (Common Main Objective) optical system, it delivers high-quality, distortion-free 3D images throughout the magnification range. The binocular head, inclined at 45°, ensures comfortable prolonged use, with adjustable interpupillary distance and ±5 diopter correction for optimal viewing.

Equipped with a 4-position magnification changer, the K-400P offers magnifications of 6X, 12X, 25X, and 50X, supported by standard WF10X eyepieces with a 23 mm field of view. Its 89 mm working distance provides ample room for manipulation of specimens, while the flat stand and reversible black-and-white stage plate enhance versatility.

Durable and adaptable, the Motic K-400P is the ideal choice for professionals seeking precision and reliability in a stereo microscope.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	K-400P
  Observation tube	Binocular head
  Optical system	Common Main Objective (CMO) Infinity optical System
  Base	329x277mm
  Column/Arm	Height 295mm, Ø32mm
  Darkfield	Optional add-on
  Diopter adjustment	On both tubes, +/- 5 diopter
  Eyepieces	Widefield WF10X/23mm
  Focus mechanism	Coarse focusing system with tension adjustment
  Focusing stroke	49mm
  Head holder	For Ø32mm column
  Inclination	45° inclined
  Model	K-400P
  Observation tube	Binocular head
  Optical system	Common Main Objective (CMO) Infinity optical System
  Base	329x277mm
  Column/Arm	Height 295mm, Ø32mm
  Darkfield	Optional add-on
  Diopter adjustment	On both tubes, +/- 5 diopter
  Eyepieces	Widefield WF10X/23mm
  Focus mechanism	Coarse focusing system with tension adjustment
  Focusing stroke	49mm
  Head holder	For Ø32mm column
  Inclination	45° inclined
  Interpupillary distance	54-76mm
  Objectives	6X, 12X, 25X, 50X
  Objectives system	4-position drum magnification changer
  Polarization	Optional add-on
  Stand type	Pole type stand
  Standard contrast technique	Brightfield
  Working distance	89mm
  Accessories included	Dust cover, black/white stage plate
  Dimensions LxWxH	329x277x399mm
  Weight Net	5.8kg (12.8lbs)

• • Binocular head inclined at 45°, with ±5 diopter adjustment on both tubes and interpupillary distance adjustable between 54 and 76 mm.
  • Wide-field WF10X eyepieces with a 23 mm field of view, suitable for eyeglass wearers.
  • Standard 1X achromatic objective with a 4-position magnification changer, offering magnifications of 6X, 12X, 25X, and 50X.
  • Flat stand without illumination with a Ø32 mm post.
  • Included accessories: dust cover and reversible black-and-white stage plate.
• • None
• • Polarizer
  • Microscope camera
  • Auxiliary objective lenses (e.g., 2X, 4X)
  • Additional eyepieces (e.g., WF15X, WF20X)
  • LED illumination attachment
  • Stage clips or holder
  • Extension tubes for increased working distance
  • Cleaning Kit
• • Catalog
  • Product Manual

View full product details »

Stereo Microscopes Motic SM7 Series

Request Quote

SM7 Stereo Microscopes: Versatility and Precision for Professional Applications

The SM7 Stereo Microscopes Offers A Unique Combination Of Advanced Optics, Robustness, And Adaptability, With Options Such As C-Mount Adapters, Segmented LED Lighting, And Articulated Arm Support, Making It Ideal For Scientific Research And Industrial Applications.

Motic's SM7 Plan Achromat is meant specifically for opaque samples, as it comes with a plain stand, although external light sources can be implemented. The SM7 Series features an optical performance with true colour reproduction, high resolution, and low distortion. Motic's new Galilean stereomicroscopes are our new highlight in terms of colour reproduction, resolution, and spatial information for users from biology, medicine, and industrial QC.

Features

• Power in any Aspect: The SM7 features an optical performance with true colour reproduction, high resolution, and low distortion.
• Stand Design: Ultra-flat stand bases for a relaxed positioning of hands and forearms facilitate lengthy preparation work.
• Flexibility for Individual Demands: A variety of objectives and eyepieces allow tailoring a personal SM7.
• Galilean Optical System: The Galilean Optics of the SM7 show a 7:1 Zoom system, resulting in a standard magnification range of 8X-56X.
• Superior Optics: For the best possible image results, a 1X Plan-Achromatic objective with a Working Distance of 90mm is available.
• Resolution Power of Tiny Details: Besides minimized chromatic and spherical aberrations, it is the resolution of the 1X Achromatic objective which makes the SM7 especially interesting for technical applications.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specifications	SM7TR-P A1X	SM7TR-TLED A1X	SM7-P A1X	SM7-TLED A1X
  Observation tube	Trinocular head	Trinocular head	Binocular head	Binocular head
  Optical system	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)	Galilean infinity optical design. Common Main Objective (CMO)
  Inclination	30° inclined	30° inclined	30° inclined	30° inclined
  Trinocular light split	100:0/20:80	100:0/20:80	-	-
  Interpupillary Distance	55-75mm	55-75mm	55-75mm	55-75mm
  Diopter adjustment	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter	On both eyepieces, +5/-8 diopter
  Eyepieces	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment	Widefield WF10X/22mm with diopter adjustment
  Objective classification	Plan Achromat	Plan Achromat	Plan Achromat	Plan Achromat
  Objectives system	Zoom, ratio 7:1	Zoom, ratio 7:1	Zoom, ratio 7:1	Zoom, ratio 7:1
  Objectives	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)	0.8X~5.6X (10-step)
  Working distance	90mm	90mm	90mm	90mm
  Stand type	Fixed-arm stand	Fixed-arm stand with transmitted illumination	Fixed-arm stand	Fixed-arm stand with transmitted illumination
  Head holder	For Ø76mm head	For Ø76mm head with incident illumination	For Ø76mm head	For Ø76mm head with incident illumination
  Focus mechanism	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment	Coarse focusing system with tension adjustment
  Focusing stroke	120mm	120mm	120mm	120mm
  Incident illumination	-	LED 3W with intensity control	-	LED 3W with intensity control
  Transmitted illumination	-	LED 3W with intensity control	-	LED 3W with intensity control
  Transformer	-	External	-	External
  Power supply	-	110-240V (CE)	-	110-240V (CE)
  Accessories included	Dust cover, Black/White plate Ø160mm	Dust cover, Glass plate Ø160mm	Dust cover, Black/White plate Ø160mm	Dust cover, Glass plate Ø160mm
  Dimensions LxWxH	367x290x372mm	367x290x372mm	367x290x372mm	367x290x372mm
  Base	310x290mm	310x290mm	310x290mm	310x290mm
  Column/Arm	254mm	254mm	254mm	254mm
  Weight net	7kg (15.4 lbs)	7.4kg (16.3 lbs)	6.9kg (15.2 lbs)	7.3kg (16.1 lbs)
  Standard contrast technique	Brightfield	Brightfield	Brightfield	Brightfield

• • Motic SM7 Microscope
  • Plan Achromatic Objective 1X
  • Widefield Eyepieces 10X/22
  • Stage (Glass Plate and Black/White Plate)
  • Integrated LED Lighting
  • Power Cable
  • User Manual
• • None
• • Cleaning Kit
  • C-Mount Adapters
  • 4-Segment LED Light Ring
  • UC WideField 10X/22 Eyepieces
  • Transmitted Light Stand
  • Articulated Arm Stand
• • Catalog

  • Specifications
  • Instructions

View full product details »

Moticam Cameras for PROS5 Microscopes

Request Quote

PROS5 Lite PROS5 Plus The 6MP resolution of the Moticam S6 is designed for large-screen...

View full product details »

Moticam BMH4000X Camera for Microscopes with LCD Screen

Request Quote

Moticam BMH4000X Camera: 4K Image Capture with Maximum Versatility

Comprehensive Microscopy Solution with Built-in LCD Screen, HDMI Connectivity, and Portable Storage

The Moticam BMH4000X is a multitasking microscopy camera with a C-mount, offering an impressive Full HD live image with maximum color fidelity on an integrated LCD screen.

It does not require a computer for standard operation, as it includes built-in software that allows it to be used through its 11.6” Full HD screen, with a mouse connected to the camera's USB port.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Moticam BMH4000X
  Sensor Size	1/2.8"
  Image Output	HDMI, UXC, WIFI 5
  Capture Resolution	8MP
  Pixel Size	1.45 x 1.45μm
  Scan Mode	Progressive
  Shutter Mode	Rolling Shutter
  Lens Mount	C-Mount
  Maximum Frames Per Second (fps)	HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160
  Image Capture	JPEG/TIFF format with 4K resolution (3840x2160) on SD card
  Video Recording	4K (30fps @ 3840x2160) MP4 file encoded with H264/H265 on SD card
  Screen	11.6" LCD native 1920x1080 pixels Full HD
  Software	Motic Images Plus 3.1 for Windows/Mac OS

• • Moticam BMH4000X Camera
• • Microscope
• • C-mount adapters
  • Reduction lenses
  • Capture and analysis software
  • Color filters
  • Additional light sources
  • USB or HDMI extension cables
  • Cleaning Kit
  • Memory cards
  • Carrying case
• • Brochure
  • Catalog
  • Specifications
  • Software Details
  • Instructions - Moticam 4000X
  • CCD Adapters for Moticams
  • Connect Your Moticam

View full product details »

Moticam 4000X Camera for Microscopes

Request Quote

Moticam 4000X Camera: True 4K Live Imaging

Total Versatility for Microscopy with Direct HDMI Screen Connection, Built-In Software, and Capture Without a Computer

Discover our new Moticam 4000X, designed for efficiency and to quickly deliver live images in 4K (3840 x 2160 px).

Connect it to a screen via the HDMI port and display your live image. With the built-in software and a USB mouse, you can perform live measurements, take notes, adjust images, and more, directly on the HDMI screen, without the need for a computer.

Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easier to save and organize your images and videos. You can also connect your camera via USB to a Windows or Mac computer and even display your samples simultaneously.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Model	Moticam 4000X
  Sensor type	CMOS
  Sensor size	1/2.8"
  Imaging area	6.4mm (diagonal)
  Capture resolution	8MP (3840x2160 pixels)
  Image capture resolution (on SD-card)	8MP (3840x2160 pixels)
  Video capture resolution (on SD-card)	1080P (1920x1080 pixels)
  Live display mode through USB	4K (3840x2160 pixels)
  Live display mode through Wi-Fi	4K (3840x2160 pixels)
  Live display mode through Ethernet	4K (3840x2160 pixels)
  Live display mode through HDMI	4K (3840x2160 pixels)
  Pixel size	1.45 x 1.45μm
  Scan mode	Progressive
  Shutter mode	Rolling Shutter
  Data transfer	HDMI, USB, Wi-Fi, Ethernet, Micro SD-card
  Max. frames per second (fps)	HDMI: 4K (3840x2160) @30fps USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps
  Exposure Time	0.03ms ~ 1000ms
  Operating Temperature	From -10 to +50 degrees Celsius non-condensing
  Sensitivity	300mV with 1/30s
  Slot	Micro SD-Card
  Buttons	On/Off
  Compatible Devices	TWAIN, SDK, and Direct Show Driver
  Minimum Computer Requirements	Core2, 2.8GHz, RAM Memory 8GB
  Lens Mount	C-Mount
  Focusable Lens	12mm
  Software	On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher, and the MotiConnect App for iOS and Android
  Functions	Including exposure, gain, white balance, color adjustment, sharpness, and noise reduction control, zoom, mirror, comparison, freeze, measurement, cross, and navigation function
  Power Supply	12V (External power supply)
  Package Includes	CS ring adapter, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1
  Notes	USB port for connecting a mouse to enable software control Transport and storage case

• • CS ring adapter
  • Focusable lens
  • 30mm and 38mm eyepiece adapters
  • Motic 4-dot calibration slide
  • Macro calibration card
  • Macro tube
  • Universal power supply
  • HDMI cable
  • USB 3.0 cable
  • Motic Images Plus 3.1
• • Microscope
  • • C-mount adapters
    • Reduction lenses
    • Capture and analysis software
    • Color filters
    • Additional light sources
    • USB or HDMI extension cables
    • Cleaning Kit
    • Memory cards
    • Carrying case
  • • Flyer (English)
    • Catalog (English)
    • Specifications (English)
    • Software Details (English)
    • Instructions - Moticam 4000X (English)
    • CCD Adapters for Moticams (English)
    • Connect Your Moticam (English)

View full product details »

Motic B1-252 Series Binocular Compound Microscopes

Request Quote

B1-252LED and B1-252SP Binocular Microscopes Superior Design for Academic and Professional Use The B1-252LED and...

View full product details »

Motic PA53 FS6 Laboratory Scanner with LED Illumination

Request Quote

High-Precision Digital Scanning for Laboratories with Advanced Technology

The Motic PA53 FS6 delivers detailed imaging and efficient analysis, optimizing workflow in modern laboratories.

The PA53 FS6 Scan system is an advanced platform offering maximum flexibility for scanning and assembling images of fluorescent samples. It allows you to choose between using an HBO illuminator or a high-quality LED illuminator, adapting to different fluorochrome combinations. Additionally, it includes options such as extended focus, an excellent solution for applications like FISH, and Z-stack scanning to obtain detailed images across multiple planes.

This digital slide scanning system, based on a microscope, ensures superior quality thanks to its full optical path and Köhler illumination.

Features

• PA53 FS6 Scan scanning platform designed for flexibility in scanning and combining fluorescent samples.
• Compatibility with HBO or high-quality LED illuminators for use with different fluorochromes.
• Option for scanning with extended focus or Z-stacking, ideal for applications like FISH.
• Complete optical system with Köhler illumination configuration for superior quality.
• High-precision stage that allows physically relocating the Region of Interest and re-scanning with high-resolution objectives and high N.A.
• No limitations on the use of objectives, allowing super high-resolution scans with oil immersion objectives.
• Ability to use different contrast methods, such as phase contrast or polarization, and scan unstained samples.
• Includes a specially designed tube with a 1.2 Mpixel focus camera and a high-resolution 5 Mpixel sCMOS camera for imaging.
• Recommendation for using Lumos LED illumination for stable and homogeneous lighting with low consumable costs.
• Compatibility with HBO mercury burners as an alternative.
• High-precision motorized stage with 100mm x 100mm travel and a minimum step size of 10 nm, with repeatability better than 200 nm.
• Motorized 5-position nosepiece that allows smooth objective changes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Details
  Trinocular Tube	Special trinocular tube for scanning with 2 integrated cameras
  Eyepieces	Adjustable wide-field eyepiece (FN 22)
  Intermediate Tube	-
  Upper Main Body	Motorized upper body PA53 FS6 Scan
  3D Profiler Controller	3D-Profiler control box/panel
  Motorized Revolver	Full motorized quintuple revolver
  Fluorescence Accessory	Epi fluorescence accessory PA53 FS6 Scan with 6-position filter turret
  Transmitted Light Illuminator	100W halogen lamp housing
  Halogen Bulb	100W halogen bulb
  LED Illuminator	Lumos LED illuminator with 3 color LEDs and external control for each LED intensity
  Motorized Stage	100mm x 100mm motorized stage with light shutter Control box with light shutter Sample holder for scanning applications [Optional] XY joystick controller and control box for stage
  Objectives (Sapo, Suitable for Fluorescence)	Plan UC 2X/0.05, W.D=7.2mm HPlan SAPO 10X/0.3, W.D=11.7mm, CG=0.17 HPlan SAPO 20X/0.5, W.D=2.2mm, CG=0.17 HPlan SAPO 40X/0.75, W.D=0.7mm, CG=0.17 HPlan SAPO 100X/1.3 oil, W.D=0.1mm, CG=0.17 [Optional] HPlan SAPO 4X/0.13, W.D=17.3mm, CG=0.17
  Long Working Distance Condenser	[Optional] LWD N.A. 0.63 WD 10.7mm
  Condenser	N.A. 0.9/1.30 swing-out condenser [Optional] Sliding condenser 0.9/1.25 [Optional] Condenser with turret for phase contrast
  Fluorescent Filter Set	Fluorescent filter with cube AT-DAPI/Hoechst/AlexaFluor 350 AT-EGFP/FITC/Cy2/AlexaFluor 48 AT-TRITC/Cy3/TagRFP/AlexaFluor 546 [Optional] AT-Cy5/AlexaFluor 647/Draq5/Cy5
  Diffuser	Yes
  Transmitted Light Filters	[Optional] Yellow filter [Optional] Green filter [Optional] Neodymium filter (contrast enhancement) [Optional] Blue conversion filter
  LBD (White Balance) Filter	Optional
  Neutral Density Filters	ND25 (Optional) ND6 (Optional)
  Rotary Analyzer	[Optional] 360° rotary analyzer filter
  Polarizer	[Optional] Polarizer filter

• • Main Body of the Microscope: Robust structure housing the optical and mechanical systems.
  • Trinocular Head: Allows simultaneous observation through the eyepieces and camera output, facilitating image capture.
  • Wide-Field Eyepieces 10X/23mm: Provide a clear and wide view of the observation field.
  • High-Quality Objectives: Includes objectives with different magnifications for a variety of applications.
  • Dark Field Condenser: Essential for phase contrast techniques and observation of transparent samples.
  • Mechanical Stage: Facilitates precise movement of samples during observation.
  • Illumination System: Equipped with a light source suitable for user needs.
  • Image Acquisition Software: Includes Motic Images Plus 3.0 software for image capture and analysis.
  • 3D-Profiler Controller: Allows precise control of focus and 3D image acquisition.
  • Fluorescence Filters: Includes filter cubes for different fluorochromes such as DAPI, FITC, and TRITC, facilitating the observation of fluorescent samples.
  • Integrated Camera: Equipped with a high-resolution camera for image capture.
  • User Manual: Provides detailed instructions for assembly, operation, and maintenance of the equipment.
  • Assembly and Calibration Tools and Accessories: Includes all necessary items for assembling and calibrating the microscope.
  • Transport Case: Facilitates the safe transport of the equipment.
• • None
• • Fluorescence Filters with Cube:
    • AT-DAPI/Hoechst/AlexaFluor 350
    • AT-EGFP/FITC/Cy2/AlexaFluor 488
    • AT-TRITC/Cy3/TagRFP/AlexaFluor 546
    • AT-Cy5/AlexaFluor 647/Draq5/Cy5
  • Transmitted Light Filters:
    • Yellow Filter
    • Green Filter
    • Neodymium Filter (contrast enhancement)
    • Blue Conversion Filter
  • Neutral Density Filters:
    • ND25 Filter
    • ND6 Filter
  • 360° Rotary Analyzer
  • Polarizer
  • Specialized Condensers:
    • Dark Field Condenser
    • Phase Contrast Condenser
  • Camera Adapters:
    • C-mount 0.5X Adapter
    • C-mount 1X Adapter
    • C-mount 0.35X Adapter
    • C-mount 0.65X Adapter
  • Wide-Field Eyepieces 10X/23mm with Diopter Adjustment
  • Mechanical Stage for Precise Sample Movement
  • Cleaning and Maintenance Accessories
  • Rigid Transport Case
  • Cleaning Kit
• • Flyer

View full product details »

Moticam Cameras A Series for Motic Microscopes

Request Quote

View full product details »

Moticam Camera for S20 Microscopes 20 MP

Request Quote

The Moticam S20 is the highest resolution model for backlit sensor technology. With fast data transfer (excellent frame rates of up to 50 fps), it creates an optimal imaging environment and facilitates the capture of microscopic images. Create your perfect images for a professional database.

Features

• USB 3.1 Data Transfer
• 20MP Capture Resolution
• Live View Mode via USB: 4000 x 3000, 2048 x 1080 pixels
• Pixel Size: 2.4x2.4 μm
• Image Area: 15.86 mm (diagonal)

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Features
  Sensor Type	sCMOS
  Sensor Size	1"
  Image Area	15.86 mm
  Capture Resolution Information	20MP
  Live View Mode via USB	5472x3648 @18fps / 2736x1824 @50fps
  Pixel Size	2.4 μm x 2.4 μm
  Scanning Mode	Progressive
  Shutter Mode	Rolling
  Data Transfer	USB 3.1
  Exposure Time	15 μs to 2 seconds
  Operating Temperature	-10 to +60 degrees Celsius, non-condensing
  Sensitivity	461mV @ 1/30 sec
  Support Device	TWAIN Driver, SDK, and DirectShow
  Compatible OS	Windows 7/8/10, MAC OSX, Linux or higher
  Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Video memory min. 512 megabytes
  Lens Mount	C-Mount
  Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
  Functions	Still image and video capture, measurement of still and live images, image adjustments, white balance, auto and manual exposure, individual objective calibration system.
  Power Supply	5V (from USB port)

• • Camera
  • CS Ring Adapter
  • USB 3.1 Cable
  • Calibration Slide
  • Motic Images Plus 3.0
  • Manual
• • C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series.
  • C-Mount for Trinocular Microscopes for Motic BA & AE Series.
  • C-Mount for Trinocular Microscopes for Motic B1 Series.
• Ninguno
• • Specifications (English)

View full product details »

Moticam Camera for S12 Microscopes 12 MP

Request Quote

If it's about maximum resolution for printing purposes, the Moticam S12 is your choice. A frame rate of 25 fps manages the largest data volume from Motic's S-LINE. If you are interested in resolution on the screen or for printing purposes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Technical Specifications Manual (English).
• • Moticam Camera for Microscopes S1 1.2 MP (1)
  • CS Ring Adapter (1)
  • USB 3.1 Cable (1)
  • Motic 4-point Calibration Slide (1)
  • Motic Images Plus 3.0 for Windows / OSX / Linux (1)
• • C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series.
  • C-Mount for Trinocular Microscopes for Motic BA & AE Series.
  • C-Mount for Trinocular Microscopes for Motic B1 Series.
• • None
• • Catalog
  • Brochure
  • Specifications
  • Software Details
  • CCD Adapters for Moticams
  • Connect Your Moticam

View full product details »

Moticam Camera for S6 Microscopes 6MP

Request Quote

The 6MP resolution of the Moticam S6 is designed for large monitors and printing purposes. Presentations to a broader audience via video projector, as well as printed reports, are easily handled. Take advantage of the advanced sensor technology of Motic's S-series cameras.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Features
  Model	Moticam S6
  Sensor Type	sCMOS
  Sensor Size	1 / 1.8 "
  Imaging Area	8.92 mm (diagonal)
  Resolution	6MP
  Live Viewing Mode via USB	3072x2048, 1536x1024 pixels
  Pixel Size	2.4x2.4μm
  Scanning Mode	Progressive
  Shutter Mode	Rolling
  Data Transfer	USB 3.1
  Max. Frames per Second (fps)	3072x2048 @ 30fps 1536x1024 @ 50fps (*)
  Exposure Time	16 μs to 2 s
  Operating Temperature	-10 to +60 degrees Celsius without condensation
  Max. Signal-to-Noise Ratio	0.15 mV at 1/30 seconds
  Sensitivity	425 mV (G) at 1/30 seconds
  Supported Devices	TWAIN Driver, SDK, and DirectShow
  OS Compatibility	Windows 7/8/10, MAC OSX, Linux or higher
  Minimum Computer Requirements	2GHz dual-core - 2GB RAM - Minimum video memory 512 MB
  Lens Mount	C-Mount
  Software	Motic Images Plus 3.0 for Windows, OSX, and Linux
  Functions	Capture still images and video, measure still and live images, image adjustments, white balance, automatic and manual exposure, individual objective calibration system.
  Power Supply	5 V (via USB port)
  Other Features	(*) Frames per second under optimal lighting conditions and meeting technical computer requirements.

• • Moticam Camera for Microscopes S6 6MP (1)
  • CS Ring Adapter (1)
  • USB 3.1 Cable (1)
  • Motic 4-Point Calibration Slide (1)
  • Motic Images Plus 3.0 for Windows / OSX / Linux (1)
• • C-Mount for Trinocular Microscopes for Motic SMZ-168 / K400/500/700 Series .
  • C-Mount for Trinocular Microscopes for Motic BA & AE Series .
  • C-Mount for Trinocular Microscopes for Motic B1 Series .
• • None
• • Software (inglés)
  • Catalog (English)
  • Flyer (English)
  • Specifications (English)
  • Software Details
  • CCD Adapters for Moticams (English)
  • Connect Your Moticam (English)
