Onset

HOBO Water Temperature Pro v2 Data Logger

$ 159.00 USD

The HOBO Water Temp Pro v2 is durable with 12-bit resolution. Complete with a precision sensor for ±0.2°C accuracy, this logger measures temperatures between -40°C and 70°C (-40°F to 158°F) in air and up to 50°C (122°F) in water. Its waterproof, streamlined case allows for extended deployment in fresh or salt water. Moreover, the Water Temp Pro v2’s optical USB interface makes it possible to offload data even while the logger is wet or underwater. A solar radiation shield is required to obtain accurate air temperature measurements in sunlight (RS1 Solar Radiation Shield, assembly required; or M-RSA pre-assembled Solar Radiation Shield).

Highlighted Features

• Research-grade measurements at an affordable price.
• Waterproof to 120 meters (400 feet).
• Data readout in less than 30 seconds via fast Optic USB interface.
• Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis.

In what environment does this data logger operate?

This data logger operates in outdoor and underwater environments.

What measurements does this data logger support?

The U22-001 data logger supports the following measurements: Temperature and Water Temperature.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• The country of origin for this product is the United States. To see the full specifications for this product, please see the product manual found at right.


  • Operation range†: -40° to 70°C (-40° to 158°F) in air; maximum sustained temperature of 50°C (122°F) in water.
  • Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F).
  • Resolution: 0.02°C at 25°C (0.04°F at 77°F).
  • Response time: (90%) 5 minutes in water; 12 minutes in air moving 2 m/sec (typical).
  • Stability (drift): 0.1°C (0.18°F) per year.
  • Real-time clock: ± 1 minute per month 0° to 50°C (32° to 122°F).
  • Battery: 2/3 AA, 3.6 Volt Lithium, factory-replaceable ONLY.
  • Battery life (typical use): 6 years with 1 minute or greater logging interval.
  • Memory (non-volatile): 64K bytes memory (approx. 42,000 12-bit temperature measurements).
  • Weight: 42 g (1.5 oz).
  • Dimensions: 3.0 cm (1.19 in.) maximum diameter, 11.4 cm (4.5 in.).
  • length; mounting hole 6.3 mm (0.25 inches) diameter.
  • Wetted materials: Polypropylene case, EPDM® o-rings, stainless steel retaining ring.
  • Buoyancy (fresh water): +13 g (0.5 oz.) in fresh water at 25°C (77°F); +17 g (0.6 oz.) with optional boot.
  • Waterproof: To 120 m (400 ft.).
  • Shock/drop: 1.5 m (5 ft.) drop at 0°C to 70°C (32°F to 150°F).
  • Logging interval: Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to HOBOware software manual.
  • Launch modes: Immediate start and delayed start.
  • Offload modes: Offload while logging; stop and offload.
  • Battery indication: Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.
  • NIST certificate available: for additional charge.
  • Environmental Rating: IP68.

  The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

  †IMPORTANT: The plastic case will become brittle at temperatures lower than -20°C. If the logger is deployed in a location where the temperature drops below -20°C, make sure the logger remains stationary and is not pulled on or struck. Return the logger to above -20°C before handling.
• • Data logger (1)
  • Communications window protective cap (1)
• • HOBOware Pro Software
  • Data Offload Device
• • None
• • Datasheet
  • User's Manual

View full product details »

Onset HOBO Solar Radiation Protectors

$ 125.00 USD

Onset HOBO Solar Radiation Protectors

Versatile mounting solutions for secure installation of HOBO data loggers

The HOBO RS1 mounting brackets (Unassembled) and M-RSA (Pre-assembled) are designed to provide secure and reliable installation of your HOBO data loggers in various applications. The RS1 bracket allows for easy mounting on flat or irregular surfaces, while the M-RSA is optimized for installation on masts, providing stability even in demanding environments. Additionally, the HOBO RS3-B solar radiation shield is designed to enhance the accuracy of temperature and relative humidity measurements in areas exposed to direct or reflected solar radiation. It is compatible with tripods, masts, or flat surfaces.

The shield is recommended for accuracy in measuring temperature and relative humidity in areas directly exposed to or reflected by solar radiation. It can be mounted on tripods, masts, or flat vertical surfaces. It is ideal for use with data loggers such as HOBO Pendant and U-Series data loggers.

Note: Please note that if you are using a U-23 data logger, it may be necessary to purchase the U-23 Clamp Kit.

Features:

• RS1: Versatile support for mounting on flat or irregular surfaces
• M-RSA: Specialized support for installation on masts or poles
• RS3-B: Solar shield for data loggers, improves temperature and humidity accuracy
• Durable, weather-resistant material
• Easy to install with included accessories
• Compatible with a wide range of HOBO data loggers

• Specifications
• In the Box
• Documents

• RS1
  Height	152 mm (6.0 inches); 165 mm (6.5 inches) with bracket
  Width	210 mm (8.3 inches)
  Depth	187 mm (7.4 inches); bracket protrudes an additional 44 mm (1.8 inches) from shield
  Mounting	Includes 1.5" U-bolts for mounting on masts, or mount on a flat surface with user-supplied screws




  M-RSA
  Height	152 mm (6.0 inches); 165 mm (6.5 inches) with bracket
  Width	210 mm (8.3 inches)
  Depth	187 mm (7.4 inches); bracket protrudes an additional 44 mm (1.8 inches) from shield
  Mounting	Includes 1-5/8" U-bolts for mounting on masts, or mount on a flat surface with user-supplied screws




  RS3-B
  Height	280 mm (11.0 inches)
  Width	220 mm (8.7 inches)
  Depth	190 mm (7.5 inches)
  Weight	0.68 kg
  Mounting	Compatible with 1.25" to 2.1" masts or flat surfaces

• • Installation accessories
  • User manual
• • User manual for RS1 reference (English)
  • User manual for M-RSA reference (English)
  • User manual for RS3-B reference (English)

View full product details »

Onset HOBO Optic USB Base Station

$ 179.25 USD

The Universal Optic USB Base Station and couplers are used to offload data from any HOBO® data logger with an Optic USB interface. The splash-resistant Optic USB Base Station connects to your computer via USB, while connecting to the data logger via an appropriate coupler. This is compatible with the HOBO UA, U20, U22, U23, UTBI, U24 & U26 series. (Download User's Manual).

NOTE: Couplers for all compatible data loggers are included with the BASE-U-4. Couplers are included for compatibility with six of the most popular Onset data logger types including: UA Pendants, U20 water level data loggers, the U22 Water Temp Pro v2, the UTBI TidbiT, U24 Conductivity and U23 data loggers.

• Offload data from any HOBO® data logger with an Optic USB interface.
• Couplers are included.
• Cable length 183 cm (6 ft.).
• Offloads full 64K logger in 30 seconds.

• Specifications
• In the Box
• Required Items
• Optional Items

• • Operating temperatures range: 0 to 50°C (32 to 122°F)
  • Cable length: 183 cm (6 ft.)
  • Offload rate: Offloads full 64K logger in 30 seconds
• • Base Station (1)
  • USB Cable (1)
  • Couplers (5)
• • Datalogger. Compatible Items


  USB Data Loggers - internal sensors only

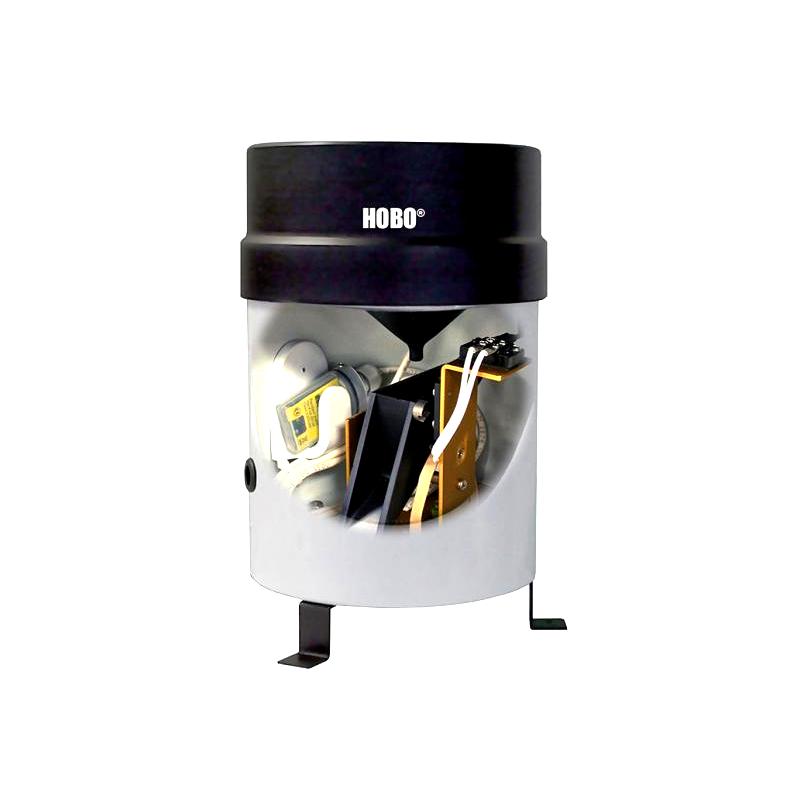

  - RG3: Rain Gauge Data Logger


  - RG3-M: Rain Gauge (Metric) Data Logger


  - U20-001-01: 30-Foot Depth Water Level Data Logger


  - U20-001-01-Ti: 30-Foot Depth Titanium Water Level Data Logger


  - U20-001-02: 100-Foot Depth Fresh Water Level Data Logger


  - U20-001-02-Ti: 100-Foot Depth Water Level Data Logger


  - U20-001-03250-Foot Depth Water Level Data Logger


  - U20-001-03-Ti250-Foot Depth Water Level Data Logger


  - U20-001-0413-Foot Fresh Water Level Data Logger


  - U20-001-04-Ti13-Foot Depth Titanium Water Level Data Logger


  - U20L-01Water Level (30 ft) Data Logger


  - U20L-02Water Level (100 ft) Data Logger


  - U20L-04Water Level (13 ft) Data Logger


  - U22-001Water Temperature Pro v2 Data Logger


  - U23-001U23 Pro v2 Temperature/Relative Humidity Data Logger


  - U24-001Fresh Water Conductivity Data Logger


  - U24-002-CSalt Water Conductivity/Salinity Data Logger


  - U26-001Dissolved Oxygen Data Logger


  - UA-001-08: 8K Pendant® Temperature/Alarm (Waterproof) Data Logger


  - UA-001-64: 64K Pendant® Temperature/Alarm (Waterproof) Data Logger


  - UA-002-08: Pendant® Temperature/Light 8K Data Logger


  - UA-002-64: Pendant® Temperature/Light 64K Data Logger


  - UA-003-64: Pendant® Event Data Logger


  - UA-004-64: Pendant® G Data Logger


  - UTBI-001: TidbiT v2 Water Temperature Data Logger



  USB Data Loggers - w/external sensor(s)


  - U23-002: U23 Pro v2 External Temperature/Relative Humidity Data Logger


  - U23-003: 2x External Temperature Data Logger


  - U23-004: U23 Pro v2 External Temperature Data Logger
• • None

View full product details »

HOBO U23 Pro v2 Data Loggers

$ 170.00 USD

The HOBO U23 Pro v2 data loggers are weatherproof with different options depend on the user necessity.

The HOBO Pro v2 Temperature/Relative Humidity data logger U23-001 is a data logger with built-in temperature and relative humidity sensors. The Relative Humidity sensor provides superior durability in humid environments and is user replaceable.

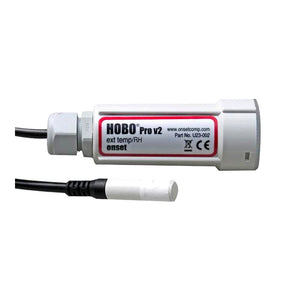

The HOBO Pro v2 External Temperature/Relative Humidity Data Logger U23-002 is a data logger with an external Temperature and Relative Humidity sensor on a 6-foot cable for fast sensor response and deployment in tight spaces. The Relative Humidity sensor features fast response and superior durability in humid environments, and is user-replaceable.

The HOBO Pro v2 2x External Temperature Data Logger U23-003 is a data logger with two external soil/water temperature probes on 6-foot cables for fast sensor response and deployment in tight spaces.

The HOBO Pro v2 Temperature/External Temperature data logger is a data logger with an external soil/water temperature sensor on a 6-foot cable useful for situations where just one temperature probe is required. An internal temperature sensor is also included.

IMPORTANT: HOBO data loggers require HOBOware software (USB interface cable included w/CD purchase). See compatible items below and connection HOBO Optic USB Base Station interface above right.

• Specifications
• In the Box
• Required Items
• Optional Items

• Temperature Sensor
  Operation range Internal sensors: -40° to 70°C (-40° to 158°F) U23-002 external temperature sensor: -40° to 70°C (-40° to 158°F) U23-003 and U23-004 external sensors: -40° to 100°C (-40° to 212°F), with tip and cable immersion in fresh water up to 50°C (122°F) for one year.

  Accuracy:
  ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F); see Plot A.

  Resolution:
  0.02°C at 25°C (0.04°F at 77°F); see Plot A Response time (typical to 90%) U23-001 Internal sensor: 40 minutes in air moving 1 m/sec U23-002 external temperature sensor: 5 minutes in air moving 1 m/sec U23-003 and U23-004 external sensors: 3 minutes in air moving 1 m/sec; 30 seconds in stirred water Stability (drift): < 0.1°C (0.18°F) per year.

  Relative Humidity Sensor (U23-001, U23-002 only)
  Operation range 0-100% RH, -40° to 70°C (-40° to 158°F) Exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%.

  Accuracy:
  ±2.5% from 10% to 90% RH (typical), to a maximum of ±3.5% including hysteresis. See Plot B for full range.

  Resolution:
  0.03% Response time (typical to 90%) U23-001: 40 minute in air moving 1 m/sec with protective cap U23-002: 5 minutes in air moving 1 m/sec with protective cap Stability (drift) < 1% per year typical.

  Logger
  Operation range -40° to 70°C (-40° to 158°F) Real-time clock ± 1 minute per month 0° to 50°C (32° to 122°F) Battery 1/2 AA, 3.6 Volt lithium, user-replaceable (part # HP-B) Battery life (typical use): 3 years with 1 minute or greater logging interval Memory (non-volatile): 64K bytes memory (approx. 21,000 temperature and RH measurements).

  Materials all models:
  ASA styrene polymer housing and mounting clamp; polypropylene protective cap; Buna-N o-ring(s) U23-001, U23-002 only: ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane.

  Cables:
  U23-001: No cables.
  U23-002: One 184 cm (6 ft) PVC cable; sensor diameter 1 cm (0.38 in).
  U23-003: Two 184 cm (6 ft) PVC cables; sensor diameter 0.5 cm (0.20 in).
  U23-004: One 184 cm (6 ft) PVC cable; sensor diameter 0.5 cm (0.20 in).

  Environmental rating:
  Electronics housing is NEMA 6P equivalent (tolerant of brief submergence). Units with RH sensors are NEMA 4 equivalent (splash-resistant).

  Launch modes:
  Immediate start; delayed start.

  Logging interval:
  Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours (refer to HOBOware software manual).

  Offload modes:
  Offload while logging; stop and offload.

  Battery indication:
  Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile.

  Weight:
  U23-001: 57 g (1.5 oz).
  U23-002: 118 g (3.1 oz).
  U23-003: 138 g (3.7 oz).
  U23-004: 102 g (2.7 oz).

  Dimensions:
  Housing measures 10.2 × 3.8 cm (4.0 × 1.5 in.). NIST certificate Temperature available for additional charge. The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
• - Manual
• - HOBOware Pro Mac/Win Data Logger Software
  - Optic USB Base Station
• None

Data Logger HOBO Pro v2 U23

EO20232103

View full product details »

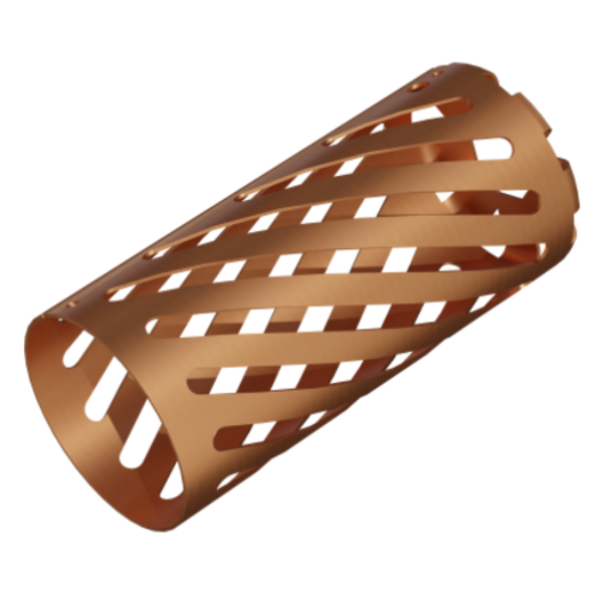

HOBO Anti-Biofouling Guard for MX800 Adapter Guard

Request Quote

This copper guard prevents biofouling of sensors that are attached to MX800 Series Bluetooth water...

View full product details »

HOBO 2-Sensor Adapter for MX800 Data Loggers

Request Quote

2-Sensor Adapter for MX800 Data Loggers

This Adapter Lets You Monitor Multiple Parameters by Connecting Any Two Sensors—DO, CT, and/or CTD—to a Single HOBO MX800 Water Quality Data Logger.

This adapter supports the connection of any two sensors to one MX800 data logger- Dissolved Oxygen (part # W-DO), Conductivity Sensor (part # W-CT), and CTD sensor (part # W-CTD-xx).

Sensors can be attached directly to the fully submersible MX801 model, or to the end of a W-series cable that's connected to the direct-read MX802 model. Two sensors of the same type can be attached to monitor at multiple depths. When using a DO with CT or CTD combination, salinity-adjusted DO readings are logged directly without a need to perform post-processing.

The 2-sensor adapter comes with a sensor guard that screws onto the adapter to prevent damage to sensors while allowing ample water flow. Users also have an option to purchase an additional anti-biofouling guard (W-GUARD-2), which extends time between sensor cleanings by reducing fouling of the sensor.

Features

• Can connect sensors directly (MX801), or cables to sensors (MX802).
• Protective housing screws on and off for easy access to sensors

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Dimensions
  Full Length	12.3"
  Full Length with W-GUARD-2 Anti-Fouling Guard	12.5"
  Diameter	2.385"
  Diameter with W-GUARD-2 Copper Anti-Fouling Guard	2.5"

• • 2-Sensor Adapter
  • 2 sets of couplers for attaching the two sensors
  • Sensor bracket for holding sensors together
  • Sensor guard
  • Set screws to lock sensor guard into adapter
  • Tapered coupler for attaching adapter to a W-Series direct read cable
• • MX800 Data Loggers
• • Anti-Biofouling Guard for MX800 Adapter Guard: W-GUARD-2
  • Dissolved Oxygen Sensor: W-DO
  • Conductivity Sensor: W-CT
  • CTD Sensor, 9 Meter (30') Range: W-CTD-01
  • CTD Sensor, 30 Meter (100') Range: W-CTD-02
  • CTD Sensor, 76 Meter (250') Range: W-CTD-03
  • CTD Sensor, 4 Meter (13') Range: W-CTD-04
• • User Guide (EN)

View full product details »

HOBO ONSET CTD Sensor

Request Quote

Onset CTD Sensor for MX800 Series

A Conductivity/Temperature/Depth sensor for use with HOBO MX800 Series Water Loggers with sensor options available for 13, 30, 100 or 250 feet in a wide range of underwater environments; for use in freshwater or saltwater.

The CTD sensor is an interchangeable sensor that works with HOBO MX800 Series Water Loggers to measure conductivity, temperature, and water level. With this sensor attached to a HOBO MX800 Series Water Logger, the logger can also calculate specific conductance, salinity, and total dissolved solids (TDS). The CTD sensor can be attached directly to the fully submersible MX801 model, or attached via cable to the direct read MX802 model, which doesn’t require having to pull the sensor out of the water to download data.

Features

• 4-electrode conductivity sensor provides wide measurement range for monitoring freshwater or saltwater
• Conductivity sensor is centrally located to minimize effects from stilling wells or protective guards
• Durable ceramic water level sensor, located in the sensor tip for accurate measurement of shallow water levels
• Get water level directly with the MX802, no need for post-processing
• 1” diameter for use in narrow wells (with cable to MX802 above the well)
• Temperature sensor placement near the sensor tip for fast response time
• Specially treated stainless steel holds up in saltwater

• Specifications
• In the Box
• Required Items
• Optional Items

• Conductivity Measurements
  Measurement Range	Electrical conductivity and specific conductance: 0 to 100,000 µS/cm Salinity using PSS-78: 2 to 42 PSU Total Dissolved Solids (TDS): 0 to 100,000 mg/L
  Calibrated Range	Electrical conductivity: 50 to 80,000 µS/cm 5° to 35°C (41° to 95°F)
  Accuracy	Conductivity: ±2% or 15 µS/cm, whichever is greater Salinity: ±2% of reading or 0.1 PSU, whichever is greater
  Resolution	Conductivity: - 0.1 µS/cm from 0 to 1,000 µS/cm - 1 µS/cm from 1,000 to 10,000 µS/cm - 10 µS/cm from 10,000 to 100,000 µS/cm TDS: 0.1 mg/L Salinity: 0.01 PSU
  Response Time	1 second to 90% at a stable temperature

  Absolute Pressure and Water Level Measurements W-CTD-01
  Range	0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude
  Factory Calibrated Range	69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F)
  Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
  Water Level Accuracy*	Typical error: ±0.05% FS, 0.5 cm (0.015 ft) water Maximum error: ±0.1% FS, 1.0 cm (0.03 ft) water
  Raw Pressure Accuracy**	±0.3% FS, 0.62 kPa (0.09 psi) maximum error
  Resolution	<0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water
  Pressure Response Time***	<1 second to 90% at a stable temperature

  Absolute Pressure and Water Level Measurements W-CTD-02
  Range	0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at 3,000 m (10,000 ft) of altitude
  Factory Calibrated Range	69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F)
  Burst Pressure	500 kPa (72.5 psia) or 40.8 m (134 ft) depth
  Water Level Accuracy*	Typical error: ±0.05% FS, 1.5 cm (0.05 ft) water Maximum error: ±0.1% FS, 3.0 cm (0.1 ft) water
  Raw Pressure Accuracy**	±0.3% FS, 1.20 kPa (0.17 psi) maximum error
  Resolution	<0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
  Pressure Response Time***	<1 second to 90% at a stable temperature

  Absolute Pressure and Water Level Measurements W-CTD-03
  Range	0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude
  Factory Calibrated Range	69 to 850 kPa (10 to 123.3 psia), 0° to 40°C (32° to 104°F)
  Burst Pressure	1,200 kPa (174 psia) or 112 m (368 ft) depth
  Water Level Accuracy*	Typical error: ±0.05% FS, 3.8 cm (0.125 ft) water Maximum error: ±0.1% FS, 7.6 cm (0.25 ft) water
  Raw Pressure Accuracy**	±0.3% FS, 2.55 kPa (0.37 psi) maximum error
  Resolution	<0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water
  Pressure Response Time***	<1 second to 90% at a stable temperature

  Absolute Pressure and Water Level Measurements W-CTD-04
  Range	0 to 145 kPa (0 to 21 psia); approximately 0 to 4 m (0 to 13 ft) of water depth at sea level, or 0 to 7 m (0 to 23 ft) of water at 3,000 m (10,000 ft) of altitude
  Factory Calibrated Range	69 to 145 kPa (10 to 21 psia), 0° to 40°C (32° to 104°F)
  Burst Pressure	310 kPa (45 psia) or 18 m (60 ft) depth
  Water Level Accuracy*	Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water
  Raw Pressure Accuracy**	±0.3% FS, 0.43 kPa (0.063 psi) maximum error
  Resolution	<0.014 kPa (0.002 psi), 0.14 cm (0.005 ft) water
  Pressure Response Time***	<1 second to 90% at a stable temperature

  Temperature Measurements (All Models)
  Range	-20° to 50°C (-40° to 122°F), non-freezing water
  Accuracy	±0.15°C (±0.27°F) from 0° to 50°C (32° to 122°F)
  Resolution	0.01°C at 25°C (0.018°F at 77°F)
  Response Time	3 minutes to 90% in water (typical)
  Drift	<0.1°C (0.18°F) per year

  Sensor
  Dimensions	2.5 cm (1 inch) diameter, 18.7 cm (7.37 inches) length
  Weight	177g, 6.24 oz
  Wetted Materials	Passivated 316 Stainless steel housing rated for use in saltwater, Viton and Buna-N O-rings, PET sensor connector Depth sensor: ceramic Conductivity sensor: PET, platinum plating on electrodes Note: Sensor should be mounted so that it is not in contact with other metals
  Environmental Rating	IP68; Waterproof to pressure sensor burst pressure rating

• • CTD Sensor
• • Data Logger MX800 Series
• • Antifouling Protective Guard
  • Accessories
  • Communication Cables

View full product details »

HOBO MX800 Series Water Data Loggers

Request Quote

Bluetooth Multiparameter Data Logger

Highly Versatile, Modular Wireless Multiparameter Loggers That Integrate Sensors (Purchased Separately) for Measuring Water Conductivity/Salinity, Depth, Temperature (CT/CTD), and Dissolved Oxygen.

HOBO MX800 Series multiparameter wireless data loggers work with interchangeable sensors to provide a highly configurable solution for monitoring water conductivity/salinity, temperature, depth, and dissolved oxygen. Available in both an easy-to-deploy, fully submersible model (MX801) and a direct read model (MX802) for convenient data offload that doesn’t require having to remove sensors from the water.

Features

• Compatible with interchangeable Conductivity, CTD (conductivity/temperature/depth), and DO sensors (sold separately) - swap out sensors for different applications
• Bluetooth, for easy logger configuration and data offload
• Easy to deploy, fully submersible (MX801)
• Direct read for convenient data offload (MX802)
• Logger diameter is less than 2 inches
• Faster data offload via Bluetooth 5.0
• Water detect feature indicates when logger was out of the water (MX801)
• Barometric pressure sensor included (MX802)
• Connect two sensors to one logger to get measurements like salinity adjusted DO directly, with no need for post-processing
• Guided calibration ensures accurate data
• User-replaceable batteries

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	MX801	MX802
  Operating Range	-40° to 50°C (-40° to 122°F), cannot be frozen in ice	-40° to 50°C (-40° to 122°F), cannot be frozen in ice
  Transmission Range	Approximately 30.5 m (100 ft) line-of-sight	Approximately 30.5 m (100 ft) line-of-sight
  Wireless Data Standard	Bluetooth 5
  Maximum Cable Length	N/A	120m (400 ft)
  Logging Rate	5 second to 18 hours
  Water Detect	Events are logged when logger is submerged or removed from the water	N/A
  Time Accuracy	±1 minute per month 0° to 50°C (32° to 122°F)
  Barometric Pressure (Measurement & Calibrated Range)	N/A	66 to 107 kPa (9.6 to 15.5 psia), -20° to 50°C (-4° to 122°F)
  Barometric Pressure (Accuracy)	N/A	Typical error: ±0.2 kPa (0.029 psi); Maximum error: ±0.5 kPa (0.073 psi)
  Barometric Pressure (Resolution)	N/A	<0.01 kPa (0.0015 psi)
  Battery	Four AA, 1.5 V lithium batteries, user replaceable
  Battery Life	With W-CTD or W-CT sensors: 2 years, typical with 1-minute logging interval or slower. With W-DO sensor: 1 year, typical with 5-minute logging interval or slower.
  Memory	730,000 measurements, divided between channels (4 Mbyte memory)
  Materials	Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam. Cable channel: Santoprene™ TPE.
  Dimensions	Logger diameter: 4.14 cm (1.63 inches) Length without sensor: 20 cm (8 inches)
  Weight	213g (7.51 oz)	215g (7.58 oz)
  Environmental Rating	IP68; waterproof to 100m (with sensor(s) attached)	IP67, NEMA 6; Weatherproof (with cable or Termination Plug attached); not waterproof
  CE & UKCA Compliant	Yes



  Specification	Details MX801 AND MX802
  Operating Range	-40° to 50°C (-40° to 122°F), cannot be frozen in ice
  Radio Power	1 mW (0 dBm)
  Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
  Wireless Data Standard	Bluetooth 5
  Number of Sensors That Can Be Connected	2
  Maximum Cable Length	120m (400 ft)
  Logging Rate	5 seconds to 18 hours
  Logging Modes	Fixed interval (normal or statistics), burst, or multiple intervals with up to 8 user-defined logging intervals and durations, with pause and repeat options
  Start Modes	Immediate, next interval, or date & time
  Stop Modes	Memory full, never stop (overwrite oldest data), date & time, or after a set logging period
  Water Detect	Events are logged when logger is submerged or removed from the water (MX801 only)
  Time Accuracy	±1 minute per month 0° to 50°C (32° to 122°F)
  Battery	Four AA, 1.5 V lithium batteries, user replaceable
  Battery Life	With W-CTD or W-CT sensors: 2 years (typical with 1-minute logging interval or slower) With W-DO sensor: 1 year (typical with 5-minute logging interval or slower) Faster logging, burst mode, or excessive readouts will impact battery life
  Memory	730,000 measurements (4 Mbyte memory), divided between channels
  Data Download Time (with Bluetooth 5+ devices)	Full memory: Approximately 3.5 minutes 120,000 measurements: 1 minute May take longer if the device is farther from the logger



  Specification	Details Barometric Pressure (MX802 only)
  Barometric Pressure (MX802 Only)	-
  Measurement & Calibrated Range	66 to 107 kPa (9.6 to 15.5 psia), -20° to 50°C (-4° to 122°F)
  Accuracy*	Typical error: ±0.2 kPa (0.029 psi) Maximum error: ±0.5 kPa (0.073 psi)
  Resolution	<0.01 kPa (0.0015 psi)
  Pressure Response Time**	<1 second to 90% at a stable temperature
  Contribution to Water Level Accuracy***	Typical error: ±0.075% FS, 0.3 cm (0.01 ft) water Maximum error: ±0.15% FS, 0.6 cm (0.02 ft) water



  Specification	Details MX801 and MX802 Specs, continued:
  Dimensions	-
  Logger Diameter	4.14 cm (1.63 inches)
  Length Without Sensor	20 cm (8 inches)
  Length with W-CTD Sensor	36 cm (14 inches)
  Length with W-CT Sensor	33 cm (13 inches)
  Mounting Loop	12.7 x 22.6 mm (0.5 x 0.89 inches)
  Weight	-
  MX801 Logger Head Only	224 g (7.90 oz)
  MX802 Logger Head Only	226 g (7.97 oz)
  Wetted Materials	Logger: PVC housing with polyester film label, PET sensor connector end cap and mounting handle with EPDM and Buna-N O-rings, passivated 316 stainless steel hardware rated for use in saltwater; MX802 also has ePTFE vent Collar: HDPE, titanium screws Note: Logger should be mounted so that no metal parts of the logger are in contact with other metals
  Depth/Environmental Rating	-
  MX801	IP68; waterproof to 100m (with sensor(s) attached)
  MX802	IP67, NEMA 6; Weatherproof (with cable or Termination Plug attached); this model is not waterproof

• • HOBO MX801 o MX802 Data Logger
  • Acoplador
  • Llave Allen de 3/32”
• • None
• • Sensors
  • Accesories
  • Well Caps
  • Protective Enclosures
  • Communication Cables
• • MX800 Data Sheet
  • Quick Start Guide: MX801 Wireless Submersible Data Logger
  • Quick Start Guide: MX 802 Direct Read Data Logger
  • MX800 Series User Guide

View full product details »

HOBO® UX120 Four-Channel Analog Data Logger

Request Quote

HOBO® UX120 Four-Channel Analog Data Logger

The HOBO Analog Data Logger is a high-performance data logger with an LCD display, ideal for creating performance monitoring applications.

It offers twice the accuracy of previous models, an easy-to-use LCD display, and flexible support for up to four external sensors to measure temperature, current, CO2, voltage, and more.

The data logger is ideal for energy audits, building commissioning studies, equipment programming, and more.

Key Features:

• Twice the accuracy of previous models with a 16-bit resolution.
• Flexible support for a wide range of external sensors.
• The LCD screen confirms the logger's operation and displays measurement data almost in real time.
• Offers minimum, maximum, average, and standard deviation recording options.
• On-screen alarms notify when a sensor reading exceeds set limits.
• Stores 1.9 million measurements for longer deployments between downloads.
• Compatible with HOBOware and HOBOware Pro software for logger configuration, graphing, and analysis.

What environment does this data logger operate in?

The data logger operates in indoor environments.

What measurements does this data logger support?

The data logger supports the following measurements: 4-20 mA, AC current, AC voltage, air speed, carbon dioxide, compressed air flow, DC current, DC voltage, differential pressure, gauge pressure, kilowatts (kW), temperature, and Volatile Organic Compounds.

• Specifications
• Package Contents
• Required Items
• Optional Items

• Features	Logger with Cable
  Operating Range	4-20mA (with CABO-4-20MA) 0 to 20.1 mA 0 to 2.5 V (with CABO-2.5-STEREO) 0 to 5 V (with CABO-ADAP5) 0 to 10 V (with CABO-ADAP10) 0 to 24 V (with CABO-ADAP24)
  Accuracy	4-20 mA ± 0.001 mA ± 0.2% of reading (with CABO-4-20MA) ± 0.1 mV ± 0.1% of reading (with CABO-2.5-STEREO) ± 0.2 mV ± 0.3% of reading (with CABO-ADAP5) ± 0.4 mV ± 0.3% of reading (with CABO-ADAP10) ± 1.0 mV ± 0.3% of reading (with CABO-ADAP24)
  Resolution	0.3 µA 4-20mA (with CABO-4-20MA) 40 µV (with CABO-2.5-STEREO) 80 µV (with CABO-ADAP5) 160 µV (with CABO-ADAP10) 384 µV (with CABO-ADAP24)
  Stability (Drift)	<0.1 °C (0.18 °F) per year
  Features	Logger
  Operating Range	-20 °C to 70 °C (-4 °F to 158 °F); 0 to 95% RH (non-condensing)
  Reading	0 °C to 50 °C (32 °F to 122 °F) per USB specification
  Recording Interval	1 second to 18 hours, 12 minutes, 15 seconds
  Recording Mode	Normal, burst, or statistics
  Start Mode	Immediate, button, date and time
  Time Accuracy	± 1 minute per month at 25 °C (77 °F)
  Battery	Two AAA 1.5V alkaline batteries
  Memory	4 MB (1.9 million measurements maximum)
  Download Type	USB 2.0 interface
  LCD	LCD visible from 0 °C to 50 °C (32 °F to 122 °F); the LCD may respond slowly or go blank at temperatures outside this range
  Dimensions	10.8 x 5.41 x 2.54 cm
  Weight	107.5 g
  Environmental Rating	IP50
  	The CE mark identifies this product as complying with all relevant directives in the European Union (EU).

• • HOBO® UX120 Four-Channel Analog Data Logger (1)
  • Double-Sided Tape (1)
  • Hook and Loop Strap (1)
  • AAA 1.5V Alkaline Batteries (2)
  • Command™ Strips (1)
• Software

  • HOBOware Pro Software CD or USB Flash Drive (USB cable included)
  • HOBOware Pro Software - Mac/Win (Download only)
• Accessories

  • NIST Temperature Point Certification.
  • NIST Traceable Certification Installation Fee.
  • Compliance Certification.
  • Pelican Case.

View full product details »

Self-Describing 6-foot Stainless Steel Temperature Sensor

Request Quote

Self-Describing 6-Foot Stainless Steel Temperature Sensor

For use with HOBO MX1104 and MX1105 Multi-Channel Data Loggers, this food-grade stainless steel temperature sensor features integrated strain relief to keep the probe securely connected to the logger. It also includes self-describing technology to automatically communicate configuration information to the logger, eliminating the need for extensive user programming or setup.

Features

• Self-describing technology for quick and easy setup
• Locking connector to ensure the sensor stays connected
• Food-grade stainless steel temperature probe
• Measurement range of -40° to 100°C (-40° to 212°F)
• Accuracy of ±0.15°C from 0° to 70°C (±0.27°F from 32° to 158°F)
• Available in 1.8 m (6 feet) length

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Measurement Range	-40° to 100°C / -40° to 212°F
  Accuracy	±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F), insert probe at least 5.08 cm (2 inches); see Chart A
  Resolution	0.002° at 25°C / 0.003° at 77°F
  Drift	<0.1°C (<0.2°F) per year
  Response Time in Air	Typical 3 minutes to 90% in air moving at 1 m/s (2.2 mph)
  Response Time in Agitated Water	Typical 15 seconds to 90%
  Probe Diameter	3.2 mm ±0.25 mm / 0.12 inches ±0.01 inches
  Probe Length	10.2 cm / 4 inches
  Probe Housing	Food-grade stainless steel (#316 stainless steel) Note: The stainless steel probe is waterproof, but the cable is not intended for prolonged use in water or humid environments, especially those with temperatures above 30°C (86°F). For more details, contact Onset Computer Corporation or an authorized Onset distributor.
  Cable Length	1.8 m / 6 feet

• • Self-Describing 1.8 Meter Stainless Steel Temperature Sensor
• • None
• • None
• Technical Specifications Manual (English)

View full product details »

Onset 1.8 m Self-Describing Pipe Temperature Sensor

Request Quote

What measurements does this sensor support?

The SD-TEMP-P-06 sensor supports the following measurements: Temperature and soil temperature.

In what environment does this sensor operate?

This sensor operates in both indoor and outdoor environments.

Features

• Self-describing technology for quick and easy setup
• Locking connector to ensure the sensor is connected and stays connected
• Measurement range of -40° to 100°C
• Accuracy of ±0.15°C from 0° to 70°C
• Available in 1.8 m length
• Faster response time
• Suitable for pipe mounting

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Measurement Range	-40°C to 75°C
  Temperature Accuracy	±0.15°C from 0° to 50°C, probe must be inserted at least 2.3 cm
  Temperature Resolution	0.002° at 25°C
  Temperature Drift	<0.1°C per year
  Response Time in Air	Typical 2 minutes to 90% in air moving at 1 m/s
  Response Time in Pipe	Typically 2 times faster than the air/water/soil temperature sensor, typically less than 1 minute to 90%
  Probe Housing	Copper-coated sensor tip
  Probe Dimensions	0.9 x 5.8 cm
  Cable Length	1.8 m

• • Onset 1.8 m Self-Describing Pipe Temperature Sensor (1)
• • None
• • None
• Technical Specifications Manual (English)
• Data Sheet

(LC 20220629)

View full product details »

Onset Temperature Sensor for Air, Water & Soil

Request Quote

Self-Describing Air/Water/Soil Temperature Sensor

The self-describing temperature sensor for air, water, and soil is ideal for the HOBO MX1104 and MX1105 data loggers, offering automatic and easy configuration.

This temperature sensor is compatible with the HOBO MX1104 and MX1105 multichannel data loggers. It features integrated strain relief to secure the probe to the logger and self-describing technology to automatically communicate configuration information.

Key Features

• Self-Describing Technology: Quick and easy setup.
• Locking Connector: Ensures the sensor stays connected.
• Measurement Range: -40° to 100°C in air; -40° to 50°C in water.
• High Accuracy: ±0.15°C from 0° to 70°C.
• Various Cable Lengths: 0.3 m, 1.8 m, 5.1 m, and 15.2 m.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Specification	Detail
  Measurement Range	-40° to 50°C in water; -40° to 100°C in air
  Accuracy	±0.15°C from 0° to 50°C (±0.27°F from 32° to 122°F)
  Resolution	0.002° at 25°C (0.003° at 77°F)
  Drift	<0.1°C (<0.2°F) per year
  Response Time in Air	Typical 2 minutes to 90% in air moving at 1 m/s (2.2 mph)
  Response Time in Water	Typical 30 seconds to 90%
  Operating Range	Probe tip and cable immersion in fresh water up to 50°C for 1 year
  Probe Material	Copper-coated sensor tip
  Probe Dimensions	5.1 x 33 mm (0.2 x 1.3 inches)
  Available Cable Lengths	0.3 m, 1.8 m, 5.1 m, 15.2 m

• • Air/Water/Soil Temperature Sensor
  • Cable of selected length (0.3 m, 1.8 m, 5.1 m, or 15.2 m)
  • Locking Connector
  • Manual
• • Bluetooth (BLE) Data Loggers
  • HOBO Temp/RH/Light/Ext-Analog Data Logger
  • MX1104
  • HOBO 4-Channel Analog Data Logger
• • Data Logger
• • Technical Specifications (English)

View full product details »

HOBO Analog Multichannel Data Logger for Temperature, Humidity, and Light

Request Quote

HOBO Analog Multichannel Data Logger for Temperature, Humidity, and Light

This HOBO analog multichannel data logger measures and wirelessly transmits temperature, relative humidity, and light intensity data. It also includes an external analog input to connect a variety of additional sensors.

You can use your mobile device or Windows computer with Onset's free HOBOconnect app to access the data anytime within a range of up to 30.5 meters (100 feet) via Bluetooth Low Energy (BLE) technology. You can configure the data logger, read data, view graphs, check the operational status of the loggers, set alarm notifications, and share data files, all without the need for dedicated equipment beyond a mobile device or laptop. And, when used with the new MX Gateway, you can remotely access your data on Onset’s cloud-based HOBOlink® software.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specifications
  Transmission Range	Approximately 30.5 m (100 feet) line of sight
  Wireless Data Standard	Bluetooth 5.0 (BLE)
  Connectivity	WiFi 802.11a/b/g/n 2.4/5 GHz or Ethernet 10/100
  Security	WPA and WPA2, non-listed protocols are not supported
  Power Supply	AC Adapter or Power over Ethernet (PoE)
  Dimensions	12.4 x 12.4 x 2.87 cm
  Weight	137 grams (4.83 ounces)
  CE	The CE mark indicates that this product meets all relevant European Union (EU) directives.

• • HOBO Analog Multichannel Data Logger for Temperature, Humidity, and Light (1)
• • HOBOconnect Android App
  • HOBOconnect iPhone App
• • None

(S 2/8/2021)

View full product details »

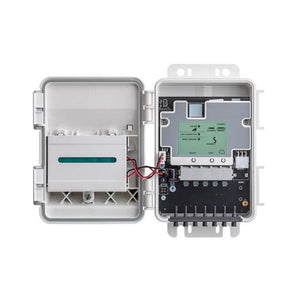

Onset HOBO MicroRX Station

Request Quote

A Rugged, Easy-to-Deploy, Low-Cost Cellular Solution for long-Term, Reliable Field Monitoring

Inputs for up to five plug-and-play sensors. Data access through HOBOlink cloud platform.

Optional ItemsExternal sensors must be purchased separately. Requires a HOBOlink data plan, which must be renewed annually. Learn more about HOBOlink.

A compact, rugged, easy-to-deploy, low-cost cellular solution for long-term, reliable field monitoring. With two power options available (a solar panel for extended deployments or user-replaceable batteries for flexible mounting in covered or protected locations), this monitoring station includes inputs for up to five of Onset's research-grade plug-and-play sensors. (Sensors must be purchased separately.)

Configurable station-side alarms trigger immediate notifications of critical conditions, and Onset's HOBOlink cloud platform makes it easy to view, access, and share data. This station can also be ordered with an additional water level sensor input with integrated flow conversion.

Outstanding Features

• Compact size for easy deployment
• Robust, weatherproof IP66/NEMA 4X enclosure
• Two power options:
• Integrated 1.7 W solar panel with rechargeable battery pack
• 5 W and 15 W external solar panels can be added to MicroRX Station (RX2102), MicroRX Water Level Station (RX2104) or MicroRX Station for HOBOnet (RX2106)
• User-replaceable AA lithium batteries
• Inputs for five plug-and-play sensors
• Option for wireless sensors using HOBOnet (RX2106 only)
• Optional water level sensor input included in MicroRX Water Level Station, battery-powered (RX2103) and MicroRX Water Level Station, solar-powered (RX2104)
• Built-in LCD confirms proper setup and operation
• Integrated mounting tabs for use with screws, zip ties, or U-bolts
• Station-side alarms, including water flow and accumulated rainfall
• Up to 10-minute connection rates via 4G cellular data plans
• Cloud-based monitoring and data access through HOBOlink

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Technical specifications (English)
• • HOBO RX2100 MicroRX Station
  • Grease packet
  • Cable ties
  • Screws and washers
  • Batteries
  • Manual
• • HOBOlink Software
  • Sensor
• • Software
  • Sensor
  • Accessory
• • Technical specifications (English)

EO2023803

View full product details »

Onset HOBO MicroRX Water Level Station

Request Quote

Award-Winning Cellular, Remote Water Level Monitoring Solution

for dam sites, stormwater, floodwater, irrigation, hydrologic, and environmental applications

Optional Items Product needs level sensor. Requires a HOBOlink data plan, which must be renewed annually. Learn more about HOBOlink. Not compatible with HOBOnet wireless sensors.

An award-winning cellular, remote water level monitoring solution for stormwater, floodwater, irrigation, hydrologic, and environmental applications. Pre-programmed water flow formulas for select weirs, flumes, and a stage discharge table result in an easy and intuitive configuration.

Water flow and accumulated rainfall calculations, which are performed directly on the station at time of measurement, trigger immediate notifications of critical water level conditions.

This compact and durable station, together with the non-vented water level sensor, provides reliable monitoring, even when deployed in harsh conditions. The optional integrated solar panel or battery power, with a wide range of plug-and-play smart sensors, supports flexible environmental monitoring.

Outstanding Features

• Station-side alarms for water flow and accumulated rainfall triggered at time of measurement
• Non-vented ceramic water level sensor with a choice of four ranges
• Interchangeable, Kevlar-reinforced water level sensor cables
• Integrated barometric pressure sensor
• Compact IP66/NEMA 4X enclosure
• Built-in LCD confirms proper setup and operation
• Two power options:
• Integrated 1.7 W solar panel with rechargeable battery pack
• 5 W and 15 W external solar panels can be added (RX2104 only)
• User-replaceable AA lithium batteries
• Inputs for five plug-and-play sensors
• Up to 10-minute connections rates via 4G cellular data plans
• Cloud-based monitoring and data access through HOBOlink
• Available with stainless-steel or titanium sensor ends
• 3-point NIST-traceable calibration certificate included for the water pressure sensor

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Technical specifications (English)
• • HOBO RX2100 MicroRX Station
  • Grease packet
  • Cable ties
  • Screws and washers
  • Batteries
  • Manual
• • HOBOlink Software
  • Sensor
• • Sensor
  • Accessory
• • User Manual (English)
  • Technical specifications (English)

EO2023903

View full product details »

Onset USB Interface Cable

$ 10.00 USD

View full product details »

Relay Module for HOBO RX3000 Remote Monitoring Station

$ 117.90 USD

View full product details »

Onset Water Level Sensor Cable for RXMOD-W1

$ 356.50 USD

View full product details »

Onset Wind Speed Smart Sensor

$ 275.00 USD

View full product details »

Onset Wind Direction Smart Sensor

$ 402.50 USD

View full product details »

Onset EC-5 Soil Moisture Smart Sensor

$ 160.00 USD

View full product details »

HOBO 12-Bit Temperature/RH Smart Sensor with 2 m Cable

$ 189.00 USD

View full product details »

Onset AC Power Adapter for HOBO U30 Stations

Request Quote

View full product details »

Solar Panels for Onset Stations

Request Quote

View full product details »

Onset Fresh Water Level Data Logger HOBO U20

Request Quote

View full product details »

Onset Smart 12-bit Temperature Sensors

Request Quote

View full product details »

Onset Data Logger Temp Water TidbiT v2

Request Quote

View full product details »

Onset HOBO Waterproof Conveyor Station

Request Quote

View full product details »

Onset Couplers for Data Loggers

Request Quote

View full product details »

Onset HOBO Pendant Event Data Logger for Rainfall

Request Quote

HOBO Pendant Event Data Logger for Rainfall

Submersible HOBO Temperature and Light Data Logger for Efficient Monitoring

HOBO data loggers require HOBOware software (USB interface cable included with CD) and a communication device. See compatible items below.

Records up to 160 inches of rain (RG3) or 3200 mm (RG3-M) at rates up to 12.7 cm (5 inches) per hour. The rainfall data logger system is battery-powered and includes a HOBO Pendant Event Data Logger (UA-003-64) with a rain collector. Easily records precipitation, time, and duration data, as well as temperature when used with an optional solar radiation shield (RS1 Solar Radiation Shield, or M-RSA). A station base or shuttle is required to collect the data.

Key Features:

• High-quality rain collector includes a HOBO Pendant Event data logger. A station base or shuttle is required.
• Date and time are stored for each drop—providing the necessary details to determine rainfall rates and duration.
• Reliable, field-tested rain collector.
• Compatible with HOBOware and HOBOware Pro software for logger configuration, graphing, and analysis.
• Also records temperature when used with a solar radiation shield (optional).

In which environment does this data logger work?

This data logger works in an outdoor environment.

Which measurements does this data logger support?

The RG3 and RG3-M devices support the following measurement: Precipitation.

• Specifications
• In the Box
• Required Items
• Optional Items

• Features	Rain Collector
  Maximum Precipitation Rate	12.7 cm
  Accuracy	± 1.0% (up to 1 inch/hour for RG3 or 20 mm/hour for RG3-M)
  Resolution	0.0254
  Calibration	0.2 mm
  Operating Range	0 ° to + 50 °C (+32 ° to +122 °F)
  Storage Temperature Range	-20 ° to + 70 °C (-4 ° to +158 °F)
  Environmental Rating	Waterproof
  Housing	15.24 cm aluminum collector
  Dimensions	25.72 cm height x 15.24 cm diameter - 15.39 cm receiving aperture
  Weight	1.2 kg
  Features	Logger
  Time Stamp Resolution	1.0 seconds
  Accuracy	± 1 minute per month at 25°C (77°F), see Plot B on page 10.
  Operating Range	-20 ° to 70 °C (-4 ° to 158 °F)
  Environmental Rating (for the logger used outside the rain collector)	Approved for NEMA 6 and IP67; Suitable for outdoor deployment
  Battery	Lithium battery
  Memory	64K bytes - 16K to 23K events when only rain is recorded
  Materials	Polypropylene case; stainless steel screws

• • HOBO Rain Gauge Data Logger (1)
  • tipping Rain Collector
  • Hose Clamps (2)
  • Screws (3)
• Software

  • HOBOware Pro Software CD or USB Drive (USB cable included)
  • HOBOware Pro Software - Mac/Win (Download only)
  Communications (Choose a Station)

  • Onset USB Optical Base Station for HOBO Pendant®.
  • Onset USB Optical Base Station for HOBO.
  • Onset Waterproof Transport Station for HOBO.
  • USB Cable.
• Accessories

  • Solar Radiation Shields.
  • NIST Temperature Point Certification.
  • NIST Traceable Certification Installation Rate.
  • Compliance Certification.
  • Pelican Case.
  Maintenance

  • Replacement Batteries (Pack of 5).
  • Replacement Pendant® Housing Kit.
  • Onset Waterproof Transport Station for HOBO.

View full product details »

Onset HOBO Pendant Temperature / Light Data Loggers

Request Quote

View full product details »

Onset HOBO Temperature and Relative Humidity Data Logger Bluetooth

Request Quote

The Onset HOBO MX1101 Data Logger measures and wirelessly transmits temperature and relative humidity data to mobile devices via Bluetooth Low Energy (BLE) technology. The stand-alone wireless data logger, which operates with Onset’s free HOBOmobile® app for configuring and managing logger data, allows you to access data at any time from iOS or Android mobile devices within a 100-foot range and does not require any dedicated equipment beyond a mobile device to configure the logger or read data.

With Onset's free HOBOmobile® app, you can view data in graphs, check the operational status of loggers, set alarm notifications, and share data files.

Key Features:

• Wireless communication via Bluetooth Low Energy (BLE) technology.
• Easy to set up and download using the free HOBOmobile app.
• High and low visual and audible alarm thresholds.
• Stores 84,000 readings.
• Accuracy: +/- 0.2°C and +/- 2% RH.
• Find Me / locator function.
• Proprietary connectivity technology.

What environment does this data logger operate in?

Operates in an indoor environment.

What measurements does this data logger support?

Relative humidity and temperature.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Features	Temperature Sensor
  Operating Range	-20° to 70° C (-4° to 158° F)
  Accuracy	± 0.21 ° C from 0 ° to 50 ° C (± 0.38 ° F from 32 ° to 122 ° F)
  Resolution	0.024 ° C at 25 ° C (0.04 ° F at 77 ° F)
  Stability (drift)	<0.1 ° C (0.18 ° F) per year
  Features	HR Sensor *
  Operating Range	1% to 90%, non-condensing
  Accuracy	± 2.0% from 20% RH to 80% RH typical up to ± 4.5%, including hysteresis at 25 ° C (77 ° F); below 20% RH and above 80% RH ± 6% typical
  Resolution	0.01%
  Drift Stability	<1% per year typical
  Features	Response Time
  Temperature	7:30 minutes in moving air 1 m/s (2.2 mph)
  RH	20 seconds to 90% in 1 m/s (2.2 mph) airflow
  Features	Logger
  Radio Power	1 mW (0 dBm)
  Transmission Range	1 mW (0 dBm)
  Wireless Data Standard	Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0)
  Logger Operating Range	-20 ° to 70 ° C (-4 ° to 158 ° F); 0 to 95% RH (non-condensing)
  Logging Rate	1 second to 18 hours
  Memory	84,000 measurements
  Power	3.6 V lithium battery (included)
  Dimensions	6.4 x 4.4 x 1.6 cm (2.5 x 1.7 x 0.6 in)
  Weight	113 grams (4 oz)
  Agency Approvals	CE, RoHS, WEEE

• • HOBO MX1101 Data Logger
  • 3.6 V Lithium Battery (installed)
  • Mounting Strap
  • Quick Start Guide
• • HOBOmobile® App (available for iOS and Android)
• • USB Adapter (for connecting with a PC or Mac)
  • Additional Mounting Options (if needed)
• • HOBO MX1101 User Manual
  • HOBO MX1101 Quick Start Guide

View full product details »

Onset U2X Protective Case for HOBO Data Loggers

Request Quote

View full product details »

Onset HOBO Rain Gauge Data Logger

Request Quote

View full product details »

Onset Data Logger for HOBO UX100 One-Channel Thermocouples

Request Quote

View full product details »

Onset USB Cable

Request Quote

View full product details »

Onset HOBO Data Logger Micro Stations

Request Quote

HOBO Micro Station Data Loggers

Multichannel Data Logging Solution for Microclimates

Robust and compact, the redesigned HOBO USB Micro Station is a weather-resistant data logger for multichannel microclimate monitoring. This battery-powered station supports up to five plug-and-play smart sensors and features a hinged door for quick and easy sensor installation. The Micro Station comes with a built-in USB port for fast and efficient data readout to a computer and an integrated mounting tab for easy installation.

Features

• Compact size for easy deployment.
• IP66 weatherproof housing for harsh environments.
• Direct USB download—no adapter cable required.
• Includes five smart sensor inputs.
• Hinged door and integrated mounting tabs.
• Operates up to one year with four standard AA batteries.
• Compatible with HOBOware and HOBOware Pro software for logger setup, graphing, and analysis.

What environments does this station operate in?

Indoor and outdoor environments.

What measurements does this station support?

4-20 mA, Amp Hour (Ah), barometric pressure, DC voltage, kilowatt hours (kWh), leaf wetness, light intensity, power factor (PF), pulse input, rain, relative humidity, soil moisture, temperature, reactive volt-amperes, reactive volt-amp hours, volt-amperes (VA), water flow, watt-hours (Wh), watts (W), and wind.

• Specifications
• What's in the Box
• Required Items
• Optional Items
• Documents

• Features	Logger
  Operating Range	-20 ° to 50 °C (-4 ° to 122 °F) with alkaline batteries -40 to 70 °C (-40 to 158 °F) with lithium batteries
  Smart Sensor Connectors	5
  mart Sensor Data Channels	Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
  Smart Sensor Network Cable Length	100 m maximum(328 ft maximum)
  Logging Interval	1 second to 18 hours
  Start Modes	Immediate, at interval, push button, or delayed start
  Memory Modes	Stop when full or wrap when full
  Memory	512 KB non-volatile flash data storage
  Accuracy	0 to 2 seconds for the first data point and ±5 seconds per week at 25 °C (77 °F)
  Battery Type	Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (Four AA 1.5 V alkaline batteries for operating conditions of -4° to 122°F) Four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (Four AA 1.5 V lithium batteries for operating conditions of -40 to 158°F)
  Battery Life	1 year, typical use (up to five sensors with 1 minute or greater logging interval)
  Communication Type	USB 2.0 interface
  Full Memory Download Time	4 minutes
  Enclosure Access	Hinged door secured with a latch and eyelet for user-supplied padlock
  Materials	Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gasket: Silicone foam; Cable channel: EPDM rubber
  Dimensions	17.04 x 11.94 x 4.47 cm
  Weight	414 g
  Environmental Rating	IP50
  CE	CE marking identifies this product as complying with all relevant directives in the European Union (EU)

• • HOBO Micro Station Data Logger (1)
  • Four 1.5V AA alkaline batteries (4)
  • Rubber plugs
  • Grease pack
  • Screws and washers
  • Cable ties
• Software

  • HOBOware Pro software CD or USB drive (USB cable included).
  • HOBOware Pro software - Mac/Win (download only).
• Accessories
  • Lithium batteries.
  • Smart Sensor Consolidator Box Adapter.
  • Cable Caddy.
  • Pelican Case.
  • USB cable.
  • Compliance Certification.
  • Grounding Cable for H21-USB Cable.
  • Grounding Kit.
  Tripod Parts, Kits, and Masts

  • 3 m Mast.
  • 1.5 m Mast.
  • 3 m HWS Tripod Tower with Mast.
  • 3 m Tripod Kit for HOBO Weather Station.
  • 2 m HWS Tripod Tower with Mast.
  • U-Bolts.
  Communications
  • Micro Station Adapter Cable.
  • HOBO U-Shuttle.
  • HOBO® U30 Shuttle.
  • USB Interface Cable(s).
  • PC Interface Cable.
  Maintenance
  • Lithium batteries.
  • Replacement Desiccant Pack for HOBO Micro Station.
  • Dome Plugs for Accessing Serial Communication Port Replacement.
  • Replacement O-Ring for 85-DOMEPLUG.
  • Replacement O-Ring for 85-DOMEPLUG-1.
• • Installation Manual (EN)
  • Manual (FR)

View full product details »

Ashcroft Gauge Pressure Sensor (200-psig)

Request Quote

View full product details »

Onset Smart Leaf Moisture Sensor

Request Quote

View full product details »

Onset Data Logger for Carbon Dioxide, Temperature and Relative Humidity

Request Quote

View full product details »

Onset Amp Split-Core AC Sensor

Request Quote

View full product details »

Onset Smart Rain Gauge Sensor

Request Quote

View full product details »

Onset Temperature Sensors for Air / Water / Soil

Request Quote

View full product details »

Onset Temperature Probe in Steel

Request Quote

View full product details »

Data Logger Onset Water Temp TidbiT MX Max Depth 1500 m

Request Quote

View full product details »

Data Logger Protective Case for HOBO Thermocouples

Request Quote

View full product details »

Onset HOBO Temperature / RH Data Logger - Discontinued

$ 129.00 USD

View full product details »

Onset HOBO U26-001 Dissolved Oxygen Data Logger

Request Quote

View full product details »
