Haglöf

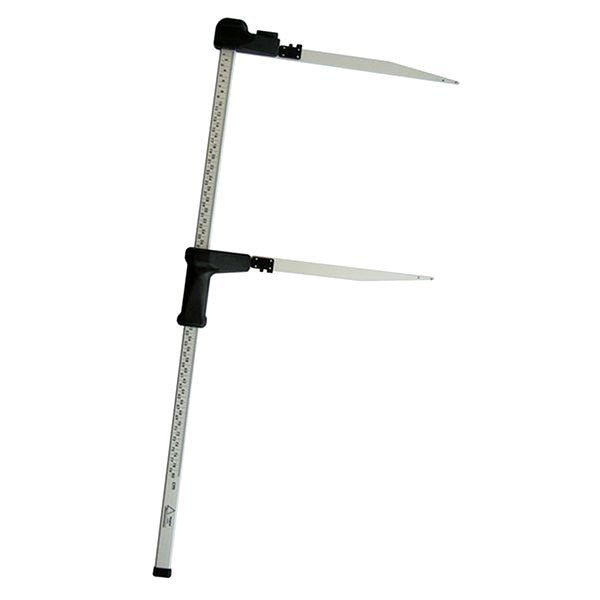

Gator Eyes for Mantax Blue Mechanical Caliper

Request Quote

It’s hard to think of a quicker way to measure diameters! Aim the two perfectly aligned laser pointer Gator Eyes as if you were actually at the stem – just pull the caliper jaws apart until the red, highly visible laser points are positioned where you need them to be.

When you want to know the diameters of the trees within a circular sample plot. Just stand in the centre, aim and point, tree by tree. Read the results on your caliper scale or display; register manually or automatically. When you want to know the upper stem diameter of trees without having to climb, carry long sticks or heavy stairs with you in the field. When you need to know the size of branches on a tree, also those positioned very high up.

When there are obstacles to reach a particular tree, for example water streams or wind throws. The Gator Eyes reaches well over 40 m or 130 ft.

When you wish to increase the speed of your diameter measuring Green Gator Eyes Laser pointers are visible also in areas with bright light. Red laser pointers are suitable in dusk surroundings and thick forests.

With the Gator Eyes it is easy to measure diameters at a distance. Perfect where the access to certain trees is limited, in dangerous areas, areas with Poison Ivy or other distractions and for upper stem diameter measuring.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Red laser
  - Well over 40 m or 130 ft
• - 2 Gator eyes
  - Manual
• NOTE: If you already have the required item you don´t need to adquire it.

  - Mantax Blue Mechanical Caliper
• None

View full product details »

Haglöf Barktax Bark Gauge

$ 99.95 USD

With the classic Barktax instrument you will instantly have a reliable measure of the bark thickness. Bark thickness...

View full product details »

Haglöf CI Electronic Clinometer

$ 210.00 USD

The CI is the ideal instrument to measure the inclination of trees, buildings, walls, tunnels, roads, etc. Any field professional will appreciate the CI's simplicity and accuracy. Simply point and press the button, and the angle will be presented to you.

• Easy to use.
• Fast and accurate results.
• Low battery consumption.
• Pocket size easy to carry always.
• Backlit display for easy reading.
• Electronic results for greater accuracy.
• High quality: Developed and manufactured in Sweden.

• specs
• In the box
• Required Items
• Optional Items
•


  specs
  Dimensions	20 x 63 x 44 mm
  Weight	50 g
  Temperature	Min -15 ° Max 45 ° C
  Drums	1 x 1,5 V AA alkaline. warning when low
  Display	LCD, backlit
  Consumption	15 mW
  Angle	-55˚ < angle <85˚. Resolution: 0,1˚. Precision: + -0,2˚

• • Inclinometer
• • batteries
• • None

(DR 20220822)

View full product details »

Haglöf Computer Caliper DP II+

Request Quote

DP II+ Caliper: Advancing Efficiency in Forest Measurement

The DP II+ is an easy-to-use, versatile, and highly efficient diameter instrument system designed for tree inventory, log measurement, and standing tree inspection. With a host of attractive features, the DP II+ offers a complete and optimized solution for modern measurement work in forests and industries.

The DP II+ has been significantly enhanced to deliver superior performance. With a 120 MHz floating-point processor, 8 GB flash memory, and an upgraded backlit display, the DP II+ is nearly three times faster than its predecessor. This device is field-ready, fully adapted, rugged, and features a durable and balanced construction. Additionally, it offers a wide range of communication options, being compatible with Vertex 5, Vertex Laser Geo, Laser Geo, PC, or other handheld devices.

Key Features:

• Scientifically Proven High Capture Speed: Efficient for trapping mosquitoes, with scientific studies supporting its effectiveness.
• Specificity: Does not harm beneficial insects and focuses solely on problematic mosquitoes.
• Environmentally Friendly: Does not use insecticides, promoting environmental sustainability.
• Patented Technology: Employs unique technology that does not require carbon dioxide to attract mosquitoes, but rather a patented blend of artificial skin emanations.
• High Processing Capacity: With a 120 MHz floating-point math processor and 8 GB flash storage, it can efficiently store and calculate data in the field.

DURABLE AND LONG-LASTING

All Haglöf Sweden products are designed for professionals who work in extreme conditions. The DP II+ caliper meets the demands and specifications of foresters regarding dust, shock, vibration, temperature, pressure, moisture, and overall user friendliness.

SOFTWARE DETERMINES WHAT YOU CAN DO

Haglöf Sweden has been working on software programming for field applications for 25 years. We have a wide selection of ready-made solutions for most forest field jobs, available in many languages. Contact us with your ideas, and together we will find a solution that suits you and your organization.

FIELD COMPUTING POWER

The DP II+ incorporates significant data processing and calculation capacity. Your workday can start and end in the forest, with your portable office in the pocket-size DP II+ computer terminal. All data securely stored and processed in one place!

UNIQUE AND USEFUL ACCESSORIES

The unique accessories and add-ons designed for use with the DP II+ add value and versatility. With Gator Eyes laser pointers, you can measure tree diameter from a distance, even in adverse conditions such as strong winds or moving water.

• Specifications
• In the Box
• Documents

• Specification	Detail
  Memory	1GB Flash File System non-volatile high security. 2Mb high-speed RAM. 8Mb Flash for program storage.
  Processor	Low power Arm Cortex Cpu 120MHz inc. floating point unit.
  Temperature	Min -20° Max 60° C/ Min -4° Max 140° F.
  Battery	Rechargeable Li-ion, USB-interface charge.
  Consumption	One week/charge/ software depending.
  Key/Buttons	6 Keys. 2 Execution/Enter; One on keyboard and one on handle for index finger. 4 Navigation keys on the keyboard; Up, Down, Left and Right. Double key quick commands: Display light, Sleep mode, Escape/Return and IR input.
  Measuring system	Technical: Non contact, sealed. Scale: Aluminum, non reflecting, clear digits. Jaws: Foldable aluminum, Patented.
  Accuracy	+-1mm or 0.039 inch
  Resolution	Min 0.1mm/0.01”
  Measuring range	Standard; 500, 650, 800, 950 and 1020 milimeter and 18”, 24”, 30”, 36” and 40” inch. Scale lengths German certification/classification: 500mm; 600mm; 800mm, 1000mm.
  Weight	Caliper and terminal: <1kg/2.20 lbs (500mm/18” standard). Terminal only: 150g/6oz.
  Display	Graphic, 128 x 64 pixles. Highly efficient background light.
  Communication	USB 2.0 MSD; External serial port via adapter USB (CDC) via adapter. Bluetooth® v4.2 dual mode: (SPP, HID KEYBOARD, BLE) IR receiver for all Vertex and Geo models.
  Bluetooth®	Bluetooth® v4.2 dual mode: (SPP, HID KEYBOARD, BLE)
  Clock	Real Time Clock with calendar and time.
  Signal	Built-in loudspeaker.
  IP Classification	IP67 Moist/dust resistant
  Classification	PTB, FPA, CE, FCC.

• • Computer caliper dp-II
  • Data processing unit
  • Data cable
  • Carrying case
  • Instruction manual
• • User Manual (English)

View full product details »

Haglöf Digitech Professional GPS DME | DP GPS DME

$ 667.00 USD

Add-on combination module for navigation and distance measuring with ultrasound on your DP computer caliper....

View full product details »

Haglöf Digitech Professional II Computer Calipers DP II + Built-in Bluetooth

Request Quote

View full product details »

Haglöf Digitech Professional II Computer Calipers | DP II Computer Caliper with Built-in Bluetooth - Discontinued

$ 3,320.00 USD

The market-leading and technically advanced DP II caliper - program, customize and & accessorize it to fit your exact diameter measuring requirements!

The DP II is an easy-to-use, versatile and super efficient diameter instrument system, adapted for timber cruising, log scaling, and standing tree inventory. Many attractive features make the DP II an optimized and complete solution for modern measurement work in forests and on industries.

DP II ADVANTAGES The DP II is field-ready, fully adapted, rugged and with a well balanced and durable construction. You will quickly notice how easy is communicates through USB, Bluetooth® & IR. It is compatible with your Vertex IV, the VL5, the L5, your PC or other handheld. Since your DP II is fully programmable we have made a truck-load of program options and ready-made software applications. Nevertheless we are always keen on customizing applications for you and your organization. If you feel it is hard to choose, and when your work includes measurement of both standing trees and timber, scaling and cruising, calibration and taxation, you can load your DP II with more than one program and switch between the different applications.

With the DP II you get great field computing features. You work with a rugged field machine with foldable jaws (takes up less space, and is easier to carry with you when moving in the forest). The detachable computer terminal can be used as a stand-alone handheld computer - and if your DP II is equipped with the Radio Enter button, you can keep the tiny (but powerful!) computer in your pocket and send diameter data from your SmartScale.

The DP II offers a multi-language operating system, a non-contact SmartScale measuring system; and rechargeable, long-lasting batteries. Add value and versatility by using the unique accessories and add-ons uniquely designed to use with the DP II.

The DP II is tested. Certified. Approved. Contact us for discussions on how the DP II can be used to increase your efficiency!

HEAVY-DUTY AND RUGGED

All Haglöf Sweden products are designed for field professionals who work outside in more or less extreme conditions. The DP II caliper meets the demands and specifications of foresters regarding dust, shock, vibration, temperature, pressure, moisture and overall user friendliness.

THE SOFTWARE APPLICATION DETERMINES WHAT YOU CAN DO

Haglöf Sweden have worked with software programming for field applications for 25 years. We have a great selection of ready-made solutions for most jobs in forest and field, and in many languages. Contact us with your ideas for how you wish to work. Together, we will come up with a solution that fits you and your organization!

— Forest inventory - Timber Cruising - Log scaling — Harvester Calibration— Wildlife & fish inventory — Construction

Short lead time. Quick customization. Professional development.

Ask for customized software, specifically designed for your organization! Work seamlessly; streamline your flow, and most importantly - work the way you want to work, with reports and results presented to you the way you need them to be. Take advantage of our big treasury of ready-made systems. Combine your expertise with our experience and our common will to explore new solutions and ideas. Together we will make it work!

Computing power in the field

The DP II incorporates great data processing and calculation capacities. Your workday can start and finish off in the forest, with your portable office in the pocket-size DP II computer terminal. All data securely stored and processed in one safe place!

• Specifications
• In the Box
• Required Items
• Optional Items

• • Memory: 1GB Flash File System non-volatile high security. 1Mb high-speed ram.
  • Processor: Low power 32 bit Arm based processor.
  • Temperature: Min -20° Max 60° C/ Min -4° Max 140° F.
  • Energy: Battery: Rechargeable Li-ion, USB-interface charge. Consumption: One week/charge/ software depending.
  • Buttons: Execution Enter + Enter on SmartScale handle Navigation 4 arrow keys. Quick commands: Display light Turn off, Escape and Vertex/VL5 height input.
  • Measuring system: Technical: Non contact, sealed. Scale: Aluminum, non reflecting, clear digits. Jaws: Foldable aluminum.
  • Measuring range: 500mm; 650mm; 800mm; 950mm; 1020mm. 18”; 24”; 30”; 36”, 40”. (standard). Scale lengths German certification/classification: 500mm; 600mm; 800mm, 1000mm. For detailed specification on the SmartScale,see separate leaflet.
  • Weight: Caliper and terminal: <1kg/2.20 lbs (500mm/18” standard). DP II Terminal only: 150g/6oz.
  • Display: Graphic, 128 x 64 pixles backlit, graphic interface.
  • Communication: USB 2.0 MSD; External serial port via adapter, USB (CDC) via adapter. Bluetooth® (SPP, OPP), Keyboard, IR receiver for Vertex/ VL5/L5.
  • Clock: Real Time Clock with calendar and time.
  • Signal: Built-in loudspeaker.
  • Classification: PTB, FPA, IP67 Moist/dust resistant, CE, FCC.
• • SmartScale Caliper (1)
  • Computer Terminal (1)
  • Aluminum Safety Case (1)
  • USB Cable (1)
  • USB Car Adapter (1)
  • AC/DC International Charger (1)
• • Software Solutions
• • DP DME
  • DP GPS
  • DP GPS DME
  • DP Postex®
  • DP Postex®
  • Digitech® Tape
  • Digitech® Keyboard

View full product details »

Haglöf EC II - D Electronic Clinometers

$ 263.55 USD

Precision Electronic Clinometer with Distance Calculation Experience enhanced accuracy with the EC II-D, featuring rapid...

View full product details »

Haglöf EC II - D-R Electronic Clinometers

$ 435.00 USD

Advanced Electronic Clinometer for Height, Distance Calculation, Basal Area, and Volume Estimation Measure heights accurately...

View full product details »

Haglöf EC II Electronic Clinometers - Discontinued

$ 213.75 USD – Sold Out

This device have been updated to the EC II - D and EC II -...

View full product details »

Haglöf Increment Borer Parts Replacement Extractors

$ 25.50 USD

Hardened rubber cap is forged with extractor so it won’t work loose. Replacement parts are...

View full product details »

Haglöf Increment Borers

Request Quote

Haglöf Sweden is the world's largest producer of increment borers. Our increment borers come in...

View full product details »

Haglöf Laser GEO Hypsometer

$ 2,138.50 USD

Haglöf Laser GEO Hypsometer

Advanced Precision for 3D Measurements with Integrated GPS and Sensors

The Laser Geo 2.2 Hypsometer offers precise 3D measurements thanks to its advanced technology combining laser, GPS, compass, and ultrasonic sensors. Ideal for professionals needing long-range measurements with easy data transfer to GIS applications. Its rugged design and long-lasting battery make this instrument an essential tool for fieldwork in any condition.

3D Vector

The 3D Vector function allows you to measure remote targets such as horizontal distances and angles between two points far ahead in the terrain, such as canopy width or river width.

Tree Heights

3-point, 2-point, 1-point, or direct measuring – choose your preferred method using the easy-to-follow menu system. A nonmagnification dot sight helps identify individual targets such as treetops and power lines.

Map Target

Use the built-in GPS to walk and log an area, or stand in the middle of the area and use the integrated GPS, compass, and laser to measure border points. View results directly in Google Earth or other geographic applications.

Map Wood Chip or Gravel Piles

MAP wood chip piles.

Map Trail

The MAP TRAIL feature lets you gather target coordinates using laser methods, pitch, and azimuth data. Useful for mapping routes or planning forest cableway systems where GPS isn’t precise. The built-in compass continuously shows direction, helping you hit a target accurately.

Features:

• Long-range measurements with high-precision laser.
• Integrated tilt and compass sensors for 3D measurements.
• External graphical display and Head-Up-Display to show results.
• Built-in GPS receiver and data tagging with coordinates.
• SSD storage with data transfer via USB 2.0.
• Compatible with GIS applications and spreadsheets.
• Integrated functions for area measurement, 3D mapping, and height measurement (1, 2, or 3 points).
• Unaided point view to identify targets.
• Bluetooth V4 for wireless data transfer.
• Rechargeable Li-Ion battery with mini USB charging.
• IP67 classification for resistance.


• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Specifications
  Dimensions	93x63x72 mm / 3.7×2.5×2.8”
  Weight	243 g / 8.6 oz
  Battery and Consumption	3.7V rechargeable Li-Ion, integrated, approx. 2000 measurements. Max charging time: 3.5 h. Wall charger with mini B USB interface 110/220AC / 5VDC; car charger adapter 12VDC. Mini B USB Male / USB Type A Male cable, 0.5 m. Max consumption: 0.9 W.
  Communication	IR, USB 2.0/SSD, Bluetooth BR/EDR, Bluetooth LE V4.2 (LE), Spp (serial profile), PIN code 1234.
  Temperature	-20° to +45° C / -4°F to 113°F
  Height	0-999 m/ft. Height resolution: 0.1 m/ft.
  Angle	-90° to +90°. Unit: 360⁰ degrees, 400⁰ degrees, and %. Resolution: 0.1⁰. Accuracy: 0.1⁰ typical.
  Laser	Distance: 46 cm / 1.5 ft – 700 m / 2000 ft depending on target. Accuracy: 4 cm / 0.1 ft typical. Resolution: 0.1 m / ft (0.01 m / 0.1 ft in DME mode).
  Area	0 < area < 5000 m² or 0.5 ha < area < 10000 ha 0 < area < 20000 ft² or 0.5 acre < area < 10000 acres
  GPS	33-channel high-sensitivity receiver. Supports GPS, Glonass, Galileo, QZSS. Built-in real-time correction with SBAS (EGNOS, WAAS, MSAS, GAGAN). Accuracy up to 2.5 m / 8.19 ft in open terrain. Satellite position prediction up to 3 days.
  Compass	Azimuth compass 0-360˚, resolution 0.1˚, accuracy < 1.5 RSME˚.
  Classification	MIL-STD-810E. Frame material: glass-filled polycarbonate, IP67, NEMA6, Laser Class 1, 7 mm (FDA, CFR21) Class 1m (IEC 60825-1:2001).
  View	Yellow dot target 1x magnification (HUD) Heads-up-display.
  Display	External graphical LCD 100x60 pixels. Internal display (HUD) Heads-up-display.
  Data Format	Nmea or ASCII. IR, Bluetooth.
  File Format	CSV and KML (Google Earth).
  Memory	2000 datasets, non-volatile.
  Other Information	Adapter and monopod stick, 4 parts (33-140 cm). Aluminum carrying/storage case. See the user manual for more details.




  	Transponder T3	Transponder T4
  Size	Diameter 70 mm	Diameter 70 mm/2.8”
  Weight	85 g	85 g/5 oz (Incl. Battery)
  Battery	1 AA 1.5V alkaline battery required for T3
  Power Consumption	9 mW

• • Haglöf Laser GEO Hypsometer
• • None
• • None
• • Technical Specifications Manual (English)

View full product details »

Haglöf Laser Geo Hypsometer - DISCONTINUED

$ 2,145.00 USD

Haglöf Laser GEO Hypsometer

The Haglöf Laser GEO Hypsometer features a unique combination of high-precision laser, ultrasound, and integrated GPS, compass, and tilt sensors for accurate 3D measurements. Results are displayed on an integrated data screen and an external graphic display.

The Laser Geo instrument is a high-precision laser rangefinder with built-in GPS, compass, Bluetooth, and USB 2.0 for communication. Extreme precision, extreme utility!

• The Laser Geo offers long-range measurements with a high-precision laser and integrated tilt and compass sensors for accurate 3D measurements.
• Results are displayed on an integrated display screen and an external graphic display.
• The built-in GPS receiver and a 5-position numeric ID attribute allow you to label important data with coordinates with just one button press.
• Your data is stored on a built-in SSD drive and is immediately available for further processing when you connect a standard USB 2.0 interface to any PC or Apple computer. No installation routines, conversion software, or special drivers are needed.
• Your field data can be opened directly in your favorite GIS application or spreadsheet. Complex operations such as area measurement, 3D target mapping, and trail mapping have built-in functions available to you without external tools.
• The 3D Vector function allows you to measure horizontal targets like canopy width.
• Direct or 3-point, 2-point, or 1-point height measurement: choose your preferred method within the easy-to-follow menu system.
• A non-magnified point view helps you identify individual targets such as tree tops and power lines.
• The built-in Bluetooth V4 low-energy transceiver allows long-range wireless data transfer to your favorite portable device. The instruments have a built-in long-lasting lithium-ion battery and charge via a mini USB interface.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Specifications
  Dimensions	93x63x72 mm
  Weight	243 g
  Battery and Power Consumption	Li-Ion rechargeable 3.7 V, built-in, approx. 2000 measurements. Maximum charging time 3.5 h. Wall charger with mini USB interface 110 / 220AC / 5VDC; car charger adapter 12VDC. Mini B USB Male / USB Type A Male cable, 0.5m. Maximum consumption 0.9W.
  Communication	IR, Bluetooth® BLE 4.0 class 2, Spp (serial profile), pin code 1234, USB 2.0 / SSD drive.
  Temperature	-20 ° to + 45 ° C
  ULTRASOUND (Vertex Laser Geo)	Distance: 30 m. With 360 ​​° adapter: 20 m. Precision distance: 1% or better typical. Resolution distance: 0.01 m.
  Height	0-999 m Height resolution: 0.1 m
  Angle	-90 ° - 90 °. Unit: 360⁰, 400⁰ Degrees and %. Resolution: 0.1⁰. Accuracy: 0.1⁰ typical.
  Laser	Distance: 46 cm / - 700 m depending on target. Accuracy: 4 cm typical. Resolution: 0.1 m / (0.01 m in DME mode).
  Area	0 < area <5000m2 or 0.5ha < area <10000ha 0 < area <20000ft² or 0.5acre < area <10000acre
  GPS	33-channel high-sensitivity receiver. Supports GPS, Glonass, Galileo, QZSS. Built-in real-time correction with SBAS (EGNOS, WAAS, MSAS, GAGAN) Accuracy up to 2.5 m / 8.19 ft in open terrain. Satellite position prediction up to 3 days. Multiglobal satellite navigation system based on GPS (USA) / GLONASS (Russia) / Galileo (EU) / QZSS (JAPAN) SBAS Augmentation systems based on satellites: WAAS (USA) EGNOS (EU) GAGAN (India) MSAS (Japan). Built-in auto-generated orbit prediction (TTFF faster up to 3 days), built-in interference cancellation. Accuracy: automatic position 2.5 m CEP (circular probable error) (50% static 24h, -130dBm. Speed 0.1 m / s (50% at 30 m / s.
  Compass	Azimuth compass 0-360˚, resolution 0.1˚, accuracy <1.5 RSME˚.
  Classification	MIL-STD-810E. Polycarbonate glass-filled housing frame material, IP67, NEMA6, laser class 1, 7 mm (FDA, CFR21) Class 1m (IEC 60825-1: 2001).
  View	Yellow point target 1x magnification.
  Display	100x60 pixel external LCD graphical display. Internal heads-up display.
  Data Format	Nmea or Ascii. IR, Bluetooth.
  File Format	CSV and KML (Google Earth).
  Memory	2000 non-volatile data sets.
  Other Information	Adapter and monopod stick, 4 pieces (33-140cm). Aluminum transport/storage case. Please refer to the user manual for more details.

• • Haglöf Laser GEO Hypsometer (1)
• • None
• • None
• • Technical Specifications Manual (English)

View full product details »

Haglöf Mantax Digitech II Calipers MD II with Built-in Bluetooth - Discontinued

$ 1,888.00 USD

The MD II caliper is a rugged and field-ready Bluetooth® caliper designed for efficient diameter...

View full product details »

Haglöf Mantax Digitech II Calipers MD II+ with Built-in Bluetooth

$ 1,960.00 USD

Revolutionize Your Forestry Operations with the MD II+ 4.0 Caliper

Introducing the MD II+ 4.0 - the ultimate tool for precision in forestry management, tailored for both timber inventory and log scaling.

The MD II+ 4.0 caliper from Haglöf Sweden AB is designed to enhance your forestry tasks with advanced technology for measuring tree diameters, heights, and logging details. Equipped with a high-speed 120 MHz floating-point processor and 8 GB of flash memory, this rugged Bluetooth-enabled caliper brings unparalleled efficiency to your fieldwork.

Key Features:

• Enhanced Processing Power: Nearly three times faster with a new 120 MHz processor, ensuring quick data processing.
• Massive Storage Capability: Can store over 100,000 measurements, perfect for extensive forestry projects.
• Diverse Connectivity Options: Features USB and Bluetooth® Low Energy 4.0 for seamless data transfer and real-time communication.
• User-Friendly Interface: Comes with an easy-to-use icon-based menu, making operation straightforward and efficient.
• Robust Design: Built to endure tough environmental conditions, making it ideal for field use.
• Flexible Data Management: Offers both local storage and online transmission modes to suit different operational needs.

Whether you are conducting detailed tree inventories or scaling logs, the MD II+ 4.0 provides the accuracy and reliability you need to get the job done right. This tool not only measures but also records and transmits data effortlessly, ensuring that your forestry management tasks are performed with precision and ease.

WANT TO WORK WITH YOUR TABLET OR SMARTPHONE? NO PROBLEM!

The MD II+ caliper has a large internal memory that can store thousands of measurement results. The memory works similar to a USB memory stick. Stored data is saved in XML file format that can be downloaded to your computer. The communication program MD II+ Com app for Android phones and tablets can be downloaded from Google Play and used to transfer field data. For a fuller communication solution that can present assortments, list of standing trees and more, we offer the MD II+ Com PC communication program.

MD II+ COM - POWER IN THE FIELD

MD II+ Com is an application for Android tablets and SmartPhones that can be used to read wireless data from the caliper via Bluetooth®. Data is stored as a list in XML files on the Android device. Instead of having to go back to the office, you can share the files via e-mail, Google Drive, Dropbox and more.

Use the MD II+ caliper with the Android app. Share data with your office straight from the field!

Forcípulas, forcipulas, Forcipulas, Forcipula, Forcípula, forcipula, forcípula

• Specifications
• In the Box

• MD II+ 4.0 Caliper Specifications

  Feature	Detail
  Memory Capacity	More than 100,000 registers
  Processor	Low Power Arm Cortex CPU 120MHz includes floating point unit
  Temperature	Min -20° Max 60°C / Min -4° Max 140° F
  Battery	Rechargeable Li-ion (1 in terminal +1 in SmartScale), USB-interface charge. Estimated operating time: One week per charge
  Keys/Buttons	6 keys total 2 Execution/Enter; One on keyboard and one on Smart Scale handle for index finger 4 navigation keys on the keyboard: Up, Down, Left, Right Double key quick commands: Display light, Sleep mode, Escape/Return and IR input
  Measuring System	Non-contact. Accuracy: ±1mm or 0.039 inch
  Measuring Range	From 500mm/18” to 1000mm/36” (standard)
  Weight	Caliper and terminal: <1kg/2.20 lbs (standard 500mm/18”). MD II Terminal only: 150g/6oz
  Display	Graphic, 128 x 64 pixels backlit, graphic interface
  Communication	USB 2.0 MSD; Bluetooth® v4.2 dual mode (SPP, HID KEYBOARD, BLE); IR receiver
  Bluetooth®	v4.2 dual mode (SPP, HID KEYBOARD, BLE)
  Signal	Built-in loudspeaker
  Classification	IP67 Moist/dust resistant, CE, FCC, IC certified




  Model	Length
  Mantax Digitech II+ 320 mm	320 mm
  Mantax Digitech II+ 500 mm	500 mm
  Mantax Digitech II+ 600 mm	600 mm
  Mantax Digitech II+ 650 mm	650 mm
  Mantax Digitech II+ 800 mm	800 mm
  Mantax Digitech II+ 950 mm	950 mm
  Mantax Digitech II+ 1000 mm	1000 mm
  Mantax Digitech II+ 18 inches	18 inches
  Mantax Digitech II+ 24 inches	24 inches
  Mantax Digitech II+ 30 inches	30 inches
  Mantax Digitech II+ 36 inches	36 inches
  Mantax Digitech II+ 40 inches	40 inches

• • 1 Mantax Digitech II+
  • 1 Aluminum case
  • 2 USB cables
  • 2 USB Adapters
  • 1 USB Charger for Car
  • 2 USB cables
  • 1 Power Charger

View full product details »

Haglof PosTex Laser

$ 4,826.25 USD

View full product details »

Haglöf Software Solutions: Versio Builder

$ 320.00 USD

Make your own data collection software for DP II and Digitech Professional Develop custom programs...

View full product details »

Haglöf Steel Borer Bits

$ 132.50 USD

Handle sold separately or Complete Increment Borer available Haglöf Sweden is the world's largest producer of...

View full product details »

Haglof T4 Transponder

Request Quote

Transponder T4 The T4 is the new and improved transponder that replaces the T3 and...

View full product details »

Haglof Ultrasound Distance Measure DME

$ 749.75 USD

View full product details »

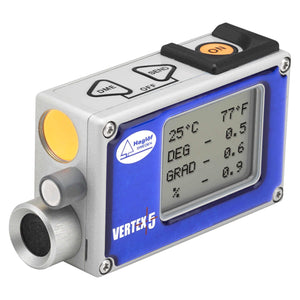

Haglöf Vertex 5 Hypsometers with Transponder T4 ²⁵

$ 1,668.50 USD

View full product details »

Haglöf Vertex IV Hypsometers - DISCONTINUED

Request Quote – Sold Out

This product has been discontinued and replaced by Haglöf Vertex 5 Hypsometers

The best-selling Haglöf instrument system for tree heights in the forest!

The Vertex IV ultrasound instrument system is a true 'work horse' that will hand you accurate and reliable measurement results in most forest terrains and conditions. This is also the best Haglöf selling instrument and the professional foresters' preference for accurate height, distance and horizontal distance measuring. Download the product sheet (1.7 MB).

- Ultrasound distance measuring - great accuracy and proven reliability in the forest.
- Works in dense vegetation.
- Audible beep signal for measuring results.
- Low battery consumption.
- Reference users worldwide.
- BAF function.
- Bluetooth® and IR transmitter.

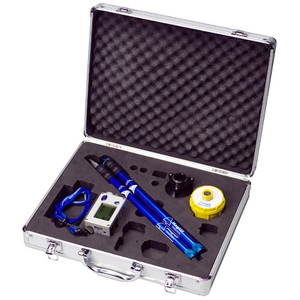

The Vertex IV is delivered with a lanyard and in an aluminum safety and transport case.

Vertex IV 360° package/set incl. Vertex IV instrument, transponder T3, plot staff and adapter. Vertex IV 60° package/set incl. Vertex IV measuring instrument, transponder T3. Vertex IV measuring instrument only also available.

Distance

With the well proven ultrasound measurement method and a high-visibility cross hair sight, the Vertex IV offers accurate distance readings also in thick undergrowth.

The ultrasound method works great in sample plot surveys, for distances up to approx. 30m/98ft, in dense forests and where there are difficulties to target. Sample Plots with Ultrasound.

Heights

Fast and accurate two-point measurement with the Vertex IV system.

Fasten the T3 transponder to the tree at any height, walk a distance of your choice and measure as many heights on each object as you wish, with the four last measured heights shown in the display.

1. Aim at the transponder, press the button and read the distance to the object.
2. Aim to the height you want to measure, press the button and read the height on the Vertex instrument display.

Angle

Measure slope in the terrain and have it presented to you in degrees, grads and percentage.

Plot Radius

In sample plot inventory work it is important to use the correct radius measurement.The ultrasound method is very suitable for this application.

BAF- Basal Area Factors

Working with factor gauge or prisms can be difficult when some trees cover others in the forest. Poor sighting can prevent a correct diameter measuring.

With the Vertex IV built in BAF function, the minimum tree diameter for trees to be included in the plot can be featured.

Communication

Communicate with IR or Bluetooth. Transfer values to the MD II or DP II calipers, or other handheld units with HAGLOF data format.

• Specifications
• In the Box
• Required Items
• Optional Items

• Vertex IV

  Size	80 x 50 x 30mm / 3.2 x 2 x 1.2"
  Weight	180g (incl. battery)
  Battery	1 x 1,5v AA alkaline
  Temperature	-15°C to 45°C / 5°F to - 113°F
  Ultra sonic frequency	25kHz
  Height	0-999m
  Resolution height	0,1m / 0.1ft
  Angles	-55° to 85°
  Resolution Angle	0,1°
  Distance with aimed transponder	Approx. 30m / 98ft
  Distance with 360° adapter	Approx. 20m / 60ft
  Resolution distance	0.01m / 0.1ft
  Accuracy distance	1%
  Bluetooth	Model –BT SPP Slave serial profile




  T3 Transponder

  Size	Diameter 70mm / 2.8"
  Weight	85g / 5oz (Incl. battery)
  Battery	1,5VAA alkaline
  Current	1.0mA

• Vertex IV Only

  - Hypsometer (1)

  Kit Vertex IV 60°

  - Hypsometer (1)
  - Transponder (1)

  Kit Vertex IV 360°

  - Hypsometer (1)
  - Transponder (1)
  - Adapter (1)
  - Monopod staff (1)

• - Baterías (1)
• Ninguno

Hipsómetro y Localizador de Rangos, Hipsómetros, Hypsometer

View full product details »

Haglöf Vertex Laser Geo Hypsometers with Transponder T4

$ 2,710.00 USD

New models with EXTREME functionality- programmable with built in GPS & Compass Haglöf Sweden introduces...

View full product details »

Holster for Haglöf Caliper

$ 51.50 USD

Holster for belt available for easy carrying of Haglöf Mantax Precision Blue, Mantax Black and...

View full product details »

Mantax Black Mechanical Caliper

$ 257.00 USD

The Mantax Black is the best mechanical caliper Haglöf have ever made! Patented foldable jaws, elegant rounded non-reflecting aluminium measuring scale with several graduation options, and an ergonomic design of the handle, suitable for hands of all sizes. As all Haglöf brand calipers, the Mantax Black has scale graduation that will not wear off even after years of daily use in the field!

Every detail in the Mantax Black caliper is the result of long production experience, customers requests, splendid advice and innovative thinking. Use the Mantax Black together with the Gator Eyes laser pointers to measure diameters from a distance. You will be surprised of how easy diameter measuring has become lately!

• Specifications
• In the Box
• Required Items
• Optional Items

• - Patented foldable jaws
  - Exclusive alloy coating aluminium scale in 500, 650, 800 and 950 mm or 18", 24", 30" and 36"
  - Rounded scale profile with hollow centre provides durability, strength and low weight
  - Ergonomic handle suitable for all hand sizes
  - Smooth glide
  - No loose parts, no breakable details
  - Indestructible one-side readings on non-reflecting scale
  - Special version with Haglöf Gator Eyes Laser pointers
  - Compatible with the Haglöf Marktax Marking System superior Swedish quality for functionality and design
• - Caliper (1)
  - Manual
• None
• - Holster for Haglöf Caliper
  - Mantax Black Mechanical Caliper with Gator Eyes Laser Pointers

Calibrador Mecánico Mantax Black

View full product details »

Mantax Black Mechanical Caliper with Gator Eyes Laser Pointers

$ 768.25 USD

Order the Mantax Black with green laser pointers Gator Eyes. Excellent visibility in sunny areas. Use the Gator Eyes to measure diameters at a distance where access is limited by water streams or debris, in areas with poison ivy or or if you are on a distance from the tree and need quick results. Gator Eyes are factory assembled on the foldable jaws for Mantax Black, DP II and Digitech Professional calipers.

When using Gator Eyes, add one inch (2.54 cm) to the scale featured result for accurate diameter readings. Gator Eyes reaches well over 40m or 130ft. Green laser can be seen in daylight, but is best visualized in dusk light and surroundings. Special Laser scale print available on metric graduated scales for Mantax Black Gator Eyes.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Patented foldable jaws
  - Exclusive alloy coating aluminium scale in 500, 650 and 800 mm or 18", 24" and 30"
  - Rounded scale profile with hollow centre provides durability, strength and low weight
  - Ergonomic handle suitable for all hand sizes
  - Smooth glide
  - No loose parts, no breakable details
  - Indestructible one-side readings on non-reflecting scale
  - Optional version without the Gator Eyes Laser pointers
  - Compatible with the Haglöf Marktax Marking System superior Swedish quality for functionality and design
• - Caliper (1)
  - Manual
• None
• - Holster for Haglöf Caliper

Calibrador Mecánico Mantax Black con "Gator Eyes"

View full product details »

Mantax Blue Mechanical Caliper

$ 136.95 USD

The Mantax Blue for Excellent Diameter Measuring. With its adjustable jaws and unique design in bright blue, visible colour, the Mantax Blue will be great for diameter measuring in any environment. Available in the markets largest assortment of scale lengths and graduation options, the Mantax Blue is a diameter caliper you can depend on for many years to come. Mantax Blue calipers are used for a wide variety of applications in many different operation areas: Diameter measuring of trees and timber, log scaling, in fishery industry & wildlife management, and in healthcare industry.

The Mantax Blue is often found within research studies where statistics are gathered, for example on length of tuna fish or shellfish in a certain area, width of turtle shells, flora composition in a forest and to measure bone length and BMI of persons.

The simple construction of Mantax Blue allows any operator to start working immediately. Mantax Blue scale is made of lightweight aluminium. Choose from a large variety of scale options and graduations, from 400 mm up to 1270 mm, inch graduation, inch/cm combo. Circumference with digits that will not wear even after years of use. No delicate parts, no corrosion, no deterioration of scale graduation.

Use the Mantax Blue together with Gator Eyes for diameter measuring from a distance, and Marktax Marking System to measure and mark in one movement.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Exclusive alloy coating aluminium scale in 400, 500, 650, 800, 950, 1020 and 1270 mm or 18", 24", 30", 36", 40" and 50" also combo 18"/500 mm, 24"/650 mm, 30"/800 mm and 36"/950 mm
  - Rounded scale profile with hollow centre provides durability, strength and low weight
  - Ergonomic handle suitable for all hand sizes
  - Smooth glide
  - No loose parts, no breakable details
  - Indestructible one-side readings on non-reflecting scale
  - Gator Eyes Laser pointers available
  - Compatible with the Haglöf Marktax Marking System superior Swedish quality for functionality and design
• - Caliper (1)
  - Manual
• None
• - Holster for Haglöf Caliper

Calibrador Mecánico Mantax Blue, Forcípulas, Forcípula

View full product details »
