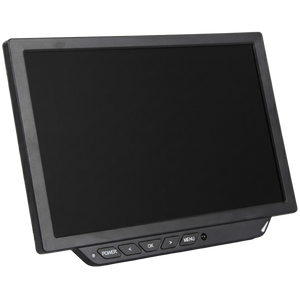

Moticam V1300 Camera for Microscopes with Screen

Digital Microscopy Camera with Integrated High-Resolution Screen (Moticam V1300)

Professional imaging solution with integrated 10.1-inch screen and dual HDMI/USB output for rapid applications, research, and teaching.

The Moticam V1300 is a high-performance digital microscopy camera designed to facilitate the live capture, observation, and transmission of microscopic images. Designed under a "Plug and Play" concept, it integrates a 10.1-inch LCD screen with Full HD resolution (1920x1200), allowing direct and comfortable viewing without relying on an external computer monitor.

Equipped with a 13-megapixel Sony sensor (1/3"), this camera offers excellent color reproduction, ultra-high-resolution photo capture (up to 7680x4320), and 4K video recording at 30 fps. Its versatile connectivity via USB 2.0, USB 3.0 (UVC), and HDMI 1080P60 ports ensures smooth integration with Motic software and connectors, as well as easy data transfer to PC, external monitors, or local storage via TF cards up to 64 GB.

Key Features

• 13 MP Sony Sensor: High-resolution capture with accurate, sample-faithful color reproduction.

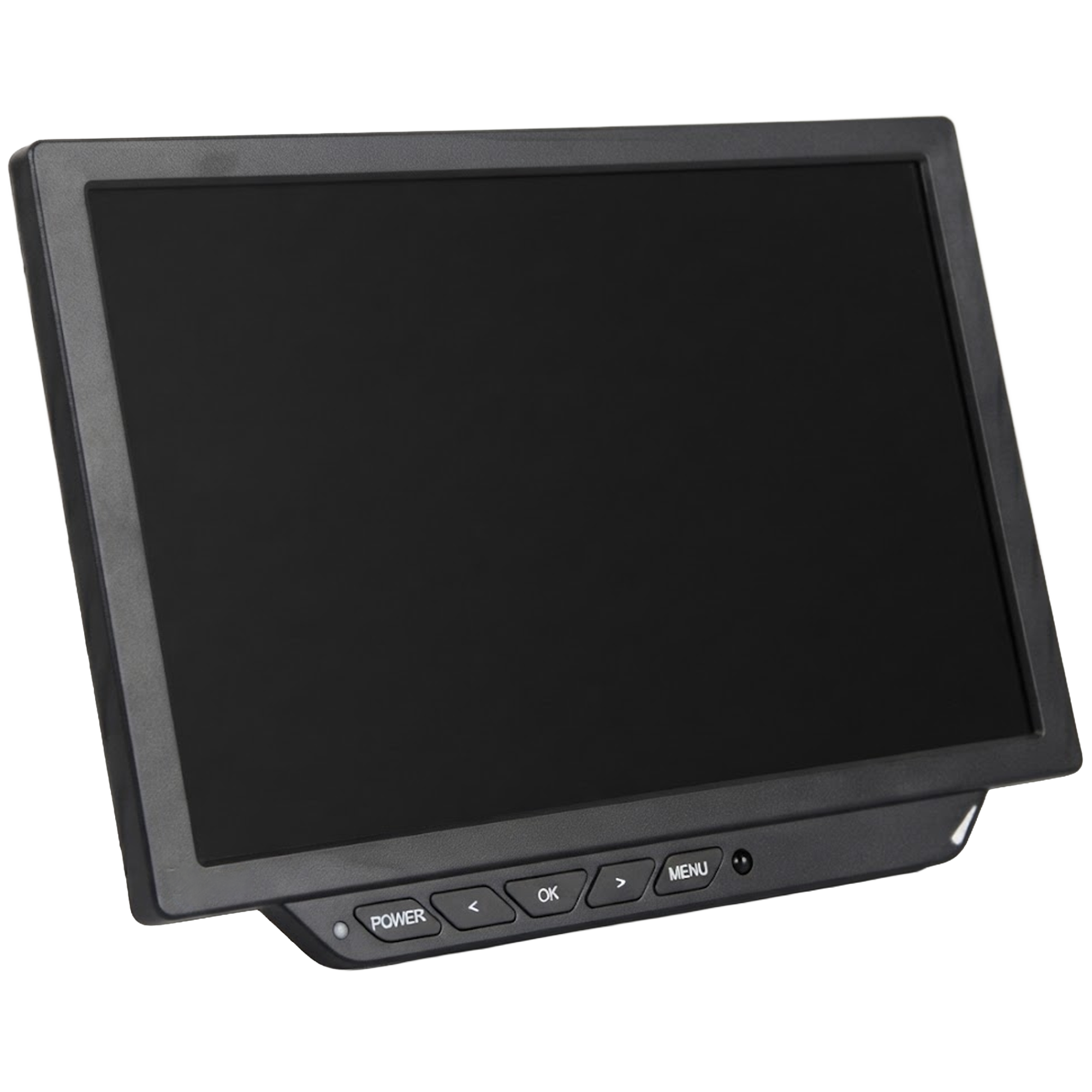

• Integrated 10.1" Screen: HD monitor for direct viewing that optimizes workspace in laboratories and classrooms.
• 4K and Full HD Recording: Supports video recording up to 3840x2160P30 (4K) and live output via HDMI at 1080P60.

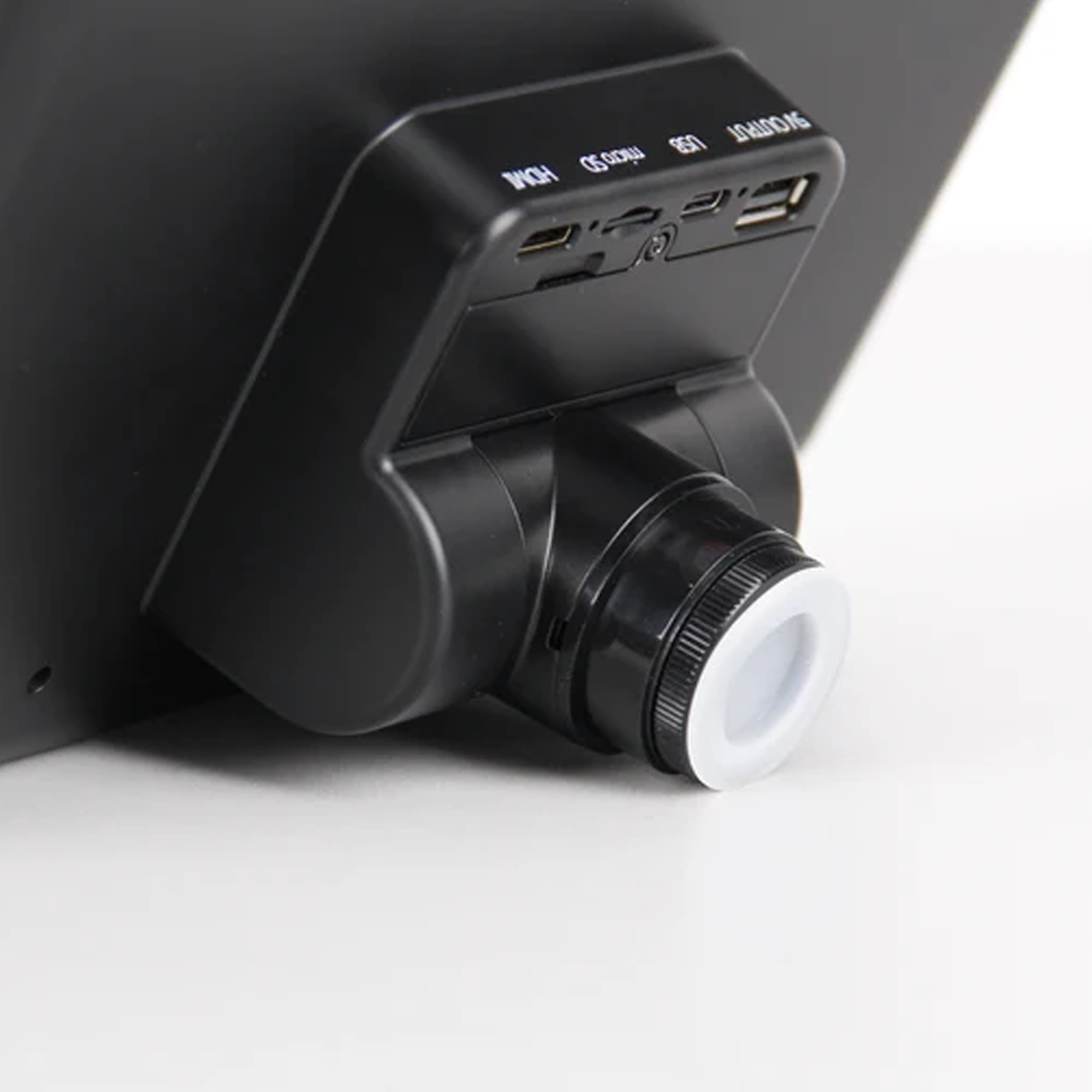

• Multiple Connectivity: HDMI, USB 2.0, and USB 3.0 outputs for direct connection to monitors, projectors, or computers.
• Built-in Software and Tools: Includes on-screen functions such as photo capture, recording, zoom, magnifying glass, image freeze, grid/crosshairs, rotation, and image gallery.
• Standard C-Mount: Highly adaptable to most stereo microscopes and laboratory microscopes.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• Model	Moticam V1300
  Sensor Type	Sony 13M (13 Megapixels)
  Sensor Size	1/3"
  Screen Resolution	1920 x 1200 pixels
  Screen Size	10.1 inches
  Capture Resolution (Photos)	4800 x 2700 / 7680 x 4320 pixels
  Recording Resolution (Video)	3840 x 2160P30 (4K) / 1920 x 1080P60
  Shutter Mode	Rolling shutter
  Lens Mount	C-mount
  USB 2.0 Port	Type-A Female Port (Computer)
  USB 3.0 Port	Type-A Female Port (Computer, UVC)
  HDMI Output	1080P60
  Storage	TF Card (up to 64 GB)
  Power Supply	Type-C 5V / 2A
  Integrated Software Tools	Still image capture, live video recording, zoom, magnifying glass, ROI, mirror, rotation, split screen, image freeze, crosshairs, gallery.

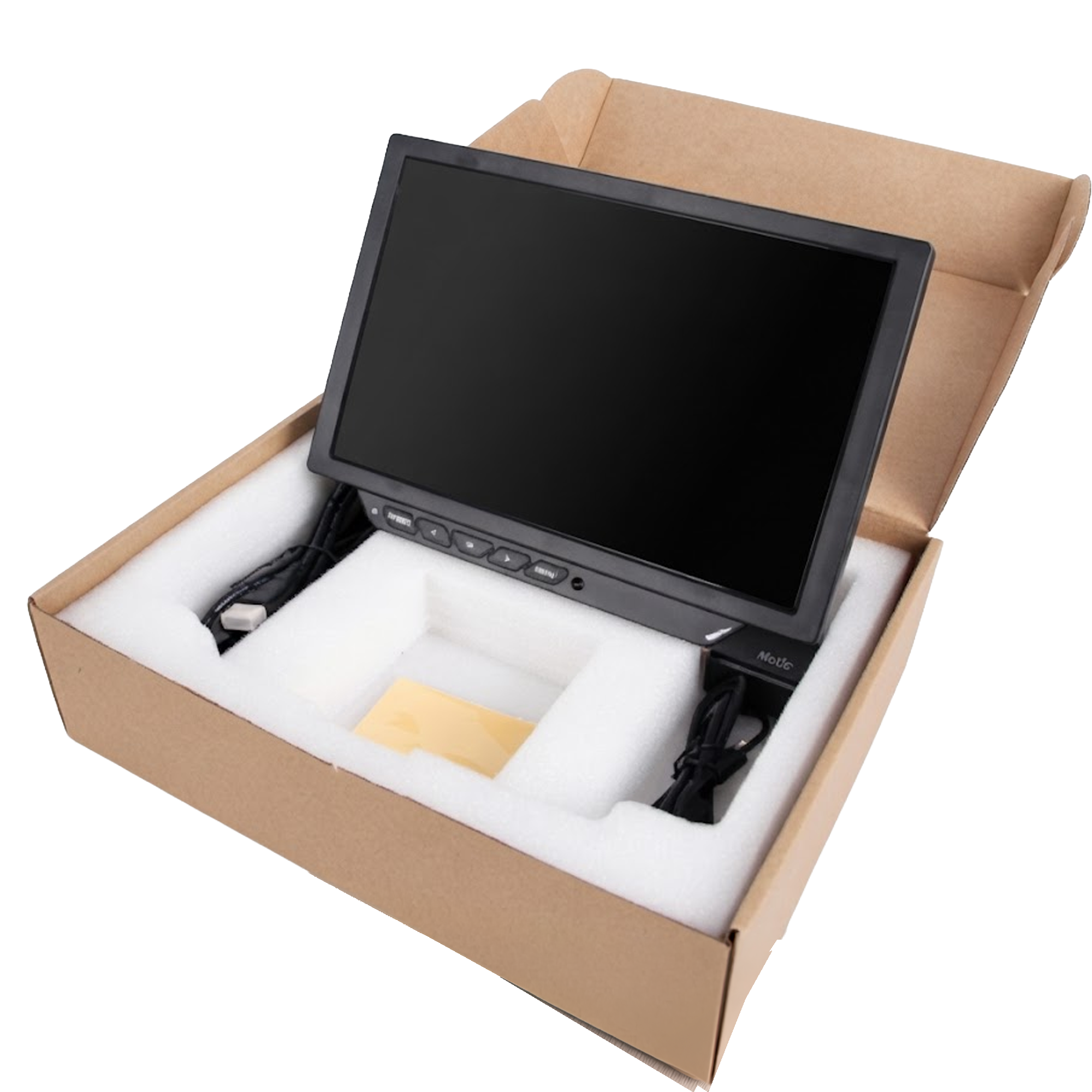

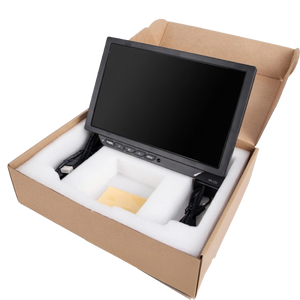

• • 1x Moticam V1300 Digital Camera with 10.1" Integrated Screen
  • 1x Type-C Power Adapter (5V / 2A)
  • 1x USB Cable
  • 1x HDMI Cable
• • Microscope or Stereo Microscope: With trinocular port or compatible eyepiece tube.
  • C-Mount Adapter: Specific optical coupling adapter (C-Mount Adapter) for the microscope model used.
• • Additional MicroSD TF Memory Cards (up to 64 GB)
  • C-Mount Adapters of different magnifications (0.5X, 0.65X, 1.0X)
  • Micrometer Calibration Slides
• • Data Sheet (English)
  • User Manual (English)
