Combined Plate Chamber (Utermöhl-Chamber) Hydro-Bios

$ 1,200.00 USD

⚠️ Do NOT use alcohol for cleaning acrylic parts.

The Combined Plate Chamber is a standard manufacture fitting virtually any type of inverted microscope.

As described in UNESCO's Phytoplankton Manual (published 1978) the Combined Plate Chamber allows you to look at sedimented plankton samples from a very short distance. How? Put the sample into a cylinder on top of the rectangular plexiglass plate with a thin base plate, let the fixed plankton concentrate and after sedimentation simply push the cylinder with excess liquid aside. The handling support underneath the plate will collect the extra water from the cylinder. You can now take the plate and examine the sample under an inverted microscope. Three calibrated cylinder sizes are provided with each set allowing to analyze different sample volumes.

The basic kit includes a set of cylinders 10 / 50 / 100 ml. Complete with cover plates, also base plates and handling support. The complete kit includes in addition a cylinder of 25 ml, and additional cover and base plates. Items can be purchased separately too.

The Base Plate Set, includes the Base Plate, the Threaded Ring and the Ring Detacher.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• - Base plate
  - Handling support base
  - Settling chamber, 10 ml capacity, height 15 mm
  - Settling chamber, 25 ml capacity, height 41 mm
  - Settling chamber, 50 ml capacity, height 92 mm
  - Settling chamber, 100 ml capacity, height 185 mm
  - Threaded ring and ring detacher
  - Round cover glass, Ø 33 mm, thickness 2,0 mm
  - Square cover glass, 42 x 42 mm, thickness 1,8 mm
  - Bottom plates, Ø 27,5 mm, thickness 0,2 mm
• Basic Chamber Kit:
  - Base Plate Set (1)
  - Settling Chamber 10 ml
  - Settling Chamber 50 ml
  - Settling Chamber 25 or 100 ml
  - Handling Support Base
  - Round Cover Glass x 3 u.
  - Square Cover Glass x 1 u.
  - Bottom Plates x 50 u.

  Complete Chamber Kit includes also:
  - All 4 Settling Chambers 10, 25, 50 and 100 ml.
  - Additional Square Cover Glass x 50 u.
  - Additional Round Cover Glass x 50 u.
  - Additional Bottom Plates x 250 u.
• The Basic and Complete kits doesn't need additional items. The Base Plate Set alone needs the other parts to work.
• Choose the Complete Chamber kit instead the Basic Chamber Kit.
• • User’s Manual (English)

Cámara de Sedimentación Combinada (Cámara Utermöhl)

Camara de Sedimentacion Combinada (Camara Utermohl)

View full product details »

Hensen-Stempel Pipettes Wildco w/ Spring

$ 101.95 USD

An easy, quick method for sub-sampling plankton samples. Wide bore pipettes are ideal for accurately...

View full product details »

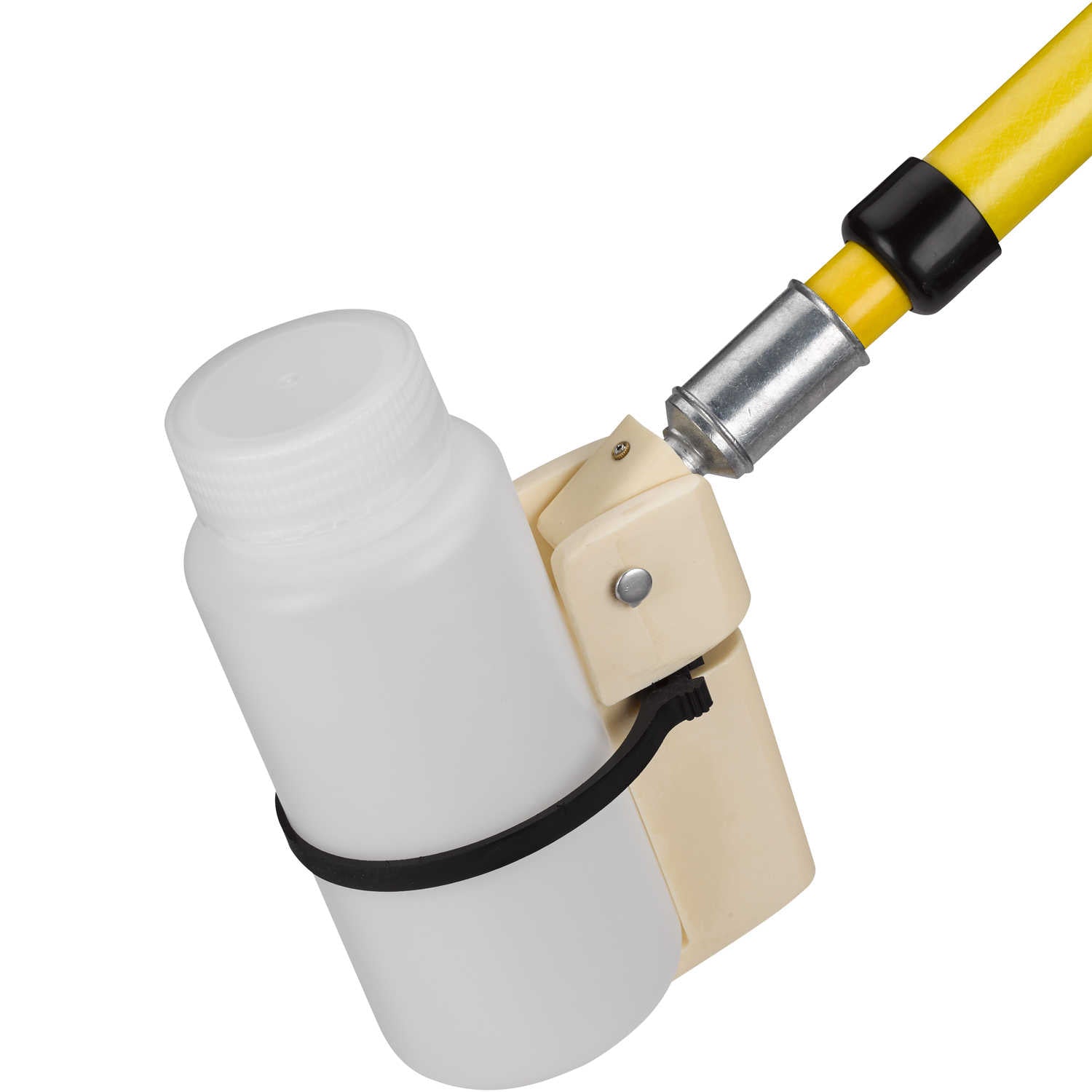

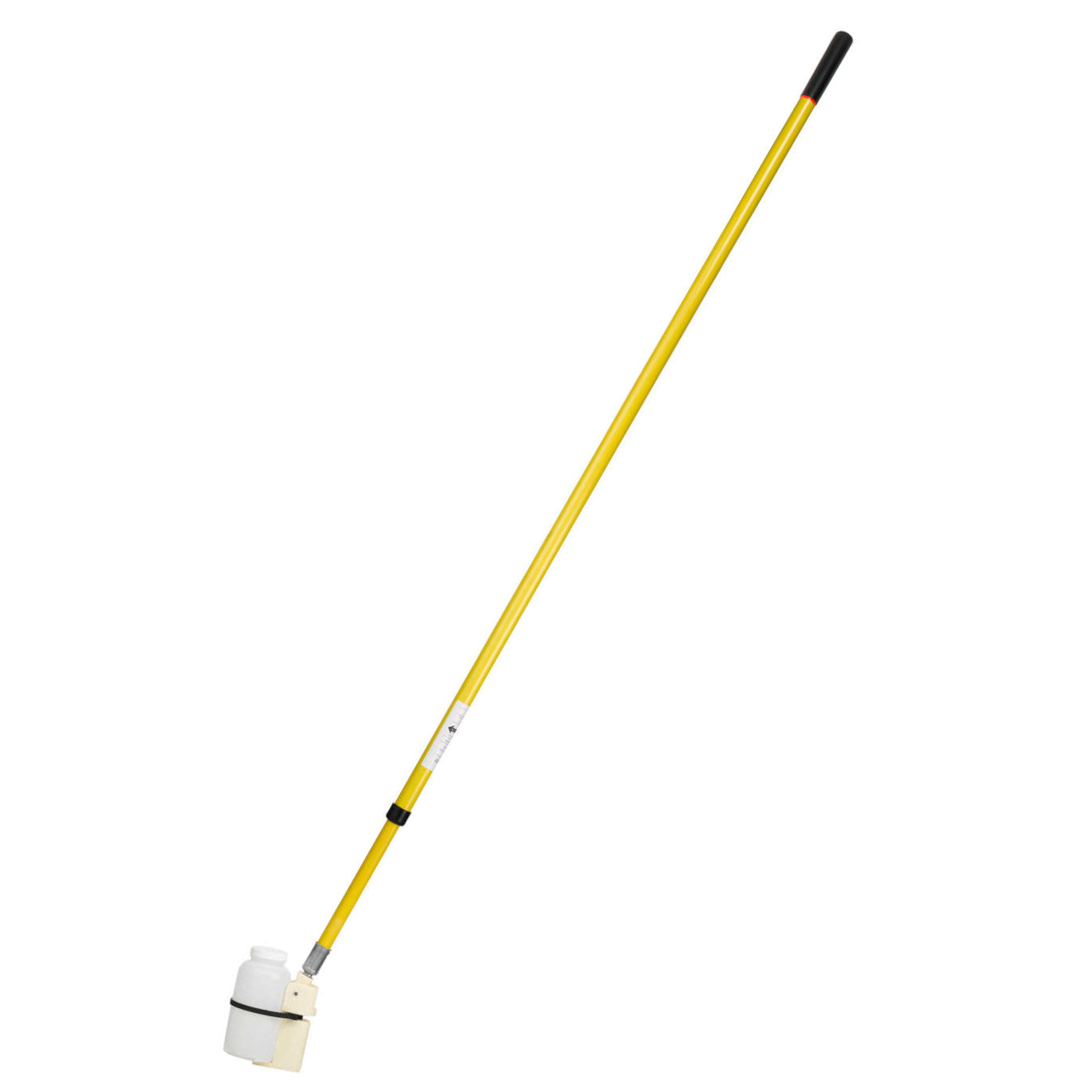

Nasco Extendible Swing Samplers

$ 243.95 USD

The end of these samplers swings for collecting samples at different angles with a maximum...

View full product details »

Palmer Counting Cell Wildco

$ 91.25 USD

Similar to the Sedgewick Rafter but specifically intended for nannoplankton. The shallow depth of the...

View full product details »

YSI ProDSS 4 Port Cables Assembly

Request Quote

Es un conjunto de cable de 4 puertos para el instrumento ProDSS disponible en longitudes de hasta 100 metros. Los puertos de sensor en los cables de 4 puertos ProDSS son universales, lo que permite la conexión de sensores ProDSS en cualquier puerto de sensor.

Conecta los sensores ópticos de OD, turbidez, conductividad / temperatura, pH, pH / ORP, nitrato, amonio y cloruro de ProDSS en cualquier combinación.

• Especificaciones
• En la Caja
• Artículos Requeridos
• Artículos Opcionales

• • 4 puertos de sensor.
  • Tapones de 3 puertos.

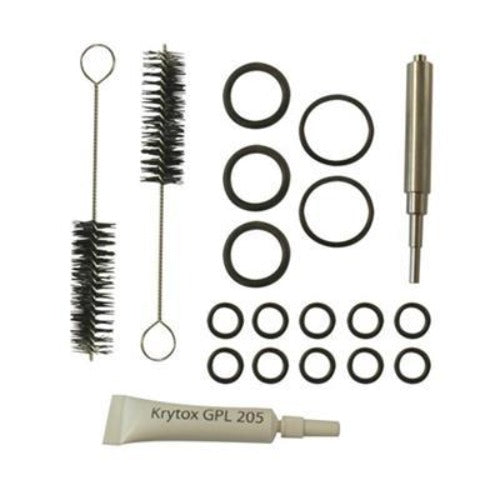

  • Tubo de lubricante Krytox.
  • Cepillo para sonda de conductividad.
  • Jeringa para limpieza del sensor de profundidad.
  • Herramienta de instalación / extracción del sensor.
• • Cables YSI Para Medidores ProDSS (1)
• • Medidores Multiparámetros de Calidad de Agua YSI ProDSS
  • Sensores para Medidor YSI ProDSS
• • Ninguno

View full product details »

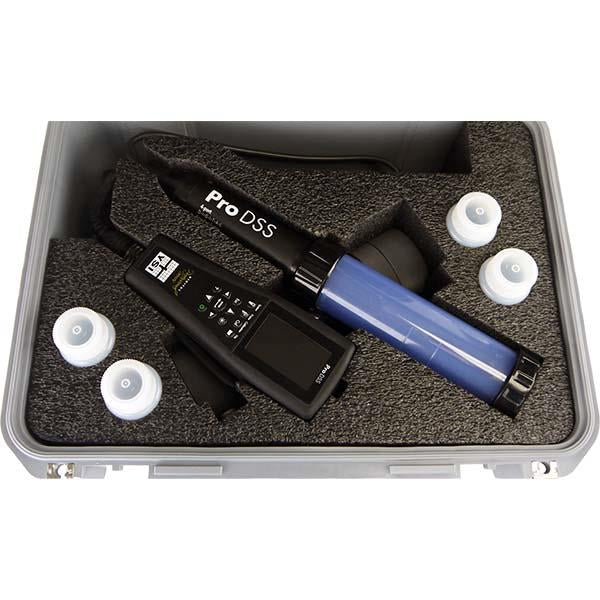

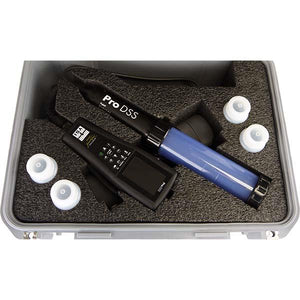

YSI ProDSS Multiparameter Water Quality Meter

$ 2,140.00 USD

YSI ProDSS Multiparameter Water Quality Meter

The YSI ProDSS is a highly versatile portable multiparameter device for water quality measurement. It offers two main cable options: a 4-port set compatible with up to four interchangeable sensors or the ODO/CT probe, which combines an optical dissolved oxygen sensor with a conductivity sensor for real-time salinity compensation. Designed for field use, the ProDSS is ideal for applications in surface, groundwater, and wastewater with a rugged, waterproof (IP-67) housing.

The ProDSS also includes a free online learning platform, ProDSS On-Demand Training, to train users before field operations.

Note: The instrument is sold separately. Cables, sensors, and accessories are not included.

Details:

• Measured Parameters: Dissolved oxygen, turbidity, pH, ORP, conductivity, temperature, salinity, among others.
• Cable Options: 4-port cable or ODO/CT probe.
• Durability: Waterproof housing (IP-67) and military-spec connectors.
• Free Training: ProDSS On-Demand Training.

• Specifications
• In the Box
• Required Items
• Optional Items
• Manuals

• Benchtop	Yes, optical BOD probe for the lab is available
  Buffer Recognition	Auto-buffer recognition for USA (4.00, 7.00, 10.00) and NIST (4.01, 6.86, 9.18) buffer sets. Calibration values automatically compensated for temperature.
  Certifications	FCC, WEEE, UN Part III Section 38.3 test methods for lithium-ion batteries (class 9), RoHS, Assembled in USA, IP-67, 1-meter drop test, CE
  Connectivity / Communications	Built-in micro USB On-The-Go port for PC connection, recharging/powering the ProDSS and connecting directly to a USB stick
  Connector	MS (military spec) waterproof with quarter-turn bayonet lock
  Data Management	KorDSS desktop PC software (included), >100,000 data sets
  Desktop Software Compatible	KorDSS desktop PC software (included)
  Digital / Digital Sensors	Yes
  Flow Cell	Yes, flow cell is available
  GLP Compliance	Yes, detailed GLP information is stored and available to view, download or print
  GPS	Optional internal GPS, coordinates stored with measurement data and site lists
  Graphic Display	Color, LCD graphic display, backlit keypad
  Languages	Italian, German, Norwegian, English, French, Portuguese, Japanese, Chinese (Simplified & Traditional), Spanish
  Logging Capabilities	Single point or Continuous
  Measurement Method / Channels	Digital
  Memory	>100,000 data sets, 400 GLP files
  Multiparameter	Yes
  Operating Temperature	0 to 50°C (32 to 122°F)
  Parameters Measured	Dissolved Oxygen (%), Dissolved Oxygen (mg/L), Temperature, Turbidity, Conductivity, Specific Conductance, Resistivity, Salinity, Water Density, pH, ORP, Ammonium, Nitrate, Chloride, TDS, TSS, Depth, Barometer
  Power	Rechargeable lithium-ion battery pack providing ~48 hours of battery life
  Sampling	Yes
  Security / Password Protection / UserID	Yes
  Size	Instrument: 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.27 in x 8.5 in x 2.21 in) Bulkhead with sensors, without depth: 33.3 cm (13.11 in) length Bulkhead with guard, without depth: 42.82 cm (16.86 in) length and 4.75 cm (1.87 in) outer diameter
  Smart Sensors / Ports	4 universal sensor ports on each cable, can accept any ProDSS sensor
  Storage Temperature	0 to 45°C (32 to 113°F) with battery, 0 to 60°C (32 to 140°F) without battery
  User Calibratable	Yes
  User Replaceable	Yes
  Warranty	3-year instrument; 2-year bulkhead, cable assembly, and sensors; 1-year pH and pH/ORP sensor modules, ODO sensor caps, and Li-Ion battery pack; 6-month ammonium, nitrate, and chloride sensor modules
  Waterproof	Floats, IP-67 (even with the battery cover off)





  ProDSS System Specifications (Instrument, Cables & Sensors)

  Parameter	Method	Range	Accuracy	Resolution	Calibration Points	Maximum Depth
  Dissolved Oxygen (% saturation)	Optical Luminescence - Lifetime Method	0 to 500%	0 to 200% (±1% of reading or 1% air saturation, whichever is greater) 200% to 500% (±8% of reading)	0.1% or 1% air saturation (user selectable)	1 or 2 points	100 m
  Dissolved Oxygen (mg/L, ppm)	Optical Luminescence - Lifetime Method	0 to 50 mg/L	0 to 20 mg/L (±0.1 mg/L or 1% of reading, whichever is greater) 20 – 50 mg/L (±8% of reading)	0.1 or 0.01 mg/L (user selectable)	1 or 2 points (user selectable)	100 m
  Temperature (°C, °F, K)	Thermistor; Combination Sensor with Conductivity	-5 to 70°C (23 to 158°F)	±0.2°C	0.1°C or 0.1°F (user selectable)	None	100 m
  Turbidity (FNU, NTU)	Nephelometric - Optical, 90° Scatter	0 to 4000 FNU	0 to 999 (0.3 or ±2% of reading, whichever is greater) 1000 to 4000 (±5% of reading)	0.1 FNU	1, 2, or 3 points (user selectable)	-
  Conductivity* (µS, mS)	Four Nickel Electrode Cell	0-100 mS/cm	0 to 100 mS/cm (±0.5% of reading or 0.001 mS/cm, whichever is greater) 100 to 200 mS/cm (±1% of reading)	0.001, 0.01 or 0.1 mS/cm (range dependent)	1 point	100 m
  Specific Conductance (µS, mS)	Calculated from Conductivity and Temperature	0 to 200 mS/cm	±0.5% of reading or 0.001 mS/cm, whichever is greater	0.001, 0.01, 0.1 mS/cm	1 point	-
  Resistivity (ohm-cm, kohm-cm, Mohm-cm)	Calculated from Conductivity and Temperature	0 to 2 Mohms	±0.1% Full Scale	0.001, 0.01, 0.1 ohms	-	-
  Salinity (ppt, PSU)	Calculated from Conductivity and Temperature	0 to 70 ppt	±1.0% of reading or ±0.1 ppt, whichever is greater	0.01 ppt	1 point	-
  Water Density (Sigma, Sigma T)	Sigma is Calculated from Salinity, Temperature, and Pressure Sigma T is Calculated from Salinity and Temperature	0.0 to 50.0 sigma, sigma T	-	0.1 sigma or sigma T	-	-
  pH (mV, pH units)	Glass Bulb Combination Electrode; Ag/AgCl Reference Gel	0 to 14 units	±0.2 units	0.01 units	1, 2, or 3 points (user selectable)	100 m
  ORP (mV)	Platinum Button; Ag/AgCl Reference	--1999 to +1999 mV	±20 mV	0.1 mV	1 point	100 m
  Ammonium** (NH4-N mg/L, NH4-N mV)	ammonia with pH sensor Ion Selective Electrode	0 to 200 mg/L NH4-N	±10% of reading or 2 mg/L, whichever is greater	0.01 mg/L	1, 2, or 3 point (user selectable)	20 m
  Ammonia*** (NH3-N mg/L)	Calculated from Ammonium, Temperature, Salinity and pH	0 to 200 mg/L NH4-N	-	0.01 mg/L	-	-
  Nitrate** (NO3-N mg/L, NO3-N mV)	Ion Selective Electrode	0 to 200 mg/L NO3-N	±10% of reading or 2 mg/L, whichever is greater	0.01 mg/L	1, 2, or 3 point (user selectable)	20 m
  Chloride**	Ion Selective Electrode	0 to 1000 mg/L Cl	±15% of reading or 5 mg/L, whichever is greater	0.01 mg/L	1, 2, or 3 point (user selectable)	20 m
  Total Dissolved Solids (TDS) (mg/L, kg/L, g/L)	Calculated from Conductivity and Temperature	0 to 100 g/L	User-Selectable TDS Multiplier (0.30 to 1.00; 0.65 default)	0.001, 0.01, 0.1g/L	-	-
  Total Suspended Solids (TSS) (mg/L)	Correlated from Turbidity Field Measurements and Lab TSS Measurements from Grab Samples	0 to 30000 mg/L	Calculated from Turbidity and User-Entered Correlation Points	0.01, 0.1 mg/L	-	-
  Chlorophyll (RFU or µg/L chl)	Optical Luminescence	0 to 100 RFU or 0 to 400 µg/L chl	Linearity: r2 ≥ 0.999 for Rhodamine WT across full range	0.01 RFU or 0.01 µg/L chl	2 point	-
  Phycocyanin (RFU or µg/L PC)	Optical Luminescence	0 to 100 RFU or 0 to 100 µg/L PC	Linearity: r2 ≥ 0.999 for Rhodamine WT across full range	0.01 RFU or 0.01 µg/L PC	2 point	-
  Phycoerythrin (RFU or µg/L PE)	Optical Luminescence	0 to 100 RFU or 0 to 280 µg/L PE	Linearity: r2 ≥ 0.999 for Rhodamine WT across full range	0.01 RFU or 0.01 µg/L PE	2 point	-
  Depth (m, ft)	Pressure Transducer	0 to 100 m (0 to 328 ft)	±0.004 m (±0.013 ft) for 1, 4 and 10-m cables ±0.04 m (±0.13 ft) for cables 20-m and longer	0.001 m or 0.01 ft	1 point	-
  Barometer (mmHg, inHg, mbar, psi, kPa, ATM)	Piezoresistive	375 to 825 mmHg	±1.5 mmHg from 0 to 50°C	0.1 mmHg	1 point	-

• • YSI ProDSS Handheld Meter.


• Depending on your needs, the following sensors may be required:

  • Dissolved Oxygen (DO) sensor
  • Turbidity sensor
  • pH/ORP sensor
  • Conductivity sensor
  • Temperature sensor

• • None
• • User Manual

View full product details »

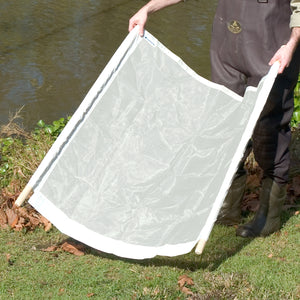

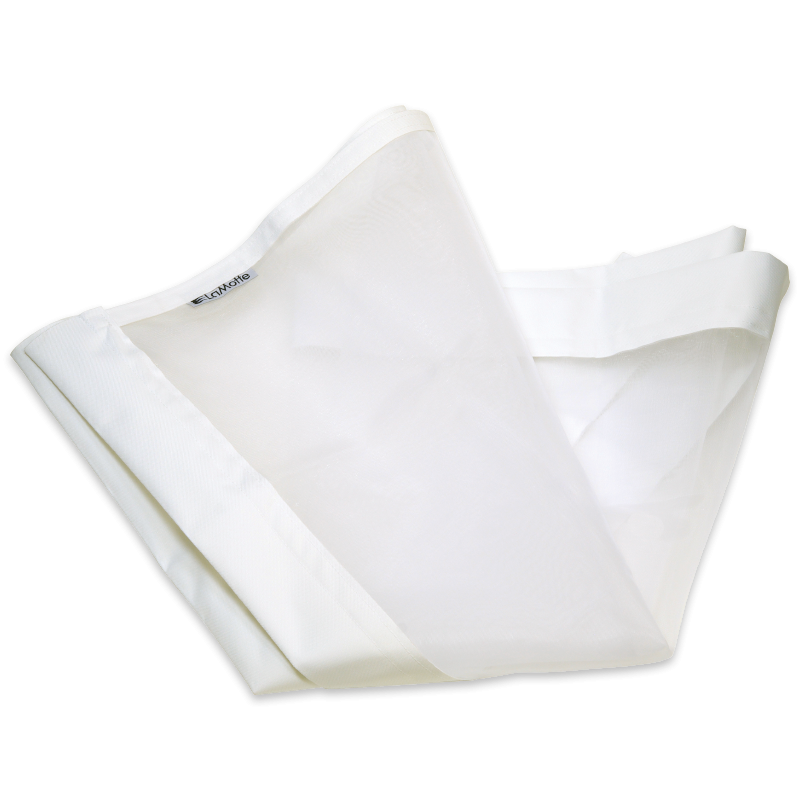

LaMotte Kick Net

$ 150.95 USD

Performing USEPA Rapid Bioassessment Protocols for benthic macroinvertebrates? You'll need this net! 1 x 1...

View full product details »

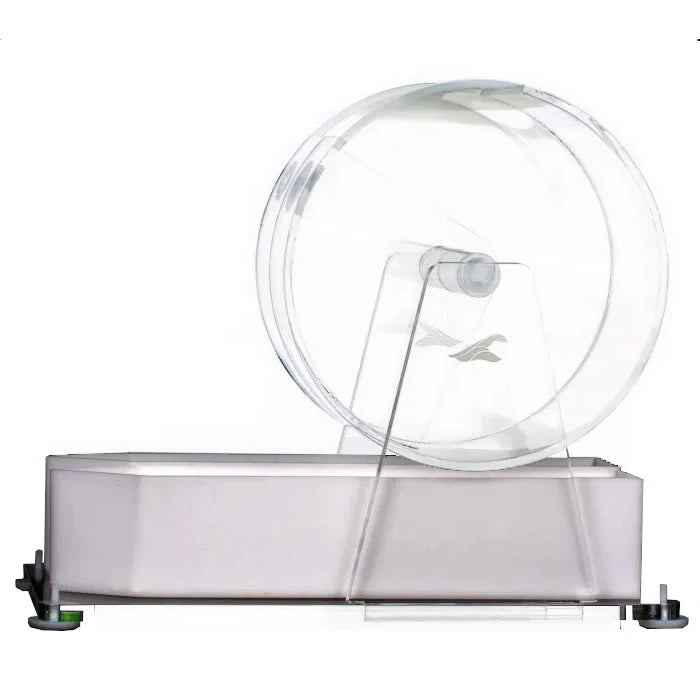

Folsom’s Plankton Sample Divider Hydro-Bios

$ 1,985.00 USD

Folsom’s Plankton Sample Divider provides a fast and easy method to divide large plankton samples...

View full product details »

Wildco Beta Plus Water Sampler Horizontal Acrylic

$ 659.20 USD

Intended for shallow or deep waters, these bottles are called “horizontal” because they descend, parallel to the bottom. They are pulled sideways just before closing by the operator, which ensures a representative water sample for that specific depth. They are ideal for sampling at the thermocline, at other stratification levels, or just above the bottom sediments. These popular and versatile bottles come in your choice of transparent acrylic or opaque PVC. PVC is more durable and less costly, but the acrylic allows you to view the bottle contents immediately.

Designed for trace metal sampling. Also may be used for organic sampling to concentrations of mg/L. When running metal, organic, or any other chemical analyses, it is best to run a blank on the sampler prior to use.

This bottle is excellent for near off-shore (to 200 m) trace metal sampling, since there are no metal parts to touch your sample. You avoid the metallic ion contamination that can cause major errors in algal assays or productivity. Beta Van Dorn bottles have rigid, white plastic end seals for clean sealing. The bottle ends are machined to fit foam silicone gaskets. Amber latex tubing, which does not leach measurable amounts of metal, closes the bottle. Beta™ bottles feature a nylon safety line connecting the end seals, so if the closing tube breaks, you’re less likely to lose your expensive seals. This is why Beta bottles have an excellent track record in a wide variety of field conditions.

This sampler requires a messenger and line (included in kits) for operation. It is not suitable for series sampling. A thermometer can be mounted inside acrylic Beta bottles.

NOTE: Volume may vary slightly. It is recommended that you verify the exact volume of your bottle prior to use.

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• - No metal parts to touch your sample
  - Designed for trace metal sampling
  - 316 SS trip head for durability
  - Not suitable for chemical sampling
  - Kits include bottle, plastic carry case, 45-B10 messenger & 62-C15 line (100 ft.)
  - Single bottles & bottles with cases available
• - Bottle (1)
  - Case (1) (incl. in Kit)
  - Messenger (1) (incl. in Kit)
  - Line 100 ft (1) (incl. in Kit)
  - Manual
• NOTE: If you choose the Kit, you don´t need the next items:
  - Messenger
  - Line
• - Case (Choose the kit)
  - Thermometer
• - Operating Instructions

Muestreador de Agua Beta Plus Vertical en Acrílico

View full product details »

Wildco Alpha Water Sampler Vertical Acrylic Kit

$ 668.75 USD

View full product details »

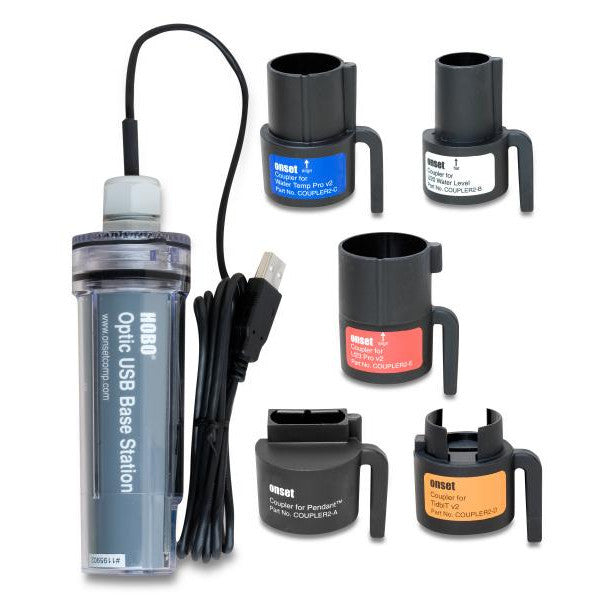

Onset HOBO Optic USB Base Station

$ 179.25 USD

The Universal Optic USB Base Station and couplers are used to offload data from any HOBO® data logger with an Optic USB interface. The splash-resistant Optic USB Base Station connects to your computer via USB, while connecting to the data logger via an appropriate coupler. This is compatible with the HOBO UA, U20, U22, U23, UTBI, U24 & U26 series. (Download User's Manual).

NOTE: Couplers for all compatible data loggers are included with the BASE-U-4. Couplers are included for compatibility with six of the most popular Onset data logger types including: UA Pendants, U20 water level data loggers, the U22 Water Temp Pro v2, the UTBI TidbiT, U24 Conductivity and U23 data loggers.

• Offload data from any HOBO® data logger with an Optic USB interface.
• Couplers are included.
• Cable length 183 cm (6 ft.).
• Offloads full 64K logger in 30 seconds.

• Specifications
• In the Box
• Required Items
• Optional Items

• • Operating temperatures range: 0 to 50°C (32 to 122°F)
  • Cable length: 183 cm (6 ft.)
  • Offload rate: Offloads full 64K logger in 30 seconds
• • Base Station (1)
  • USB Cable (1)
  • Couplers (5)
• • Datalogger. Compatible Items


  USB Data Loggers - internal sensors only


  - RG3: Rain Gauge Data Logger


  - RG3-M: Rain Gauge (Metric) Data Logger


  - U20-001-01: 30-Foot Depth Water Level Data Logger


  - U20-001-01-Ti: 30-Foot Depth Titanium Water Level Data Logger


  - U20-001-02: 100-Foot Depth Fresh Water Level Data Logger


  - U20-001-02-Ti: 100-Foot Depth Water Level Data Logger


  - U20-001-03250-Foot Depth Water Level Data Logger


  - U20-001-03-Ti250-Foot Depth Water Level Data Logger


  - U20-001-0413-Foot Fresh Water Level Data Logger


  - U20-001-04-Ti13-Foot Depth Titanium Water Level Data Logger

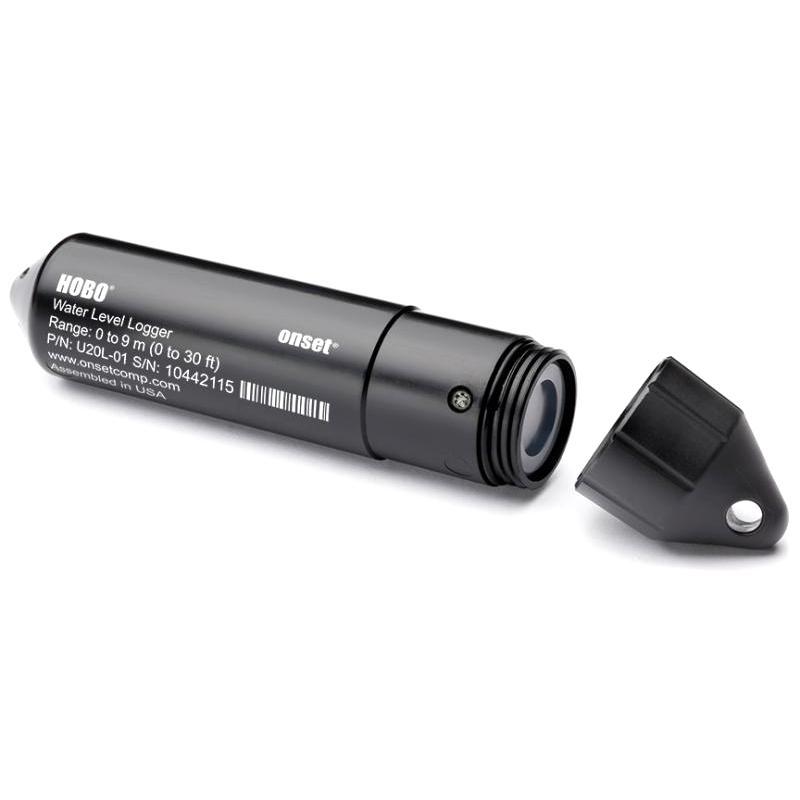

  - U20L-01Water Level (30 ft) Data Logger

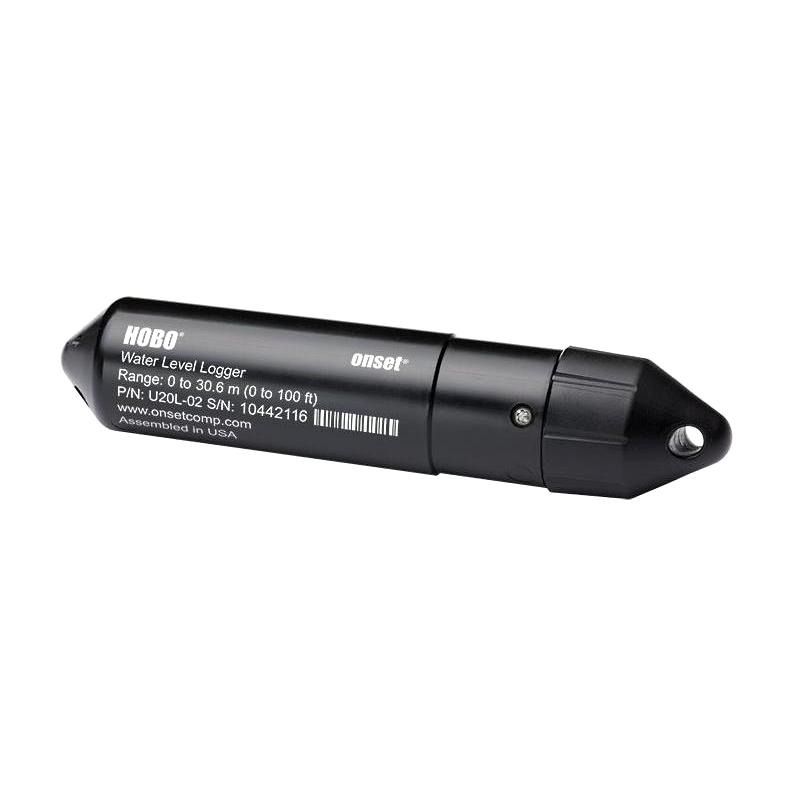

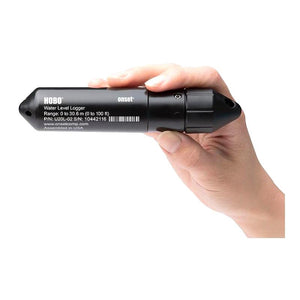

  - U20L-02Water Level (100 ft) Data Logger


  - U20L-04Water Level (13 ft) Data Logger


  - U22-001Water Temperature Pro v2 Data Logger


  - U23-001U23 Pro v2 Temperature/Relative Humidity Data Logger


  - U24-001Fresh Water Conductivity Data Logger


  - U24-002-CSalt Water Conductivity/Salinity Data Logger

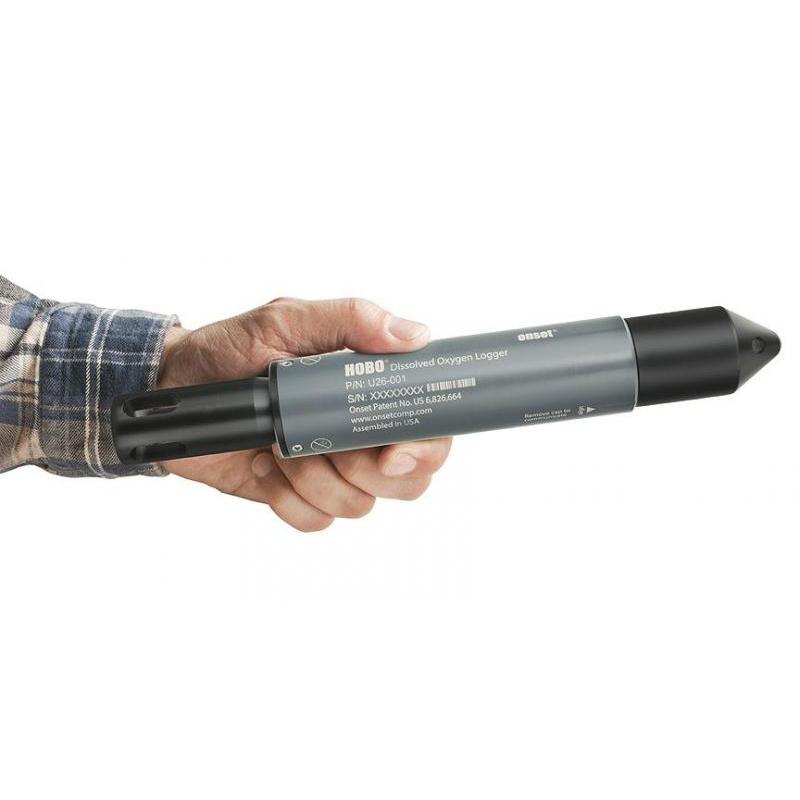

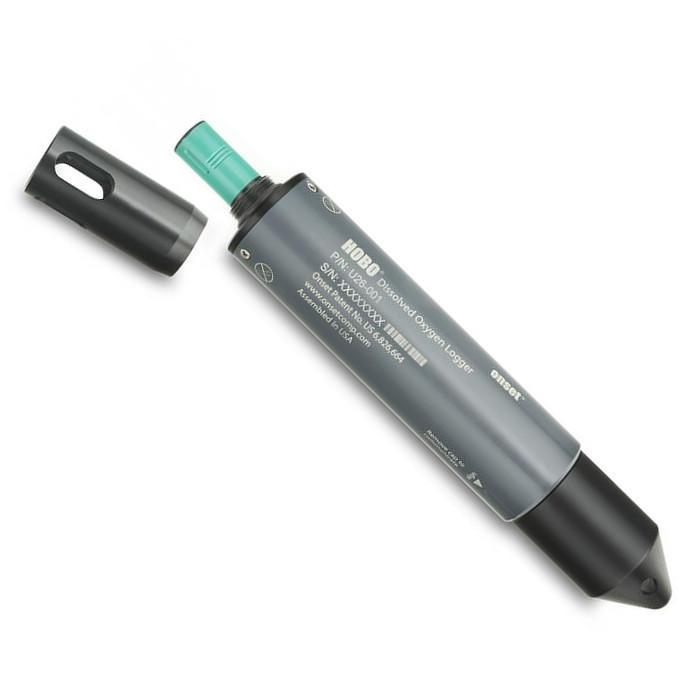

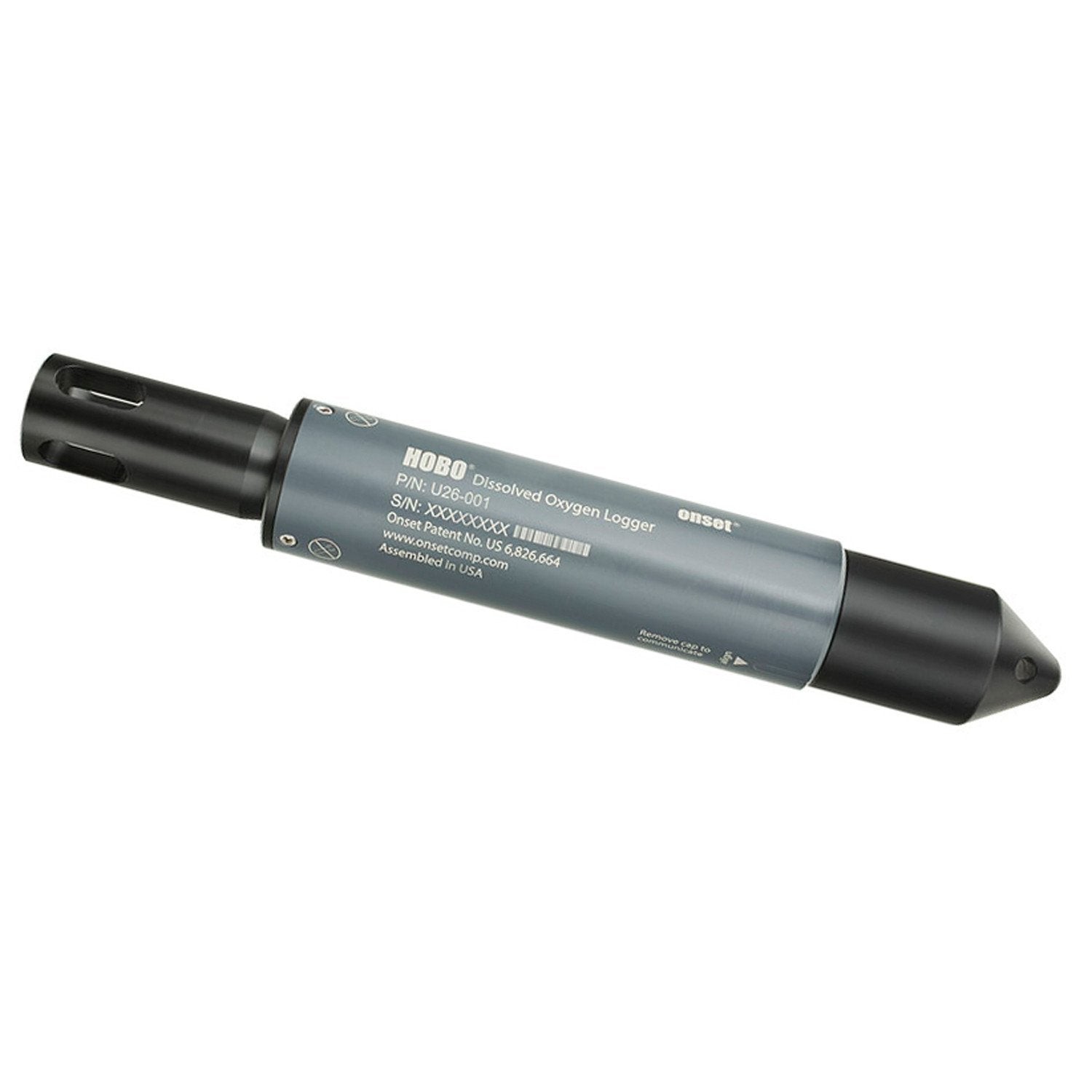

  - U26-001Dissolved Oxygen Data Logger


  - UA-001-08: 8K Pendant® Temperature/Alarm (Waterproof) Data Logger


  - UA-001-64: 64K Pendant® Temperature/Alarm (Waterproof) Data Logger


  - UA-002-08: Pendant® Temperature/Light 8K Data Logger


  - UA-002-64: Pendant® Temperature/Light 64K Data Logger


  - UA-003-64: Pendant® Event Data Logger


  - UA-004-64: Pendant® G Data Logger


  - UTBI-001: TidbiT v2 Water Temperature Data Logger



  USB Data Loggers - w/external sensor(s)


  - U23-002: U23 Pro v2 External Temperature/Relative Humidity Data Logger


  - U23-003: 2x External Temperature Data Logger


  - U23-004: U23 Pro v2 External Temperature Data Logger
• • None

View full product details »

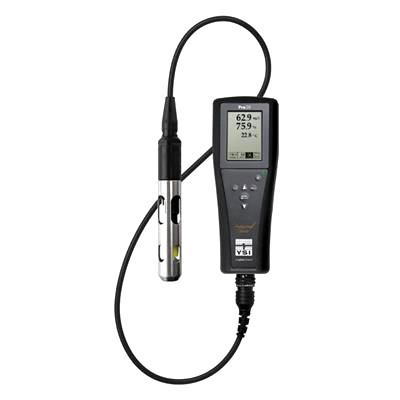

YSI Professional Series Pro20i Dissolved Oxygen Instrument

$ 1,068.75 USD

Dissolved oxygen and temperature handheld instrument with integral (i.e. non-detachable) cable. The Pro20i is a...

View full product details »

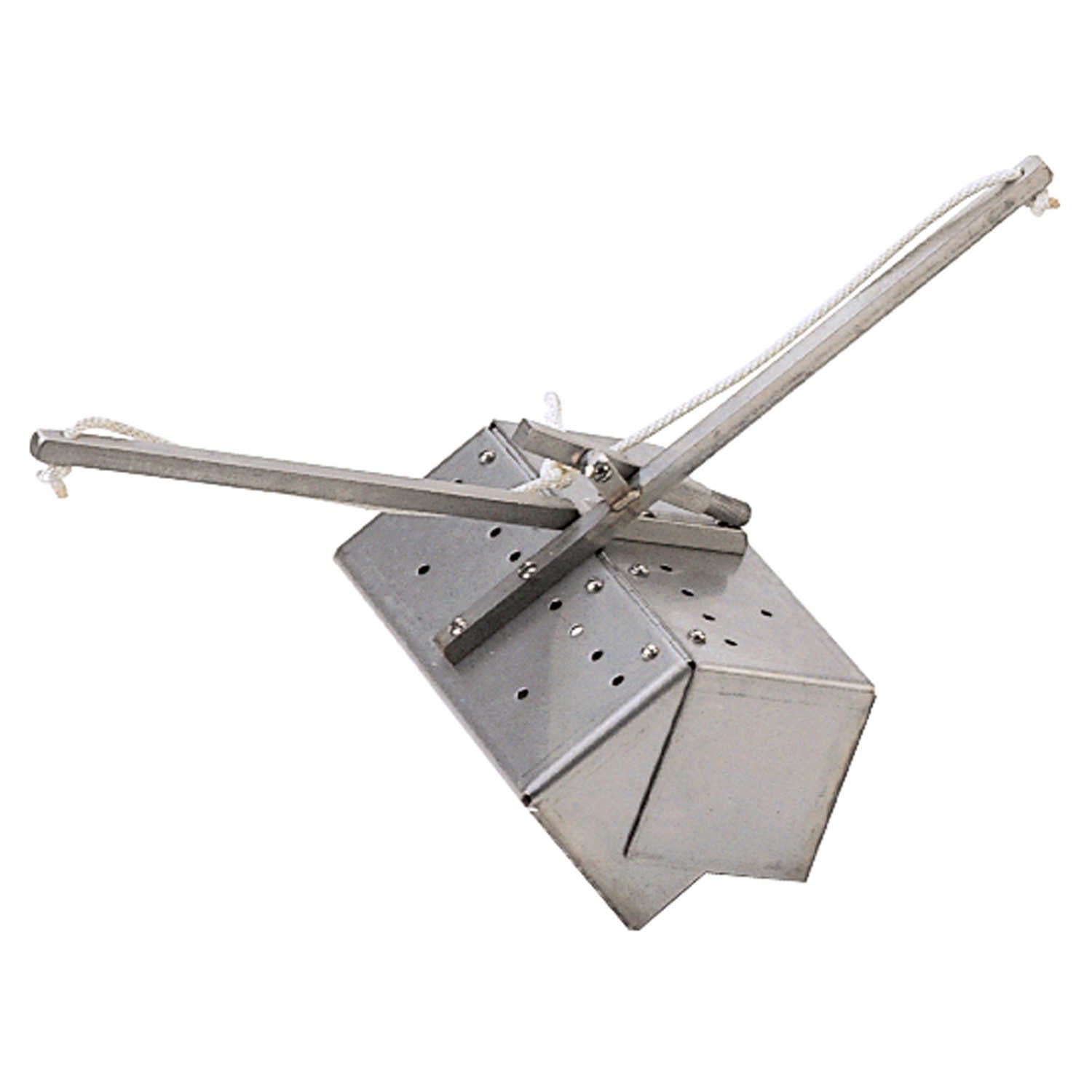

LaMotte Bottom Sampling Dredge

$ 303.00 USD

Stainless steel sampler is designed for use on soft bottoms (sand or silt). A simple...

View full product details »

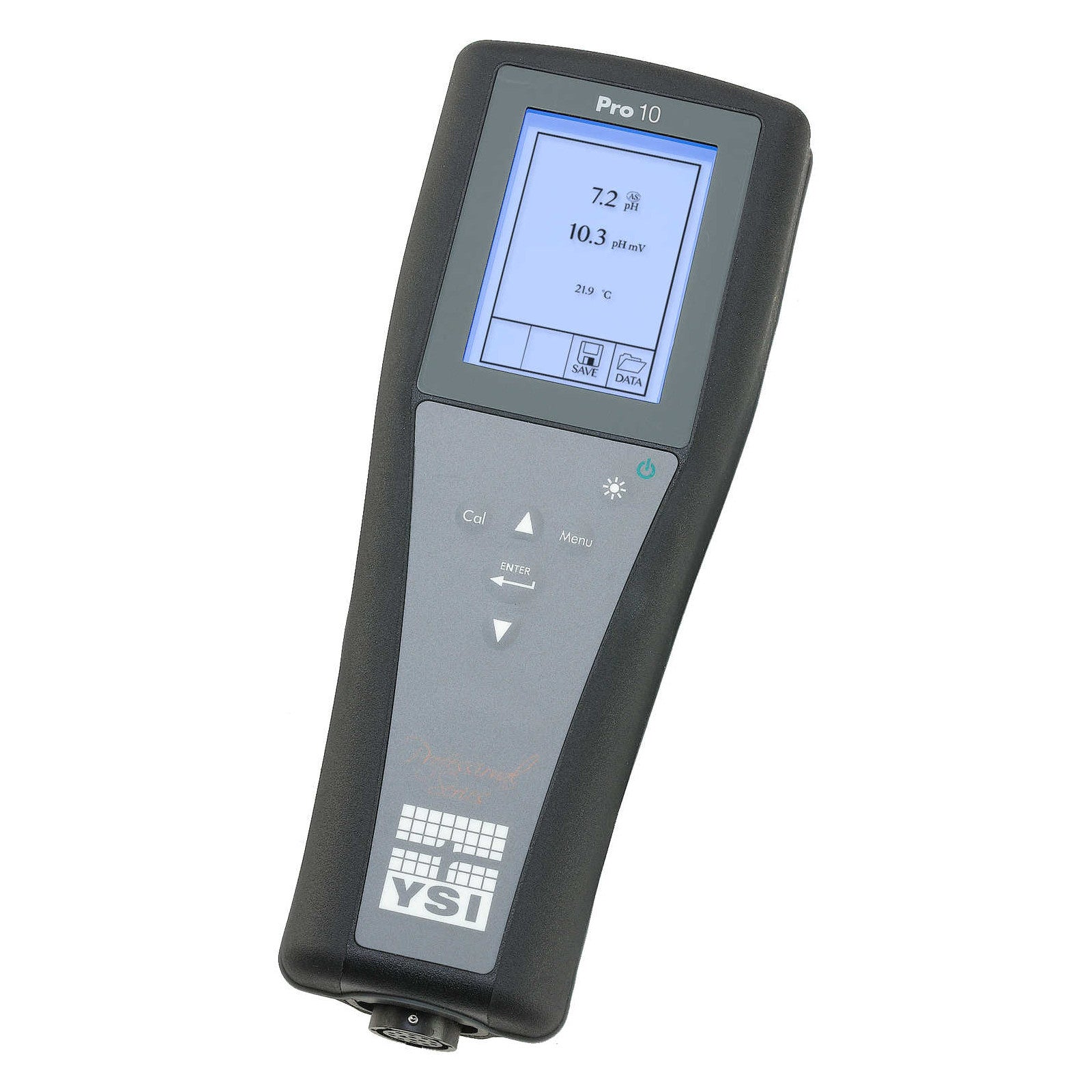

YSI pH Meter Pro10

$ 688.25 USD

Rugged and reliable, the YSI Pro10 provides everything you need in a handheld instrument for the measurement of either pH or ORP along with temperature.

User-replaceable sensors and cables along with convenient calibration routine feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

Caracteristicas Destacadas

• User-replaceable cables and sensors provide versatility, reduce down time and reduce overall cost of ownership.
• Available with 1- 4- 10- 20- and 30-m cable lengths standard (cable management kit included on all cables 4-m and longer).
• Smart calibration; the instrument remembers the previous calibration values and simply walks you through the routine.
• Stores 50 data sets; no need to write down data.
• Large graphic, backlit display and glow in the dark keypad. Usable in any lighting condition. The display is also visible when wearing polarized sunglasses.
• Tough. IP67, impact-resistant, waterproof case. Waterproof without the battery cover as well.
• Rubber over molded case provides extra durability. Military spec connectors are unsurpassed for ruggedness.
• Multiple languages include English, Spanish, French, and Portuguese.

Note: cables and sensors are sold separately

• Specifications
• In the Box
• Required Items
• Optional Items

• • Características
    Certifications:	RoHS, 1-meter drop test, Assembled in USA, IP-67, CE, WEEE
    Connector:	MS (military spec) waterproof with bayonet lock
    Digital / Digital Sensors:	Analog
    Equipment used with:	ProSeries 10-x, 1007-x and 1008-x
    Graphic Display:	Graphic display with detailed Help, backlit display AND keypad
    Languages:	English, French and Portuguese, Spanish
    Logging Capabilities:	Single
    Measurement Range:	pH: -2 to 14 units Temperature: -5 to 55°C ORP: -1500to +1500 mV Temperature: -10 to +120°C (14 to 248°F)
    Memory:	50 data sets
    Multiparameter:	Yes
    Operating pH Range:	0 to 14 units
    Parameters Measured:	Temperature, pH, ORP
    Power:	2 alkaline C-cells provide 425 continuous hours at ambient temperature without backlight
    Sampling:	Yes
    Unit of Measure:	ORP- mV, Temperature- °C, pH-unit
    User Calibratable	Yes
    User Replaceable	Yes
    Waterproof:	IP-67 (even with the battery cover off), floats

• • YSI pH Meter (1)
  • Manual
• • Cables for YSI Pro Series Multiparameter Meters
  • YSI ProDSS 4 Port Cables Assembly
• • Buffer de pH
  • Pinza de cinturon
  • Tripode
  • Abrazadera ultra
  • Solución Zobell, Calibrador ORP

EO20231804

View full product details »

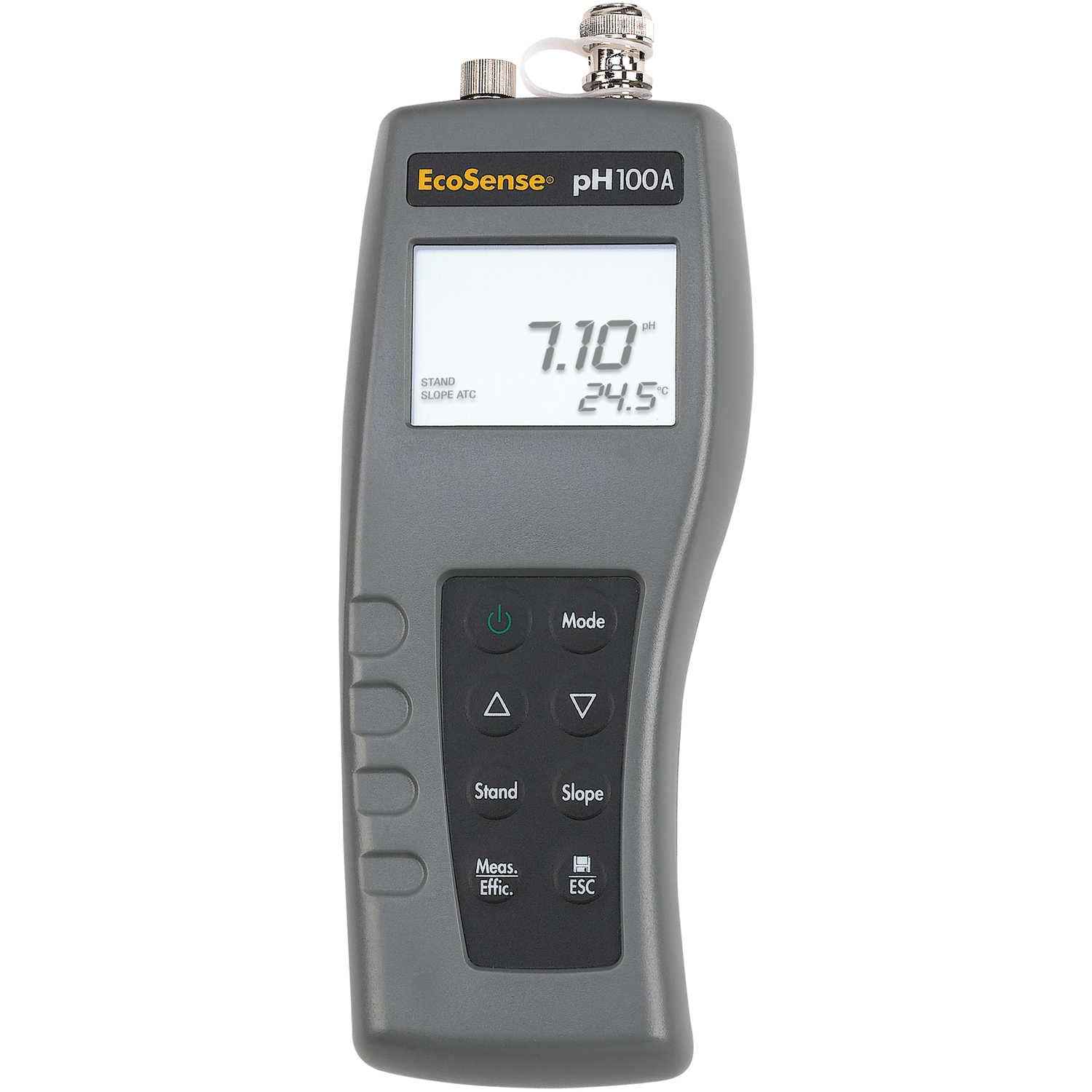

YSI pH/ORP/Temperature Meters EcoSense pH100 Series

$ 328.50 USD

The EcoSense® pH100 Seriess handheld instruments provides accurate and repeatable pH, mV, and temperature measurements...

View full product details »

Folsom’s Plankton Sample Divider Aquatic BioTechnology

$ 620.00 USD

This sub-sampler can Divide the Plankton Samples Successively in Two Equal Halves.

How it Works

The Folsom plankton sub-sampler provides a quick and easy method for dividing large plankton samples into suitable amounts for later analysis.

This plankton sub-sampler divides samples into two equal halves; this process can be repeated successively until the desired sample quantity is reached.

Design Methacrylate box removable divider Includes 2 buckets for pouring the divided sample; these have been designed to facilitate the subsequent management of the sample. Base can be levelled using 4 manually adjusted screws. The base includes a spirit level to facilitate levelling.

• Specifications
• In the Box
• Required Items
• Optional Items

• • Specifications
    Materials	Made of methacrylate	Includes plastic elements in nylon.
    Sizes	Capacity 1 L (150mmØ)	Capacity 2 L (220mmØ).

• • Sub-sampler
  • Manual
• • None
• • None

EO20232403

View full product details »

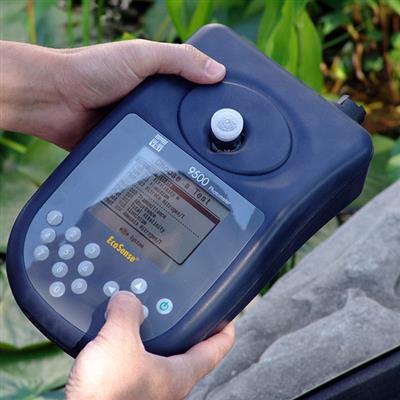

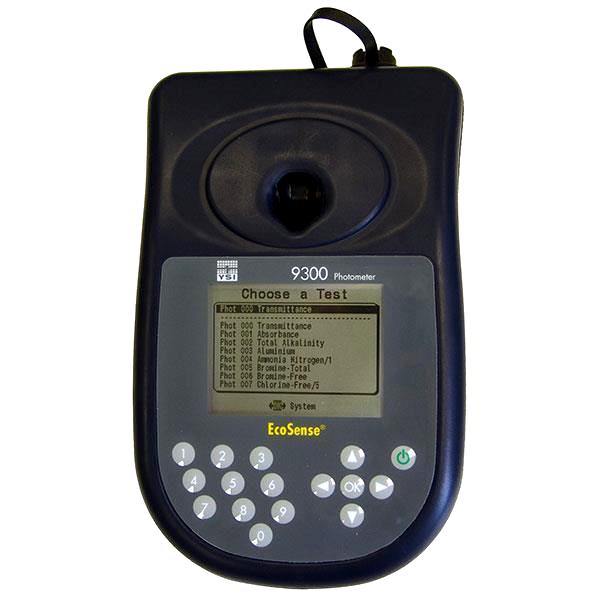

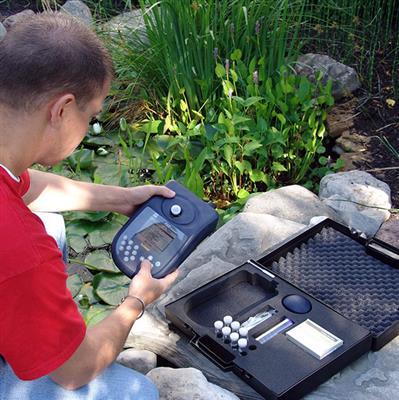

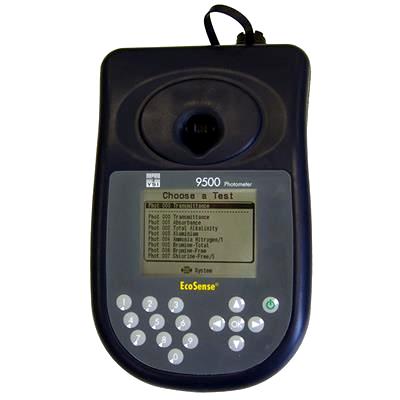

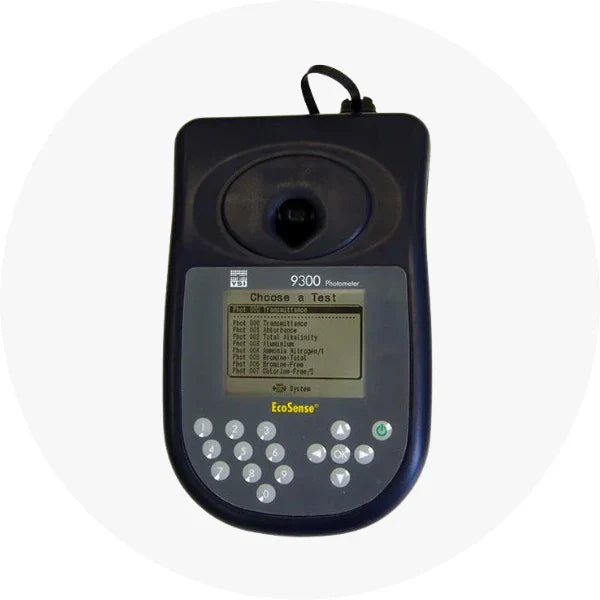

YSI Photometers

$ 1,120.00 USD

View full product details »

Onset HOBO U26-001 Dissolved Oxygen Data Logger

Request Quote

View full product details »

Onset HOBO U24 Conductivity Data Loggers

Request Quote

View full product details »

Oakton Meter pH 6+ pH/°C/mV

$ 374.00 USD

View full product details »

Plunger Sampling Pipettes Hensen

$ 333.95 USD

Easy retrieval of precise small plankton sub-samples The Plunger Sampling Pipettes acc. to Hensen are...

View full product details »

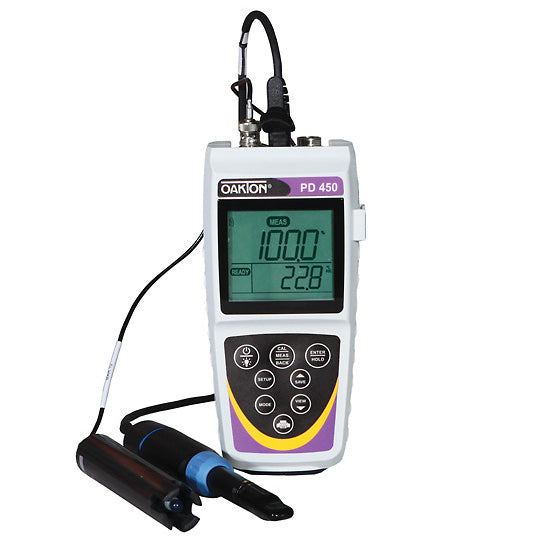

Oakton Waterproof pH/DO/CON 450 Meters

Request Quote

Backlit, rugged waterproof meter is ideal for any environment! Intuitive, user-friendly icons-electrode status displays cell...

View full product details »

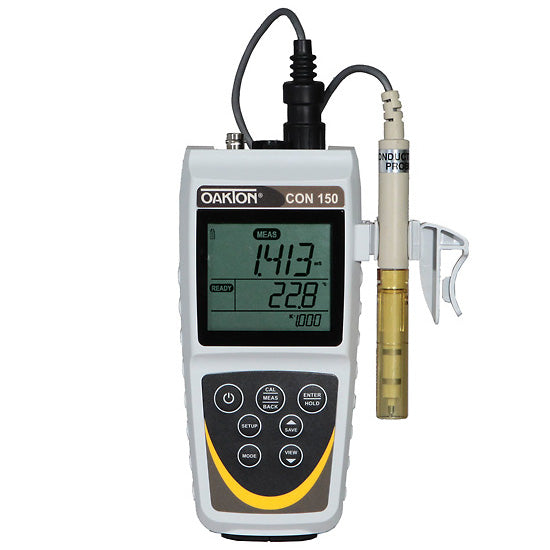

Oakton Waterproof CON 150 Meter

$ 733.75 USD

Rugged, accurate, reliable--best value for an IP67-rated waterproof meter! Intuitive, user-friendly icons-probe status displays cell...

View full product details »

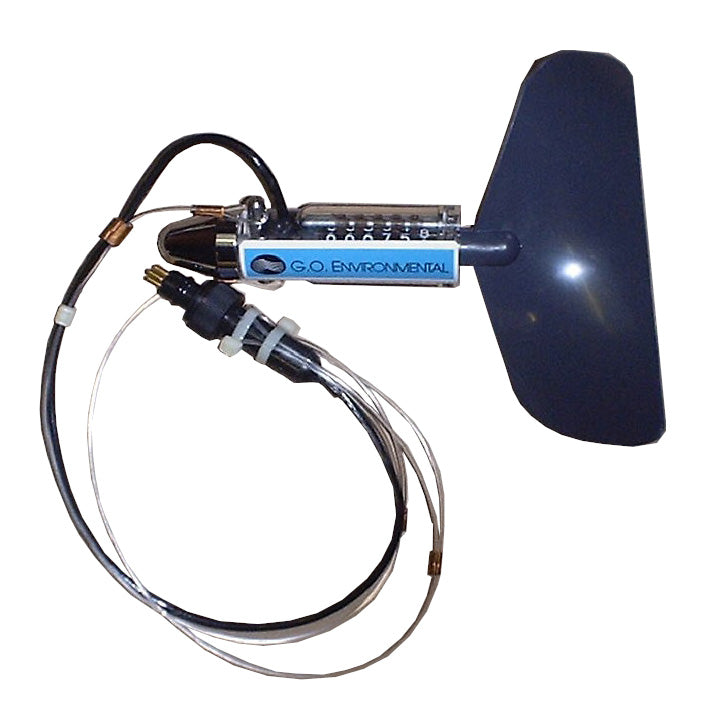

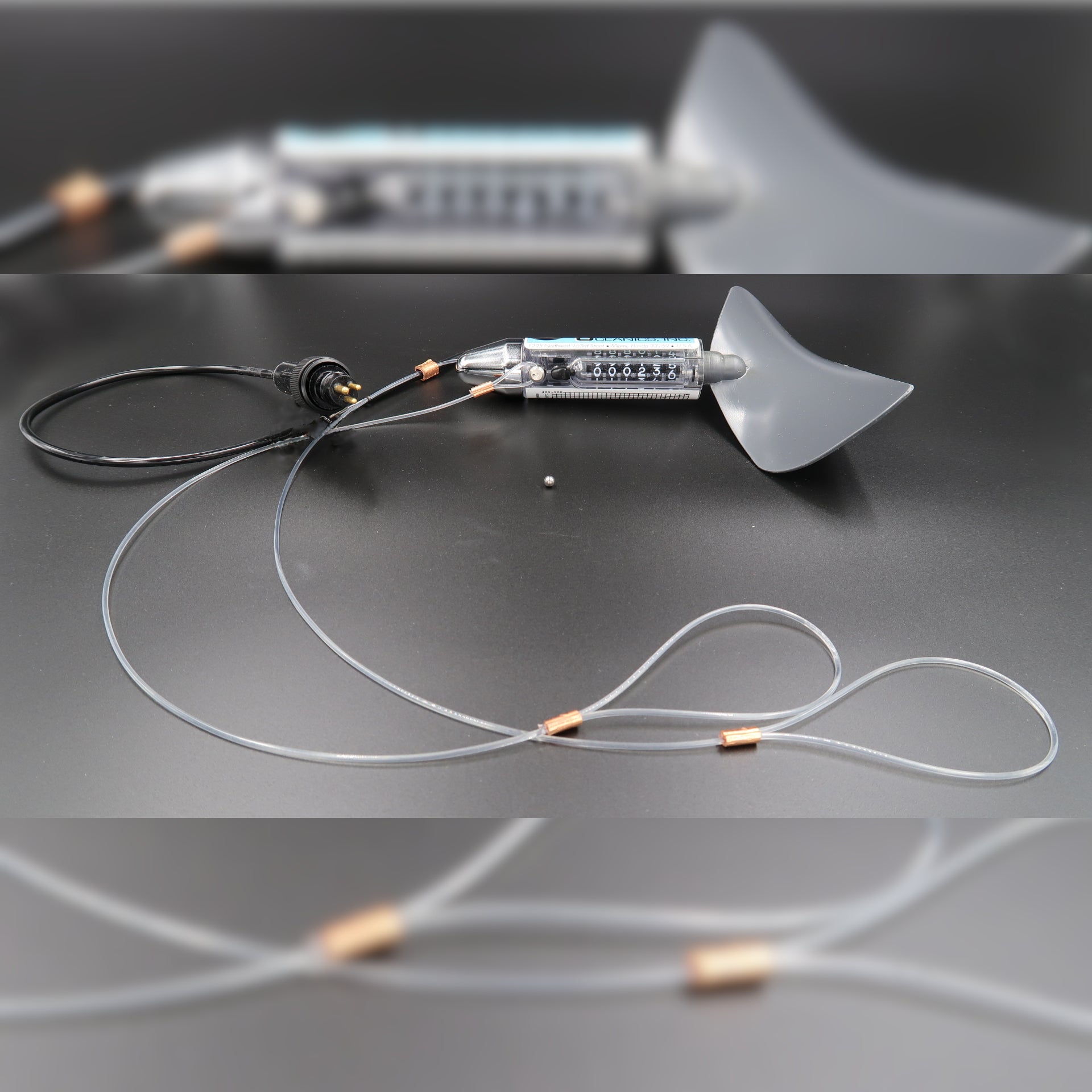

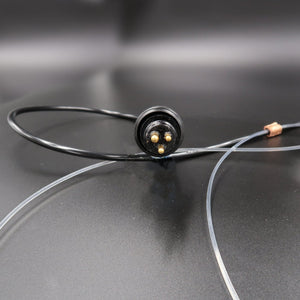

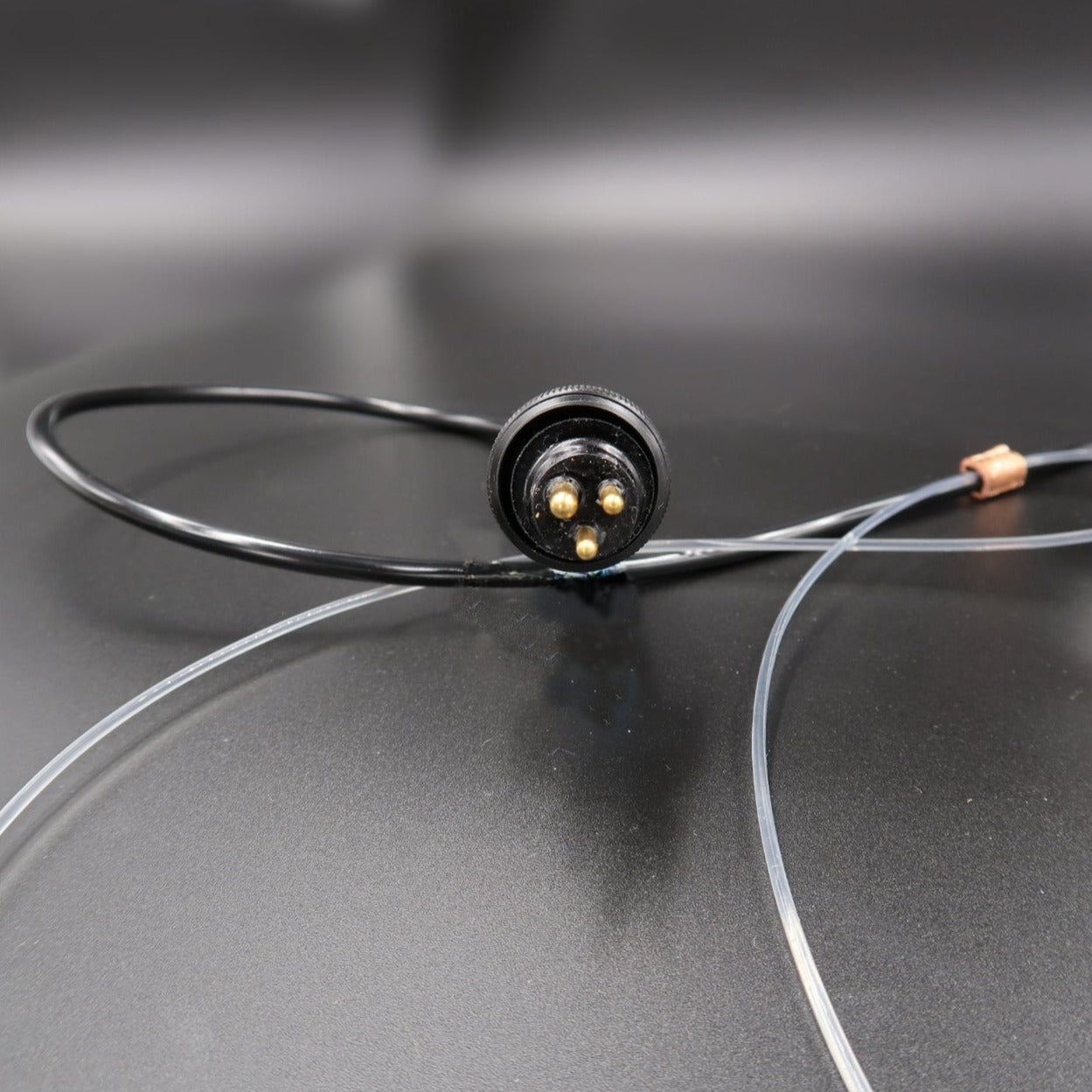

Mechanical Flowmeters GO Environmental w/ Electronic Underwater Connector

$ 1,000.00 USD

Use in rivers, estuaries, canals, sewer outfalls, pipes, and harbor entrances to determine velocity and distance information or use with plankton nets to determine water volume associated with each tow. Both models incorporate precision molded rotors coupled directly to six digit counters which record each rotor revolution.

Supplied with a standard calibration curve (number of counts/unit time vs. velocity) sealed inside transparent body. A single pin and lanyard system located ahead of the lateral center of mass allows the flowmeter to maintain correct dynamic alignment with the fluid flow in which it is immersed. The ref. 2030H6 with a rotor of 7 in, is ideal for slow water (6 to 100 cm/sec) and ref. 2030H with a rotor of 3 in, is ideal for faster water (10 to 790 cm/sec). Include a 18" pigtail and an underwater connector. Max operating temp. 140°F (60°C).

Available extension handle for use of mechanical flowmeters in streams and moving water. 8 feet extends up to measure the flow of current hard to reach.

Flujómetro Mecánico, flowmeter

• Specifications
• In the Box
• Required Items
• Optional Items
• Documents

• • Data readout: Six 10-digit counter wheel reading 000000 to 999999. Ten counts per rotor revolution, non-resetting. Read by noting difference in beginning and end readings. Counter advances through 000000. 999999 counts equals approximately 14.5 nautical miles.
  • Speed Range: With standard rotor, approx. 10cm/sec (1/5 knot) to 7.9 meters/sec (15 knots).
  With low-speed rotor, approx. 6cm/sec (3/25 knot) to 100cm/sec (2 knots).
  • Mounting: Universal bridle allowing single-point connection for towing or two-point connection within net mouth. 3-point connection ring is also available as an option. High-speed impeller rotates clockwise, low-speed impeller rotates counterclockwise.
  • Weight in Air:  225 grams (8 ounces).
  • Weight in Water: 113 grams (4 ounces).
  • Materials: Polycarbonate body, Celcon impeller, nickel-plated brass nose cone, Armalloyed stainless steel rotor and idler gear shafts. PVC low-speed impeller available as an option.
  • Dimensions: 21.3cm (8 3/8”) overall length. Standard rotor diameter is 6.98cm (2 3/4”). Low-speed rotor diameter is 16.5cm (6 1/2”).
  • Depth Rating: Unlimited (free flooding). Standard order of a 2030 series flowmeter includes universal bridle, standard or low-speed rotor. Standard order of a 2031 series flowmeter includes universal bridle, standard or low-speed rotor and pigtail (short length of cable and underwater connector for connection to readout cable. Readouts and other options to be ordered separately.
• • Flowmeter (1)
  • Manual
• • Data Adquisition Readout for Electronic Flowmeters
  or


  • Direct Readout Adaptor
• • Extension Handle
• • User’s Manual (English)

View full product details »

YSI 556 Handheld Multiparameter Instrument - Discontinued

$ 1,824.00 USD – Sold Out

Rugged, reliable and waterproof, the YSI 556 MPS (Multiprobe System) combines the versatility of an...

View full product details »

ICES Incubator Hydro-Bios

$ 5,035.00 USD

ICES standard for phytoplankton primary production measurements.

One of the most important marine processes is the formation of organic material resulting from the interaction of carbon dioxide, water and sunlight, a process known as photosynthesis. The ability to measure this process is of great importance when assessing marine pelagic systems. In practice the best way to measure photosynthesis is to look at the absorption of carbon dioxide. The high sensitivity of carbon dioxide absorption measurements allows to use this method under all circumstances. Neither low or very high algal concentrations nor low light conditions and low temperatures are restrictions for this method.

Based on the 14C method, using the absorption of the radio-active 14C isotope of carbon (Steemann-Nielsen, 1952), the ICES Incubator is the ICES standard for phytoplankton primary production measurements.The incubator shown here has been mainly developed for monitoring purposes. It should be used preferably for water samples taken from a mixed water layer with a fixed temperature. Measurements of the amount of phytoplankton (based on chlorophyll-a concentration measurements) should be carried out for interpretation purposes.

The ICES Incubator consists of an illuminated transparent plexiglass tank incorporating a turning wheel on which 12 experimental bottles can be clamped. The tank is filled with water which is set in motion by an adjustable circulating pump. Thus the turning wheel is set in rotation at speeds up to 10 rpm with the experimental bottles acting as paddles. Tank connections for a second water circulation allow for temperature adjustments of the water by using external tempering equipment.

The 12 experimental bottles of 50 ml capacity each have different optical coatings, so that each bottle has individual transmission rates and thus generating a number of 12 different irradiance (or light intensity) levels. The illumination unit is equipped with 10 fluorescent tubes with a wave spectrum according to ICES specifications, each can be switched individually. For higher irradiance levels a second illumination unit can be mounted onto the ground plate of the ICES Incubator.

• Specifications
• In the Box
• Required Items
• Optional Items

• ICES Incubator:
  - 1 Ground plate with fixing screws for plexiglass tank and illumination unit, Dimensions: 510 x 325 x 20 mm
  - 1 Centrifugal pump (power supply 220 - 240 V AC, 50 / 60 Hz required), Hauling capacity: 10 l/min. 2 PVC tubings, 415 mm long
  - 1 Illumination Unit with 10 individually switchable fluorescent tubes (power supply 220 - 240 V AC, 50 / 60 Hz required) Dimensions: 350 x 335 x 150 mm
  - 1 Plexiglass tank with diaphragm valve and hose nozzles, Dimensions: 350 x 400 x 100 mm
  - 1 Turning wheel for 12 experimental bottles Dimensions: 180 mm dia.

  Experimental Bottles:
  50 ml capacity with optical coating, transmission rates: 0 - 100 %
• ICES Incubator:
  - 1 Ground plate
  - 1 Centrifugal pump
  - 1 Illumination Unit
  - 1 Plexiglass tank
  - 1 Turning wheel
• None
• - Spare Fluorescent Tubes
  - Experimental Bottles
  - Illumination Unit

Incubador ICES, Incubadora ICES

View full product details »

Hydrobios Integrated Water Collector 100m

Request Quote

View full product details »

Hydro-BIOS Bottom Samplers acc. to Van Veen

$ 2,015.00 USD

The Bottom Sampler acc. to Van Veen is a qualitative sampler to achieve low-disturbed sediment samples in soft or medium hard grounds from any desired depth. It consists of two clamshell jaws connected by a hinge. During descent both levers are locked wide apart and the jaws are open. Upon touching the water bed the locking mechanism is released and when the rope is pulled taut to raise the sampler the jaws close. During retrieval the jaws are holding the sample and prevent sample wash-out. Additional flaps on top of the heavy version 437 333 allow to inspect the sample before retrieving.

• Specifications
• In the Box
• Required Items
• Optional Items

• Ref.	Overall Size	Material	Grasping Area	Weight
  437-330	20x30x60 cm	Stainless Steel	250 cm²	5.5 kg
  437-332	35x42x90 cm	Stainless Steel	1000 cm²	25 kg
  437-333	36x45x90 cm	Stainless Steel	1250 cm²	35 up to 65 kg

• - Grab (1)
  - Messenger (1)
  - Line (1)
• - None
• - Messenger

Dragas Ekman

Dredge, Dredges, Draga

View full product details »

Hydro-BIOS Bottom Samplers acc. to Ekman-Birge

$ 2,205.00 USD

The Bottom Sampler acc. to Ekman-Birge is a quantitative sampler with precise sampling area to achieve nearly undisturbed samples in soft grounds. It consists of a sturdy-walled metal cabinet equipped with two spring-loaded jaws which are released by a messenger. Two light plates cover the top opening of the sampler to prevent the sample from being washed out during ascent.

• Specifications
• In the Box
• Required Items
• Optional Items

• Ref.	Box Size (cm)	Material	Optional	Grasping Area	Weight
  437-200	15x15x20	Powder-coated Brass	None	225 cm²	3.5 kg
  437-201	15x15x20	Powder-coated Brass	w/ Perforated Stainless Steel Plate	225 cm²	3.5 kg
  437-210	15x15x20	Powder-coated Brass	Lead-weighted	225 cm²	7.5 kg
  437-212	15x15x20	Stainless Steel	None	225 cm²	3.5 kg
  437-213	15x15x20	Stainless Steel	Lead-weighted	225 cm²	7.5 kg
  437-214	20x20x35	Stainless Steel	None	400 cm²	7.0 kg
  437-215	20x20x35	Stainless Steel	Lead-weighted	400 cm²	11.0 kg

• - Grab (1)
  - Messenger (1)
  - Line (1)
• - None
• - Messenger

Dragas Ekman

Dredge, Dredges, Draga

View full product details »

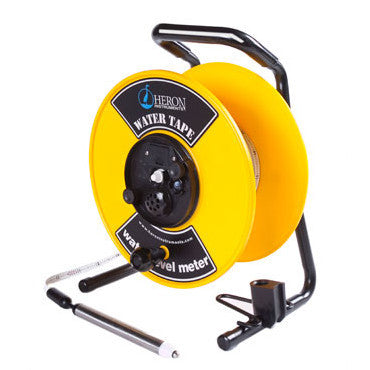

Heron Water Level Meters Water Tape

$ 715.00 USD

Static & drawDown Levels

This economical water level indicator is ideal for measuring the water level of wells, bore holes, and standpipes. It signals when water is reached with accuracies to 1/100" of a foot or 1 mm. We use a high quality polyethylene tape, indeibly heat stamped with markings in engineering scale. The tape is reinforced with Kevlar fibers and flexible enough to wind smoothly onto the nylon reel and hangs straight in the well. No on/off switch is needed since, when contact is made, the water shorts the probe to complete a circuit.

Buy with confidence knowing that your quality water level indicator tape will perform over the long term. It is backed by a three year warranty.

The Tape: Kevlar reinforced polyethylene dog bone section with stainless steel conductors. Lengths up to 100 m are available.

The Probe: A 6 mm (5/8”) diameter, 19 mm (7 ½”) long probe of stainless steel and Teflon. The probe has no holes or recesses which might trap contaminants and is water tight to the full depth of the tape. An optional non-submersible 3/8 inch diameter probe is available upon request. (Note:The 3/8” (10 mm) probe should not be used to sound the well).

The Electronics: The fully encapsulated circuitry is protected against dirt and moisture.

The Reel: A tough nylon or aluminum reel mounted on a sturdy powder coated steel frame. A soft vinyl hand grip, ergonomic reel lock and casing hangar are seamlessly incorporated in the frame.

• Specifications
• In the Box
• Required Items
• Optional Items

• - Reel Weight: 2.4 kg
  - Height: 356 mm (14”)
  - Width: 279 mm (11”)
  - Depth: 241 mm (9.5”)
  - Probe Weight: 154 g
  - Length: 176 mm (6.9”)
  - Diameter: 16 mm (0.625”)
  - Depth Rating: Full Length of Tape
  - Wetted Materials: Stainless Steel, Viton, Delrin and Teflon
  - Power Source: 9 Volt Alkaline
  - Operating Mode: Static Water Level
  - Sensitivity Control: Stainless Steel and Aluminum construction
  - Audio/Visual Indication: Ultra bright Red LED and 80 db buzzer
  - Tape Jacketing: Polyethylene
  - Tape Conductors: 7 strand (4 Stainless Steel and 3 Copper)
• - Water level meter (1)
• - None
• - Case

Medidor del Nivel del Agua Heron

Freatímetro

View full product details »

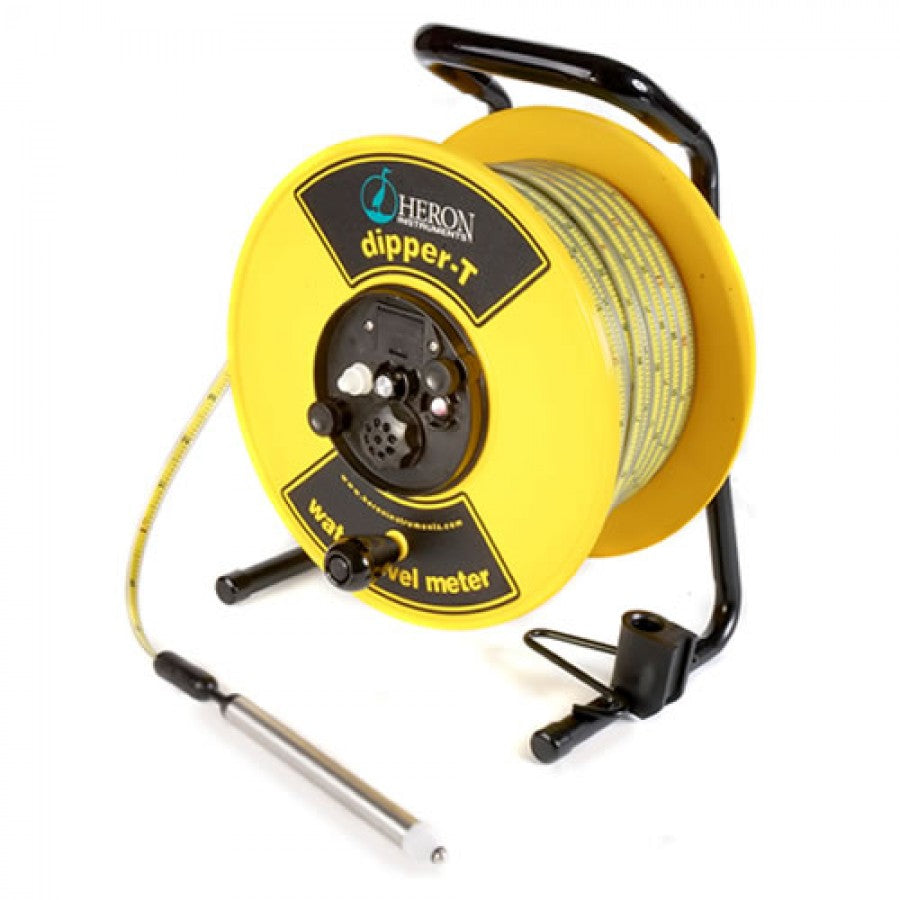

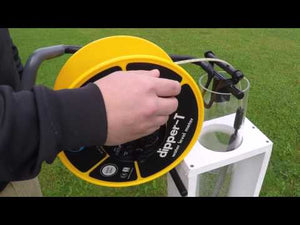

Heron Water Level Meters Dipper-T

$ 852.00 USD

Four Function Water Level Meter

The dipper-T water level meter is designed for well drillers, consultants and hydrogeologists all across the globe. The dipper-T is manufactured for professionals who require the most accurate measurements of water levels, length of well-casing and total well-depth.

The Heron dipper-T is renowned for its premium, polyethylene coated yellow steel tape accuracy in measuring depth to water. Available in your choice of either metric or engineering scale.

The dipper-T water level meter can be conveniently converted to a multi-functional instrument, not only able to measure static and falling head levels, but also to determine the length of casing and well depth. The water level sensing probe can be easily removed at the link connection and substituted with either the Well Casing Indicator Probe or Well Depth Indicator Probe. The FOUR FUNCTION capability of the dipper-T water level meter makes this unit an asset to groundwater professionals and rural property owners during the construction of new wells, maintaining wells or decommissioning abandoned wells.

Static mode is used for measuring the depth of water in wells, boreholes and standpipes. DrawDown mode is used for measuring falling water levels during purging, well development and for low flow sampling.

The Well Casing Indicator Probe (Sold separately) is used to measure the depth of metal casing in wells and boreholes from two inches in diameter and upward. The Well Casing Indicator Probe works using magnetism. While the probe sits within the magnetic field of the steel casing, an auditory and visual signal is active. When the probe leaves the magnetic field the signal stops. Note the condition of the well for accurate readings. Recommended Use: New Construction Only (Old/Imperfect casing may cause false or inaccurate readings when using this probe).

The Well Depth Indicator Probe (or bottom detector; Sold separately) is used to measure the full depth in wells and boreholes. The Well Depth Indicator Probe uses a pressure sensitive plunger to measure the distance to the bottom of the well. When the Well Depth Indicator Probe reaches the bottom of the well, the plunger enters the probe body closing a switch, initiating an audible and visual signal at the top of the well.

It is the User's responsibility to ensure chemical, temperature, radiative, and shock compatibility with their site(s) before, during and after deployments. Not doing so will void any and all warranties.

• Specifications
• In the Box
• Required Items
• Optional Items

• Specifications (English)
• - Water level meter (1)
• - None
• - Case
  - Well Depth Indicator Probe
  - Well Casing Indicator Probe

Medidor del Nivel del Agua Heron

Freatímetro

View full product details »

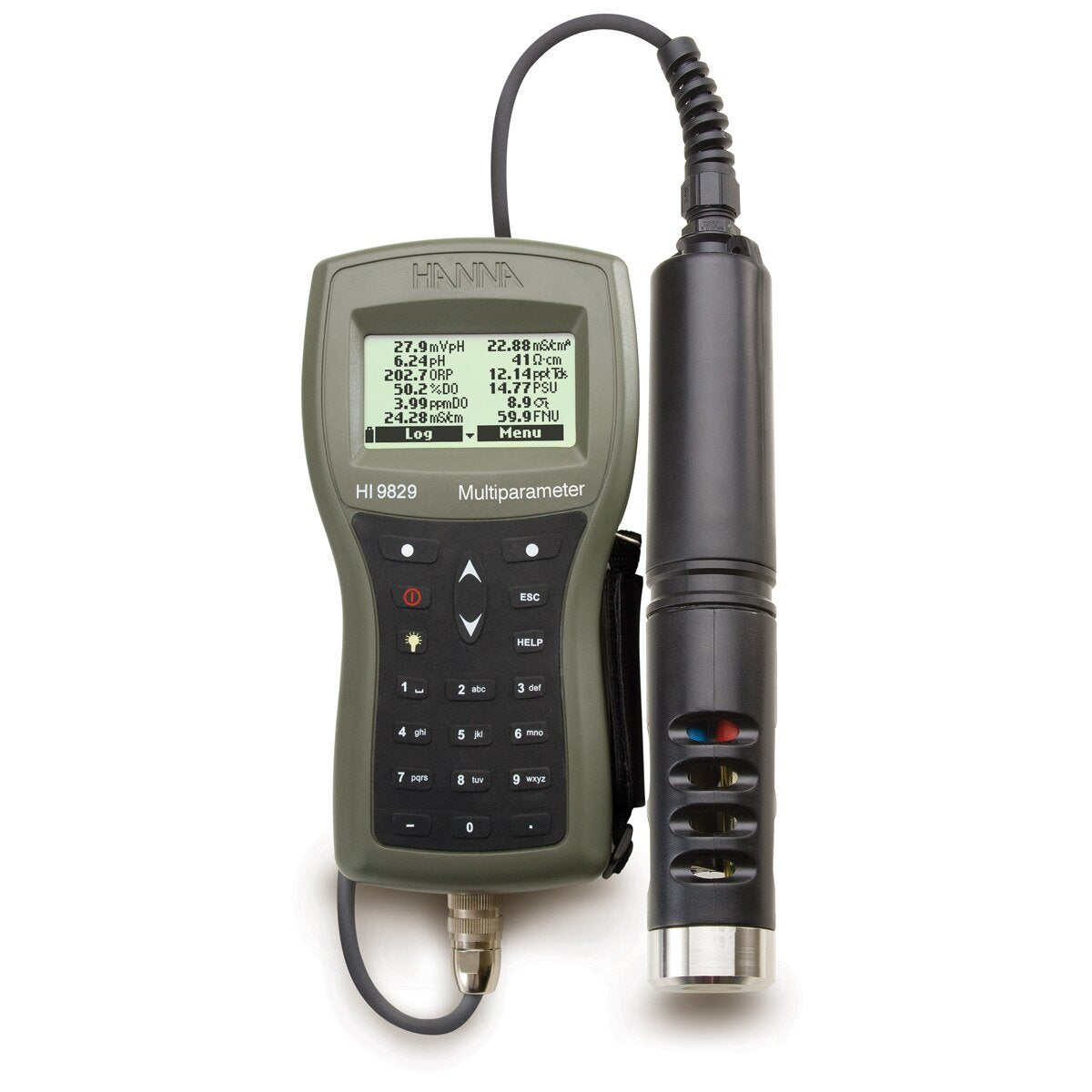

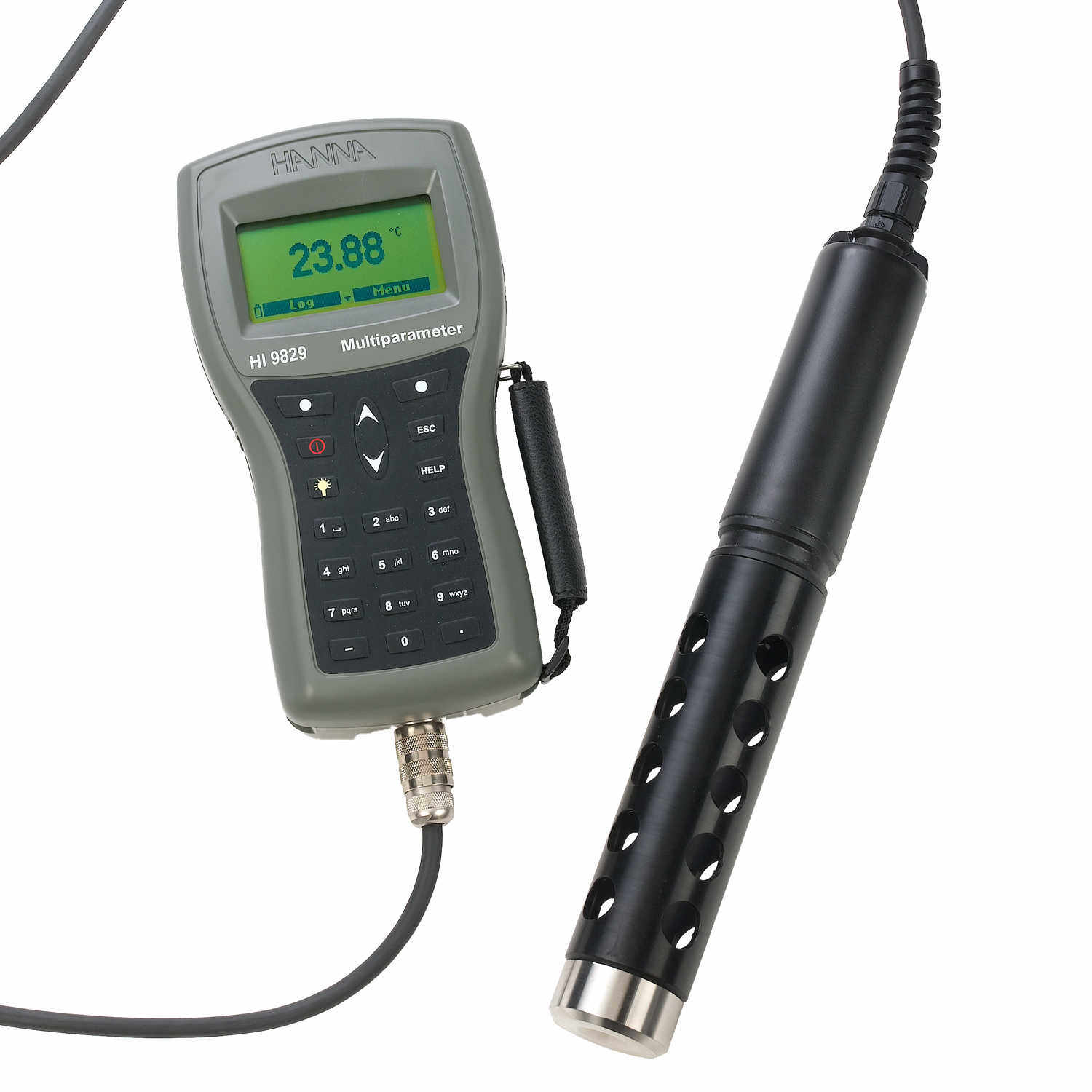

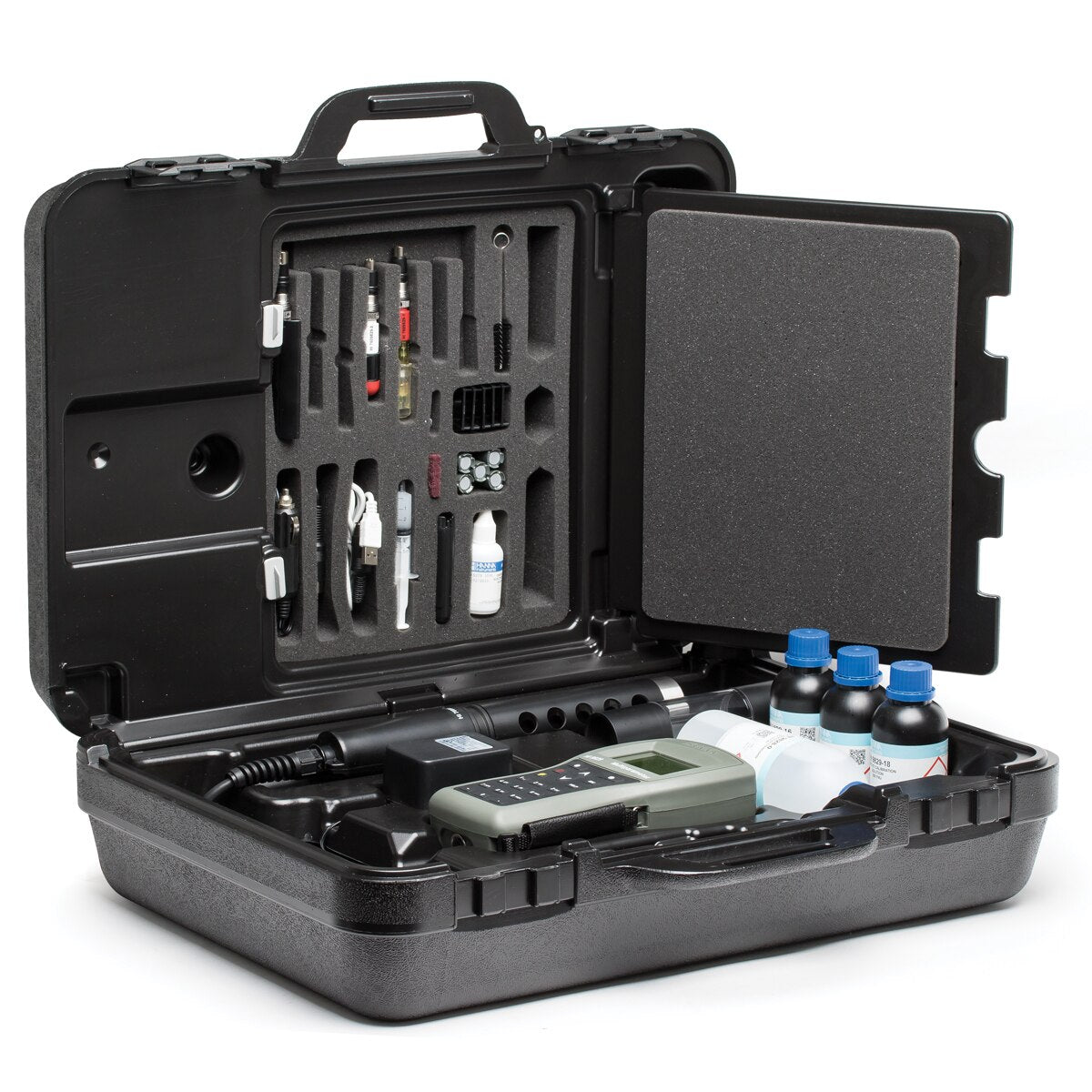

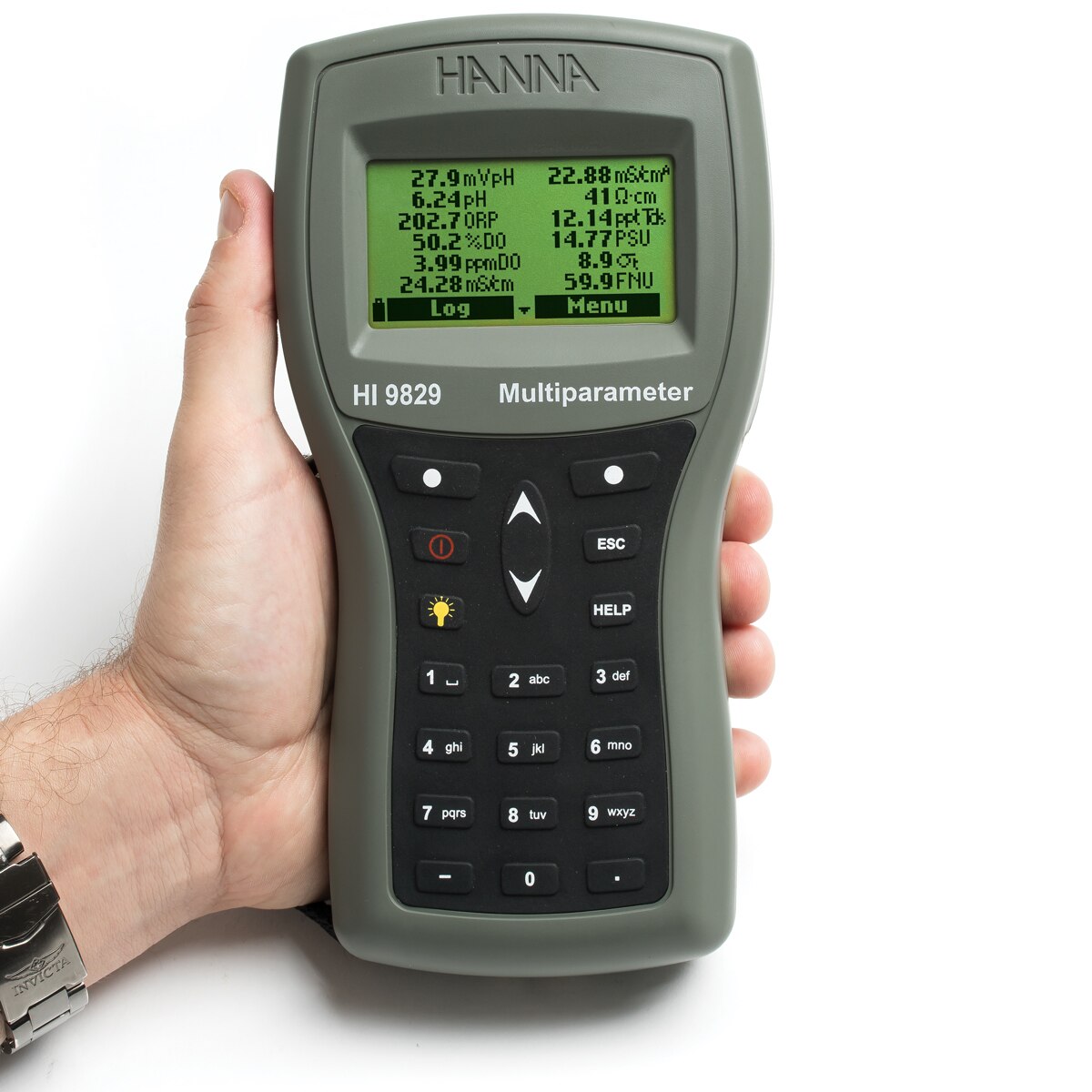

Hanna Instruments® Model 9829 Meters

$ 3,777.90 USD

The HI9829 is a waterproof portable logging multiparameter meter that monitors up to 14 different...

View full product details »

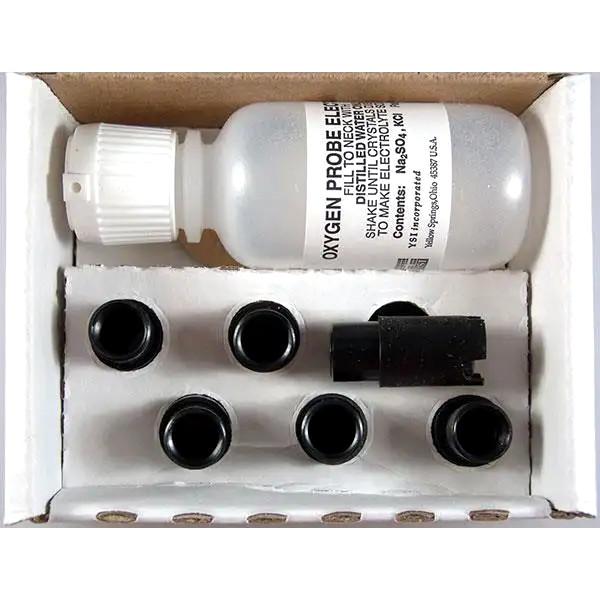

YSI Maintenance Kit

$ 155.25 USD

Basic maintenance kit for all YSI 6-Series sondes except the 600R. Includes: 1 probe installation/removal...

View full product details »

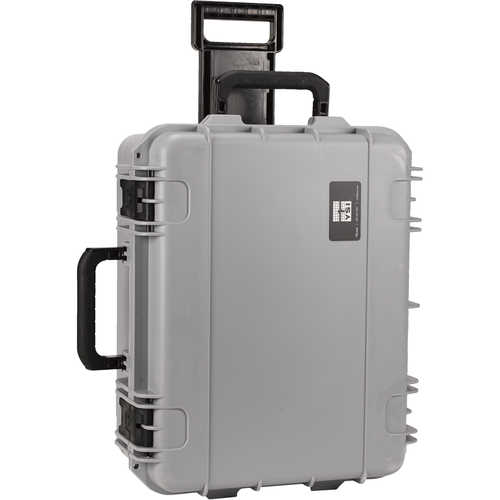

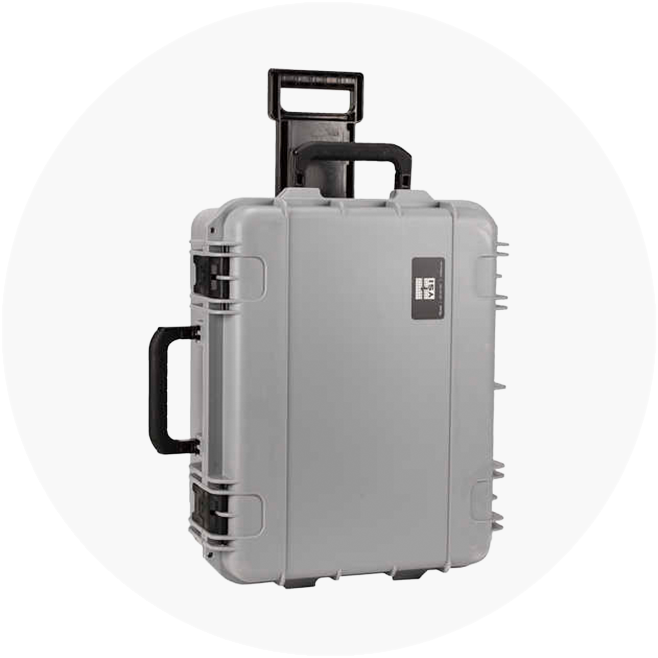

ProDSS Hard-sided Carrying Cases

$ 353.00 USD

A removable foam insert is pre-installed for smaller diameter cables such as the ProDSS ODO/CT...

View full product details »

Pro20 Dissolved Oxygen Meter

$ 570.00 USD

The YSI Pro20 dissolved oxygen meter is a rugged, user-friendly instrument for dissolved oxygen measurement. The Pro20 can be used in the lab or the field and can go from one to the other in seconds.

User-replaceable sensors and cables and convenient One Touch Cal feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP-67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro20 results in a low total cost of ownership over the life of the product.

Fast response times with the Polarographic or Galvanic dissolved oxygen sensors allow you to complete your sampling routine quickly. The long life of the Polarographic sensor saves time and money and reduces your overall cost. The Galvanic sensor enables you to start sampling immediately without a warm-up period. Either sensor you choose for the field will give you accurate, quality data.

Instrument only. Cables, probes / sensors, and accessories are sold separately.

Outstanding Features:

• Internal barometer for highest accuracy.
• Choose field DO sensors (Polarographic or Galvanic) or lab BOD probe for BOD in wastewater.
• One Touch Cal calibrates within 3 seconds with the push of a button.
• Stores 50 data sets.
• Graphic, backlit display and glow in the dark keypad.
• Available with 1, 4, 10, 20, 30 or 100-meter cables.
• View display with polarized sunglasses on.
• Fastest response time on the market with 95% response in 8 seconds with standard membrane.
• Multiple languages include English, Spanish, French and German.
• User replaceable sensors and cables .

• Especificaciones
• En la Caja
• Artículos Requeridos
• Artículos Opcionales
• Manuales

• Specs
  Certifications	IP-67, RoHS, Assembled in USA, CE, 1 meter drop test, WEEE
  Conector	MS (military specification) waterproof with bayonet lock
  Digital Sensors	Analogous term
  Graphic Display	Backlit display AND keyboard, graphical display with help
  Languages	English, Spanish, French, German
  Measuring Range	0 a 500%; 0 a 50 mg / l
  Memory	50 data sets
  Multiparameter	Yes
  Measured Parameters	Temperature, dissolved oxygen, built-in barometer
  Power	2 alkaline C cells provide 450 continuous hours at room temperature without backlight
  Sampling	Yes
  Unit of Measurement	air saturation, mg / L, Barameter-mmHg, ° F, Temperature- ° C, Dissolved oxygen-%
  User Calibrable	Yes
  Replaceable by User	Yes
  Raincoat	floats, IP-67 (even without the battery cover)

• • Pro20 Dissolved Oxygen Meter (1)
• • Cables for YSI Pro Series Multiparameter Meters

  • Dissolved Oxygen Sensors for YSI Pro Series Meters
• • BOD Probe for YSI Pro20 and Professional Plus Meters

• • User manual (Inglés)
  • Technical Specifications Manual (Español)

(S 22/9/2021, S 20210415)

View full product details »

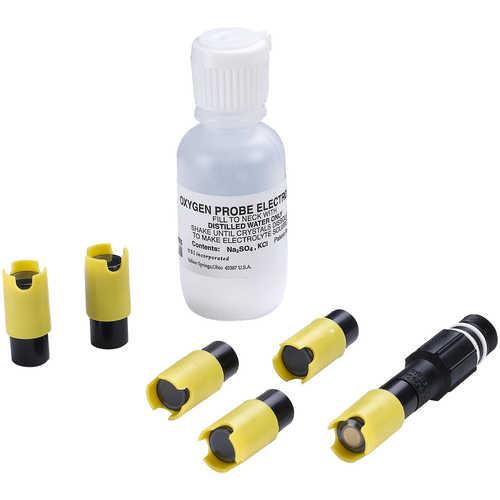

Dissolved Oxygen Sensors for YSI Pro Series Meters

$ 220.00 USD

Sensors for Pro20, Pro20i, Pro1020, Pro2030 and Pro Plus instruments. easy to replace by the...

View full product details »
